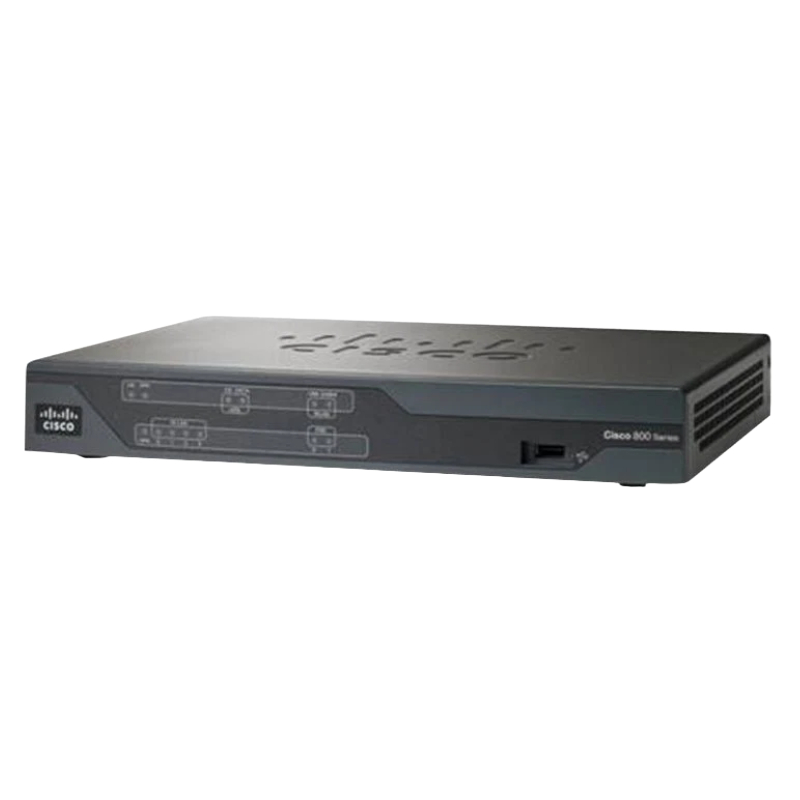

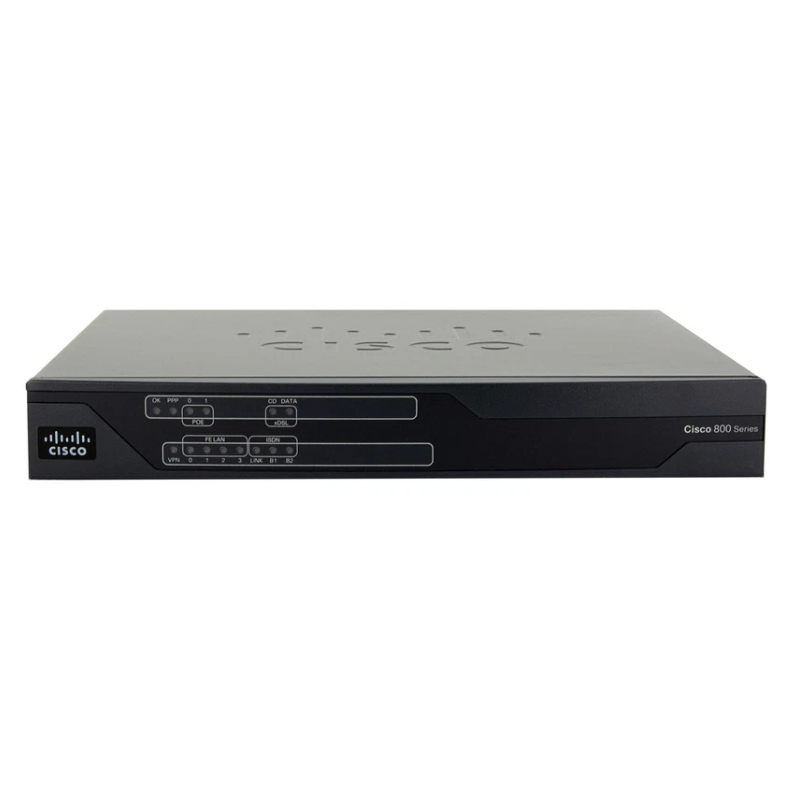

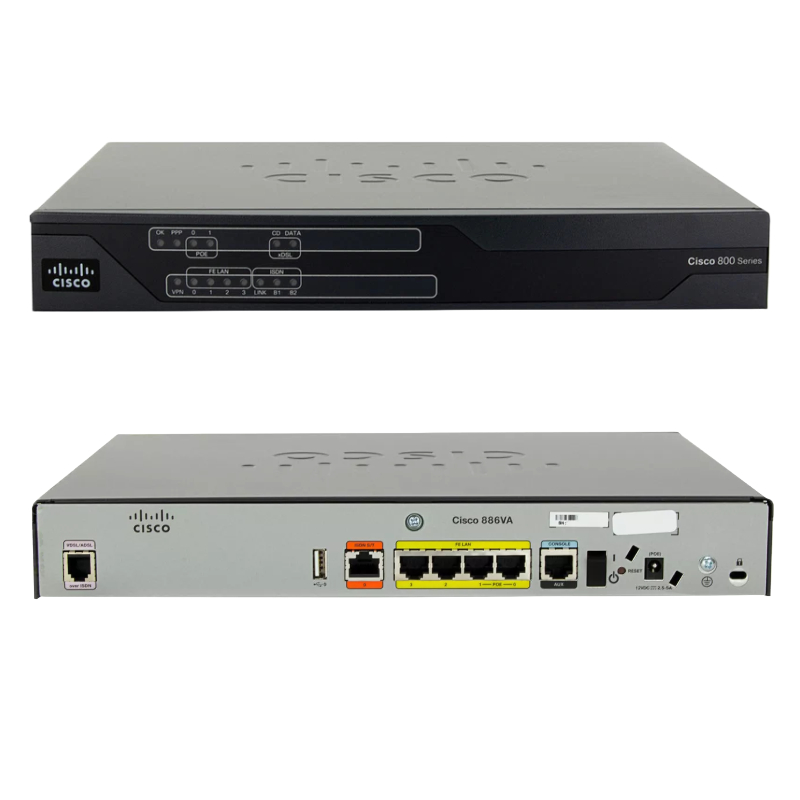

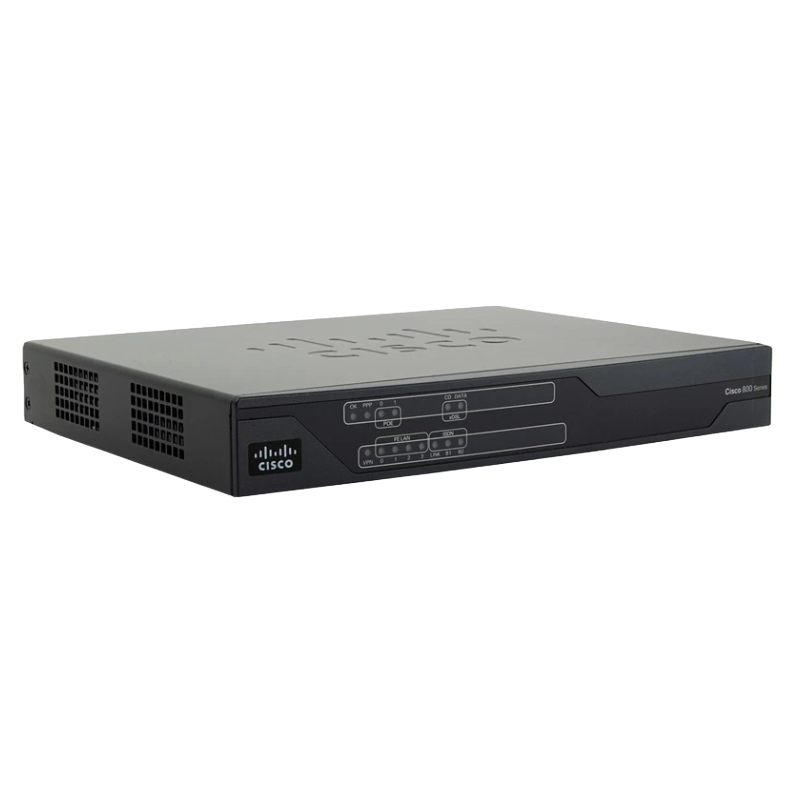

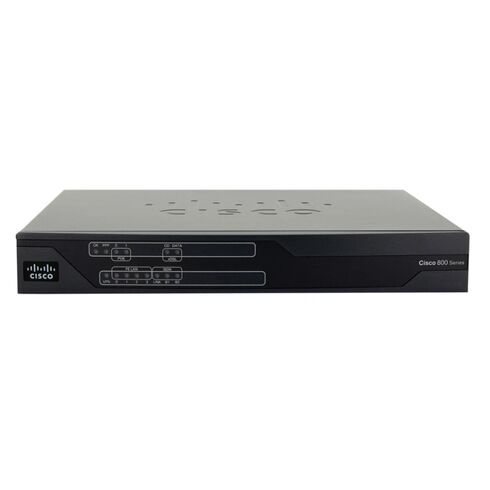

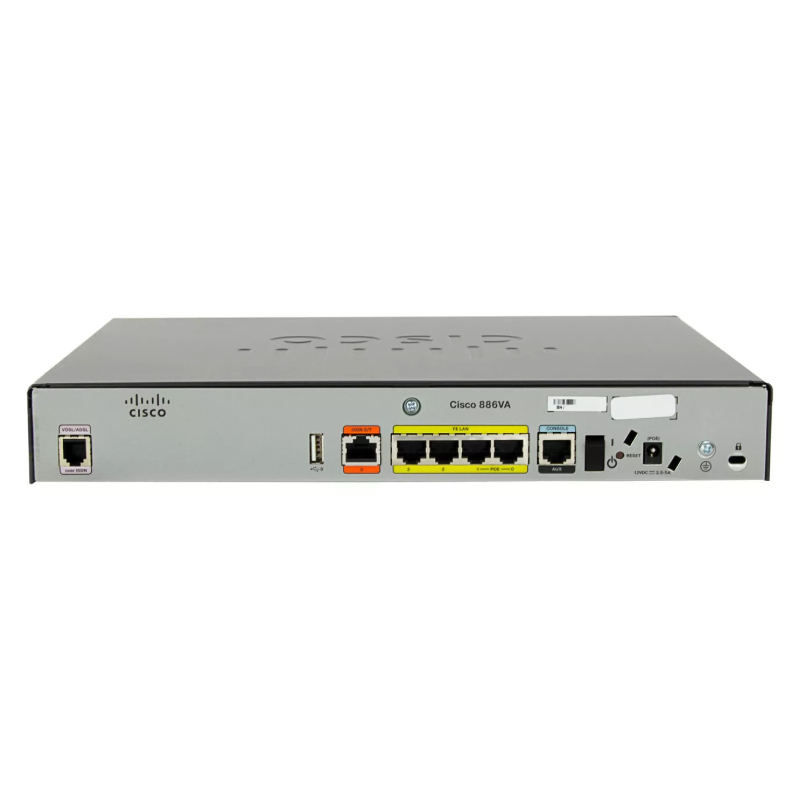

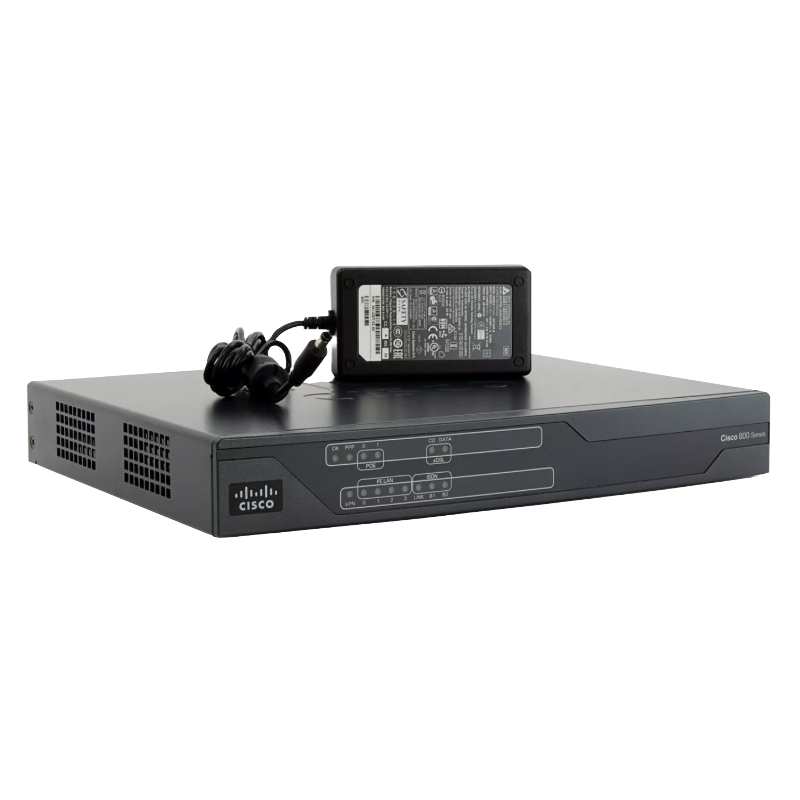

C886VA-K9 Cisco 886 VDSL/ADSL Over ISDN Multi-Mode 4 Ports Router

Overview Cisco C886VA-K9 VDSL/ADSL Over ISDN Router

The Cisco C886VA-K9 is a robust networking solution designed for enterprises and small offices requiring dependable broadband connectivity. With integrated ISDN backup and advanced routing protocols, this router ensures seamless communication and secure data transfer.

General Information

• Manufacturer: Cisco
• Part Number: C886VA-K9
• Product Type: Multi-Mode Router

Technical Information

Connectivity & Interfaces

• WAN Interface: Multimode VDSL2 and ADSL2/2+ over ISDN
• LAN Switching: 4-port 10/100 Mbps managed Fast Ethernet switch
• ISDN Backup: Integrated ISDN BRI S/T port for dial backup and business continuity
• PoE Support: 2 LAN ports with Power over Ethernet (PoE) capability for IP phones or access points (requires optional power supply)
• USB Port: 1 x USB 1.1 port for security tokens, booting, or configuration loading
• Console Port: 1 x RJ-45 port for local management and setup

Performance & System Specs

Memory

• Standard 256 MB DRAM (expandable to 768 MB)
• 256 MB Flash memory

Cooling

• Fanless design for quiet operation in office environments

Routing Protocols

• BGP (Border Gateway Protocol)
• EIGRP (Enhanced Interior Gateway Routing Protocol)
• OSPF (Open Shortest Path First)
• RIP-1 and RIP-2
• HSRP (Hot Standby Router Protocol)

Security Features

Encryption

• DES
• 3DES
• AES

Firewall & VPN

• Stateful inspection firewall
• Hardware-accelerated VPN support
• Up to 20 IPsec tunnels

Physical & Power Specifications

Dimensions

• Height: 1.9 inches (48 mm)
• Width: 12.8 inches (325 mm)
• Depth: 9.8 inches (249 mm)

Weight

• Approximately 5.5 lbs (2.5 kg)

Power

• External 60W power adapter
• Input: 100–240 VAC

C886VA-K9 886 VDSL/ADSL Over ISDN Multi-Mode Router

The Cisco C886VA-K9 886 VDSL/ADSL over ISDN multi-mode router is engineered to deliver high-performance networking for small to medium-sized business environments that require reliable WAN connectivity. Designed with integrated services capabilities, this router combines robust routing, security, and wireless functionality into a single compact platform. Its architecture supports multi-mode DSL connectivity, enabling seamless operation over VDSL, ADSL, and ISDN networks, making it ideal for geographically diverse deployments.

Multi-Mode DSL Integration

The device features integrated VDSL2 and ADSL2+ capabilities, ensuring compatibility with a wide range of broadband infrastructures. This flexibility allows organizations to deploy the router in environments with varying ISP technologies without requiring additional hardware. The built-in DSL modem reduces operational complexity and improves network reliability by minimizing external dependencies.

ISDN Backup Functionality

The integrated ISDN interface provides automatic failover support, ensuring business continuity during DSL outages. When the primary connection fails, the router seamlessly switches to ISDN, maintaining uninterrupted access to critical applications and services. This feature is particularly valuable for businesses that rely on constant connectivity for operations such as VoIP, remote access, and cloud services.

Seamless WAN Transition

The intelligent WAN failover mechanism operates in real-time, minimizing downtime and preserving session continuity. This capability ensures that users experience minimal disruption, even during network failures, enhancing overall productivity and operational efficiency.

Comprehensive Security Capabilities

The Cisco C886VA-K9 router incorporates enterprise-grade security features designed to protect sensitive data and network resources. It supports advanced encryption protocols, firewall protection, and intrusion prevention mechanisms, making it a reliable choice for secure networking environments.

Integrated Firewall Protection

The router includes a stateful inspection firewall that monitors incoming and outgoing traffic, preventing unauthorized access. This built-in security layer helps safeguard internal networks from external threats while allowing legitimate traffic to flow seamlessly.

Virtual Private Network Support

Support for IPsec VPN and SSL VPN enables secure remote access and site-to-site connectivity. Businesses can establish encrypted tunnels between remote offices or allow employees to securely connect to the corporate network from remote locations.

Advanced Threat Mitigation

The device supports advanced security features such as access control lists, zone-based firewall policies, and network address translation. These capabilities help mitigate risks associated with cyber threats and ensure compliance with security standards.

High-Performance Routing and Switching

The Cisco C886VA-K9 router is equipped with four integrated Ethernet ports, allowing for efficient LAN connectivity. These ports support high-speed data transfer and enable seamless integration with other network devices such as switches, access points, and servers.

Optimized Data Forwarding

The router utilizes advanced routing protocols to ensure efficient data forwarding across networks. It supports dynamic routing protocols such as OSPF, EIGRP, and BGP, enabling intelligent path selection and optimized network performance.

Quality of Service Management

Quality of Service features allow administrators to prioritize critical traffic such as voice and video. This ensures consistent performance for latency-sensitive applications, even during periods of high network congestion.

Bandwidth Optimization

Traffic shaping and policing mechanisms enable efficient bandwidth utilization, ensuring that network resources are allocated appropriately across different applications and users.

Integrated Wireless Connectivity

The Cisco C886VA-K9 router includes built-in wireless capabilities, providing seamless connectivity for mobile devices and wireless clients. This eliminates the need for separate wireless access points, reducing infrastructure costs and simplifying network management.

Secure Wireless Access

The integrated wireless module supports advanced encryption standards such as WPA2, ensuring secure communication between devices. This helps protect sensitive data transmitted over wireless networks.

Scalable Wireless Deployment

The router supports multiple SSIDs, allowing businesses to create separate wireless networks for employees and guests. This enhances security and provides better control over network access.

Enhanced Mobility Support

With reliable wireless connectivity, employees can move freely within the workplace while maintaining consistent access to network resources and applications.

Performance Optimization

The Cisco C886VA-K9 router is optimized for high performance, ensuring efficient data processing and minimal latency. Its advanced features enable businesses to achieve optimal network performance.

Energy Efficiency

The device is designed with energy-efficient components, reducing power consumption and operational costs. This makes it an environmentally friendly networking solution.

Scalable Performance

The router can accommodate increasing network demands, ensuring consistent performance as business requirements evolve. Its scalability makes it a future-proof investment for growing organizations.

Technical Specifications and Hardware

The Cisco C886VA-K9 router features a compact yet powerful hardware design that supports a wide range of networking functionalities. Its specifications are tailored to meet the needs of modern business environments.

Port

The router includes four Ethernet ports for LAN connectivity, enabling seamless integration with other network devices. These ports support high-speed data transfer, ensuring efficient communication within the network.

DSL and ISDN Interfaces

The integrated DSL and ISDN interfaces provide versatile connectivity options, allowing the router to operate in diverse network environments. This flexibility ensures compatibility with various service providers.

Compact Form Factor

The router’s compact design allows for easy installation in different settings, including desktops and wall-mounted configurations. Its space-saving design makes it suitable for small office environments.
