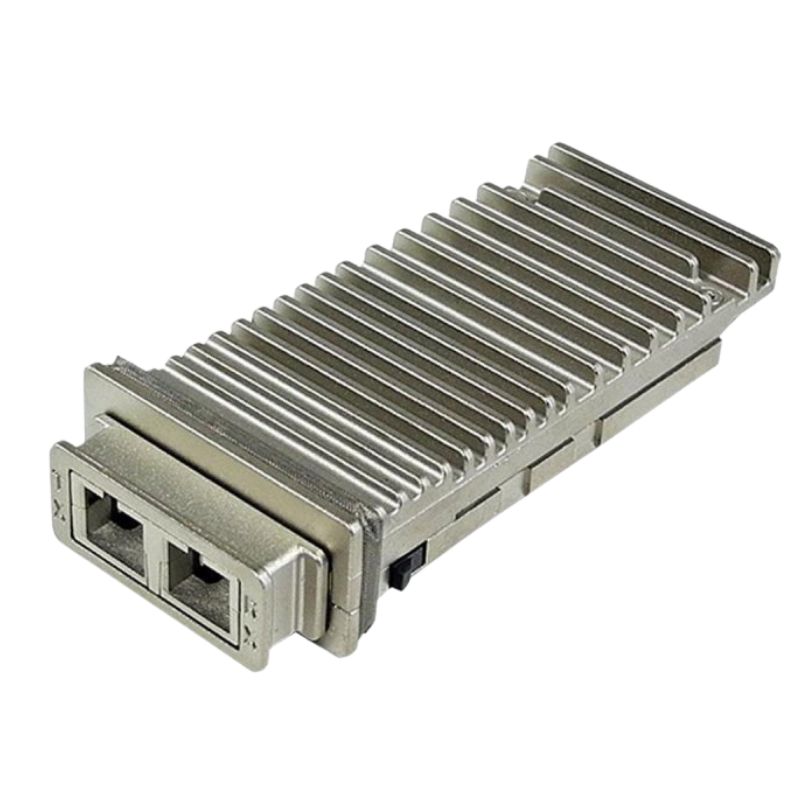

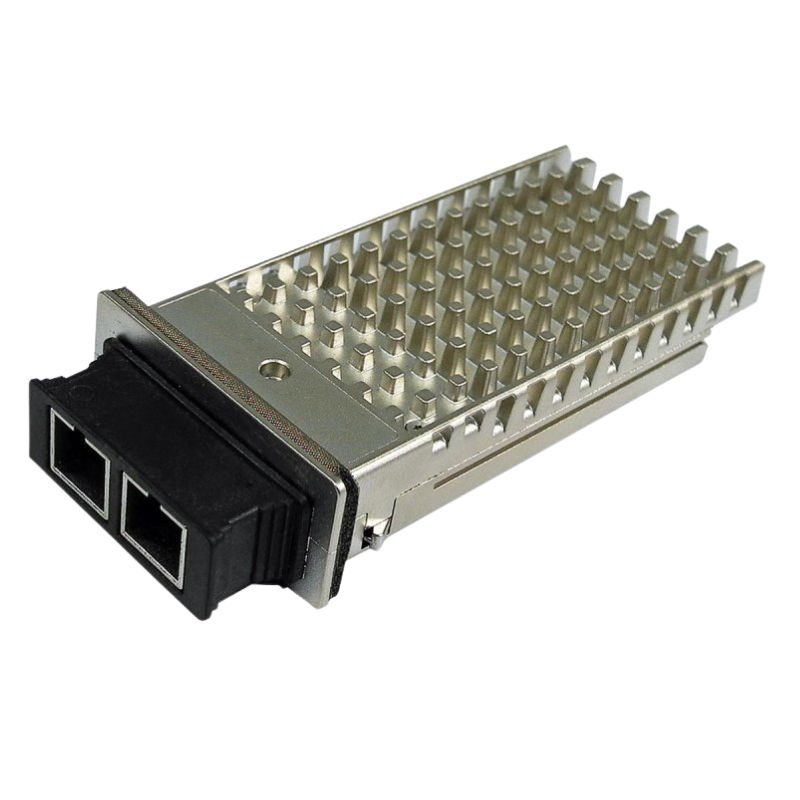

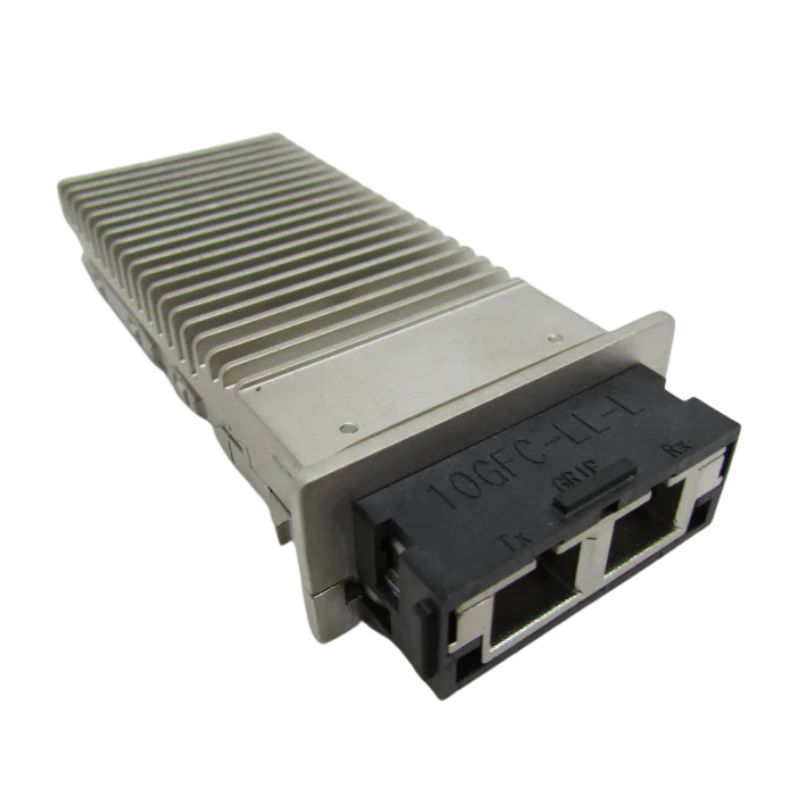

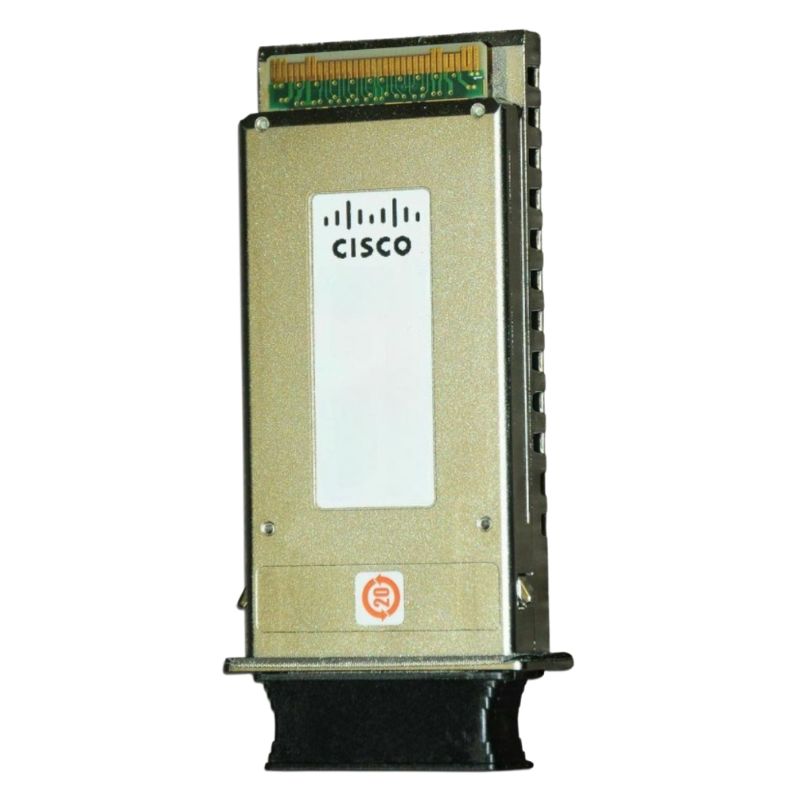

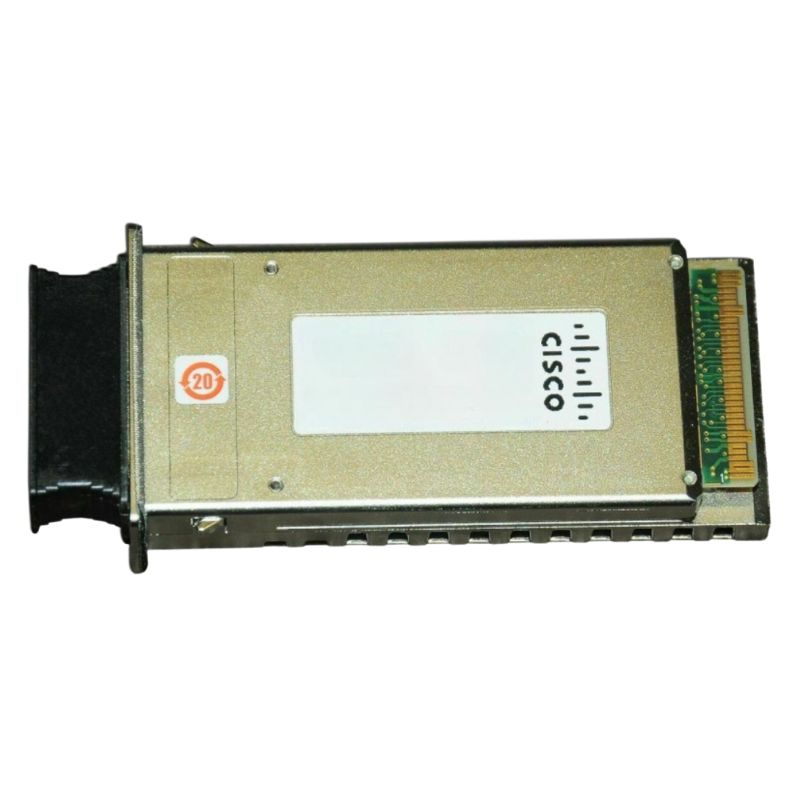

DS-X2-FC10G-LR Cisco X2 Transceiver 10Gbps Fibre Channel LR

Highlight of Cisco DS-X2-FC10G-LR 10Gbps X2 Transceiver

The Cisco DS-X2-FC10G-LR is a high-performance 10 Gigabit Fibre Channel transceiver designed for long-distance optical communication across enterprise storage networks, data centers, and mission-critical infrastructures. Built with a robust X2 form factor, this hot-swappable optical module enables dependable high-speed connectivity over single-mode fiber, making it suitable for environments requiring consistent bandwidth, low latency, and reliable signal integrity.

Main Specification

• Manufacturer: Cisco
• Part Number: DS-X2-FC10G-LR
• Product Name: Cisco 10-Gbps Fibre Channel Long-Reach X2
• Device Type: Plug-in Module

Technical Specifications

• Form Factor: X2
• Data Rate: 10.3125 Gbps
• Wavelength: 1310 nm
• Power Budget: 10 dB
• Maximum Reach: 10 km
• Transmit Power: -6 to -1 dBm
• Receive Sensitivity: -15 dBm

Advanced 10Gbps Fibre Channel Connectivity

• Supports 10.3125 Gbps Fibre Channel throughput.
• Optimized for storage area network (SAN) deployments.
• Facilitates fast and reliable data transmission.
• Reduces bottlenecks in high-demand network environments.
• Enhances storage infrastructure scalability.

Extended Reach Benefits

• Maximum transmission distance of up to 10 km.
• Supports long-haul Fibre Channel connections.
• Ideal for inter-building and remote data center connectivity.
• Maintains signal quality across extended fiber runs.
• Enables cost-effective network expansion.

1310 nm Optical Wavelength Technology

• Utilizes 1310 nm laser technology.
• Designed for long-reach optical networking.
• Supports stable data transport over extended distances.
• Enhances signal reliability in enterprise deployments.
• Compatible with standard single-mode fiber infrastructure.

Transmit and Receive Performance

• Transmit power range from -6 dBm to -1 dBm.
• Receive sensitivity rated at -15 dBm.
• Power budget of 10 dB.
• Supports accurate optical signal detection.
• Helps minimize packet loss and transmission errors.

Benefits of the X2 Design

• Plug-in module architecture for easy installation.
• Supports rapid hardware replacement.
• Minimizes service interruptions.
• Provides dependable mechanical stability.
• Designed for enterprise-class networking equipment.

Advantages of Single-Mode Fiber Operation

• Supports greater transmission distances than multimode fiber.
• Reduces optical signal attenuation.
• Provides enhanced network reliability.
• Suitable for enterprise and carrier-grade infrastructures.
• Supports future network growth initiatives.

Dual SC/PC Optical Connector Interface

• Dual SC/PC optical interface.
• Stable physical fiber connection.
• Designed for long-term operational reliability.
• Supports enterprise optical cabling environments.
• Facilitates straightforward deployment and maintenance.

Efficient Power Consumption

• Consumes less than 4 watts of power.
• Supports energy-conscious infrastructure planning.
• Helps reduce operational costs.
• Suitable for dense networking deployments.
• Optimized for continuous operation.

Voltage Requirements

• Operating voltage of +5.0 V.
• Supports +3.3 V power environments.
• Maintains stable performance under normal operating conditions.
• Designed for enterprise-grade hardware integration.

Monitoring and Management Benefits

• Real-time transceiver diagnostics.
• Enhanced network monitoring capabilities.
• Supports proactive maintenance strategies.
• Improves operational visibility.
• Assists in identifying potential performance issues.

Common Deployment Environments

• Storage Area Networks (SANs).
• Enterprise data centers.
• Business continuity infrastructures.
• Disaster recovery networks.
• Remote storage replication environments.
• Virtualized server architectures.
• High-availability storage platforms.
• Mission-critical business applications.

 Organizational Benefits

• Reliable 10 Gigabit Fibre Channel performance.
• Long-reach transmission up to 10 kilometers.
• Support for single-mode fiber infrastructure.
• Low power consumption and efficient operation.
• DDMI monitoring capabilities.
• Enterprise-class optical reliability.
• Trusted Cisco networking compatibility.
• Designed for demanding storage networking environments.

Overview of Cisco DS-X2-FC10G-LR 10Gbps FC LR Transceiver

Role of 10Gbps Fibre Channel Optics in Modern Data Centers

The Cisco DS-X2-FC10G-LR 10Gbps Fibre Channel LR X2 Transceiver represents a critical optical networking component designed for high-performance storage area networks (SANs). Within enterprise data centers, Fibre Channel technology remains a foundational protocol for mission-critical storage communication, enabling low-latency, high-throughput connectivity between servers, storage arrays, and switching infrastructure. The 10Gbps optical layer supported by LR (Long Reach) optics ensures that organizations can maintain stable and scalable storage fabrics across extended distances without compromising signal integrity or data reliability. As virtualization, cloud computing, and high-density storage environments continue to expand, demand for robust transceiver modules such as the DS-X2-FC10G-LR has increased significantly due to their ability to maintain consistent performance under heavy I/O workloads.

Understanding Cisco DS-X2-FC10G-LR Architecture and Design Principles

The Cisco DS-X2-FC10G-LR is engineered as an X2 form-factor transceiver optimized for Fibre Channel over optical fiber infrastructure. The X2 architecture provides a modular interface that supports hot-swappable installation, enabling network administrators to deploy or replace optical components without interrupting active services. This capability is especially valuable in enterprise SAN environments where downtime directly impacts business continuity and operational efficiency. The LR designation indicates long-range transmission capability, typically achieved through single-mode fiber utilization, which allows data transmission over extended distances compared to short-range multimode alternatives. The engineering design focuses on maintaining signal clarity through advanced optical modulation and error correction compatibility at the physical layer.

High-Speed Data Transmission in 10Gbps Fibre Channel Networks

Bandwidth Optimization in Storage Area Networks

In modern storage ecosystems, the ability to deliver sustained 10Gbps throughput is essential for handling large-scale data operations such as database replication, virtualization migration, and real-time analytics processing. The Cisco DS-X2-FC10G-LR transceiver is designed to support these workloads by maintaining stable signal transmission across Fibre Channel links. The 10Gbps data rate ensures that storage controllers and host bus adapters can communicate with minimal latency, reducing bottlenecks in data-intensive environments. This level of performance is particularly important in enterprise-grade SAN deployments where multiple servers simultaneously access centralized storage resources.

Signal Integrity and Long Reach Optical Performance

Long reach optical transmission requires precise control over signal attenuation, dispersion, and noise reduction. The DS-X2-FC10G-LR achieves this through compatibility with single-mode fiber optic cabling, which significantly reduces signal degradation over distance. This makes it suitable for inter-building connections, campus-wide data center deployments, and geographically distributed storage architectures. The optical transceiver ensures that even at extended ranges, data integrity is preserved through consistent optical alignment and high-quality laser emission control. This reliability is essential in environments where data loss or corruption is unacceptable.

Enterprise Storage Area Network Integration and Compatibility

Seamless Deployment in Cisco Storage Infrastructure

The Cisco DS-X2-FC10G-LR is designed to integrate seamlessly within Cisco’s broader storage networking ecosystem, including Fibre Channel switches, directors, and compatible SAN modules. This interoperability ensures that enterprises can deploy scalable storage networks without compatibility conflicts between hardware components. The transceiver supports standardized Fibre Channel protocols, enabling consistent communication between heterogeneous storage devices. Its plug-and-play capability simplifies deployment, reducing configuration complexity while improving network agility.

Role in Virtualized and Cloud Storage Environments

As virtualization becomes a dominant architecture in enterprise IT environments, storage traffic demands have increased exponentially. Virtual machines require rapid access to shared storage resources, and Fibre Channel remains a preferred protocol for high-performance virtualization clusters. The Cisco DS-X2-FC10G-LR supports these environments by delivering predictable latency and consistent throughput, ensuring that virtual workloads operate without performance degradation. In cloud-based storage infrastructures, the transceiver contributes to scalable architecture designs where storage nodes are distributed across multiple physical locations.

Optical Technology and Engineering Efficiency of DS-X2-FC10G-LR

Laser Transmission and Optical Signal Processing

The DS-X2-FC10G-LR utilizes advanced laser-based optical transmission technology optimized for 10Gbps Fibre Channel communication. The laser emitter is engineered to maintain wavelength stability, ensuring consistent performance across varying environmental conditions. Optical signal processing within the transceiver minimizes jitter and signal distortion, which are critical factors in maintaining data accuracy at high speeds. This engineering precision allows the transceiver to operate efficiently in dense networking environments where multiple optical signals coexist within close proximity.

Thermal Stability and Power Efficiency

Thermal management plays a significant role in the performance and longevity of optical transceivers. The Cisco DS-X2-FC10G-LR is designed with efficient power consumption characteristics that reduce heat generation during continuous operation. This ensures that the module can be deployed in high-density switch environments without contributing to thermal overload. Stable temperature control also helps maintain consistent optical output power, reducing the risk of performance fluctuations due to environmental stress.

Deployment Scenarios for Cisco DS-X2-FC10G-LR Transceivers

Enterprise Data Center Backbone Connectivity

In enterprise data centers, backbone connectivity between storage arrays and Fibre Channel switches requires high-bandwidth and low-latency communication channels. The DS-X2-FC10G-LR is frequently deployed in backbone links where long-distance connectivity is necessary between separate data center halls or buildings. Its long reach capability ensures that storage traffic can traverse extended fiber runs without degradation, supporting centralized storage management strategies.

Disaster Recovery and Geographic Replication Networks

Disaster recovery architectures rely heavily on stable and reliable data replication between primary and secondary sites. The Cisco DS-X2-FC10G-LR supports these use cases by enabling high-speed replication over long-distance optical links. This ensures that critical business data can be mirrored across geographically separated locations, reducing recovery time objectives and improving overall resilience. The transceiver’s stability under continuous data transfer conditions makes it suitable for synchronous and asynchronous replication workflows.

Performance Reliability and Network Optimization Factors

Error Reduction and Data Transmission Stability

Maintaining error-free transmission is essential in Fibre Channel networks, particularly in environments handling sensitive transactional data or large-scale storage operations. The DS-X2-FC10G-LR is engineered to minimize bit error rates through precise optical alignment and signal conditioning. This ensures that data integrity is preserved even under high network utilization conditions. The reliability of the transceiver contributes to reduced retransmission overhead and improved overall network efficiency.

Latency Optimization in High-Speed Storage Fabrics

Latency is a critical performance metric in storage area networks, and the Cisco DS-X2-FC10G-LR helps reduce transmission delays by maintaining consistent optical signal propagation. The transceiver’s design minimizes processing overhead at the physical layer, enabling faster communication between storage nodes. This is particularly beneficial in environments running latency-sensitive applications such as financial transaction systems, real-time analytics platforms, and high-performance computing clusters.

Scalability and Future-Ready Storage Networking Infrastructure

Supporting Expanding Data Volumes in Enterprise Systems

As enterprise data volumes continue to grow exponentially, scalable storage networking solutions are required to support increasing demand. The Cisco DS-X2-FC10G-LR contributes to this scalability by enabling high-speed interconnects that can be expanded as storage requirements evolve. Its compatibility with existing Fibre Channel infrastructure allows organizations to upgrade bandwidth capacity without redesigning their entire network architecture.

Interoperability with Evolving Fibre Channel Standards

Although storage technologies continue to evolve, Fibre Channel remains a stable and widely adopted protocol in enterprise environments. The DS-X2-FC10G-LR is designed to maintain compatibility with established Fibre Channel standards while supporting high-speed data transmission requirements. This ensures long-term usability within legacy and modern hybrid storage environments, allowing organizations to protect their infrastructure investments while gradually transitioning to newer technologies.

Operational Efficiency and Maintenance Advantages

Hot-Swappable Design for Reduced Downtime

One of the key operational advantages of the Cisco DS-X2-FC10G-LR transceiver is its hot-swappable design. This feature enables IT administrators to install or replace modules without shutting down the network device, significantly reducing downtime during maintenance operations. In mission-critical environments where continuous availability is required, this capability enhances operational efficiency and reduces service disruption risks.

Simplified Lifecycle Management in Enterprise Networks

Lifecycle management of optical components is simplified through standardized form factors and predictable performance characteristics. The DS-X2-FC10G-LR allows administrators to manage large-scale deployments with consistent configuration models, reducing complexity in inventory management and network planning. This contributes to improved operational governance and streamlined infrastructure management processes.

Strategic Importance of Cisco DS-X2-FC10G-LR in Modern IT Infrastructure

Enabling High-Performance Data Movement Across Distributed Systems

In distributed IT architectures, the ability to move data efficiently between storage nodes is essential for maintaining system coherence and performance. The Cisco DS-X2-FC10G-LR supports this requirement by providing high-speed optical connectivity that bridges physical and logical storage domains. Its reliability ensures that distributed systems can operate as unified environments despite geographical separation.
