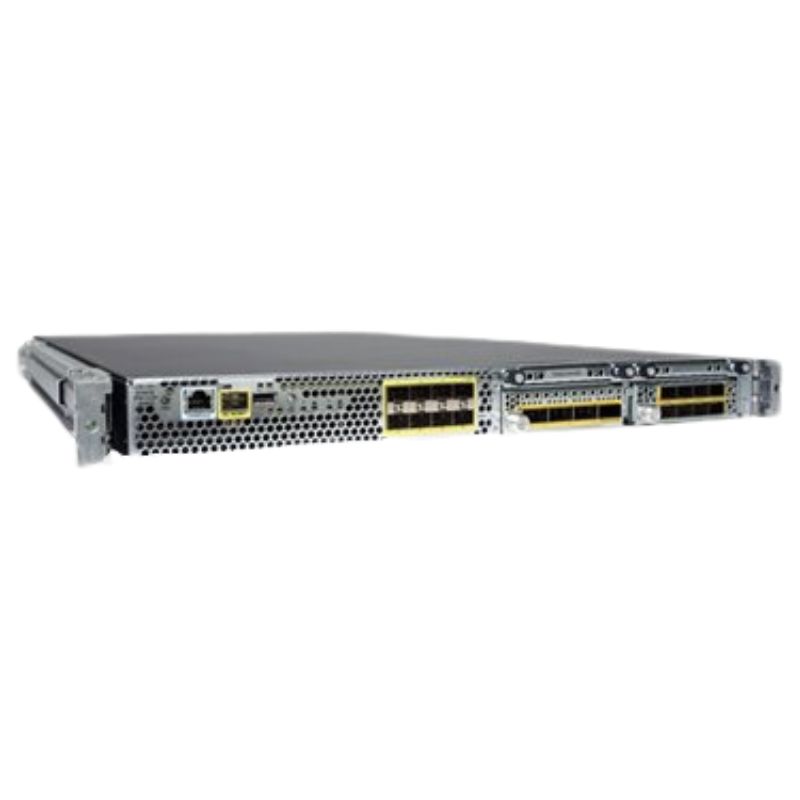

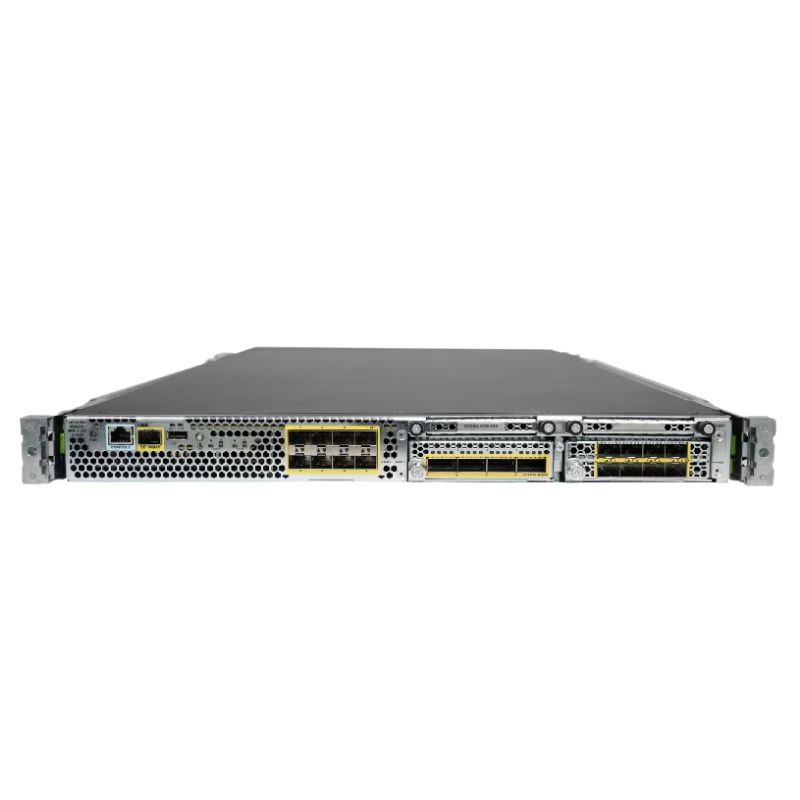

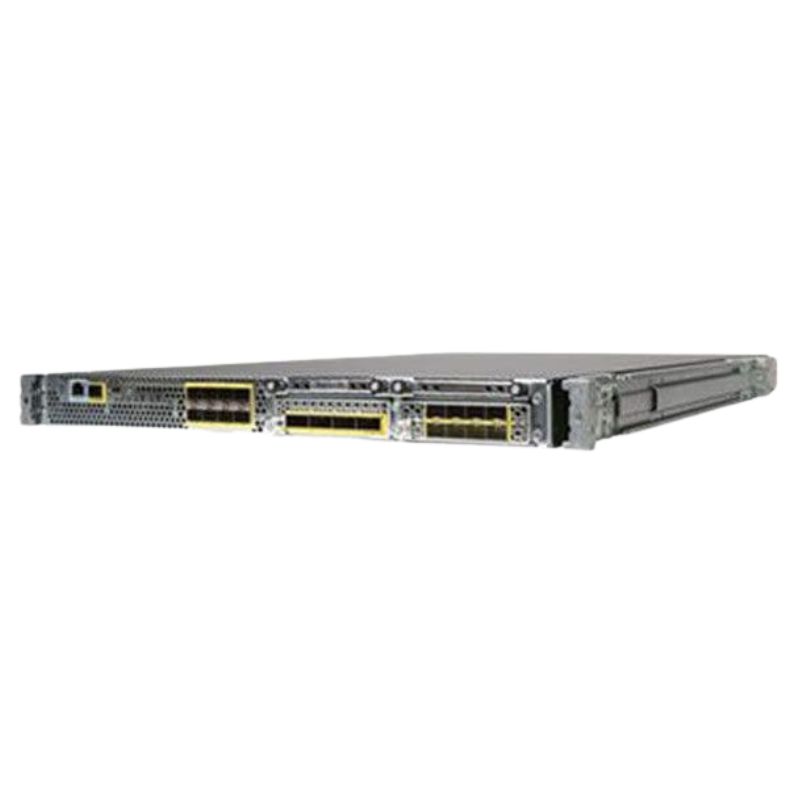

Cisco FPR4110-ASA-K9 1U Rack-mountable Firepower Security Appliance

Firewall Device with High Performance

• Device Type: Advanced Firewall
• Bundled with: 2 x NetMod Bays

Powerful Processor, Memory, and Storage

• Hard Drive: 200 GB SSD x 1

Networking Features and Throughput Performance

• Form Factor: Rack-mountable design, perfect for efficient deployment in data centers or enterprise environments
• Connectivity: Wired technology for reliable, high-speed networking
• Firewall Throughput: Handles up to 20 Gbps for secure data traffic
• Application Control Throughput: Optimized for AVC or IPS sizing with 10 Gbps throughput
• Maximum Throughput:
  • FW + AVC: 12 Gbps
  • FW + AVC + NGIPS: 20 Gbps
• VPN Performance:
  • IPsec VPN Throughput: 8 Gbps

Capacity and Scalability

• New Connections per Second: Up to 150,000
• Concurrent Connections: Supports up to 4.5 million active connections
• Virtual Interfaces (VLANs): Can manage up to 1024 VLANs
• Firewall Connection Capacity: Supports 10 million concurrent firewall connections
• Latency: Minimal delay at 3.5 microseconds
• Security Contexts: Up to 250, ensuring flexible security policies
• IPsec VPN Peers: Capable of managing 10,000 VPN peers

Comprehensive Security and High Availability

• Security Features: VLAN support, URL filtering, DDoS attack prevention, and clustering technology
• High Availability: Built-in redundancy features to ensure continuous operation
• Application Visibility and Control (AVC): Enhanced security with advanced application visibility

Expansion and Connectivity Options

• Ethernet Interfaces:
  • 8 x 10Gb Ethernet (SFP - Mini GBIC)
  • 4 x 40Gb Ethernet (SFP+)
  • 1 x 1000Base-T (Management) - SFP
• Additional Ports:
  • 1 x Serial (RJ-45)
  • 1 x USB 2.0 (Type A)

Expansion Slots

• 2 Expansion Slots (total), both available for future upgrades

Industry Compliance and Certification

• Compliant with standards such as CISPR 22 Class A, CISPR 24, and EN 61000-3-2
• Certified by multiple regulatory bodies including UL 60950-1, IEC 60950-1, and VCCI Class A
• Additional Certifications: EN 55022 Class A, FCC CFR47 Part 15 B, CNS 13438 Class A, and more

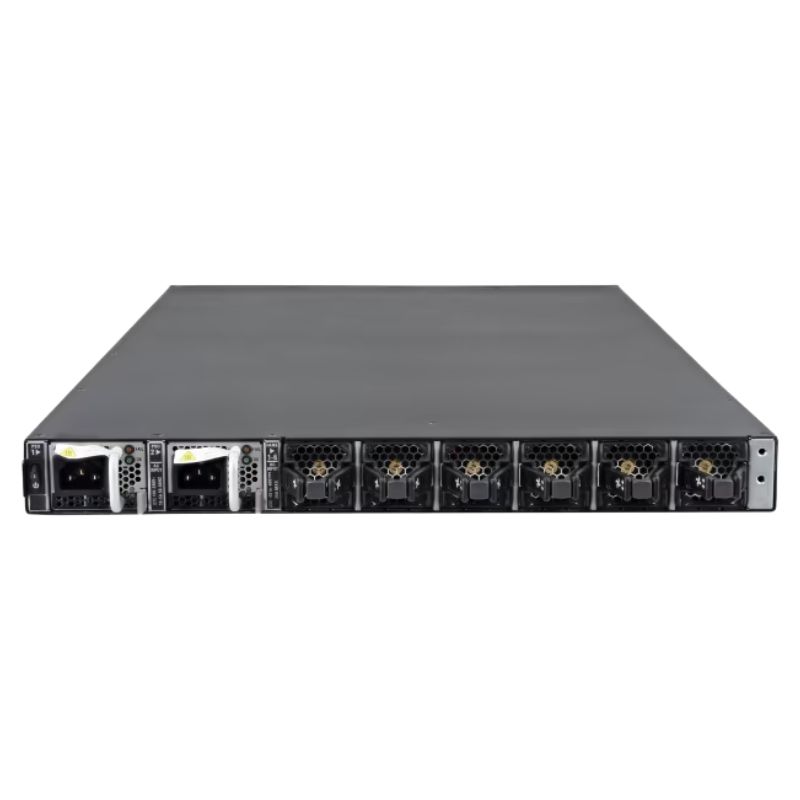

Power Management and Redundancy

• Power Supply: Internal, hot-pluggable for efficient maintenance
• Maximum Supported Quantity: 2 power units
• Power Redundancy: Yes, ensuring uninterrupted operation
• Voltage Requirements: AC 120/230V or DC -40 to -60V (50-60Hz)
• Power Output: 1100W, providing ample energy to support demanding tasks

Form Factor: 1U Rack-mountable

The Cisco FPR4110-ASA-K9 Firepower Security Appliance is designed with a form factor of 1U rack-mountable, providing users with a compact and space-saving solution for their network security needs. This feature offers numerous benefits and is of great importance for users in various industries and environments.

Space Efficiency

The 1U rack-mountable form factor of the Cisco FPR4110-ASA-K9 allows for efficient utilization of limited space in server rooms or data centers. By occupying only a single rack unit, this appliance frees up valuable rack space that can be utilized for other network equipment. This is particularly crucial for organizations with limited physical space, as it allows them to maximize their infrastructure without the need for additional racks or floor space.

Scalability

With the 1U form factor, the Cisco FPR4110-ASA-K9 can easily be integrated into existing server racks or cabinets. This seamless integration enables organizations to scale their network security infrastructure effortlessly. Whether it's a small business expanding its operations or a large enterprise upgrading its security capabilities, the ability to add multiple appliances within the same rack unit provides flexibility and scalability.

Simplified Cable Management

The compact size of the 1U rack-mountable appliance also simplifies cable management. With fewer cables running between devices, organizations can reduce clutter and potential points of failure within their network infrastructure. This not only enhances the overall aesthetic of the server room but also improves airflow, reducing the risk of overheating and increasing equipment reliability.

Easy Installation and Maintenance

The 1U rack-mountable form factor offers ease of installation and maintenance for IT professionals. The standardized size and mounting options allow for quick and hassle-free installation, saving valuable time and effort. Additionally, the accessibility of the appliance within the rack makes it convenient to perform routine maintenance tasks, such as firmware updates or hardware replacements.

Cost Savings

The 1U form factor of the Cisco FPR4110-ASA-K9 contributes to cost savings for organizations. By utilizing a compact design, this appliance reduces the need for additional rack space, which can be a significant expense. Furthermore, the space-saving nature of the 1U form factor can also lead to reduced power consumption and cooling requirements, resulting in lower operational costs over time.

Manageability: Manageable

In addition to its form factor, the Cisco FPR4110-ASA-K9 Firepower Security Appliance boasts exceptional manageability features that allow users to efficiently monitor and control their network security operations. The emphasis on manageability provides users with a host of benefits that are critical for maintaining a secure network environment.

Centralized Management

The Cisco FPR4110-ASA-K9 offers centralized management capabilities, allowing administrators to oversee multiple security appliances from a single, unified interface. This eliminates the need for manual configuration and monitoring of individual devices, streamlining administrative tasks and reducing the risk of configuration errors. With centralized management, administrators can efficiently implement security policies and ensure consistent enforcement across the entire network.

Real-time Monitoring and Reporting

The manageability features of the Cisco FPR4110-ASA-K9 enable real-time monitoring and reporting of network traffic and security events. Administrators can access comprehensive dashboards and reports that provide insights into network activity, threat detection, and system performance. These real-time monitoring capabilities empower administrators to proactively identify potential security threats, quickly respond to incidents, and make informed decisions based on accurate data.

Policy-Based Configuration

With policy-based configuration, administrators can define and enforce security policies across the network. The Cisco FPR4110-ASA-K9 allows granular control over access permissions, application usage, and content filtering. By leveraging policy-based configuration, organizations can ensure compliance with industry regulations, protect sensitive data, and mitigate the risk of unauthorized access or malicious activities.

Integration with Security Management Platforms

The manageability features of the Cisco FPR4110-ASA-K9 enable seamless integration with various security management platforms. This interoperability allows administrators to leverage existing security infrastructure investments and consolidate their management efforts. By integrating with leading security management platforms, organizations can centralize their security operations, enhance visibility, and streamline workflows for improved efficiency.

Automation and Orchestration

The Cisco FPR4110-ASA-K9 supports automation and orchestration capabilities, empowering administrators to automate repetitive tasks and streamline security operations. By leveraging automation, organizations can reduce human error, improve response times, and ensure consistent enforcement of security policies. Orchestration capabilities enable administrators to define complex workflows, integrating multiple security tools and systems to create a cohesive and efficient security ecosystem.

Enhanced Threat Intelligence

Manageability features also include enhanced threat intelligence capabilities. The Cisco FPR4110-ASA-K9 integrates with advanced threat intelligence feeds, providing administrators with up-to-date information on emerging threats. This real-time threat intelligence enables proactive threat detection and response, ensuring that organizations stay ahead of evolving cyber threats.

In conclusion, the 1U rack-mountable form factor of the Cisco FPR4110-ASA-K9 Firepower Security Appliance offers space efficiency, scalability, simplified cable management, easy installation and maintenance, as well as cost savings for users. Additionally, the emphasis on manageability provides benefits such as centralized management, real-time monitoring and reporting, policy-based configuration, integration with security management platforms, automation and orchestration capabilities, and enhanced threat intelligence. These features make the Cisco FPR4110-ASA-K9 an ideal choice for organizations seeking a reliable and manageable solution to meet their network security needs.
