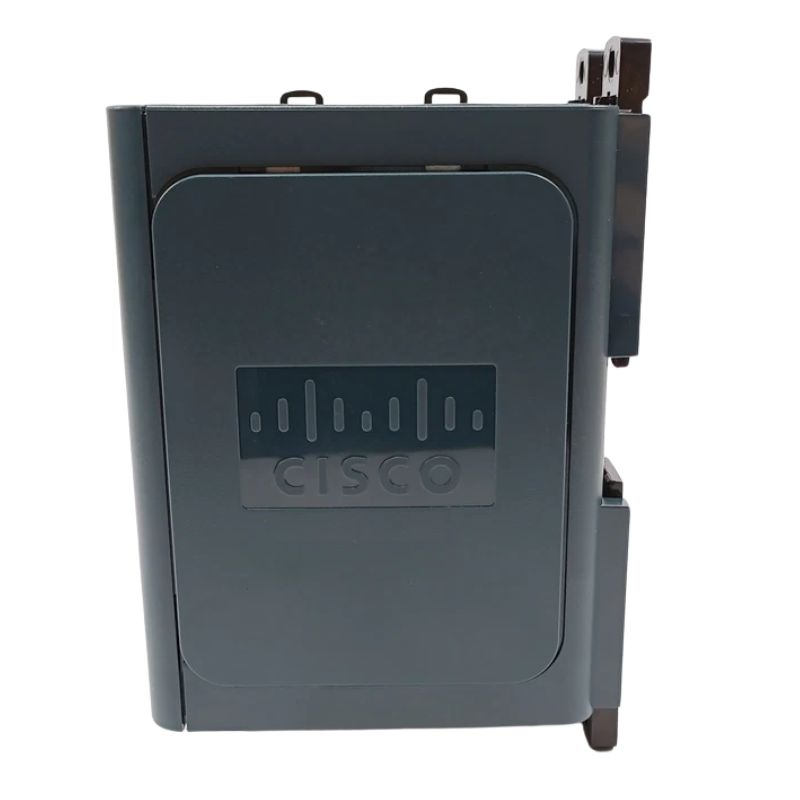

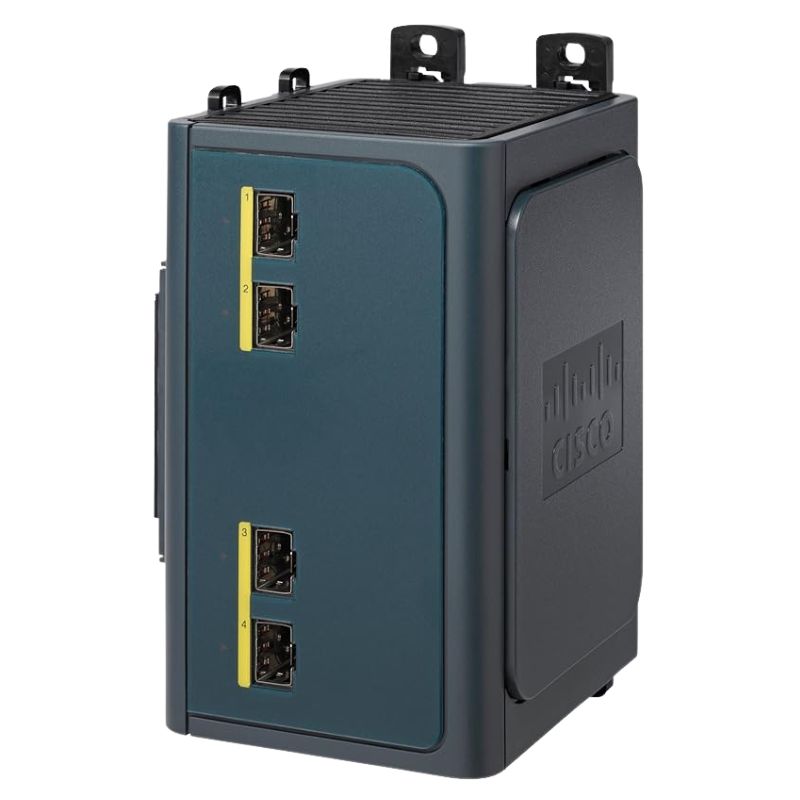

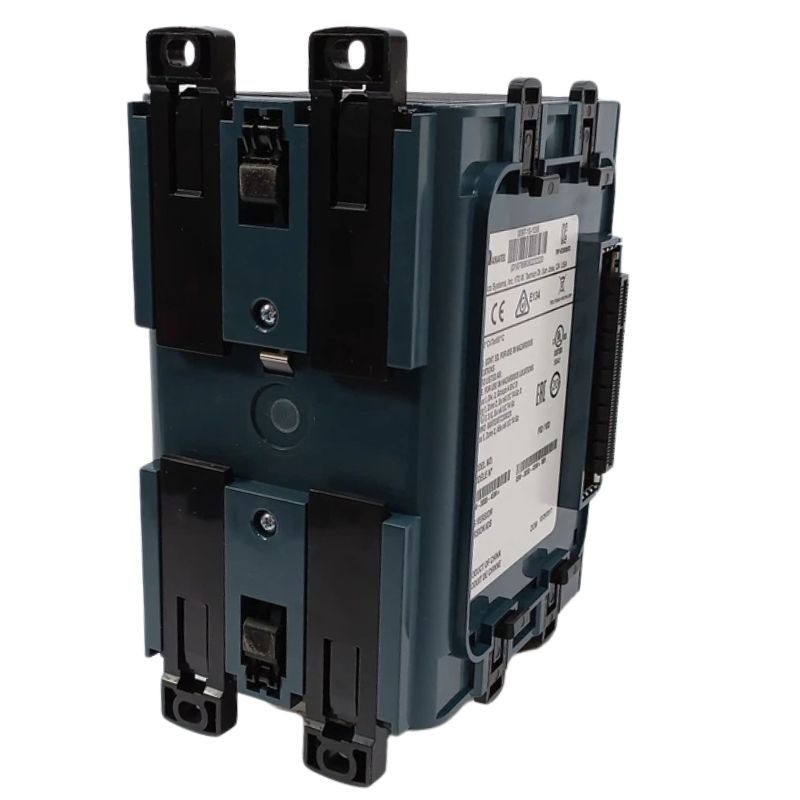

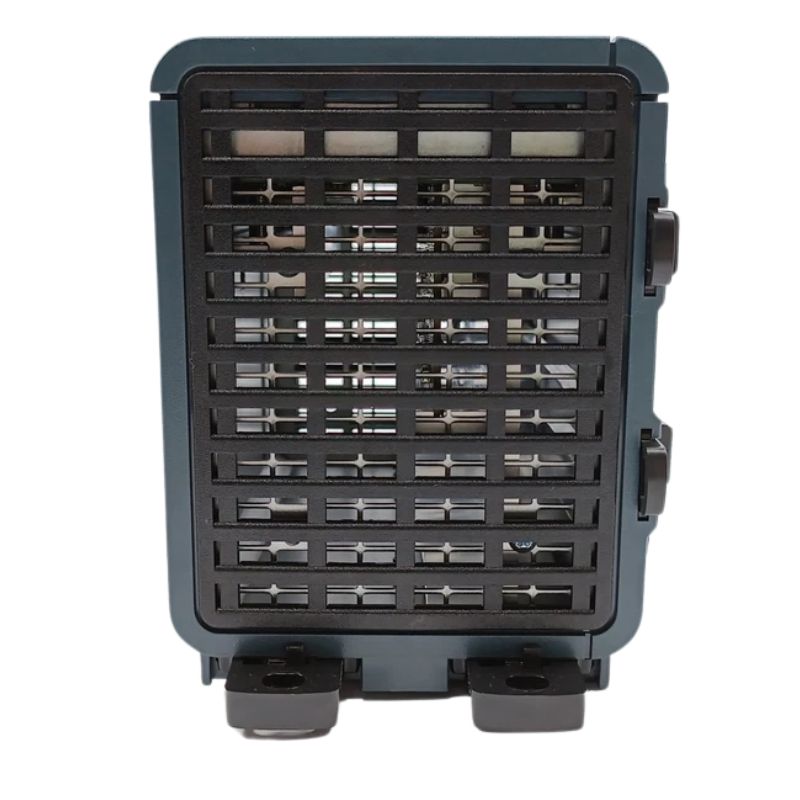

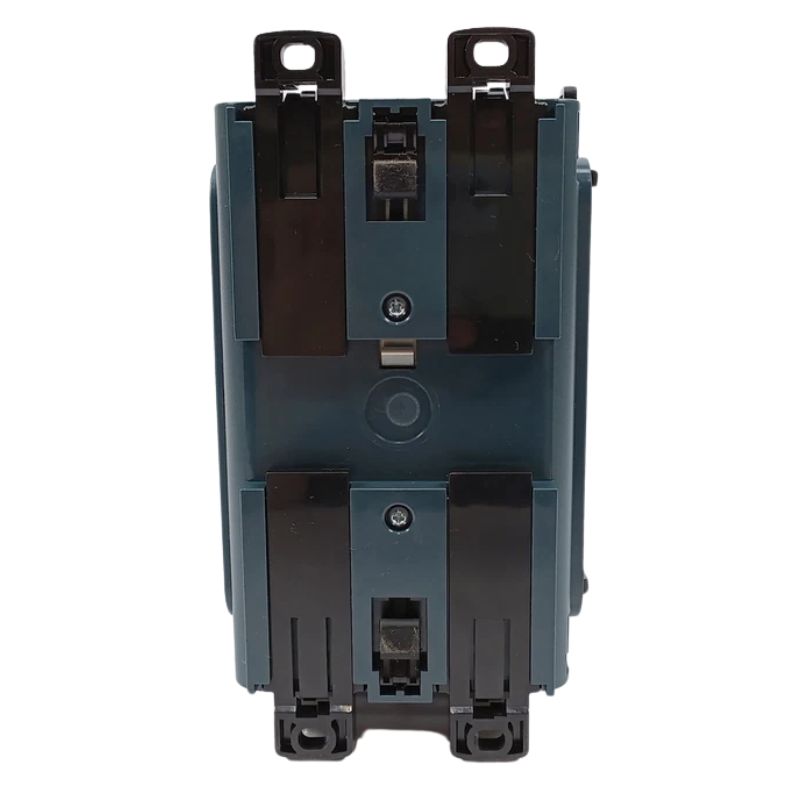

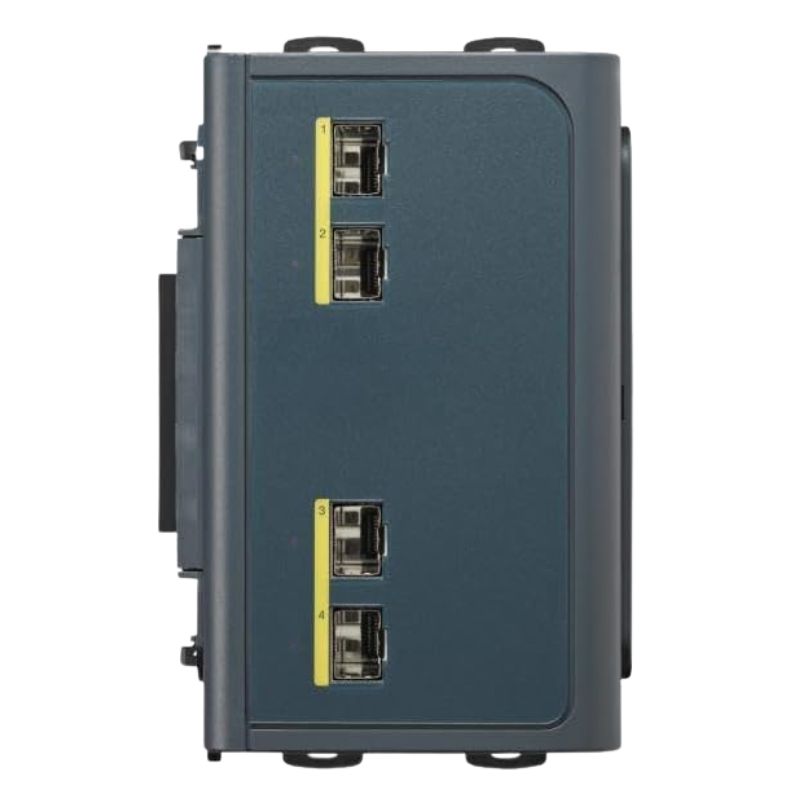

IEM-3000-4SM Cisco Expansion Module

Cisco IEM-3000-4SM Expansion Module

The IEM-3000-4SM is a rugged industrial expansion module designed for Cisco Industrial Ethernet 3000 Series switches. It adds 4 SFP fiber optic ports, allowing industrial networks to extend connectivity over long distances with reliable fiber communication. The module is hot-swappable, making installation and maintenance simple without significant network downtime. It is ideal for industrial automation, power substations, transportation systems, and other harsh environments where high network reliability is essential.

General Information

• Manufacturer: Cisco
• Part Number: IEM-3000-4SM
• Device Type: Network Equipment
• Series: Cisco IE 3000 Industrial Ethernet Series
• Module Type: 4-Port SFP Fiber Expansion Module

Technical Specifications

• Product Type: SFP Expansion Module
• Number of Ports: 4 × SFP Slots
• Port Speed: Up to 1 Gbps per port
• Interface: SFP (Small Form-factor Pluggable)
• Supported Media: Fiber Optic
• Fiber Types: Single-Mode & Multi-Mode
• Connector Type: LC Duplex (depends on SFP module)
• Power Consumption: 7.6–9 W
• Operating Temperature: -40°C to +75°C
• Storage Temperature: -40°C to +85°C
• Operating Humidity: 5%–95% Non-Condensing
• Hot Swappable: Yes
• Plug-and-Play: Yes
• Industrial Standards: IEC 61850-3, IEEE 1613
• Shock & Vibration: IEC 60068 Compliant
• EMI/EMC: EN55022 Class A/B
• Mounting: Installed into Cisco IE3000 Expansion Slot
• MTBF: Over 100,000 Hours

Compatibility

• Cisco IE-3000-4TC
• Cisco IE-3000-8TC
• Cisco IE-3000-4TC-E
• Cisco IE-3000-8TC-E

Overview Cisco IEM-3000-4SM 4 Ports Expansion Module

The Cisco IEM-3000-4SM 3000 Series 4 Ports Expansion Module is a compact industrial networking solution designed to extend the connectivity of Cisco Industrial Ethernet 3000 Series switches. It provides four additional ports that enhance flexibility and scalability in industrial environments where reliable communication is essential. This module is engineered to deliver consistent performance in rugged conditions, ensuring that industrial networks remain stable and efficient.

Network Reliability

The Cisco IEM-3000-4SM is built to deliver stable and efficient data connectivity. Its architecture minimizes latency and maximizes throughput, ensuring that connected devices operate smoothly. The module’s reliability is enhanced by Cisco’s advanced network management features, which allow administrators to monitor performance, troubleshoot issues, and optimize traffic flow across the industrial network.

Integration with Cisco

The Cisco IEM-3000-4SM integrates seamlessly with Cisco Industrial Ethernet 3000 Series switches, providing a modular approach to network expansion. This compatibility ensures straightforward installation and configuration, allowing organizations to scale their networks without replacing existing infrastructure. The module supports Cisco IOS software, enabling advanced features such as Quality of Service, security protocols, and network segmentation.

Deployment Scenarios and Applications

The Cisco IEM-3000-4SM expansion module is widely deployed across industries due to its flexibility and robust performance. In manufacturing environments, it connects automation devices, sensors, and monitoring systems, ensuring smooth production processes. In transportation systems, it supports communication devices and monitoring equipment, enhancing safety and operational efficiency. Utility companies deploy the module to connect smart meters, monitoring equipment, and control systems, enabling real-time data collection and analysis.

Industrial Automation

In industrial automation, the Cisco IEM-3000-4SM connects programmable logic controllers, human-machine interfaces and industrial robots. By providing reliable connectivity, it ensures that automation systems operate efficiently and without interruption. Its rugged design allows it to withstand dust, moisture, and high temperatures commonly found in manufacturing plants.

Smart Transportation Systems

Transportation systems rely on real-time communication and monitoring to ensure safety and efficiency. The Cisco IEM-3000-4SM supports communication devices and monitoring equipment deployed across highways, railways, and airports. Its compact design simplifies installation and reduces maintenance costs. By enabling continuous monitoring and data transmission, the module contributes to safer and more efficient transportation networks.

Security Features and Network Protection

Security is a top priority in industrial networks, and the Cisco IEM-3000-4SM expansion module incorporates advanced security features to protect against cyber threats. It supports secure access control, encryption protocols, and network segmentation, ensuring that sensitive data remains protected. Administrators can configure security policies to prevent unauthorized access and mitigate potential risks.

Access Control and Segmentation

The module allows administrators to implement network segmentation, dividing the network into smaller, isolated segments. This approach enhances security by limiting the spread of potential threats and ensuring that critical systems remain protected. Access control mechanisms further strengthen security by restricting network access to authorized devices and users.

Scalability and Proofing

The Cisco IEM-3000-4SM expansion module is designed with scalability in mind, allowing organizations to expand their network capacity as needed. Its modular design enables easy integration with existing infrastructure, reducing the need for costly upgrades. As industrial networks evolve, the module’s support for advanced features and protocols ensures that it remains relevant and capable of meeting future requirements.

Support for Emerging Technologies

As industries adopt emerging technologies such as the Industrial Internet of Things and edge computing, the Cisco IEM-3000-4SM expansion module provides the necessary connectivity to support these innovations. Its ability to connect a wide range of devices ensures that organizations can leverage new technologies to improve efficiency, productivity, and decision-making.

Environmental and Reliability Standards

The Cisco IEM-3000-4SM expansion module is built to meet stringent environmental and reliability standards. It is tested for resistance to shock, vibration, and electromagnetic interference, ensuring consistent performance in challenging industrial environments. The module operates within a wide temperature range, making it suitable for deployment in outdoor and remote locations.

Durability in Harsh Conditions

The rugged design of the Cisco IEM-3000-4SM ensures that it can withstand harsh conditions commonly found in industrial settings. Whether exposed to extreme temperatures, dust, or moisture, the module continues to deliver reliable performance. This durability makes it an ideal choice for industries such as oil and gas, mining, and manufacturing.

Enhanced Productivity

The Cisco IEM-3000-4SM contributes to enhanced productivity by ensuring reliable connectivity for critical devices. By minimizing downtime and simplifying network management, it allows organizations to focus on core operations and achieve higher levels of efficiency. Its ability to support advanced technologies further enhances productivity, enabling organizations to leverage data-driven insights and automation.

Summary of Capabilities

The Cisco IEM-3000-4SM 3000 Series 4 Ports Expansion Module combines high-speed connectivity, advanced security features, scalability, and durability to deliver a comprehensive solution for industrial networking. Its ability to connect a wide range of devices simplifies deployment, reduces costs, and enhances reliability. By supporting emerging technologies and meeting stringent environmental standards, the module ensures that organizations can build efficient, secure, and future-ready industrial networks.
