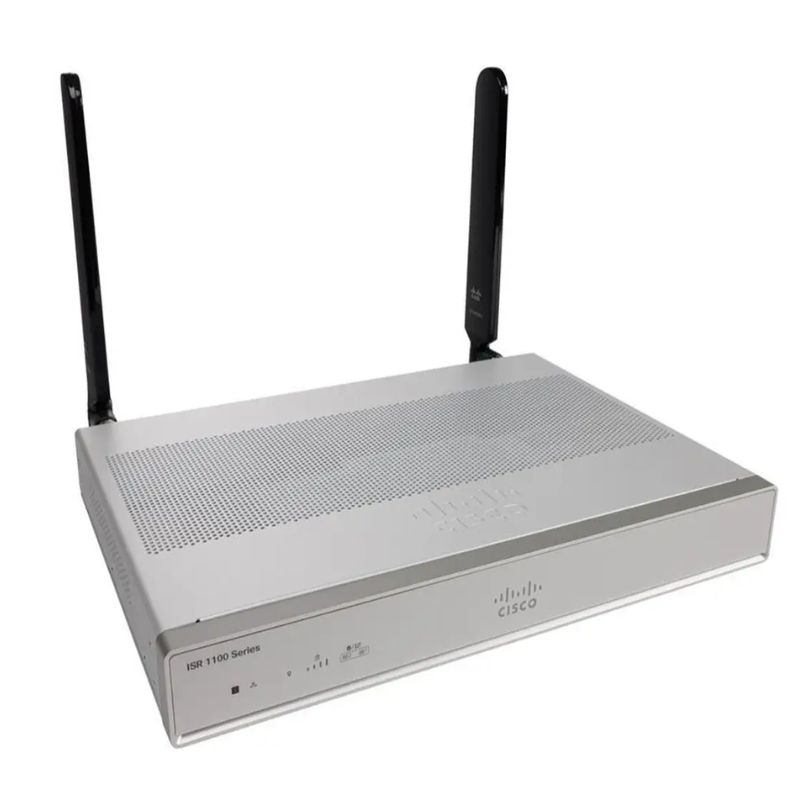

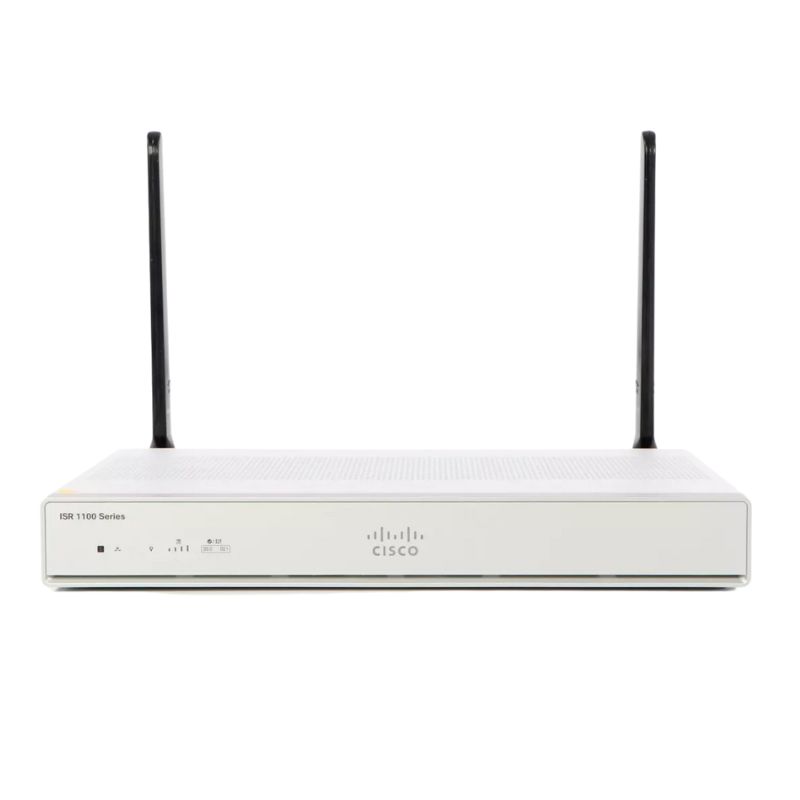

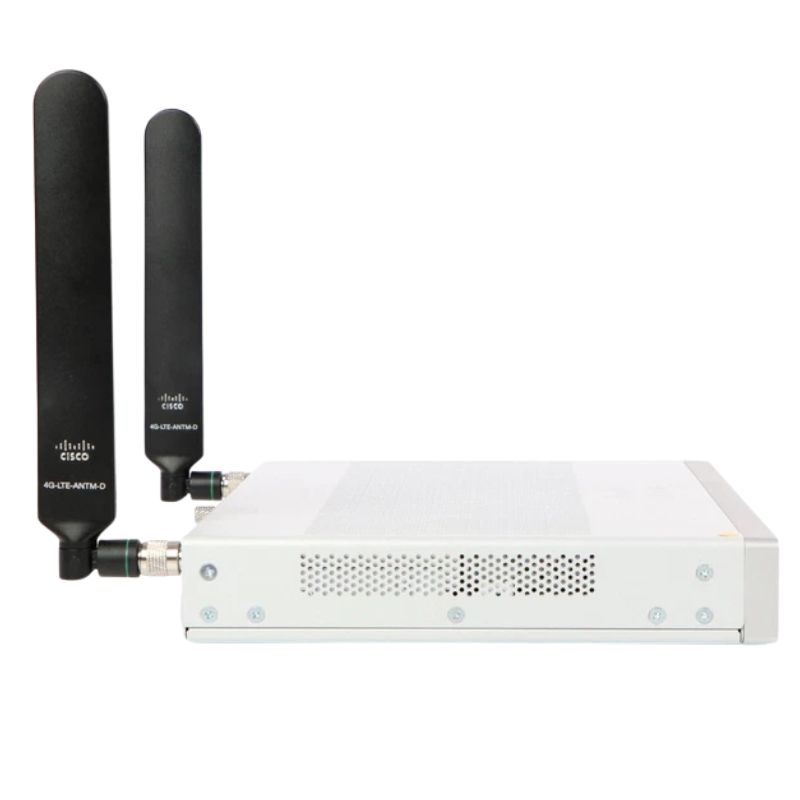

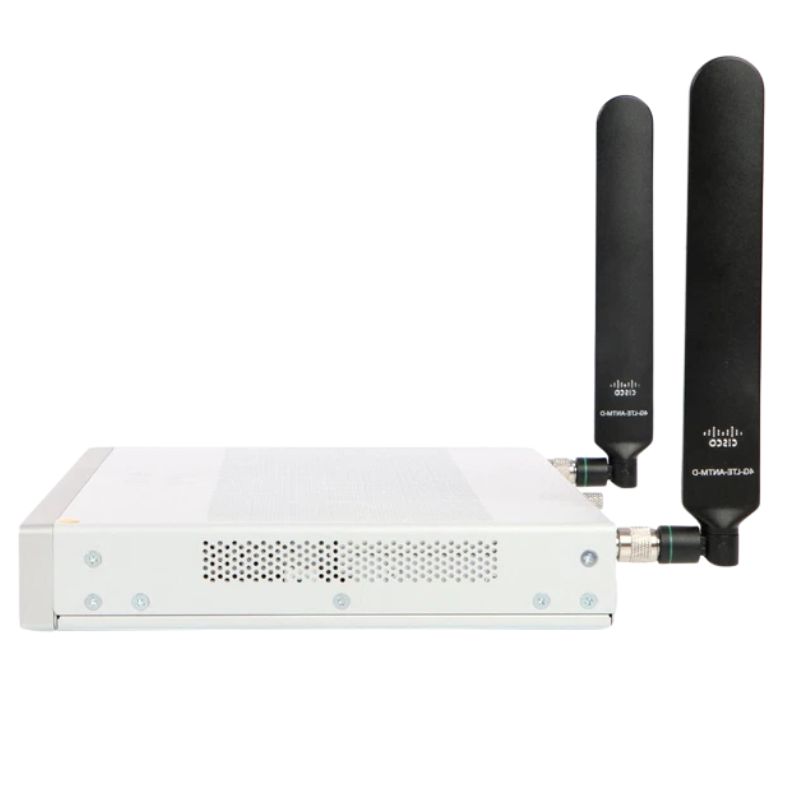

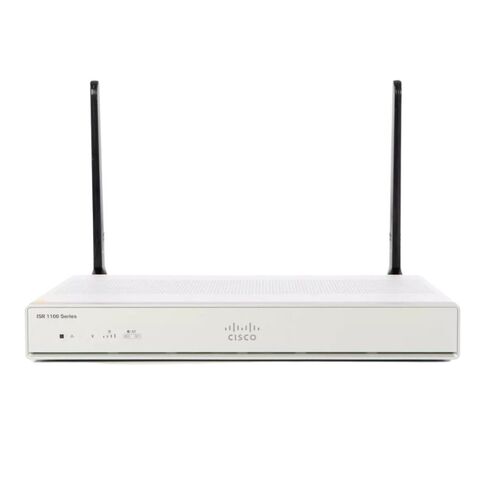

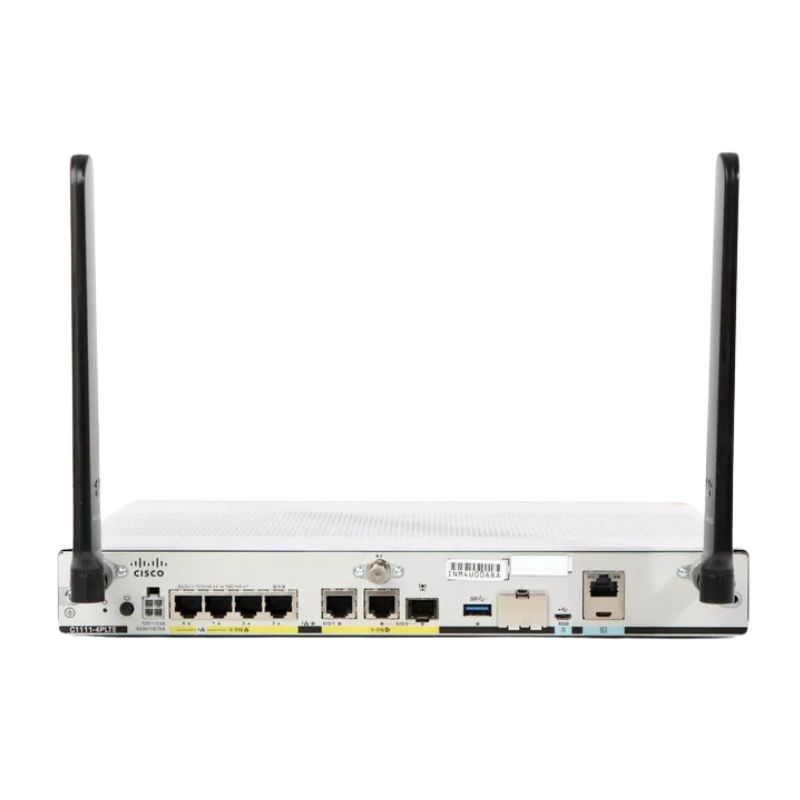

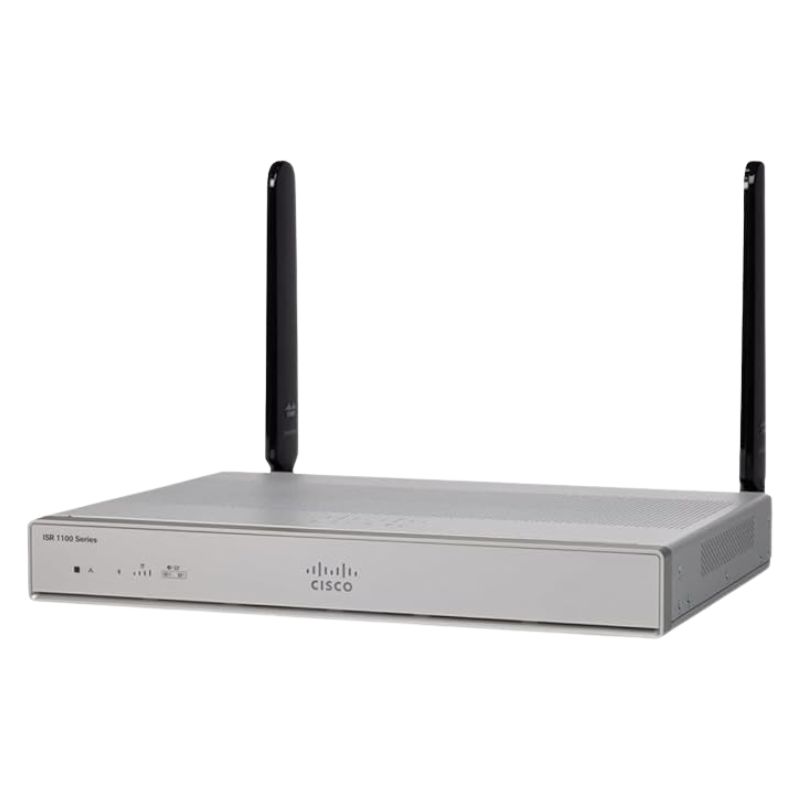

C1111-8PWB Cisco ISR Router with 8 Ports

Cisco C1111-8PWB Integrated Services Router

The Cisco C1111-8PWB ISR from the 1100 Series is a versatile networking device designed for secure, high-speed connectivity. With eight Gigabit Ethernet ports, integrated Wi-Fi, and advanced security features, it is ideal for small offices, branch networks, and enterprise-grade deployments.

General Information

• Manufacturer: Cisco
• Part Number: C1111-8PWB
• Product Type: Router

Technical Specifications

WAN Interfaces

• Dedicated Port: 1 × 10/100/1000 RJ-45 Gigabit Ethernet
• Combo Port: 1 × RJ-45 or SFP fiber

LAN Interfaces

• Switch: 4 × managed 10/100/1000 Gigabit Ethernet ports

Wireless Connectivity

• Integrated 802.11ac Wave 2 Wi-Fi
• 2x2 MIMO technology for enhanced coverage and performance

Performance

• Forwarding Throughput: Up to 1.37 Gbps (IPv4 IMIX)
• Encrypted VPN Throughput: Up to 150 Mbps

Memory

• DRAM: 4 GB (fixed)
• Flash: 4 GB (fixed)

Power over Ethernet (PoE)

• Supports 2 PoE ports
• Supports 1 PoE+ port with optional 150W power supply

Management Ports

• Console: 1 × Micro-USB
• Storage: 1 × USB 3.0 Type A host port

Physical & Environmental

Dimensions and Weight

• Size: 1.75 × 12.7 × 9.03 inches
• Weight: Maximum 5.5 lbs (2.5 kg)

Cooling

• Design: Fanless for silent operation

Operating Conditions

• Temperature: Supported operating range (°F/°C) at sea level

Software & Security

Operating System

• OS: Cisco IOS XE

SD-WAN Compatibility

• Fully compatible with Cisco SD-WAN for automated management and optimization

Advanced Security Features

• Hardware-accelerated VPN
• Zone-Based Firewall
• Cisco Umbrella integration for cloud-based threat protection

Cisco C1111-8PWB Integrated Services Router Overview

The Cisco C1111-8PWB Integrated Services Router with 8 Ports belongs to a highly advanced class of enterprise networking equipment designed to deliver secure, scalable, and high-performance connectivity for branch offices, distributed enterprise environments, and managed service provider infrastructures. Developed under the enterprise-grade routing portfolio of this router integrates routing, switching, security, and WAN optimization capabilities into a unified platform, enabling organizations to streamline network architecture while maintaining strong performance and reliability across multiple connected environments.

As modern digital transformation demands continue to evolve, the Cisco C1111-8PWB series plays a critical role in enabling hybrid work environments, cloud-first networking strategies, and secure remote access frameworks. It is designed to handle converged network traffic efficiently while ensuring consistent application performance, low latency communication, and robust data protection mechanisms.

Integrated Services Router Framework

The Cisco C1111-8PWB is built on the Integrated Services Router (ISR) architecture, which combines multiple networking functions into a single hardware platform. This integration reduces the need for separate devices for routing, switching, and security, significantly simplifying network infrastructure. The architecture is optimized for branch deployments where space, power efficiency, and operational simplicity are critical.

The router is designed to support modular service expansion, allowing enterprises to adapt to evolving networking requirements without requiring full infrastructure replacement. This flexibility is especially valuable in dynamic environments where bandwidth demand and security requirements change frequently.

Hardware Design and Embedded Intelligence

The hardware architecture of the Cisco C1111-8PWB emphasizes performance efficiency and operational resilience. It includes optimized forwarding engines capable of handling simultaneous data streams, ensuring smooth traffic distribution even under heavy network loads. Embedded intelligence within the system allows automated traffic management, policy enforcement, and application prioritization.

The platform is engineered for long-term reliability, supporting continuous uptime in mission-critical environments. Its compact form factor makes it suitable for branch offices, retail networks, and distributed enterprise sites where rack space and power consumption are limited.

High-Density Port Configuration and Network Connectivity Capabilities

8-Port Ethernet Switching Capability

The Cisco C1111-8PWB Integrated Services Router features 8 integrated Ethernet ports that provide flexible connectivity options for internal network devices, edge systems, and downstream switches. These ports support high-speed data transfer, enabling seamless communication between connected endpoints such as servers, access points, and enterprise workstations.

The multi-port configuration allows organizations to design efficient local area networks without requiring additional switching hardware. This contributes to reduced capital expenditure and simplified network topology design.

WAN and LAN Integration Efficiency

The router is optimized to handle both WAN and LAN traffic with intelligent segmentation and routing efficiency. WAN connections are managed through high-performance interfaces that ensure stable connectivity to external networks, including cloud platforms and remote enterprise branches. LAN traffic is processed internally with minimal latency, ensuring fast intra-office communication.

This dual optimization ensures balanced performance across internal and external network channels, making the Cisco C1111-8PWB suitable for hybrid cloud environments and distributed enterprise ecosystems.

Performance Optimization and Traffic Management

Advanced Packet Processing Engine

The Cisco C1111-8PWB employs a high-performance packet processing system designed to efficiently handle complex network traffic patterns. This system ensures that data packets are processed with minimal delay, supporting high-throughput environments where real-time communication is essential.

The routing engine is optimized for simultaneous processing of multiple application flows, reducing congestion and maintaining consistent performance across all network segments.

Quality of Service and Bandwidth Allocation

Quality of Service (QoS) mechanisms embedded within the router enable prioritization of critical applications such as voice communication, video conferencing, and cloud-based services. This ensures that latency-sensitive applications receive preferential bandwidth allocation even during peak traffic conditions.

The system dynamically adjusts traffic flows based on real-time network conditions, maintaining optimal performance without manual intervention.

Security Framework and Enterprise Protection Capabilities

Integrated Threat Defense Architecture

Security is a foundational aspect of the Cisco C1111-8PWB Integrated Services Router. The device incorporates multi-layered security features designed to protect enterprise networks from internal and external threats. These include advanced firewall capabilities, intrusion prevention systems, and encrypted traffic handling mechanisms.

The security architecture is built to inspect traffic at multiple levels, ensuring that malicious activities are detected and mitigated before they can impact network integrity.

Secure Connectivity and Encryption Standards

The router supports secure VPN connectivity for remote users and branch offices, enabling encrypted communication channels across public and private networks. This ensures that sensitive data remains protected during transmission, reducing the risk of interception or unauthorized access.

Encryption protocols are optimized for performance, ensuring that security does not compromise network speed or responsiveness.

Identity-Based Access Control

The Cisco C1111-8PWB implements identity-based network access control mechanisms that regulate device and user connectivity based on predefined policies. This ensures that only authenticated and authorized entities can access specific network resources, enhancing overall security posture.

Cloud Integration and Digital Transformation

Hybrid Cloud Networking Capabilities

The router is engineered to support hybrid cloud environments, enabling seamless integration between on-premises infrastructure and cloud-based applications. This allows enterprises to distribute workloads efficiently across multiple platforms while maintaining centralized control over network policies.

Cloud connectivity features ensure consistent performance for SaaS applications, data storage systems, and enterprise resource planning platforms.

SD-WAN Compatibility and Network Virtualization

The Cisco C1111-8PWB supports Software-Defined Wide Area Networking (SD-WAN) functionality, allowing enterprises to dynamically manage WAN connections based on performance metrics and cost efficiency. This enables intelligent path selection and improved application delivery across geographically distributed networks.

Network virtualization capabilities further enhance flexibility by allowing multiple logical networks to operate over a single physical infrastructure.

Branch Office Deployment Scenarios and Use Cases

Enterprise Branch Connectivity

The router is widely used in enterprise branch office environments where reliable connectivity and centralized management are essential. It supports secure communication between branch locations and headquarters, ensuring consistent data synchronization and application performance.

Its compact design and integrated functionality make it ideal for distributed enterprise networks that require scalable and efficient infrastructure solutions.

Retail and Point-of-Sale Networks

In retail environments, the Cisco C1111-8PWB enables secure and reliable point-of-sale operations. It supports transaction processing systems, inventory management platforms, and customer engagement applications, ensuring uninterrupted service delivery even during peak operational hours.

Network segmentation features allow separation of customer-facing networks from internal business systems, enhancing operational security and efficiency.

Education and Campus Networking

Educational institutions benefit from the router’s ability to support high-density user environments and multimedia applications. It enables seamless access to digital learning platforms, online resources, and administrative systems while maintaining secure access controls across different user groups.

Network Management and Operational Control

Centralized Network Administration

The Cisco C1111-8PWB supports centralized network management systems that allow administrators to configure, monitor, and optimize network performance from a single interface. This simplifies operational workflows and reduces administrative overhead in large-scale deployments.

Automated monitoring tools provide real-time insights into network performance, helping administrators proactively address potential issues before they impact operations.

Automation and Policy Enforcement

Automation capabilities within the router enable consistent policy enforcement across all connected devices and network segments. This ensures uniform configuration standards, reducing the risk of misconfigurations and enhancing network stability.

Policy-driven networking allows enterprises to define operational rules that automatically adjust based on network conditions and business requirements.

Scalability and Future-Ready Networking Infrastructure

Modular Expansion Capabilities

The Cisco C1111-8PWB is designed with scalability in mind, allowing organizations to expand network capabilities as business requirements grow. Modular enhancements enable additional functionality without requiring complete hardware replacement.

This scalability ensures long-term investment protection and supports evolving enterprise networking strategies.

Emerging Technologies

The router is engineered to support emerging networking technologies, including IoT integration, edge computing frameworks, and advanced analytics systems. This ensures compatibility with next-generation digital infrastructures and smart enterprise ecosystems.

Environmental Efficiency and Power Optimization

The router is optimized for energy efficiency, reducing power consumption without compromising performance. This makes it suitable for large-scale deployments where energy costs and environmental impact are key considerations.

Thermal management systems ensure stable operation under varying environmental conditions, enhancing hardware longevity and reliability.
