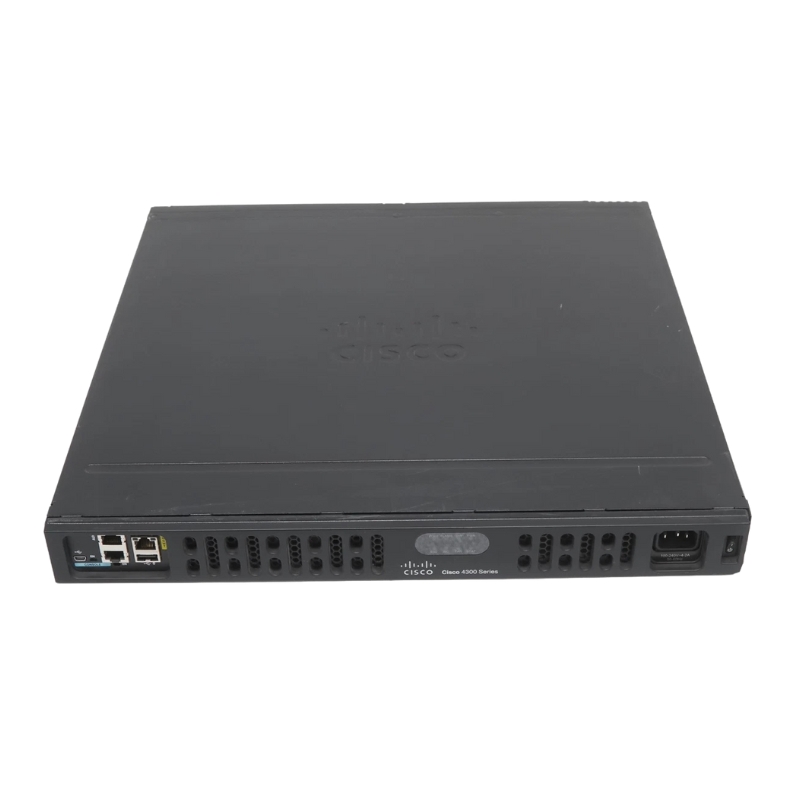

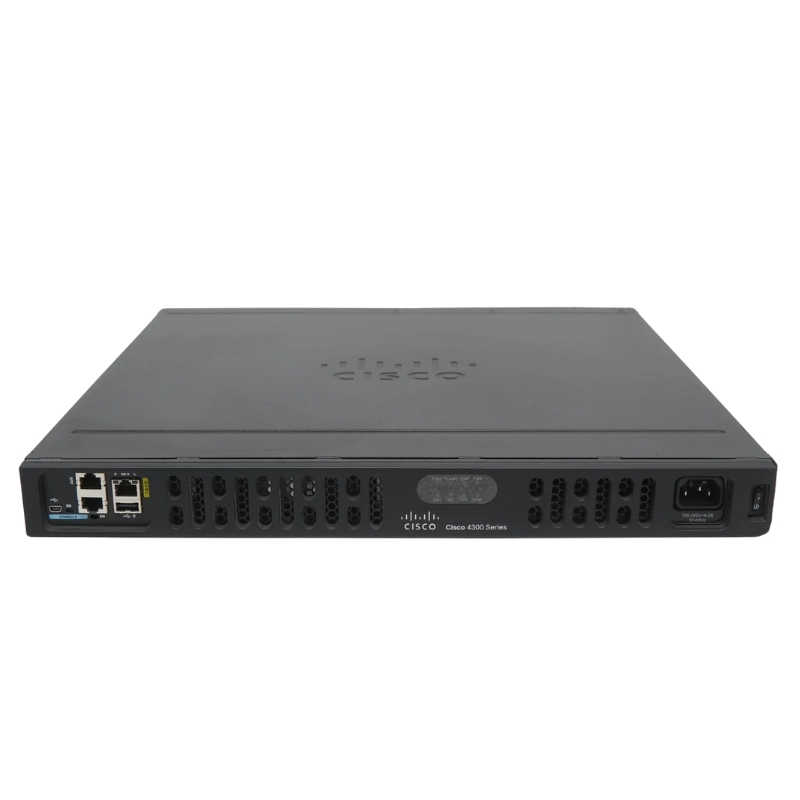

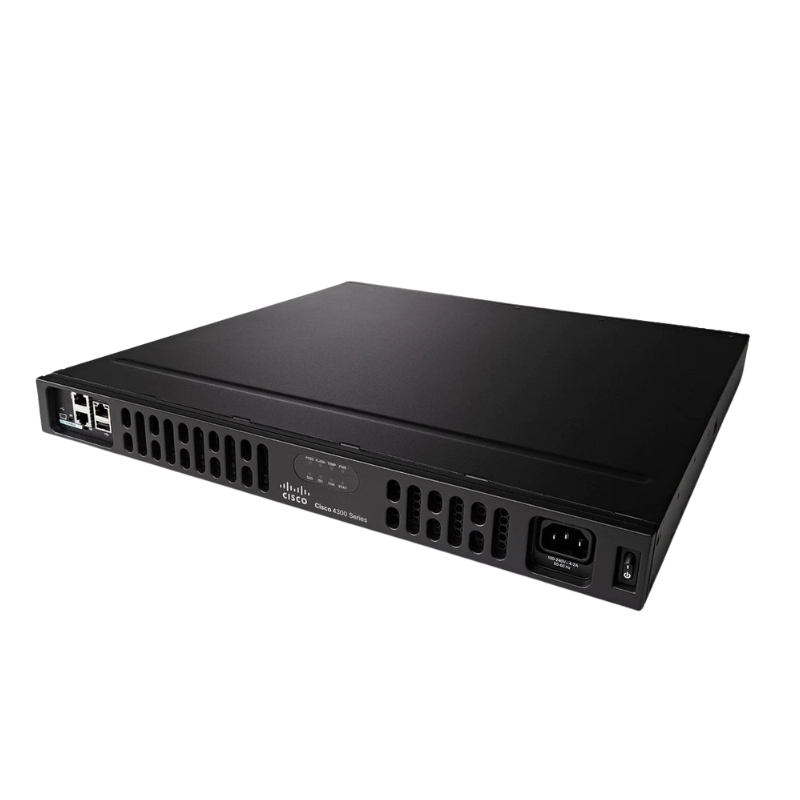

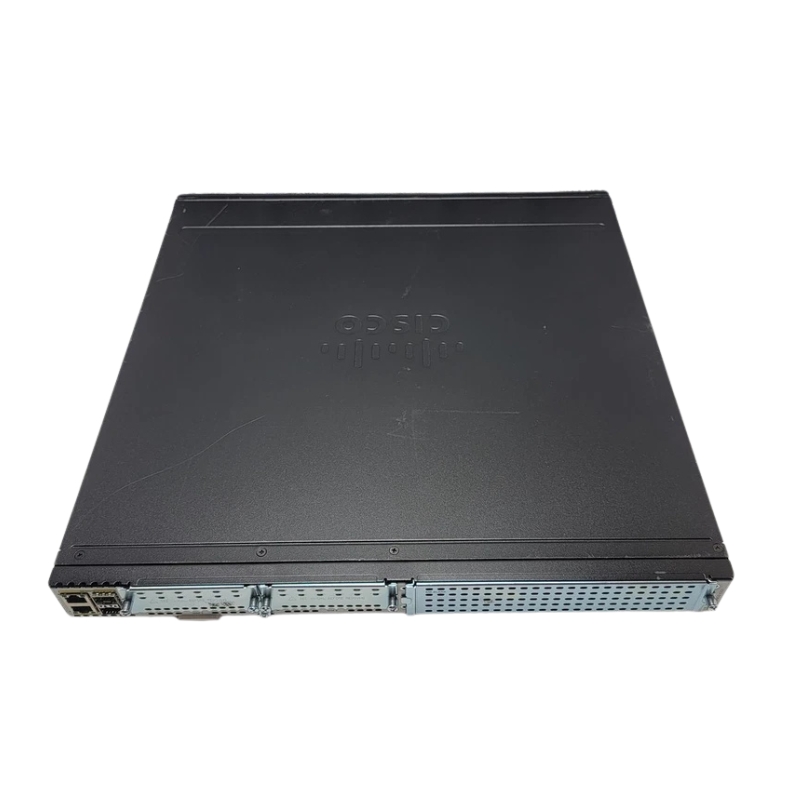

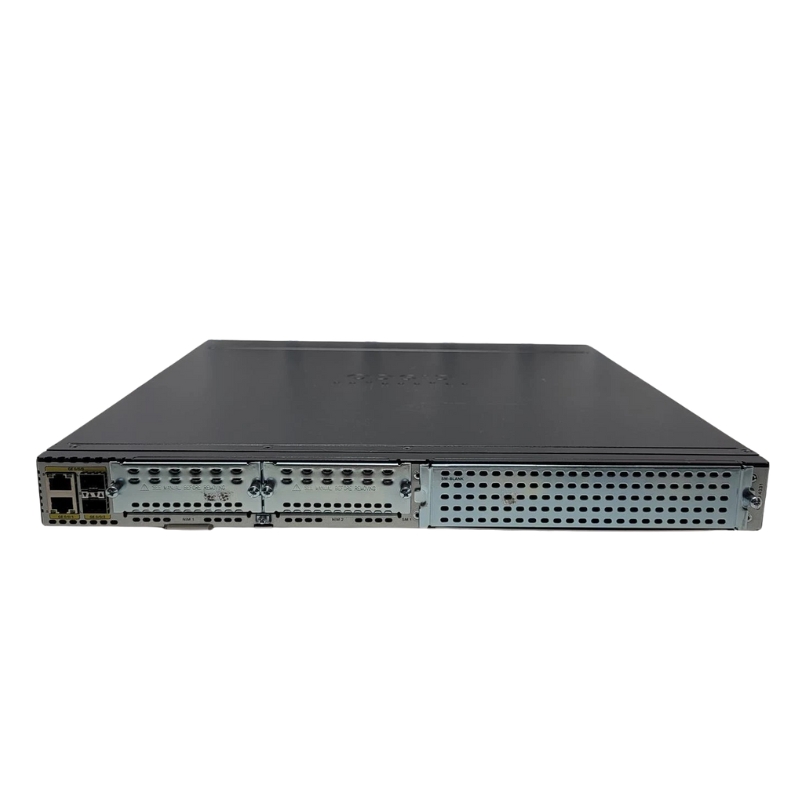

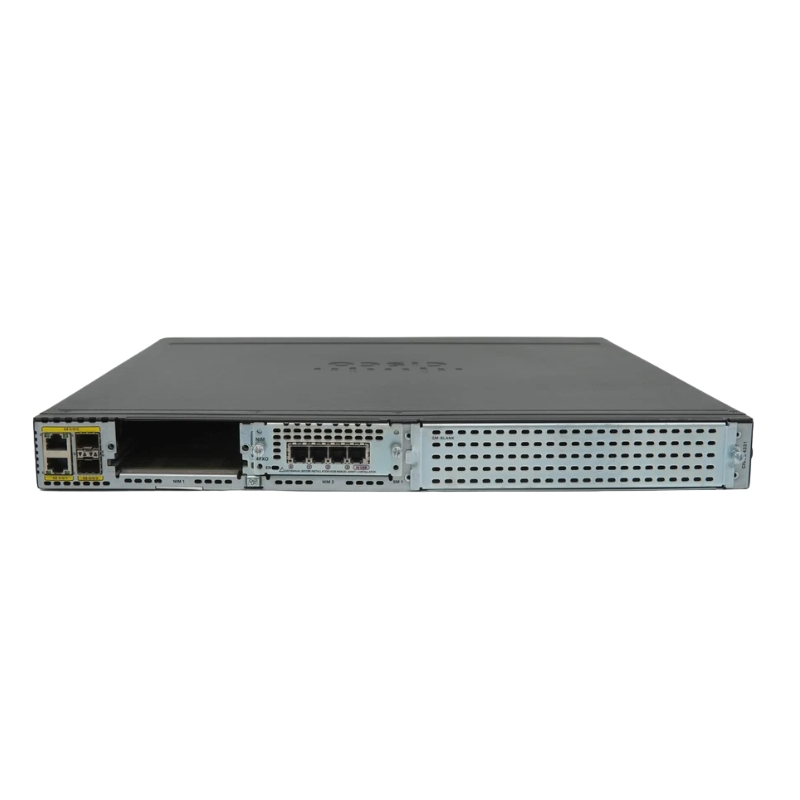

Cisco ISR4331-SEC/K9 Wall Mountable 3 Ports Integrated Service Router Gigabit Ethernet

Ports

The Cisco ISR4331-SEC/K9 Integrated Service Router is equipped with a total of 3 ports, providing users with ample connectivity options for their network infrastructure. These ports include:

Key Features of Integrated Service Router

• Part Number: ISR4331-SEC/K9
• Manufacturer: Cisco
• Product Type: Integrated Service Router
• Enclosure: Rack-mountable, Modular, 1U

Data Link Protocols

• Ethernet
• Fast Ethernet
• Gigabit Ethernet

Aggregate Throughput

• 100 Mbps

Supported Protocols

• IPsec
• PPPoE
• DHCP

Routing Capabilities

• OSPF
• IS-IS
• RIP-1
• RIP-2
• BGP
• EIGRP
• DVMRP
• PIM-SM
• IGMPv3
• GRE
• PIM-SSM
• Static IPv4 Routing
• Static IPv6 Routing
• Policy-Based Routing (PBR)
• IPv4-to-IPv6 Multicast

Management and Security Features

Remote Management

• SNMP
• RMON

Security and Control

• Firewall Protection
• VPN Support
• VLAN Support
• Syslog Support
• IPv6 Support
• Access Control List (ACL) Support
• Quality of Service (QoS)
• Dynamic Multipoint VPN (DMVPN)
• Radius Support
• NetFlow
• IPFIX

Standards Compliance

Compliance Details

• IEEE 802.3
• IEEE 802.1Q
• IEEE 802.3ah
• IEEE 802.1ag
• ANSI T1.101
• ITU-T G.823
• ITU-T G.824
• CISPR 22 Class A
• CISPR 24
• EN55024
• EN55022 Class A
• EN50082-1
• AS/NZS 60950-1
• ICES-003 Class A
• CS-03
• R&TTE
• FCC CFR47 Part 15
• EN300-386
• UL 60950-1
• IEC 60950-1
• EN 60950-1
• AS/NZS 3548 Class A
• GB 4943
• CAN/CSA C22.2 No. 60950-1
• VCCI V-3
• EN 61000
• KN22
• KN24
• CNS 13438

RAM

• Installed: 4 GB
• Maximum: 16 GB

Flash Memory

• Installed: 4 GB
• Maximum: 16 GB

Interfaces

• WAN/LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45
• Serial: 1 x Console - RJ-45
• Management: 1 x Console - Mini-USB Type B
• Serial: 1 x Auxiliary - RJ-45
• USB 2.0: 1 x 4-Pin USB Type A
• SFP (Mini-GBIC): 2
• Management: 1 x RJ-45

Expansion Slots

• NIM: 2 (total) / 2 (free)
• ISC: 1 (total) / 1 (free)
• Enhanced Service Module (SM-X): 1 (total) / 1 (free)
• DIMM 240-pin: 2 (total) / 0 (free)

Power Requirements

Power Supply

• Internal Power Supply: 250 Watts
• Installed: 1
• Maximum: 1

Voltage Requirements

• AC 120/230 V (50/60 Hz)

Gigabit Ethernet Ports

The router features 2 Gigabit Ethernet ports, which offer high-speed and reliable connectivity for connecting devices such as computers, servers, switches, and other networking equipment. With Gigabit Ethernet technology, users can transfer data at speeds of up to 1000 Mbps, ensuring smooth and efficient communication between devices.

These Gigabit Ethernet ports are particularly beneficial for businesses that require fast and reliable network connections. They enable organizations to handle large amounts of data traffic, such as video streaming, file transfers, and real-time collaboration. With the Gigabit Ethernet ports on the ISR4331-SEC/K9, businesses can ensure that their network infrastructure can support their growing data demands.

Benefits of Gigabit Ethernet Ports:

1. High-Speed Data Transfer:

The Gigabit Ethernet ports allow for data transfer at speeds of up to 1000 Mbps, ensuring fast and efficient communication between devices. This is especially important for businesses that rely on data-intensive applications or need to transfer large files quickly.

2. Improved Network Performance:

By providing high-speed connectivity, the Gigabit Ethernet ports help improve overall network performance. They minimize latency and reduce bottlenecks, ensuring that data flows smoothly and without interruptions.

3. Scalability:

The ISR4331-SEC/K9's Gigabit Ethernet ports offer scalability options for businesses. As the organization grows and requires more network connections, these ports can easily accommodate additional devices without compromising performance.

Console Port

In addition to the Gigabit Ethernet ports, the Cisco ISR4331-SEC/K9 also features a console port. This port allows users to establish a direct connection to the router using a console cable. It provides access to the router's command-line interface (CLI), allowing for configuration, troubleshooting, and monitoring of the device.

The console port is particularly useful for network administrators and IT professionals who need to manage the router directly. It provides a reliable and secure method of accessing the router's settings and performing essential tasks.

Benefits of the Console Port:

1. Easy Configuration:

The console port allows users to configure the router's settings directly through the CLI. This provides a granular level of control and customization, ensuring that the device is set up according to the organization's specific requirements.

2. Troubleshooting and Monitoring:

The console port enables network administrators to troubleshoot and monitor the router in real time. They can access diagnostic information, perform network tests, and address any issues promptly.

3. Secure Access:

Since the console port provides a direct connection to the router, it offers a secure method of accessing and managing the device. It eliminates the need for remote access, reducing potential security vulnerabilities.

Features

The Cisco ISR4331-SEC/K9 Integrated Service Router comes with a range of features designed to enhance its functionality and usability. Two notable features are its wall-mountable design and Gigabit Ethernet capabilities.

Wall Mountable

The wall-mountable design of the ISR4331-SEC/K9 makes it a versatile solution for businesses with limited space or those who prefer to mount their networking equipment on walls or other surfaces. This feature allows for easy installation and saves valuable desk or rack space.

Benefits of Wall Mountable Design:

1. Space Saving:

By mounting the router on a wall, businesses can free up valuable desk or rack space. This is particularly beneficial for smaller offices or data centers with limited room for networking equipment.

2. Easy Installation:

The wall-mountable design simplifies the installation process, as it eliminates the need for additional shelves or racks. Users can easily secure the router to the wall using mounting brackets, ensuring a secure and stable installation.

3. Improved Airflow and Cooling:

Mounting the router on a wall allows for better airflow and cooling. This helps prevent overheating and ensures optimal performance and longevity of the device.

Gigabit Ethernet

The Gigabit Ethernet capabilities of the ISR4331-SEC/K9 provide users with high-speed connectivity options for their network infrastructure. With Gigabit Ethernet, users can take advantage of fast data transfer speeds of up to 1000 Mbps.

Benefits of Gigabit Ethernet:

1. Fast Data Transfer:

Gigabit Ethernet allows for rapid data transfer between devices within the network. This is especially important for businesses that handle large amounts of data or require real-time communication between devices.

2. Reliable Performance:

The Gigabit Ethernet feature ensures reliable performance by minimizing latency and reducing packet loss. It provides a stable and consistent connection for mission-critical applications and services.

3. Future-Proofing:

Gigabit Ethernet technology is widely adopted and supported, making it a future-proof investment. By utilizing Gigabit Ethernet, businesses can ensure that their network infrastructure is capable of handling future data demands and emerging technologies.

In conclusion, the Cisco ISR4331-SEC/K9 Integrated Service Router offers users a wide range of benefits and important features. The 3 ports, including Gigabit Ethernet and console ports, provide high-speed connectivity, scalability, and secure access for efficient network management. Additionally, the wall-mountable design and Gigabit Ethernet capabilities enhance usability, space-saving, and future-proofing for businesses of all sizes.
