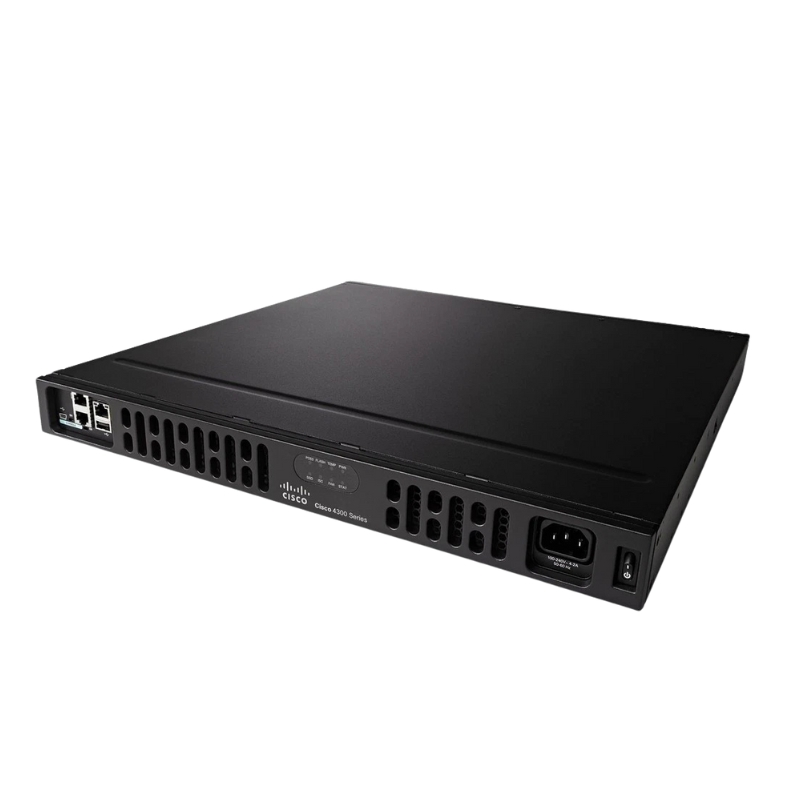

Cisco ISR4331-V/K9 3 Port Router 4331 Wall Mountable Gigabit Ethernet

Product Overview

The Cisco ISR4331-V/K9 is a high-performance router designed for various networking needs. Ideal for both small and medium-sized enterprises, it delivers robust connectivity and advanced features.

Manufacturer Details

• Brand: Cisco
• Model: ISR4331-V/K9

Device Specifications

• Product Type: Router
• Form Factor: Rack-mountable, Modular, 1U
• Connectivity: Wired

Performance and Protocols

• Aggregate Throughput: 100 Gbps
• Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
• Network Protocols: IPsec, PPPoE, DHCP
• Routing Protocols: OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, Static IPv4 Routing, Static IPv6 Routing, Policy-Based Routing (PBR), IPv4-to-IPv6 Multicast

Remote Management and Features

• Management Protocols: SNMP, RMON
• Key Features: VPN Support, VLAN Support, Syslog Support, IPv6 Support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Wall Mountable, Access Control List (ACL) Support, Quality of Service (QoS), RADIUS Support, NetFlow, IPFIX

Standards Compliance

The router adheres to several international standards, ensuring broad compatibility and reliable performance:

• IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag
• ANSI T1.101, ITU-T G.823, ITU-T G.824
• CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A
• EN50082-1, AS/NZS 60950-1, ICES-003 Class A
• CS-03, R&TTE, FCC CFR47 Part 15
• EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1
• AS/NZS 3548 Class A, GB 4943
• CAN/CSA C22.2 No. 60950-1, VCCI V-3
• EN 61000, KN22, KN24, CNS 13438

Memory and Expansion

• RAM: 4 GB (Installed), 16 GB (Maximum) – DDR3 SDRAM
• Flash Memory: 4 GB (Installed), 16 GB (Maximum)

Interfaces

• WAN/LAN Ports: 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45
• Serial Ports: 1 x Console – RJ-45, 1 x Auxiliary – RJ-45
• Management Ports: 1 x Console – Mini-USB Type B
• USB Ports: 1 x 4-pin USB Type A
• SFP Ports: 2 x mini-GBIC

Expansion Slots

• 2 x NIM (total), 2 x NIM (free)
• 1 x ISC (total), 0 x ISC (free)
• 1 x Enhanced Service Module (SM-X) (total), 1 x SM-X (free)
• 2 x DIMM 240-pin (total), 0 x DIMM (free)

Power Requirements

• Power Supply: Internal – 250 Watt
• Quantity Installed: 1 (installed), 1 (maximum)
• Voltage: AC 120/230 V (50/60 Hz)

Ports

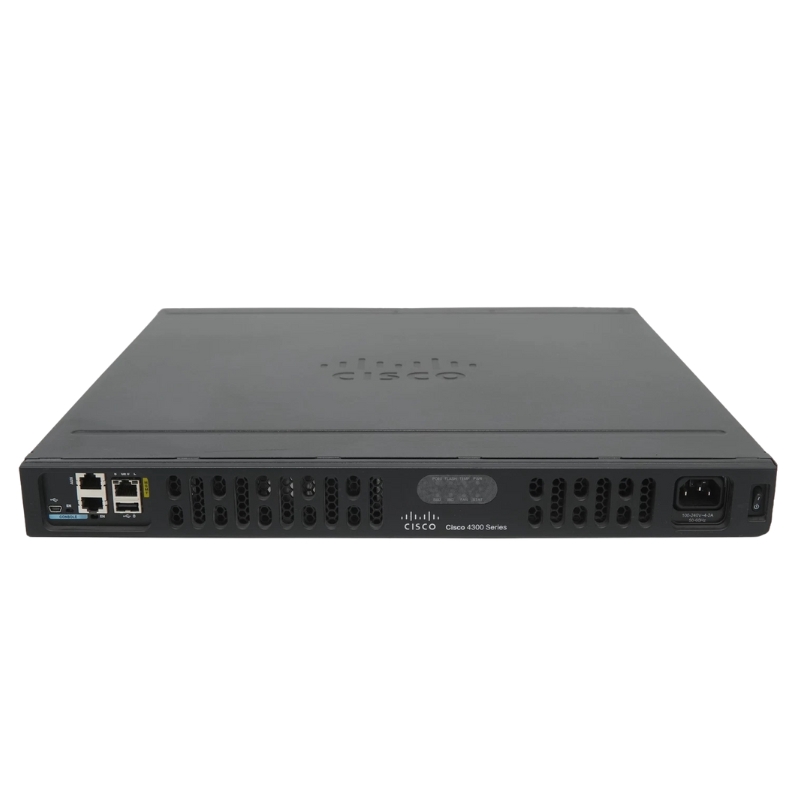

The Cisco ISR4331-V/K9 Router is equipped with a total of 3 ports, making it a highly versatile and efficient networking solution. These ports allow for seamless connectivity and enable users to establish reliable connections with various devices and networks. In this section, we will explore the benefits and importance of these ports in more detail.

Enhanced Connectivity

With 3 ports, the Cisco ISR4331-V/K9 Router offers enhanced connectivity options for users. This means that you can connect multiple devices simultaneously, such as computers, printers, servers, and more. Whether you are setting up a small office network or a home network, having multiple ports ensures that you have the flexibility to connect all your devices without any hassle.

Improved Data Transfer Speeds

The presence of multiple ports on the Cisco ISR4331-V/K9 Router also translates to improved data transfer speeds. Each port operates independently, allowing for simultaneous data transfers without any compromise in performance. This is particularly beneficial for businesses that deal with large volumes of data on a daily basis, as it ensures that their operations run smoothly and efficiently.

Network Segmentation

Another advantage of having 3 ports is the ability to segment your network effectively. Network segmentation involves dividing a larger network into smaller subnetworks, which can be beneficial for several reasons. It enhances security by isolating sensitive data and resources from the rest of the network. Additionally, it improves overall network performance by reducing congestion and improving data flow.

Enhanced Network Security

One of the key benefits of network segmentation is enhanced network security. By connecting different devices or departments to separate ports, you can effectively isolate sensitive information. This minimizes the risk of unauthorized access and protects critical data from potential threats. Whether you are running a small business or a large enterprise, safeguarding your network is crucial, and the 3 ports on the Cisco ISR4331-V/K9 Router allow you to do just that.

Optimized Network Performance

Network congestion can significantly impact network performance, leading to slow data transfer speeds and increased latency. By segmenting your network using the 3 ports on the Cisco ISR4331-V/K9 Router, you can alleviate congestion and optimize network performance. This ensures that your network operates at its full potential, allowing you to complete tasks efficiently and effectively.

Slots

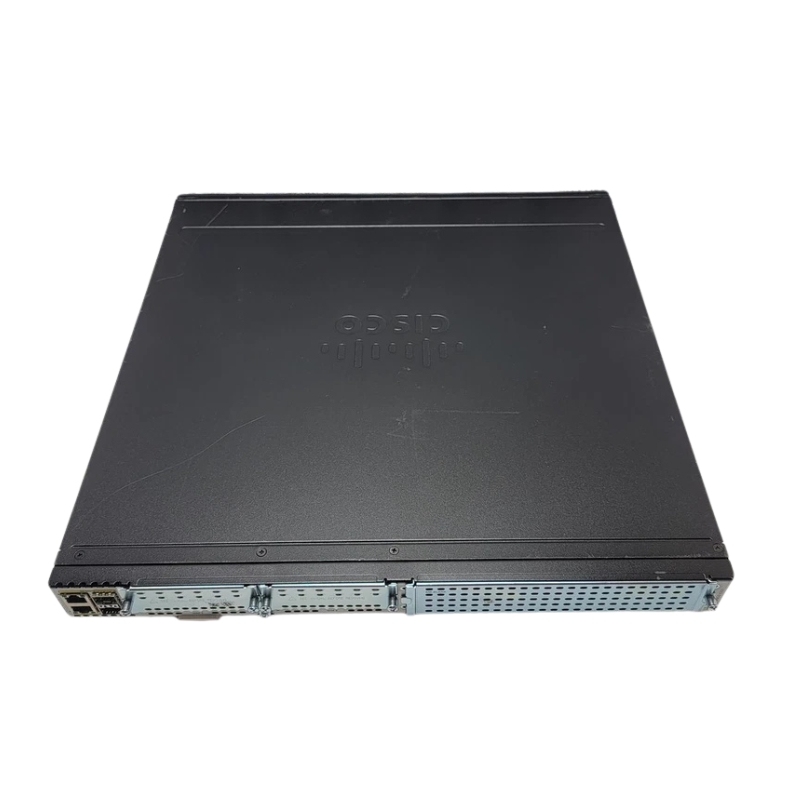

The Cisco ISR4331-V/K9 Router comes with a total of 6 slots, offering users unparalleled flexibility and expandability. These slots allow for the installation of various modules and interfaces, enabling users to customize their router according to their specific needs. Let's delve deeper into the benefits and importance of these slots.

Scalability

The 6 slots on the Cisco ISR4331-V/K9 Router provide users with the ability to scale their network infrastructure as their needs grow. This is particularly important for businesses that anticipate expansion or require additional resources in the future. By having multiple slots available, users can easily add modules or interfaces to accommodate new devices or technologies without replacing the entire router.

Customization

Each slot on the Cisco ISR4331-V/K9 Router allows for the installation of different modules and interfaces, giving users the flexibility to customize their router according to their specific requirements. Whether you need additional Ethernet ports, voice interfaces, or even advanced security features, these slots offer endless possibilities for tailoring your network infrastructure.

Future-Proofing

Investing in a router with multiple slots ensures that your network infrastructure remains future-proof. As technology continues to evolve at a rapid pace, having the ability to adapt and integrate new modules or interfaces is crucial. The 6 slots on the Cisco ISR4331-V/K9 Router provide users with the assurance that their router can keep up with emerging technologies and evolving network demands.

Advanced Functionality

The availability of multiple slots opens up opportunities for advanced functionality and integration. Users can add specialized modules to enhance security, such as intrusion prevention systems or VPN accelerators. Additionally, voice and video modules can be installed to support Unified Communications and collaboration applications. These advanced features enable businesses to streamline their operations and improve overall productivity.

Cost Efficiency

By offering multiple slots, the Cisco ISR4331-V/K9 Router promotes cost efficiency. Instead of investing in separate routers or devices for specific functions, users can leverage the available slots to integrate the required modules or interfaces into a single router. This not only saves on hardware costs but also reduces maintenance and management complexities.

Interface

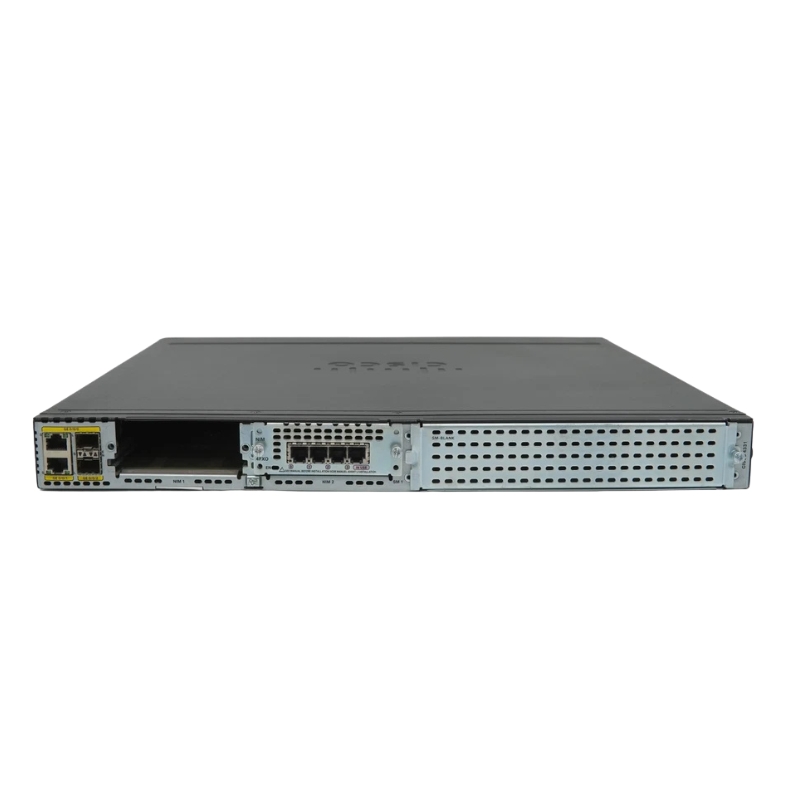

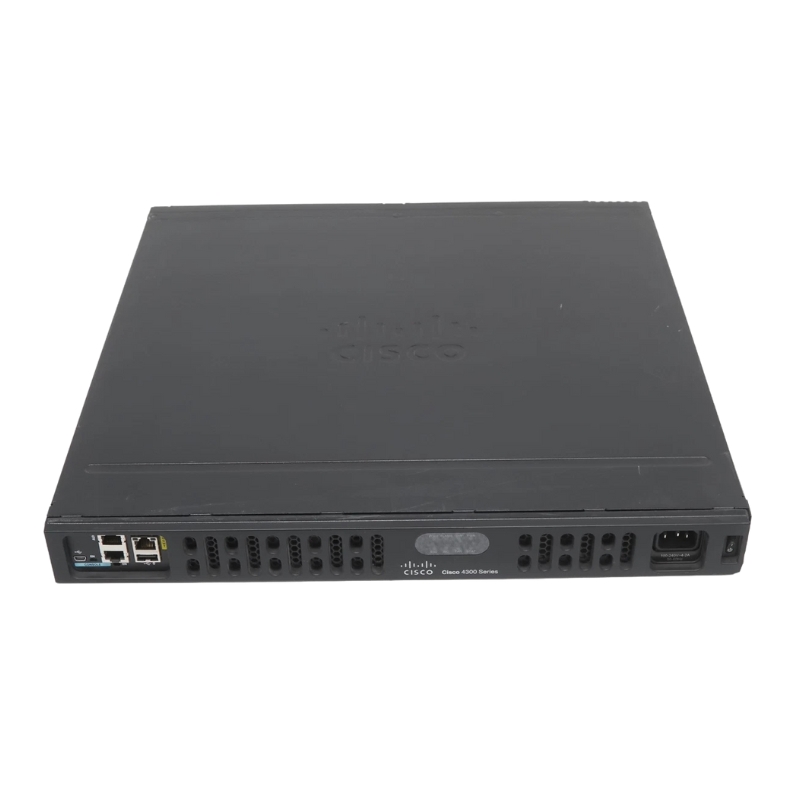

The Cisco ISR4331-V/K9 Router boasts Gigabit Ethernet interfaces, which play a crucial role in facilitating high-speed data transmission and ensuring seamless connectivity for users. In this section, we will explore the benefits and importance of Gigabit Ethernet interfaces in more detail.

High-Speed Data Transfer

Gigabit Ethernet interfaces offer significantly faster data transfer speeds compared to traditional Ethernet interfaces. With a Gigabit Ethernet interface, users can experience data transmission rates of up to 1000 Mbps. This is particularly beneficial for bandwidth-intensive tasks such as video streaming, large file transfers, and online gaming, where faster speeds translate to a smoother user experience.

Improved Network Performance

The high-speed capabilities of Gigabit Ethernet interfaces contribute to improved network performance. By providing faster data transfer rates, these interfaces reduce latency and ensure that data flows seamlessly across the network. This is especially important in business environments where network performance directly impacts productivity and customer satisfaction.

Network Flexibility

Gigabit Ethernet interfaces offer network flexibility by providing compatibility with various devices and network architectures. They can seamlessly integrate with existing Ethernet infrastructure and are backward compatible with lower-speed Ethernet standards. This flexibility allows users to upgrade their network capabilities without the need for extensive infrastructure changes, making it a cost-effective solution.

Support for Bandwidth-Intensive Applications

Bandwidth-intensive applications, such as video conferencing or cloud-based services, require a network infrastructure that can handle high data loads. Gigabit Ethernet interfaces provide the necessary bandwidth to support these applications seamlessly. By utilizing these interfaces, businesses can ensure smooth operations and deliver a superior user experience to their customers.

Future-Proof Network Infrastructure

Investing in a router with Gigabit Ethernet interfaces ensures that your network infrastructure remains future-proof. As data demands continue to increase, having the ability to support higher speeds becomes essential. By incorporating Gigabit Ethernet interfaces into your network, you can prepare your infrastructure for future growth and emerging technologies.

Mountable

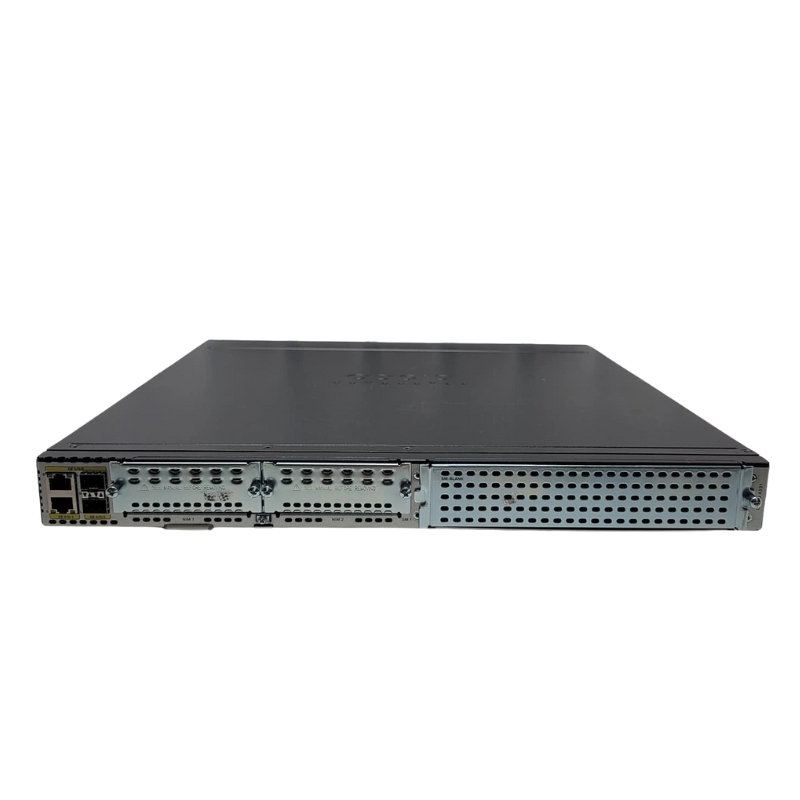

The Cisco ISR4331-V/K9 Router is wall mountable, providing users with a convenient and flexible deployment option. This feature offers several benefits and is important for users who require a compact and space-saving networking solution. Let's explore the advantages of the wall mountable design in more detail.

Space Efficiency

Wall mountable routers are an excellent choice for environments where space is limited or costly. By mounting the Cisco ISR4331-V/K9 Router on a wall, users can free up valuable desk or floor space, allowing for a more organized and efficient workspace. This is particularly beneficial for small offices, retail stores, or home networks where every inch of space matters.

Improved Aesthetics

In addition to space efficiency, wall mountable routers contribute to improved aesthetics. By eliminating the need for bulky and cluttered wiring setups, a wall-mounted router provides a clean and streamlined appearance. This enhances the overall look and feel of the environment, creating a professional and organized impression.

Easy Installation

Wall mounting the Cisco ISR4331-V/K9 Router is a straightforward and hassle-free installation process. The router is designed with mounting brackets and pre-drilled holes, making it easy to secure it to any suitable wall surface. This allows for quick deployment, saving time and effort for users.

Flexibility in Placement

The wall mountable design offers flexibility in router placement. Users can strategically position the router in an optimal location for signal strength and coverage. By mounting it on a wall, you can achieve better Wi-Fi coverage throughout your space, ensuring that all devices have reliable connectivity.

Increased Security

Mounting the Cisco ISR4331-V/K9 Router on a wall can also enhance security. By placing it out of reach or in a less accessible location, you can minimize the risk of physical tampering or unauthorized access. This is particularly important for public spaces or shared environments where network security is a top priority.

In conclusion, the Cisco ISR4331-V/K9 Router offers an impressive range of features that cater to the diverse networking needs of users. The 3 ports provide enhanced connectivity options, improved data transfer speeds, and network segmentation capabilities. The 6 slots offer scalability, customization, and future-proofing opportunities by allowing users to integrate various modules and interfaces. The Gigabit Ethernet interfaces ensure high-speed data transfer, improved network performance, and support for bandwidth-intensive applications. Lastly, the wall mountable design provides space efficiency, improved aesthetics, easy installation, flexibility in router placement, and increased security. With these features, the Cisco ISR4331-V/K9 Router proves to be a reliable and versatile networking solution for both businesses and individuals alike.
