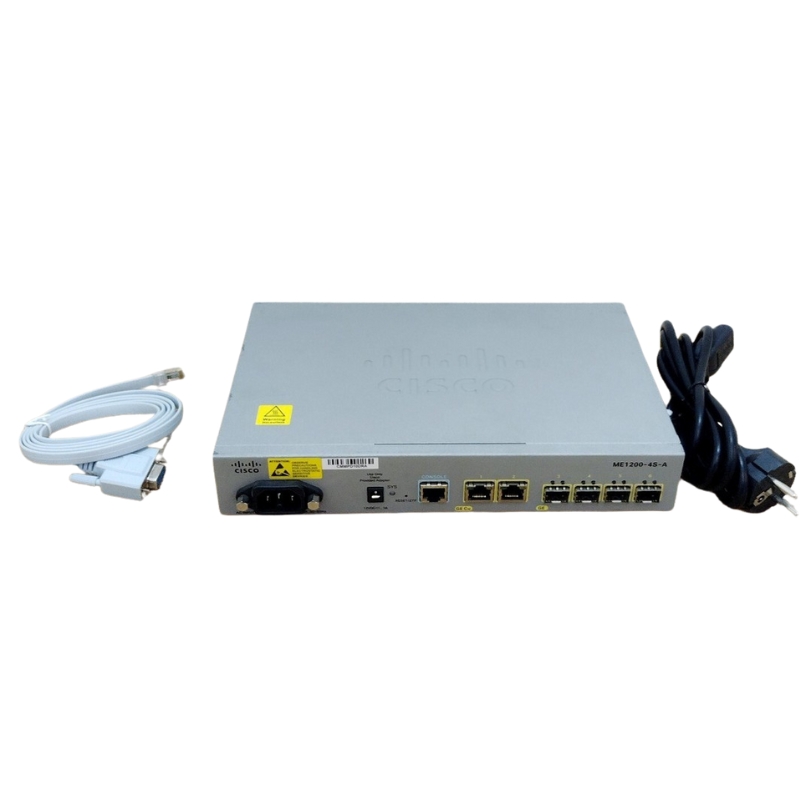

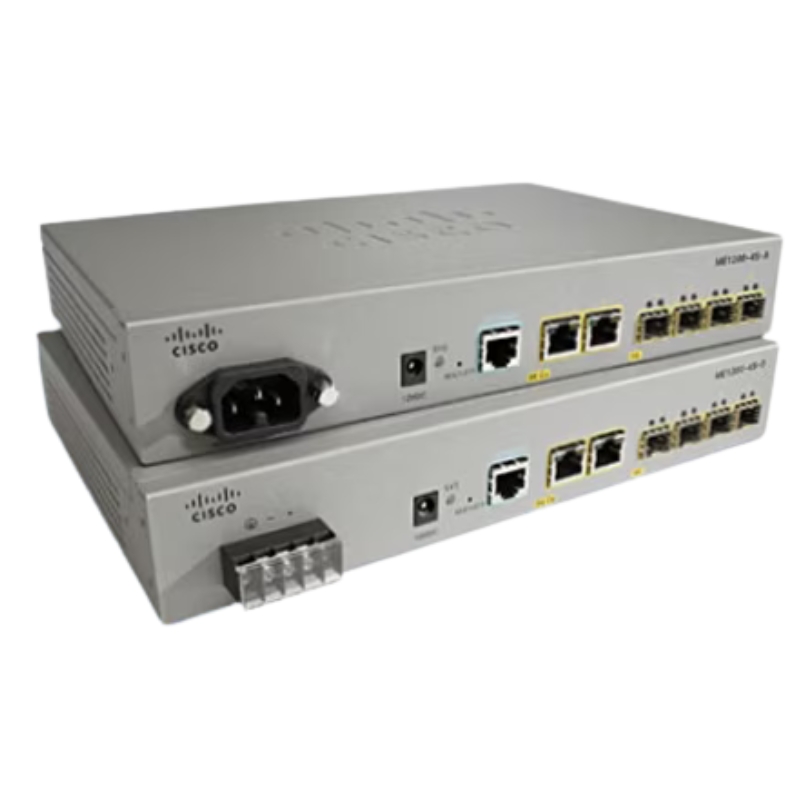

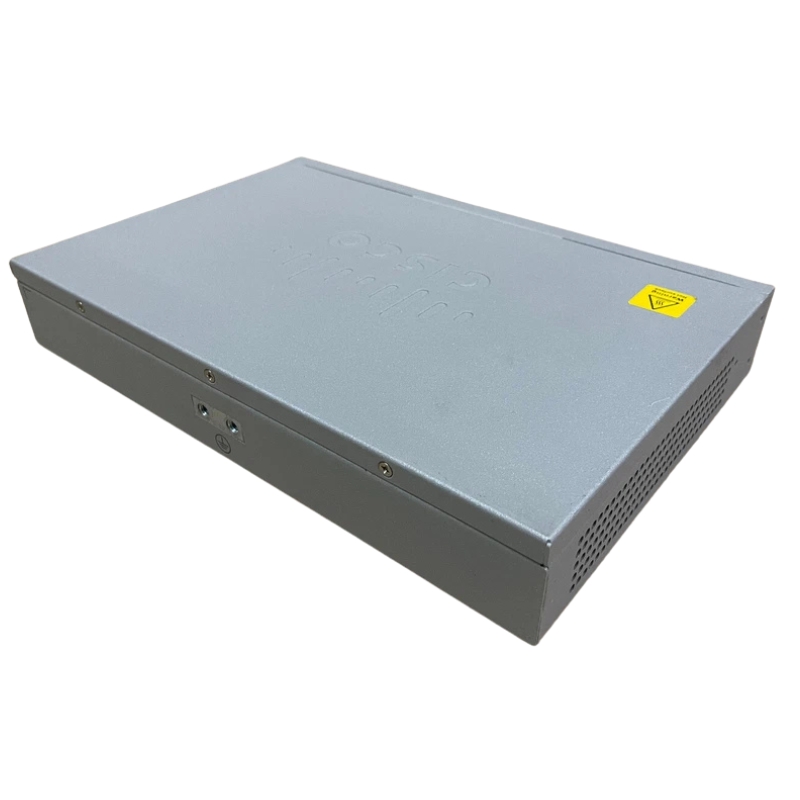

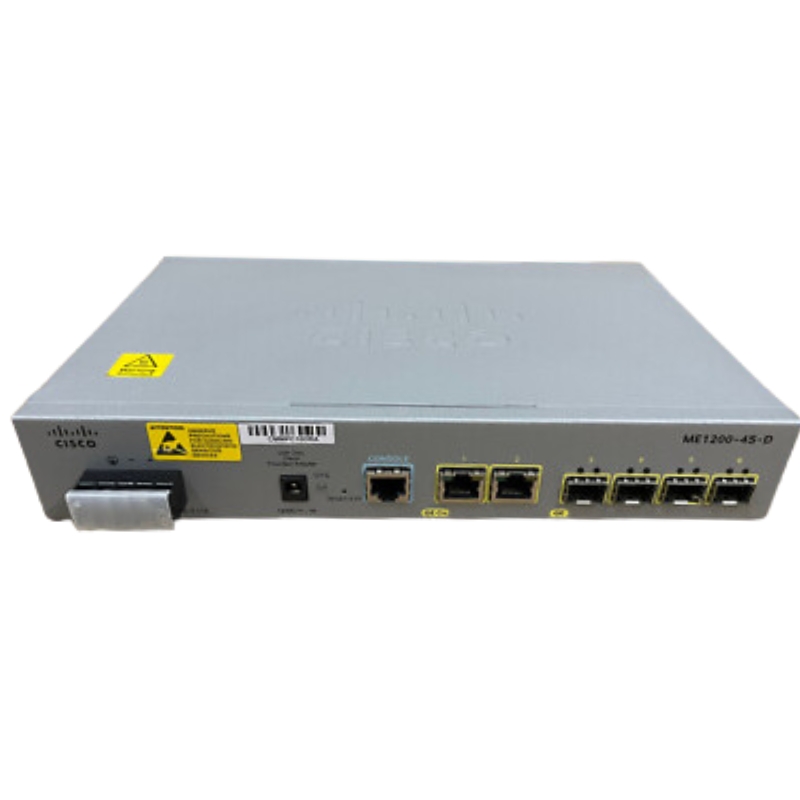

ME1200-4S-D Cisco Ethernet Access Device

Overview Cisco ME1200-4S-D Ethernet Access Device

The Cisco ME1200-4S-D is a compact and efficient Ethernet access router designed for carrier-grade deployments. It delivers reliable connectivity, advanced synchronization, and robust service assurance features, making it ideal for modern networking environments.

General Information

• Brand: Cisco
• Model Number: ME1200-4S-D
• Category: Ethernet Router

Technical Specifications

Port Configuration

• 4 x Gigabit Ethernet SFP slots (Small Form-factor Pluggable)
• 2 x 10/100/1000Base-T RJ-45 interfaces
• 1 x RJ-45 console management port

Power Features

• Internal DC power supply with input range –20.5V to –72VDC
• Optional 12VDC external adapter for redundancy
• Energy-efficient design consuming less than 10W (approx. 8.16W @ 48V)

Memory & Storage

• 1GB DRAM
• 64MB Flash memory

Physical Design

• Form Factor: 1RU height
• Depth: 7.1 to 7.2 inches
• Cooling: Passive, fanless design for silent operation

Performance & Software Features

Throughput & Processing

• Line-rate performance across all Layer 2 interfaces
• Powered by specialized Carrier Ethernet ASIC

Synchronization & Timing

• IEEE 1588v2 Precision Time Protocol (PTP)
• Synchronous Ethernet (SyncE) support

Service Assurance

• Hardware-based OAM (Operations, Administration, and Maintenance)
• Compliant with IEEE 802.1ag and ITU-T Y.1731 standards

Quality of Service (QoS)

• 3-level hierarchical QoS (HQoS)
• MEF-compliant traffic shaping

Frame Handling

• Supports jumbo frames up to 10,000 bytes

Cisco ME1200-4S-D ME 1200 Ethernet Access Device Overview

The Cisco ME1200-4S-D ME 1200 Ethernet Access Device represents a highly efficient and scalable solution designed to meet the growing demands of modern carrier Ethernet networks. Built with precision engineering and optimized for service provider environments, this Ethernet access device delivers advanced performance, robust security, and flexible deployment capabilities. It is specifically engineered to support high-speed connectivity while maintaining strict service-level agreements, making it an essential component in metro Ethernet infrastructures.

High-Performance Ethernet Access Architecture

The architecture of the Cisco ME1200-4S-D is developed to ensure optimal throughput and low latency performance. It supports high-speed fiber connectivity, enabling service providers and enterprises to deploy scalable network infrastructures. The device integrates advanced Layer 2 switching features, allowing efficient traffic management and seamless data transmission across complex network environments.

Carrier-Grade Reliability

Carrier-grade reliability is a fundamental aspect of the ME 1200 Ethernet Access Device. It is designed to operate continuously in demanding environments, ensuring uninterrupted network service. Redundant system components and robust failover mechanisms contribute to high availability, minimizing downtime and enhancing network resilience.

Enhanced Fault Tolerance

The device incorporates advanced fault detection and recovery mechanisms. These include rapid spanning tree protocols, link aggregation, and automatic failover capabilities that ensure consistent service delivery even in the event of network disruptions.

Advanced Layer 2 Switching Capabilities

The Cisco ME1200-4S-D supports sophisticated Layer 2 switching features that are essential for efficient traffic handling. It provides VLAN segmentation, MAC address management, and traffic prioritization, allowing network administrators to optimize bandwidth utilization and improve overall network performance.

VLAN Support and Traffic Segmentation

Virtual Local Area Network support allows the device to segment network traffic effectively. This segmentation enhances security and performance by isolating traffic flows and reducing broadcast domains. It enables service providers to deliver customized services to multiple customers over a shared infrastructure.

Quality of Service Optimization

The Quality of Service capabilities of the ME1200-4S-D ensure that critical applications receive priority treatment. By classifying and prioritizing traffic, the device helps maintain consistent performance for latency-sensitive applications such as voice and video communications.

Traffic Shaping and Policing

Traffic shaping and policing features enable precise control over bandwidth allocation. These capabilities ensure fair usage and prevent network congestion, thereby maintaining optimal performance across all connected devices.

Scalability and Flexibility in Deployment

The Cisco ME1200-4S-D is designed to scale with evolving network requirements. Its flexible configuration options allow it to be deployed in various network topologies, including point-to-point, ring, and mesh architectures. This adaptability makes it suitable for a wide range of applications, from small business networks to large-scale service provider deployments.

Modular Design Approach

The modular design of the device supports future expansion and upgrades. Network administrators can easily adapt the system to accommodate increasing bandwidth demands and new service requirements without significant infrastructure changes.

Fiber Connectivity

Fiber connectivity ensures high-speed data transmission over long distances. The ME1200-4S-D supports multiple fiber interfaces, providing flexibility in network design and enabling seamless integration with existing infrastructure.

Efficient Network Expansion

With its scalable architecture, the device allows for efficient network expansion. Organizations can add new nodes and services without compromising performance or reliability.

Security Features and Network Protection

Security is a critical component of the Cisco ME1200-4S-D Ethernet Access Device. It incorporates multiple layers of protection to safeguard network data and prevent unauthorized access. These features ensure that sensitive information remains secure while maintaining high network performance.

Access Control Mechanisms

The device supports advanced access control mechanisms that restrict unauthorized access to network resources. These include port security, MAC filtering, and authentication protocols that enhance overall network security.

Data Integrity and Encryption

Data integrity is maintained through robust encryption techniques and secure communication protocols. These measures protect data from interception and tampering during transmission.

Protection Against Network Threats

The ME1200-4S-D is equipped with features that defend against various network threats, including denial-of-service attacks and unauthorized intrusion attempts. These capabilities ensure a secure and stable network environment.

Energy Efficiency and Environmental Considerations

The Cisco ME1200-4S-D is designed with energy efficiency in mind. It incorporates advanced power management features that reduce energy consumption while maintaining high performance levels. This makes it an environmentally friendly choice for modern network deployments.

Optimized Power Usage

The device utilizes intelligent power management techniques to optimize energy usage. These include dynamic power scaling and energy-efficient components that minimize power consumption during low activity periods.

Reduced Operational Costs

Energy-efficient operation translates into lower operational costs. Organizations can achieve significant savings on energy expenses while maintaining high network performance.

Sustainable Network Infrastructure

By reducing energy consumption and minimizing environmental impact, the ME1200-4S-D contributes to sustainable network infrastructure development.

Application Scenarios and Use Cases

The Cisco ME1200-4S-D Ethernet Access Device is suitable for a wide range of applications across different industries. Its versatility and advanced features make it an ideal choice for various network environments.

Service Provider Networks

In service provider networks, the device enables the delivery of high-speed Ethernet services to customers. It supports multiple service types and ensures reliable connectivity.

Enterprise Network Deployments

Enterprises can use the ME1200-4S-D to build scalable and secure network infrastructures. Its advanced features support business-critical applications and ensure consistent performance.

Metro Ethernet Solutions

The device plays a crucial role in metro Ethernet solutions, providing high-speed connectivity across urban areas. It supports efficient data transmission and enhances network scalability.

Future-Ready Networking Capabilities

The Cisco ME1200-4S-D is designed to meet future networking demands. Its advanced architecture and flexible design ensure compatibility with emerging technologies and evolving network standards.

Next-Generation Technologies

The device is built to support next-generation networking technologies, enabling organizations to stay ahead of industry trends. This ensures long-term value and investment protection.

Seamless Integration with Modern Networks

Seamless integration capabilities allow the device to work with existing network infrastructure. This reduces deployment complexity and enhances overall efficiency.

Adaptability to Changing Requirements

The ME1200-4S-D is highly adaptable, allowing it to meet changing network requirements. Its flexible configuration options ensure that it remains relevant in dynamic network environments.
