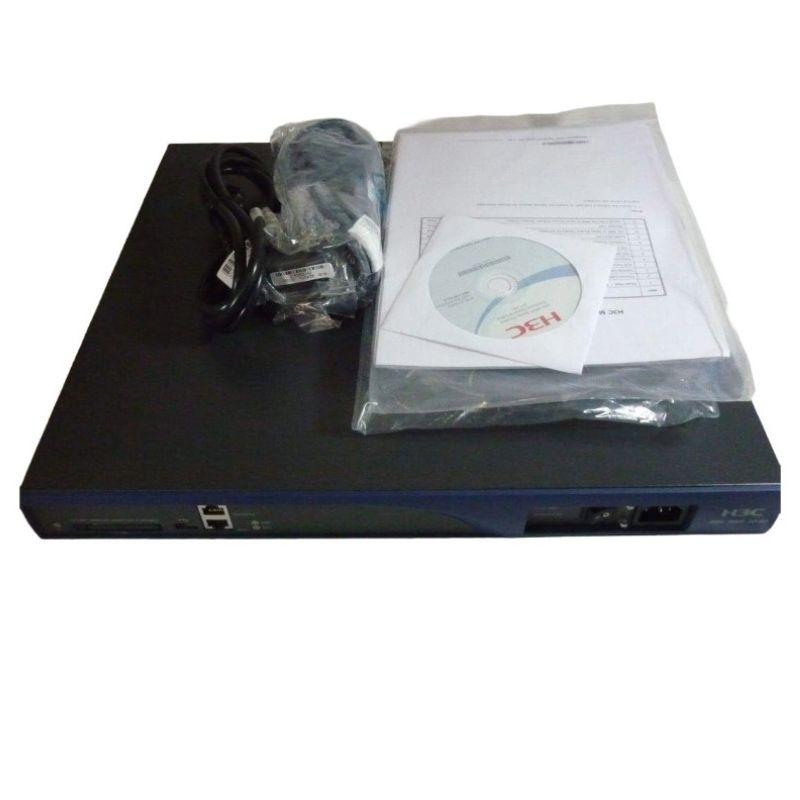

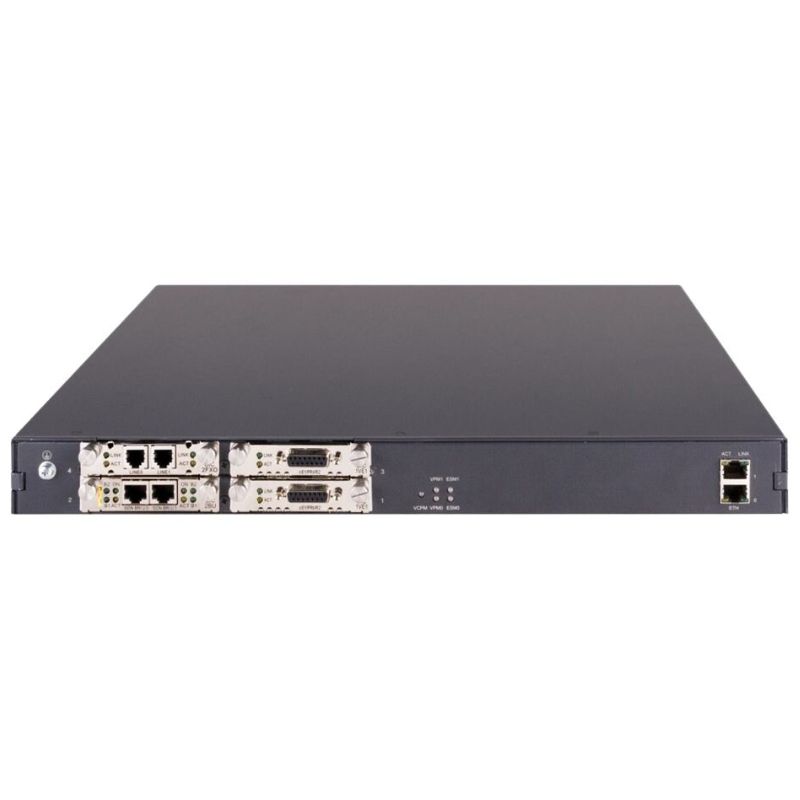

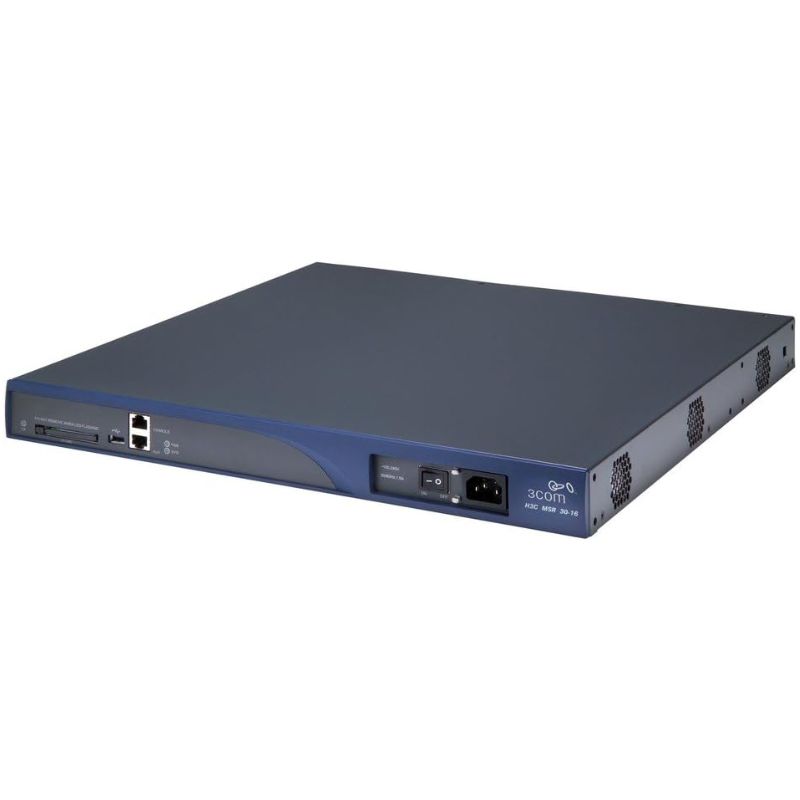

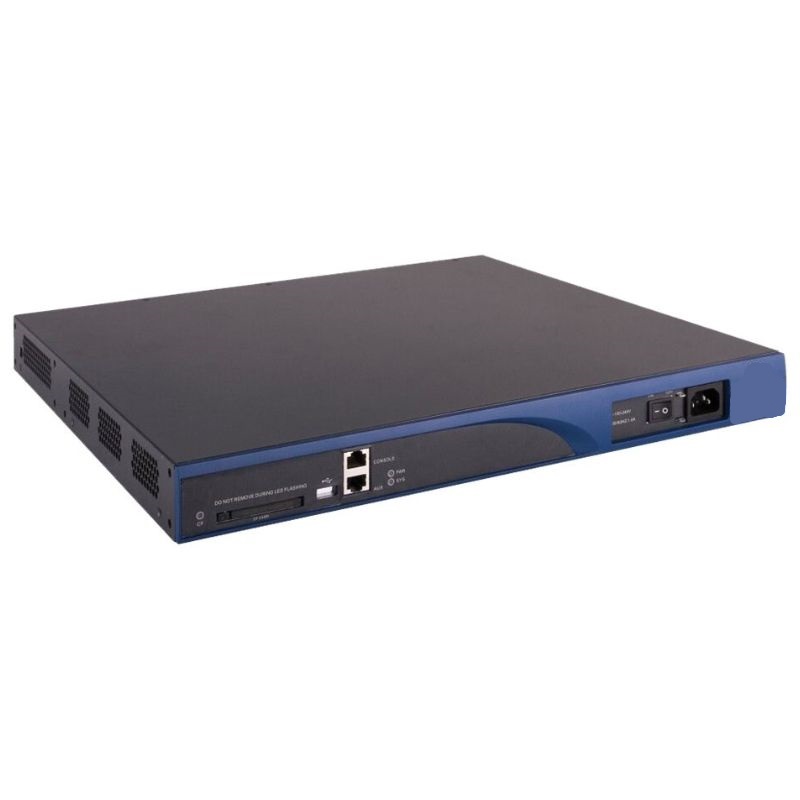

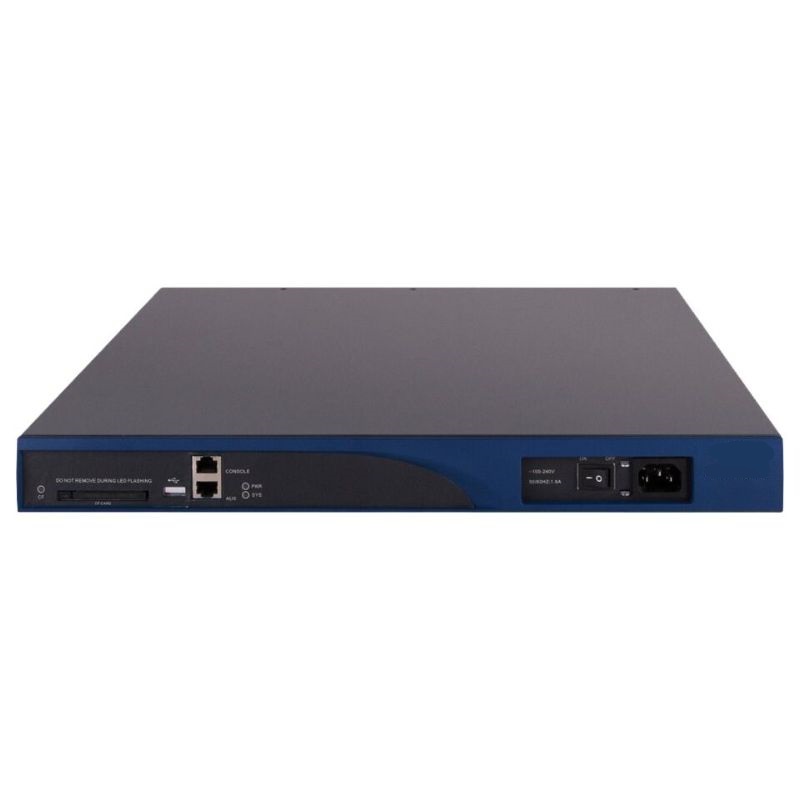

JF233A HPE A-msr30-16 Router Rack Mountable

HPE A-msr30-16 Router

The HPE JF233A A-msr30-16 Router is a rack-mountable modular device designed for enterprise-grade networking solutions. With robust performance, versatile connectivity, and advanced routing protocols, it ensures reliable communication across complex infrastructures.

General Information

• Manufacturer: Hewlett Packard Enterprise (HPE)
• Part Number: JF233A
• Device Type: Router

Technical Specifications

Form Factor

• Rack-mountable
• Modular design
• 1U height

Modules

• Installed Modules: 1
• Maximum Supported Modules: 5

Processor

• Type: 1 x 400 MHz

Networking Capabilities

Connectivity Technology

• Wired Ethernet
• Fast Ethernet

Supported Data Link Protocols

• Ethernet
• Fast Ethernet

Network & Transport Protocols

• TCP/IP
• L2TP
• RSVP
• NTP
• PPPoE

Routing Protocols

• OSPF, OSPFv2, OSPFv3
• BGP-4, Multiprotocol BGP
• IS-IS
• RIP-1, RIP-2, RIPng
• IGMPv2, IGMPv3
• VRRP
• PIM-SM, PIM-DM
• GRE
• MSDP
• Static IPv4 & IPv6 Routing

Remote Management Protocols

• SNMP v1, v2, v3
• RMON 1
• Telnet
• HTTP
• FTP
• SSH

Advanced Features

• Firewall Protection
• DHCP & NAT Support
• VPN & NAPT Support
• ARP & MPLS Support
• IGMP Snooping
• Syslog & Port Mirroring
• IPv6 Compatibility
• Weighted Fair Queuing (WFQ)
• TFTP Support
• Access Control List (ACL)
• Quality of Service (QoS)
• MLD Snooping

Compliance Standards

• IEEE 802.3, 802.3u
• IEEE 802.1d, 802.1q, 802.1p
• IEEE 802.1w, 802.1x, 802.1s

Power Specifications

• Internal Power Supply
• Voltage: AC 120/230 V (50/60 Hz)

Expansion & Connectivity

Expansion Slots

• 1 x Multifunction Interface Module (MIM)
• 4 x Smart Interface Card (SIC)
• 1 x CompactFlash Card

Interfaces

• 2 x Ethernet 10Base-T/100Base-TX (RJ-45)
• 1 x USB Port
• 1 x Console Management Port
• 1 x Auxiliary Management Port

HPE JF233A A-MSR30-16 Router Rack Mountable Overview

The HPE JF233A A-MSR30-16 Router Rack Mountable category represents a critical segment within enterprise-grade networking hardware designed to deliver high-performance routing, security, and scalability in modern IT infrastructures. This category is particularly relevant for organizations seeking robust, reliable, and flexible routing solutions that can be seamlessly integrated into rack-mounted environments. With the growing demand for uninterrupted connectivity, data security, and efficient traffic management, this category addresses the needs of businesses ranging from medium enterprises to large-scale data centers.

The rack mountable design of devices in this category ensures optimized space utilization in server rooms and data centers. The integration of advanced routing protocols, security features, and modular expansion capabilities makes this category an essential component in building resilient network architectures. Enterprises leveraging these routers benefit from improved network efficiency, reduced latency, and enhanced operational control.

Architecture and Design Philosophy

Rack Mountable Efficiency and Structural Integration

The rack mountable nature of the HPE JF233A A-MSR30-16 Router is engineered to align with standard server racks, enabling seamless installation and maintenance. This design ensures that network administrators can efficiently manage multiple devices within confined spaces, reducing clutter and improving airflow management. The physical build emphasizes durability, ensuring that the router can operate reliably in high-density environments where temperature control and vibration resistance are critical.

Space Optimization in Data Centers

Data centers demand hardware that maximizes performance without compromising space. This category addresses that need by providing compact yet powerful routing solutions. The streamlined chassis design allows for easy stacking and integration alongside servers, switches, and storage devices. This spatial efficiency contributes to improved cable management and simplified infrastructure scaling.

Modular and Scalable Framework

One of the defining characteristics of this category is its modular architecture. The HPE JF233A A-MSR30-16 Router supports expansion modules that allow organizations to customize their networking capabilities based on evolving requirements. This modularity ensures that businesses can adapt to increasing data demands without overhauling their existing infrastructure.

Key Capabilities and Routing Efficiency

High-Speed Data Processing

The category is designed to handle high volumes of network traffic with minimal latency. Advanced processing capabilities ensure that data packets are routed efficiently, reducing bottlenecks and enhancing overall network performance. This is particularly beneficial for organizations that rely on real-time data transmission, such as financial institutions and cloud service providers.

Data Encryption and Privacy

Encryption technologies ensure that data transmitted across the network remains secure and confidential. This is particularly important for organizations handling sensitive information, such as healthcare providers and financial institutions.

Threat Detection and Prevention

The routers are equipped with mechanisms to identify and mitigate potential threats in real time. This proactive approach to security minimizes the risk of data breaches and ensures continuous network integrity.

Secure Remote Access

Remote access capabilities are essential in today’s distributed work environments. The category supports secure VPN connections, allowing employees to access network resources safely from remote locations. This enhances productivity while maintaining strict security standards.

Data Center Integration

In data centers, these routers play a critical role in managing traffic between servers, storage systems, and external networks. Their high throughput and reliability make them indispensable in maintaining efficient operations.

Service Provider Networks

Service providers require networking equipment that can handle large volumes of traffic while maintaining high levels of reliability. This category meets those requirements by offering advanced routing capabilities and scalable performance.

Automation and Network Optimization

Automation tools integrated into the router enable efficient network optimization. These tools can automatically adjust configurations based on traffic patterns, ensuring optimal performance at all times.

Compatibility and Integration

Seamless Integration with Existing Infrastructure

The HPE JF233A A-MSR30-16 Router Rack Mountable category is designed to integrate seamlessly with existing network infrastructures. This compatibility reduces deployment complexity and ensures a smooth transition during upgrades.

Interoperability with Network Devices

The routers support interoperability with a wide range of network devices, including switches, firewalls, and wireless access points. This ensures cohesive network operation and simplifies management.

Support for Legacy Systems

Organizations with legacy systems can still benefit from this category, as the routers are capable of interfacing with older technologies while supporting modern standards.

Advanced Networking Features

Quality of Service (QoS) Management

Quality of Service features ensure that critical applications receive priority in network traffic. This is essential for maintaining performance in environments where multiple applications compete for bandwidth.

Traffic Prioritization Techniques

Advanced traffic prioritization techniques enable administrators to allocate resources effectively, ensuring that high-priority tasks are not disrupted by less critical activities.

Bandwidth Allocation Strategies

Bandwidth allocation strategies help in distributing network resources efficiently, preventing congestion and ensuring smooth operation.

Virtualization and Network Segmentation

The category supports virtualization technologies that allow for network segmentation. This enhances security and performance by isolating different network segments.
