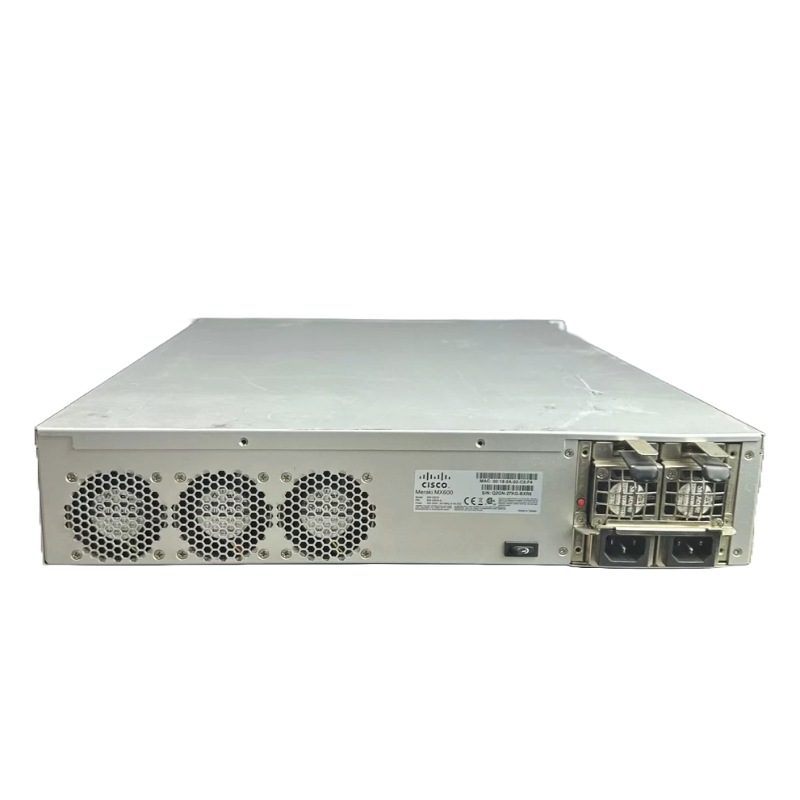

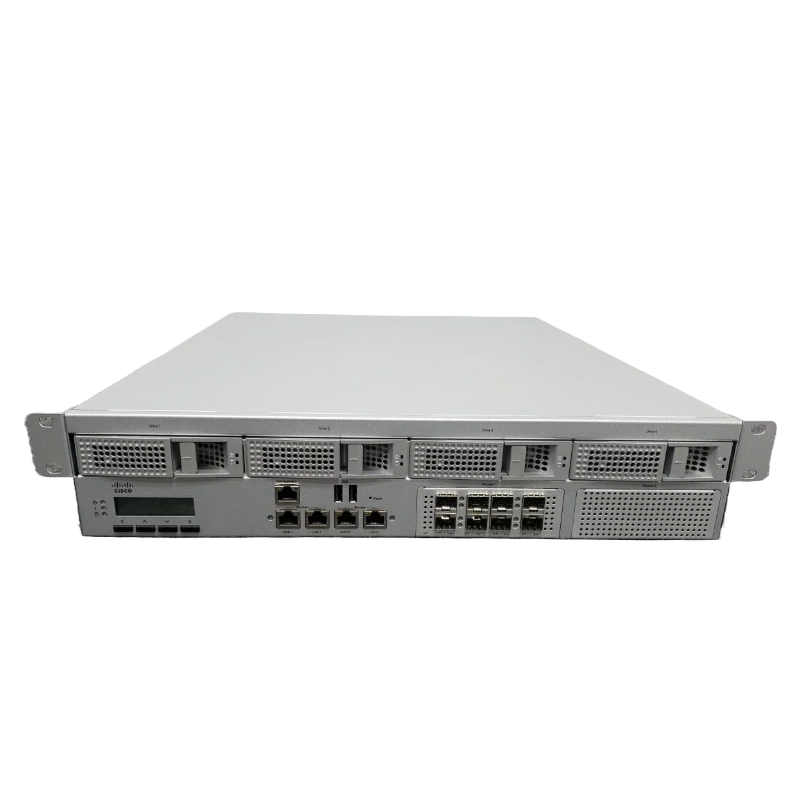

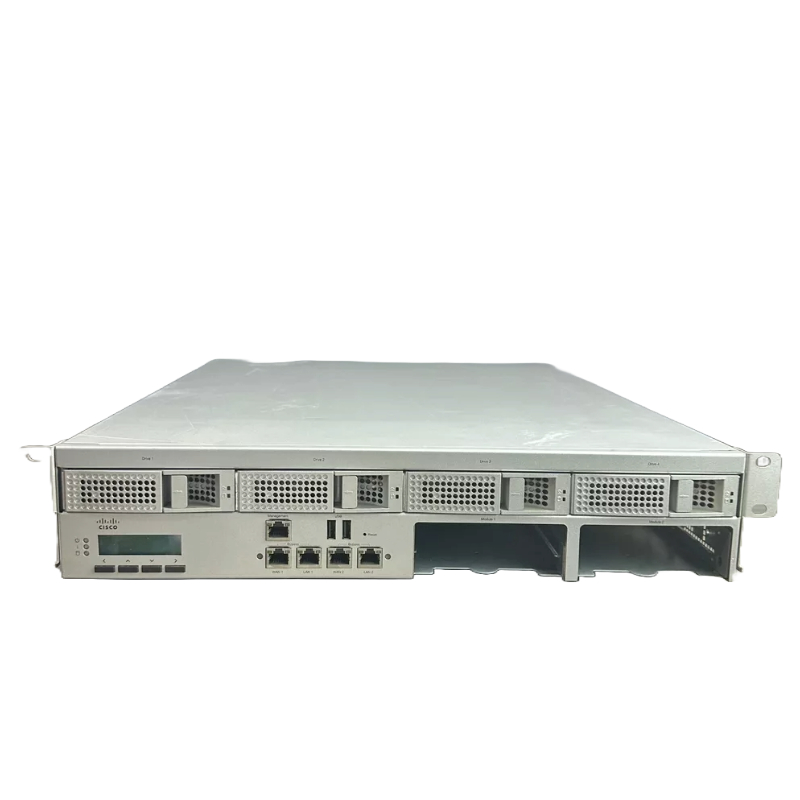

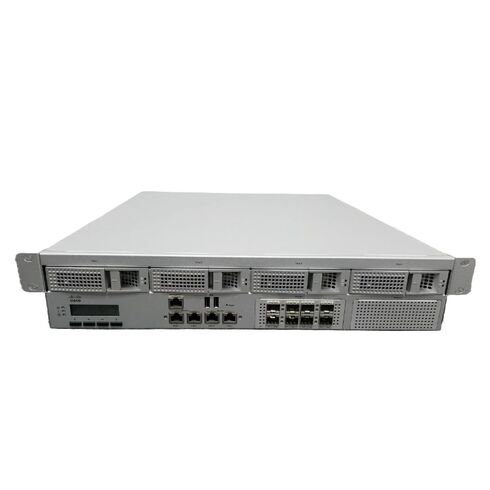

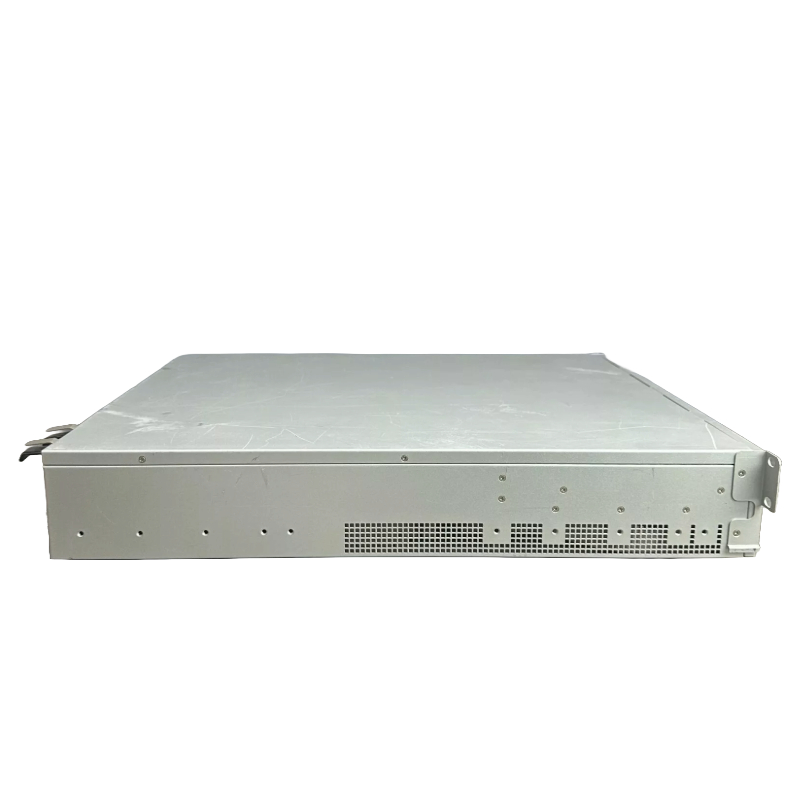

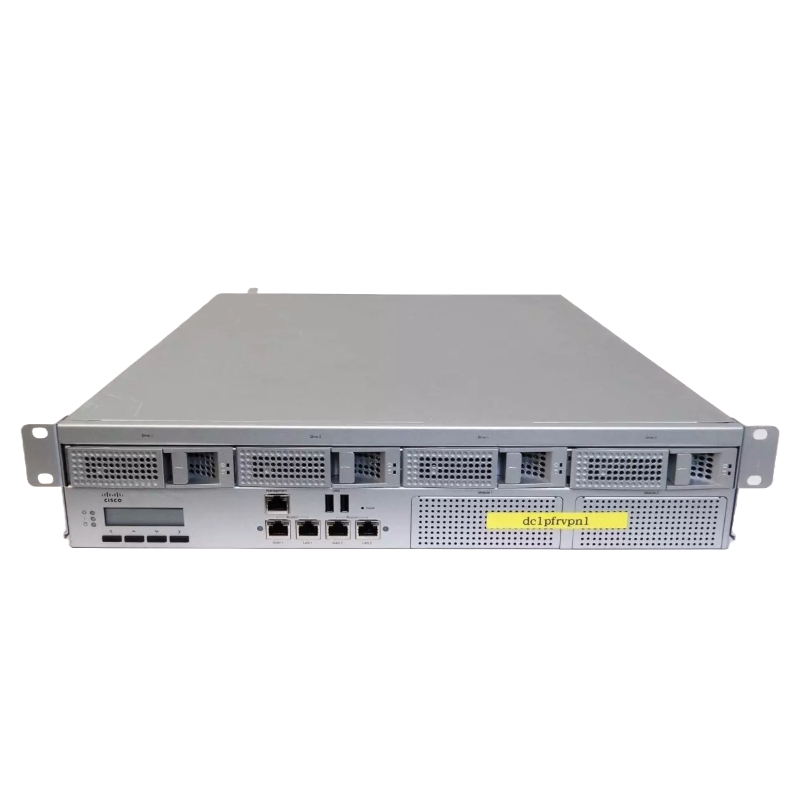

Cisco Meraki MX450 Security Appliance MX600-HW

Technical Specifications for MX600-HW

General Product Information

• Manufacturer Part Number: MX600-HW
• Brand: Meraki
• Product Type: Network Security and Firewall Appliance

Technical Specifications

Security and Protection Features

• Stateful Packet Filtering: Advanced protection for network traffic
• Zero-Day Event Protection: Safeguards against newly discovered vulnerabilities
• Directory Traversal Detection: Identifies unauthorized directory access
• Traffic Anomaly Detection: Monitors for irregular traffic patterns
• Application Firewall: Protects against application-level threats
• Content Filtering: Blocks harmful web content
• Intrusion Prevention System: Proactively prevents unauthorized access
• Antivirus Protection: Defends against malware and viruses
• Anti-Phishing: Prevents phishing attacks

Interfaces and Connectivity

• Total Number of Ports: 4
• USB Ports: Yes
• PoE (RJ-45) Ports: Not included
• Network Ports (RJ-45): 4
• Network Technology: 10 Gigabit Ethernet
• Network Standards: 10/100/1000Base-T, 1000Base-X, 10GBase-X

Expansion and I/O Slots

• Number of Expansion Slots: 2
• Slot Types: SFP, SFP+

Management and Protocols

• Manageable: Yes
• Remote Management Protocol: HTTP
• Network/Transport Protocols: TCP/IP, IPsec, DHCP

Physical Characteristics

• Form Factor: Rack-mountable
• Compatible Rack Unit: 2U
• Dimensions (H x W x D): 3.5 in x 22 in x 19 in
• Weight: Approximately 53 lbs

Power and Environmental Details

• Power Device: Internal Power Supply
• Installed Power Supplies: 2
• Max Supported Power Supplies: 2
• Power Redundancy: Yes
• Voltage Required: AC 120/230 V (50/60 Hz)
• Power Provided: 250 Watts

Environmental Certification

• Environmentally Friendly: Yes
• Certification: RoHS

Performance and Capacity

• Firewall Throughput: 6 Gbps
• VPN Throughput: 2 Gbps
• VPN Tunnels (Site-to-Site): Up to 5000
• Recommended for: Large-scale deployments, up to 10,000 users

Features and Capabilities

• Network Monitoring: Comprehensive monitoring included
• DMZ Port: Available
• DHCP Support: Yes
• NAT Support: Integrated
• VPN Support: Enabled
• VLAN Support: Yes
• Traffic Shaping: Supported
• Manageable: Yes
• Intrusion Detection System (IDS): Included
• Intrusion Prevention System (IPS): Enabled
• Firmware Upgradable: Yes
• WAN Failover: Supported
• 3G/4G USB Dongle Support: Yes
• Application-Level Inspection: Included
• Link Aggregation: Supported
• Web Filtering: Enabled

Name

The Cisco MX450 Security Appliance, also known as the Meraki MX450 Cloud Managed Cisco MX600-HW Security Appliance, is a cutting-edge solution designed to provide advanced security and networking capabilities for businesses of all sizes. This powerful security appliance offers a wide range of features and benefits that make it an essential tool for ensuring the safety and efficiency of your network.

Enhanced Security

One of the key advantages of the Cisco MX450 Security Appliance is its ability to deliver enhanced security measures to protect your network from various threats. With its advanced firewall capabilities, this security appliance provides stateful inspection and deep packet inspection, analyzing incoming and outgoing network traffic to detect and prevent potential attacks. It also offers secure VPN connectivity, encrypting data transmission between different locations, ensuring the confidentiality and integrity of your communication.

Unified Threat Management

The Cisco MX450 Security Appliance incorporates comprehensive Unified Threat Management (UTM) features, providing multiple layers of security to safeguard your network. This includes intrusion prevention system (IPS), antivirus and antimalware protection, content filtering, and web search filtering. By implementing these robust security measures, the MX450 ensures that your network remains protected from cyber threats such as malware infections, data breaches, and unauthorized access attempts.

Intrusion Detection and Prevention

Intrusion Detection and Prevention Systems (IDPS) are crucial for identifying and mitigating potential network attacks. The Cisco MX450 excels in this area by offering an integrated intrusion detection and prevention system that constantly monitors network traffic patterns, detects any suspicious activities or anomalies, and takes immediate action to prevent potential threats from compromising your network's security. This proactive approach ensures that your network remains secure without impacting performance.

Cloud Management

The Meraki MX450 Security Appliance is part of Cisco's cloud-managed security solutions, enabling you to efficiently manage and monitor your network from a single centralized dashboard. This cloud-based management platform simplifies the deployment, configuration, and maintenance of the security appliance, making it an ideal choice for businesses with limited IT resources or multiple locations. With cloud management, you can easily configure security policies, apply firmware updates, and gain valuable insights into network performance, all from a user-friendly interface accessible from anywhere.

Scalability and Flexibility

The MX450 is designed to scale with your business requirements. Whether you have a small office or a large enterprise, this security appliance can be easily deployed and expanded to accommodate your growing network needs. With its cloud-based management, you can seamlessly add new devices, configure security settings, and monitor network activity without the need for complex on-site installations or manual configurations. This scalability and flexibility ensure that the MX450 adapts to your organization's evolving security demands.

Streamlined Network Operations

By leveraging the power of cloud management, the Cisco MX450 Security Appliance simplifies network operations. The centralized dashboard provides a holistic view of your network infrastructure, allowing you to identify and troubleshoot issues quickly. You can monitor bandwidth usage, track application performance, and identify potential bottlenecks or vulnerabilities in real-time. This streamlined approach to network management saves time and effort, enabling your IT team to focus on more strategic initiatives rather than day-to-day maintenance.

Reliability and High Availability

The Cisco MX450 Security Appliance ensures reliable and uninterrupted network connectivity through its high availability features. With built-in redundancies such as dual power supplies and hot-swappable fans, the MX450 minimizes downtime in case of hardware failures. Additionally, it supports automatic failover capabilities for WAN connections, ensuring that your network remains operational even if one connection fails. This level of reliability is crucial for businesses that rely heavily on their network infrastructure to deliver seamless services to customers.

Intelligent Traffic Routing

To optimize network performance and ensure efficient traffic routing, the MX450 utilizes intelligent software-defined WAN (SD-WAN) technology. This feature enables the appliance to dynamically route traffic based on real-time network conditions, ensuring that critical applications receive the necessary bandwidth and prioritization. By intelligently distributing network traffic across multiple paths, the MX450 enhances performance, reduces latency, and improves overall user experience.

Integrated Analytics and Reporting

Understanding your network's performance and identifying areas for improvement is essential for maintaining a secure and efficient infrastructure. The Cisco MX450 Security Appliance provides integrated analytics and reporting capabilities that offer valuable insights into network usage, application performance, and security events. By leveraging these analytics, you can identify potential security vulnerabilities, optimize network resources, and make data-driven decisions to enhance your network's overall performance.

Conclusion

In conclusion, the Cisco MX450 Security Appliance is an advanced cloud-managed security solution that combines robust security features with seamless network management capabilities. With enhanced security measures, comprehensive threat management, cloud-based management, scalability, reliability, and intelligent traffic routing, this security appliance offers a holistic approach to protecting and optimizing your network infrastructure. Invest in the Cisco MX450 Security Appliance today to ensure the safety, efficiency, and reliability of your business's network operations.
