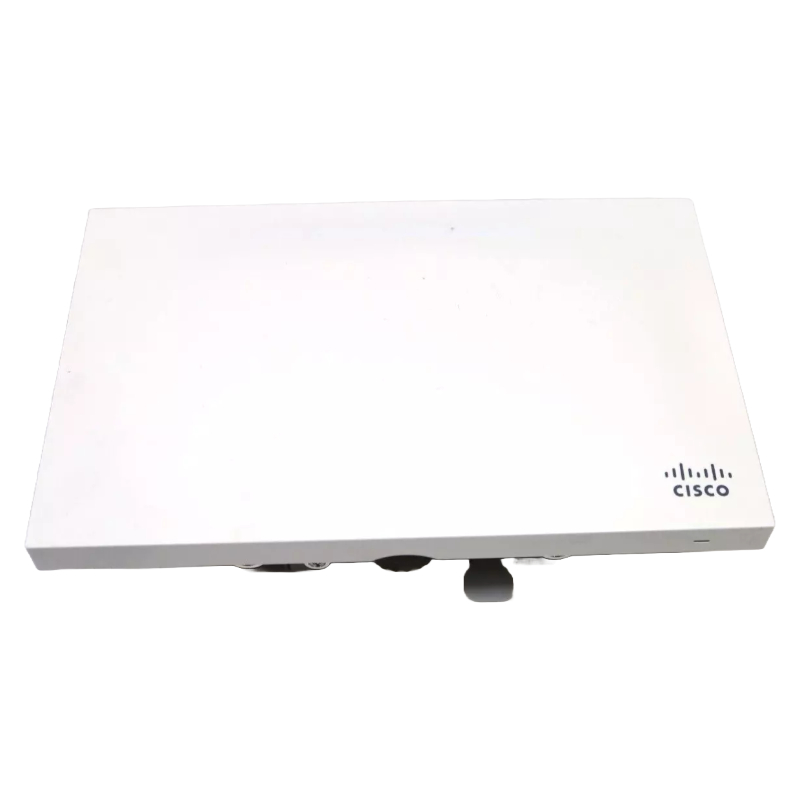

MR74-HW Cisco Meraki MR74 Wireless AP Bluetooth Wi-Fi 5

Cisco MR74-HW Meraki MR74 Wireless Access Point Overview

The Cisco MR74-HW Meraki MR74 Cloud Managed Wireless Access Point is a high-performance outdoor wireless networking solution designed to deliver reliable, secure, and scalable Wi-Fi connectivity in demanding environments. Built with advanced 802.11ac Wave 2 technology, this enterprise-grade access point provides enhanced wireless performance, multi-user connectivity, and cloud-based management capabilities for modern business networks.

The Cisco Meraki MR74 wireless access point combines powerful radio technology, flexible antenna options, Bluetooth Low Energy (BLE) support, and advanced security features to provide dependable wireless coverage for outdoor locations, industrial facilities, campuses, warehouses, and other challenging deployment areas. With support for concurrent operations across multiple radios, the MR74-HW delivers efficient wireless communication and improved network visibility.

Product Specifications of Cisco MR74-HW

• Manufacturer: Cisco
• Model Number: MR74-HW
• Product Type: Cloud Managed Wireless Access Point

Technical Information

• Wireless Standard: IEEE 802.11ac Wave 2
• Maximum Data Rate: Up to 1.3 Gbps
• Network Interface: 1 x Gigabit Ethernet RJ45 Port
• Management Platform: Cisco Meraki Cloud Management

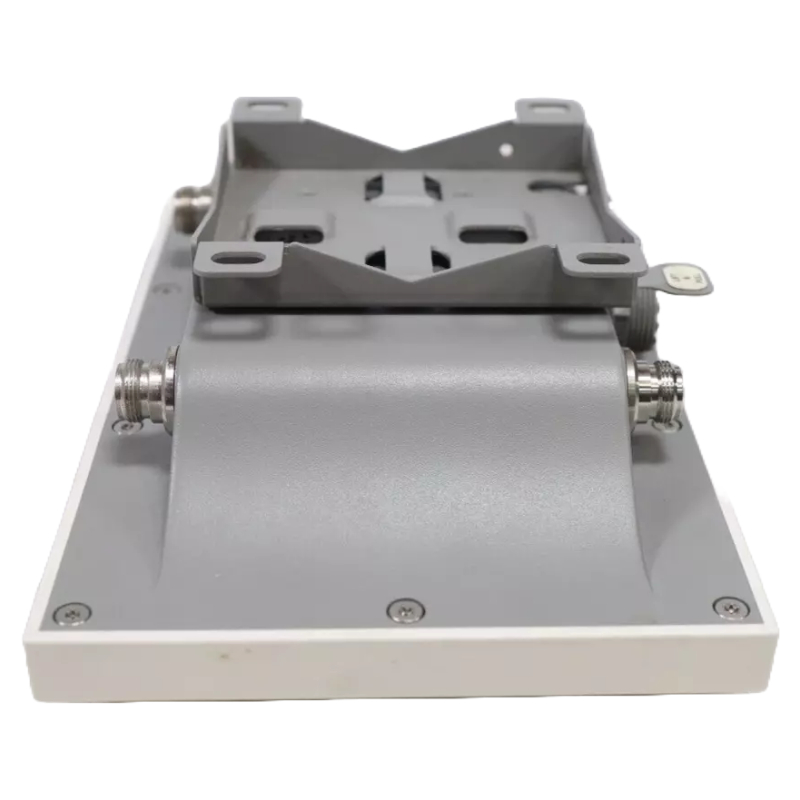

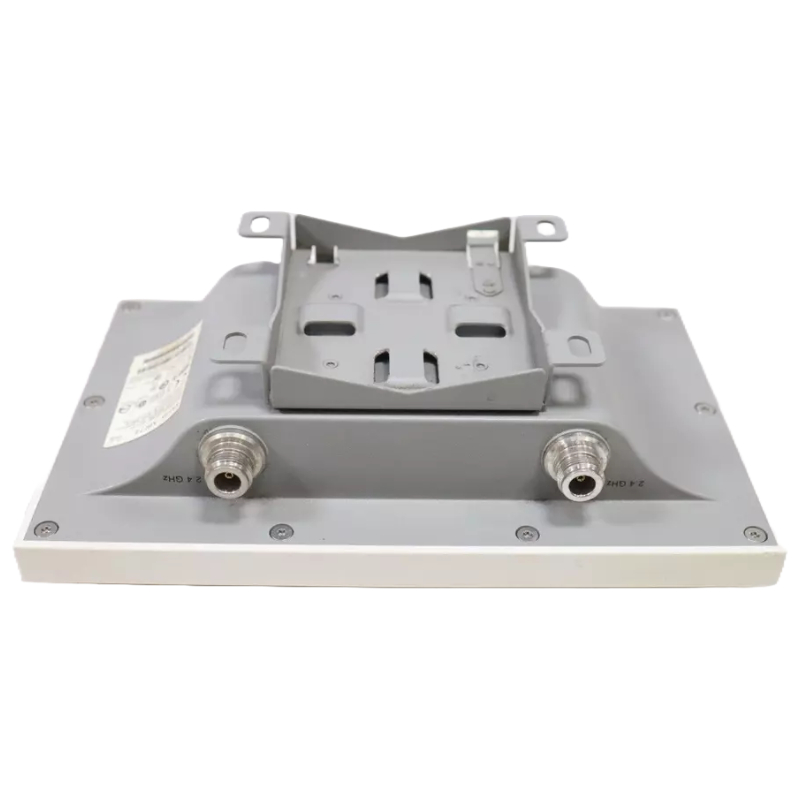

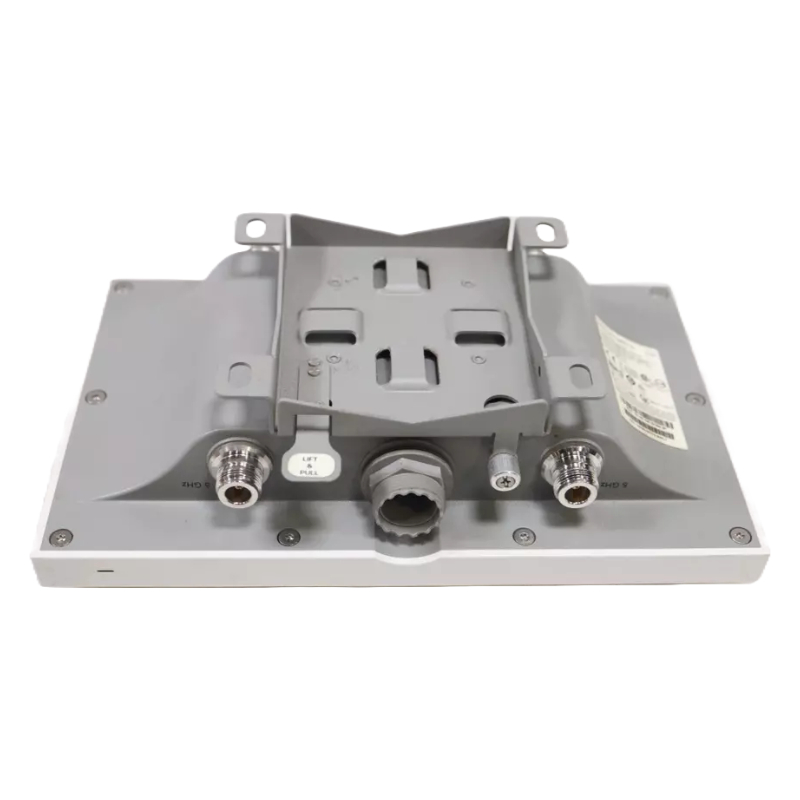

• Mounting Option: Wall Mount with MA-MNT-MR-7 Kit Included

Advantages of MU-MIMO Wireless Performance

• Improved network capacity in high-density environments
• More efficient data transmission to multiple wireless users
• Reduced network congestion during peak usage periods
• Enhanced performance for modern Wi-Fi enabled devices

Supported Wireless Frequency Bands

• 2.412 GHz to 2.484 GHz
• 5.150 GHz to 5.250 GHz (UNII-1)
• 5.250 GHz to 5.350 GHz (UNII-2)
• 5.470 GHz to 5.600 GHz and 5.660 GHz to 5.725 GHz (UNII-2e)
• 5.725 GHz to 5.825 GHz (UNII-3)

Wireless Security and Analytics Features

• Wireless intrusion detection and prevention support
• Real-time spectrum analysis capabilities
• Enhanced wireless troubleshooting
• Location analytics for connected devices
• Improved visibility into RF environments

Bluetooth Low Energy Capabilities

• Integrated BLE radio for modern wireless applications
• Beacon transmission support
• BLE device scanning functionality
• Support for location-aware services

Compatible Cisco Meraki Antenna Options

• MA-ANT-20 antenna option
• MA-ANT-21 antenna option
• MA-ANT-23 antenna option
• MA-ANT-25 antenna option
• MA-ANT-27 antenna option

Benefits of External Antenna Design

• Customizable wireless coverage patterns
• Improved outdoor deployment flexibility
• Better signal optimization for specialized locations
• Support for various installation requirements

Power Features

• IEEE 802.3af compatible PoE support
• 37V to 57V operating power range
• Optional MA-INJ-4-US injector available separately
• Reduced cabling requirements for installations

Ideal Deployment Environments

• Outdoor enterprise wireless networks
• Educational campuses and institutions
• Industrial and manufacturing locations
• Warehouses and logistics facilities
• Public Wi-Fi installations
• IoT and smart infrastructure applications

Cisco MR74-HW Meraki MR74 Managed Wireless Access Point

The Cisco MR74-HW Meraki MR74 Cloud Managed Wireless Access Point is an enterprise-class outdoor wireless networking solution designed to provide reliable, secure, and high-performance connectivity in challenging environments. As part of the Cisco Meraki family of cloud-managed networking products, the MR74-HW combines advanced wireless technology, centralized cloud administration, and ruggedized hardware to deliver dependable Wi-Fi coverage for outdoor locations, industrial spaces, public areas, campuses, warehouses, and large-scale deployments.

Built with Wi-Fi 5 technology, also known as IEEE 802.11ac, the Cisco Meraki MR74 provides enhanced wireless performance, increased throughput, and improved user capacity compared to previous wireless standards. The access point supports dual-band operation, allowing organizations to provide efficient connectivity across both 2.4 GHz and 5 GHz frequency ranges. This flexibility helps optimize wireless performance by balancing compatibility with legacy devices and providing higher-speed connections for modern client equipment.

The MR74-HW model is engineered for environments where standard indoor access points cannot provide adequate protection or coverage. Its durable design enables deployment in outdoor areas exposed to changing weather conditions, making it suitable for locations requiring consistent wireless availability. With cloud-based management through the Cisco Meraki Dashboard, administrators can configure, monitor, troubleshoot, and maintain wireless networks from a centralized interface without requiring complex onsite management systems.

Enterprise Outdoor Wireless Networking with Cisco Meraki MR74

Ruggedized Design for Outdoor Deployments

The Cisco MR74-HW Meraki MR74 Wireless Access Point is specifically developed for outdoor and demanding installation environments. Unlike traditional indoor wireless access points, this model features a rugged enclosure designed to withstand environmental challenges. The durable construction helps protect internal components from dust, moisture, temperature changes, and other outdoor conditions, making it an ideal choice for businesses, government facilities, education campuses, transportation networks, and industrial applications.

Outdoor wireless connectivity requires equipment capable of maintaining stable performance despite environmental variables. The MR74-HW provides organizations with a dependable platform for extending wireless networks beyond traditional indoor spaces. Whether deployed across a university campus, warehouse yard, manufacturing facility, stadium area, or outdoor public space, the access point delivers consistent wireless communication while reducing connectivity limitations.

Weather Resistant Wireless Access Point Capabilities

The Cisco Meraki MR74 incorporates a weather-resistant design that supports long-term outdoor operation. Its hardened construction allows network architects to extend enterprise-grade Wi-Fi coverage into areas where standard access points may not be suitable. This makes it valuable for organizations seeking seamless wireless access across both indoor and outdoor environments.

The ability to install access points in exterior locations improves network flexibility and enables businesses to create unified wireless experiences. Employees, visitors, customers, and connected devices can maintain reliable network access while moving between different coverage areas. The MR74-HW supports modern mobility requirements by providing consistent connectivity throughout expansive deployment zones.

High Performance Wi-Fi 5 Wireless Technology

The Cisco MR74-HW uses IEEE 802.11ac Wave 2 wireless technology to provide improved speed, efficiency, and capacity for enterprise networks. Wi-Fi 5 introduces advanced features that enhance wireless communication, including improved multi-user performance and better utilization of available wireless spectrum. These capabilities allow organizations to support more connected devices while maintaining strong network responsiveness.

The MR74 wireless access point delivers high-performance connectivity for applications such as cloud services, video communication, wireless collaboration platforms, IoT devices, and enterprise applications. Its dual-radio architecture allows organizations to take advantage of both frequency bands, enabling flexible network planning based on coverage requirements and device compatibility.

Dual-Band Wireless Connectivity and Network Efficiency

Operating across the 2.4 GHz and 5 GHz frequency bands, the Cisco Meraki MR74 provides adaptable wireless connectivity for different types of client devices. The 2.4 GHz band offers extended coverage and compatibility with a wide range of devices, while the 5 GHz band delivers faster performance with reduced interference for high-bandwidth applications.

Enterprise networks often contain a combination of laptops, smartphones, tablets, sensors, cameras, and specialized wireless equipment. The MR74-HW helps administrators create efficient wireless environments by supporting diverse client requirements. Intelligent radio management features allow the access point to optimize channel selection, power settings, and wireless performance automatically.

Cisco Meraki Cloud Managed Wireless Platform

Centralized Cloud-Based Network Management

One of the defining features of the Cisco MR74-HW Meraki MR74 is its cloud-managed architecture. Instead of requiring traditional onsite controllers, Meraki access points are managed through the Cisco Meraki Dashboard, a web-based platform that simplifies deployment and administration. This approach reduces operational complexity and allows IT teams to manage wireless infrastructure from virtually anywhere.

The cloud management platform provides visibility into network performance, connected clients, security events, and device health. Administrators can quickly identify issues, apply configuration changes, and monitor wireless activity through an intuitive interface. This centralized approach is especially beneficial for organizations operating multiple locations or large distributed networks.

Simplified Deployment and Remote Administration

The Cisco Meraki MR74-HW is designed to streamline wireless deployment processes. Once connected to the network and registered with the Meraki Dashboard, the access point can automatically receive configuration settings and security policies. This zero-touch deployment capability reduces installation time and minimizes the need for specialized onsite technical support.

Remote management capabilities allow IT administrators to maintain network consistency across multiple locations. Whether managing a single outdoor access point or thousands of wireless devices across a global organization, the cloud-managed approach provides scalable control and operational efficiency.

Security Features of Cisco MR74-HW Wireless Access Point

Enterprise Grade Wireless Security

Security is a critical component of modern wireless networks, and the Cisco Meraki MR74-HW includes enterprise-level security capabilities designed to protect wireless communications. The access point supports advanced encryption technologies and authentication methods to help safeguard sensitive data and prevent unauthorized network access.

Organizations can implement secure wireless policies using authentication standards suitable for business environments. Features such as encrypted communication, firewall capabilities, and centralized security management help create a safer wireless infrastructure for employees, customers, and connected devices.

Secure Access Management and Policy Control

The Meraki cloud platform enables administrators to define access policies and manage user permissions across wireless networks. This centralized control allows organizations to separate guest access, employee connectivity, and specialized device networks while maintaining security standards.

Network administrators can create customized configurations based on organizational requirements. These capabilities make the MR74-HW suitable for businesses that require flexible wireless access while maintaining strict control over network resources.

Applications and Deployment Scenarios for Cisco Meraki MR74

Outdoor Enterprise Wireless Networks

The Cisco MR74-HW is designed for organizations that need reliable outdoor wireless coverage. It can support a wide range of deployment scenarios including corporate campuses, outdoor workspaces, public venues, educational institutions, and industrial facilities. Its rugged construction and cloud-managed functionality make it a practical solution for extending enterprise Wi-Fi beyond traditional office environments.

Campus and Large Area Connectivity Solutions

Educational campuses, corporate environments, and public facilities often require wireless connectivity across large physical areas. The MR74-HW enables organizations to create seamless wireless experiences across outdoor pathways, courtyards, parking areas, and shared spaces.

By deploying multiple MR74 access points strategically, organizations can provide comprehensive wireless coverage while maintaining centralized control through the Meraki Dashboard. This approach supports mobile users and connected devices throughout expansive locations.

Industrial and IoT Wireless Applications

Modern industrial environments increasingly rely on wireless connectivity for automation, monitoring, and Internet of Things applications. The Cisco Meraki MR74 provides a reliable wireless foundation for connecting sensors, monitoring systems, mobile devices, and operational technology equipment.

Its outdoor-ready design makes it suitable for manufacturing areas, logistics facilities, warehouses, and industrial campuses where reliable wireless communication is essential. The access point supports organizations transitioning toward smarter connected environments by providing dependable network access.

Performance Advantages of Cisco MR74-HW Meraki MR74

Reliable Wireless Capacity and Coverage

The Cisco MR74-HW delivers dependable wireless performance for organizations that require stable connectivity across demanding environments. Its Wi-Fi 5 capabilities, dual-band operation, and intelligent wireless management features help maximize network efficiency while supporting multiple connected users.

Optimized Connectivity for Modern Devices

With increasing numbers of wireless devices connecting to business networks, organizations need access points capable of handling diverse connectivity requirements. The MR74-HW provides a scalable wireless solution that supports smartphones, computers, tablets, IoT devices, and enterprise applications.

The combination of strong wireless performance, cloud management, security features, and rugged outdoor construction makes the Cisco MR74-HW Meraki MR74 Cloud Managed Wireless Access Point a versatile choice for organizations seeking reliable enterprise wireless infrastructure.

Cisco MR74-HW Hardware Integration and Network Expansion

Flexible Enterprise Network Deployment

The Cisco Meraki MR74-HW integrates effectively into existing enterprise networks and provides a straightforward pathway for wireless expansion. Organizations can add additional access points as connectivity requirements grow while maintaining centralized visibility and configuration control through the Meraki cloud platform.

Scalable Wireless Infrastructure Management

Scalability is essential for modern organizations managing expanding networks. The MR74-HW supports growth by allowing IT teams to deploy additional wireless coverage without introducing complex controller-based architectures. This simplified approach helps reduce administrative overhead and improves network management efficiency.
