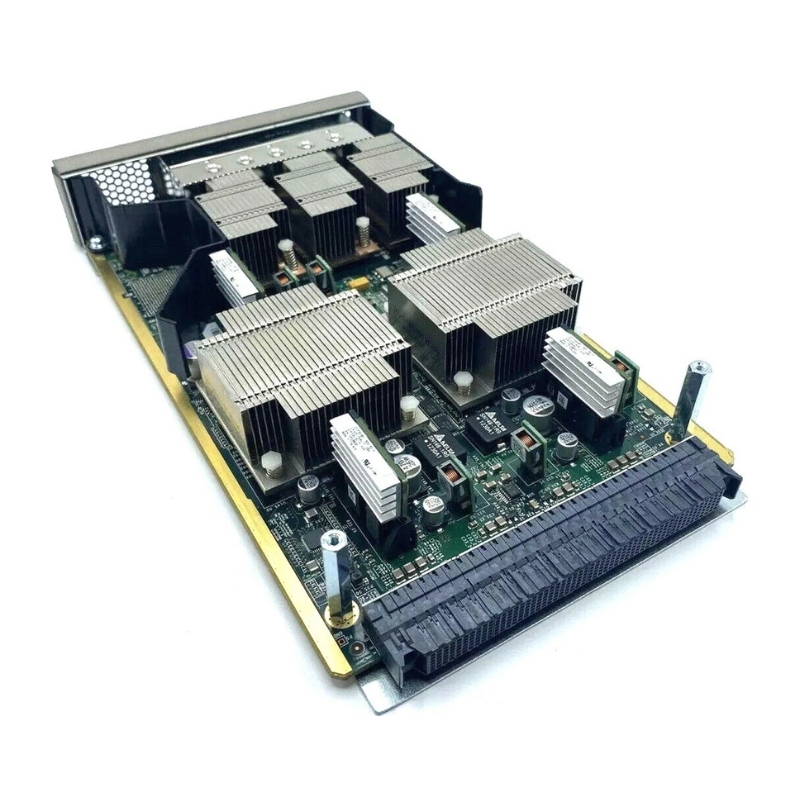

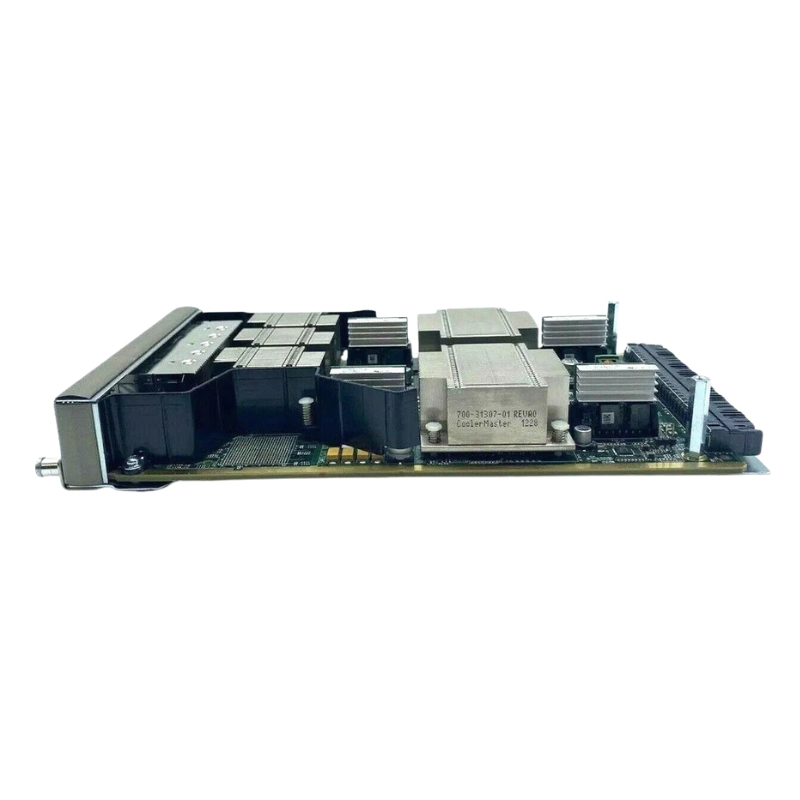

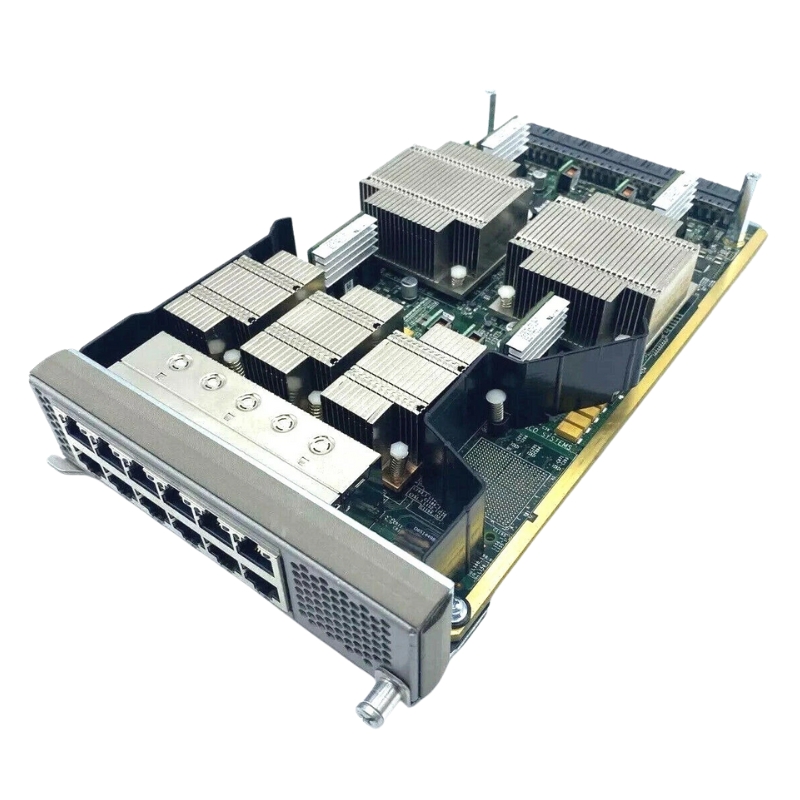

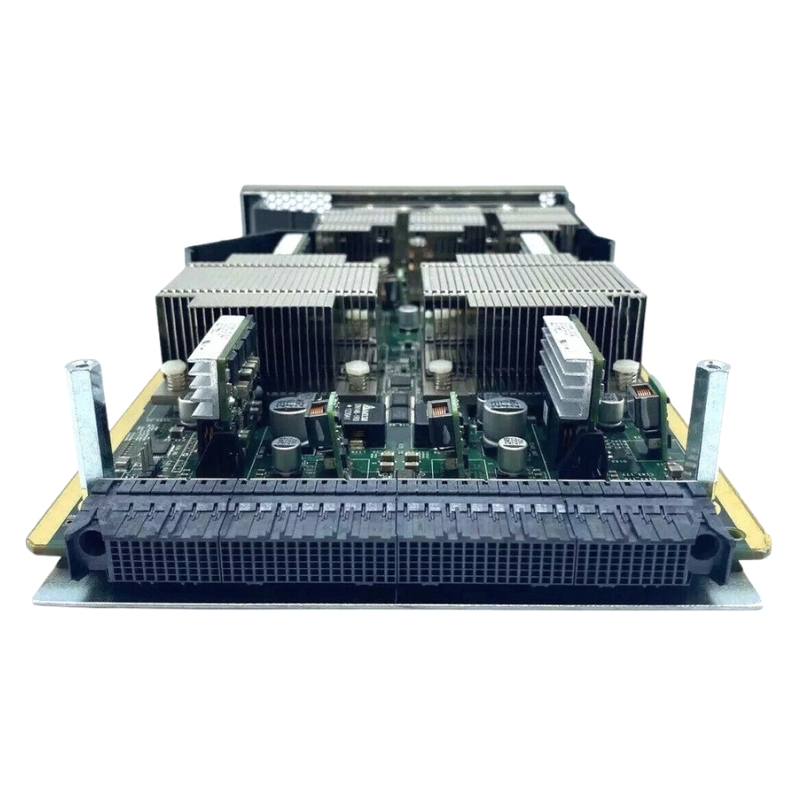

N55-M12T Cisco Nexus 5500 12 Ports Expansion Module

Overview of the 10 GBPS Expansion Module

The N55-M12T Cisco Nexus 5500 Expansion Module, 12 Ports is a high-performance network expansion component designed to extend the capabilities of the Cisco Nexus 5500 Series switches within modern data center architectures. Built for scalability, flexibility, and high-throughput environments, this module plays a critical role in enhancing switch density, optimizing traffic distribution, and supporting converged infrastructure deployments.

Main Specifications

• Manufacturer: Cisco Systems, Inc.
• Model Number: N55-M12T
• Product Type: Expansion Module

Technical Specifications

• Device Type: Network switch expansion module.

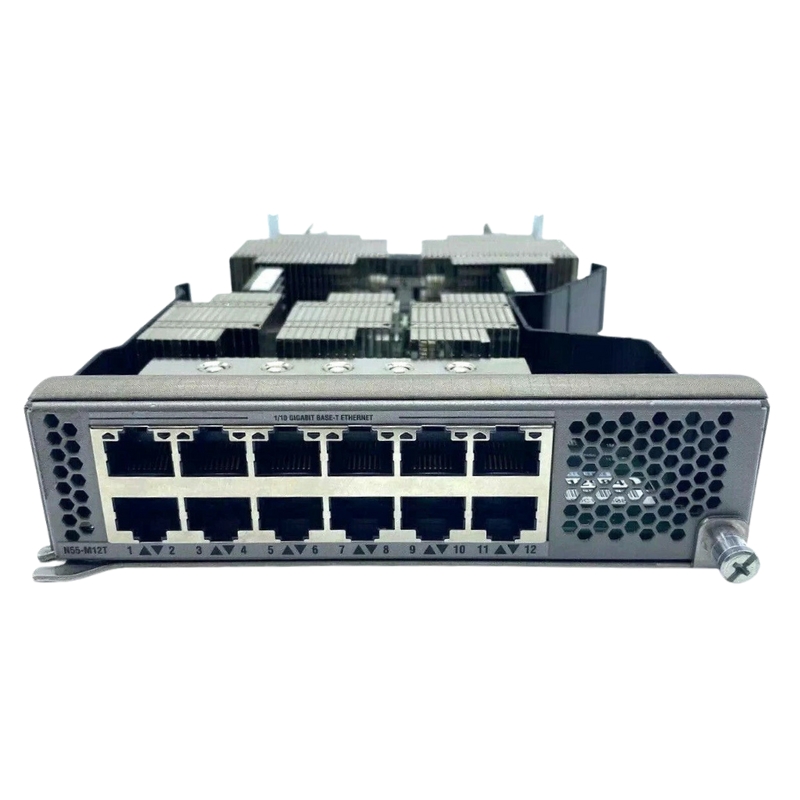

• Port Count: 12 physical network ports.
• Port Speed: 10 Gigabit Ethernet capacity.
• Connector Type: Standard RJ-45 copper interfaces.
• Cabling Medium: Balanced twisted-pair copper cables.
• FCoE Support: Fiber Channel over Ethernet capable.
• FCoE Distance: Up to 30 meters maximum.
• Cable Requirement: Requires Category 6a or Category 7.
• Hot Swap: Supports continuous live-swapping during operations.
• Total Performance: Delivers 120 Gbps aggregate bandwidth.

Compatibility

• Exclusive Switch: Supported only on Cisco Nexus 5596T.
• Incompatible Switches: Cannot fit Nexus 5548P switches.
• Chassis Restraint: Fits zero Nexus 5548UP switch units.
• Platform Exclusions: Will not work inside Nexus 5596UP.
• Slot Allocation: Populates up to 3 rear slots.
• Max Per Chassis: Three modules total per 5596T.
• Maximum Port Density: Scales 5596T up to 68 ports.
• Initial OS Software: Requires Cisco NX-OS Release 5.2(1)N1(1b).
• FCoE OS Requirement: Requires Cisco NX-OS Release 6.0(2)N1(1).

N55-M12T Cisco Nexus 5500 Expansion Module

The expansion module is tailored for enterprise-grade environments where low latency, high bandwidth, and seamless integration with existing Nexus platforms are essential. It enables organizations to expand their switching capacity without replacing entire chassis systems, thereby reducing operational costs while improving performance efficiency.

High-Density 12-Port Expansion Architecture

The defining characteristic of the N55-M12T module is its 12-port high-density architecture, which is optimized for aggregating multiple network links into a unified, high-speed fabric. This design allows enterprises to scale their data center connectivity in a modular and cost-effective manner.

By enabling additional port capacity, the module ensures that network administrators can respond to growing traffic demands without redesigning core infrastructure, making it highly suitable for cloud computing environments, virtualization clusters, and large-scale enterprise deployments.

Role in Modern Data Center Fabric Design

Modern data centers require scalable and resilient architectures capable of handling massive workloads generated by virtualization, containerization, and distributed applications. The N55-M12T module contributes directly to these requirements by strengthening the switching fabric within Nexus 5500 deployments.

This module supports fabric extension, allowing administrators to build multi-tier architectures with simplified management layers. It is especially effective in spine-leaf designs, where consistent bandwidth and predictable latency are critical for application performance.

Performance Optimization and Low-Latency Switching

The N55-M12T module is optimized for environments where latency-sensitive applications demand consistent and predictable network performance. Its architecture minimizes packet processing delays while maximizing throughput across all active ports. This performance-focused design makes it particularly suitable for industries such as financial services, healthcare systems, research institutions, and enterprise cloud providers where data consistency and speed are essential.

Scalability for Enterprise Network Growth

One of the primary advantages of the N55-M12T module is its ability to support seamless scalability within existing Nexus 5500 infrastructures. Rather than requiring full hardware replacement, organizations can simply integrate the module to expand port density and improve network capacity.

This modular scalability ensures long-term investment protection and enables IT teams to incrementally upgrade infrastructure as business needs evolve.

Integration with Cisco Nexus Ecosystem

The N55-M12T expansion module is specifically engineered to integrate seamlessly with the broader Cisco Nexus ecosystem, ensuring compatibility with existing management tools, switching protocols, and virtualization technologies.

Within the Nexus environment, the module supports advanced features such as automated provisioning, centralized management, and policy-driven network configuration. This ensures consistent operational behavior across all connected devices.

Advanced Network Virtualization Support

As enterprises increasingly adopt network virtualization strategies, the need for flexible and programmable infrastructure becomes more critical. The N55-M12T module supports virtualization-ready environments by enabling efficient segmentation and traffic isolation.

This makes it an ideal choice for organizations deploying cloud-native applications and container orchestration platforms that require dynamic network provisioning.

Reliability and Enterprise-Grade Durability

Built for continuous operation in mission-critical environments, the N55-M12T module is designed with enterprise-grade reliability standards. It supports high availability configurations and ensures consistent uptime across demanding workloads.

These features ensure that enterprises can maintain uninterrupted service levels even under high traffic loads or partial system failures.

Data Center Optimization and Efficiency

The N55-M12T module contributes significantly to optimizing data center efficiency by consolidating multiple network functions into a single expandable platform. This reduces hardware sprawl and simplifies cable management, power usage, and cooling requirements.

These advantages are particularly valuable in large-scale enterprise data centers where operational efficiency directly impacts cost management and performance reliability.

Support for High-Bandwidth Applications

The expansion module is well-suited for supporting high-bandwidth workloads such as big data analytics, virtualization clusters, and storage-heavy environments. Its ability to handle multiple simultaneous high-speed connections ensures smooth performance even under heavy traffic conditions.

Security and Network Segmentation Capabilities

Security is a core requirement in modern networking environments, and the N55-M12T module supports advanced segmentation features that help isolate traffic and enforce security policies at the network layer.

By enabling segmentation, organizations can ensure that sensitive workloads remain protected while still benefiting from shared infrastructure resources.

Operational Flexibility and Deployment Scenarios

The module supports a wide range of deployment scenarios, from core data center switching to edge aggregation layers. Its flexible architecture allows it to be adapted to different network topologies and operational requirements.

Future-Ready Networking Infrastructure

The N55-M12T module is designed to support evolving networking demands, making it a future-ready component for enterprises investing in scalable infrastructure. As workloads continue to grow in complexity, this module ensures that network systems remain adaptable and capable of handling next-generation applications.

Its compatibility with modern networking paradigms such as virtualization, cloud computing, and software-defined infrastructure ensures long-term relevance in rapidly evolving IT environments.

Enterprise Use Cases and Industry Applications

This expansion module is widely used across multiple industries due to its flexibility and performance capabilities. Organizations deploy it to enhance network efficiency, improve scalability, and support mission-critical applications. Each of these use cases benefits from the module’s ability to deliver consistent performance and scalable architecture within existing Nexus environments.

Hardware Efficiency and Cost Optimization

By enabling modular expansion rather than full system replacement, the N55-M12T module significantly reduces capital expenditure for enterprises. It allows organizations to maximize the lifespan of existing Nexus infrastructure while still expanding capabilities as needed.
