UBR-MC3GX60V Cisco Broadband Processing Engine

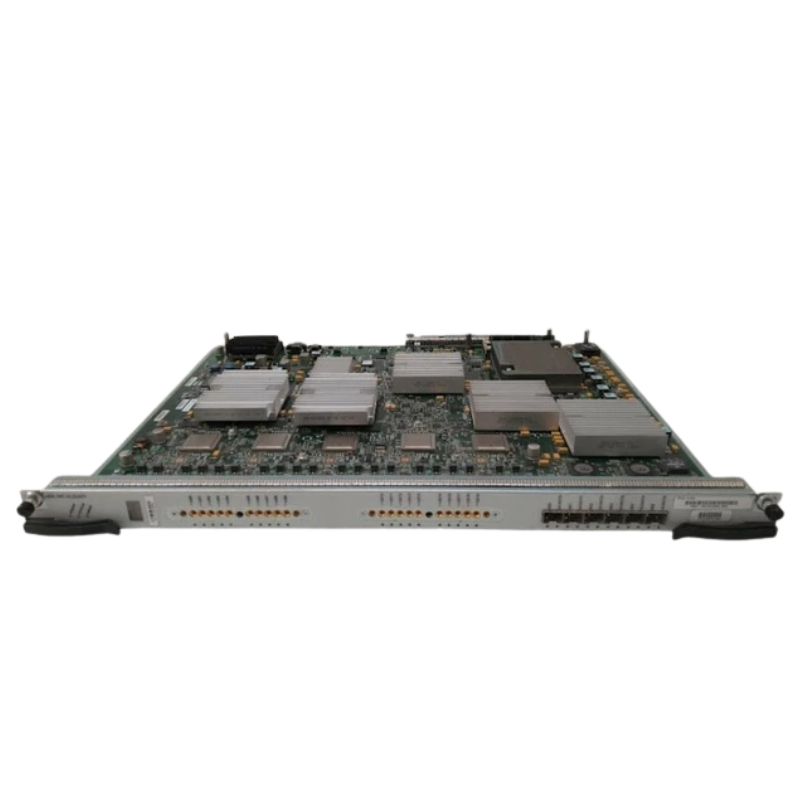

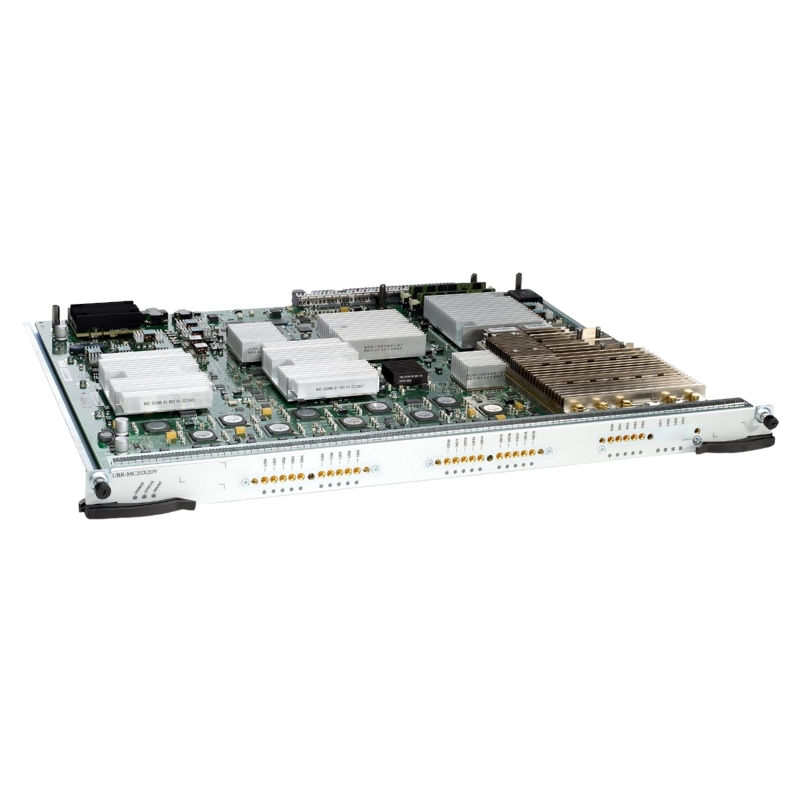

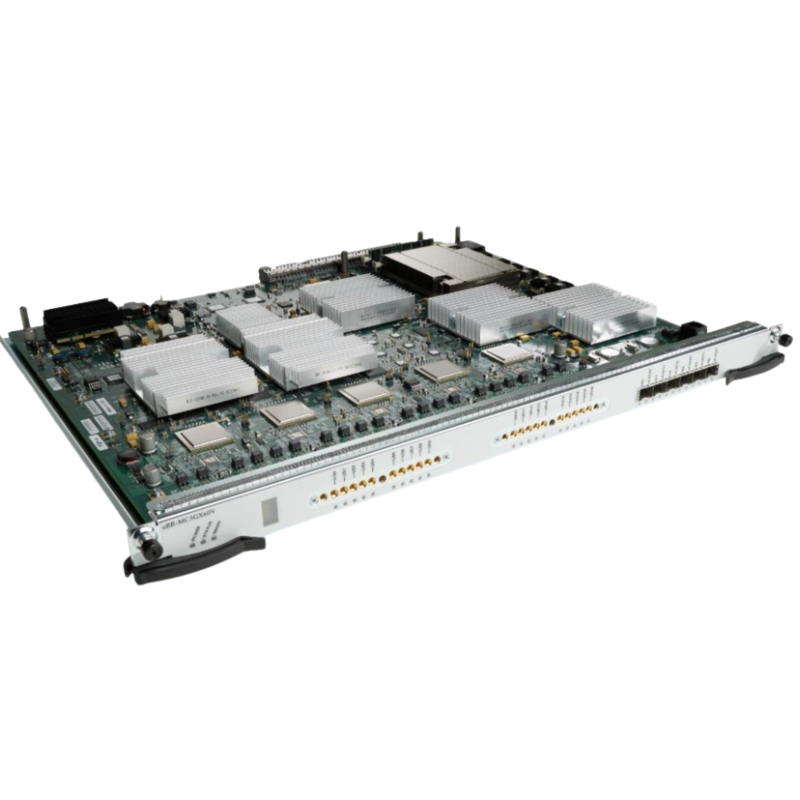

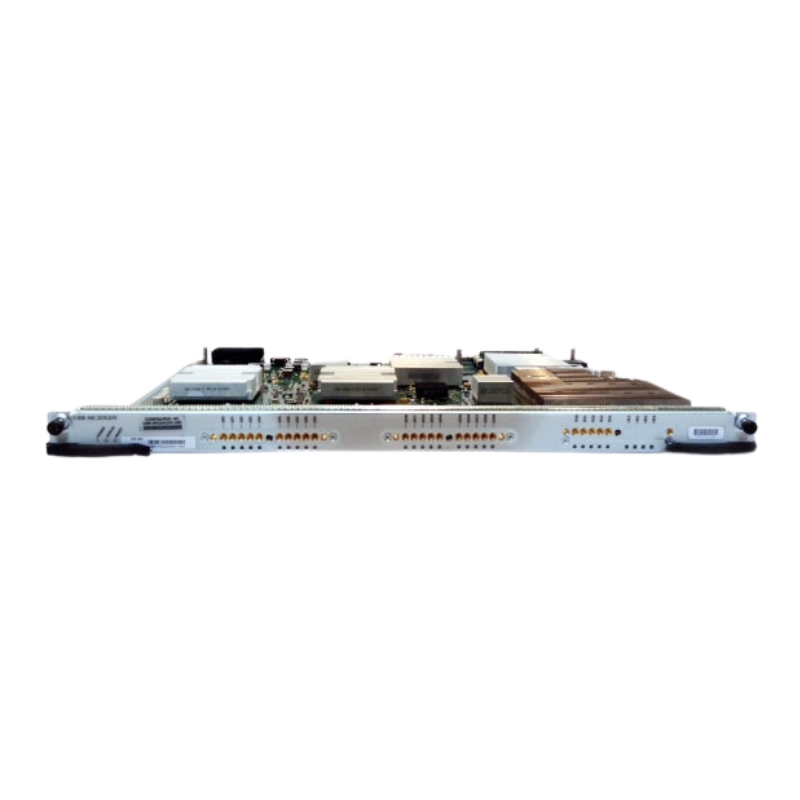

Cisco UBR-MC3GX60V WAN Broadband Routing Engine

The Cisco UBR-MC3GX60V WAN Broadband Routing Engine is a high-performance routing engine designed for broadband aggregation environments that require dependable network processing, scalable architecture, and consistent data forwarding. Engineered for carrier-class deployments, this routing engine supports demanding broadband infrastructures while maintaining excellent reliability, network availability, and operational efficiency.

Cisco UBR-MC3GX60V WAN Broadband Routing Engine

The Cisco UBR-MC3GX60V WAN Broadband Routing Engine represents a highly advanced line card designed for the Cisco uBR10012 Universal Broadband Router. This category of broadband routing engines is engineered to deliver scalable, high-performance DOCSIS and Euro DOCSIS capabilities, enabling cable operators to meet the growing demand for broadband services. With its architecture optimized for speed, reliability, and flexibility, the UBR-MC3GX60V provides a foundation for modern cable networks that require robust downstream and upstream channel support. Its role in broadband infrastructure is critical, as it allows service providers to expand capacity, improve efficiency, and deliver enhanced customer experiences.

Architecture of Cisco UBR-MC3GX60V

The UBR-MC3GX60V WAN Broadband Routing Engine is built with a modular design that integrates seamlessly into the Cisco uBR10012 chassis. It supports up to 72 downstream and 60 upstream channels, offering unprecedented scalability for cable operators. The engine leverages advanced modulation schemes, including 256-QAM for downstream and 64-QAM for upstream, ensuring efficient spectrum utilization. Its hardware acceleration capabilities allow for high throughput, while maintaining low latency, which is essential for applications such as video streaming, VoIP, and interactive gaming.

Downstream Channel Capabilities

The downstream performance of the UBR-MC3GX60V is one of its defining features. With support for up to 72 channels, operators can deliver multi-gigabit services to subscribers. Each channel can operate at speeds up to 38 Mbps in DOCSIS 3.0 environments, and when bonded, they provide aggregate speeds that meet the requirements of modern broadband users. This downstream capacity ensures that cable operators can compete effectively with fiber and wireless technologies.

Upstream Channel Capabilities

Upstream traffic is equally important in today’s broadband landscape, especially with the rise of cloud applications and video conferencing. The UBR-MC3GX60V supports up to 60 upstream channels, each capable of delivering high-speed data transmission. This allows subscribers to upload large files, participate in HD video calls, and engage in real-time collaboration without experiencing bottlenecks. The upstream capacity is a key differentiator for operators seeking to provide symmetrical broadband services.

Integration with Cisco uBR10012 Router

The UBR-MC3GX60V is specifically designed to integrate with the Cisco uBR10012 router, forming a cohesive broadband solution. The router provides the chassis and backplane connectivity, while the routing engine delivers the channel capacity and processing power. Together, they create a platform that supports large-scale deployments in metropolitan and regional cable networks. This integration ensures that operators can scale their networks efficiently while maintaining centralized management and monitoring.

Scalability and Flexibility

Scalability is a cornerstone of the UBR-MC3GX60V design. Operators can add multiple routing engines to a single chassis, expanding capacity as subscriber demand grows. The modular nature of the system allows for incremental investment, reducing upfront costs while providing a clear path for future expansion. Flexibility is also evident in its support for both DOCSIS and EuroDOCSIS standards, making it suitable for deployment in diverse geographic regions.

Reliability

Performance and reliability are critical in broadband networks, and the UBR-MC3GX60V excels in both areas. Its hardware is engineered to deliver consistent throughput even under heavy load conditions. Redundant components and failover mechanisms ensure high availability, minimizing downtime and service disruptions. The routing engine also incorporates advanced error correction and signal processing technologies, which enhance

The UBR-MC3GX60V is capable of delivering aggregate throughput in the multi-gigabit range, making it suitable for high-density urban deployments. This throughput is achieved through efficient channel bonding and hardware acceleration, which optimize data flow across the network. High throughput is essential for supporting bandwidth-intensive applications such as 4K video streaming, online gaming, and cloud computing.

The Cisco UBR-MC3GX60V

The versatility of the UBR-MC3GX60V makes it suitable for a wide range of applications in broadband networks. Cable operators can leverage its capabilities to deliver residential, commercial, and enterprise services. Its scalability and performance make it ideal for supporting advanced applications such as IPTV, VoIP, and cloud-based services. The routing engine also plays a critical role in enabling operators to meet regulatory requirements for broadband access and quality of service.

Residential Broadband Services

For residential subscribers, the UBR-MC3GX60V enables high-speed internet access that supports streaming, gaming, and smart home applications. Its downstream and upstream capacity ensures that households can connect multiple devices simultaneously without experiencing performance degradation. This makes it possible for families to enjoy seamless connectivity across a wide range of applications.

Commercial Broadband Services

Businesses require reliable, high-speed connectivity to support operations, and the UBR-MC3GX60V delivers on this requirement. Its low latency and high throughput make it suitable for applications such as video conferencing, cloud computing, and data backup. Commercial subscribers benefit from the routing engine’s ability to provide symmetrical broadband services, which are essential for modern business environments.

Enterprise and Carrier-Grade Services

Large enterprises and carriers can leverage the UBR-MC3GX60V to deliver broadband services at scale. Its modular design and high capacity make it suitable for deployment in metropolitan networks, where demand for broadband is highest. The routing engine supports advanced features such as quality of service (QoS) and traffic shaping, which are essential for managing large-scale networks and ensuring consistent performance.

Future-Proofing Broadband Networks

The Cisco UBR-MC3GX60V is designed with future-proofing in mind, ensuring that operators can meet evolving broadband demands. Its support for DOCSIS 3.0 and Euro DOCSIS standards provides a foundation for current deployments, while its architecture is capable of supporting future enhancements. This future-proofing ensures that operators can continue to deliver competitive broadband services without requiring frequent hardware

As broadband applications continue to evolve, the UBR-MC3GX60V provides the capacity and performance required to support them. Emerging applications such as virtual reality, augmented reality, and 8K video streaming demand high throughput and low latency, both of which are delivered by the routing engine. This ensures that operators can meet subscriber expectations as technology advances.

Path to DOCSIS 3.1 and Beyond

While the UBR-MC3GX60V is optimized for DOCSIS 3.0, its architecture provides a path to future standards such as DOCSIS 3.1. This ensures that operators can upgrade their networks incrementally, without requiring wholesale replacement of infrastructure. The routing engine’s modular design makes it possible to integrate new technologies as they become available, providing a clear path to future broadband capabilities.

Operational Efficiency

Operational efficiency is a key consideration for cable operators, and the UBR-MC3GX60V delivers in this area. Its centralized management capabilities allow operators to monitor and control network performance from a single interface. Automated provisioning and configuration reduce the complexity of network management, while advanced diagnostics and monitoring tools enable proactive maintenance. This operational efficiency reduces costs and improves service quality.

Centralized Management

The UBR-MC3GX60V integrates with Cisco’s management platforms, providing centralized control over network operations. This allows operators to configure channels, monitor performance, and troubleshoot issues from a single interface. Centralized management improves efficiency and reduces the time required to resolve issues, enhancing overall service quality.

Automated Provisioning

Automated provisioning is another key feature of the UBR-MC3GX60V. Operators can configure new subscribers quickly and efficiently, reducing the time required to deliver services. Automated provisioning also reduces the risk of configuration errors, improving reliability and consistency across the network.

Advanced Diagnostics

The routing engine includes advanced diagnostics and monitoring tools that enable operators to identify and resolve issues proactively. These tools
