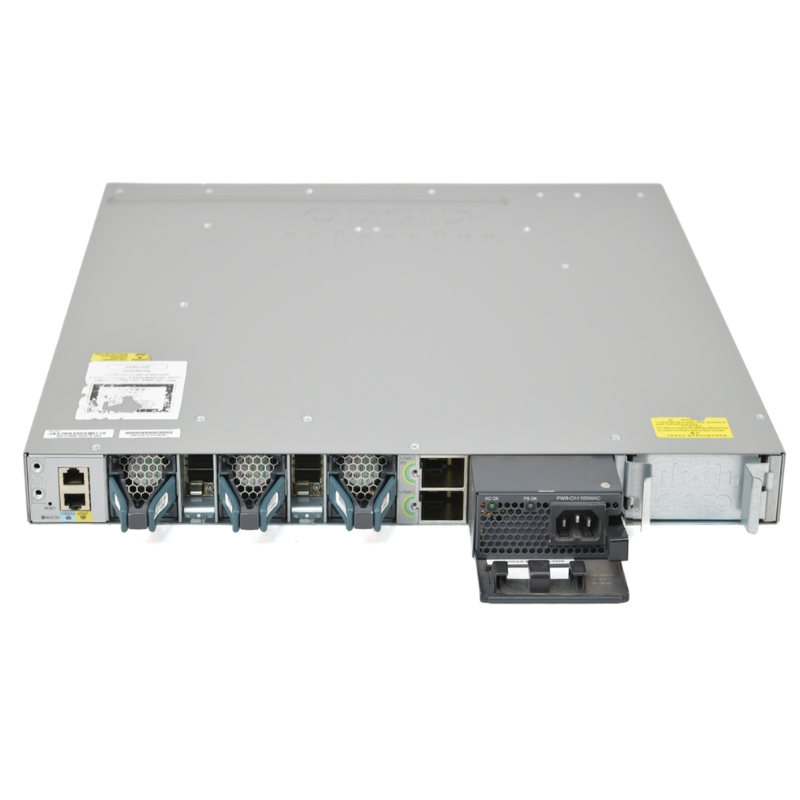

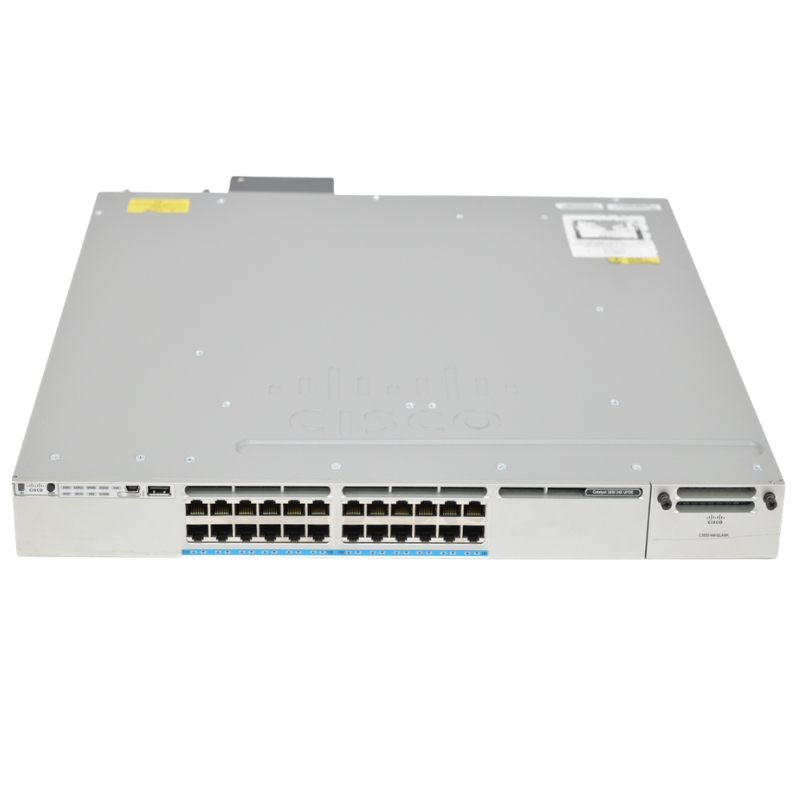

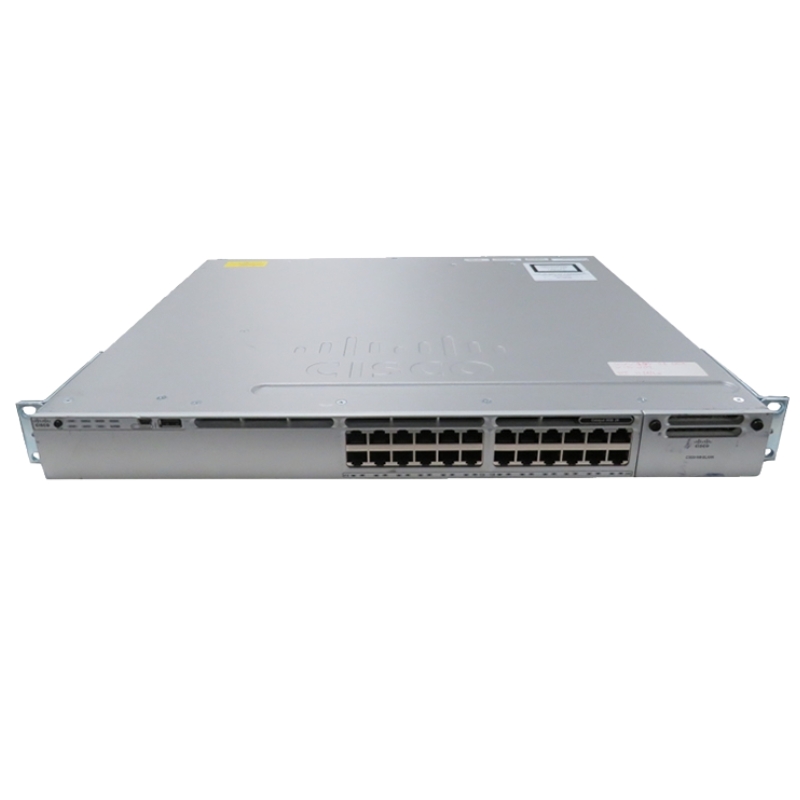

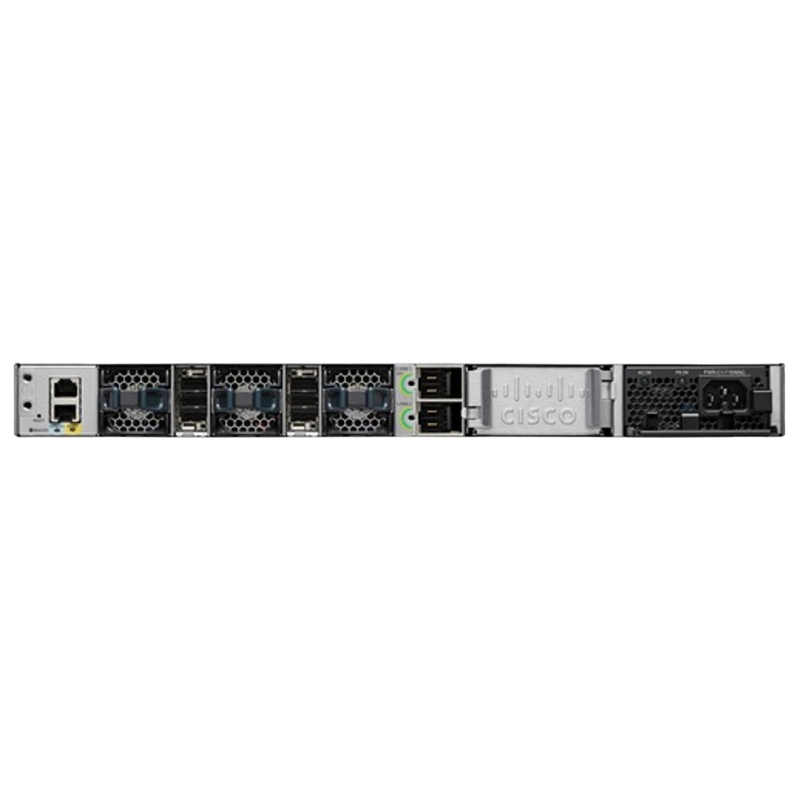

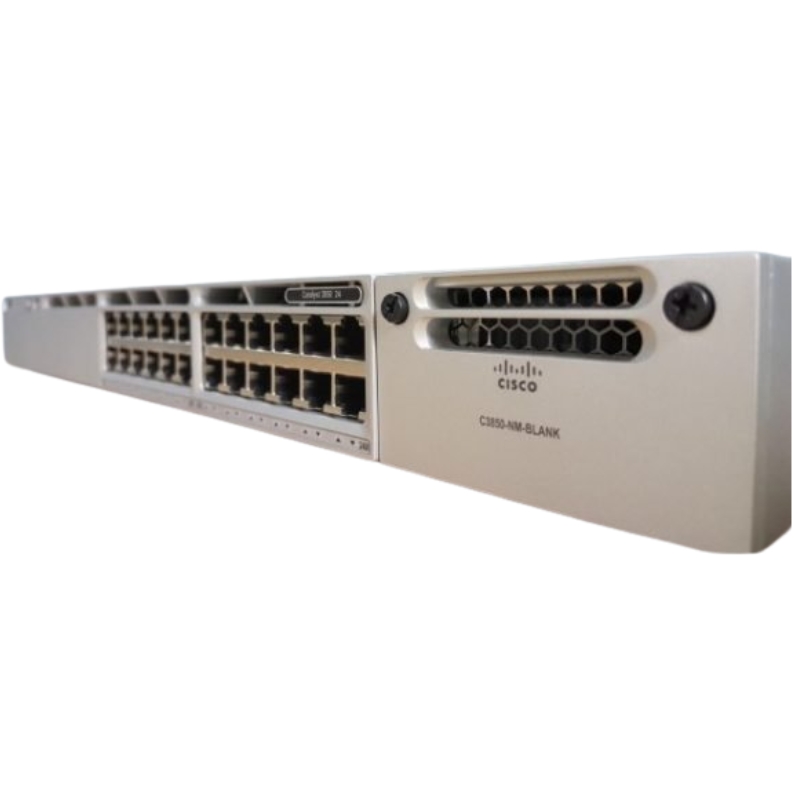

WS-C3850-24XU-L Cisco 24 Ports Manageable Switch

Overview of the Cisco WS-C3850-24XU-L Switch

The Cisco WS-C3850-24XU-L is a robust, stackable enterprise-grade networking device designed for high-speed data processing, advanced Layer 3 capabilities, and scalable infrastructure deployment. This model is engineered to support modern business environments requiring reliability, efficiency, and flexible network management.

Core Product Identification

• Manufacturer: Cisco Systems
• Model / SKU: WS-C3850-24XU-L
• Device Category: Managed Layer 3 Switch
• Port Configuration: 24 Gigabit Ethernet Ports

Advanced Hardware Architecture and Design

Form Factor and Installation Flexibility

• Rack-mountable 1U chassis suitable for enterprise racks
• Desktop deployment compatibility for compact environments
• Stackable architecture for scalable network expansion

Ethernet Connectivity and PoE Capabilities

• 24 x 10/100/1000 Mbps Gigabit Ethernet ports
• UPOE (Universal Power over Ethernet) support for high-power devices
• Total PoE power budget up to 580W for connected endpoints

Performance Metrics and Switching Capacity

High-Speed Processing Capabilities

• Switching capacity: 92 Gbps for efficient traffic handling
• Forwarding rate: 460 Mpps (64-byte packet size)
• Stacking bandwidth: up to 480 Gbps for multi-switch architecture

Scalability and Network Resource Limits

• IPv4 route capacity: up to 24,000 entries
• NetFlow entries support: 24,000
• Switched Virtual Interfaces (SVIs): 1,000 supported
• VLAN scalability: up to 4,000 VLANs
• MAC address table size: 32,000 entries
• Jumbo frame support: up to 9,198 bytes

Routing Intelligence and Protocol Support

Dynamic Routing Capabilities

• Supports advanced routing protocols including IS-IS and RIP variants
• RIP-1, RIP-2, and RIPng compatibility for IPv4/IPv6 networks
• Policy-Based Routing (PBR) for traffic optimization
• Multicast support through IGMPv2, IGMPv3, and MLDv2

Network Control and Virtualization

• VRF and VRF-Lite support for segmented network environments
• Enhanced multicast routing and intelligent traffic distribution

Management and Remote Administration Features

Supported Management Protocols

• SNMP v1, v2c, and v3 for secure monitoring
• Remote access via SSH and Telnet
• CLI-based configuration and control
• TFTP support for firmware and configuration updates
• RMON 1 & 2 for network performance monitoring

Operational Visibility Tools

• Syslog integration for event tracking
• NetFlow support for traffic analysis
• Advanced diagnostics and real-time monitoring tools

Enterprise-Level Security and Network Control

Access Control and Authentication

• 802.1X port-based authentication for secure access control
• Access Control Lists (ACLs) for traffic filtering
• DHCP Snooping and ARP Inspection for anti-spoofing protection

Network Protection Mechanisms

• Control Plane Protection (CoPP) for system integrity
• BPDU Guard and STP enhancements for loop prevention
• Uni-directional Link Detection (UDLD) for link reliability

Switching Features and Traffic Optimization

Advanced Switching Technologies

• Link Aggregation Control Protocol (LACP) support
• Port Aggregation Protocol (PAgP) compatibility
• Dynamic Trunking Protocol (DTP) for VLAN management
• Rapid PVST+ and MSTP for spanning tree optimization

Quality of Service (QoS) and Traffic Prioritization

• Advanced QoS for bandwidth allocation and traffic shaping
• Weighted Tail Drop (WTD) for congestion control
• Shaped Round Robin (SRR) scheduling for fair resource usage

Energy Efficiency and Power Management

Power Design and Redundancy Options

• AC input support: 120/230V (50–60 Hz)
• Optional redundant power supply configuration
• Energy Efficient Ethernet (EEE) for reduced power consumption
• Cisco StackPower technology for intelligent power sharing

Compliance and Industry Standards

Supported IEEE Networking Standards

• IEEE 802.3, 802.3u, 802.3ab for Ethernet connectivity
• IEEE 802.1Q VLAN tagging and segmentation
• IEEE 802.3ad for link aggregation
• IEEE 802.1w Rapid Spanning Tree Protocol
• IEEE 802.1x network authentication
• IEEE 802.3at/af PoE standards compliance

Enterprise Deployment Reliability

• Designed for mission-critical enterprise environments
• Optimized for campus, branch, and data center deployments
• High availability through StackWise-480 technology

Integrated Cisco Technologies for Modern Networking

Stacking and Scalability Enhancements

• Cisco StackWise-480 for unified switch clustering
• Seamless expansion across multiple switch units
• Centralized management across stacked devices

Wireless and Network Optimization Features

• Radio Resource Management (RRM) support for wireless environments
• Optimized traffic flow across converged networks

Cisco WS-C3850-24XU-L 3850 Series 24 Ports Manageable Switch

The Cisco WS-C3850-24XU-L belongs to the highly respected Cisco 3850 Series of enterprise-class managed switches designed to support modern business networks, campus environments, branch offices, educational institutions, healthcare facilities, government organizations, and data-intensive workplaces. As organizations continue to adopt cloud-based applications, unified communications, virtualization technologies, and high-density wireless deployments, network infrastructure requires a switching platform capable of delivering reliability, scalability, security, and advanced traffic management. The Cisco WS-C3850-24XU-L addresses these requirements by combining robust switching capabilities with intelligent network services in a single platform.

This switch model is engineered to provide consistent network performance while supporting mission-critical applications across wired and wireless environments. Organizations seeking centralized network management, advanced Layer 2 and Layer 3 features, Quality of Service capabilities, security enforcement, and simplified deployment often consider the Cisco 3850 Series as a strategic infrastructure component. The switch supports enterprise networking standards and delivers the operational flexibility needed to adapt to changing network demands.

As part of the Cisco Catalyst 3850 family, the WS-C3850-24XU-L offers extensive feature integration that enables administrators to manage traffic efficiently, secure endpoints, optimize application performance, and streamline network operations. The platform supports advanced software capabilities that help reduce complexity while enhancing visibility throughout the network infrastructure.

24-Port Enterprise Switching Architecture

The 24-port architecture of the Cisco WS-C3850-24XU-L is designed to accommodate a wide variety of enterprise networking requirements. Organizations with growing user populations and increasing device connectivity can benefit from a switch platform that delivers reliable access-layer connectivity without compromising performance.

These network ports support high-speed communication between connected devices, enabling efficient data transmission across local area networks. The switching fabric is optimized to handle substantial traffic volumes while maintaining low latency and high throughput. This architecture helps ensure smooth operation for business applications, VoIP services, cloud connectivity, video conferencing, enterprise collaboration tools, and large-scale file transfers.

The switch can be deployed in standalone configurations or integrated into larger enterprise infrastructures where network expansion and scalability are important operational considerations. Its port density makes it suitable for office floors, network closets, branch deployments, and campus edge installations.

Optimized Connectivity for Modern Networks

Modern organizations rely on diverse endpoint devices, including desktop computers, laptops, IP phones, wireless access points, surveillance systems, printers, IoT devices, and specialized business equipment. The Cisco WS-C3850-24XU-L supports these connectivity requirements through a flexible switching platform capable of handling multiple traffic types simultaneously.

By delivering consistent bandwidth availability and intelligent traffic prioritization, the switch helps ensure optimal user experiences across different workloads. Organizations can maintain network efficiency even during periods of high utilization.

Support for High-Density Device Environments

As endpoint counts continue to grow, network infrastructure must efficiently support increasing numbers of connected devices. The Cisco 3850 Series is designed to address these challenges through hardware and software capabilities that help manage traffic loads while preserving network responsiveness. This makes the switch suitable for enterprises experiencing digital transformation initiatives and device proliferation.

Advanced Manageability Features

The Cisco WS-C3850-24XU-L is categorized as a manageable switch, providing administrators with extensive configuration, monitoring, troubleshooting, and optimization capabilities. Managed switches offer significantly greater control than unmanaged alternatives, allowing organizations to align network operations with business requirements and security policies.

Network administrators can configure VLANs, establish traffic policies, enforce access controls, monitor network activity, and optimize application performance through centralized management tools. These capabilities contribute to improved operational efficiency and reduced downtime.

Centralized Network Administration

Centralized management is a critical requirement for modern enterprise environments. The Cisco WS-C3850-24XU-L supports management frameworks that enable administrators to oversee network resources from unified interfaces. This centralized approach simplifies configuration deployment, firmware maintenance, compliance enforcement, and performance monitoring.

Organizations with multiple departments, distributed offices, or campus environments can benefit from streamlined administration that reduces operational complexity while enhancing network visibility.

Configuration Flexibility

Enterprise networks often require customized configurations to support unique business processes. The Cisco WS-C3850-24XU-L provides extensive configuration flexibility that allows administrators to tailor switching behavior according to organizational needs. Features such as VLAN segmentation, traffic shaping, routing policies, and access controls can be customized to support specific operational objectives.

Layer 2 and Layer 3 Intelligence

The Cisco 3850 Series incorporates sophisticated Layer 2 and Layer 3 networking capabilities that support efficient traffic forwarding, segmentation, routing, and network optimization. These features help organizations build scalable infrastructures capable of supporting complex communication requirements.

VLAN Segmentation Capabilities

Virtual Local Area Networks play an essential role in network segmentation and traffic isolation. The Cisco WS-C3850-24XU-L supports VLAN implementation strategies that enable organizations to separate departments, applications, guest users, and critical systems into distinct logical network segments.

Effective segmentation improves security, reduces broadcast traffic, simplifies management, and enhances network performance. VLAN deployment is especially beneficial in organizations with diverse operational requirements and strict compliance obligations.

Inter-VLAN Routing

Inter-VLAN communication is often necessary for collaboration between departments and access to shared services. The Cisco WS-C3850-24XU-L supports routing functions that facilitate controlled communication between VLANs while maintaining security and policy enforcement. These capabilities help organizations optimize traffic flow and reduce dependency on external routing devices.

Traffic Optimization Mechanisms

Efficient traffic handling is critical in enterprise environments where multiple applications compete for network resources. The switch supports intelligent forwarding mechanisms that help ensure data packets are delivered efficiently while minimizing congestion and bottlenecks.

Enterprise Security Framework

Security remains one of the most important considerations in network infrastructure design. The Cisco WS-C3850-24XU-L incorporates multiple security features intended to protect network resources, enforce access policies, and reduce exposure to threats.

Organizations can implement layered security strategies that combine authentication, authorization, endpoint validation, access control, traffic inspection, and monitoring capabilities. These measures help establish a secure networking environment that supports regulatory compliance and risk management objectives.

Access Control Features

Access control mechanisms help determine which users and devices can connect to network resources. The Cisco WS-C3850-24XU-L supports policies that enable administrators to regulate access based on organizational requirements. These controls can help prevent unauthorized connections and improve overall network security.

User Authentication Support

User authentication capabilities provide an additional layer of protection by verifying identities before granting network access. This helps organizations maintain accountability and strengthen access management practices across the enterprise.

Device Validation Procedures

Endpoint validation helps ensure that only approved devices gain access to network resources. This approach reduces the likelihood of unauthorized devices compromising network integrity or introducing security vulnerabilities.

Threat Mitigation Strategies

Modern networks face a wide range of cybersecurity threats, including unauthorized access attempts, malware propagation, traffic anomalies, and insider risks. The Cisco 3850 Series supports security frameworks designed to detect suspicious activity and enforce protective policies that help mitigate these risks.

Quality of Service and Traffic Prioritization

Quality of Service (QoS) capabilities are essential in environments where multiple applications share network resources. The Cisco WS-C3850-24XU-L supports advanced QoS mechanisms that help prioritize critical traffic and maintain consistent application performance.

Organizations frequently rely on latency-sensitive applications such as voice communications, video conferencing, virtual desktops, cloud collaboration tools, and real-time analytics platforms. Effective traffic prioritization helps ensure these applications receive appropriate network resources.

Voice Traffic Optimization

Voice over IP deployments require predictable network performance to maintain call quality. The Cisco WS-C3850-24XU-L supports QoS configurations that prioritize voice packets, helping reduce latency, jitter, and packet loss during communications.

Video Application Performance

Video conferencing and streaming applications place substantial demands on network infrastructure. Through traffic classification and prioritization mechanisms, the switch helps support high-quality video experiences for users across the organization.

Business Application Prioritization

Organizations often depend on mission-critical applications that require consistent network performance. QoS policies enable administrators to allocate resources according to business priorities, helping maintain operational continuity during periods of heavy network utilization.

Wireless Integration Capabilities

One of the defining characteristics of the Cisco Catalyst 3850 Series is its ability to support converged wired and wireless networking architectures. This integrated approach simplifies management while enhancing visibility and control across connected environments.

As wireless connectivity becomes increasingly important for mobile workforces, educational institutions, healthcare facilities, and enterprise campuses, organizations require infrastructure that can effectively support both wired and wireless devices.

Unified Access Architecture

The Cisco WS-C3850-24XU-L supports unified access strategies that allow administrators to manage wired and wireless resources through consistent policy frameworks. This integration simplifies deployment and operational management while promoting a seamless user experience.

Support for Mobile Workforces

Employees increasingly rely on mobile devices to access corporate resources. The switch supports network infrastructures that accommodate mobile connectivity while maintaining performance, security, and policy enforcement standards.

Stacking Technology Advantages

Network scalability is a critical requirement for organizations anticipating growth. The Cisco 3850 Series supports stacking technologies that allow multiple switches to operate as a unified system. This approach simplifies management while increasing capacity and resilience.

Scalable Network Expansion

Stacking capabilities enable organizations to expand network capacity without introducing unnecessary management complexity. Additional switches can be incorporated into the infrastructure while maintaining centralized control and consistent operational policies.

Operational Simplification

Managing multiple switches as a single logical unit can significantly reduce administrative overhead. Network teams benefit from simplified configuration processes, streamlined updates, and improved operational efficiency.

Enhanced Redundancy

Business continuity depends on resilient infrastructure. Stacking technologies can contribute to improved fault tolerance by supporting redundancy strategies that minimize service interruptions and maintain network availability.

Network Performance and Reliability

The Cisco WS-C3850-24XU-L is designed to deliver reliable performance under demanding operational conditions. Enterprise environments require networking equipment capable of supporting continuous operation while maintaining stability and responsiveness.

High-performance switching hardware, intelligent traffic processing, and enterprise-grade software features contribute to dependable operation across a variety of deployment scenarios. This reliability helps organizations reduce downtime, improve productivity, and support business-critical services.

High Throughput Switching

Modern business applications generate substantial amounts of network traffic. The switch architecture is optimized to process data efficiently, supporting consistent throughput levels that accommodate growing organizational demands.

Low-Latency Communication

Applications such as unified communications, financial systems, healthcare platforms, and industrial automation solutions often require low-latency networking environments. The Cisco WS-C3850-24XU-L supports efficient packet forwarding mechanisms that help reduce communication delays.

Continuous Availability

Organizations increasingly depend on uninterrupted network connectivity to maintain productivity and customer service standards. The Cisco 3850 Series incorporates features designed to support continuous availability and operational stability.

Deployment Scenarios for Cisco WS-C3850-24XU-L

Corporate Office Networks

Corporate offices require secure, reliable, and manageable networking infrastructure capable of supporting employees, collaboration platforms, communication systems, and cloud applications. The Cisco WS-C3850-24XU-L provides a foundation for access-layer connectivity while supporting enterprise security and performance requirements.

Educational Institutions

Schools, colleges, and universities often support large numbers of users and devices across diverse environments. The switch can facilitate network segmentation, access management, wireless integration, and performance optimization for educational workloads.

Healthcare Facilities

Healthcare organizations rely on dependable networking infrastructure to support clinical applications, medical devices, electronic health records, communications systems, and administrative functions. The advanced management and security capabilities of the Cisco 3850 Series make it suitable for demanding healthcare environments.

Government Organizations

Government agencies require secure and scalable network infrastructures capable of supporting mission-critical operations and compliance objectives. The Cisco WS-C3850-24XU-L provides management, security, and performance capabilities aligned with these requirements.

Retail and Commercial Environments

Retail organizations depend on network connectivity for point-of-sale systems, inventory management, surveillance platforms, customer engagement technologies, and administrative operations. The switch supports reliable connectivity while enabling centralized management across distributed locations.
