WS-X45-SUP9-E Cisco Catalyst 4500 E-Series Supervisor Module

Cisco WS-X45-SUP9-E Catalyst 4500 E-Series Supervisor Module

The Cisco WS-X45-SUP9-E Catalyst 4500 E-Series Supervisor Module is a high-performance control processor designed to enhance modular switching environments with advanced scalability, intelligent traffic handling, and enterprise-grade reliability. As part of the Catalyst 4500-E family, this supervisor engine delivers robust Layer 2 and Layer 3 switching capabilities, optimized for mission-critical enterprise campus networks, data centers, and high-density aggregation layers.

Product Identification

• Manufacturer: Cisco
• Part Number: WS-X45-SUP9-E
• Product Type: Control Processor
• Product Name: Catalyst 4500 E-Series Supervisor Module
• Series: Catalyst 4500-E

Packet Forwarding and Routing Efficiency

• IPv4 Routing Performance: Up to 250 million packets per second (Mpps)
• IPv6 Routing Performance: Up to 125 million packets per second (Mpps)

Enterprise Network Segmentation Benefits

• Enhanced network isolation for multi-tenant environments
• Improved traffic control across departmental structures
• Scalable VLAN architecture for growing enterprise demands
• Support for complex virtualized network environments

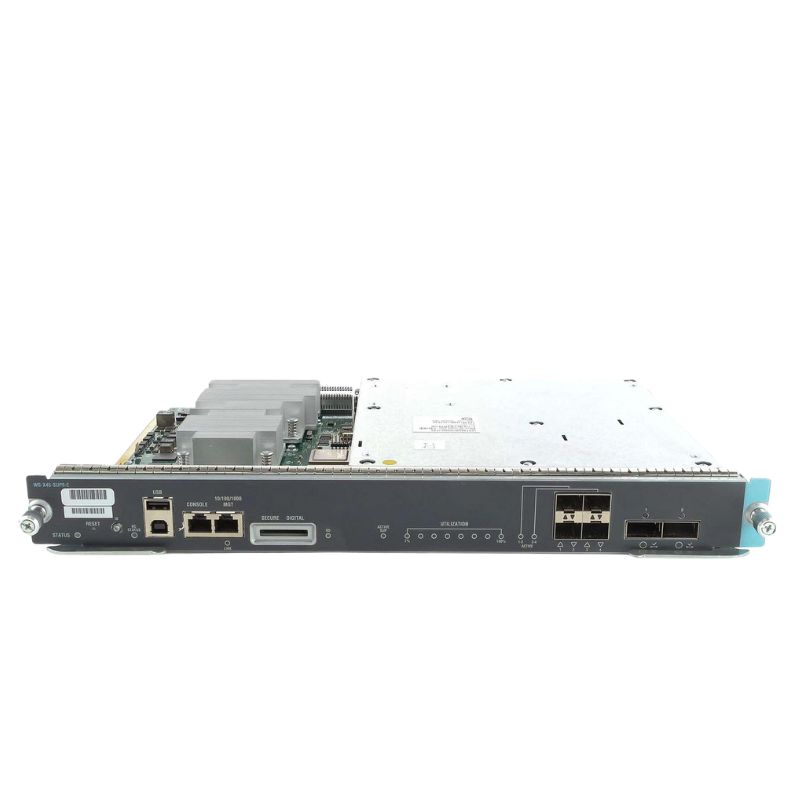

Uplink Port Layout

• 2x 40G QSFP+ ports for high-capacity backbone connections
• 4x 10G SFP+ ports for flexible aggregation and distribution layers

Supported Ethernet Technologies

• 40 Gigabit Ethernet (40GbE)
• 10 Gigabit Ethernet (10GbE)
• 10GBase-X optical networking standards
• 40GBase-X high-speed data transmission protocols

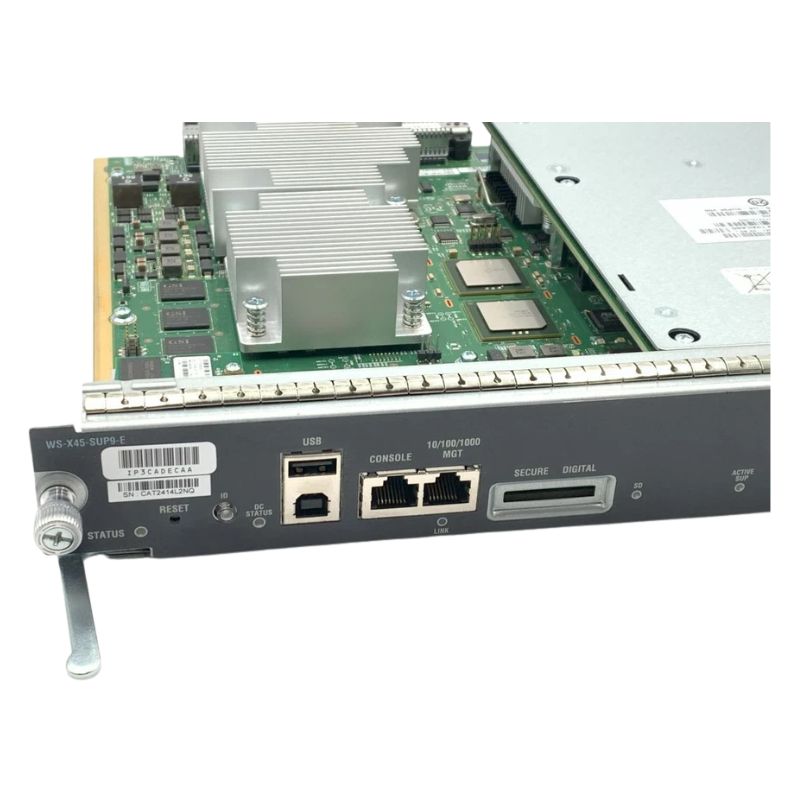

Management Connectivity

• 1x RJ-45 Ethernet Management Port for network-based administration
• 1x USB Type-A Port for software upgrades, logs, and configuration storage

Operational Management Advantages

• Secure remote management access
• Efficient firmware and software updates
• Improved diagnostic capabilities for troubleshooting
• Reduced downtime through out-of-band access

Performance Optimization Capabilities

• Fast convergence in dynamic routing environments
• Efficient handling of large-scale MAC address tables
• Improved packet buffering and forwarding performance
• Enhanced stability under enterprise workloads

Layer 2 Switching Benefits

• Efficient traffic forwarding across VLANs
• Reduced broadcast domain congestion
• Improved network responsiveness
• Support for high-density endpoint environments

Routing Performance Highlights

• IPv4 routing up to 250 Mpps for high-speed enterprise traffic
• IPv6 routing up to 125 Mpps for modern network compatibility
• Optimized routing engine for low latency performance
• Support for mixed IPv4/IPv6 dual-stack environments

Network Optimization Features

• Load balancing across multiple uplinks
• Enhanced QoS (Quality of Service) handling
• Improved traffic prioritization mechanisms
• Scalable routing table management

Supported Technologies

• 10 Gigabit Ethernet (10GbE)
• 40 Gigabit Ethernet (40GbE)
• 10GBase-X optical and copper connectivity
• 40GBase-X high-bandwidth backbone links

Enterprise Network Compatibility Advantages

• Backward compatibility with existing Catalyst infrastructure
• Future-ready support for high-speed network upgrades
• Seamless integration into enterprise campus architectures
• Scalable deployment across distributed network environments

Service Provider and Large-Scale Networks

• High-density traffic aggregation for ISP environments
• Reliable backbone switching for metro networks
• Scalable routing for multi-tenant infrastructures
• Optimized performance for carrier-grade deployments

Cisco WS-X45-SUP9-E Catalyst Supervisor Module Overview

The Cisco WS-X45-SUP9-E Catalyst 4500E Series Supervisor Module is a high-performance supervisory engine designed for enterprise-class modular switching environments within the Catalyst 4500E Series ecosystem. Built to deliver advanced switching intelligence, scalability, and resilient network control, this supervisor module plays a central role in managing data plane operations, control plane processing, and system-level orchestration in mid-to-large enterprise networks. Integrated within the broader switching architecture this module is engineered for environments requiring high availability, robust throughput, and advanced Layer 2 and Layer 3 services.

Architecture and Design Principles of Catalyst 4500E Supervisor Engine

Modular Switching Architecture Foundation

The WS-X45-SUP9-E supervisor engine is built upon a modular chassis architecture that enables flexible expansion, service integration, and long-term scalability. The Catalyst 4500E Series is widely deployed in campus aggregation layers, enterprise distribution networks, and access layer backbones, where consistent uptime and predictable performance are essential. The supervisor module functions as the central intelligence unit, managing line cards, system resources, and forwarding decisions.

Hardware-Accelerated Forwarding Engine

At the core of this supervisor engine lies a hardware-accelerated forwarding system that optimizes packet processing and reduces CPU overhead. This design ensures that traffic forwarding is performed at wire speed, enabling efficient handling of high-density network environments. The architecture is optimized for low-latency switching, which is critical for real-time applications, unified communications, and data center interconnectivity scenarios.

Integrated Switching Fabric Optimization

The integrated switching fabric within the Catalyst 4500E Supervisor Engine ensures deterministic performance across all installed line cards. By utilizing centralized fabric coordination, the system maintains consistent throughput across multiple interfaces without bottlenecks or performance degradation. This enables enterprises to scale network capacity while maintaining predictable service levels.

Control Plane and Data Plane Separation

A key design advantage of the WS-X45-SUP9-E module is the separation of control and data planes. This architecture allows the control plane to focus on network management, routing protocols, and system orchestration, while the data plane handles high-speed packet forwarding. This separation improves system stability, enhances security, and allows more efficient utilization of system resources.

Performance Capabilities and Network Efficiency

High Throughput Switching Performance

The supervisor module is designed to support high-density switching environments where bandwidth demands are constantly increasing. It provides substantial switching capacity that allows enterprises to handle converged network traffic, including voice, video, and data streams. The architecture ensures minimal packet loss under heavy loads, making it suitable for mission-critical deployments.

Optimized Packet Processing Engine

Packet processing within the WS-X45-SUP9-E is optimized for speed and efficiency. Advanced ASIC-based forwarding ensures that routing decisions are made quickly and accurately. This reduces latency across the network and improves application responsiveness for end users.

Quality of Service Integration

Quality of Service (QoS) mechanisms are deeply integrated into the supervisor engine, allowing administrators to prioritize traffic based on application requirements. This ensures that critical services such as VoIP, video conferencing, and enterprise applications receive priority treatment over less sensitive traffic.

Multilayer Switching Support

The module supports both Layer 2 switching and Layer 3 routing capabilities, enabling flexible deployment in complex network topologies. This multilayer functionality allows organizations to consolidate network infrastructure while maintaining advanced routing policies and segmentation strategies.

Redundancy, High Availability, and Reliability Features

Failover and Redundant Supervisor Design

The Catalyst 4500E Supervisor Engine supports redundancy configurations that allow seamless failover in case of hardware or software failures. In dual-supervisor setups, one module operates as active while the other remains in standby mode, ensuring continuous network availability.

Non-Disruptive System Operations

The system is designed to support non-disruptive upgrades and maintenance operations. This allows network administrators to perform software updates, configuration changes, and hardware replacements without impacting network uptime.

Stateful Switchover Capability

Stateful Switchover (SSO) ensures that session information and system state are preserved during failover events. This minimizes disruption and maintains continuity for active network sessions, which is critical in enterprise environments with strict uptime requirements.

Graceful Restart Mechanisms

Graceful restart functionality allows routing protocols and network services to recover quickly after a failover event without causing instability in the network topology. This contributes to improved resilience and faster convergence times.

Scalability and Enterprise Network Integration

Support for Growing Network Demands

The WS-X45-SUP9-E module is engineered to support expanding enterprise networks where device density and traffic volume continue to grow. Its scalable architecture allows additional line cards and services to be integrated seamlessly into the existing system.

Campus Network Deployment Optimization

In campus environments, the supervisor engine serves as a central aggregation point, connecting access layer switches and distribution nodes. Its ability to handle high-volume traffic makes it suitable for universities, corporate campuses, and government facilities.

Data Center Interconnect Applications

Although primarily used in campus environments, the module also plays a role in data center interconnect scenarios where reliable switching and routing performance are required between distributed infrastructure nodes.

Security and Network Protection Capabilities

Integrated Security Framework

Security is a core component of the Catalyst 4500E Supervisor Engine design. The system integrates multiple security mechanisms to protect against unauthorized access, network attacks, and misconfigurations.

Access Control and Policy Enforcement

The module supports advanced access control policies that allow administrators to define granular rules for network traffic. These policies ensure that only authorized devices and users can access specific network resources.

Advanced Routing and Switching Services

Dynamic Routing Protocol Support

The supervisor engine supports a wide range of dynamic routing protocols, enabling it to adapt to complex and changing network topologies. These protocols ensure efficient path selection and redundancy across the network.

VLAN and Network Segmentation

Virtual LAN (VLAN) capabilities allow network segmentation at Layer 2, improving traffic isolation and enhancing security. This is essential in multi-tenant environments and large enterprise deployments.

Inter-VLAN Routing Efficiency

The module supports efficient inter-VLAN routing, enabling communication between segmented network groups without requiring external routing devices. This reduces infrastructure complexity and improves performance.

Operational Management and System Administration

Centralized Network Management

The WS-X45-SUP9-E supervisor engine provides centralized management capabilities that allow administrators to configure, monitor, and troubleshoot network operations from a unified interface.

Configuration Management Efficiency

Configuration management features allow administrators to deploy standardized settings across multiple devices, ensuring consistency and reducing the risk of misconfiguration.

Software Upgrade Management

The system supports efficient software upgrade processes that minimize downtime and ensure compatibility with evolving network requirements.

Deployment Scenarios and Use Cases

Enterprise Campus Deployments

In enterprise campuses, the supervisor engine acts as a central switching and routing hub, connecting multiple departments, buildings, and service areas. Its scalability and reliability make it ideal for large organizational infrastructures.

Service Provider Edge Applications

Service providers utilize the Catalyst 4500E Supervisor Engine for edge aggregation and customer connectivity, leveraging its performance and policy enforcement capabilities.

Government and Education Networks

Government institutions and educational organizations rely on this module for secure, scalable, and high-performance networking across distributed environments.
