WS-X4908-10G-RJ45 Cisco Catalyst 8 Ports Expansion Module

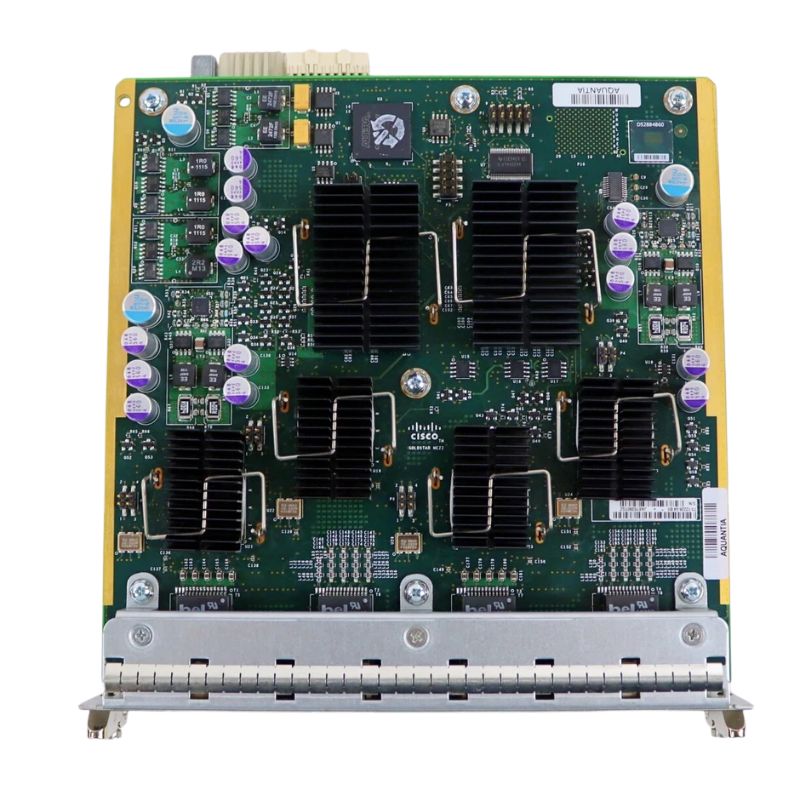

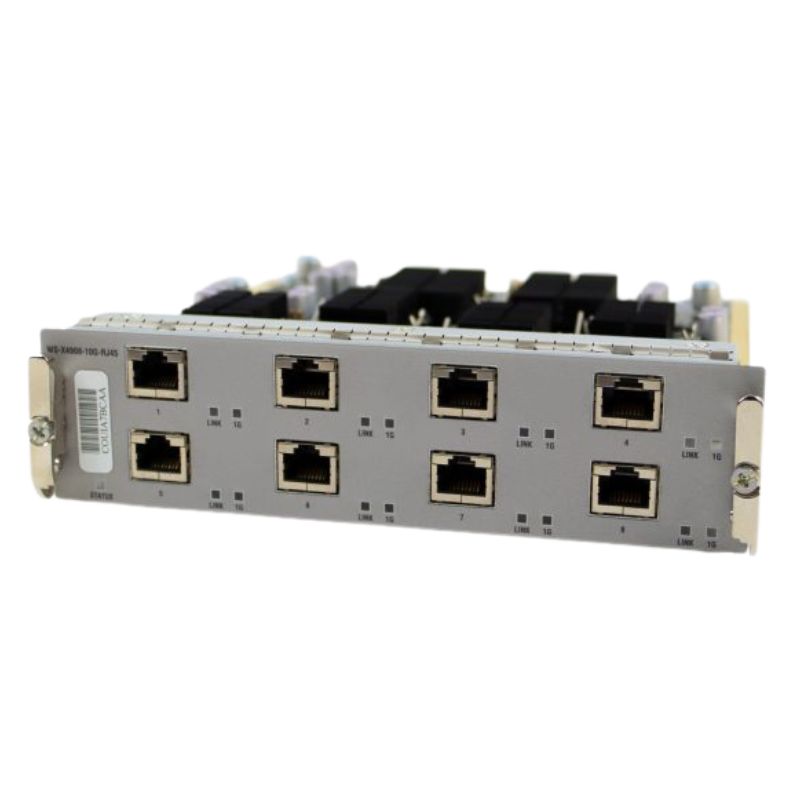

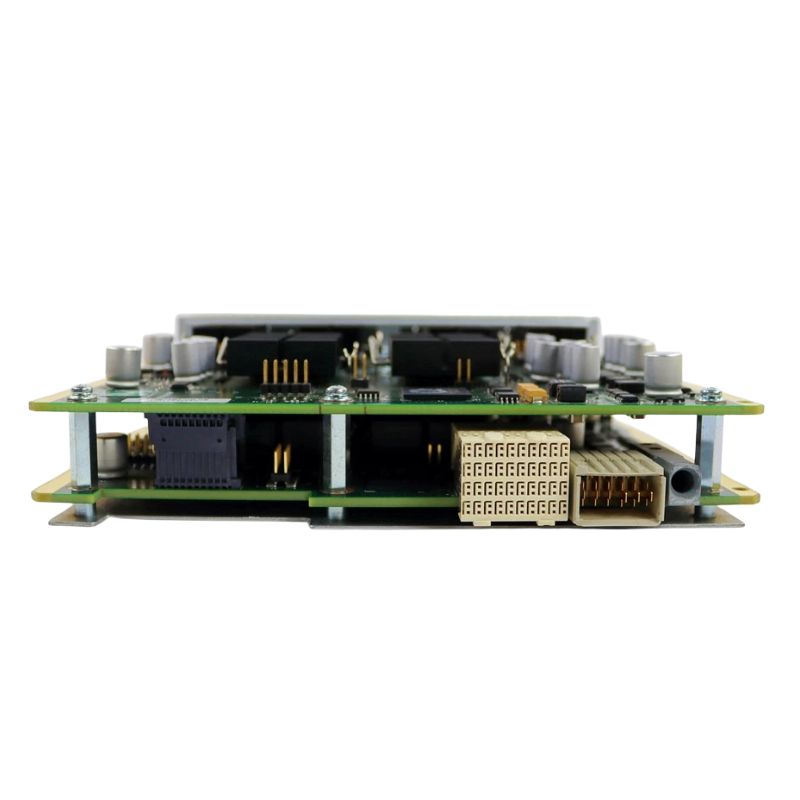

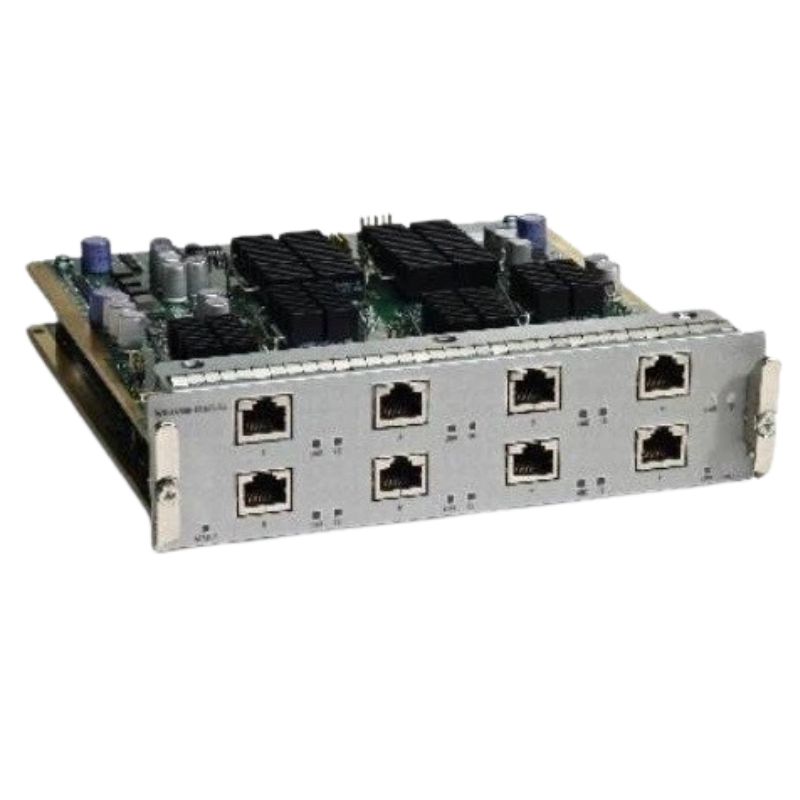

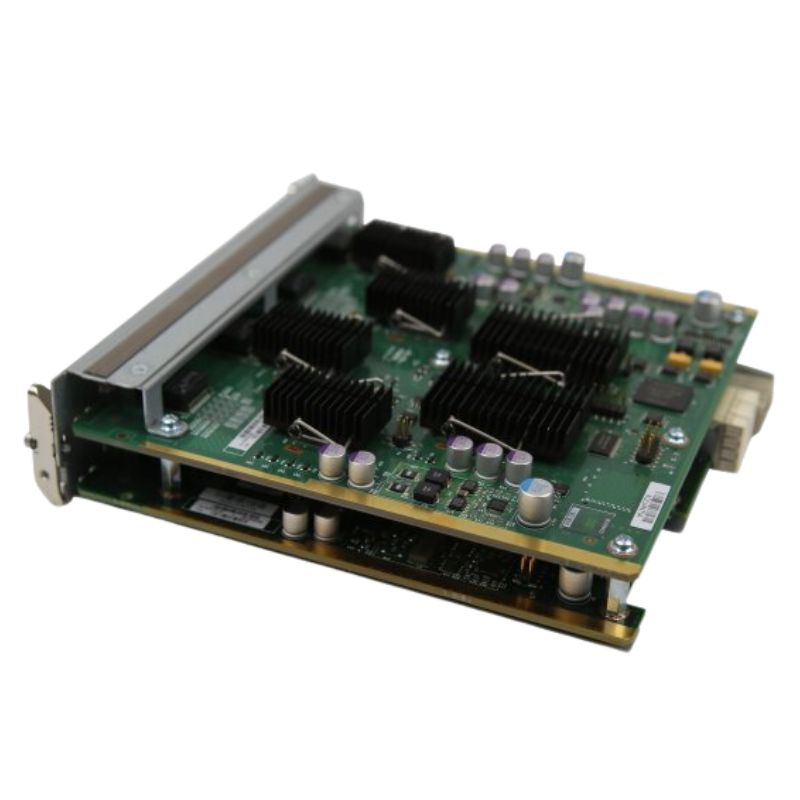

Cisco WS-X4908-10G-RJ45 8-Port Expansion Module

The Cisco WS-X4908-10G-RJ45 is a high-density expansion module designed for advanced enterprise networking environments. Engineered for the Cisco Catalyst 4500-M Series, this module delivers reliable 10 Gigabit Ethernet connectivity through RJ-45 copper interfaces, enabling scalable and high-speed network expansion for modern data centers and WAN deployments.

Product Identification

• Manufacturer: Cisco
• Part Number: WS-X4908-10G-RJ45
• Device Type: Expansion Module
• Product Line: Catalyst
• Series Compatibility: 4500-M Series

Key Interface Features

• 8 x RJ-45 ports supporting 10GBase-T Ethernet
• Twisted pair copper cabling compatibility
• Full support for high-bandwidth data transmission
• Designed for seamless LAN and WAN integration

Performance Highlights

• Supports up to 10 Gbps per port
• 10 Gigabit Ethernet standard compliance
• Optimized for high-density traffic environments
• Low latency switching performance

Compatibility Advantages

• Designed for Catalyst 4500-M and 4900 Series platforms
• Plug-and-play integration within Cisco environments
• Supports enterprise-grade switching architectures
• Ideal for scalable network upgrades

Ideal Deployment Scenarios

• Enterprise data centers
• High-density network aggregation layers
• Cloud computing environments
• Campus backbone networks

Technical Media Specifications

• Media Type: Twisted pair copper cabling
• Connector: RJ-45 interfaces
• Ethernet Standard: 10 Gigabit Ethernet (10GBase-T)
• Backward-compatible infrastructure support

Expansion Advantages

• Supports scalable network architecture growth
• Reduces infrastructure replacement costs
• Enhances long-term network investment value
• Enables modular upgrades for Catalyst systems

Reliability Features

• High-quality Cisco hardware engineering
• Designed for continuous 24/7 operation
• Stable performance under heavy network loads
• Minimal downtime and maintenance requirements

Common Applications

• Enterprise backbone switching
• High-speed server connectivity
• Data center aggregation layers
• Mission-critical business applications

Cisco WS-X4908-10G-RJ45 Expansion Module Overview

The Cisco WS-X4908-10G-RJ45 Catalyst 8 Ports Expansion Module represents a high-performance switching expansion component engineered to extend the capabilities of enterprise-grade modular switching environments. Designed for deployment within compatible Cisco Catalyst chassis platforms, this module enhances network throughput, scalability, and copper-based 10 Gigabit Ethernet connectivity for data-intensive environments. Built under the engineering standards of , we can still mention Cisco as text.

This expansion module is widely recognized for its ability to deliver high-density 10GBASE-T RJ45 connectivity, allowing organizations to bridge traditional copper infrastructure with modern high-speed networking requirements. It is commonly used in enterprise core networks, data center aggregation layers, virtualization clusters, and high-bandwidth enterprise campus deployments.

Architectural Design and Engineering Principles

Modular Switch Integration Framework

The WS-X4908-10G-RJ45 module is designed for seamless integration into Catalyst modular switches, where it functions as an expansion line card. Its architecture supports hot-swappable installation, enabling administrators to scale network capacity without disrupting operational uptime. The module’s backplane connectivity is engineered for high-speed internal switching fabric communication, ensuring low-latency data transfer between line cards and supervisor engines.

The modular framework allows enterprises to adapt their network infrastructure dynamically, accommodating growing data traffic demands while preserving investment in existing chassis systems. This approach reduces total cost of ownership while ensuring long-term scalability.

High-Density 10GBASE-T RJ45 Port Design

At the core of this module is its 8-port 10GBASE-T RJ45 configuration, which supports high-speed Ethernet transmission over copper cabling. This enables organizations to leverage existing Category 6a or Category 7 cabling infrastructure while achieving 10 Gigabit performance per port. The design eliminates the immediate need for fiber deployment in short-to-medium range connections, reducing installation complexity and cost.

Each port is optimized for auto-negotiation, backward compatibility with lower Ethernet speeds, and energy-efficient Ethernet standards, ensuring operational flexibility across mixed network environments.

Performance Capabilities and Network Optimization

High Throughput Data Processing

The Cisco WS-X4908-10G-RJ45 module is engineered to handle significant data throughput demands in enterprise networks. Each of its eight ports supports full-duplex 10Gbps transmission, enabling an aggregate switching capacity that supports multi-gigabit workloads, virtualization traffic, and high-volume data center operations.

Its internal switching logic is optimized to minimize packet loss and reduce latency under heavy load conditions. This ensures consistent performance even during peak utilization scenarios such as large-scale backups, distributed computing operations, and cloud service integration.

Low Latency Switching Fabric Interaction

One of the critical advantages of this module lies in its ability to integrate with high-speed Catalyst switching fabrics. The module communicates directly with the system backplane using advanced packet forwarding mechanisms, ensuring that latency is minimized during inter-VLAN routing and cross-module traffic exchanges.

This low-latency design is essential for environments such as financial trading networks, enterprise virtualization clusters, and real-time analytics platforms, where microsecond delays can impact performance outcomes.

Enterprise Use Cases and Deployment Scenarios

Data Center Aggregation Layer Deployment

In data center environments, the WS-X4908-10G-RJ45 module is commonly deployed at the aggregation layer, where it consolidates traffic from access switches and distributes it toward core switching infrastructure. Its high port density and copper-based connectivity make it particularly suitable for server-to-switch interconnects within rack-based deployments.

The module supports high-bandwidth server connections, including virtualization hosts, storage nodes, and application servers requiring stable and high-speed communication links.

Enterprise Campus Network Expansion

Within large campus networks, this expansion module is used to enhance backbone connectivity between wiring closets, distribution switches, and core routing systems. Organizations with extensive office buildings, research facilities, or educational campuses benefit from its ability to extend 10G connectivity across copper-based infrastructure.

This reduces dependency on fiber installations in environments where copper cabling already exists, accelerating deployment timelines and minimizing infrastructure disruption.

High-Performance Computing and Virtualization Environments

The module is also widely utilized in high-performance computing clusters and virtualized data center environments. Its ability to support high-throughput east-west traffic makes it suitable for hyper-converged infrastructure systems, virtualization farms, and cloud service providers.

In these scenarios, consistent bandwidth availability is essential for workload balancing, live migration of virtual machines, and distributed storage communication.

Hardware Design and Physical Characteristics

Compact Modular Form Factor

The WS-X4908-10G-RJ45 expansion module is engineered in a compact form factor optimized for Catalyst chassis integration. Its physical design ensures efficient airflow management within the switch enclosure, maintaining optimal thermal performance even under sustained high-load conditions.

The module is constructed with enterprise-grade materials that enhance durability and ensure long operational life in mission-critical environments.

Thermal Efficiency and Power Management

Efficient thermal design is a key characteristic of this module. It incorporates advanced heat dissipation mechanisms that regulate temperature during intensive data transmission workloads. Intelligent power management features dynamically adjust energy consumption based on port utilization and traffic conditions.

This contributes to reduced operational costs and aligns with energy-efficient networking strategies commonly adopted in modern data centers.

Compatibility and System Integration

Compatibility with Catalyst Switching Platforms

The module is designed for integration with compatible Cisco Catalyst chassis systems that support modular line cards. It functions as part of a broader switching ecosystem, working in conjunction with supervisor engines, other expansion modules, and network service components.

Its integration ensures seamless communication with routing engines, switching fabrics, and management systems, allowing centralized control over network operations.

Interoperability with Network Protocols

The WS-X4908-10G-RJ45 supports a wide range of networking protocols, including advanced VLAN segmentation, QoS prioritization, link aggregation, and spanning tree protocols. These capabilities ensure efficient traffic management and network resilience across complex enterprise architectures.

It is also compatible with IPv4 and IPv6 environments, enabling seamless deployment in modern dual-stack network infrastructures.

Network Scalability and Expansion Benefits

Incremental Network Growth Strategy

One of the key advantages of this expansion module is its support for incremental scalability. Organizations can expand network capacity without replacing existing switching infrastructure. By simply adding modules, network administrators can increase port density and bandwidth availability as demand grows.

This modular approach allows businesses to adopt a phased expansion strategy, aligning infrastructure investment with operational requirements.

Cost-Effective Infrastructure Enhancement

The use of RJ45-based 10G connectivity reduces dependency on fiber optic deployments, significantly lowering infrastructure costs. Organizations benefit from leveraging existing structured cabling systems while still achieving high-speed networking performance.

This cost efficiency makes the module particularly attractive for enterprises undergoing digital transformation initiatives.

Operational Reliability and Network Stability

Redundancy and Fault Tolerance Features

The WS-X4908-10G-RJ45 module is designed with enterprise-grade reliability features that support redundant network configurations. It works in conjunction with Catalyst switching systems that offer failover mechanisms, ensuring continuous network availability in the event of hardware or link failures.

This redundancy is critical for mission-critical applications where downtime can result in significant operational disruption.

Advanced Traffic Management Capabilities

Traffic management features embedded within the module enable intelligent packet prioritization and congestion control. Quality of Service mechanisms ensure that latency-sensitive applications such as voice, video conferencing, and real-time analytics receive priority over less critical traffic.

This ensures balanced network performance across diverse application workloads.

Security and Network Control Features

Enterprise-Grade Access Control

Security is a fundamental component of the module’s design. It supports advanced access control mechanisms that allow administrators to define strict traffic policies at the port level. These controls help prevent unauthorized access and ensure compliance with enterprise security policies.

Network Segmentation and Isolation

The module supports VLAN-based segmentation, allowing organizations to isolate traffic between departments, applications, or security zones. This enhances network security while improving traffic organization and performance efficiency.

Such segmentation is particularly useful in environments requiring strict compliance standards, such as healthcare, finance, and government networks.

Strategic Value in Modern Networking Infrastructure

Support for Digital Transformation Initiatives

As organizations continue to adopt cloud computing, virtualization, and high-speed data analytics, the WS-X4908-10G-RJ45 module plays a crucial role in enabling the underlying network performance required for these technologies.

Its ability to bridge legacy copper infrastructure with modern 10G Ethernet requirements makes it a strategic asset in digital transformation initiatives.
