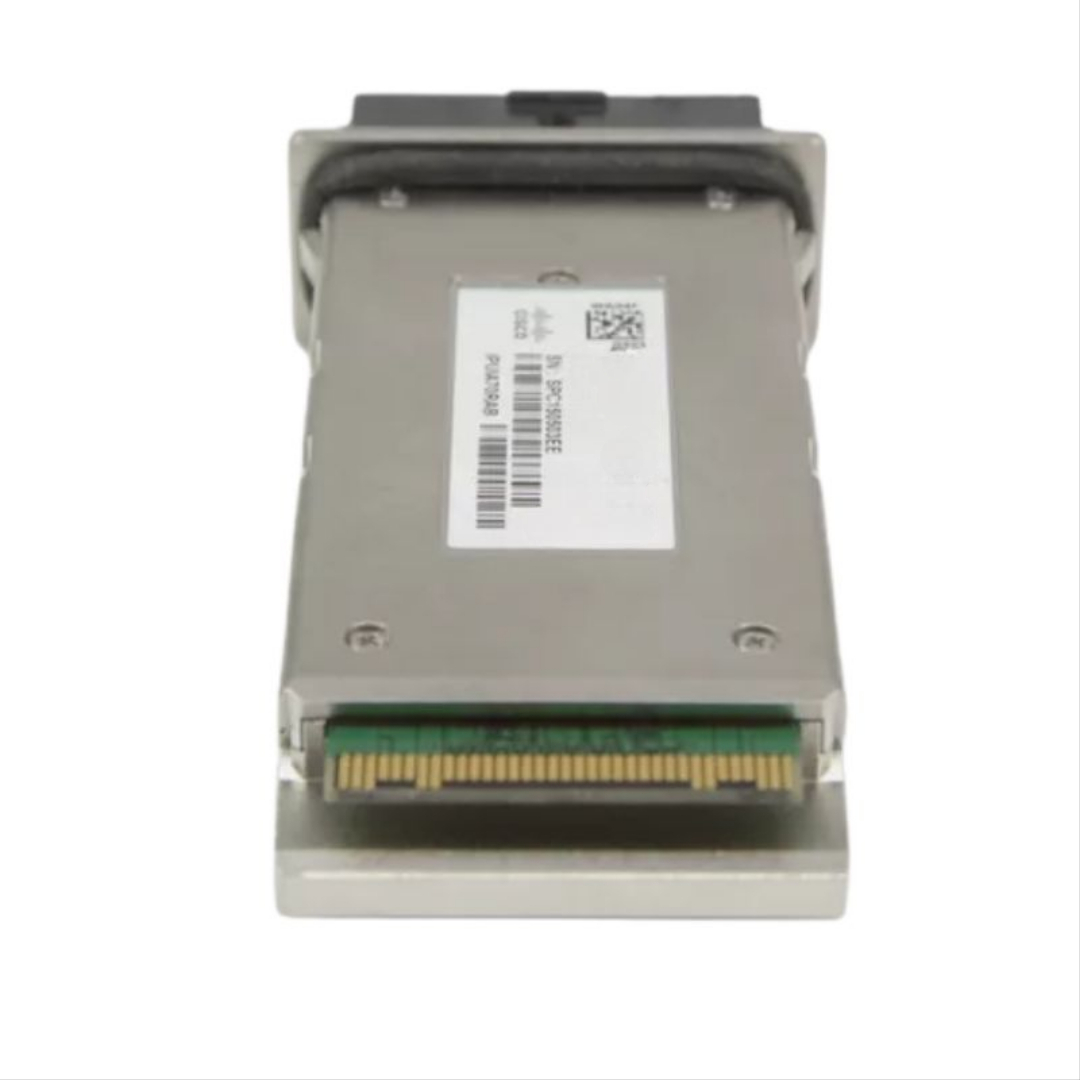

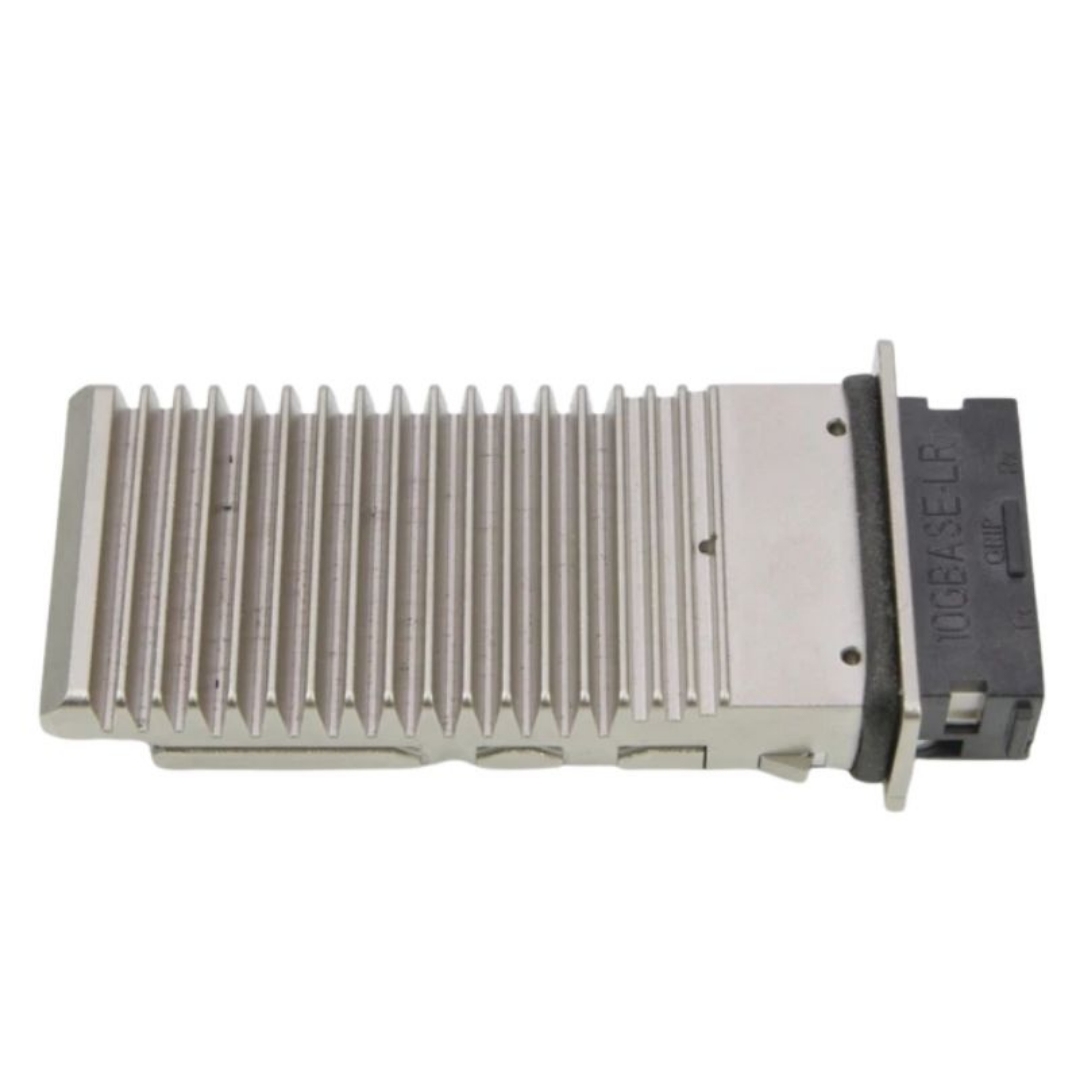

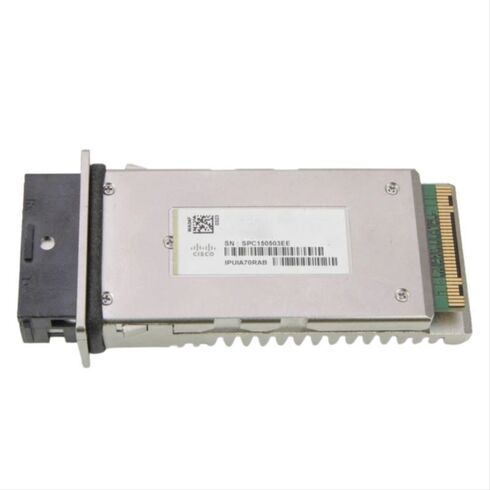

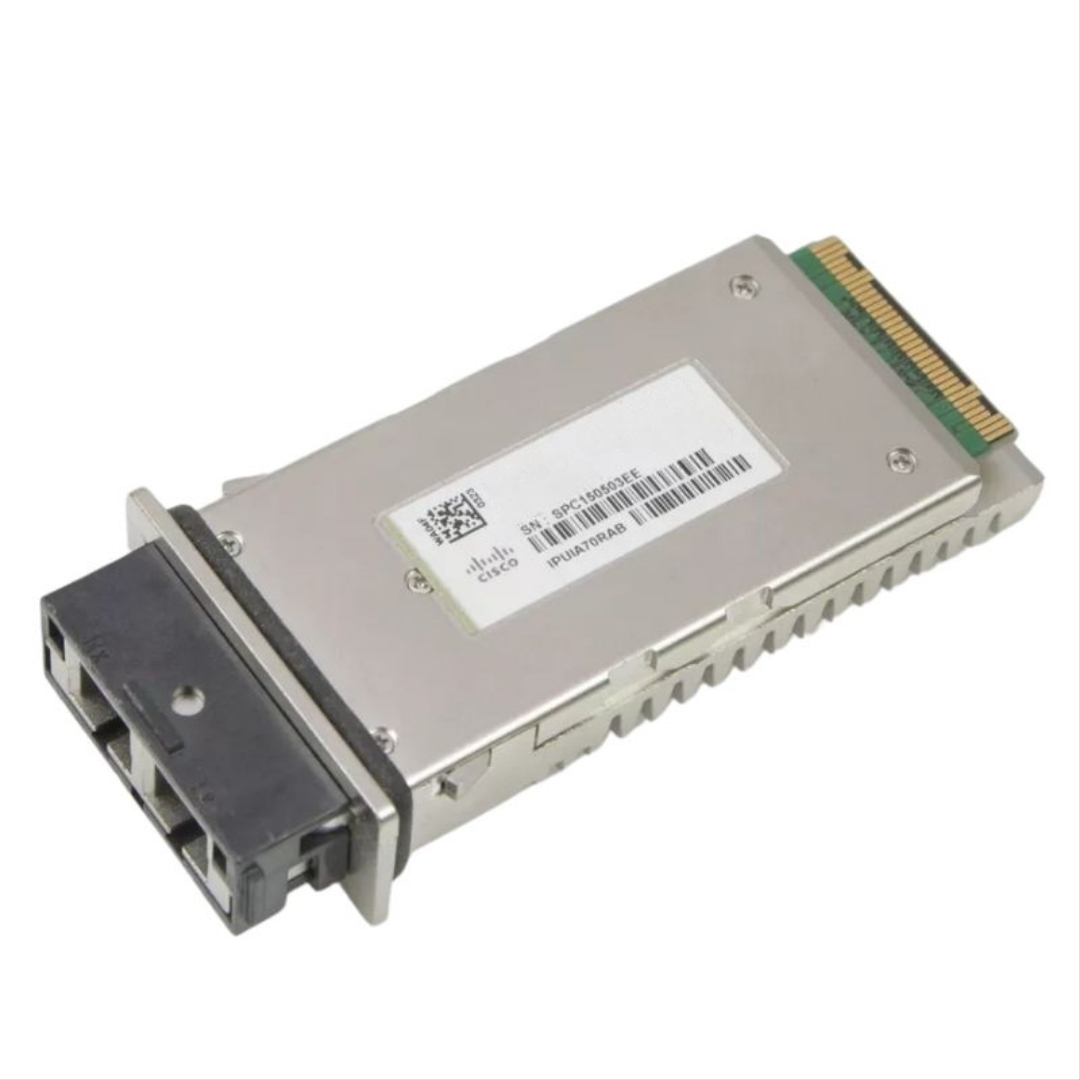

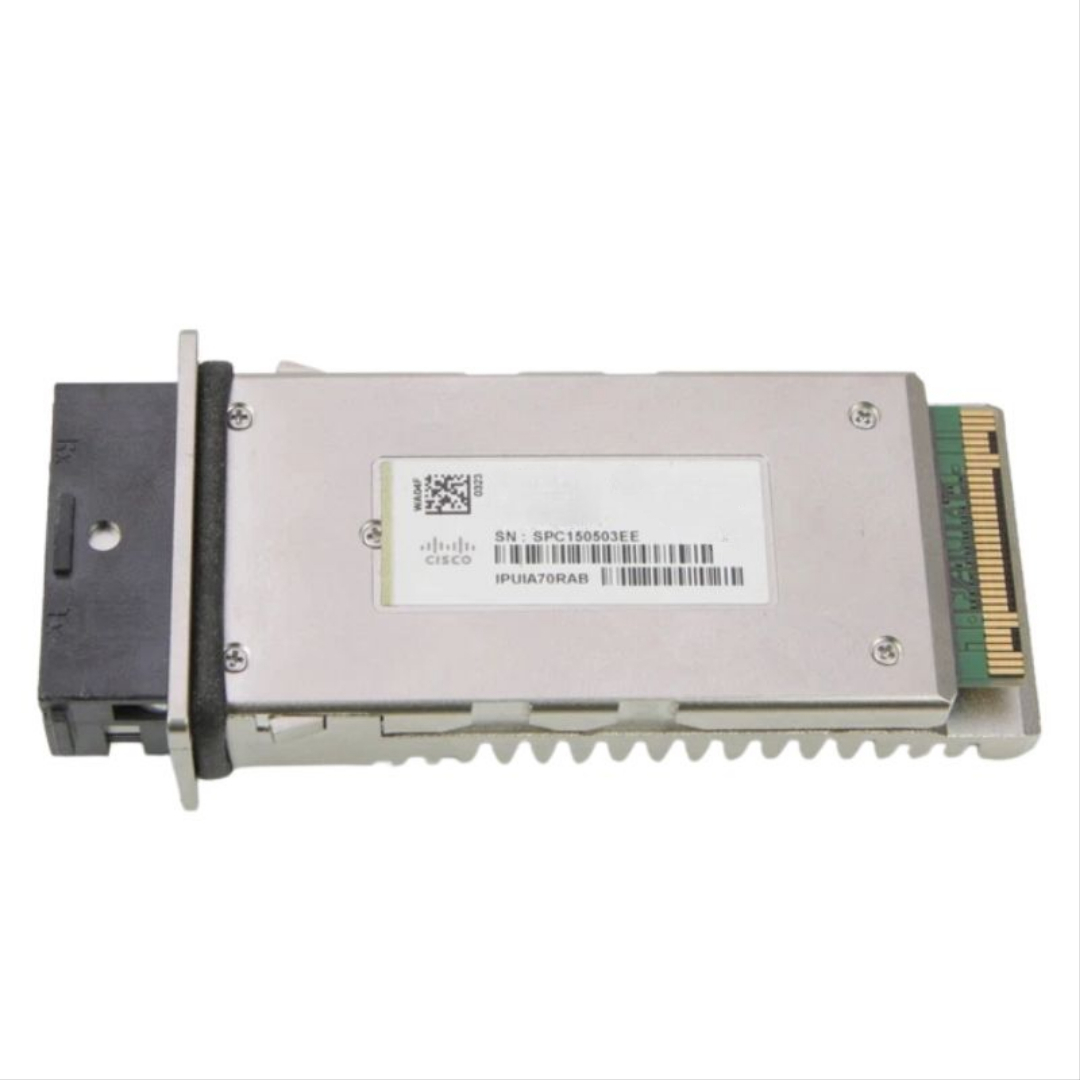

X2-10GB-LX4 Cisco 10GBPS SC MMF Transceiver 300M

Cisco 10GBPS SC Multi-Mode Optical Transceiver

The Cisco X2-10GB-LX4 is a high-performance plug-in module designed for seamless data transmission over fiber optic cabling. This device ensures reliable connectivity for enterprise networks requiring 10 Gigabit Ethernet speeds.

General Information

• Manufacturer: Cisco
• Part Number: X2-10GB-LX4
• Device Type: Transceiver Module

Technical Specifications

• Form Factor: Plug-in Module
• Interface Type: X2
• Cabling Type: Ethernet 10GBASE-LX4
• Data Link Protocol: 10 Gigabit Ethernet
• Maximum Transfer Distance: 1000 feet (approx. 300 meters)
• Data Transfer Rate: 10 Gbps

Physical Dimensions

• Width: 1.4 inches
• Depth: 3.6 inches
• Height: 0.5 inches

Compliance Standards

• Industry Standard: IEEE 802.3ae

Cisco X2-10GB-LX4 10GBPS 300M Transceiver Overview

The Cisco X2-10GB-LX4 10GBPS Transceiver SC Multi-Mode Fiber 300M is a high-performance optical networking component designed to provide reliable 10 Gigabit Ethernet connectivity across enterprise and data center environments. This transceiver belongs to the Cisco X2 optical module family and is engineered to support high-speed network communication while maintaining compatibility with Cisco networking platforms that require X2 form factor interfaces. With its ability to deliver data transmission speeds of up to 10Gbps and support multi-mode fiber connections over distances of up to 300 meters, the Cisco X2-10GB-LX4 is a practical solution for organizations that need dependable short-range optical networking.

Optical transceivers play a critical role in modern network infrastructure by converting electrical signals from networking equipment into optical signals that travel through fiber optic cables. The Cisco X2-10GB-LX4 combines a transmitter and receiver in a single compact module, allowing switches, routers, and other compatible devices to establish fast fiber-based connections. This model uses SC fiber connectors and is optimized for multi-mode fiber applications, making it suitable for environments where high bandwidth, low latency, and stable connectivity are essential.

The Cisco X2-10GB-LX4 10GBPS Transceiver SC Multi-Mode Fiber 300M category is commonly associated with enterprise networking upgrades, data center interconnects, server room expansions, and high-speed backbone deployments. Businesses that require consistent network performance can use this optical module to extend connectivity between network devices while reducing congestion and improving overall data transfer efficiency.

Understanding the Cisco X2-10GB-LX4 Optical Technology

The Cisco X2-10GB-LX4 is built according to industry standards for 10 Gigabit Ethernet optical communication. The module uses a 10GBASE-LX4 technology approach, which allows high-speed transmission over multi-mode fiber through advanced optical signaling methods. Unlike traditional single-channel optical solutions, LX4 technology uses multiple wavelengths to transmit data, improving flexibility and allowing the transceiver to support longer distances on multi-mode fiber compared to some conventional short-range modules.

The use of multiple wavelengths enables the Cisco X2-10GB-LX4 to provide reliable performance across existing fiber infrastructure. Many organizations have installed multi-mode fiber networks throughout their facilities, and this transceiver allows them to take advantage of higher bandwidth without requiring complete replacement of their cabling systems. This makes it a valuable choice for network modernization projects where cost control and performance improvement are both priorities.

High-Speed 10 Gigabit Ethernet Performance

With support for 10Gbps data transmission, the Cisco X2-10GB-LX4 delivers a significant improvement over older 1Gbps networking solutions. The increased bandwidth allows organizations to handle demanding applications such as virtualization, cloud computing, high-volume data transfers, video collaboration, storage networking, and real-time enterprise applications.

A 10 Gigabit optical connection provides a strong foundation for modern network architectures. As businesses continue to increase their dependence on digital services, the need for faster and more reliable infrastructure continues to grow. The Cisco X2-10GB-LX4 helps network administrators create faster communication pathways between critical systems, reducing bottlenecks and improving user experiences.

Reliable Fiber-Based Connectivity

Fiber optic technology offers several advantages over traditional copper-based connections, including longer transmission distances, reduced electromagnetic interference, and improved signal quality. The Cisco X2-10GB-LX4 takes advantage of these benefits by providing a stable optical connection that supports high-performance networking environments.

The multi-mode fiber compatibility of this transceiver makes it particularly useful for short to medium-distance connections inside buildings, campuses, and data centers. Its 300-meter transmission capability provides enough reach for many enterprise layouts where network devices are separated by floors, rooms, or equipment areas.

Cisco X2-10GB-LX4 Multi-Mode Fiber Compatibility and Applications

The Cisco X2-10GB-LX4 10GBPS Transceiver SC Multi-Mode Fiber 300M is designed for use with compatible Cisco equipment that supports X2 optical interfaces. Network professionals often deploy this type of module in switches and routers where high-speed uplinks are required. Its multi-mode fiber design makes it a common selection for internal network environments that already use structured fiber cabling.

Multi-mode fiber has long been used in enterprise networks because it provides an effective balance between performance and installation cost. The Cisco X2-10GB-LX4 allows organizations to achieve 10 Gigabit speeds while continuing to utilize existing fiber infrastructure. This compatibility can simplify upgrades and help reduce the expense associated with large-scale network improvements.

Enterprise Network Deployment

In enterprise environments, reliable connectivity between network segments is essential. The Cisco X2-10GB-LX4 can support connections between core switches, distribution switches, aggregation points, and other high-capacity networking equipment. By enabling faster communication between these devices, the transceiver helps maintain smooth traffic flow across the organization.

Large offices, educational institutions, healthcare facilities, financial organizations, and corporate campuses often require strong internal networks to support employees, applications, and connected systems. A 10Gbps optical connection provides the bandwidth needed for these demanding environments while maintaining dependable communication between network components.

Data Center and Server Room Connectivity

Data centers depend on fast and stable connections to support servers, storage systems, and virtualization platforms. The Cisco X2-10GB-LX4 is suitable for data center applications where equipment needs to exchange large amounts of information quickly. High-speed optical links help reduce delays and support efficient resource utilization.

Modern server rooms frequently contain high-performance computing resources that generate substantial network traffic. The Cisco X2-10GB-LX4 helps create the high-capacity links required for these environments. Its fiber-based design supports clean signal transmission, making it an effective option for structured data center cabling systems.

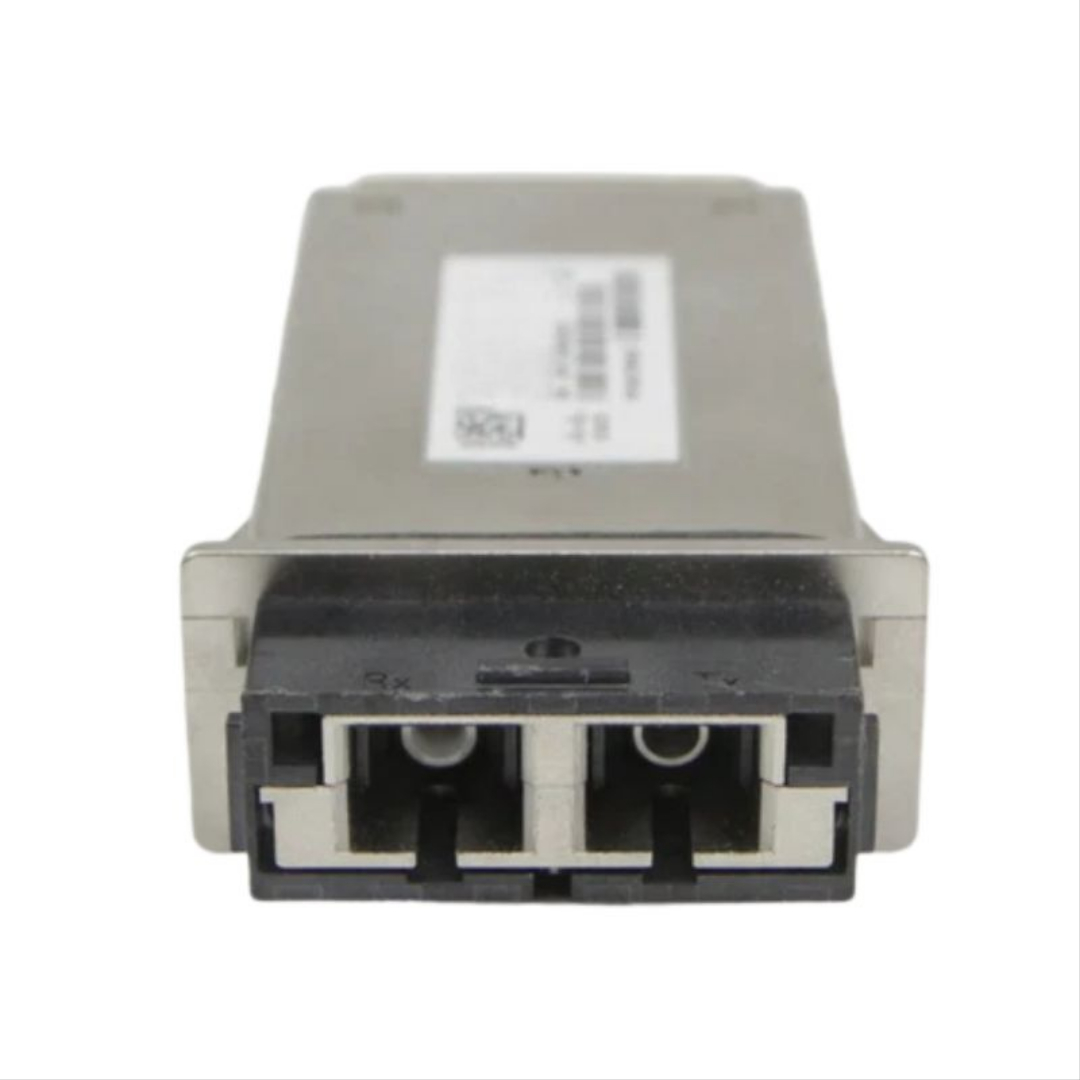

SC Connector Design

The SC connector interface used by the Cisco X2-10GB-LX4 provides a secure fiber connection that is widely recognized in networking installations. SC connectors are known for their simple push-pull design, making them easy to install and maintain. This connector type has been widely adopted in fiber optic networks due to its durability and practicality.

Using SC fiber connections allows network administrators to integrate the Cisco X2-10GB-LX4 into existing fiber environments where SC-compatible cabling is already installed. This reduces the complexity of upgrades and enables faster deployment of higher-speed networking capabilities.

Multi-Mode Fiber Support

The multi-mode fiber capability of the Cisco X2-10GB-LX4 makes it ideal for short-distance, high-bandwidth applications. Multi-mode fiber allows multiple light paths to travel through the fiber core, making it effective for connections within buildings and controlled network environments.

Organizations often choose multi-mode fiber because it provides strong performance for internal networking while remaining economical compared with some longer-distance fiber solutions. The Cisco X2-10GB-LX4 extends the usefulness of these installations by supporting 10 Gigabit Ethernet speeds.

Benefits of Using Cisco X2-10GB-LX4 in Network Infrastructure

Deploying the Cisco X2-10GB-LX4 10GBPS Transceiver SC Multi-Mode Fiber 300M can provide several advantages for organizations managing modern network environments. One of the primary benefits is improved bandwidth capacity. As applications become more data-intensive, networks require faster connections to prevent performance issues.

The transceiver also supports efficient network scaling. Instead of replacing entire systems, organizations can upgrade key connections by installing higher-speed optical modules in compatible equipment. This approach allows businesses to enhance performance while maximizing the value of existing infrastructure.

Improved Network Efficiency

High-speed optical connections can improve overall network efficiency by allowing large amounts of data to move quickly between devices. The Cisco X2-10GB-LX4 helps reduce congestion on critical links, supporting smoother operation for applications that rely on continuous data exchange.

Network efficiency is especially important in environments with many connected users and devices. Faster uplinks can help maintain consistent performance during periods of heavy traffic, improving reliability for business operations and digital services.

Installation and Maintenance Considerations

Proper installation of the Cisco X2-10GB-LX4 is important for achieving reliable optical performance. Network administrators should ensure that the transceiver is installed in compatible equipment and that the connected fiber infrastructure meets the required specifications. Clean fiber connections and correct cable handling contribute to stable operation.

Fiber optic components require careful maintenance because contamination, improper handling, or damaged cables can affect signal quality. Regular inspection of fiber connections can help prevent performance issues and maintain reliable network communication.

Optimizing Fiber Network Performance

To maximize the performance of the Cisco X2-10GB-LX4, organizations should use appropriate fiber cabling and follow recommended networking practices. Proper cable management, organized fiber pathways, and suitable environmental conditions all contribute to better network reliability.

Professional network management practices ensure that optical modules continue operating effectively over time. Monitoring network performance and maintaining infrastructure can help identify potential problems before they impact critical operations.
