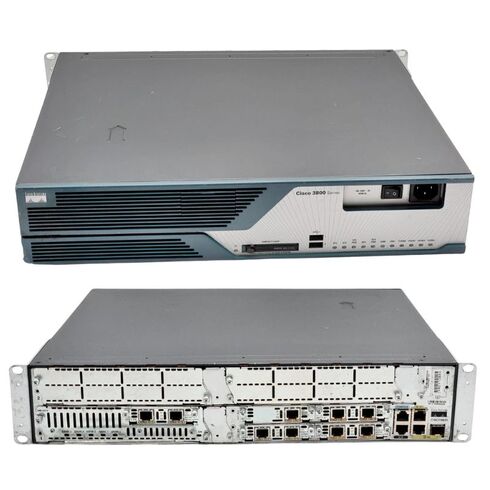

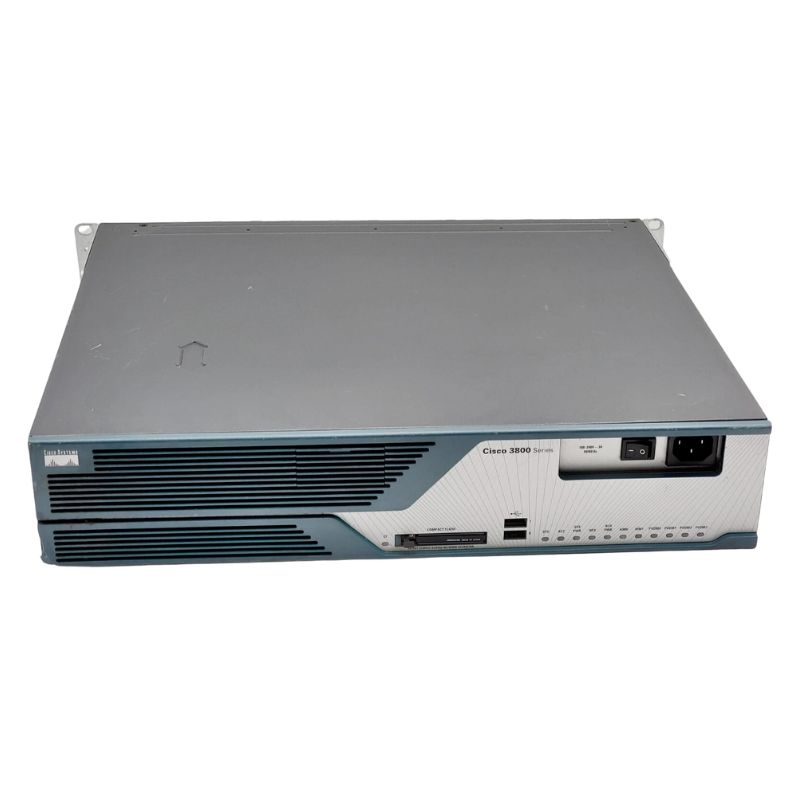

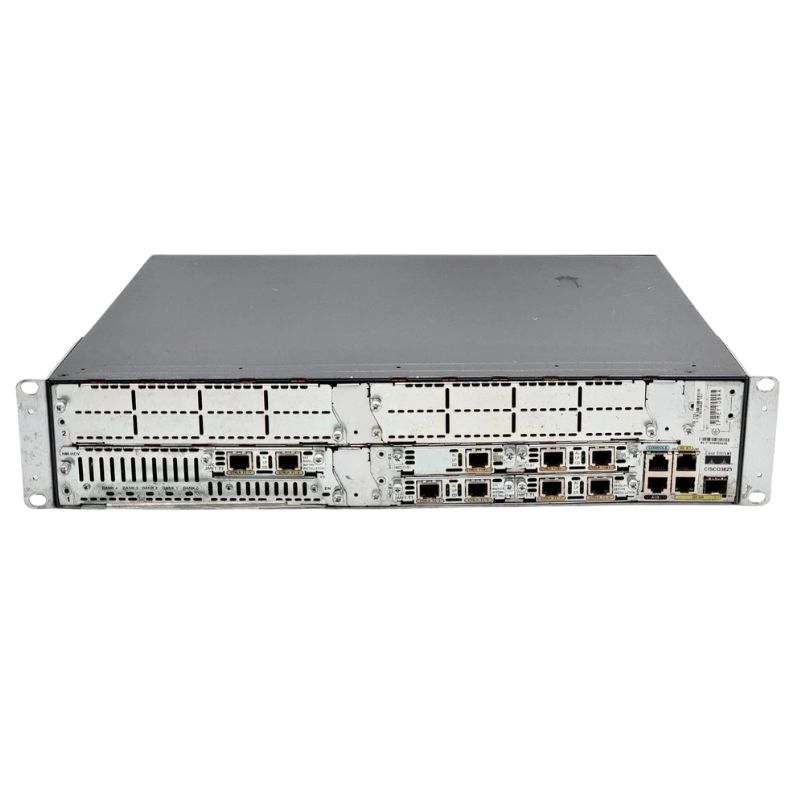

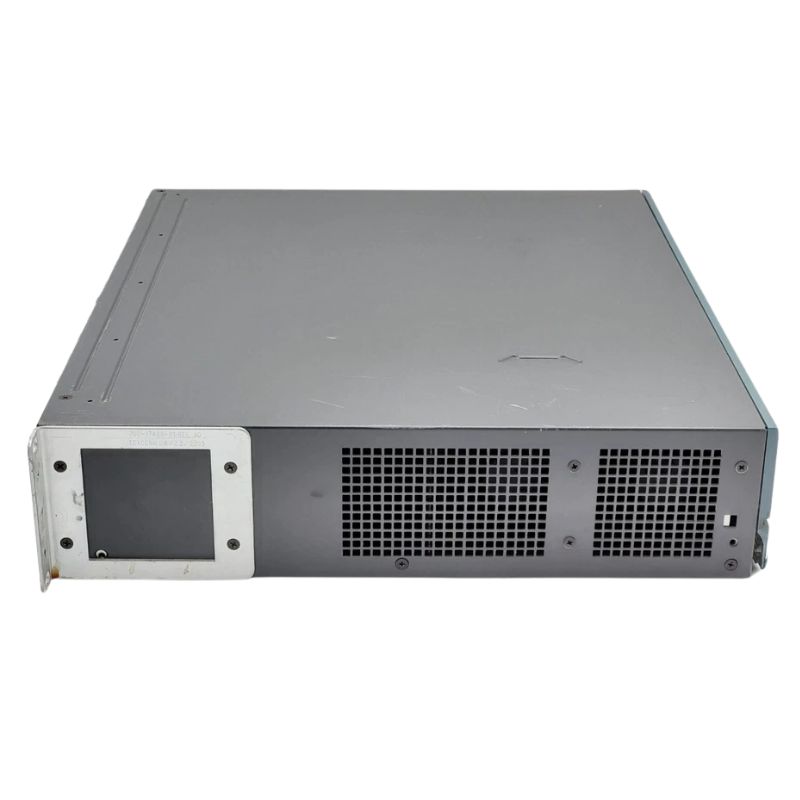

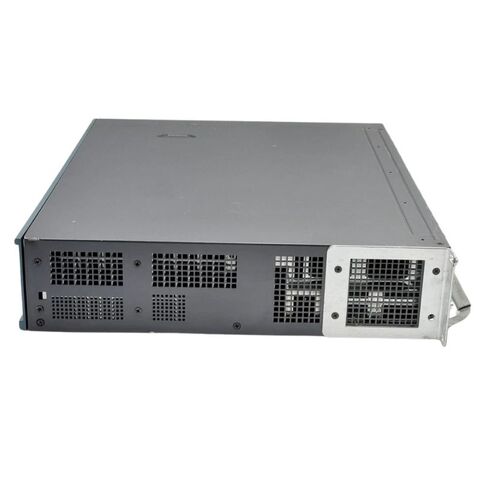

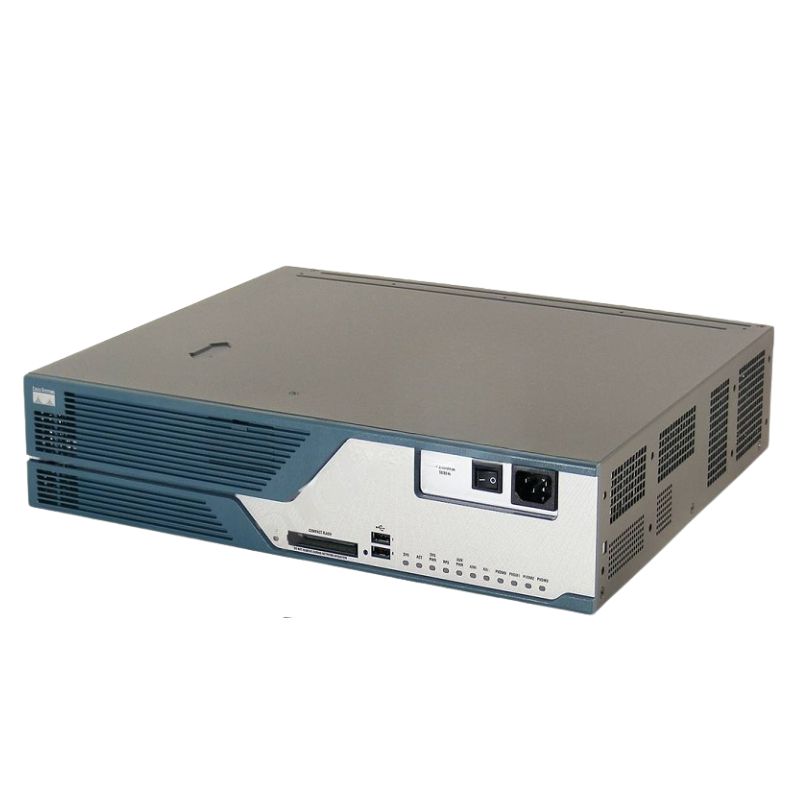

CISCO3825-V/K9 Integrated Services Module Router by Cisco

Overview of Cisco CISCO3825-V/K9

Manufacturer Information

• Brand: Cisco
• Model: CISCO3825-V/K9
• Series: 3800
• Product Name: 3825 Voice Bundle
• Product Type: Router

Interface and Ports

• Total Ports: 2
• USB Ports: Yes
• Management Port: Yes
• Network Ports (RJ-45): 2
• Token Ring Port: No
• Serial V.35 Interface: No

Expansion Slots

• Total Slots: 14
• Types:
  • PVDM
  • AIM
  • SFP (mini-GBIC)
  • HWIC
  • EVM

Network and Communication

• Network Technology: 10/100/1000Base-T
• Ethernet Technology: Gigabit Ethernet
• VoIP Support: Yes

Memory Specifications

• Standard Memory: 512 MB
• Maximum Memory: 1 GB
• Memory Type: DRAM
• Flash Memory: 128 MB
• Memory Card Support: CompactFlash (CF) Card

IP Telephony Capabilities

• Supported Voice Codecs:
  • G.711
  • G.723.1
  • G.728
  • G.729
  • G.729a
  • G.729ab
  • G.726
• Features: Echo cancellation (G.168)

Security and Features

• Firewall Protection: Yes
• Encryption: 128-bit and 256-bit hardware encryption
• VPN Support: Yes
• MPLS Support: Yes
• Intrusion Detection System (IDS): Yes
• Intrusion Prevention System (IPS): Yes
• URL Filtering: Yes

Compliance Standards

• VCCI
• CISPR 22 Class A
• CISPR 24
• EN 60950
• EN 61000-3-2
• IEC 60950
• EN 61000-3-3
• EN55024
• EN55022 Class A
• UL 60950
• EN50082-1
• CSA 22.2 No. 60950
• AS/NZ 3548 Class A
• ICES-003 Class A
• CS-03
• EN 61000-6-2

Power Specifications

• PoE (RJ-45) Port: No
• Input Voltage: 110 V AC / 220 V AC
• Power Source: Power Supply
• Redundant Power Supply: Yes

Software and System Requirements

• Operating System: Cisco IOS SP services

Environmental Conditions

• Minimum Operating Temperature: 32 °F
• Maximum Operating Temperature: 104 °F
• Humidity Range Operating: 5% – 95%

Features

Integrated Services Module Router

The Cisco CISCO3825-V/K9 Integrated Services Module Router is a powerful networking solution that combines the capabilities of a router, switch, firewall, and other network services into a single device. This integrated approach simplifies network management and reduces the need for multiple devices, saving both time and money for businesses.

High-performance

With its 1.0 GHz processor and 1 GB of RAM, the CISCO3825-V/K9 delivers high-performance routing and switching capabilities. It can handle large amounts of data traffic and provide fast and reliable connectivity for multiple users and devices. This ensures smooth operation even in demanding network environments, allowing businesses to maximize productivity.

Modular architecture

The modular architecture of the CISCO3825-V/K9 allows for easy expansion and customization. It supports a wide range of modules and interfaces, including Ethernet, WAN, voice, and security modules. This flexibility enables businesses to adapt their network infrastructure to meet evolving needs without having to replace the entire router. It also helps optimize network performance by allowing users to add specific modules for their unique requirements.

Supports multiple services

The CISCO3825-V/K9 is designed to support a variety of services, making it suitable for various business applications. It offers voice services, allowing businesses to integrate IP telephony and traditional telephony services seamlessly. It also supports video conferencing, virtual private networks (VPNs), and other advanced networking services. This versatility enables organizations to enhance communication and collaboration while maintaining high levels of security.

Advanced security features

Security is a top concern for any business operating in today's digital landscape. The CISCO3825-V/K9 addresses this concern with its advanced security features. It includes built-in firewall capabilities, intrusion prevention systems (IPS), and virtual private network (VPN) support. These features protect the network against unauthorized access, malware, and other cyber threats. Additionally, the router supports secure remote management, ensuring that sensitive network configurations are only accessible by authorized personnel.

Enhanced data protection

Data is a valuable asset for businesses, and protecting it is crucial. The CISCO3825-V/K9 offers enhanced data protection through its security features. The built-in firewall provides a strong first line of defense against external threats, while the IPS helps detect and prevent any malicious activities within the network. The VPN support allows for secure remote access to the network, ensuring that data remains private and confidential even when accessed from remote locations.

Reduced complexity

By integrating multiple network services into a single device, the CISCO3825-V/K9 simplifies network management and reduces complexity. Instead of dealing with multiple devices from different vendors, businesses can rely on a single router to handle their networking needs. This streamlines troubleshooting, configuration, and maintenance processes, saving time and effort for IT teams. Moreover, a simplified network infrastructure reduces the chances of compatibility issues and improves overall reliability.

Cost savings

Investing in the CISCO3825-V/K9 can lead to significant cost savings for businesses. By consolidating multiple networking functions into a single device, companies can reduce hardware and maintenance costs. The modular architecture allows for scalability and future-proofing, eliminating the need for frequent equipment upgrades. Additionally, the advanced security features help mitigate the risk of costly data breaches and minimize potential financial losses.

Conclusion

The Cisco CISCO3825-V/K9 Integrated Services Module Router offers a wide range of features that cater to the needs of modern businesses. Its integrated services module router capabilities provide a comprehensive networking solution in a single device. With high-performance, modular architecture, support for multiple services, and advanced security features, this router ensures reliable and secure connectivity for businesses of all sizes. By investing in the CISCO3825-V/K9, organizations can enhance their network performance, simplify management, and achieve cost savings, ultimately driving their success in the digital age.
