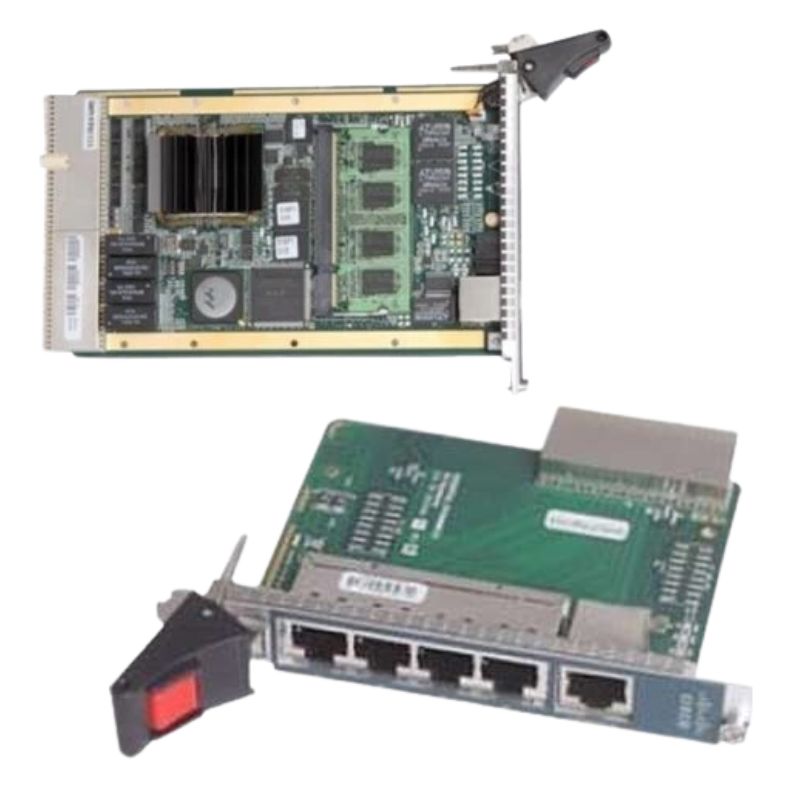

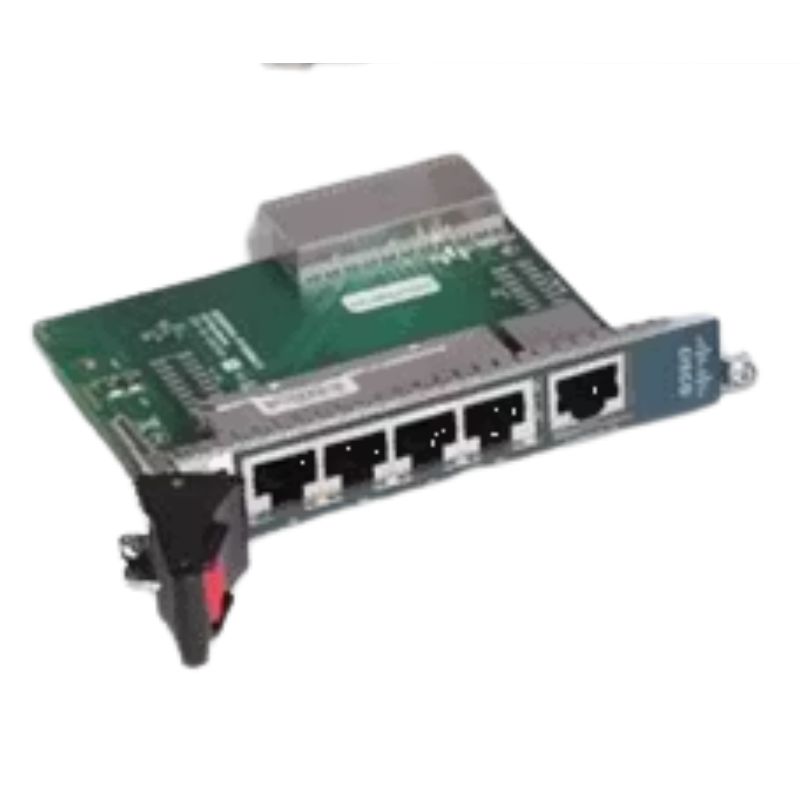

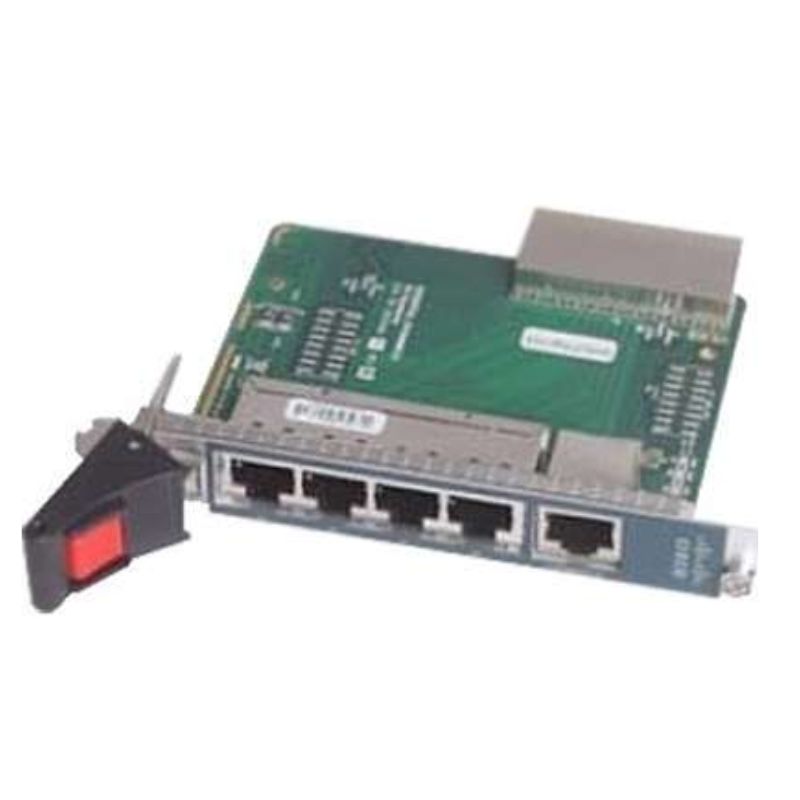

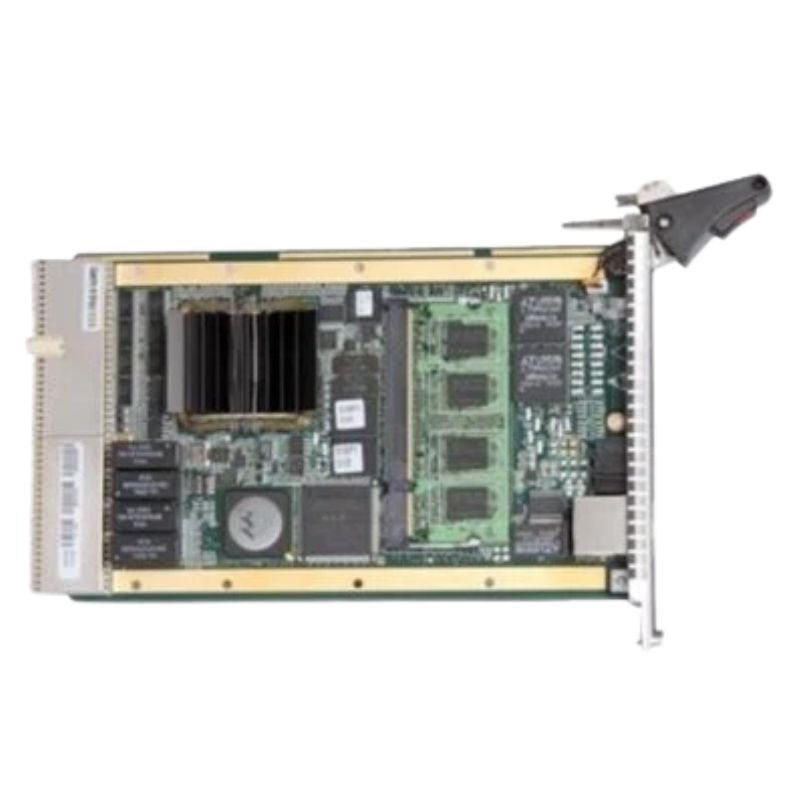

CISCO5940RA-K9 Cisco Gigabit Ethernet Router Module 5940 Series

Highlights of Cisco CISCO5940RA-K9 5940 Embedded Router

The Cisco CISCO5940RA-K9 is a rugged and high-performance 5940 Series Embedded Services Router module designed for industrial, military, and mission-critical environments. With Gigabit Ethernet connectivity, hardware-based encryption, and extreme durability, this compact router module delivers secure and reliable networking in challenging conditions.

General Information

• Manufacturer: Cisco
• Part Number: CISCO5940RA-K9
• Product Type: Embedded Services Router
• Sub Type: 5940 Services Router

Technical Specifications

Hardware Interfaces

• 4 x routed 10/100/1000 Gigabit Ethernet ports
• 1 x RS-232 console port for management access
• Optimized for high-speed wired connectivity

Performance & Processing

• Supports up to 1 Gbps data throughput
• Onboard hardware encryption to offload CPU workload
• Efficient processing for secure data transmission

Cooling & Design

• Air-cooled design for stable operation
• Standard 3U 4HP embedded module form factor
• Optimized thermal performance for continuous use

Memory Configuration

• DRAM: 1 GB for smooth processing
• Flash Memory: 256 MB for system storage

Software & Operating System

• Preloaded with Cisco IOS Advanced Enterprise Services
• Supports advanced routing, security, and network services
• Ideal for enterprise and industrial network deployments

Rugged & Environmental Capabilities

Operating Conditions

• Operating temperature range: 0°F to 125°F (-18°C to 52°C)
• Designed for air-cooled industrial environments
• Stable performance in extreme temperature conditions

Durability & Reliability

• Built with industrial-grade components
• Resistant to shock, vibration, and harsh environments
• Supports operation at altitudes up to 15,000 feet

Advanced Security Features

Encryption & Protection

• Hardware-accelerated encryption support (AES, 3DES, IPsec)
• FIPS 140-2 Level 1 compliant security standards
• Secure data, voice, and network communications

Overview of Cisco CISCO5940RA-K9 Ethernet Services Router

The Cisco CISCO5940RA-K9 5940 Series Gigabit Ethernet Embedded Services Router Module is a high performance embedded networking solution designed to deliver advanced routing, integrated services, and Gigabit Ethernet connectivity within modular systems and carrier-grade infrastructure environments where compact form factor and high efficiency are essential. This embedded services router module is engineered to operate as a powerful networking component within larger systems, enabling enterprises, service providers, and industrial deployments to integrate advanced routing and application services directly into their infrastructure without requiring separate standalone routers. Its architecture is optimized for high throughput, low latency processing, and efficient service integration, making it suitable for environments that demand scalable and reliable embedded networking capabilities.

Embedded Services Architecture for High Performance Modular Networking

The Cisco CISCO5940RA-K9 is built on an embedded services architecture that enables the integration of routing, security, and application services within modular hardware platforms, allowing system designers to incorporate advanced networking capabilities directly into appliances, servers, or specialized industrial equipment. This architecture eliminates the need for separate external routing devices and simplifies system design by embedding networking intelligence directly into the host system, improving efficiency and reducing overall infrastructure complexity.

Modular Integration for Flexible Deployment in Carrier Grade Systems

The modular design of the Cisco 5940RA-K9 enables seamless integration into a wide range of carrier-grade and enterprise platforms, allowing it to function as a core networking component within embedded systems that require high-speed data processing and reliable connectivity. This flexibility ensures that the module can be deployed across various environments, including telecommunications infrastructure, data aggregation systems, and industrial control networks where embedded routing capabilities are essential.

Resource Utilization for Embedded Multi Service Processing

The Cisco CISCO5940RA-K9 is designed with optimized resource utilization mechanisms that ensure efficient distribution of processing power, memory, and network bandwidth across multiple services operating simultaneously within the embedded environment. This ensures that routing, security, and application services can coexist without performance degradation even under high workload conditions where multiple processes are executed concurrently. This optimized resource management enhances system efficiency and ensures that critical networking functions receive the necessary computational resources to maintain stable and reliable performance across all operational scenarios, making it suitable for mission critical embedded deployments.

Gigabit Ethernet Connectivity for Embedded Systems

The Cisco CISCO5940RA-K9 provides high performance Gigabit Ethernet connectivity that enables fast and reliable data transmission across embedded systems and networked environments where high bandwidth and low latency communication are required. This ensures that data flows efficiently between connected components, supporting real-time applications and high-speed processing requirements in enterprise and industrial deployments. The Gigabit Ethernet interfaces are designed to handle large volumes of traffic while maintaining stable performance, ensuring that embedded systems can support demanding workloads without compromising network efficiency or responsiveness.

Low Latency Data Transmission for Real Time Embedded Applications

The router module is optimized for low latency data transmission, ensuring that embedded applications that require real time communication such as industrial automation systems, telemetry processing, and distributed computing platforms operate efficiently without delays. This is achieved through advanced packet processing and optimized routing paths that minimize data transmission time across the network infrastructure. Low latency performance is critical for embedded systems where timing accuracy and rapid response are essential for operational success, and the Cisco 5940RA-K9 ensures that these requirements are consistently met across all deployment scenarios.

High Throughput for Dense Data Processing Environments

The module is designed to support high throughput data processing, enabling embedded systems to handle large volumes of network traffic simultaneously without congestion or performance degradation. This capability is particularly important in environments where multiple data streams are processed in parallel, such as telecommunications aggregation points and industrial monitoring systems. By optimizing throughput performance, the Cisco CISCO5940RA-K9 ensures that embedded systems can maintain consistent data flow and support complex application workloads without interruptions or delays, enhancing overall system efficiency and reliability.

Embedded Routing Intelligence for Distributed Network Architectures

The Cisco 5940RA-K9 integrates advanced routing intelligence within embedded systems, enabling intelligent decision making for data packet forwarding and network path optimization across distributed architectures. This ensures that data is transmitted through the most efficient routes available, reducing congestion and improving overall network performance in complex embedded environments. The routing intelligence is designed to adapt dynamically to changing network conditions, ensuring that embedded systems can maintain optimal performance even in environments where traffic patterns fluctuate significantly over time.

Dynamic Routing for Adaptive Network Environments

The routing engine within the Cisco CISCO5940RA-K9 continuously analyzes network conditions and adjusts routing paths dynamically to ensure optimal data flow across embedded systems and connected network components. This adaptive behavior allows the system to respond effectively to changes in traffic load, network topology, and application demand, maintaining consistent performance under varying conditions. Dynamic routing optimization enhances system resilience and ensures that embedded networking platforms can maintain high availability and performance even in unpredictable operational environments where network conditions change frequently.

Intelligent Packet Forwarding Embedded Data Handling

The module incorporates intelligent packet forwarding mechanisms that analyze incoming data packets and determine the most efficient forwarding paths based on real time network conditions and system priorities. This ensures that critical data is transmitted with minimal delay while optimizing overall network efficiency across embedded systems. This intelligent forwarding capability reduces processing overhead and improves system responsiveness, making it ideal for embedded applications that require high performance networking support.

Carrier Grade Reliability for Embedded Mission Critical Applications

The Cisco CISCO5940RA-K9 is designed to deliver carrier grade reliability within embedded systems, ensuring continuous operation in mission critical environments where system failure is not acceptable and uninterrupted network connectivity is essential for operational success. This reliability is achieved through robust hardware design, advanced error handling, and system stability mechanisms that ensure consistent performance under demanding conditions. The module is engineered to operate in environments where high availability is required, making it suitable for telecommunications systems, industrial control networks, and enterprise infrastructure platforms that depend on continuous connectivity.

Fault Tolerant Design for Continuous Embedded Operation

The fault tolerant architecture of the Cisco 5940RA-K9 ensures that embedded systems can continue operating even in the event of partial system failures or unexpected disruptions, maintaining network functionality and minimizing downtime across critical applications. This is achieved through redundant processing paths and error recovery mechanisms that allow the system to maintain stable operation under adverse conditions. This fault tolerance is essential for embedded environments where system interruptions can lead to significant operational and financial impacts, ensuring that network services remain available at all times.

Automated Recovery Systems for Embedded Network Stability

The module includes automated recovery systems that detect anomalies and initiate corrective actions to restore normal operation quickly and efficiently without requiring manual intervention. This enhances system stability and ensures that embedded networking functions remain operational even in the presence of unexpected errors or failures. Automated recovery capabilities reduce downtime and improve overall system resilience, making the Cisco CISCO5940RA-K9 a dependable solution for embedded mission critical deployments.

Security Integration for Embedded Network Protection and Data Integrity

The Cisco CISCO5940RA-K9 includes integrated security capabilities that protect embedded systems from unauthorized access, data interception, and network based threats while maintaining high performance and efficient communication across all connected components. These security features are embedded directly into the routing architecture, allowing for real time traffic inspection and enforcement of security policies within the system. This integrated security approach simplifies deployment and ensures that embedded systems maintain strong protection without requiring additional external security appliances or complex configurations.

Embedded Firewall and Access Control Enforcement

The embedded firewall functionality within the Cisco 5940RA-K9 monitors network traffic and enforces access control policies that restrict unauthorized access to system resources and protect sensitive data within embedded environments. This ensures that only validated users and applications can interact with critical system components. The access control system supports detailed policy configuration, allowing organizations to define security rules based on application type, user identity, and network behavior, ensuring comprehensive protection across all embedded operations.

Secure Data Transmission with Integrated Encryption

The module supports secure data transmission through integrated encryption mechanisms that protect information as it travels across network connections within embedded systems. This ensures that sensitive data remains protected from interception or tampering during transmission. Encryption capabilities enhance data confidentiality and integrity, ensuring compliance with security standards and protecting embedded systems from potential cyber threats.

Scalable Embedded Networking for Distributed System Architectures

The Cisco CISCO5940RA-K9 provides scalable embedded networking capabilities that allow organizations to expand system functionality and connectivity as requirements grow, ensuring that embedded platforms can adapt to increasing workloads and evolving operational demands without requiring complete system redesign. This scalability makes the module suitable for long term deployment in environments where system requirements are expected to evolve over time, such as industrial automation, telecommunications infrastructure, and distributed enterprise systems.

Flexible Expansion for Embedded System Growth and Adaptation

The module supports flexible expansion capabilities that enable embedded systems to integrate additional networking functions and services as needed, ensuring that infrastructure can evolve in response to changing operational requirements. This adaptability enhances long term value and reduces the need for frequent hardware replacement. Flexible expansion ensures that embedded systems remain relevant and capable of supporting new applications and technologies as they emerge in enterprise and industrial environments.

Multi Node Communication for Distributed Embedded Environments

The Cisco CISCO5940RA-K9 enables efficient communication between multiple embedded nodes within distributed systems, ensuring synchronized data exchange and consistent performance across all connected components. This capability is essential for systems that rely on coordinated operations across multiple devices or locations. Efficient multi node communication enhances system coordination and ensures that embedded environments operate cohesively, supporting complex workflows and distributed processing tasks effectively.

High Density Embedded Workloads

The Cisco CISCO5940RA-K9 is optimized for high density embedded workloads where multiple applications and services operate simultaneously within constrained hardware environments, ensuring that system resources are efficiently utilized and performance remains stable under heavy load conditions.

Advanced Load Balancing for Embedded Traffic Distribution

The module incorporates advanced load balancing techniques that distribute network traffic evenly across available processing resources, ensuring that no single component becomes overloaded and that system performance remains balanced and efficient across all embedded operations. This load balancing capability improves system responsiveness and enhances reliability in environments where multiple data streams are processed concurrently.

Real Time Performance for Embedded System

The Cisco CISCO5940RA-K9 includes real time performance monitoring capabilities that provide continuous insights into system behavior, allowing administrators to identify performance bottlenecks and optimize embedded operations proactively. This ensures that systems maintain peak efficiency over time. Performance monitoring enhances system visibility and supports proactive maintenance strategies that improve long term reliability and operational efficiency in embedded networking environments.
