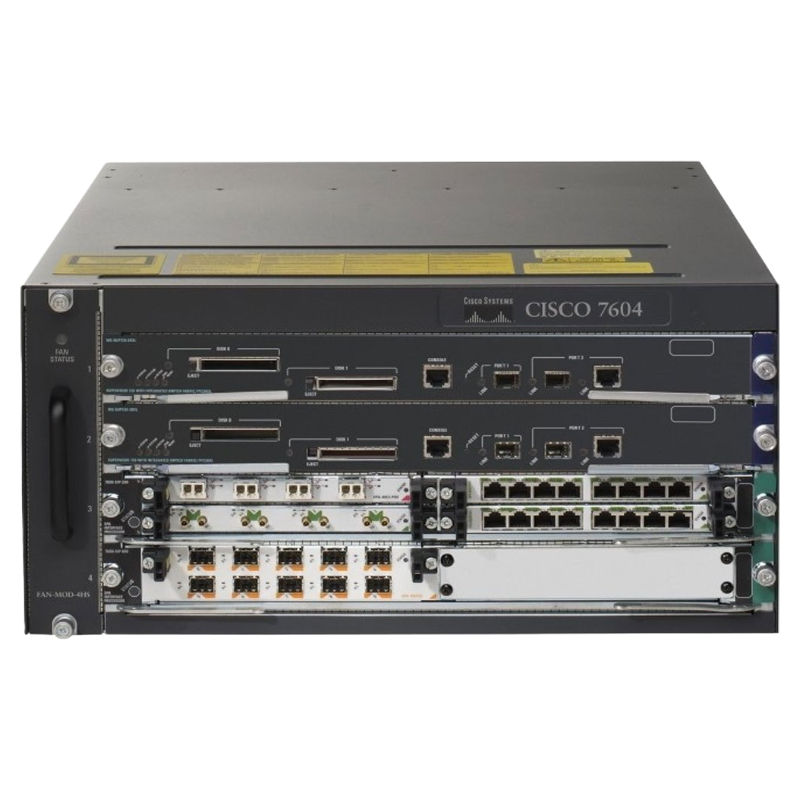

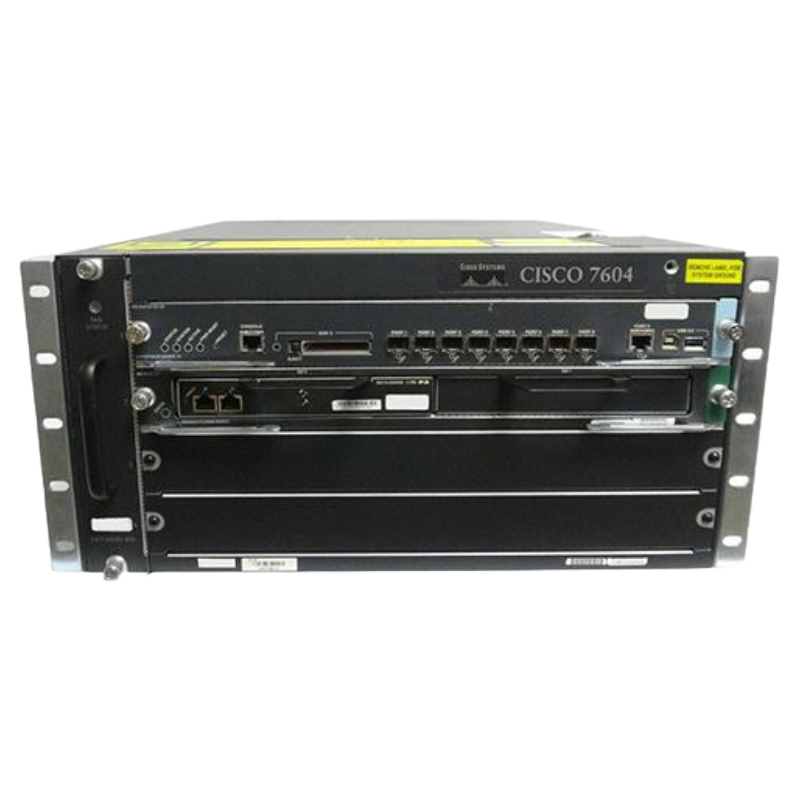

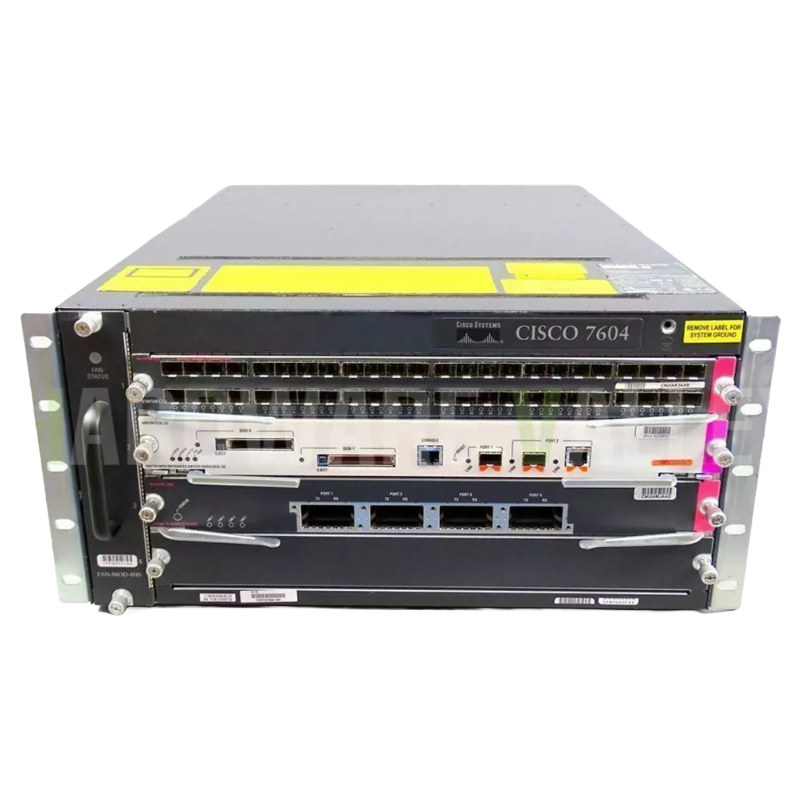

CISCO7604 Cisco Modular Expansion Base Chassis Spare 7604

Highlights of Cisco CISCO7604 7604 Expansion Chassis Router

The Cisco CISCO7604 is a high-performance modular expansion base chassis router designed for scalable enterprise and carrier-grade networking. This 7604 VXR chassis delivers flexible slot configuration, high throughput capacity, and advanced redundancy features, making it ideal for core routing, aggregation, and service provider infrastructure.

General Information

• Manufacturer: Cisco
• Part Number: CISCO7604
• Product Type: Chassis Router Base System
• Sub Type: 7604 VXR Modular Router Chassis

Technical Specifications

Chassis Design & Physical Structure

• Form Factor: 5RU (8.75-inch) compact chassis

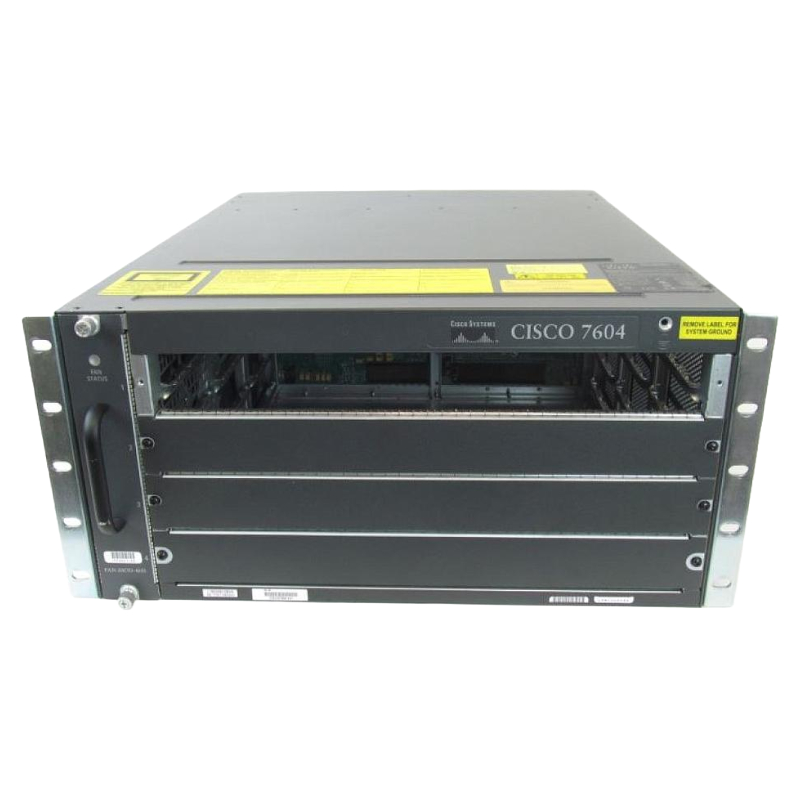

• Slot Capacity: 4-slot modular chassis architecture
• Dimensions: 8.75 x 17.5 x 21.75 inches (H x W x D)
• Weight: Approx. 40 lb (18.1 kg)

Slot Configuration & Expansion Options

• Supports up to 4 modular line card slots
• Single supervisor + 3 line cards configuration
• Dual supervisor setup for 1+1 redundancy
• Two line cards with dual route processor protection

Performance & Throughput Capability

• Up to 320 Gbps total system throughput
• Forwarding capacity up to 144 million packets per second (Mpps)
• High-speed packet processing for backbone networks
• Optimized for enterprise and carrier routing workloads

Interface & Connectivity Support

Network Interface Range

• Supports DS-0 level interfaces for legacy systems
• Fast Ethernet and Gigabit Ethernet connectivity
• 10 Gigabit Ethernet high-speed uplink support
• OC-192 / STM-64 optical transport interfaces

Flexible Service Integration

• Designed for multi-service network deployment
• Supports mixed interface configurations
• Ideal for WAN, MAN, and core backbone networks

Power Supply & Reliability Features

Redundant Power Architecture

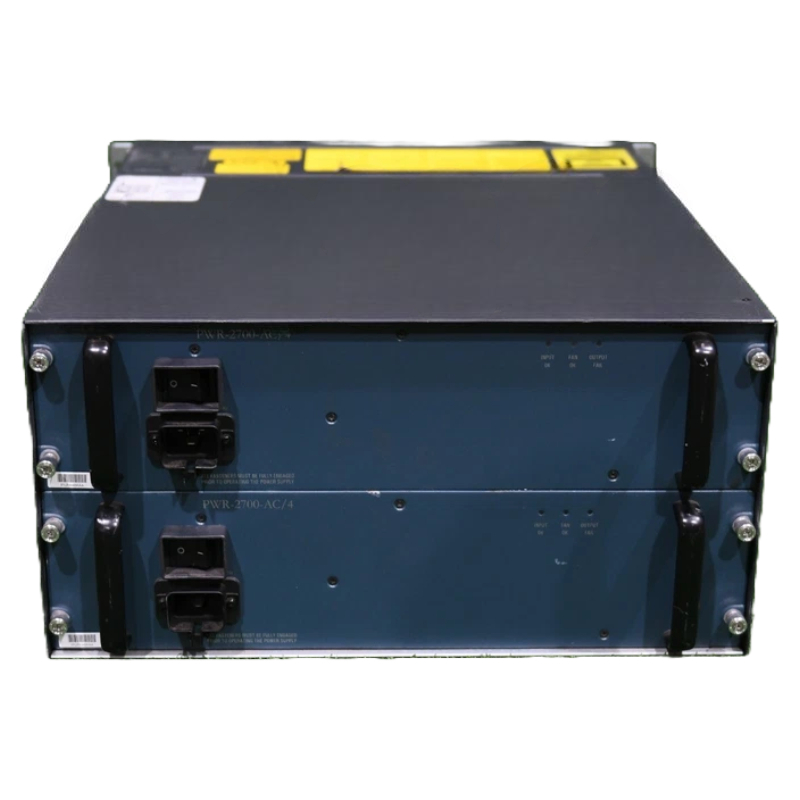

• Supports dual 2700W AC or DC power supplies
• Redundant power design for maximum uptime
• Failover protection in case of power failure

Cooling & Hot-Swap Capability

• Hot-swappable fan tray modules
• Efficient thermal management system
• Designed for continuous 24/7 operation

Environmental Specifications

Operating Conditions

• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 149°F (-20°C to 65°C)
• Humidity (Operating): 10% to 85% non-condensing
• Humidity (Storage): 5% to 95% non-condensing

Altitude & Deployment Conditions

• Operating altitude: -500 to 6500 ft
• Suitable for controlled data center environments
• Stable performance under varying environmental conditions

Rack Efficiency & Deployment Density

Space Optimization

• Allows up to 9 chassis units in a standard 7-foot rack
• Efficient rack space utilization for large deployments
• Ideal for telecom and enterprise data centers

Scalability Benefits

• Modular expansion for future growth
• Flexible service integration options
• Supports evolving network infrastructure needs

Overview of Cisco CISCO7604 Modular Expansion Chassis Router

The Cisco CISCO7604 7604 Modular Expansion Base Chassis Spare Router is a high performance, carrier class networking platform engineered for mission critical environments where scalability, reliability, and continuous network availability are essential. Designed as part of Cisco’s 7600 Series architecture, this modular chassis provides a robust foundation for building large scale routing systems that support enterprise backbone networks, metropolitan area networks, and service provider edge and core deployments. Its architecture is optimized to deliver high density port capacity, flexible modular expansion, and seamless integration with advanced Cisco forwarding engines and line cards, making it a strategic choice for organizations that require long term infrastructure stability.

High Density Modular Architecture for Scalable Network Expansion

The Cisco CISCO7604 chassis is built around a highly scalable modular architecture that allows network operators to configure the system with different combinations of line cards, supervisors, and forwarding engines based on their performance and capacity needs. This flexibility ensures that the system can be deployed in various roles within a network, including core routing, aggregation layers, and edge connectivity functions. The modular structure enables seamless upgrades and expansions, ensuring that the platform remains relevant as network demands grow over time.

Line Cards and System Modules for Continuous Network Operation

The Cisco 7604 chassis supports hot swappable components that allow administrators to insert, remove, or replace line cards and system modules without shutting down the entire router. This capability is essential for maintaining continuous network availability in environments where uptime is critical, such as telecommunications networks and enterprise data centers. Hot swappability ensures that maintenance activities, hardware upgrades, and fault recovery operations can be performed with minimal disruption, improving operational efficiency and reducing downtime risks. This feature also enhances system resilience by allowing rapid replacement of failed components.

Dynamic Load Distribution Across Modular Forwarding Architectures

The Cisco CISCO7604 supports dynamic load distribution across installed forwarding engines and processing modules, ensuring that network traffic is evenly balanced to optimize performance and prevent congestion. This intelligent distribution mechanism enhances system stability by preventing overload on individual components while maintaining high throughput across the entire chassis. By efficiently distributing workloads, the system ensures consistent performance even during peak traffic conditions, making it suitable for large scale enterprise and service provider environments where traffic patterns are unpredictable and highly variable.

Enterprise Backbone and Service Provider Core Networks

The Cisco CISCO7604 chassis is engineered to deliver carrier grade performance that meets the stringent requirements of service provider networks and enterprise backbone infrastructures. It is designed to handle high volumes of data traffic with low latency and high reliability, ensuring uninterrupted communication across distributed network environments. Its high performance architecture enables efficient packet processing and routing across multiple network interfaces simultaneously. This performance capability makes the chassis suitable for demanding applications such as internet service provider backbones, large enterprise WAN aggregation, and metropolitan area network deployments where consistent throughput and minimal packet loss are critical operational requirements.

Advanced Packet Forwarding Engine Integration for High Throughput Processing

The Cisco 7604 integrates advanced packet forwarding engines that accelerate data processing and ensure efficient routing of traffic across network interfaces. These engines are optimized to handle large routing tables and high density traffic flows, enabling the system to maintain high throughput performance even under heavy network load conditions. This architecture reduces latency and improves overall network responsiveness, ensuring that data packets are processed quickly and accurately across complex routing environments.

Data Path Architecture for Low Latency Communication

The data path architecture of the Cisco 7604 is designed to minimize latency by streamlining packet processing workflows and reducing unnecessary processing overhead. This ensures that time sensitive applications such as voice over IP, video streaming, and financial transactions operate with minimal delay and maximum efficiency. Low latency communication is essential for maintaining service quality in modern network environments where real time data exchange is a critical operational requirement.

High Availability System Design for Mission Critical Network Environments

The Cisco CISCO7604 is built with high availability in mind, incorporating redundant system components and fault tolerant architecture to ensure continuous operation even in the event of hardware failures or system disruptions. This design is essential for mission critical environments where downtime can result in significant operational and financial consequences. The chassis supports redundant route processors, power supplies, and system modules, ensuring that backup systems can take over instantly in case of primary system failure. This redundancy guarantees uninterrupted network services across all operational conditions.

Redundant Route Processor Architecture for Continuous Control Plane Operation

The Cisco 7604 supports redundant route processors that ensure continuous operation of the control plane, even if the primary processor fails. This redundancy mechanism maintains network stability by ensuring that routing decisions and control functions remain operational at all times. Redundant processors work in synchronization to provide seamless failover capabilities, allowing network traffic to continue flowing without interruption during hardware transitions or maintenance activities.

Automatic Failover Systems for Seamless Network Continuity

The chassis incorporates automatic failover systems that detect hardware or software failures and immediately switch operations to backup components without manual intervention. This ensures that network services remain uninterrupted and that system reliability is maintained under all operating conditions. Automatic failover mechanisms are essential for maintaining service level agreements and ensuring consistent network availability in enterprise and service provider environments.

Flexible Line Card and Interface Module Support for Diverse Network Requirements

The Cisco CISCO7604 supports a wide variety of line cards and interface modules that allow organizations to customize network configurations based on specific operational requirements. This flexibility ensures that the chassis can support multiple types of network interfaces, including Ethernet, WAN, and high speed backbone connections. This modular interface support allows organizations to deploy a single platform across multiple network roles, simplifying infrastructure management and reducing operational complexity.

Heterogeneous Network Environments

The system supports multiple network protocols and interface types, enabling seamless integration with diverse network architectures. This multi protocol capability ensures compatibility with existing infrastructure and supports gradual network migration strategies without requiring complete system replacement. Multi protocol support enhances interoperability and allows organizations to build flexible and scalable network environments that can evolve over time.

High Speed Interface Compatibility for Backbone and Aggregation Layers

The Cisco 7604 chassis is compatible with high speed interfaces that support backbone and aggregation layer connectivity, ensuring that large volumes of traffic can be efficiently transmitted across network segments. These interfaces are designed to handle high bandwidth requirements while maintaining stability and performance. This capability ensures that the system can support modern network demands such as cloud computing, data center interconnectivity, and large scale enterprise communication systems.

Enterprise Grade Security Integration for Protected Network Operations

The Cisco CISCO7604 incorporates advanced security features that protect network infrastructure from unauthorized access, malicious attacks, and data breaches. These security capabilities are integrated into the system architecture, ensuring consistent protection across all network layers and modules. The system supports access control policies, traffic filtering mechanisms, and secure routing protocols that enhance overall network security without compromising performance.

Access Control Mechanisms for Controlled

The chassis allows administrators to define detailed access control policies that regulate how network traffic is handled and who can access specific system resources. These controls ensure that only authorized users and devices can interact with critical network components. Access control mechanisms help reduce security risks and ensure compliance with organizational security policies and regulatory requirements.

Encrypted Data Transmission for Secure Communication Channels

The Cisco 7604 supports encrypted communication protocols that ensure data integrity and confidentiality during transmission across network environments. This protects sensitive information from interception and unauthorized access. Encrypted data transmission is essential for maintaining secure communication across enterprise and service provider networks that handle critical operational data.

Advanced Network Scalability for Growing Infrastructure Demands

The Cisco CISCO7604 is designed to support scalable network growth by allowing incremental expansion of system capacity through additional modules and upgraded components. This scalability ensures that organizations can adapt to increasing traffic demands without replacing existing infrastructure. The modular expansion capability allows organizations to invest in infrastructure gradually, optimizing cost efficiency while maintaining high performance and reliability.

Incremental System Expansion Without Network Disruption

The system supports incremental expansion, enabling new modules and components to be added without disrupting ongoing network operations. This ensures that infrastructure upgrades can be performed seamlessly and without downtime. Incremental expansion is particularly beneficial for large scale deployments where continuous availability is essential for operational continuity.

Future Ready Architecture for Long Term Network Evolution

The Cisco 7604 chassis is built with a future ready architecture that supports evolving network technologies and increasing bandwidth requirements. This ensures that the platform remains relevant as networking standards and technologies continue to advance. Future readiness enhances long term investment value and reduces the need for frequent infrastructure replacements.

Unified Configuration Across Modular Components

The system enables centralized configuration management, ensuring that settings and policies are consistently applied across all modules and interfaces. This reduces configuration errors and improves network stability. Unified management simplifies operational workflows and enhances control over complex network environments.

Real Time Performance

The chassis provides real time monitoring capabilities that allow administrators to track system performance, traffic flow, and hardware health. This enables proactive optimization and rapid identification of potential issues. Performance monitoring ensures that network efficiency is continuously maintained and optimized for changing operational conditions.
