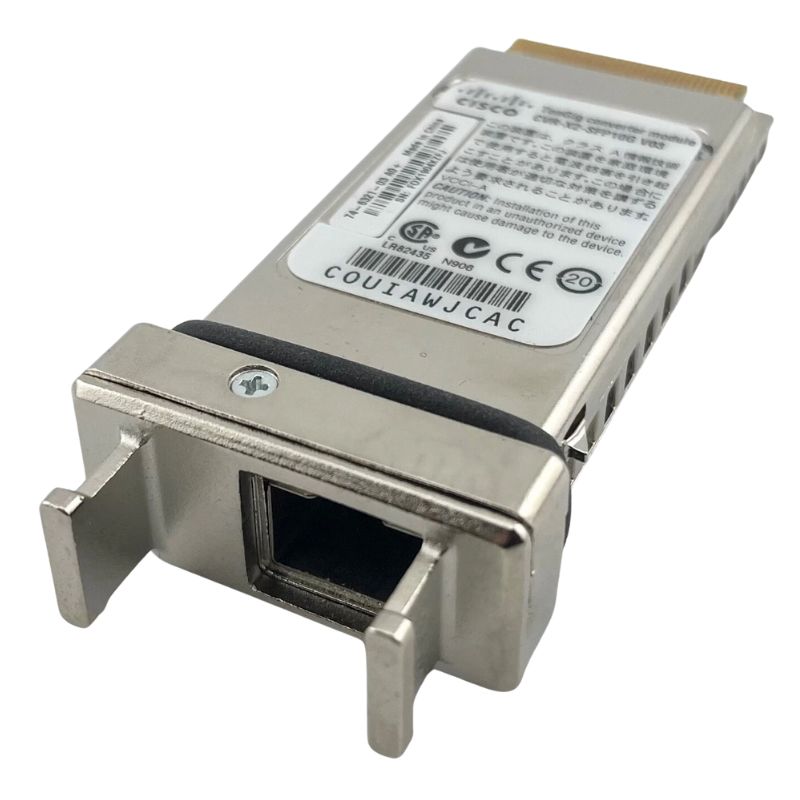

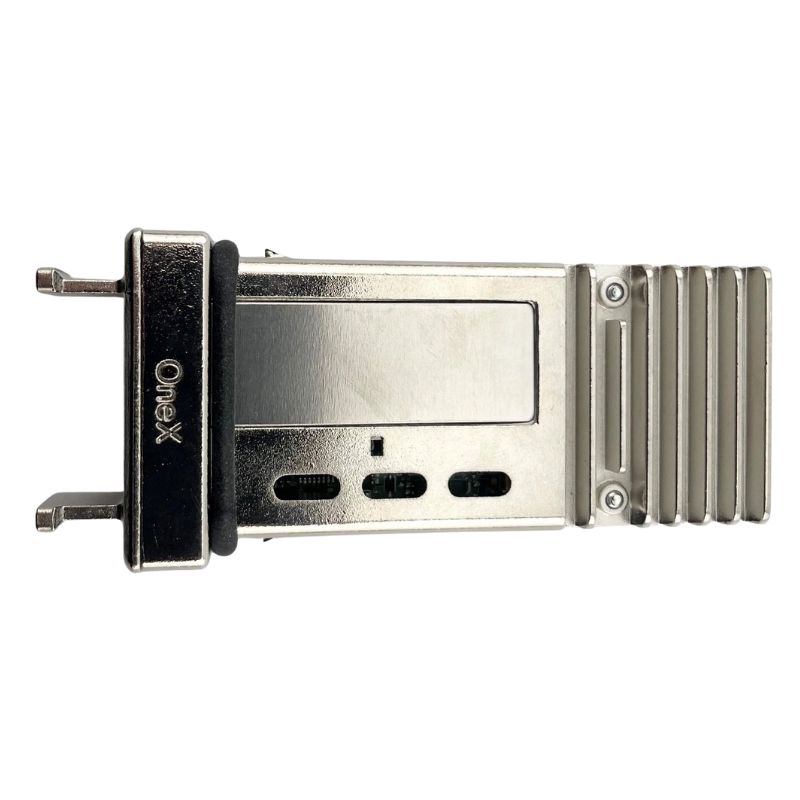

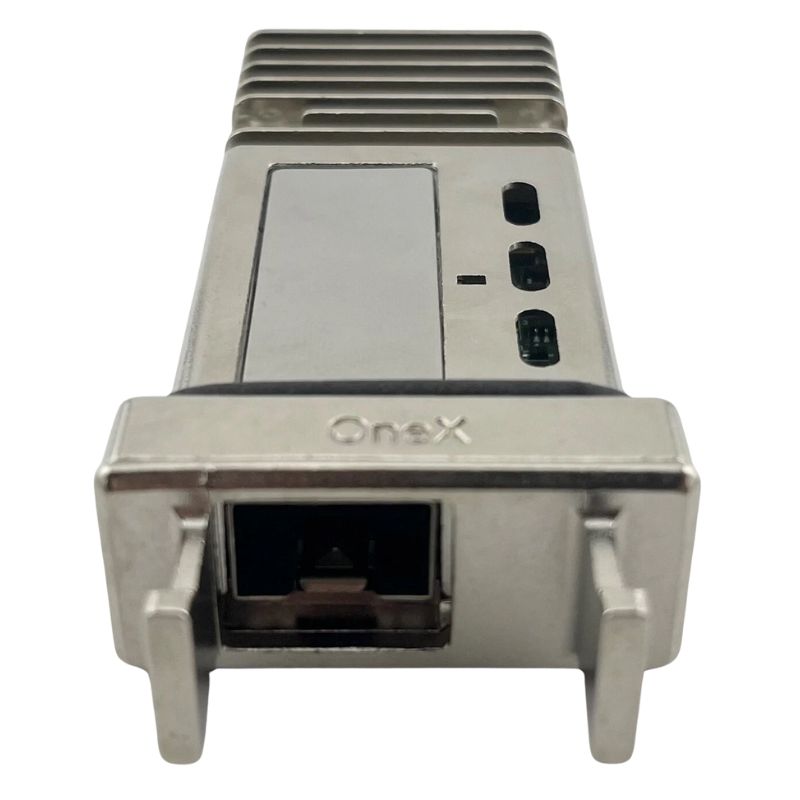

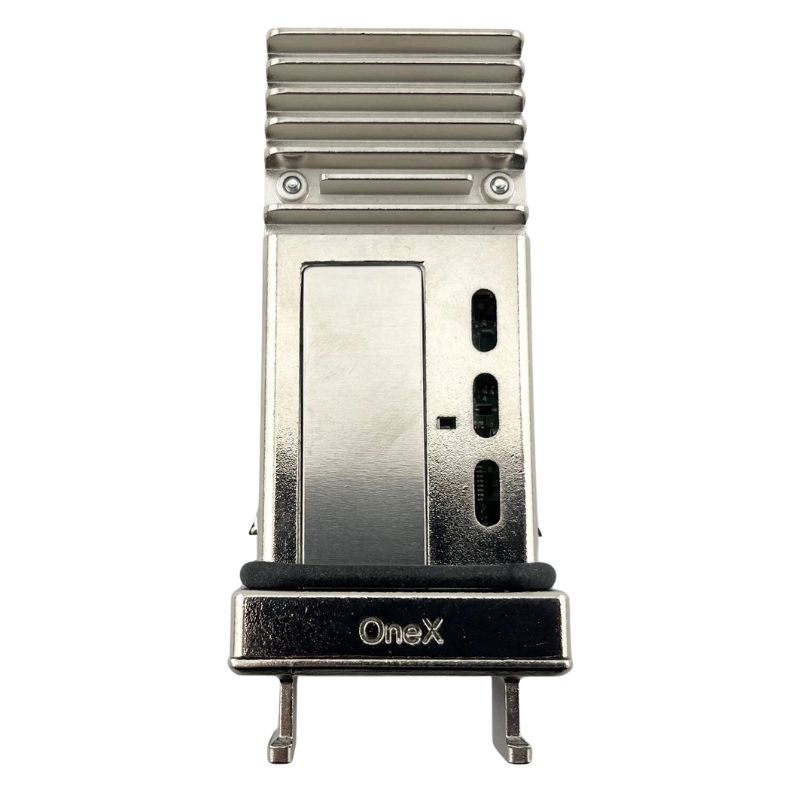

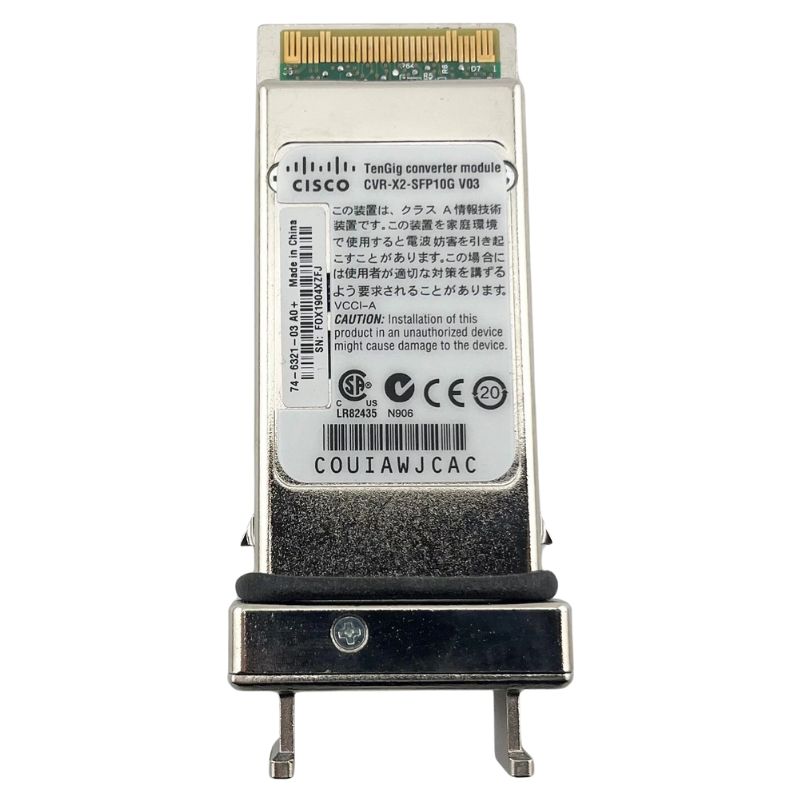

CVR-X2-SFP10G= Cisco 10 Gigabit Transceiver OneX Converter Module

Overview of Cisco CVR-X2-SFP10G= Ethernet Transceiver

The CVR-X2-SFP10G= Converter Transceiver Module is a specialized networking component designed to bridge X2 interfaces with modern SFP+ infrastructure, enabling seamless 10 Gigabit Ethernet connectivity. Developed this plug-in module ensures high-speed data transmission, improved compatibility, and efficient network scalability for enterprise-grade environments.

General Specifications

• Manufacturer: Cisco
• Part Number: CVR-X2-SFP10G=
• Device Type: X2 Transceiver Module
• Form Factor: Plug-in module design

Physical and Enclosure Attributes

• Compact plug-in structure for easy installation
• Hot-swappable compatibility in supported systems
• Designed for enterprise-grade network chassis integration

High-Speed Communication Features

• Connectivity Technology: Wired network architecture
• Cabling Type: 10GBase-X standard support
• Data Link Protocol: 10 Gigabit Ethernet
• Data Transfer Rate: Up to 10 Gbps throughput

Performance Optimization Benefits

• Low latency data transfer for enterprise workloads
• Stable long-distance optical or copper-based connectivity
• Improved bandwidth utilization for data-intensive applications
• Ideal for data centers and cloud infrastructure networks

Hardware Expansion Details

• Expansion Slots: 1 total / 1 available X SFP+
• Compatible Slot Type: 1 X X2 interface
• Enables backward compatibility with legacy X2 ports

System Integration Advantages

• Seamless integration into existing network infrastructures
• Reduces need for full system upgrades
• Supports mixed-generation networking environments
• Enhances scalability for growing enterprise networks

Common Implementation Scenarios

• Data center interconnectivity and backbone upgrades
• High-performance enterprise switch environments
• Cloud computing infrastructure networks
• Telecommunications and service provider systems

Operational Advantages

• Improved network efficiency and throughput
• Reduced downtime during infrastructure upgrades
• Flexible migration from legacy X2 to SFP+ systems
• Cost-effective expansion of existing hardware investments

Durability and Performance Stability

• Engineered for continuous enterprise operation
• Stable signal integrity at high data rates
• Robust construction for long-term deployment
• Optimized thermal and electrical performance

Installation and Maintenance Benefits

• Simple plug-in installation process
• Reduced configuration complexity
• Minimal maintenance requirements
• Quick replacement capability in live systems

Cisco CVR-X2-SFP10G= 10G Ethernet Conversion Transceiver

The evolution of high-speed networking has placed increasing demand on flexible interface conversion modules that allow seamless interoperability between different optical and electrical standards. Within this ecosystem, the Cisco CVR-X2-SFP10G= Gigabit Ethernet 10GBase-X Converter Transceiver Module plays a critical role in bridging legacy X2-based infrastructures with modern SFP+ 10G optical transceivers. Designed and engineered under the advanced networking portfolio of this converter module supports enterprise-grade scalability while preserving investment in existing switching hardware.

The demand for compact, efficient, and high-bandwidth conversion solutions continues to rise across data centers, telecommunications environments, and enterprise campus networks. The CVR-X2-SFP10G= module addresses this demand by enabling interoperability between X2 optical interfaces and SFP+ based 10 Gigabit Ethernet standards, ensuring that network administrators can upgrade performance without requiring complete infrastructure replacement.

Engineering Design and Functional Role of X2 to SFP+ Conversion Modules

Foundational Design Principles

At its core, the Cisco CVR-X2-SFP10G= module is built to convert physical and electrical signaling between X2 optical modules and SFP+ transceivers. The design prioritizes signal integrity, minimal latency, and compatibility across multiple optical standards. Unlike traditional fixed-interface systems, this converter allows modular flexibility, enabling network engineers to deploy SFP+ optics in slots originally designed for X2 form factors.

Integration Within High-Density Switch Architectures

In modern switching environments, port density and flexibility are critical. The converter module enables legacy switches with X2 ports to support contemporary SFP+ optics used in high-speed uplinks and aggregation layers. This is particularly important in environments where full hardware replacement is not economically viable, but performance improvements are still required.

Signal Translation and Data Path Optimization

The internal architecture of the module ensures efficient signal translation without introducing significant latency. Data packets transmitted through SFP+ optics are seamlessly mapped into X2-compatible signaling formats. This ensures that high-throughput workloads, including virtualization traffic, cloud interconnectivity, and storage replication, are maintained with minimal disruption.

Physical Architecture and Hardware Compatibility Considerations

Compact Form Factor Engineering

The compact design of the CVR-X2-SFP10G= module allows it to be inserted directly into X2 ports, instantly converting them into SFP+ compatible interfaces. This mechanical design ensures compatibility with a wide range of Cisco switches and routers that support X2 slots, extending the lifecycle of existing hardware platforms.

Thermal Efficiency and Power Management

Thermal performance is a critical consideration in dense networking environments. The module is designed with low-power electronics that minimize heat output while maintaining stable signal conversion. This ensures reliable operation in environments such as data centers where multiple modules may operate in close proximity.

Mechanical Durability and Connector Stability

Built with enterprise-grade materials, the module ensures secure insertion and long-term durability under continuous operation. The connector interface is engineered to maintain stable optical alignment, reducing the risk of signal degradation due to vibration or mechanical stress in rack-mounted systems.

Use Cases Across Enterprise and Carrier-Grade Networks

Data Center Migration and Upgrade Strategies

One of the primary applications of the Cisco CVR-X2-SFP10G= module is in phased data center upgrades. Organizations transitioning from older 10G infrastructures based on X2 optics to newer SFP+ ecosystems can use this module to bridge compatibility gaps without interrupting operations. This allows for gradual migration strategies that minimize downtime and capital expenditure.

Telecommunications Backbone Integration

Telecommunication providers often operate mixed-generation infrastructure due to long deployment cycles. The converter module allows seamless integration of modern optical transceivers into legacy switching environments, ensuring continued service delivery while enabling incremental upgrades in backbone capacity.

Enterprise Campus Network Optimization

In enterprise campus networks, especially those with distributed wiring closets and aggregation switches, maintaining compatibility across generations of hardware is essential. The CVR-X2-SFP10G= module provides a cost-effective way to upgrade uplink speeds while preserving existing switch investments.

Cloud Infrastructure and Virtualized Environments

Cloud computing environments require high-throughput, low-latency connectivity between compute nodes and storage systems. By enabling SFP+ optics on X2-based switching platforms, this module supports high-speed data movement essential for virtualization clusters, distributed storage systems, and microservices-based architectures.

Performance Characteristics and Network Efficiency

High-Speed Data Throughput Capability

The module supports 10 Gigabit Ethernet transmission rates, ensuring compatibility with modern high-bandwidth applications. This includes workloads such as real-time analytics, large-scale database replication, and high-definition media streaming within enterprise networks.

Latency Minimization in Packet Forwarding

One of the key engineering objectives of the CVR-X2-SFP10G= module is to maintain extremely low latency. The conversion process is optimized to ensure that packet forwarding delays remain negligible, preserving application performance in latency-sensitive environments such as financial trading systems and real-time communication platforms.

Optical Signal Integrity and Error Reduction

Signal integrity is maintained through precise optical alignment and electronic conditioning. The module ensures that bit error rates remain within acceptable thresholds even under sustained high-load conditions, reducing packet retransmissions and improving overall network efficiency.

Compatibility with Cisco Networking Ecosystem

Switch and Router Integration

The CVR-X2-SFP10G= module is designed to integrate seamlessly into compatible Cisco networking devices that feature X2 interfaces. This ensures that organizations operating Cisco-based infrastructure can extend functionality without requiring third-party adapters or unsupported hardware modifications.

Interoperability with SFP+ Optical Modules

The module supports a wide range of SFP+ optical transceivers, including short-reach, long-reach, and extended-reach variants. This flexibility allows network engineers to tailor optical deployments based on distance requirements, fiber infrastructure, and bandwidth demands.

Firmware and System-Level Compatibility

Cisco networking systems are designed to automatically recognize compatible converter modules, ensuring that configuration complexity is minimized. The CVR-X2-SFP10G= module integrates into system-level management tools, allowing administrators to monitor performance, link status, and optical diagnostics.

Deployment Scenarios in Modern Network Topologies

Aggregation Layer Optimization

In hierarchical network designs, aggregation layers often require high-speed uplinks to core switches. The converter module enables these uplinks to operate at 10G speeds using SFP+ optics, even when the underlying hardware is based on X2 architectures.

Core Network Enhancement

Core networks demand high reliability and bandwidth consistency. By enabling flexible optical module support, the CVR-X2-SFP10G= contributes to enhanced backbone performance and ensures that traffic distribution remains efficient across distributed network segments.

Disaster Recovery and Redundant Path Design

In disaster recovery environments, redundancy and failover capabilities are essential. The module allows administrators to design redundant optical paths using mixed-generation equipment, ensuring continuity of service during hardware failures or network rerouting events.

Operational Management and Network Administration Benefits

Simplified Network Expansion

Network expansion becomes significantly more efficient when legacy infrastructure can be extended using modular conversion solutions. The CVR-X2-SFP10G= module eliminates the need for immediate hardware replacement, allowing phased expansion strategies that align with organizational budgets.

Reduced Capital Expenditure

By extending the lifespan of existing switches, organizations can significantly reduce capital expenditure associated with full infrastructure upgrades. This makes the module particularly valuable in large-scale enterprise deployments and service provider environments.
