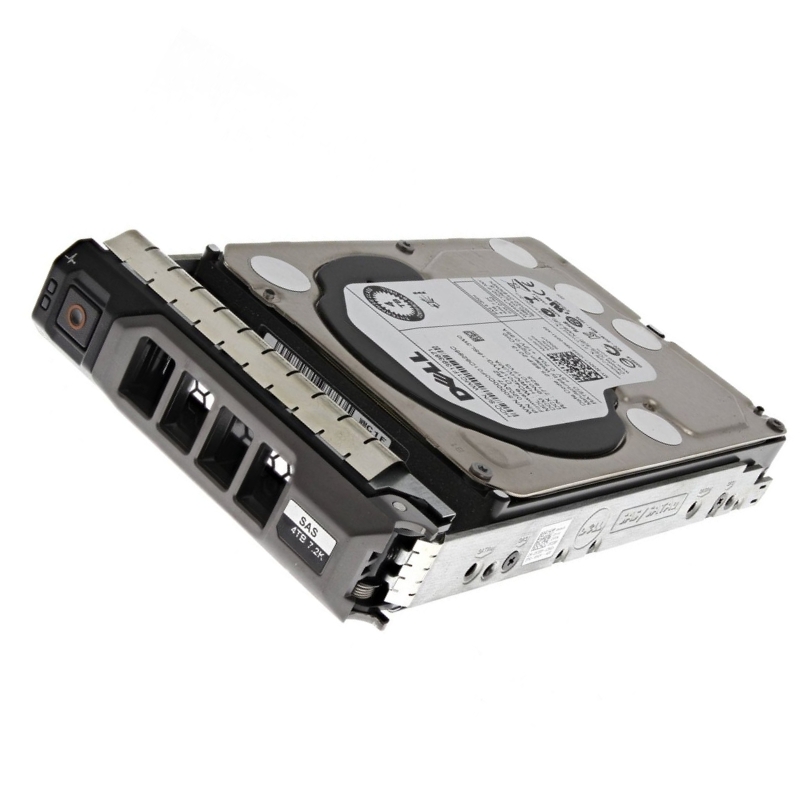

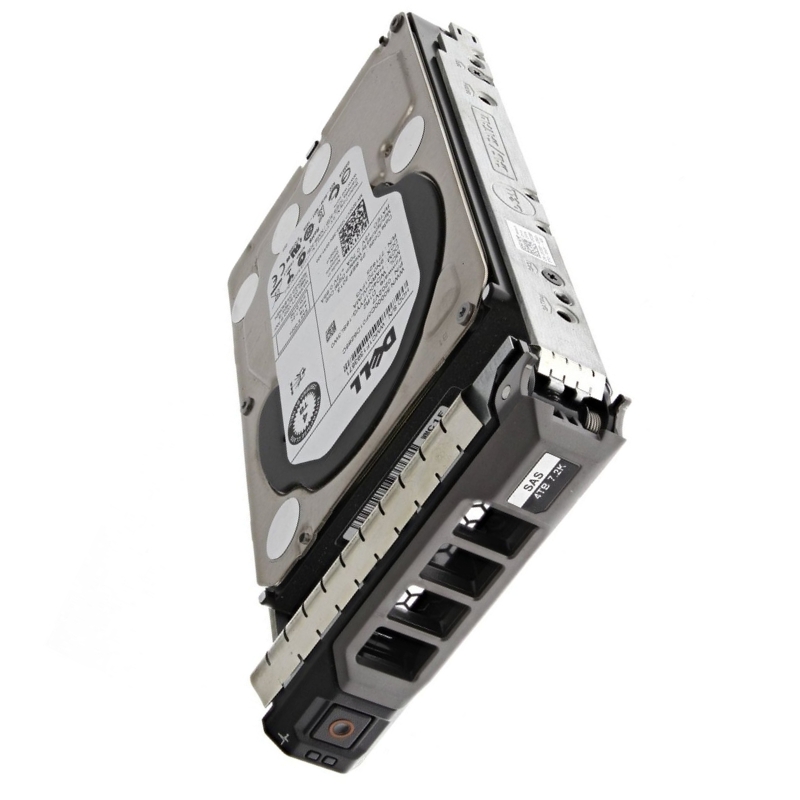

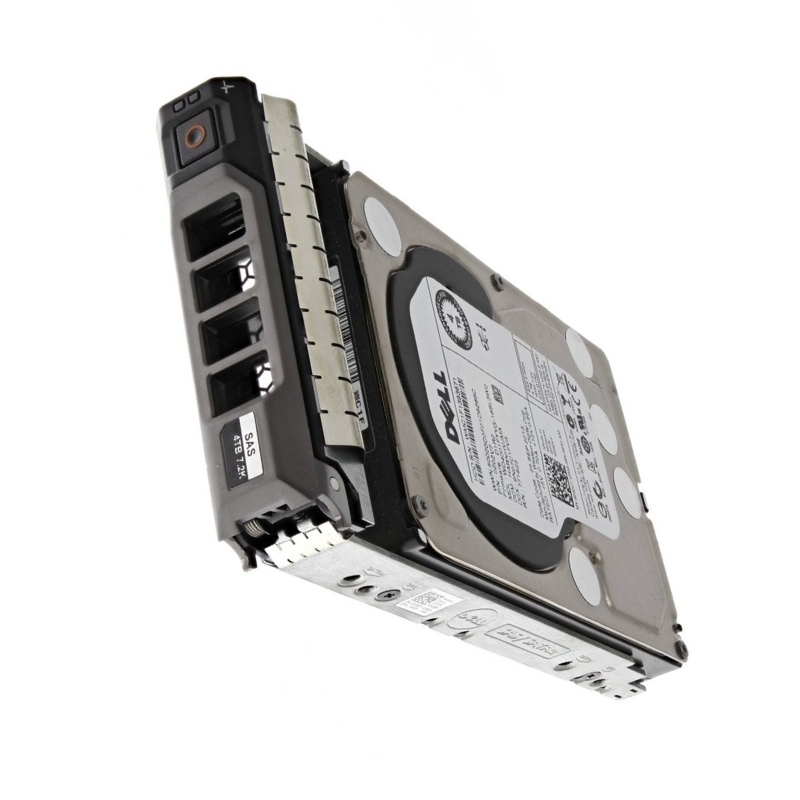

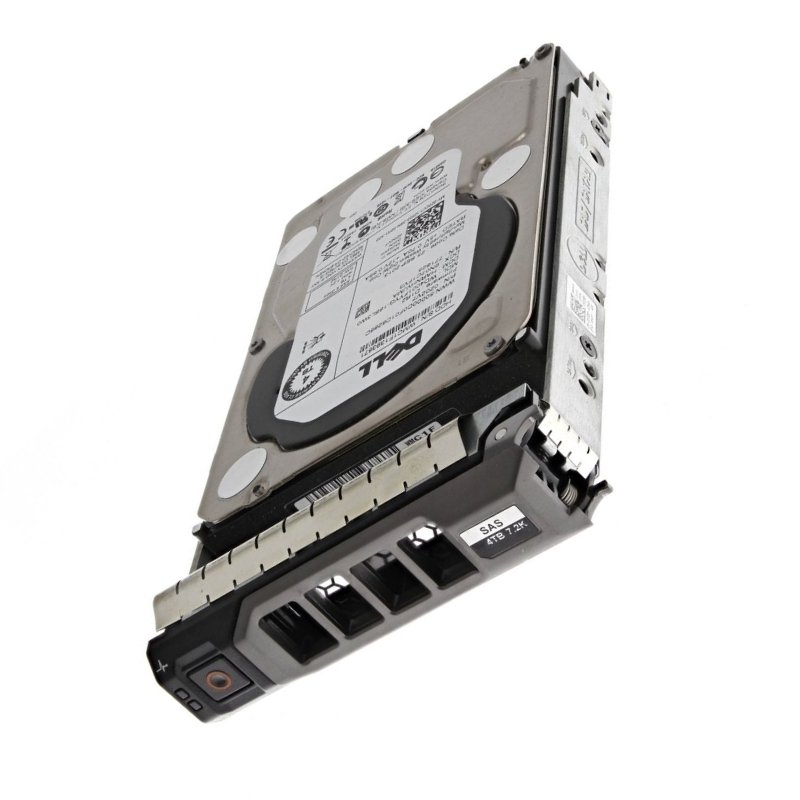

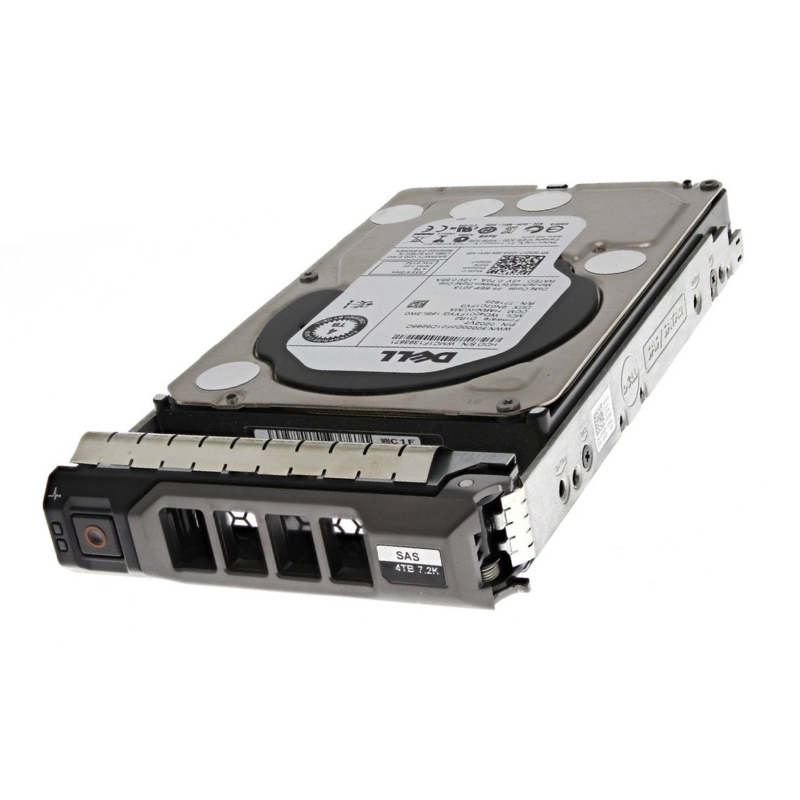

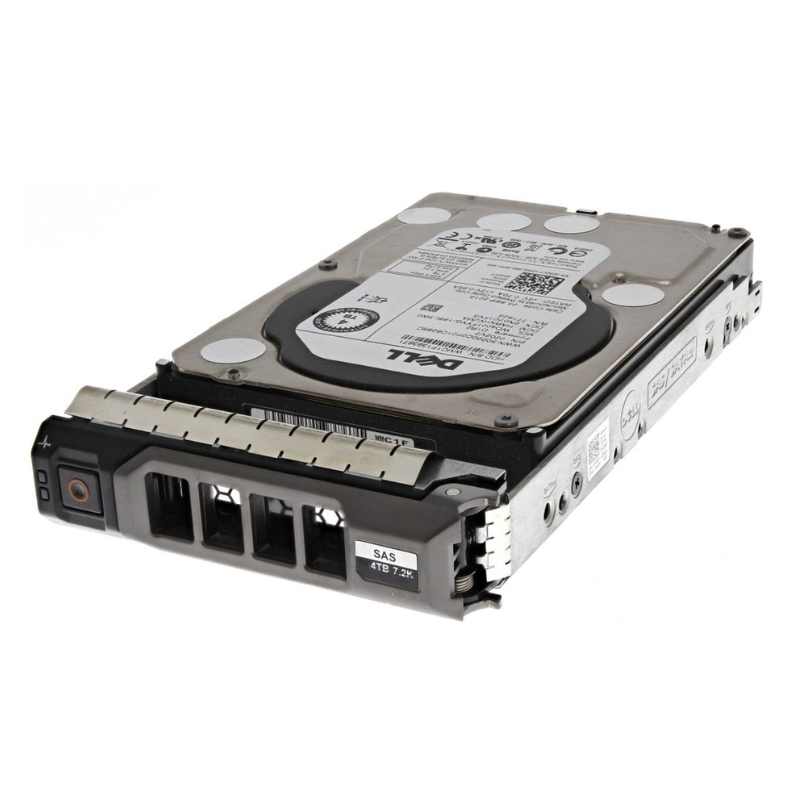

400-AFYD Dell 4TB 7.2K RPM SATA-6GBPS 3.5" HDD Tray For Poweredge Server

Overview of Dell 400-AFYD 4TB 7.2K RPM SATA-6Gbps HDD

In the demanding ecosystem of data center operations, server storage reliability, capacity, and seamless compatibility are non-negotiable. The Dell 400-AFYD 4TB 7.2K RPM SATA-6Gbps 3.5-inch internal hard drive with tray for PowerEdge servers represents a meticulously engineered storage component designed specifically for Dell PowerEdge rack, tower, and modular servers. This category encompasses enterprise-class hard disk drives (HDDs) that prioritize sequential read/write performance, power efficiency, and hot-swap capability. As businesses scale their virtualized environments, database applications, and backup infrastructures, the need for high-capacity, rotational storage that balances cost-per-terabyte with predictable latency becomes paramount. The Dell 400-AFYD falls within the subcategory of 4TB nearline SAS and SATA drives optimized for secondary storage, file archiving, video surveillance, and cold data tiers. Unlike consumer-grade drives, this unit includes a dedicated Dell carrier tray, eliminating compatibility guesswork and ensuring proper airflow and electrical connectivity within PowerEdge backplanes.

Technical Specifications and Architectural Advantages of the Dell 400-AFYD 4TB HDD

The Dell 400-AFYD operates at a spindle speed of 7,200 revolutions per minute, a sweet spot for capacity-optimized enterprise drives. This rotational speed delivers sustained transfer rates of up to 182 megabytes per second, making it suitable for mixed random and sequential workloads. The SATA 6Gbps interface provides full backward compatibility with SATA 3Gbps controllers while offering a dedicated 600MB/s theoretical bandwidth per drive. When deployed in a PowerEdge server with a PERC (PowerEdge RAID Controller) such as H730, H740, or H755, the drive participates in RAID 0, 1, 5, 6, 10, 50, or 60 arrays. The 3.5-inch large form factor allows for greater platter density—typically using helium-sealed or conventional air technology—to achieve 4TB raw capacity with advanced formatting (4K sector emulation). A critical differentiator is the inclusion of the Dell genuine drive tray, often called a caddy, interposer, or carrier. This tray features the correct screw-hole alignment, latch mechanism, and status LED indicator that interfaces with the PowerEdge backplane’s enclosure management. Without this tray, standard off-the-shelf drives may not seat correctly or trigger thermal and presence detection errors, leading to fan over-speeding or drive fault flags.

Thermal and Power Efficiency Characteristics for Data Center Deployment

Modern data center operators track power usage effectiveness (PUE) rigorously. The Dell 400-AFYD 4TB drive is engineered for low idle power consumption, typically drawing 5.5 to 6.5 watts during active operation and under 3 watts in standby. This efficiency stems from the 7.2K RPM design, which consumes significantly less power than 10K or 15K RPM enterprise SAS drives, while still providing adequate IOPS for archiving and backup workloads. The drive’s rotational vibration (RV) tolerance is factory-tested to withstand multi-drive chassis environments, such as the PowerEdge R740xd or R760xd, which house up to 24 or more drives. Additionally, the included tray acts as a heat sink and vibration dampener, channeling airflow from the server’s mid-wall fans directly across the drive’s exposed printed circuit board (PCB). Proper thermal management ensures that the drive’s mean time between failures (MTBF) rating of 2 million hours remains achievable. For compliance, this model adheres to Restriction of Hazardous Substances (RoHS) directives and is listed under Dell’s certified compatibility matrix for PowerEdge 12th generation through 16th generation servers.

Compatibility Matrix: PowerEdge Servers and Dell Storage Arrays

The Dell 400-AFYD 4TB SATA drive with tray is explicitly validated for a wide range of PowerEdge systems, including but not limited to the R630, R640, R730, R730xd, R740, R740xd, R750, R760, T340, T440, T550, and T560. It also supports modular servers like the PowerEdge M630, M640, and FX2s sleds when paired with the appropriate SATA backplane. Beyond server compatibility, this drive is qualified for Dell EMC storage enclosures such as the MD1400, MD1420, and even select PowerVault ME4 series when using interposers. The SATA-6Gbps interface allows mixed deployment with SAS drives, though Dell recommends populating each backplane with either all SAS or all SATA drives for optimal RAID consistency. Because the drive includes the Dell tray, it directly fits into any 3.5-inch drive slot that uses standard Dell screw-lock caddies (revision A00 through A05 are commonly interchangeable). Users should verify the server’s backplane type: SATA drives are fully compatible with SATA-only backplanes and also with SAS+SATA universal backplanes, but not with SAS-only backplanes that lack SATA protocol negotiation. For legacy systems like the PowerEdge R710 or R510, the drive may function but without full enclosure management features; Dell officially supports this model for 12th generation (Rx20) and newer.

Performance Benchmarking: Sequential and Random I/O Characteristics

In synthetic benchmark tests using Iometer or FIO, the Dell 400-AFYD achieves sequential read speeds of approximately 165–182 MB/s and sequential writes of 160–175 MB/s across the entire LBA range. Random read performance at a queue depth of 32 hovers around 85 to 95 IOPS per drive for 4K blocks, scaling to over 150 IOPS for 256K blocks. Random writes yield 80–90 IOPS under similar conditions. These figures classify the drive as a bulk storage or cold data tier component, not a primary transaction logging device. When grouped in a RAID 10 array of eight drives, the collective random read IOPS can exceed 1200, sufficient for moderate VDI (Virtual Desktop Infrastructure) or file server duty. The SATA 6Gbps interface imposes no practical bottleneck at 4TB capacity, as the drive’s internal media transfer rate saturates well below the 600MB/s interface limit. Importantly, this drive supports Native Command Queuing (NCQ) up to depth 32, which optimizes reordering of outstanding I/O requests to reduce head movement and improve random access performance. For database applications, Dell recommends pairing this drive with a cache-cading PERC card equipped with non-volatile cache (NVC) to offload write bursts.

Use Cases and Workload Profiles for Dell 400-AFYD 4TB SATA Drives in Production Environments

Selecting the correct drive category directly impacts application performance and total cost of ownership. The Dell 400-AFYD 4TB 7.2K RPM SATA drive with tray is optimized for read-intensive and capacity-optimized workloads. These include disk-based backup targets for Veeam, Commvault, or Dell Avamar; secondary replica storage for Microsoft Hyper-V or VMware vSAN capacity tiers; video surveillance storage with continuous write streams; print servers and file archives with low concurrency; and big data cold storage layers for Hadoop or Splunk smart storage. In each scenario, the drive’s 4TB per spindle density reduces rack unit footprint compared to 1TB or 2TB drives. Furthermore, the SATA interface lowers cost per gigabyte versus SAS alternatives while maintaining sufficient reliability (unrecoverable bit error rate typical at 1 in 10^15 bits read). For boot drive or hypervisor installation, Dell recommends solid-state drives; the 400-AFYD is best used as a data drive. The presence of the original Dell tray also simplifies sparing: a failed drive can be replaced without hunting for third-party caddies, ensuring that the server’s drive slot status LEDs, hot-swap extraction levers, and anti-vibration mounts function as engineered.

Dell 400-AFYD vs. Generic 4TB SATA Drives and Higher-RPM Alternatives

IT procurement teams often debate between OEM-branded drives (Dell, HPE, Lenovo) and aftermarket “white label” drives. The Dell 400-AFYD commands a premium because of three factors: firmware lock-in prevention (non-Dell drives may cause iDRAC health warnings), consistent tray compatibility, and warranty alignment with the server’s ProSupport contract. A generic 4TB 7.2K SATA drive may physically work but will trigger “uncertified drive” alerts in OpenManage, may not allow thermal monitoring, and voids Dell’s support for storage-related issues. Compared to 10K SAS drives, the 400-AFYD offers lower cost per TB and 50% lower idle power, but at the expense of random IOPS (roughly 75% fewer). In backup-to-disk scenarios, this trade-off is acceptable; for online transaction processing (OLTP), it is not. Likewise, versus 15K SAS drives (typically 300GB to 600GB), the 4TB SATA drive provides over 13 times the capacity per spindle, dramatically reducing the number of drive bays needed for mass storage. The 7.2K rotational speed also emits less audible noise (2.8 bel typical) compared to 10K drives (3.2 bel), beneficial for office-adjacent server rooms.
