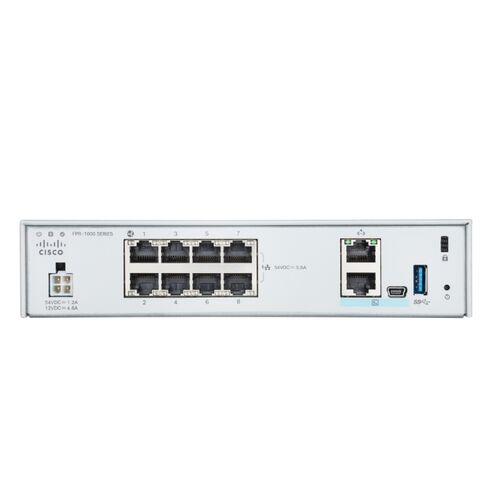

FPR1010-ASA-K9 Cisco Firepower 1010 Security Appliance

Cisco FPR1010-ASA-K9 Firepower 1010 Security Appliance

The Cisco Firepower 1010 Security Appliance (FPR1010-ASA-K9) is a compact yet powerful next-generation firewall designed to deliver advanced threat protection, reliable network security, and consistent enterprise-grade performance. Built for small to medium business environments and branch office deployments, this model combines high-speed packet processing with intelligent security features in a space-saving desktop form factor. It ensures secure connectivity, efficient traffic inspection, and robust VPN capabilities while maintaining operational simplicity and low noise operation due to its fanless design.

General Information

• Manufacturer: Cisco
• Model Identifier: FPR1010-ASA-K9
• Device Type: Network Security Firewall Appliance

Technical Specifications

Performance Capabilities

• Firewall Throughput (UDP): Up to 2 Gbps for high-speed packet filtering
• Multi-protocol Firewall Performance: Approximately 1.4 Gbps under mixed traffic conditions
• IPsec VPN Throughput: Around 500 Mbps (450-byte UDP L2L testing scenario)

Capacity & Session Handling

• Concurrent Connections: Supports up to 100,000 simultaneous sessions
• New Connections Per Second: Capable of handling 25,000 fresh connection requests per second
• VPN Peers: Supports up to 75 secure VPN endpoints

Hardware Features

• Fanless architecture for silent and energy-efficient operation
• Optimized for continuous enterprise security workloads

Networking & Design

• Form Factor: Desktop-oriented compact chassis
• Connectivity Type: Fully wired Ethernet-based architecture
• Deployment Suitability: Ideal for branch offices, SMB networks, and distributed enterprise environments

Traffic Handling & Security Performance

• Efficient deep packet inspection for enhanced threat mitigation
• Optimized routing for secure and stable data transmission
• Balanced performance for both internet-facing and internal traffic flows

Expansion & Interface Connectivity

• 8 × RJ-45 Ethernet Ports: Primary data and LAN/WAN connectivity
• 1 × RJ-45 Management Port (1000BASE-T): Dedicated administrative access
• 1 × Serial RJ-45 Interface: Console-based configuration and troubleshooting
• 1 × USB 3.0 Type-A Port: External storage or firmware utility support

Security Compliance & Standards

• Complies with international electromagnetic compatibility standards such as CISPR 22 Class A and EN 55024
• Meets global safety certifications including UL 60950-1, IEC 60950-1, and EN 60950-1
• Adheres to FCC Part 15 Class A regulations for enterprise deployment
• Supports additional regional compliance standards including VCCI, KN22, CNS 13438, and AS/NZS requirements
• Designed to operate reliably in regulated enterprise network environments worldwide

Power Specifications

• Power Supply Type: External AC adapter unit
• Input Voltage Range: 120V / 230V AC compatibility
• Frequency Support: 50Hz / 60Hz universal operation
• Energy-efficient design optimized for continuous uptime scenarios

Deployment Benefits

• Streamlined security management for distributed enterprise networks
• Reduced operational noise due to fanless cooling design
• High throughput capacity suitable for modern encrypted traffic demands
• Scalable VPN and session handling for growing network environments
• Compact footprint ideal for space-constrained installations

Compatibility Information

• Operating Environment: Compatible with Cisco ASA and Firepower Threat Defense (FTD) software platforms
• Network Integration: Works seamlessly with Ethernet-based LAN/WAN infrastructures
• VPN Compatibility: Supports site-to-site and remote-access VPN configurations using IPsec protocols
• Management Systems: Compatible with Cisco FMC (Firepower Management Center) for centralized control
• Deployment Use Cases: Suitable for SMB networks, enterprise branch offices, retail networks, and secure remote connectivity setups
• Device Interoperability: Integrates with standard routers, switches, and enterprise security ecosystems

Cisco FPR1010-ASA-K9 Firepower 1010 Security Appliance

The Cisco FPR1010-ASA-K9 Firepower 1010 Security Appliance represents a compact yet powerful next-generation firewall platform designed to deliver advanced network protection, secure connectivity, and adaptive threat defense for small to mid-sized enterprise environments, branch offices, distributed networks, and edge deployments. This security appliance integrates advanced firewall functionality with threat prevention technologies to support modern digital infrastructures where secure access, encrypted communication, application visibility, and policy enforcement are critical requirements.

As organizations continue to adopt cloud services, hybrid architectures, remote work models, and distributed business applications, the need for intelligent perimeter protection becomes increasingly important. The Cisco Firepower 1010 platform addresses these challenges through a unified security architecture that combines stateful inspection, application control, intrusion prevention, VPN capabilities, and advanced threat intelligence into a single compact appliance designed for operational simplicity and high reliability.

Advanced Security Architecture and Next Generation Firewall

The Cisco FPR1010-ASA-K9 is built on a next generation firewall architecture that enhances traditional packet filtering with deep inspection capabilities and contextual awareness. Unlike legacy firewall systems that rely primarily on port and protocol rules, this appliance evaluates application behavior, user identity, and traffic patterns to enforce granular security policies. This approach enables organizations to maintain stronger control over network activity while reducing exposure to evolving cyber threats.

The security architecture is designed to inspect traffic at multiple layers, allowing the system to identify malicious activity hidden within legitimate network sessions. This includes detection of anomalous behavior, unauthorized access attempts, and known threat signatures. By integrating threat intelligence feeds, the appliance continuously updates its defensive capabilities to respond to emerging vulnerabilities and attack vectors.

The Firepower 1010 platform supports secure segmentation of network traffic, enabling administrators to isolate sensitive systems and enforce strict access control between different zones within the organization. This segmentation capability is essential for protecting critical assets such as financial systems, customer databases, and internal communication platforms.

Threat Defense and Intrusion Prevention Capabilities

Modern cyber threats are increasingly sophisticated, requiring security systems capable of analyzing traffic in real time and responding dynamically. The Cisco FPR1010-ASA-K9 includes integrated intrusion prevention technology that identifies and blocks malicious activity before it can compromise network integrity. This includes protection against exploits, malware, ransomware attempts, and unauthorized access behaviors.

The intrusion prevention system operates through continuous traffic inspection, comparing observed behavior against known threat signatures and behavioral models. When suspicious activity is detected, the system can block, alert, or log the event depending on configured security policies. This adaptive response mechanism allows organizations to maintain strong security postures while minimizing disruption to legitimate business operations.

The appliance also leverages threat intelligence updates to maintain awareness of global attack trends. This ensures that new vulnerabilities are addressed quickly and that protection mechanisms evolve alongside the changing cybersecurity landscape. The result is a proactive security system that does not rely solely on static rules but instead adapts to real world threat environments.

Secure Remote Connectivity and VPN Services

The Cisco FPR1010-ASA-K9 Firepower 1010 Security Appliance provides robust virtual private network capabilities that support secure communication between remote users, branch offices, and central infrastructure. VPN technology is a critical component of modern enterprise networks, enabling encrypted communication over public or untrusted networks while preserving confidentiality and data integrity.

Remote access VPN functionality allows employees and authorized users to securely connect to corporate resources from external locations. This is particularly important in environments where remote work, field operations, and mobile access are common. By encrypting traffic between endpoints and internal systems, the appliance ensures that sensitive data remains protected during transmission.

Site to site VPN connectivity enables secure communication between geographically distributed offices. This capability allows organizations to extend their internal network across multiple locations while maintaining consistent security policies and centralized control. The encrypted tunnels created by the appliance help ensure that data exchanged between sites cannot be intercepted or altered by unauthorized parties.

Application Visibility and Control Mechanisms

One of the key strengths of the Cisco Firepower 1010 platform is its ability to provide deep visibility into application traffic. Instead of treating all network packets equally, the appliance identifies specific applications and services operating within the network. This allows administrators to apply tailored policies based on application type, user role, and security requirements.

Application awareness enables organizations to prioritize critical business applications while restricting or monitoring non essential traffic. This improves network efficiency and reduces exposure to potentially harmful or unproductive applications. The system can detect encrypted applications, peer to peer traffic, cloud services, and custom application protocols, ensuring comprehensive visibility across the network environment.

By integrating application control with security policy enforcement, the appliance provides a more intelligent approach to network management. This allows organizations to align network behavior with business objectives while maintaining strong security standards across all communication channels.

Small and Medium Enterprise Network Optimization

The Cisco FPR1010-ASA-K9 is specifically designed to meet the needs of small and medium sized enterprises as well as branch office environments that require enterprise grade security without excessive complexity. Its compact form factor makes it suitable for deployment in limited physical spaces while still delivering advanced protection capabilities typically found in larger security appliances.

Organizations in this category often face challenges related to limited IT resources, distributed operations, and increasing cybersecurity risks. The Firepower 1010 platform addresses these challenges by providing centralized management capabilities and simplified configuration processes that reduce administrative overhead while maintaining strong security enforcement.

The appliance supports scalable deployment strategies that allow organizations to expand their network infrastructure without redesigning their entire security framework. This makes it an ideal choice for growing businesses that require flexible and reliable security solutions capable of adapting to evolving operational demands.

Network Segmentation and Traffic Isolation

Effective network security requires the ability to isolate sensitive systems and control traffic flow between different segments of an organization. The Cisco FPR1010-ASA-K9 provides robust segmentation capabilities that allow administrators to define security zones and enforce strict communication rules between them.

This segmentation approach reduces the risk of lateral movement by attackers within the network. If one segment is compromised, the appliance can restrict access to other areas, limiting the potential impact of a security breach. This is particularly important for organizations handling sensitive data or operating in regulated industries where data protection is essential.

Segmentation also enhances operational efficiency by allowing different departments or functions within an organization to operate independently while still maintaining centralized security control. This balance between isolation and connectivity is critical for modern enterprise environments.

Cloud Integration and Hybrid Network Support

As organizations increasingly adopt cloud based services, the need for secure hybrid connectivity becomes essential. The Cisco Firepower 1010 appliance supports secure integration between on premises infrastructure and cloud environments, enabling seamless communication across distributed architectures.

This hybrid connectivity allows organizations to extend their security policies into cloud environments, ensuring consistent protection regardless of where applications and data are hosted. The appliance helps secure traffic between local networks and cloud platforms, supporting workloads that span multiple infrastructure domains.

Hybrid network environments benefit from centralized visibility and consistent enforcement of security policies. This reduces complexity while improving overall security posture across diverse computing environments. The Firepower 1010 platform plays a key role in enabling this unified security approach.

Performance Efficiency and Hardware Optimization

The Cisco FPR1010-ASA-K9 is engineered for efficient performance in environments requiring reliable throughput and consistent security processing. Its hardware architecture is optimized to handle simultaneous security functions such as inspection, encryption, and traffic management without compromising network responsiveness.

Performance efficiency is critical in environments where latency and throughput directly affect business operations. The appliance ensures that security processes do not become a bottleneck, enabling smooth application performance even under heavy network loads. This balance between security enforcement and operational efficiency is essential for maintaining user productivity and system reliability.

The device is designed to support continuous operation in demanding environments, ensuring stability and resilience even during peak traffic conditions. This makes it suitable for mission critical applications where downtime or performance degradation cannot be tolerated.

Centralized Management and Policy Enforcement

Network security becomes significantly more effective when managed through centralized systems that provide visibility and control across all deployed devices. The Cisco FPR1010-ASA-K9 supports centralized management capabilities that allow administrators to define, deploy, and enforce security policies consistently across the network infrastructure.

This centralized approach simplifies configuration management and reduces the risk of policy inconsistencies that could lead to security vulnerabilities. Administrators can monitor network activity, analyze security events, and adjust policies based on real time insights into network behavior.

Centralized management also improves operational efficiency by reducing the complexity associated with managing multiple distributed security devices. This enables IT teams to focus on strategic security initiatives rather than routine administrative tasks.

Compliance and Regulatory Security Alignment

Organizations operating in regulated industries must comply with strict security and data protection standards. The Cisco Firepower 1010 platform supports compliance requirements by providing advanced logging, monitoring, and reporting capabilities that help organizations demonstrate adherence to security frameworks.

The appliance enables detailed visibility into network activity, allowing administrators to track access patterns, identify anomalies, and maintain comprehensive audit trails. This level of transparency is essential for meeting regulatory obligations and ensuring accountability within the organization.

Compliance support extends across various industry requirements, including data protection, financial regulations, and healthcare privacy standards. By integrating security enforcement with monitoring capabilities, the appliance helps organizations maintain compliance while protecting sensitive information.

Future Ready Security Infrastructure

The Cisco FPR1010-ASA-K9 Firepower 1010 Security Appliance is designed to support evolving security requirements in dynamic network environments. As cyber threats continue to grow in complexity, organizations require adaptable security platforms capable of integrating new technologies and threat intelligence capabilities.

The appliance provides a foundation for future ready security architectures that can evolve alongside organizational needs. Its modular approach to security services ensures that organizations can continue to enhance protection capabilities without replacing core infrastructure components.

This adaptability makes the Firepower 1010 platform a long term investment in network security, providing sustained value as technology landscapes continue to change and expand.
