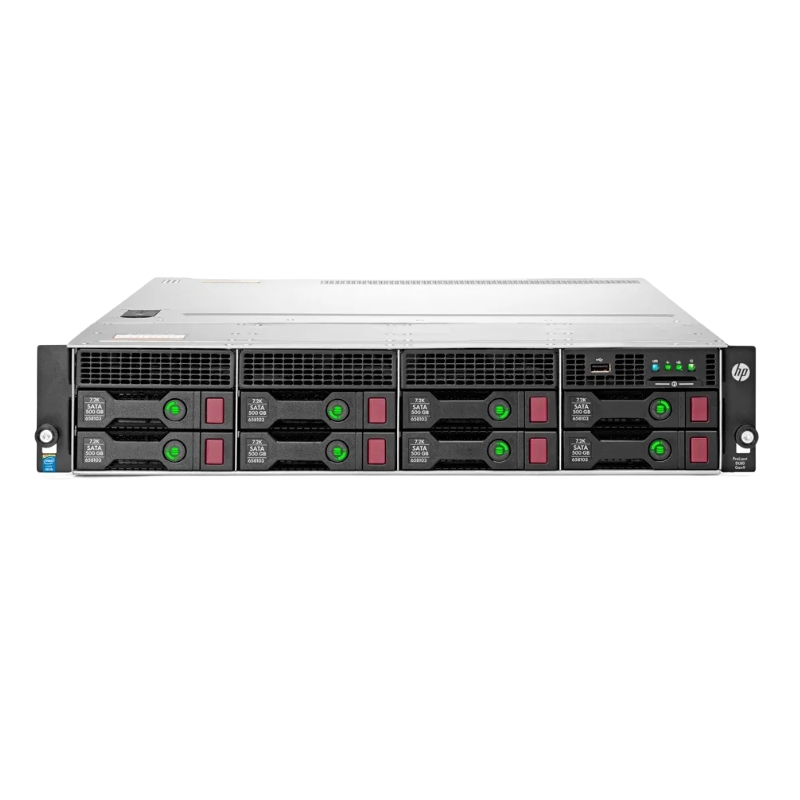

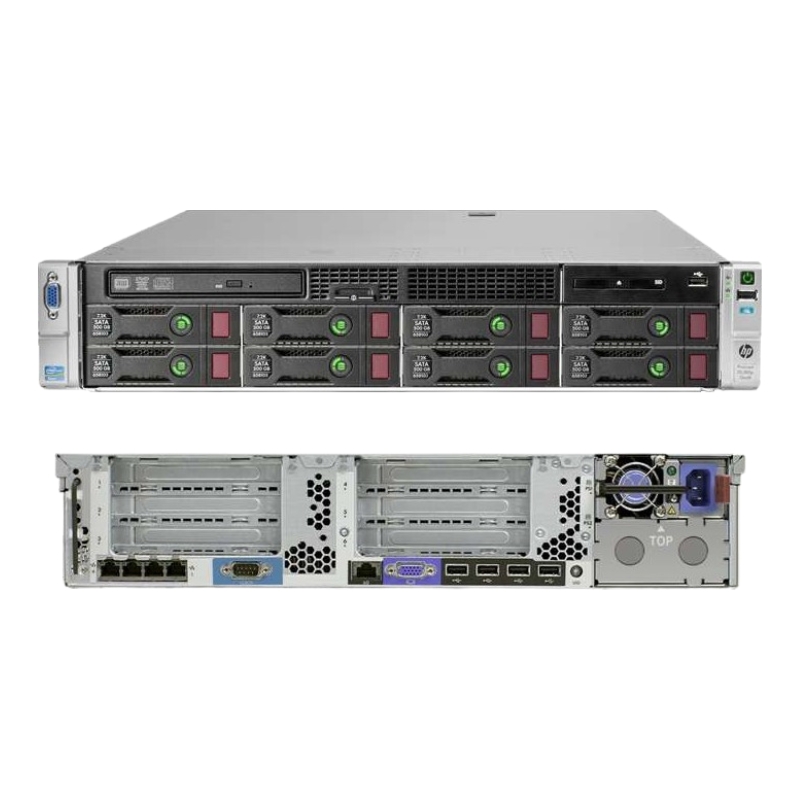

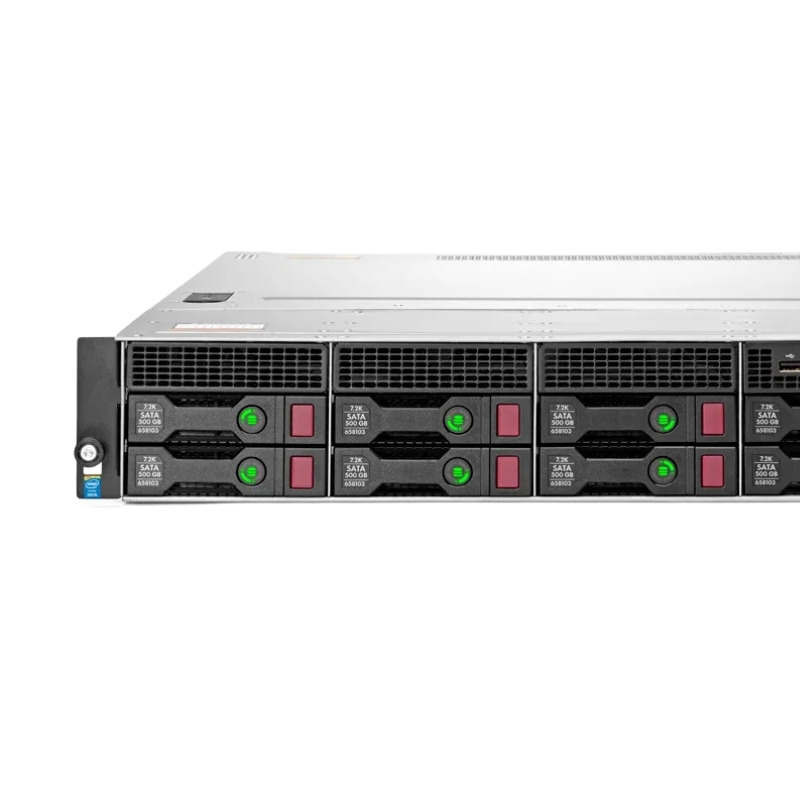

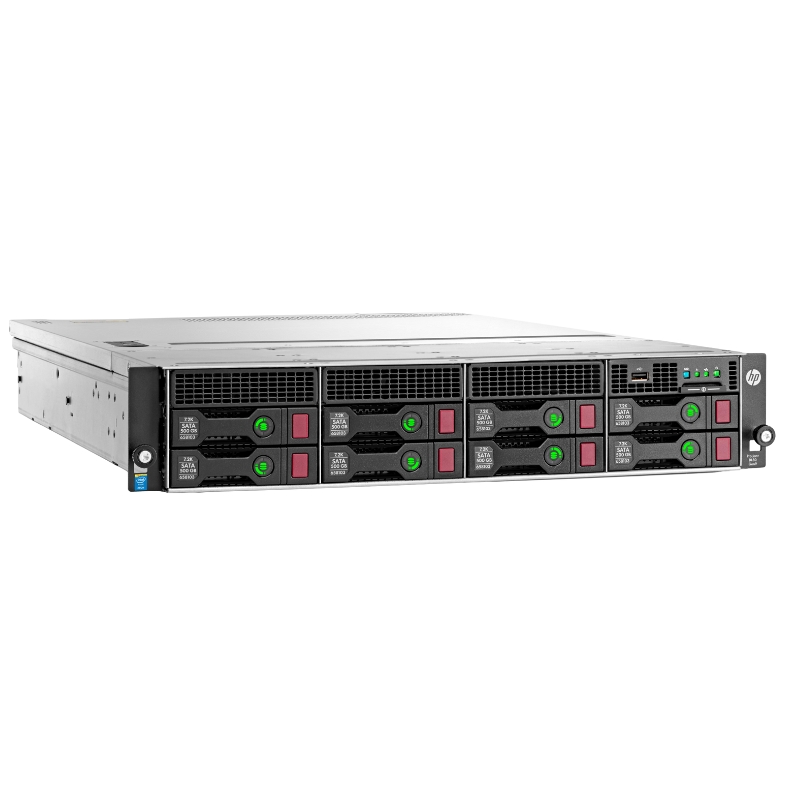

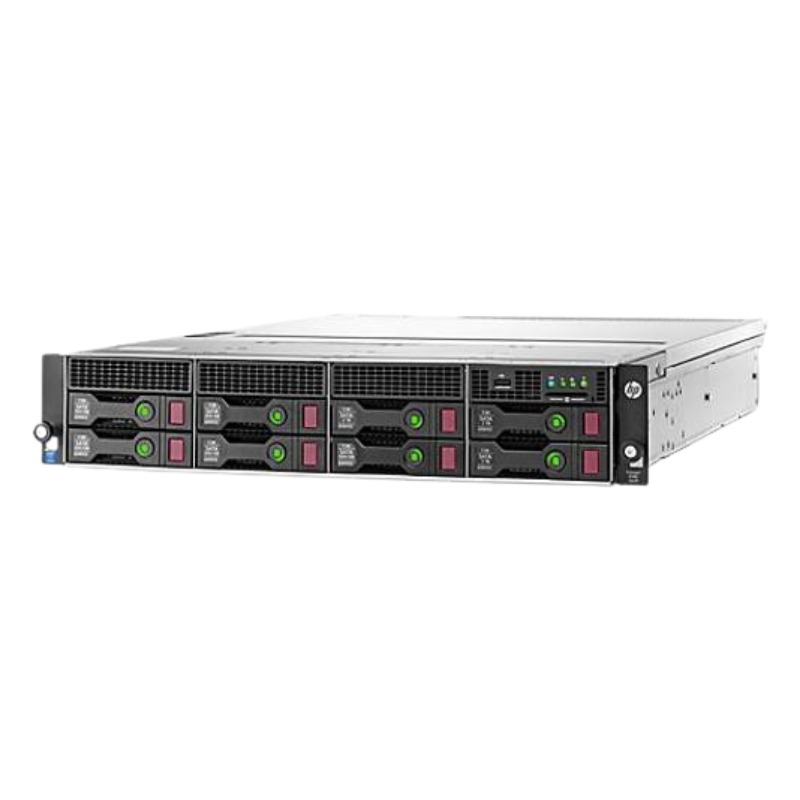

HPE Proliant DL80 G9 550W PS 2U Rack Server 778685-B21.

Processor

The HPE Proliant DL80 G9 CTO Model 778685-B21 2U Rack Server is equipped with an Intel Xeon E5 V3 processor, which offers exceptional performance and reliability for users. This powerful processor is designed to handle demanding workloads and deliver optimal performance in various applications.

General Details

• Manufacturer: Hewlett Packard Enterprise
• Part Number: 778685-B21
• Model Name: Proliant DL80 Gen9 - 2U Rack Server

Processor & Memory

RAM Specifications

• Installed RAM: 0 GB / Up to 256 GB
• Memory Technology: DDR4 SDRAM
• DIMM Form Factor: 288-pin
• Available Slots: 8 total / 8 empty
• Supported RAM: 128 GB Registered, 256 GB Load-Reduced

Cache Memory

• Type: Smart Cache

Storage & Controllers

Storage Options

• Hard Drive: None
• Optical Drive: None

Storage Controllers

• Controller Name: Smart Array B140i
• Buffer Size: None
• Disk Drive Interface: Up to 6 Gb/s SATA
• Connectors: 10 Internal SATA Connectors
• Server Interface: PCIe 2.0 x4
• SATA Speed: 6 Gb/s
• Logical Drives Supported: Up to 8 Logical Volumes (6 Physical Drives)
• Host Memory Addressing: 64-bit, supporting greater than 4 GB memory space
• RAID Support: RAID 0, RAID 1, RAID 5, RAID 10, RAID 50

Graphics & Network

Graphics Controller

• Type: Integrated
• Graphics Processor: Matrox G200eh2
• Video Interfaces: VGA

Network & Communication

• Network Type: Integrated
• Interface Type: PCI Express 2.0 x2
• Ethernet Ports: 2 x Gigabit Ethernet
• Ethernet Controller: HP NC361i
• Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
• Remote Management Controller: Integrated Lights-Out 4
• Features: Wake on LAN (WOL), PXE Support
• Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az

Expansion & Connectivity

Expansion Bays

• Available Bays: 8 (total) / 8 (free) x Hot-swap 3.5" LFF

Expansion Slots

• CPU Slots: 2 (total) / 2 (free)
• DIMM Slots: 8 (total) / 8 (free)
• PCIe 3.0 x16 Low-profile: 3 (total) / 3 (free)
• PCIe 3.0 x8 Low-profile: 2 (total) / 2 (free)
• MicroSD Card (internal): 1 (total) / 1 (free)

Interfaces & Ports

• LAN Ports: 2 x Gigabit Ethernet
• VGA Port: 1
• USB Ports: 1 x USB 2.0 (front), 2 x USB 3.0 (rear), 1 x USB 3.0 (internal)

Additional Information

Security & Compliance

• Security Features: Administrator Password, Power-on Password, UEFI BIOS
• Compliance Standards: ACPI 2.0b, FCC Class A, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 4943, GB 9254, ASHRAE, CNS 13438, BSMI CNS 14336-1

Dimensions & Weight

• Depth: 24.97 inches
• Width: 18.98 inches
• Height: 3.45 inches
• Weight: 36.6 lbs

Enhanced Performance

The Intel Xeon E5 V3 processor is built on the latest microarchitecture, providing enhanced performance and efficiency compared to previous generations. With multiple cores and threads, this processor can handle multiple tasks simultaneously, improving overall system performance.

Increased Productivity

The high-performance capabilities of the Intel Xeon E5 V3 processor enable users to run resource-intensive applications smoothly. Whether you are running complex simulations, performing data analysis, or virtualizing multiple servers, this processor ensures that your tasks are completed quickly and efficiently, increasing productivity and reducing processing time.

Improved Scalability

The Intel Xeon E5 V3 processor supports advanced technologies such as Intel Turbo Boost Technology and Intel Hyper-Threading Technology, allowing for improved scalability. These features enable the processor to dynamically adjust its performance based on workload demands, ensuring that it delivers optimal performance when needed and conserves power when idle.

CPU

The HPE Proliant DL80 G9 CTO Model 778685-B21 2U Rack Server comes with the option of choosing a CPU based on your specific requirements. The "No CPU" option allows you to customize the server with a CPU of your choice or use an existing CPU from your inventory.

Flexibility in CPU Selection

By offering the "No CPU" option, HPE provides users with the flexibility to choose a CPU that best suits their needs. Whether you require a specific brand, model, or performance level, this option allows you to tailor the server's processing power to meet your exact requirements.

Cost-Effective Solution

For users who already have a compatible CPU or want to upgrade their existing one, the "No CPU" option can be a cost-effective solution. Instead of paying for a pre-installed CPU that you may not need, you can save money by opting for this customizable feature.

Future-Proofing

Choosing the "No CPU" option also future-proofs your investment. As technology advances and new CPUs are released, you can easily upgrade your server by replacing the CPU with a more powerful and efficient one. This flexibility ensures that your server remains up-to-date and capable of handling future workloads.

RAM

The HPE Proliant DL80 G9 CTO Model 778685-B21 2U Rack Server comes with "No RAM," allowing you to customize the server's memory configuration based on your specific needs. This flexibility gives you the freedom to choose the amount and type of RAM that best suits your workload requirements.

Customizable Memory Configuration

The "No RAM" option provides users with the freedom to customize their server's memory configuration according to their specific needs. Whether you require a large amount of RAM for memory-intensive applications or a smaller capacity for basic tasks, this feature allows you to optimize your server's performance and cost-effectiveness.

Scalability and Future Expansion

By offering the "No RAM" option, HPE ensures that your server can easily scale and accommodate future memory requirements. As your business grows or your workload demands increase, you can add more RAM modules to meet the growing needs of your applications. This scalability protects your investment and allows for future expansion without the need to replace the entire server.

Flexibility in Memory Type

The "No RAM" option also allows you to choose the type and speed of RAM that best suits your needs. Whether you prefer ECC (Error-Correcting Code) memory for enhanced data integrity or high-speed DDR4 memory for improved performance, this flexibility ensures that your server is equipped with the most suitable memory technology.

Storage

The HPE Proliant DL80 G9 CTO Model 778685-B21 2U Rack Server is equipped with a Smart Array B140i Without Fbwc storage controller, offering reliable and efficient storage capabilities for your data.

Reliable Data Protection

The Smart Array B140i Without Fbwc storage controller provides reliable data protection features, ensuring the integrity and availability of your stored data. With support for RAID configurations, you can configure redundant arrays for improved data redundancy and fault tolerance. This protects your data from drive failures and allows for seamless recovery in case of disk errors.

Efficient Storage Management

The Smart Array B140i Without Fbwc storage controller offers efficient storage management capabilities, allowing you to easily configure and monitor your storage devices. With intuitive management tools, you can create and manage logical drives, monitor drive health, and perform diagnostics to ensure optimal storage performance.

Cost-Effective Solution

The Smart Array B140i Without Fbwc storage controller provides a cost-effective solution for users who require reliable storage capabilities without the need for advanced features such as battery-backed write cache (Fbwc). This makes it an ideal choice for small to medium-sized businesses or budget-conscious users who prioritize cost-efficiency without compromising data reliability.

Networking

The HPE Proliant DL80 G9 CTO Model 778685-B21 2U Rack Server is equipped with a 1GB 2PORT 361I Ethernet Adapter, offering high-speed networking capabilities for seamless connectivity and communication.

Fast and Reliable Connectivity

The 1GB 2PORT 361I Ethernet Adapter provides fast and reliable networking connectivity, ensuring smooth communication between your server and other network devices. With support for Gigabit Ethernet speeds, you can transfer data quickly and efficiently, reducing network latency and improving overall performance.

Flexible Network Configuration

The 1GB 2PORT 361I Ethernet Adapter offers flexibility in network configuration, allowing you to adapt to different network environments and requirements. With multiple ports, you can connect your server to various network switches or devices, enabling redundancy or load balancing for improved network reliability and performance.

Compatibility and Interoperability

The 1GB 2PORT 361I Ethernet Adapter is designed to be compatible with a wide range of network infrastructure and protocols. This ensures seamless interoperability with existing network devices and simplifies the integration of your server into your network environment. Whether you are using Ethernet, TCP/IP, or other networking protocols, this adapter offers broad compatibility for hassle-free networking.

Power Supply

The HPE Proliant DL80 G9 CTO Model 778685-B21 2U Rack Server is equipped with a 550W PS power supply, providing reliable power delivery for your server's components.

Stable and Efficient Power Delivery

The 550W PS power supply ensures stable and efficient power delivery to your server's components. With its high-quality design and advanced voltage regulation, it provides a consistent power supply that meets the demands of your server's performance requirements. This stable power delivery minimizes the risk of system crashes or component failures caused by power fluctuations.

Redundancy for Enhanced Reliability

The HPE Proliant DL80 G9 CTO Model 778685-B21 2U Rack Server supports redundant power supply configurations, offering enhanced reliability and fault tolerance. By connecting multiple power supplies, you can ensure that your server remains operational even if one power supply fails. This redundancy protects your server from unexpected power outages and ensures continuous operation, minimizing downtime and data loss.

Energy Efficiency

The 550W PS power supply is designed with energy efficiency in mind. It adheres to industry standards for power efficiency, ensuring that it operates at optimal levels and minimizes power wastage. This energy-efficient design not only helps reduce your server's environmental impact but also lowers your overall energy costs.

Form Factor

The HPE Proliant DL80 G9 CTO Model 778685-B21 2U Rack Server features a 2U form factor, providing a compact and space-saving solution for your data center or server room.

Optimal Space Utilization

The 2U form factor allows you to maximize the use of your rack space, making it an ideal choice for environments where space is limited. By occupying only two units of rack space, this server leaves room for additional equipment or future expansion, ensuring efficient use of your data center infrastructure.

Ease of Installation and Maintenance

The 2U form factor offers ease of installation and maintenance. With its compact size, the server can be easily mounted in standard server racks or cabinets. Additionally, its accessible design allows for convenient access to internal components, simplifying hardware upgrades or troubleshooting tasks.

Scalability and Expandability

The 2U form factor provides scalability and expandability options for future growth. With its modular design, you can easily add or replace components such as hard drives, memory modules, or expansion cards to meet the evolving needs of your applications. This scalability ensures that your server can adapt to changing business requirements and accommodate increasing workloads.
