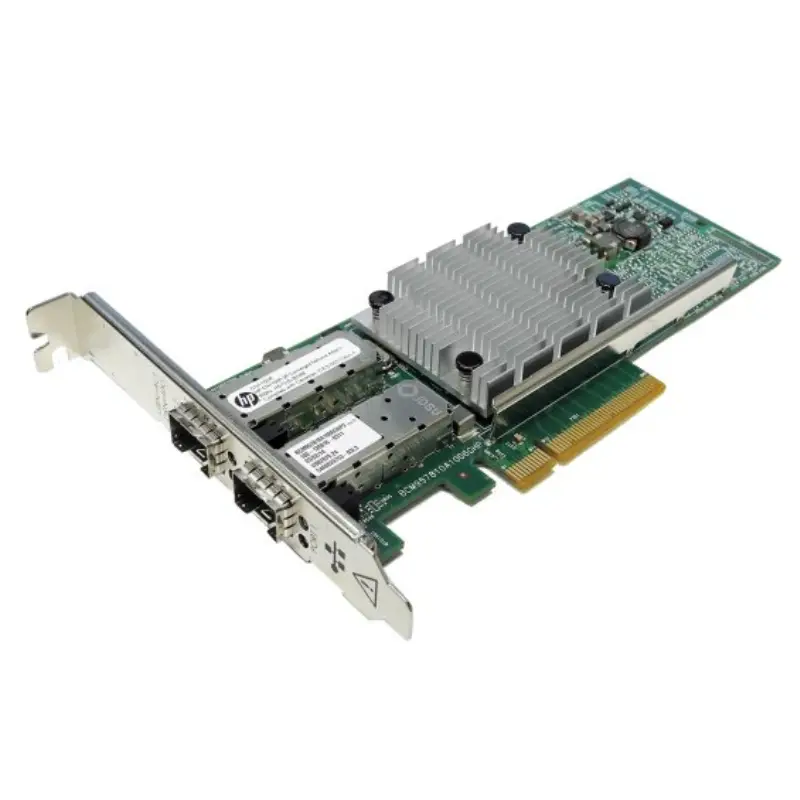

HPE Storefabric Cn1100r Dual Port Converged Network Adapter - 706801-001

Product Overview of the HPE 706801-001 StoreFabric CN1100R Dual Port Network Adapter

Main Attributes of HPE 706801-001

• Manufacturer: HPE
• Part Number/SKU#: 706801-001
• Product Category: Network Devices
• Type: Converged Network Adapter

General Specifications

• Device Type: 10Gbit Ethernet Network Adapter
• Form Factor: Plug-in card
• Interface: PCI Express 2.0 x8
• PCIe Standard: PCIe 2.0

Networking Features

• Technology: Wired
• Cabling Type: Fiber optic
• Data Link Protocol: 10 Gigabit Ethernet
• Data Transfer Rate: Up to 10 Gbps
• Ports: Dual 10Gb Ethernet
• Supported Network Protocol: iSCSI
• Compliance Standards:
  • IEEE 802.1Q
  • IEEE 802.3x
  • IEEE 802.3ad (LACP)
  • IEEE 802.3ae
  • IEEE 802.1AS
  • IEEE 802.1AX
  • IEEE 802.1Qbb
  • IEEE 802.1Qaz
  • IEEE 802.1Qbg
  • IEEE 802.1Qbh

Expansion & Connectivity Details

• Compatible Slots: One PCI Express 2.0 x8 slot
• Interfaces: Dual 10GBASE-SR with SFP+

Physical Dimensions and Weight

• Height: 3.00 inches
• Width: 8.00 inches
• Depth: 10.00 inches
• Weight: 1.00 lb

Environmental Operating Conditions

• Minimum Operating Temperature: 32°F (0°C)
• Maximum Operating Temperature: 131°F (55°C)
• Operating Humidity Range: 5% to 95% (non-condensing)

Compatibility with HPE Server Series

HPE Apollo Series

• 4510 Gen10

HPE ProLiant DL Series

• DL160 Gen8 (Base, Entry, Performance)
• DL320e Gen8 (Base, Entry, Performance), DL320e Gen8 v2 (Base, Performance)
• DL360p Gen8 (Base, Entry, High Performance, CMS, Performance)
• DL380 Gen10 (various configurations), DL380p Gen8 (Base, Entry, High Performance, Special)
• DL385p Gen8 (Dedicated Workload, Entry, Maximized Consolidation, Storage-centric)
• DL388 Gen10 (Network Choice)
• DL560 Gen8 (Base, Entry, Performance)

HPE ProLiant ML Series

• ML350e Gen8 (Base, Entry, Performance), ML350e Gen8 v2
• ML350p Gen8 (Base, Entry, Performance, Special Server)

HPE ProLiant XL Series

• XL170r Gen10 (24TB Server for Cohesity DataPlatform)
• XL190r Gen10

HPE StoreEasy Series

• 3850 Gateway Storage

Part Number: 706801-001

Introduction

The HPE StoreFabric Cn1100r Converged Network Adapter is a cutting-edge networking solution designed to enhance the performance and efficiency of data centers. One of its standout features is its part number, which is 706801-001. This unique identifier plays a crucial role in identifying and selecting the correct adapter for your specific needs. In this section, we will delve into the benefits and importance of this part number for users.

Streamlined Identification and Selection Process

Easy Compatibility

The HPE StoreFabric Cn1100r Converged Network Adapter is available in various configurations and versions, each tailored to specific requirements. The part number, 706801-001, serves as a quick reference for identifying the exact variant you need. This streamlined identification process eliminates any guesswork or confusion when selecting the adapter for your system.

Seamless Integration

By emphasizing the 706801-001 part number, HPE ensures that users can seamlessly integrate the Cn1100r Converged Network Adapter into their existing infrastructure. Whether you are upgrading an existing network or building a new one from scratch, this part number guarantees compatibility with other HPE components and ensures a hassle-free installation process.

Reliability and Warranty

Quality Assurance

The part number 706801-001 is not just a random combination of digits; it signifies HPE's commitment to delivering high-quality products. Each adapter with this part number undergoes rigorous testing and quality assurance processes to ensure optimal performance, reliability, and longevity. With HPE's reputation for excellence, you can trust that the Cn1100r Converged Network Adapter with the 706801-001 part number will meet and exceed your expectations.

Warranty Coverage

When investing in networking equipment, it's crucial to consider the warranty coverage provided. The HPE StoreFabric Cn1100r Converged Network Adapter with the 706801-001 part number comes with a comprehensive warranty, ensuring peace of mind for users. In the event of any hardware failures or defects, HPE will provide support and replacement services, minimizing downtime and maximizing productivity.

Enhanced Performance and Scalability

Optimized Speed and Bandwidth

The 706801-001 part number signifies that the HPE StoreFabric Cn1100r Converged Network Adapter offers high-speed connectivity and exceptional bandwidth capabilities. This adapter leverages advanced technologies to deliver lightning-fast data transfers, enabling seamless communication between servers, storage devices, and clients. Whether you are handling intensive workloads or demanding applications, this feature ensures optimal performance and reduces latency.

Scalability and Flexibility

The Cn1100r Converged Network Adapter with the 706801-001 part number is designed to adapt to evolving business needs. With support for multiple protocols, including Ethernet and Fibre Channel over Ethernet (FCoE), this adapter enables organizations to scale their networks effortlessly. Whether you need to expand your infrastructure or migrate to new technologies in the future, this feature ensures compatibility and ease of integration.

Advanced Management Capabilities

Centralized Administration

The HPE StoreFabric Cn1100r Converged Network Adapter with the 706801-001 part number offers advanced management capabilities, empowering administrators to monitor and control network operations effectively. Through centralized administration tools, you can configure settings, monitor performance metrics, and troubleshoot issues from a single interface. This feature simplifies network management, reduces complexity, and enhances overall efficiency.

Enhanced Security

With the increasing number of cybersecurity threats, ensuring network security is of utmost importance. The 706801-001 part number signifies that the Cn1100r Converged Network Adapter incorporates robust security features. It supports protocols such as Secure Boot and Secure Firmware Integrity, providing protection against unauthorized access and tampering. By prioritizing security, HPE enables users to safeguard their sensitive data and maintain the integrity of their networks.

Ports: Dual Port

Introduction

The HPE StoreFabric Cn1100r Converged Network Adapter is equipped with a range of impressive features, including its dual port functionality. In this section, we will explore the benefits and importance of this dual port feature for users.

Increased Throughput and Redundancy

Enhanced Data Transfer Speed

The dual port feature of the Cn1100r Converged Network Adapter allows for increased throughput, enabling simultaneous data transfers across multiple ports. This capability effectively doubles the potential bandwidth, providing a significant boost to network performance. Whether you are transferring large files or handling data-intensive applications, the dual port feature ensures optimal speed and responsiveness.

Redundancy and High Availability

In mission-critical environments, maintaining uninterrupted network connectivity is essential. The dual port configuration of the Cn1100r Converged Network Adapter offers built-in redundancy, ensuring that even if one port fails or encounters issues, the other port can seamlessly take over. This redundancy minimizes downtime and enhances overall system reliability, making it an ideal choice for organizations that cannot afford network disruptions.

Flexible Network Configurations

Load Balancing

The dual port functionality allows for load balancing, distributing network traffic evenly across the available ports. This feature optimizes network utilization and prevents congestion, ensuring that each port operates at its maximum potential. By efficiently utilizing all ports, the Cn1100r Converged Network Adapter with dual port enables organizations to achieve higher performance levels and accommodate growing network demands.

VLAN Support

With the dual port feature, the Cn1100r Converged Network Adapter offers support for Virtual Local Area Networks (VLANs). VLANs enable network administrators to segment their network into multiple virtual networks, enhancing security and improving overall network performance. The dual port configuration allows for the creation of separate VLANs on each port, providing flexibility and control over network traffic.

Simplified Network Architecture

Reduced Cable Clutter

Using a single adapter with dual port functionality significantly reduces the number of physical cables required to connect devices. This streamlined approach minimizes cable clutter within data centers and simplifies cable management. With fewer cables to route and maintain, administrators can achieve a more organized and efficient network infrastructure.

Cost Savings

By leveraging the dual port feature of the Cn1100r Converged Network Adapter, organizations can reduce costs associated with additional adapters and cabling. With fewer physical components required, both upfront installation costs and long-term maintenance expenses are minimized. This cost-effective solution enables organizations to allocate their resources more efficiently and invest in other critical areas of their infrastructure.

In conclusion, the HPE StoreFabric Cn1100r Converged Network Adapter with its part number 706801-001 offers numerous benefits for users. The part number ensures easy identification, compatibility, and integration into existing systems. With its reliability, warranty coverage, enhanced performance, advanced management capabilities, and dual port functionality, this adapter provides users with a reliable and efficient networking solution that can meet their evolving needs.
