N2K-C2348UPQ Cisco Nexus 2348UPQ Fabric Extender

Features

The Cisco N2K-C2348UPQ is a high-performance 10 and 40 Gigabit Ethernet fabric extender that offers a range of features designed to enhance network connectivity and reliability. With its 48 1/10-Gbps SFP+ server ports and 6 QSFP+ ports for 40-Gbps connectivity, this fabric extender provides users with a flexible and scalable solution for their networking needs.

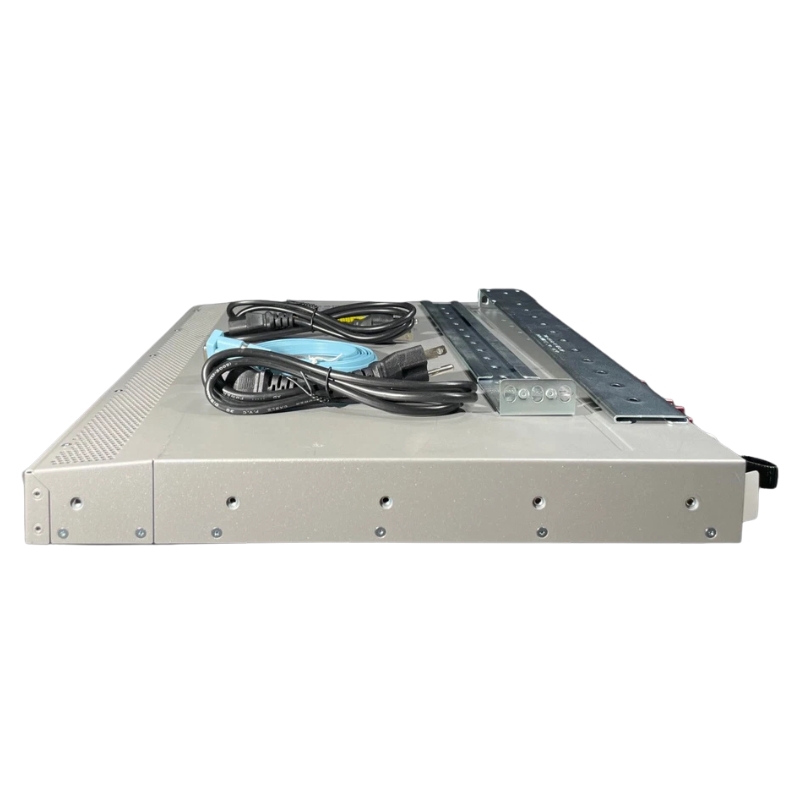

Cisco N2K-C2348UPQ Fabric Extender

General Product Information

• Manufacturer: Cisco
• Model Number: N2K-C2348UPQ
• Product Line: Nexus
• Product Series: 2348UPQ
• Type: Fabric Extender

Performance Specifications

Forwarding Capabilities

• Forwarding Performance: 240 Gbps
• Full Duplex Forwarding Performance: 480 Gbps

Connectivity and Protocols

• Connectivity Technology: Wired
• Data Link Protocols: 10 Gigabit Ethernet, Gigabit Ethernet, Fibre Channel over Ethernet (FCoE), 40 Gigabit Ethernet
• Status Indicators: Power, Port Status, System

Power Requirements

• Nominal Voltage: AC 120/230 V
• Frequency: 50/60 Hz

Key Features

• Auto-Negotiation
• VLAN Support
• Syslog Support
• Weighted Round Robin (WRR) Queuing
• Spanning Tree Protocol (STP) Support
• Access Control List (ACL) Support
• Quality of Service (QoS)
• Jumbo Frames Support
• Data Center Bridging (DCB)
• Management Information Base (MIB)
• Class of Service (CoS)
• Tagged VLAN
• Redundant Fans (3 Fans)
• Virtual PortChannel (vPC) Technology
• Hot-Swappable Power Supply
• FCoE Support
• In-Service Software Upgrade (ISSU)

Compliance Standards

• AS/NZS 60950-1
• AS/NZS CISPR22:2006 Class A
• CAN/CSA C22.2 No. 60950-1
• CISPR 22 Class A
• Directive 2004/108/EC
• Directive 2006/95/EC
• EN 300386
• EN 60950-1
• EN 61000-3-2
• EN 61000-3-3
• EN 61000-6-1
• EN50082-1
• EN55022 Class A
• EN55024
• FCC CFR47 Part 15
• GB 4943
• ICES-003 Class A
• IEC 60950-1
• KN22 Class A
• NEBS Level 3
• RoHS 6/6
• UL 60950-1
• VCCI Class A

Environmental Conditions

• Minimum Operating Temperature: 32 °F
• Maximum Operating Temperature: 131 °F
• Operating Humidity Range: 5 – 95% (non-condensing)

High-performance 10 and 40 Gigabit Ethernet Fabric Extender

The Cisco N2K-C2348UPQ fabric extender is built to deliver high-performance networking capabilities, allowing users to achieve fast and reliable data transfers. With support for both 10 and 40 Gigabit Ethernet, this fabric extender enables seamless connectivity between servers, switches, and other network devices.

The high-performance nature of this fabric extender ensures that users can take full advantage of their network infrastructure, maximizing efficiency and productivity. Whether it's transferring large files, running resource-intensive applications, or supporting high-bandwidth activities, the Cisco N2K-C2348UPQ fabric extender can handle it all with ease.

48 1/10-Gbps SFP+ Server Ports

One of the key features of the Cisco N2K-C2348UPQ fabric extender is its 48 1/10-Gbps SFP+ server ports. These ports provide users with the flexibility to connect a wide range of devices to their network infrastructure, including servers, storage devices, and other networking equipment.

With 48 server ports available, users can easily expand their network capacity and accommodate growing business needs. This feature is particularly beneficial for businesses that require a large number of server connections or have a high demand for network resources.

6 QSFP+ Ports for 40-Gbps Connectivity

In addition to the 48 1/10-Gbps SFP+ server ports, the Cisco N2K-C2348UPQ fabric extender also offers 6 QSFP+ ports for 40-Gbps connectivity. These high-speed ports enable users to establish high-bandwidth connections between devices, facilitating fast data transfers and reducing network latency.

The QSFP+ ports are ideal for applications that require a significant amount of bandwidth, such as data-intensive workloads, virtualization, and multimedia streaming. By utilizing these ports, users can ensure that their network can handle the demands of modern business operations, providing a seamless experience for employees and customers alike.

Supports Cisco Fabric Extender Transceivers

To further enhance its compatibility and versatility, the Cisco N2K-C2348UPQ fabric extender supports Cisco fabric extender transceivers. These transceivers are designed specifically for Cisco fabric extenders, ensuring seamless integration and optimal performance.

By utilizing Cisco fabric extender transceivers, users can take advantage of advanced features and functionalities offered by Cisco's networking solutions. This compatibility ensures that users can easily incorporate the fabric extender into their existing network infrastructure without any compatibility issues or limitations.

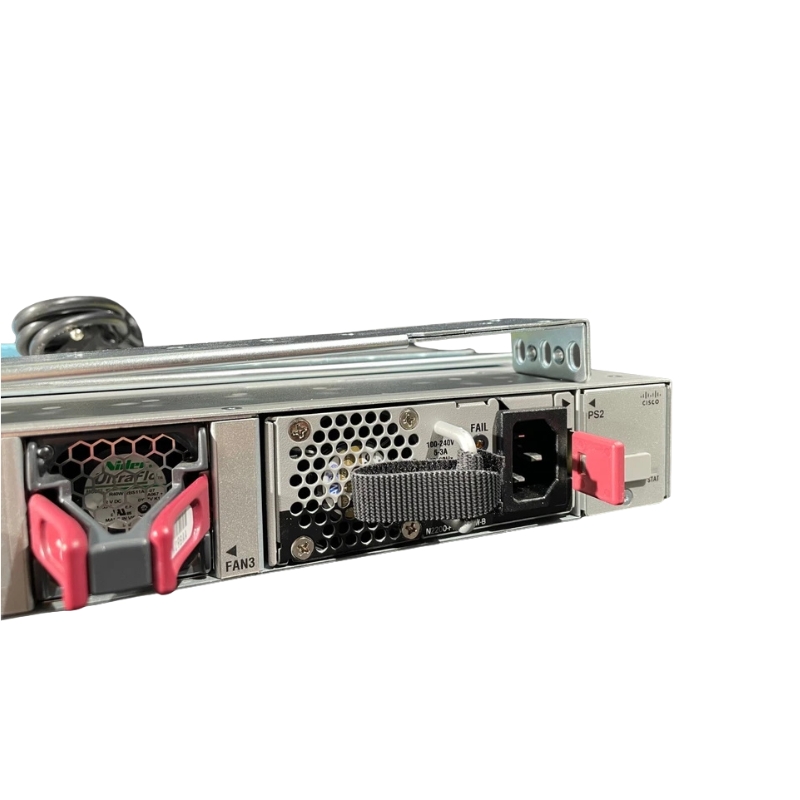

Hot-Swappable Power Supplies and Fan Modules

The Cisco N2K-C2348UPQ fabric extender is equipped with hot-swappable power supplies and fan modules. This feature allows users to replace or upgrade these components without having to power down the fabric extender or interrupt network operations.

Hot-swappable power supplies and fan modules offer significant benefits in terms of maintenance and uptime. Users can easily perform necessary maintenance tasks without causing any downtime or disruptions to their network services. This feature ensures that businesses can maintain continuous operations and minimize the impact of hardware failures or upgrades.

Front-to-Back Cooling

To ensure efficient cooling and prevent overheating, the Cisco N2K-C2348UPQ fabric extender utilizes a front-to-back cooling design. This design allows for optimal airflow within the fabric extender, ensuring that all components are properly cooled and reducing the risk of hardware failures due to overheating.

Efficient cooling is crucial for maintaining the performance and longevity of network equipment. By implementing a front-to-back cooling design, the Cisco N2K-C2348UPQ fabric extender provides users with a reliable and durable solution that can withstand the demands of modern networking environments.

Benefits of High-Performance 10 and 40 Gigabit Ethernet

The high-performance 10 and 40 Gigabit Ethernet capabilities of the Cisco N2K-C2348UPQ fabric extender offer several key benefits to users:

Increased Bandwidth

With support for high-speed connections, users can experience significantly increased bandwidth, allowing for faster data transfers and improved network performance. This increased bandwidth is particularly beneficial for businesses that rely on data-intensive applications or require fast access to large files.

Scalability

The Cisco N2K-C2348UPQ fabric extender's high-performance Ethernet capabilities provide users with scalability options. With support for both 10 and 40 Gigabit Ethernet, users can easily upgrade their network infrastructure to accommodate growing business needs. This scalability ensures that businesses can expand their operations without worrying about limited network capacity.

Flexibility

The ability to support both 10 and 40 Gigabit Ethernet offers users flexibility in terms of device compatibility. With a wide range of devices on the market, having the flexibility to connect various devices using different Ethernet speeds is essential. The Cisco N2K-C2348UPQ fabric extender ensures that users can connect their devices seamlessly, regardless of their Ethernet speed requirements.

Importance of Hot-Swappable Power Supplies and Fan Modules

The hot-swappable power supplies and fan modules of the Cisco N2K-C2348UPQ fabric extender offer several important advantages:

Reduced Downtime

The ability to replace or upgrade power supplies and fan modules without interrupting network operations significantly reduces downtime. Businesses can perform necessary maintenance or upgrades while maintaining continuous network services, ensuring minimal disruption to their operations.

Maintenance Flexibility

Hot-swappable components provide maintenance flexibility, allowing businesses to schedule maintenance tasks at their convenience. By eliminating the need for scheduled downtime, businesses can optimize their operations and minimize the impact of maintenance on productivity.

Improved Reliability

Hot-swappable power supplies and fan modules contribute to the overall reliability of the Cisco N2K-C2348UPQ fabric extender. In the event of a component failure, users can quickly replace the faulty component and restore normal operations without any significant downtime. This improved reliability ensures that businesses can rely on their network infrastructure for uninterrupted operations.

Benefits of Front-to-Back Cooling

The front-to-back cooling design of the Cisco N2K-C2348UPQ fabric extender offers several key benefits:

Optimal Performance

Efficient cooling is essential for maintaining optimal performance and preventing hardware failures due to overheating. The front-to-back cooling design ensures that all components within the fabric extender receive adequate airflow, keeping them at optimal operating temperatures. This design contributes to the overall performance and longevity of the fabric extender.

Hardware Protection

Proper cooling is crucial for protecting hardware components from damage caused by excessive heat. The front-to-back cooling design helps dissipate heat effectively, reducing the risk of component failure and extending the lifespan of the fabric extender. This hardware protection ensures that businesses can rely on their network infrastructure for uninterrupted operations.

Energy Efficiency

Efficient cooling not only benefits the performance and reliability of the fabric extender but also contributes to energy efficiency. By ensuring that components are properly cooled, the fabric extender can operate at optimal efficiency, minimizing energy consumption and reducing operating costs.

In conclusion, the Cisco N2K-C2348UPQ fabric extender offers a range of features designed to enhance network connectivity and reliability. Its high-performance 10 and 40 Gigabit Ethernet capabilities, 48 1/10-Gbps SFP+ server ports, and 6 QSFP+ ports for 40-Gbps connectivity provide users with a flexible and scalable solution for their networking needs. The support for Cisco fabric extender transceivers, hot-swappable power supplies and fan modules, and front-to-back cooling further enhance the usability and reliability of this fabric extender. With these features, users can experience increased bandwidth, scalability, flexibility, reduced downtime, improved reliability, optimal performance, hardware protection, and energy efficiency in their network operations.
