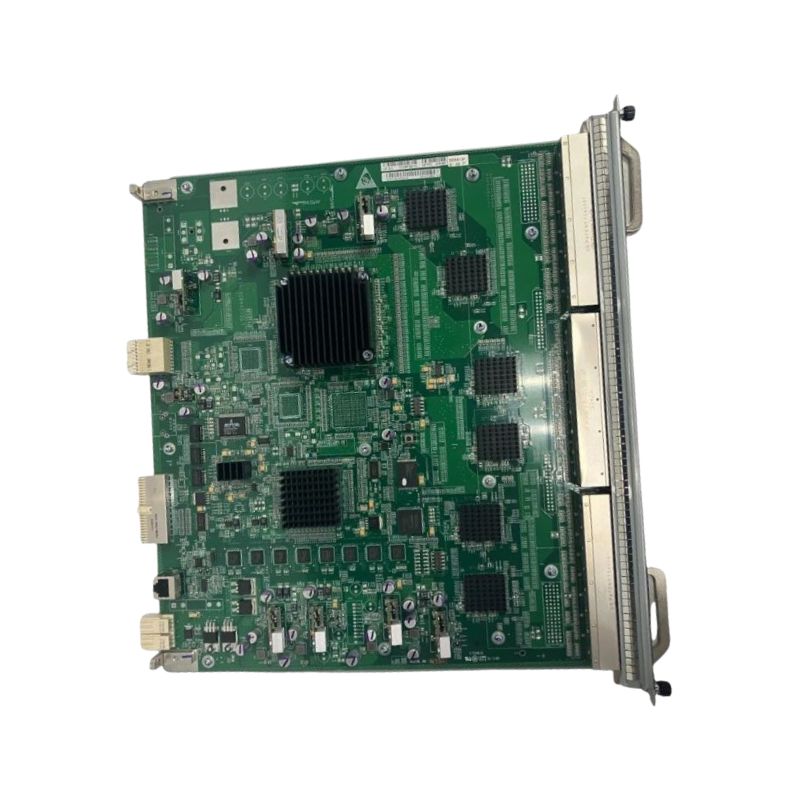

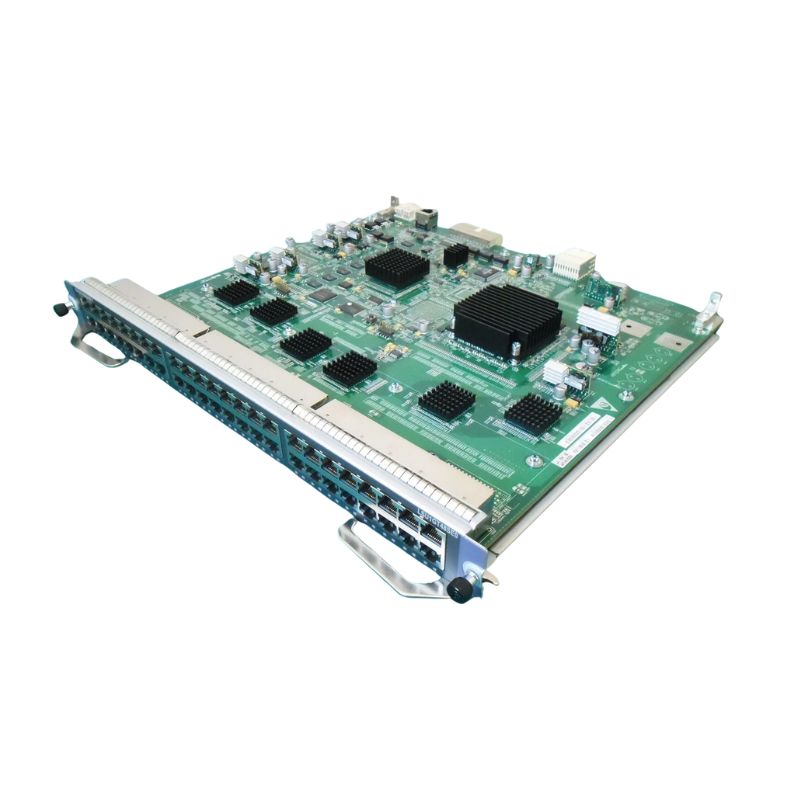

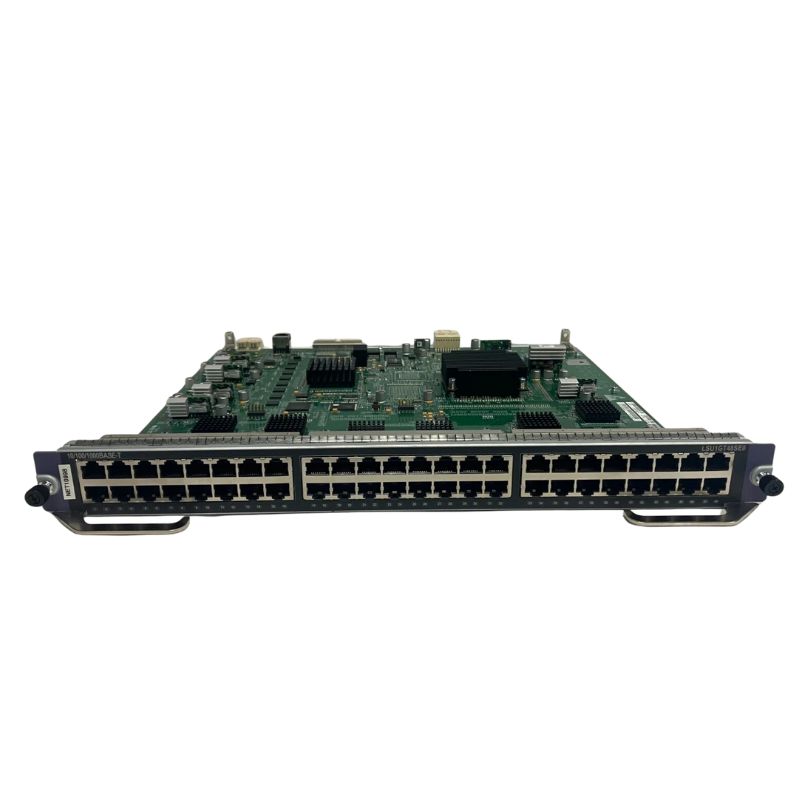

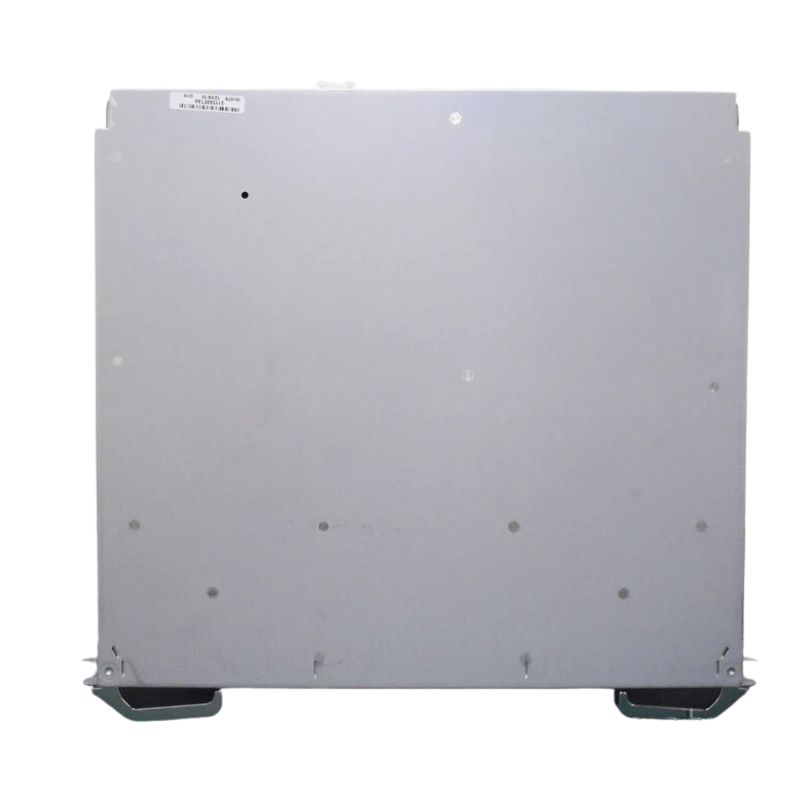

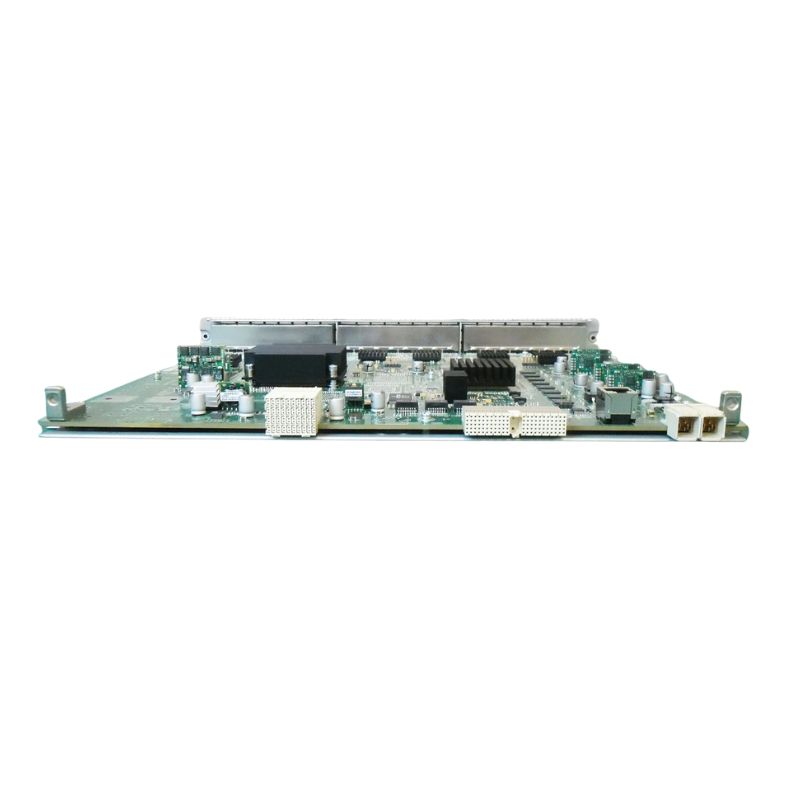

JC618A HPE A10500 48-port Gig-T SE Interface Module

HPE JC618A 48-Port Gigabit Ethernet Interface Module

The HPE JC618A 48-Port Gig-T SE LAN Interface Module is a high-density networking expansion component designed for enterprise-grade switching environments. Built by Hewlett Packard Enterprise, this module delivers reliable 10/100/1000Base-T connectivity across 48 RJ-45 ports, enabling scalable LAN infrastructure for data centers, enterprise campuses, and high-performance access layers.

General Information

• Manufacturer: HPE
• Part Number: JC618A
• Product Category: LAN Interface Module

High-Density 48-Port Gigabit Connectivity

• 48 × RJ-45 Gigabit Ethernet ports
• Supports 10/100/1000Base-T speeds
• Designed for enterprise LAN expansion
• Compatible with twisted pair cabling (Cat5e / Cat6 recommended)
• Ideal for high-density access networking

Physical and Media Details

• Connector Type: RJ-45 copper interfaces
• Media Support: Twisted pair cabling (Cat5e, Cat6, or higher)
• Installation: Chassis-based modular integration
• Design: High-density enterprise networking module

Key Performance Features

• Simultaneous full-speed operation on all ports
• Support for jumbo frames for improved data efficiency
• Layer 2 and Layer 3 forwarding (chassis-dependent)
• Optimized traffic handling for enterprise workloads
• Stable performance in high-traffic environments

Key Features

• VLAN segmentation and management
• EtherChannel / link aggregation (trunking)
• Access Control Lists (ACLs) for security enforcement
• Quality of Service (QoS) traffic prioritization
• Centralized network policy control

Eco-Friendly Engineering

• RoHS compliant design for reduced hazardous materials
• Energy-efficient operation within supported chassis
• Optimized hardware design for long lifecycle usage
• Environmentally responsible manufacturing standards

Cooling Best Practices

• Follow front-to-back airflow configuration standards
• Ensure proper rack spacing for ventilation efficiency
• Avoid mixing incompatible modules that may disrupt airflow
• Maintain correct fan tray and power supply configuration
• Adhere to HPE installation and service recommendations

Operational Benefits

• Reduces need for additional switching hardware
• Simplifies structured cabling architecture
• Improves network manageability and scalability
• Supports centralized policy enforcement
• Enhances overall LAN performance efficiency

HPE JC618A 48-Port Gig-T LAN Interface Module

The HPE JC618A 48-Port Gig-T SE 48 x 10/100/1000Base-T LAN Interface Module is a high-density enterprise networking component designed to deliver scalable wired Ethernet connectivity within modular HPE switching environments. Engineered for large-scale LAN deployments, this interface module provides 48 dedicated Gigabit Ethernet copper ports supporting 10/100/1000Base-T speeds, enabling flexible integration into enterprise campus networks, data centers, and service provider infrastructures where reliable high-throughput connectivity is essential.

As part of Hewlett Packard Enterprise’s modular switching ecosystem, this LAN interface module is built to enhance port density without requiring additional standalone switches. It allows organizations to expand network capacity efficiently within existing chassis-based systems, ensuring cost-effective scalability and simplified infrastructure management. The module is commonly deployed in environments that demand stable, high-bandwidth access for end-user devices, servers, wireless access points, and network appliances.

High-Density Port Engineering

The JC618A module is designed around a high-density architecture that integrates 48 Gigabit Ethernet ports into a single modular unit. This compact design significantly increases the number of available access ports within a chassis, allowing network administrators to maximize physical space utilization while maintaining high-performance connectivity standards.

Each port is capable of auto-negotiating between 10 Mbps, 100 Mbps, and 1000 Mbps speeds, ensuring compatibility with a wide range of legacy and modern devices. This flexibility makes the module suitable for heterogeneous network environments where device capabilities vary significantly.

Backplane Integration and Switching Fabric Connectivity

The module connects directly to the internal switching fabric of compatible HPE chassis systems. This backplane integration ensures high-speed communication between the interface module and the central switching engine. By leveraging a high-bandwidth internal architecture, the module minimizes latency and supports consistent data forwarding performance across all active ports.

The switching fabric architecture is optimized for non-blocking performance under typical enterprise workloads, enabling simultaneous full-duplex communication across multiple ports without congestion-related degradation.

Energy-Efficient Ethernet Design

Energy efficiency is a core consideration in the design of the JC618A module. It incorporates energy-efficient Ethernet technologies that dynamically adjust power consumption based on link status and traffic activity. Ports that are idle or operating under reduced load automatically scale down power usage, contributing to lower operational costs and improved environmental sustainability in large deployments.

Gigabit Ethernet Throughput Optimization

The module supports full Gigabit Ethernet throughput across all 48 ports, ensuring consistent high-speed data transmission for bandwidth-intensive applications. This capability is essential in environments such as virtualized data centers, high-density user access networks, and enterprise backbone distribution layers.

Traffic handling is optimized through internal buffering mechanisms and intelligent packet scheduling, allowing the module to manage burst traffic conditions efficiently without packet loss or significant latency increases.

Auto-Negotiation and Link Adaptability

Each port on the JC618A module is equipped with auto-negotiation functionality, enabling automatic detection of the optimal link speed and duplex settings based on connected device capabilities. This ensures seamless interoperability with a wide range of network equipment, including legacy infrastructure and modern high-speed endpoints.

Link adaptability reduces configuration complexity and minimizes manual intervention during device onboarding, making the module highly suitable for large-scale enterprise deployments.

Chassis-Based Deployment Model

The HPE JC618A module is designed for installation in compatible HPE chassis systems, where it operates as part of a larger modular switching framework. This deployment model allows organizations to scale network capacity by adding interface modules as needed, without replacing the entire switching infrastructure.

The chassis-based design ensures centralized management, power distribution, and cooling, reducing operational complexity and simplifying network maintenance tasks.

Interoperability with Switching Control Modules

The module works in conjunction with centralized switching control modules that manage routing, forwarding, and network policy enforcement. This separation of interface and control functions enhances system efficiency and allows for more flexible network architecture design.

The interaction between interface modules and control modules ensures consistent forwarding behavior across all ports while maintaining centralized policy control.

Scalability Across Enterprise Network Layers

The JC618A module supports scalable deployment across access, aggregation, and distribution layers of enterprise networks. Its high port density makes it particularly effective in access layer deployments where large numbers of end devices must be connected efficiently.

As network demand grows, additional modules can be added to the chassis, allowing incremental expansion without disruption to existing services.

Non-Blocking Architecture Design

The module is engineered with a non-blocking architecture that ensures all ports can operate simultaneously at full line rate under optimal conditions. This design eliminates internal bottlenecks and ensures predictable performance even under heavy traffic loads.

Non-blocking performance is critical in environments where multiple high-bandwidth applications operate concurrently, such as virtualization clusters, video streaming systems, and enterprise cloud access networks.

Packet Forwarding Efficiency

The internal packet forwarding engine is optimized for low-latency switching operations. Packets are processed through high-speed ASIC-based forwarding logic that reduces processing overhead and accelerates data transmission between ports.

This hardware-based forwarding approach ensures deterministic performance and reduces dependency on CPU-based processing, enhancing overall system efficiency.

Buffer Management and Congestion Control

Advanced buffer management techniques are implemented to handle traffic bursts and prevent packet loss during congestion events. Dynamic buffer allocation ensures that high-priority traffic is prioritized while maintaining fair resource distribution across all active ports.

Congestion control mechanisms help maintain stable network performance even in high-utilization scenarios, ensuring consistent user experience across connected devices.

Large-Scale Campus Network Deployments

In enterprise campus environments, the JC618A module provides high-density connectivity for offices, departments, and building-level network distribution. It supports large numbers of end-user devices, including computers, printers, IP phones, and wireless access points.

Its ability to deliver consistent Gigabit connectivity across all ports makes it ideal for modern digital workplaces that rely heavily on cloud-based applications and unified communications systems.

Data Center Access Layer Connectivity

Within data center environments, the module is used in access layer switching configurations where servers and storage devices require high-speed Ethernet connectivity. It supports virtualization workloads and distributed computing environments where low-latency communication is essential.

The high port density enables efficient rack-level connectivity, reducing the need for additional switching hardware and simplifying cabling infrastructure.

Service Provider Edge Networks

Service providers utilize the JC618A module in edge network deployments where customer aggregation and traffic management are required. The module’s scalability and reliability make it suitable for handling large volumes of subscriber traffic while maintaining service quality.

Centralized Network Administration

When deployed within HPE chassis systems, the JC618A module benefits from centralized network administration capabilities. Administrators can manage configuration, monitoring, and policy enforcement from a single control interface, simplifying network operations.

Centralized management reduces operational overhead and ensures consistent configuration standards across all interface modules within the system.

Diagnostics and Fault Detection Systems

The module includes built-in diagnostic features that continuously monitor port status, link integrity, and hardware performance. These diagnostics enable early detection of potential issues and help maintain overall network reliability.

Fault detection mechanisms provide real-time alerts that assist administrators in quickly identifying and resolving connectivity problems.
