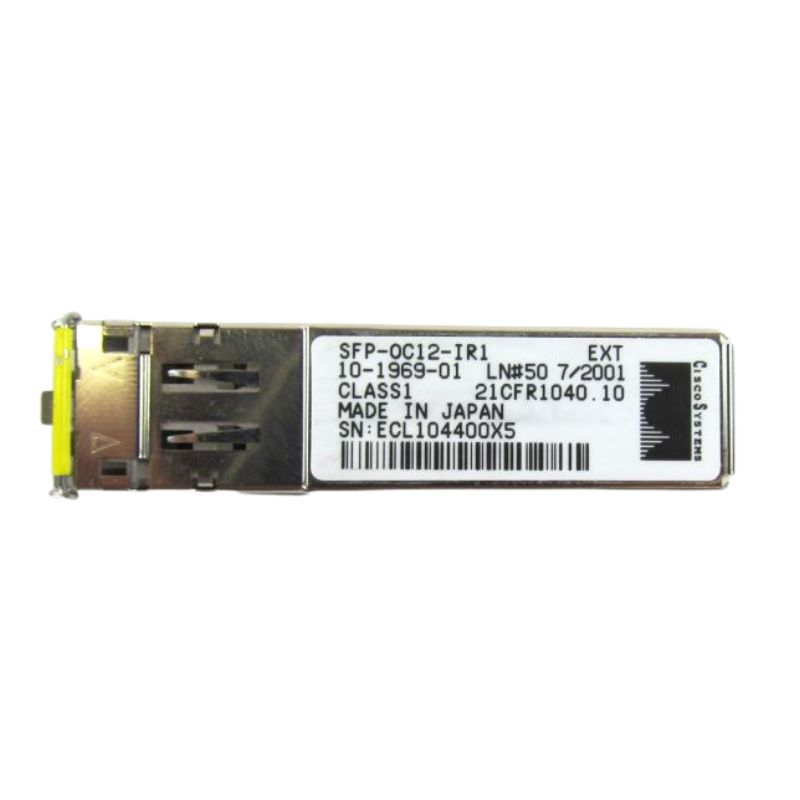

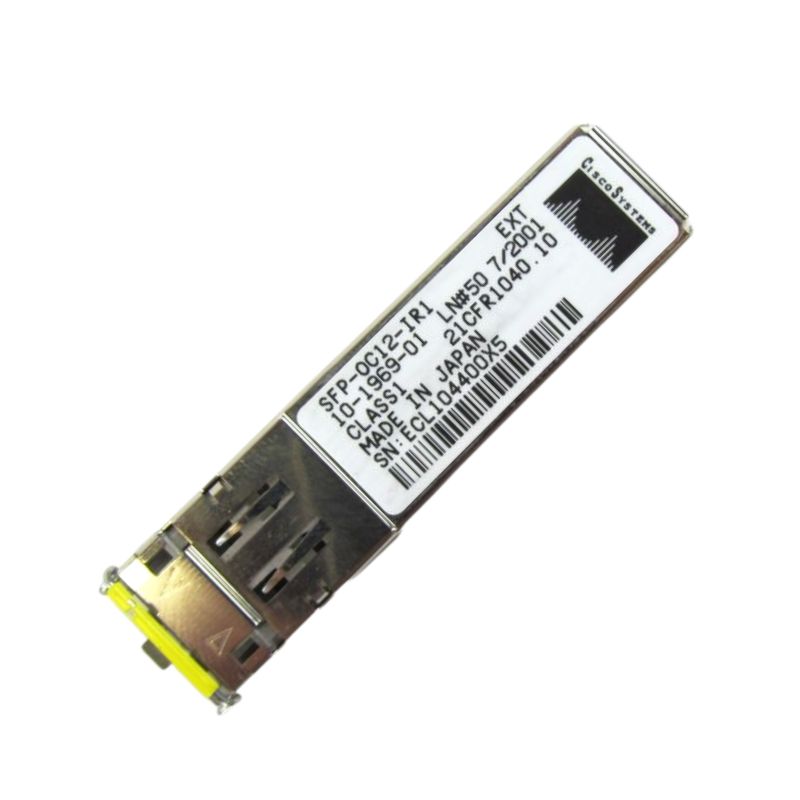

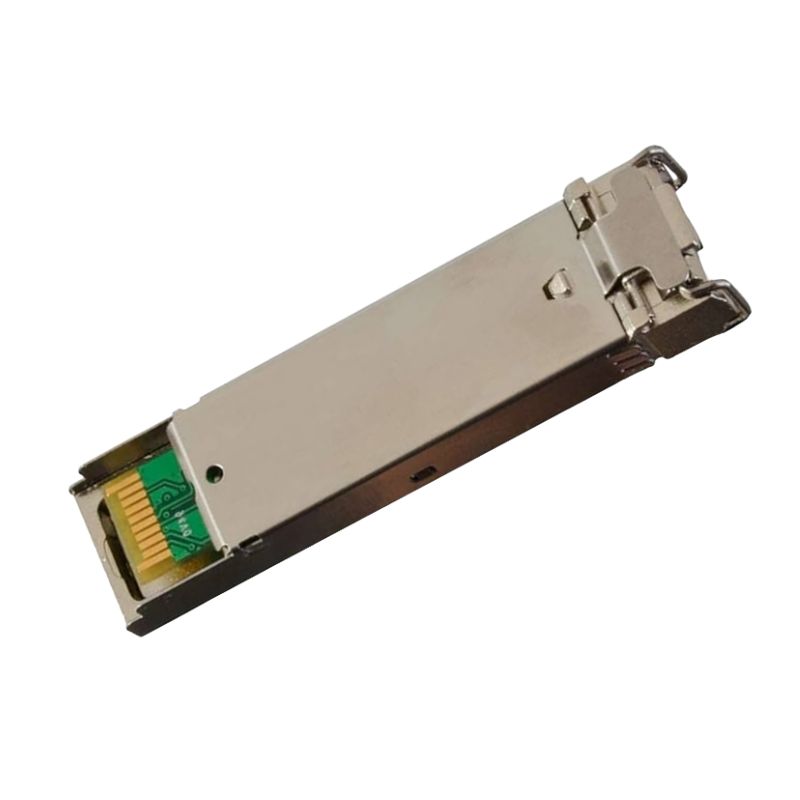

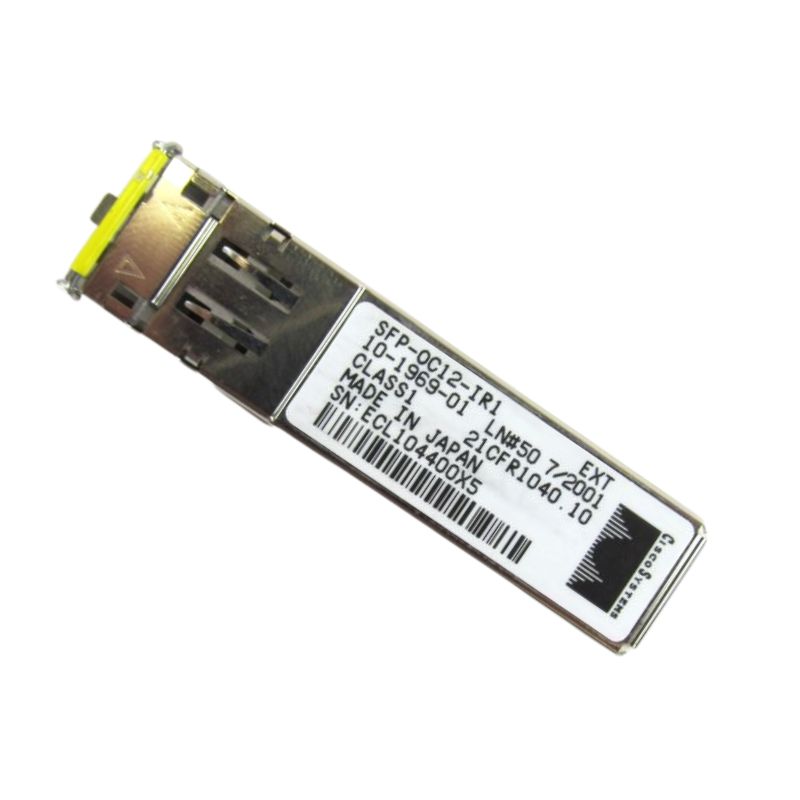

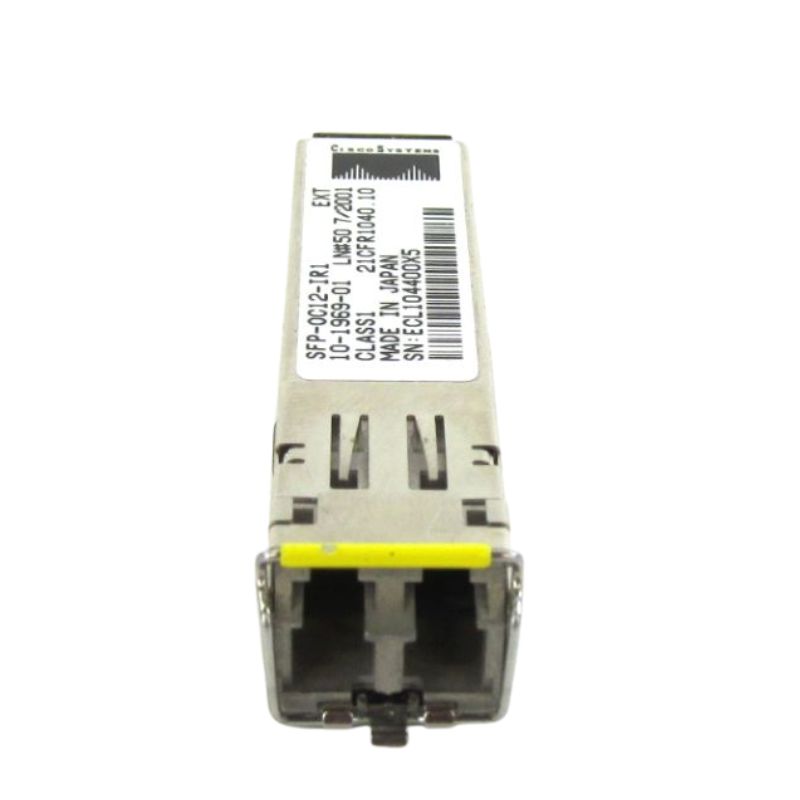

SFP-OC12-IR1 Cisco 622MBPS SMF SFP Transceiver Module

Overview of the Transceiver Module

The SFP-OC12-IR1 Cisco 622MBPS SMF SFP Transceiver Module is a high-performance optical networking component designed for reliable data transmission across long-distance fiber optic networks. Built to support OC-12 SONET standards, this Small Form-Factor Pluggable (SFP) module delivers a data rate of 622 Mbps over single-mode fiber (SMF), making it a crucial element in carrier-grade telecommunications, enterprise backbone infrastructures, and high-capacity metropolitan area networks (MANs).

Main Information

• Brand: Cisco
• Model: SFP-OC12-IR1
• Product Title: OC-12/STM-4 Intermediate-Reach SFP Module

Technical Specifications

• Usage: Data Networking
• Data Transfer Rate: 622 Mbps OC-12/STM-4
• Connector Type: LC Duplex
• DOM Support: Non-DOM
• Form Factor: SFP
• Media Type: Single Mode Fiber (SMF)
• Maximum Reach: 15 kilometers
• Operational Speed: OC-12
• Wavelength: 1310 nm

Ports and Interfaces

• Ports Available: 1 x OC-12/STM-4
• Interface Details: 1 x LC Duplex OC-12/STM-4

Miscellaneous Information

• Wavelength Specification: 1310-nm
• Typical Transmission Distance: Up to 15 km

Compatibility

• Cisco Shared Port Adapter (SPA) SPA-1XOC12-POS
• Cisco Shared Port Adapter (SPA) SPA-1XOC12-ATM

The Cisco 622MBPS SMF SFP Transceiver Module

This transceiver module is engineered to meet stringent networking requirements where stability, low latency, and signal integrity are essential. It enables seamless integration into Cisco-compatible networking devices, including routers, switches, and optical transport systems that support SFP interfaces. Its IR1 designation typically refers to intermediate reach applications, balancing cost efficiency with medium-to-long haul transmission capability over fiber infrastructure.

Core Features of Cisco 622MBPS SMF Module

The module incorporates advanced optical and electronic engineering to ensure consistent signal quality and compatibility across network environments. It is widely used in SONET/SDH networks and enterprise-level fiber deployments. These features make the module suitable for mission-critical environments where uninterrupted connectivity is essential. Its hot-swappable nature allows technicians to replace or upgrade the module without shutting down the entire system, significantly reducing downtime in enterprise and telecom infrastructures.

Performance Characteristics

The SFP-OC12-IR1 module is designed to meet SONET OC-12 standards, ensuring synchronous optical networking performance across fiber optic channels. Its technical architecture is optimized for stability over intermediate distances using single-mode fiber cables. These specifications ensure that the module can be deployed in diverse networking environments ranging from enterprise data centers to telecom backbone infrastructures. The standardized SFP design guarantees compatibility across multiple hardware platforms while maintaining consistent optical performance.

Applications in Modern Network Infrastructure

The Cisco SFP-OC12-IR1 622MBPS module plays a vital role in optical networking environments that require reliable and scalable data transmission. Its applications span multiple industries and network types. In these environments, consistent bandwidth delivery and minimal signal degradation are critical. The module ensures stable communication between geographically distributed systems while maintaining synchronization required by SONET architectures.

Single-Mode Fiber (SMF) Advantages in OC-12 Transmission

The use of single-mode fiber is a key factor in achieving long-distance, high-quality transmission in OC-12 systems. SMF cables are designed with a narrow core diameter, allowing only one mode of light propagation, which significantly reduces dispersion and signal loss. The SFP-OC12-IR1 module leverages these advantages to provide stable optical performance in medium-reach deployments, making it suitable for inter-building and metro-area connectivity solutions.

SONET OC-12 Standard and Network Synchronization

The OC-12 designation refers to Optical Carrier Level 12 in the SONET hierarchy, representing a transmission rate of approximately 622 Mbps. SONET (Synchronous Optical Networking) is a standardized digital communication protocol used primarily in North America for high-speed optical networks. The SFP-OC12-IR1 module ensures compliance with these standards, enabling seamless integration into SONET-based infrastructures. This ensures accurate timing synchronization, which is essential for voice, video, and data transmission across long-distance networks.

Compatibility with Cisco Networking Equipment

The SFP-OC12-IR1 module is designed to operate within Cisco networking ecosystems, ensuring seamless integration with a wide range of routers and switches that support SFP optical interfaces. Compatibility is a key factor in ensuring stable performance and avoiding interoperability issues in enterprise networks. Using Cisco-compatible transceivers ensures optimal firmware recognition, diagnostic reporting, and performance monitoring within network management systems.

Digital Diagnostics and Network Monitoring

Many SFP-OC12-IR1 modules support Digital Diagnostic Monitoring (DDM), which allows real-time tracking of critical operating parameters. This feature enhances network reliability and simplifies troubleshooting. These diagnostic capabilities allow network engineers to proactively identify potential issues before they impact performance, ensuring higher uptime and improved service quality.

Reliability and Network Performance Optimization

The SFP-OC12-IR1 Cisco module is built for environments where reliability is critical. It is designed with robust optical components that minimize signal degradation and ensure stable transmission even in demanding conditions. These characteristics make the module suitable for backbone and aggregation layers of modern communication systems where uninterrupted service delivery is essential.

Deployment Considerations for Network Engineers

When deploying the SFP-OC12-IR1 module, network engineers must consider fiber quality, distance limitations, and system compatibility. Proper planning ensures optimal performance and long-term reliability. Attention to these factors helps prevent signal degradation and ensures that the module operates within its intended performance range.
