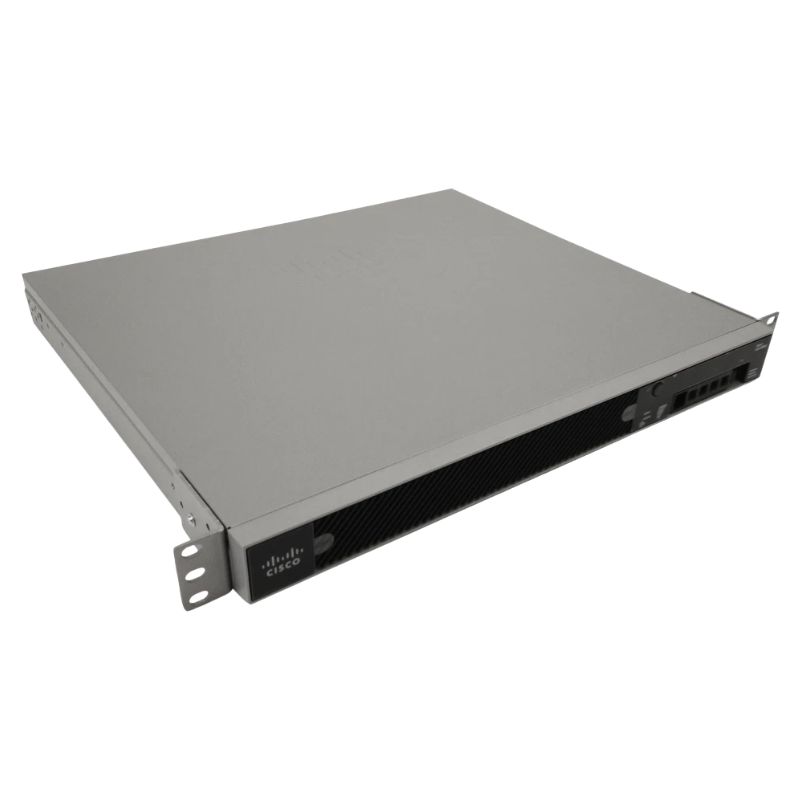

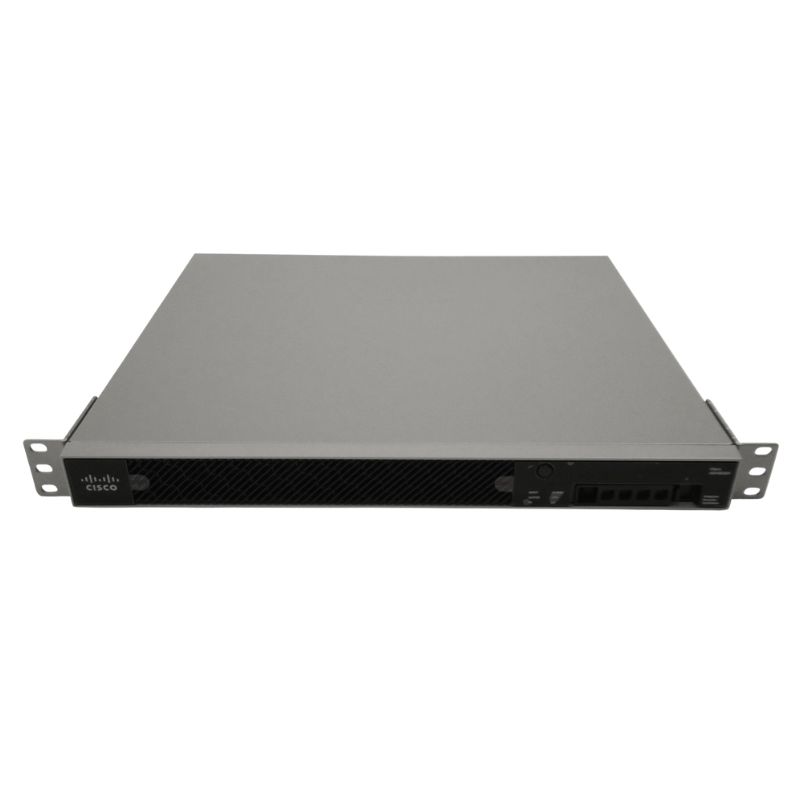

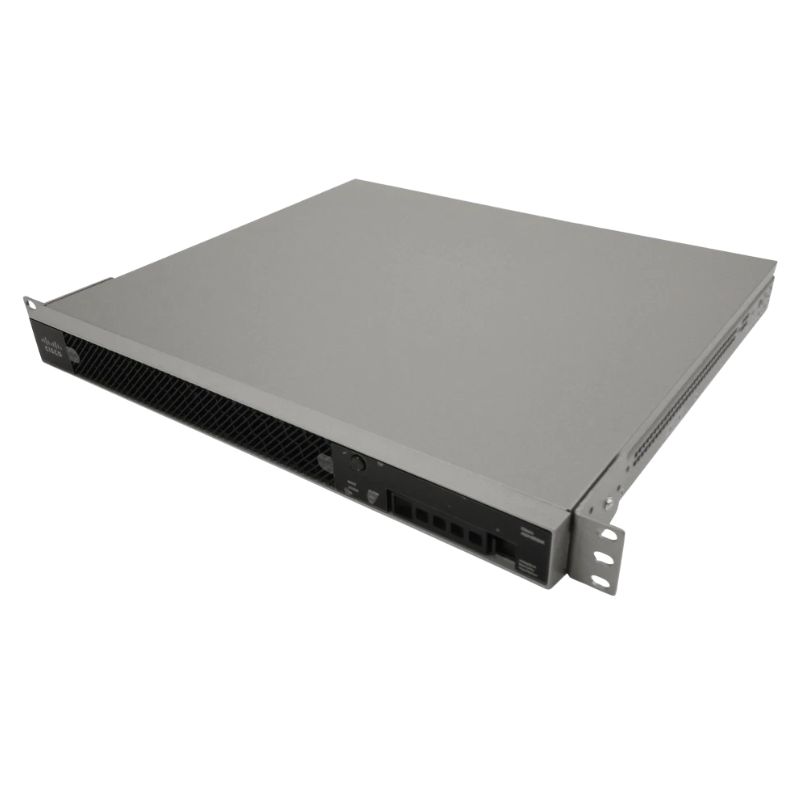

ASA5512-IPS-K9 Cisco ASA IPS Edition Security Appliance

Product Overview of the Cisco ASA 5500 Security Appliance

Cisco ASA5512-IPS-K9 is a high-performance network security appliance designed to deliver advanced threat defense and reliable enterprise-grade firewall protection. Built under the ASA 5500 series, this IPS edition device integrates intrusion prevention capabilities with robust VPN support, ensuring secure connectivity across business environments while maintaining optimized network traffic flow.

General Information

• Brand: Cisco
• Part Number: ASA5512-IPS-K9
• Product Line: ASA
• Series: 5500
• Model: ASA 5512-X
• Product Name: ASA 5512-X IPS Edition
• Category: Network Security Appliance

Technical Specifications

• Supports up to 250 IPsec VPN peer connections for secure site-to-site communication
• Allows 2 premium AnyConnect VPN sessions for remote access users
• Handles up to 100,000 simultaneous active connections
• Processes nearly 10,000 new connection requests per second efficiently
• Supports up to 50 virtual interfaces (VLAN segmentation)

Firewall & Security Protection

• Integrated antivirus scanning for real-time threat detection
• Advanced anti-spyware and malware protection layers
• Built-in Intrusion Prevention System (IPS) for proactive defense
• Remote access authentication control for secure user validation
• Policy-based access control enforcement
• Content filtering for safer browsing and network usage
• Application-layer traffic inspection and filtering
• Worm detection and prevention system
• Deep packet inspection firewall technology for enhanced security

Encryption Standards

• DES encryption support for legacy compatibility
• 3DES encryption for improved data security
• AES encryption for strong modern cryptographic protection

Interface & Port

• Total Ports: 6 high-speed interfaces
• USB connectivity included for management and upgrades
• Dedicated management port available
• Rack-mountable design with 1U form factor
• No DSL port included

Network Features

• Gigabit Ethernet technology for high-speed data transmission
• Supports 10/100/1000Base-T network standards
• No wireless LAN support for enhanced wired security focus
• One expansion slot available for future scalability
• Fully manageable through centralized administration tools

Memory & Storage

• 1 GB DRAM memory for smooth processing performance
• 256 MB flash storage for system firmware and configurations
• Supports Compact Flash memory cards

Power

• Dual input voltage support: 110V AC and 220V AC
• Standard internal power supply unit

Compatibility

• Compatible with Cisco AnyConnect VPN client for secure remote access
• Supports IPsec VPN-based routers and enterprise firewall systems
• Works seamlessly with Cisco Catalyst and other managed Ethernet switches
• Designed for rack-mounted server environments with standard 1U rack units
• Compatible with Gigabit Ethernet-based network infrastructures
• Integrates with enterprise authentication systems such as RADIUS and LDAP
• Supports Cisco network management platforms for centralized control
• Suitable for hybrid LAN/WAN enterprise architectures requiring advanced security layering

The Cisco ASA5512 IPS K9 Security Appliance Architecture

The Cisco ASA5512 IPS K9 ASA IPS Edition 6 Ports Security Appliance is engineered as a mid-range network security device designed to deliver integrated firewall protection and intrusion prevention capabilities within enterprise environments. Its architecture is built around a high-performance processing system that enables simultaneous handling of multiple security tasks without degrading throughput. The design focuses on combining firewall functions, intrusion prevention, VPN support, and advanced traffic inspection into a single unified platform that can be deployed at network perimeters or internal segmentation points.

The internal structure of this appliance is optimized for efficiency in packet processing, where data flows are inspected in real time. The system is designed to reduce latency while maintaining strict security enforcement. It supports multiple security contexts, allowing organizations to logically segment networks while using a single hardware unit. This architecture makes it suitable for environments requiring consistent enforcement of security policies across different departments or branches.

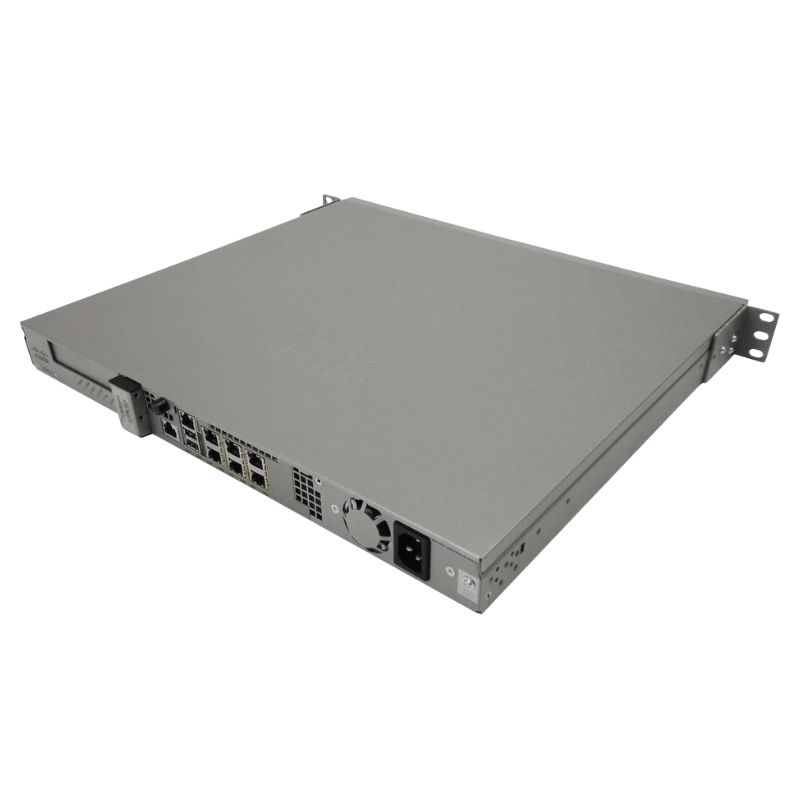

Hardware Ports Security Appliance

The hardware design of this security appliance includes six physical ports that support flexible network configurations. These ports allow administrators to define different zones such as internal networks, external internet-facing interfaces, and demilitarized zones. Each interface can be independently configured to apply specific security rules, enabling granular control over traffic movement.

The appliance is built with robust processing hardware capable of handling high volumes of concurrent sessions. Memory architecture is optimized to support stateful inspection tables, connection tracking, and IPS signature processing. The physical design ensures stable operation in rack-mounted deployments, making it suitable for data center environments where reliability and uptime are critical requirements.

IPS Engine Integration

The intrusion prevention system integrated into the Cisco ASA5512 IPS K9 operates as a core security component that analyzes network traffic for malicious patterns. It uses signature-based detection combined with behavioral analysis techniques to identify potential threats. This allows the system to detect known attack vectors as well as suspicious activities that deviate from normal network behavior.

The IPS engine operates inline, meaning it can actively block malicious traffic before it reaches its destination. This real-time inspection capability ensures that threats are neutralized at the network boundary. The system continuously updates its signature database to maintain protection against emerging vulnerabilities and attack methods. The integration between firewall and IPS functions ensures seamless enforcement of security policies.

Firewall Processing Stateful

The firewall component of the appliance performs stateful inspection, meaning it tracks the state of active connections and determines whether packets should be allowed or denied based on established rules. This method provides a higher level of security compared to stateless filtering, as it understands the context of each session.

Each packet passing through the system is evaluated against predefined security policies. These policies define acceptable communication patterns between network segments. The firewall engine maintains session tables that record connection states, ensuring that only legitimate traffic flows are permitted. This approach reduces the risk of unauthorized access and network-based attacks.

Network and Performance Optimization

Performance optimization is a key aspect of the Cisco ASA5512 IPS K9 design. The appliance is capable of handling significant throughput levels while maintaining low latency. This is achieved through hardware acceleration and optimized packet processing pipelines. The system distributes workload efficiently between firewall processing, IPS analysis, and VPN encryption tasks.

The architecture minimizes packet inspection delays by using streamlined processing paths. This ensures that even under heavy network load, performance remains stable. The device is suitable for organizations that require consistent bandwidth availability while maintaining strict security enforcement across all traffic flows.

Deployment Scenarios in Enterprise Networks

The Cisco ASA5512 IPS K9 is commonly deployed in enterprise edge environments where it acts as the primary security gateway between internal networks and external connections. It can also be used in branch office deployments where centralized security policies must be enforced across distributed locations.

In addition to perimeter deployment, it is often implemented in internal segmentation roles. This allows organizations to isolate sensitive network segments such as finance systems, human resources data, or research environments. By controlling traffic between internal zones, the appliance enhances overall network security posture.

VPN Capabilities and Secure Connectivity

The appliance supports virtual private network functionality, enabling secure communication between remote users and central network resources. It uses encryption protocols to ensure data confidentiality and integrity during transmission. VPN tunnels can be configured for site-to-site or remote access scenarios, providing flexibility in network design.

Secure connectivity is achieved through strong encryption algorithms that protect data from interception. Authentication mechanisms ensure that only authorized users and devices can establish secure connections. This makes the system suitable for organizations with distributed workforces or multiple branch offices requiring secure communication channels.

Security Policies and Access Control Models

Access control within the Cisco ASA5512 IPS K9 is managed through policy-based rules that define how traffic is handled across different network segments. These policies are highly configurable, allowing administrators to define permissions based on source, destination, protocol, and application type.

The system supports layered security models where multiple rules are applied in sequence to determine final traffic behavior. This structured approach ensures that security decisions are consistent and predictable. It also reduces the risk of misconfiguration by providing clear rule hierarchies.

High Availability and Redundancy

High availability features ensure that the Cisco ASA5512 IPS K9 can maintain continuous operation even in the event of hardware or software failures. Redundant configurations allow multiple appliances to operate in synchronized modes, providing failover capabilities.

This redundancy ensures that network security is not compromised during maintenance or unexpected outages. The system automatically switches to backup units when necessary, minimizing downtime and maintaining consistent protection for network traffic.

Software Features and ASA Operating System

The ASA operating system provides the core software environment for the appliance. It includes a wide range of security features such as firewall management, IPS configuration, VPN setup, and traffic analysis tools. The interface is designed for efficient administration of complex security environments.

Software updates enhance system capabilities by introducing new security features and improving existing functionalities. The operating system is optimized for stability and performance, ensuring reliable operation under demanding network conditions.

Scalability in Mid-Range Network Environments

The Cisco ASA5512 IPS K9 is designed to scale within mid-range network environments where moderate to high traffic volumes are expected. Its architecture supports incremental expansion of security policies and network segments without requiring hardware replacement.

This scalability makes it suitable for growing organizations that require adaptable security infrastructure capable of evolving with business needs.

Integration with Enterprise Security Ecosystem

The appliance integrates with broader enterprise security ecosystems, allowing centralized management and coordination with other security tools. This includes integration with monitoring systems, threat intelligence platforms, and network management solutions.

Such integration enhances visibility across the entire network infrastructure, enabling faster detection and response to security incidents.

Use Cases

This security appliance is widely used across industries such as finance, healthcare, education, and government sectors. Each environment benefits from its ability to enforce strict security policies and protect sensitive data.

In financial institutions, it helps secure transaction networks. In healthcare environments, it protects patient data systems. In educational institutions, it manages access to academic resources and research networks.

Performance and Optimization

Performance tuning allows administrators to optimize the appliance for specific network conditions. Adjustments can be made to inspection levels, logging intensity, and traffic handling priorities.

These optimizations ensure that the system operates efficiently while maintaining strong security enforcement across all network segments.

Future Ready Network Security

The Cisco ASA5512 IPS K9 is designed with adaptability in mind, allowing it to remain relevant in evolving network environments. Its modular security architecture supports integration with new technologies and emerging security standards.

This forward-compatible design ensures that organizations can continue using the appliance as part of their long-term network security strategy while adapting to future technological changes.
