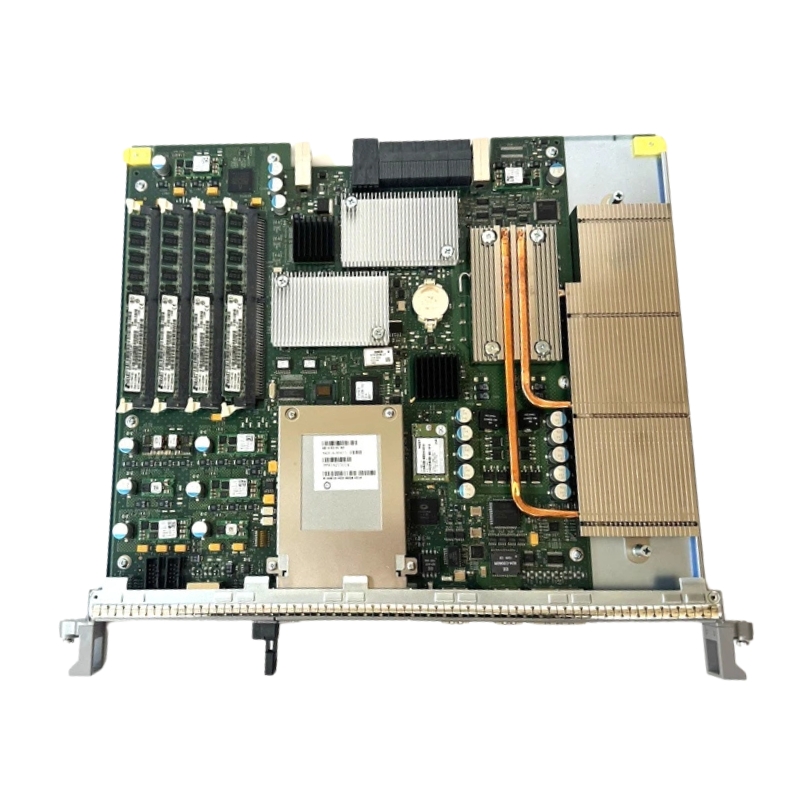

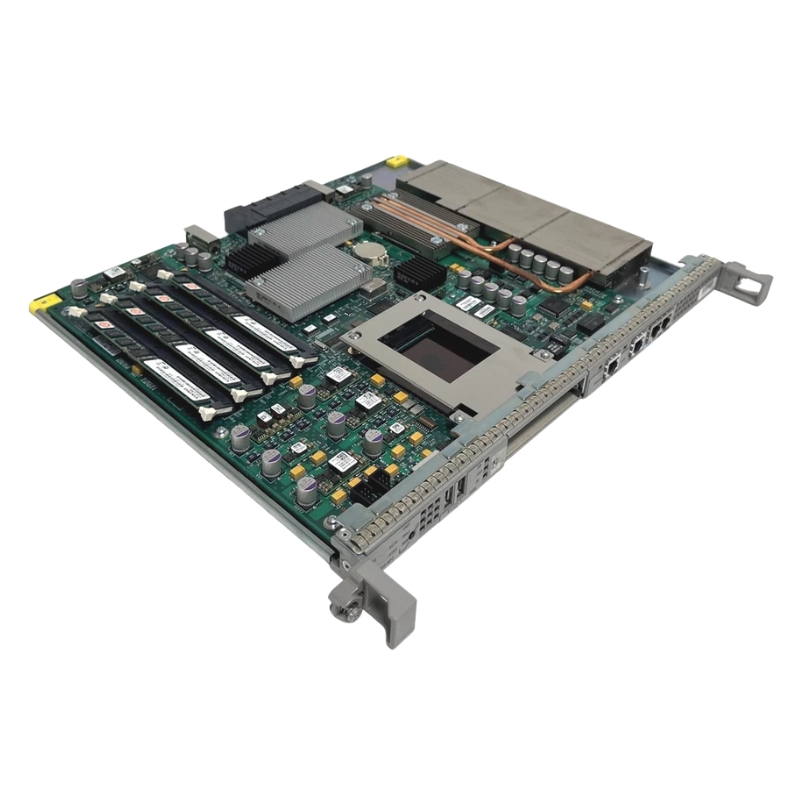

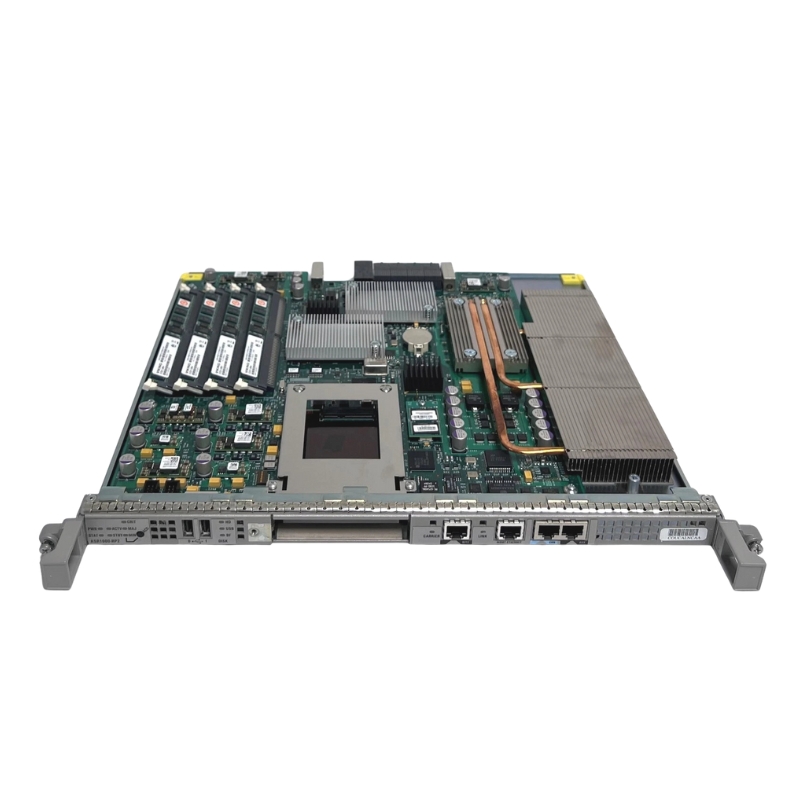

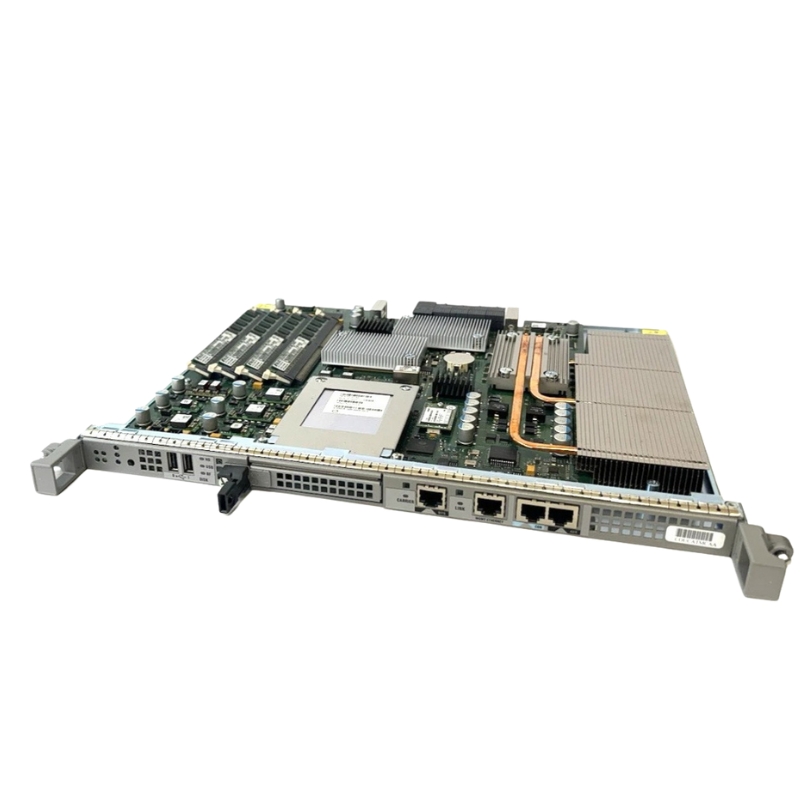

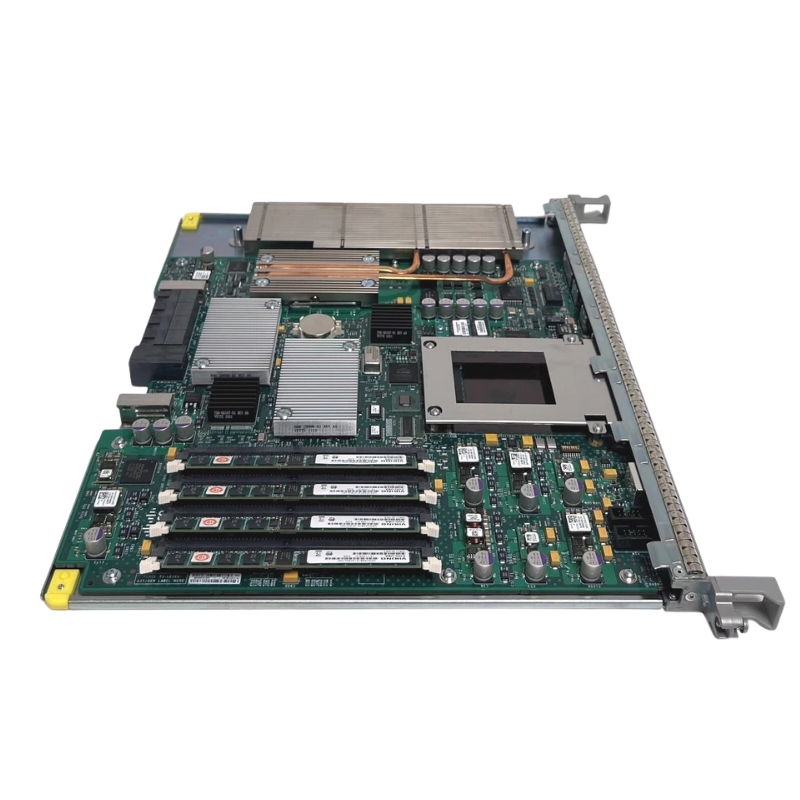

Cisco ASR1000-RP2= ASR 1000 Series Route Processor 2 Firewall Router.

Brand and Model Information

• Manufacturer: Cisco
• Model Number: ASR1000-RP2=
• Device Type: Route Processor Module
• Enclosure Type: Plug-in Module

Capacity and Performance

• IPv4 Routes: Supports up to 4,000,000 IPv4 routes, providing extensive routing table capacity for large-scale networks.
• IPv6 Routes: Accommodates up to 2,000,000 IPv6 routes, ensuring efficient handling of next-generation IP traffic.

Advanced Routing and Networking Features

Protocol Support and Management

• Remote Management: Capable of remote management via SNMP (Simple Network Management Protocol), Telnet, and SSH (Secure Shell), facilitating convenient and secure network administration.
• VPN Support: Provides comprehensive support for Virtual Private Networks (VPNs), enabling secure communication and data protection across networks.
• MPLS Support: Supports Multiprotocol Label Switching (MPLS) for efficient and scalable network traffic management.
• IPv6 Support: Fully compatible with IPv6, ensuring readiness for future network expansions and next-generation applications.

High Availability and Failover Capabilities

• Stateful Switchover (SSO): Ensures uninterrupted network service by allowing seamless failover in the event of hardware or software failures.
• MPLS VPN: Supports MPLS-based Virtual Private Networks, enhancing the flexibility and security of data routing across different network segments.

Compatibility and Integration

Designed For ASR 1000 Series Models

The ASR1000-RP2= is designed to integrate seamlessly with various models within the Cisco ASR 1000 Series, offering enhanced routing capabilities across different configurations:

• ASR 1004: Compatible with the ASR 1004 and its bundles, including the FPI, HA, Security HA, VPN and Firewall, and VPN Bundles.
• ASR 1006: Supports the ASR 1006 series and associated bundles, including the BB, FPI, HA, Security HA, VPN and Firewall, and VPN Bundles.

Deployment and Use Cases

Enterprise Networking

The ASR1000-RP2= is ideal for enterprise networks that require high-capacity routing and robust performance. Its ability to handle large numbers of routes and advanced features make it suitable for large corporate environments with demanding network requirements.

Service Providers

Service providers benefit from the ASR1000-RP2=’s scalability and advanced protocol support, enabling efficient management of large-scale data traffic and providing reliable service to end-users.

Data Centers

In data center environments, this route processor enhances performance and reliability, supporting high-speed data routing and integration with other critical data center components.

Management and Configuration

Ease of Configuration

The ASR1000-RP2= simplifies network management with user-friendly configuration options and tools, allowing network administrators to deploy and manage routing efficiently:

• CLI (Command-Line Interface): Provides detailed control over device configuration, allowing experienced administrators to fine-tune settings and optimize performance.
• Web-Based Management: Offers an intuitive graphical interface for managing and monitoring the route processor, enhancing ease of use and accessibility.

Automation and Monitoring

Support for various network automation and monitoring tools ensures efficient management and proactive network maintenance:

• SNMP: Facilitates automated network monitoring and management, helping administrators detect and resolve issues promptly.
• RESTful APIs: Enables integration with automation platforms and third-party applications, streamlining network management processes.

Enterprise Network Optimization

The ASR1000-RP2= Route Processor is ideal for enterprise networks that demand high performance and reliability. Its extensive route handling capabilities and advanced features make it suitable for complex networking scenarios.

Service Provider Solutions

Service providers benefit from the ASR1000-RP2= with its high capacity for IPv4 and IPv6 routes, making it a valuable asset in managing large-scale data traffic and providing robust connectivity services.

Data Center and Cloud Integration

In data centers and cloud environments, the ASR1000-RP2= enhances network efficiency and scalability, supporting advanced routing protocols and high-speed connectivity for cloud services and virtualization applications.

Management and Integration

Network Management Tools

The ASR1000-RP2= supports various network management tools and protocols, including SNMP, Telnet, and SSH, for effective network monitoring and configuration. These tools provide administrators with the ability to manage and optimize network performance remotely.

Integration with Existing Infrastructure

This route processor integrates seamlessly with existing Cisco ASR 1000 Series routers and configurations, ensuring compatibility and ease of deployment in diverse network environments.

Overview of the Cisco ASR 1000 Series

The Cisco ASR 1000 Series is renowned for delivering robust, high-performance routing, advanced security features, and scalability. The ASR1000-RP2= is an essential component within this series, providing the necessary route processing power for enterprise-grade networks that require fast, secure, and reliable data handling. This route processor integrates seamlessly into complex networking infrastructures, enabling efficient traffic management and enhanced firewall capabilities.

Key Features of the Cisco ASR1000-RP2=

High-Performance Routing

• Enhanced Route Processing: Equipped with dual-core processors, this route processor handles a vast number of routing operations, improving overall performance in high-demand environments.
• Scalable Network Solutions: The ASR1000-RP2= is designed to scale easily with the growth of enterprise networks, making it suitable for future expansion without sacrificing performance.
• Support for Multiple Routing Protocols: Provides flexibility in network design, supporting BGP, OSPF, EIGRP, and other key routing protocols for efficient packet forwarding and network stability.

Security and Firewall Capabilities

• Integrated Security Features: This route processor includes an array of firewall and security functions, protecting the network from external threats and ensuring secure data transmission.
• Layered Firewall Protection: Multi-layer firewall protection helps prevent unauthorized access and protects sensitive enterprise data, including advanced intrusion detection and prevention systems (IDS/IPS).
• VPN Support: Supports Virtual Private Networks (VPNs), enabling secure communication between remote sites or users over public networks.

Hardware Specifications and Connectivity

Hardware Overview

• Processor: Dual-core architecture ensures high-performance routing and processing capabilities for handling a large number of sessions.
• Memory: Designed with substantial memory capacity to manage multiple tasks simultaneously, ensuring smooth operation under high workloads.
• Form Factor: The ASR1000-RP2= has a compact, rack-mountable form factor, which allows for efficient use of space in data centers or enterprise networking environments.

Connectivity Options

The Cisco ASR1000-RP2= offers flexible connectivity, making it ideal for enterprises with varying networking needs. This route processor supports a wide range of interfaces, providing extensive compatibility for different environments.

• Gigabit Ethernet Interfaces: Provides multiple Gigabit Ethernet ports to ensure high-speed connectivity for critical network traffic.
• Modular Port Options: Flexible port modules allow for future expansion, with support for 10 Gigabit and 40 Gigabit Ethernet configurations.
• Management Ports: Dedicated management ports simplify configuration and network monitoring, enhancing network administrators’ ability to manage performance and troubleshoot issues.

Advanced Routing and Traffic Management

Dynamic Traffic Management

One of the standout features of the ASR1000-RP2= is its ability to dynamically manage traffic based on network demands. This ensures that critical data packets receive priority, optimizing overall network performance.

• Quality of Service (QoS): Guarantees that high-priority traffic, such as voice or video, receives the bandwidth it requires for seamless performance.
• Load Balancing: Automatically distributes traffic across multiple paths to ensure efficient data transfer and reduce bottlenecks.
• Redundant Links: Ensures that, in case of link failure, traffic is automatically redirected to alternative paths to maintain continuous network uptime.

Routing Protocols

The ASR1000-RP2= supports a wide range of routing protocols, making it a versatile choice for various network environments. Whether used in small businesses or large enterprises, this route processor adapts to network requirements.

• BGP (Border Gateway Protocol): Ideal for large-scale enterprise networks or ISPs, enabling efficient routing of data across the internet.
• OSPF (Open Shortest Path First): A fast-converging protocol designed for use in enterprise networks, ensuring reliable internal data routing.
• EIGRP (Enhanced Interior Gateway Routing Protocol): Provides fast convergence times, making it highly suitable for real-time applications such as voice or video traffic.

High Availability and Redundancy

Redundant Hardware Design

To ensure maximum uptime, the ASR1000-RP2= is designed with redundancy in mind. This ensures that network operations continue seamlessly, even during hardware failures or maintenance periods.

• Dual Power Supply: Hot-swappable redundant power supplies minimize downtime by ensuring continued operation even if one power source fails.
• Failover Support: In case of a hardware failure, the system will automatically failover to a backup processor, maintaining network continuity.
• Hardware-Based Packet Forwarding: Efficient packet forwarding performed by hardware accelerates network performance and minimizes delays during high-traffic periods.

Network Scalability and Flexibility

Modular Expansion Options

The Cisco ASR1000-RP2= supports modular expansions that allow the addition of new interfaces or features as network demands grow. This flexibility ensures that enterprises can scale their networks without costly overhauls.

• Modular Interface Cards (MICs): Enable easy integration of additional ports, ensuring that growing networks can scale effortlessly.
• Field-Replaceable Units (FRUs): Provides flexibility in upgrading hardware components, allowing for quick replacements or upgrades without major disruptions.

Virtualization and Cloud Integration

Virtualization support and cloud integration make the Cisco ASR1000-RP2= an excellent option for enterprises looking to implement cloud-based networking solutions or virtualized infrastructure. It is designed to support cloud-native applications and services efficiently.

• Cloud-Ready Infrastructure: Supports cloud-based applications, ensuring efficient data handling and connectivity across multiple environments.
• Virtual Routing and Forwarding (VRF): Allows multiple virtual routing tables to coexist, ensuring secure and efficient segmentation of traffic for different services or departments.

Management and Automation

Comprehensive Network Management

Managing the ASR1000-RP2= is simplified with Cisco’s extensive management tools, providing IT administrators with enhanced control and visibility over network operations.

• Command-Line Interface (CLI): Provides full control over the configuration of the route processor with advanced options for experienced network administrators.
• Web-Based Management: Simplified management through a user-friendly graphical interface for monitoring network performance and making quick configuration changes.
• SNMP (Simple Network Management Protocol): Enables automated network monitoring and alerting, allowing IT teams to proactively address potential issues before they impact performance.

Automation Tools and APIs

To reduce manual network management tasks, the ASR1000-RP2= supports various automation tools and APIs, allowing network operations to be streamlined and more efficient.

• NetFlow: Provides real-time traffic monitoring and analysis, ensuring that network performance can be fine-tuned dynamically.
• RESTful APIs: Offers programmability for network automation, enabling easier integration with third-party software and automation tools like Ansible and Puppet.

Use Cases and Applications

Enterprise-Level Routing

The Cisco ASR1000-RP2= is designed for large-scale enterprise routing applications, providing advanced security, flexibility, and high-performance routing for businesses with expansive and complex networking needs. Its ability to handle large data loads makes it ideal for corporate campuses and headquarters that require reliable and high-speed connectivity.

Service Provider Networks

This route processor is also widely
