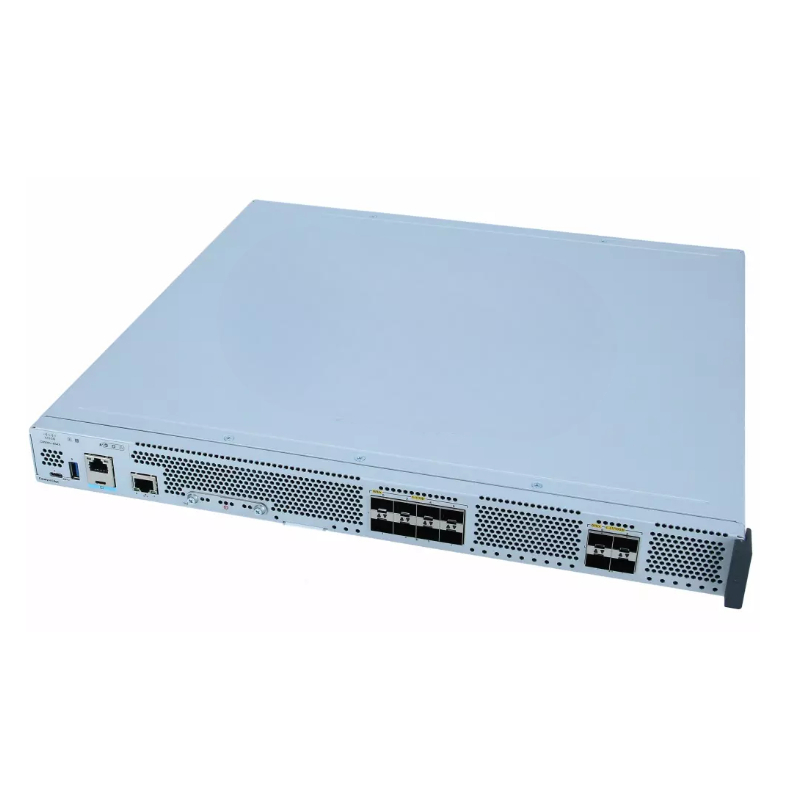

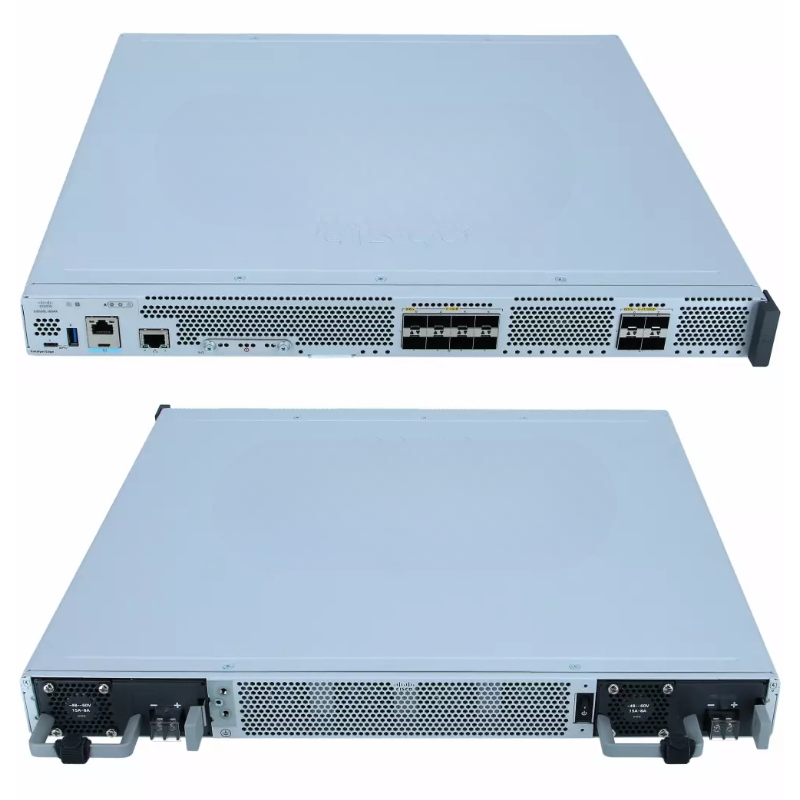

Cisco C8500L-8S4X Catalyst 8500 Series 12 Ports Ethernet Rack-mountable 1u Router.

The Cisco C8500L-8S4X Catalyst 8500 Series Router represents a state-of-the-art solution for advanced networking needs. Designed to fit seamlessly into rack-mounted configurations, this 1U router delivers superior performance and scalability. Whether you are enhancing an enterprise network or optimizing a data center, this model is engineered to provide robust performance and extensive feature sets tailored to modern networking demands.

Specifications and Performance Metrics

General Device Specifications

• Device Type: Network Switch with 12 Ports
• Form Factor: Rack-Mountable, 1U Height
• Subtype: 10 Gigabit Ethernet

Port Configuration

• Gigabit Ports: 4 x 1G/10G SFP+
• Ethernet Ports: 8 x 1000Base-T

Performance Capabilities

• SD-WAN IPSec Throughput:
  • 19 Gbps (1400 bytes, Clear Text)
  • 8.6 Gbps (IMIX, Clear Text)
• IPv4 Forwarding Throughput: 20 Gbps (1400-byte Packet Size)
• IPSec Throughput: 19 Gbps (1400 bytes, Clear Text)

Capacity and Scalability

• SD-WAN Overlay Tunnels Scale: 8000
• IPSec SVTI Tunnels: 4000
• Access Control Lists (ACLs) Per System: 4000
• Access Control Entries (ACEs) Per System (IPv4): 50,000
• IPv4 Routes: 3,500,000
• IPv6 Routes: 2,200,000
• Queues: 16,000
• NAT Sessions: 2,000,000
• Firewall Sessions: 2,000,000
• Virtual Routing and Forwarding (VRF) Entries: 8000

Advanced Routing and Protocol Support

Supported Routing Protocols

• OSPF
• IS-IS
• RIP (v1 & v2)
• BGP
• EIGRP
• HSRP
• DVMRP
• VRRP
• PIM-SM
• Static IP Routing
• IGMPv3
• GRE
• OSPFv3
• PIM-SSM
• Policy-Based Routing (PBR)
• MPLS
• Bidirectional Forwarding Detection (BFD)
• RSVP
• LISP

Remote Management Protocols

• SNMP
• SSH
• CLI
• SCP
• NETCONF
• NTP
• DHCP
• IPv4
• IPv6
• RADIUS
• OMP

Encryption and Authentication

• Encryption Algorithms: DES, Triple DES, SHA, MD5, IKE, TLS, PKI, 128-bit AES, 256-bit AES, DTLS, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA, ECDSA 256-bit, ECDSA 384-bit
• Authentication Methods: Secure Shell (SSH), RADIUS

Features and Functionalities

Security and Network Management

• Firewall Protection: Provides comprehensive firewall capabilities to safeguard against network threats.
• NAT Support: Facilitates network address translation for enhanced connectivity and security.
• VPN Support: Includes advanced VPN features for secure remote access.
• VLAN Support: Offers VLAN support for network segmentation and improved traffic management.
• Syslog Support: Supports logging and monitoring via Syslog for operational insights.
• QoS and Traffic Management: Implements CBWFQ, WRED, and other Quality of Service features to optimize network performance.

Advanced Networking Technologies

• IPFIX: Supports IP Flow Information Export for detailed network traffic analysis.
• MACsec Support: Provides MACsec (Media Access Control Security) for secure data transmission.
• SD-WAN Support: Facilitates SD-WAN (Software-Defined WAN) for improved network agility and management.
• TrustSec Support: Integrates TrustSec for network access control and policy enforcement.
• NBAR: Includes Network-Based Application Recognition for traffic identification and optimization.

Expansion and Connectivity

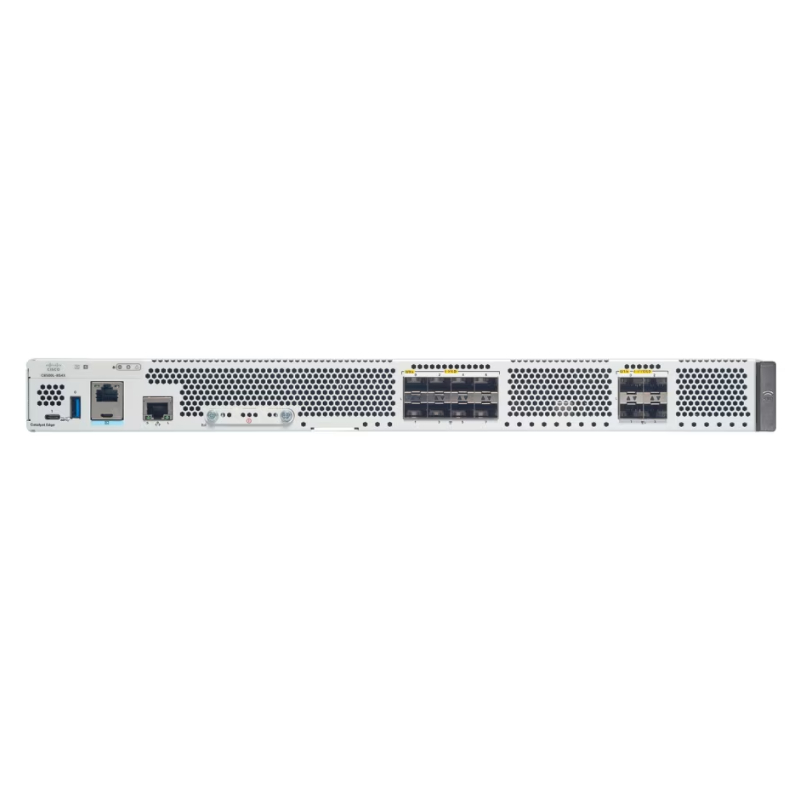

Interfaces and Ports

• SFP+ Ports: 4 x 1G/10GBase-X SFP+
• Ethernet Ports: 8 x 1000Base-T RJ-45
• Management Ports:
  • 1 x Management RJ-45
  • 1 x USB 3.0 Type A
  • 1 x Mini-USB Type B

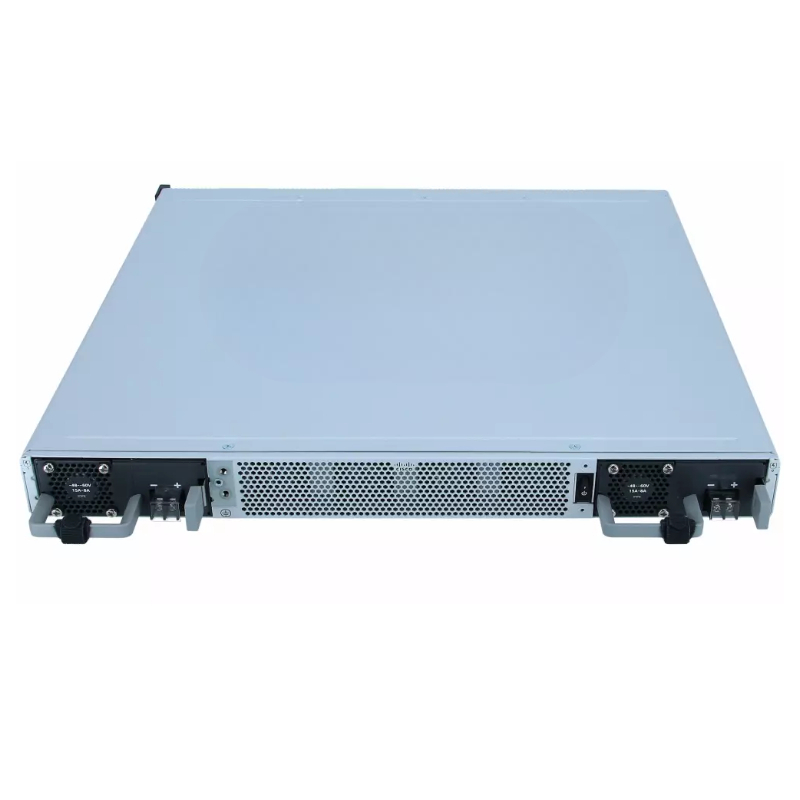

Power Supply and Redundancy

• Power Device: Internal Power Supply
• Maximum Supported Quantity: 2
• Power Redundancy: Optional for increased reliability and uptime.

Compliance and Standards

Industry Standards

• IEEE 802.1Q: VLAN tagging standard for network segmentation.
• IEEE 802.3ah: Ethernet in the First Mile (EFM) standard for connectivity.
• IEEE 802.1AG: Connectivity Fault Management (CFM) standard for network reliability.

Product Overview: Cisco C8500L-8S4X

The Cisco C8500L-8S4X Catalyst 8500 Series Router is a high-performance network routing solution designed for enterprise environments and data centers. With its robust feature set and efficient design, this router is engineered to handle demanding data traffic while providing advanced network management capabilities. The Catalyst 8500 Series offers a balance of performance, scalability, and flexibility, making it an ideal choice for modern network infrastructures.

Advanced Networking Capabilities

Routing Protocols and Features

• Routing Protocol Support: Supports a variety of routing protocols including OSPF, BGP, and EIGRP for dynamic and efficient routing.
• Layer 3 Switching: Provides robust Layer 3 switching capabilities for enhanced network performance and efficient traffic management.
• Network Virtualization: Includes support for network virtualization technologies such as VXLAN to optimize network performance and scalability.

Security Features

• Integrated Firewall: Offers advanced firewall capabilities to protect the network from potential threats and unauthorized access.
• VPN Support: Provides comprehensive Virtual Private Network (VPN) features for secure communication across remote sites.
• MACsec Support: Ensures data confidentiality and integrity with MACsec encryption technology.

Management and Automation

Network Management Tools

• Management Interface: Features an intuitive management interface for ease of configuration and monitoring, including support for CLI (Command-Line Interface) and GUI (Graphical User Interface).
• Automation Capabilities: Supports network automation tools and protocols to streamline management tasks and improve operational efficiency.
• Remote Management: Offers remote management capabilities via SNMP, Telnet, and SSH, allowing administrators to manage and monitor the network from any location.

Monitoring and Analytics

• Network Monitoring: Provides advanced monitoring features to track network performance, diagnose issues, and optimize operations.
• Analytics Tools: Includes built-in analytics tools for in-depth network analysis and performance reporting.

Hardware and Connectivity

Hardware Specifications

• Form Factor: Rack-Mountable 1U design for efficient use of rack space and easy installation in data centers or server rooms.
• Power Supply: Equipped with reliable and redundant power supplies to ensure continuous operation and minimize downtime.
• Cooling System: Features advanced cooling systems with fans to maintain optimal operating temperatures and enhance hardware longevity.

Connectivity Options

• Ethernet Ports: Provides a mix of 1G, 10G, and 25G Ethernet ports for flexible and high-speed network connections.
• Modular Ports: Supports modular expansion for additional connectivity options as network requirements evolve.
• Management Ports: Includes dedicated management ports for streamlined configuration and monitoring.

Scalability and Flexibility

Modular Expansion

• Scalable Design: The Cisco C8500L-8S4X is designed to scale with growing network demands, allowing for future expansion and upgrades.
• Modular Interface Options: Offers modular interface options to support various network configurations and connectivity needs.

Virtualization and Cloud Integration

• Cloud Integration: Supports seamless integration with cloud-based services and applications, facilitating efficient data routing and connectivity.
• Virtual Routing and Forwarding (VRF): Allows for the creation of multiple virtual routing instances to segregate traffic and enhance network efficiency.

Deployment Scenarios

Enterprise Networks

The Cisco C8500L-8S4X is ideal for large enterprise networks that require robust routing capabilities, advanced security features, and high-speed data handling. It supports complex network topologies and high-traffic environments, making it a reliable choice for enterprise-level deployments.

Data Centers

In data center environments, the router’s high-performance capabilities and modular design make it suitable for handling large volumes of data and supporting high-density network connections. Its scalability and flexibility ensure that it can meet the evolving needs of data centers.

Service Providers

Service providers benefit from the C8500L-8S4X's advanced routing and security features, which are essential for delivering reliable and secure services to end-users. Its performance and scalability make it a valuable asset for managing high-speed data traffic and complex network infrastructures.

Compliance and Standards

Industry Standards

• Compliance: The router complies with industry standards for networking, ensuring compatibility and interoperability with a wide range of network equipment and protocols.
• Certifications: Meets various certifications for quality and performance, providing assurance of its reliability and efficiency in network operations.

Security Standards

• Security Compliance: Adheres to industry security standards and best practices, ensuring robust protection for network data and communications.
• Encryption Support: Includes support for various encryption protocols to safeguard sensitive information and maintain data integrity.
