C8500L-8S4X Cisco Catalyst 8500 Series 12 Ports Ethernet Rack-mountable 1u Router.

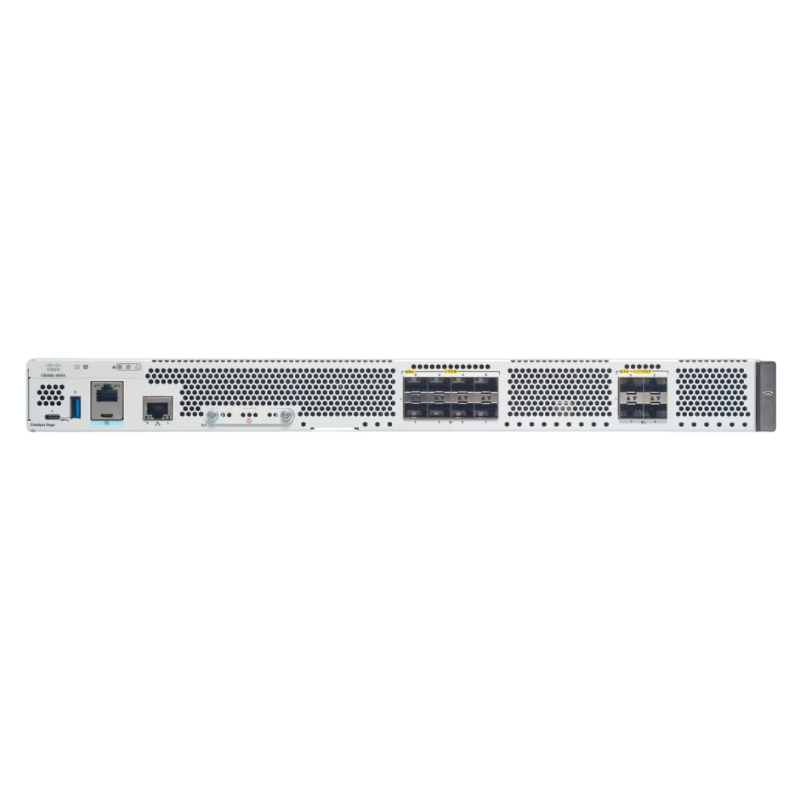

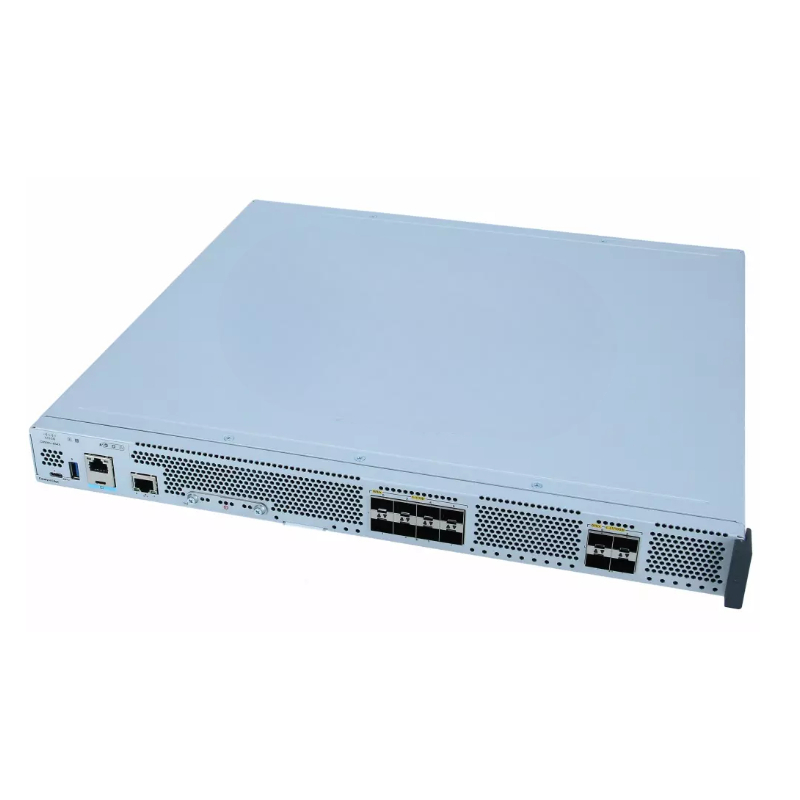

Cisco C8500L-8S4X Catalyst 8500 Series Rackmount Router

The Cisco C8500L-8S4X is a high-performance enterprise-grade routing platform engineered for modern branch and edge deployments. Designed in a compact 1U rack-mountable chassis, this solution integrates advanced SD-WAN, security, and routing intelligence to meet demanding network environments.

Core Product Highlights

• Brand: Cisco
• Model: C8500L-8S4X
• Device Category: Enterprise Router
• Deployment Type: Rack-mounted (1U)
• Total Interfaces: 12 ports

Flexible Port Architecture

Interface Breakdown

• 4 x 1G/10G SFP+ uplink interfaces for high-speed fiber connectivity
• 8 x 1000Base-T RJ-45 Ethernet ports for copper connections
• Dedicated management interface for administrative access

Expansion & Physical Connectivity

• USB 3.0 Type-A for external storage or firmware tasks
• Mini-USB console interface for direct configuration
• RJ-45 management port for out-of-band control

Performance and Throughput Capabilities

High-Speed Data Processing

• Up to 20 Gbps IPv4 forwarding performance (1400-byte packets)
• SD-WAN IPSec throughput reaching 19 Gbps (clear text)
• IMIX traffic handling at 8.6 Gbps for mixed workloads

Optimized Encryption Throughput

• IPSec performance up to 19 Gbps ensures secure communications
• Efficient packet handling for encrypted and non-encrypted traffic

Scalability and Network Capacity

Enterprise-Ready Scaling

• Supports up to 8,000 SD-WAN overlay tunnels
• Handles 4,000 IPSec SVTI secure tunnels
• Manages up to 3.5 million IPv4 routes
• Supports 2.2 million IPv6 routing entries

Session and Resource Handling

• 2 million NAT sessions for large-scale deployments
• 2 million firewall sessions for robust security enforcement
• 16,000 hardware queues for efficient traffic prioritization
• 8,000 VRF instances for network segmentation

Advanced Routing Protocol Support

Dynamic and Static Routing

• Supports OSPF, OSPFv3, and IS-IS for scalable routing
• BGP and EIGRP for enterprise-grade route exchange
• Static routing for simplified configurations

Multicast and High Availability

• PIM-SM, PIM-SSM, and IGMPv3 for multicast traffic optimization
• VRRP and HSRP for redundancy and failover
• BFD and RSVP for fast convergence and resource reservation

Specialized Networking Features

• MPLS support for service provider environments
• GRE tunneling for secure encapsulation
• Policy-Based Routing (PBR) for traffic control
• LISP for scalable network virtualization

Security and Encryption Technologies

Encryption Standards

• Advanced encryption algorithms including AES (128-bit & 256-bit)
• Support for DES, 3DES, SHA, and MD5 hashing
• IKE, TLS, DTLS for secure communication protocols
• RSA and ECDSA for authentication and key exchange

Authentication and Access Control

• Secure Shell (SSH) for encrypted remote access
• RADIUS-based centralized authentication
• Comprehensive ACL support with up to 50,000 entries

Integrated Network Security and Management

Built-in Protection Features

• Stateful firewall capabilities for threat prevention
• NAT functionality for IP address management
• Secure VPN connectivity for remote users and sites

Monitoring and Administration

• SNMP for network monitoring and reporting
• Syslog support for event tracking and diagnostics
• NETCONF and CLI for automation and manual configuration
• NTP and DHCP integration for time and IP management

Traffic Optimization and Intelligence

Quality of Service (QoS)

• CBWFQ for bandwidth allocation
• WRED for congestion avoidance
• Advanced QoS policies to ensure application performance

Application Awareness

• NBAR for deep packet inspection and application recognition
• IPFIX for detailed traffic analytics

Next-Generation Networking Technologies

Secure and Intelligent Networking

• MACsec support for Layer 2 encryption
• TrustSec for policy-based segmentation
• SD-WAN capability for centralized orchestration

Power and Reliability

Redundant Power Options

• Internal power supply with support for dual PSU configuration
• Optional redundancy for enhanced uptime

Compliance and Industry Standards

Standards Adherence

• IEEE 802.1Q for VLAN tagging and segmentation
• IEEE 802.3ah for Ethernet access technologies
• IEEE 802.1AG for fault management and continuity checks

Cisco C8500L-8S4X Catalyst 8500 Series 12 Ports 1U Router

The Cisco C8500L-8S4X Catalyst 8500 Series 12 Ports Ethernet Rack-mountable 1U Router represents a powerful evolution in enterprise-class networking infrastructure designed to meet the growing demands of modern digital enterprises. As organizations increasingly rely on high-performance connectivity, cloud integration, and secure edge computing, this router category delivers exceptional throughput, scalability, and reliability. Built on advanced hardware architecture and powered by Cisco IOS XE software, this platform is engineered to support high-speed WAN edge deployments, SD-WAN capabilities, and secure data transport across distributed networks.

Architectural Design and Hardware Efficiency

The Catalyst 8500 Series is built on a purpose-driven architecture that combines high-performance forwarding with energy-efficient design. The Cisco C8500L-8S4X model integrates 12 Ethernet ports, including 8 SFP+ and 4 10G ports, enabling flexible connectivity for enterprise edge environments. Its 1U rack-mountable form factor ensures optimal space utilization in data centers and network closets, making it an ideal solution for businesses seeking high density without compromising performance.

Compact Form Factor with High Port Density

The compact 1U design allows seamless integration into standard rack environments while delivering high port density for aggregation and distribution layers. This design is especially beneficial for enterprises operating in space-constrained environments where maximizing rack efficiency is critical. The combination of multiple high-speed interfaces ensures seamless connectivity between core, distribution, and edge layers.

Advanced Processing Capabilities

Equipped with powerful processors and optimized forwarding engines, the router ensures ultra-low latency and high throughput. This capability is essential for handling real-time applications such as video conferencing, VoIP, and cloud-based workloads. The processing power also supports advanced features such as deep packet inspection, traffic shaping, and encryption without degrading performance.

Performance Optimization for Modern Enterprise Networks

The Cisco Catalyst 8500 Series routers are designed to deliver exceptional performance across diverse network environments. With support for high-speed WAN connectivity, these routers enable enterprises to handle increasing volumes of data traffic efficiently. The C8500L-8S4X model provides scalable throughput capabilities that adapt to growing network demands, ensuring consistent performance even during peak usage periods.

High-Speed Data Throughput

High-speed data processing is a critical requirement in modern enterprise environments. The router supports multi-gigabit throughput, ensuring smooth data transfer across WAN links. This capability is particularly important for organizations relying on cloud applications, big data analytics, and high-definition media streaming.

Low Latency Networking

Low latency is essential for maintaining optimal application performance. The Catalyst 8500 Series is engineered to minimize latency, ensuring real-time responsiveness for mission-critical applications. This is achieved through optimized packet forwarding mechanisms and hardware acceleration technologies.

Scalability for Future Growth

The scalability of the Cisco C8500L-8S4X ensures that businesses can expand their network infrastructure without requiring frequent hardware upgrades. The router supports modular expansion and software-based scalability, enabling organizations to adapt to evolving technological requirements.

Security Features and Network Protection

Security is a cornerstone of the Catalyst 8500 Series. The Cisco C8500L-8S4X integrates advanced security features that protect enterprise networks from a wide range of cyber threats. These capabilities are essential for safeguarding sensitive data and ensuring compliance with regulatory standards.

Integrated Threat Defense

The router includes built-in threat detection and mitigation features that identify and neutralize potential security risks in real time. This includes intrusion prevention systems, malware detection, and anomaly-based threat analysis.

Secure WAN Connectivity

Secure WAN connectivity is achieved through robust encryption protocols and VPN support. The router ensures that data transmitted across public and private networks remains protected from unauthorized access.

Zero Trust Security Framework

The Catalyst 8500 Series supports zero trust security principles, ensuring that every user and device is authenticated and authorized before accessing network resources. This approach significantly reduces the risk of internal and external security breaches.

SD-WAN Integration and Cloud Connectivity

The Cisco C8500L-8S4X is optimized for Software-Defined Wide Area Networking, enabling centralized management and intelligent traffic routing. This functionality enhances network efficiency and reduces operational complexity.

Centralized Network Management

With SD-WAN capabilities, administrators can manage network policies, monitor performance, and troubleshoot issues from a centralized interface. This simplifies network operations and improves overall efficiency.

Application-Aware Routing

Application-aware routing ensures that traffic is directed through the most optimal path based on application requirements. This enhances performance for latency-sensitive applications and improves user experience.

Cloud-Optimized Networking

The router is designed to seamlessly integrate with cloud platforms, enabling direct and secure access to cloud services. This is crucial for organizations transitioning to hybrid and multi-cloud environments.

Reliability and High Availability

Reliability is a key consideration in enterprise networking, and the Cisco Catalyst 8500 Series delivers high availability through redundant components and failover mechanisms. The C8500L-8S4X ensures uninterrupted network operations even in the event of hardware or software failures.

Redundant Power Supplies

Redundant power supply options provide continuous operation by eliminating single points of failure. This ensures that the network remains operational during power disruptions.

Failover and Load Balancing

Failover mechanisms automatically reroute traffic in case of link or device failure, maintaining network stability. Load balancing further optimizes resource utilization by distributing traffic evenly across available links.

Continuous System Monitoring

Advanced monitoring tools provide real-time insights into network performance, enabling proactive maintenance and quick issue resolution.

Deployment Scenarios and Use Cases

The Cisco C8500L-8S4X is versatile and can be deployed across various enterprise environments, including branch offices, data centers, and large campus networks. Its flexibility makes it suitable for diverse use cases.

Enterprise Branch Networking

In branch environments, the router provides secure and high-speed connectivity to central data centers and cloud resources. This ensures consistent performance across distributed locations.

Data Center Edge Connectivity

At the data center edge, the router facilitates high-speed data transfer and secure communication between internal systems and external networks.

Service Provider Integration

Service providers can leverage the router to deliver managed network services, including SD-WAN and secure connectivity solutions to enterprise customers.

Energy Efficiency and Sustainability

The Catalyst 8500 Series is designed with energy efficiency in mind, helping organizations reduce their environmental footprint while maintaining high performance. The Cisco C8500L-8S4X incorporates advanced power management features that optimize energy consumption.

Efficient Cooling Mechanisms

Advanced cooling technologies ensure optimal thermal performance, reducing energy usage while maintaining system stability.

Power Optimization Features

The router dynamically adjusts power consumption based on workload, ensuring efficient energy utilization without compromising performance.

Environmentally Responsible Design

The design aligns with global sustainability standards, making it a responsible choice for organizations committed to green IT practices.

Software Capabilities and Automation

Powered by Cisco IOS XE, the router supports advanced automation and programmability features. These capabilities enable organizations to streamline network operations and improve efficiency.

Programmable Network Interfaces

Programmable interfaces allow developers to integrate the router with custom applications and automation tools, enhancing operational flexibility.

Automation and Orchestration

Automation tools simplify routine network tasks, reducing manual intervention and minimizing the risk of human error.

Real-Time Analytics

Real-time analytics provide actionable insights into network performance, enabling data-driven decision-making and proactive optimization.

Future-Ready Networking Infrastructure

The Cisco C8500L-8S4X Catalyst 8500 Series router is built to support emerging technologies and future network demands. Its advanced capabilities ensure that organizations remain competitive in an increasingly digital landscape.

Support for Emerging Technologies

The router is compatible with technologies such as 5G, IoT, and edge computing, enabling organizations to leverage new opportunities for innovation.

Adaptability to Changing Network Needs

With its modular design and software-driven architecture, the router can adapt to evolving business requirements without requiring significant hardware changes.

Long-Term Investment Value

The combination of performance, scalability, and advanced features ensures that the Cisco C8500L-8S4X delivers long-term value for enterprises seeking a reliable and future-proof networking solution.
