C9124AXI-B Cisco Catalyst 9124axi Wireless AP Bluetooth

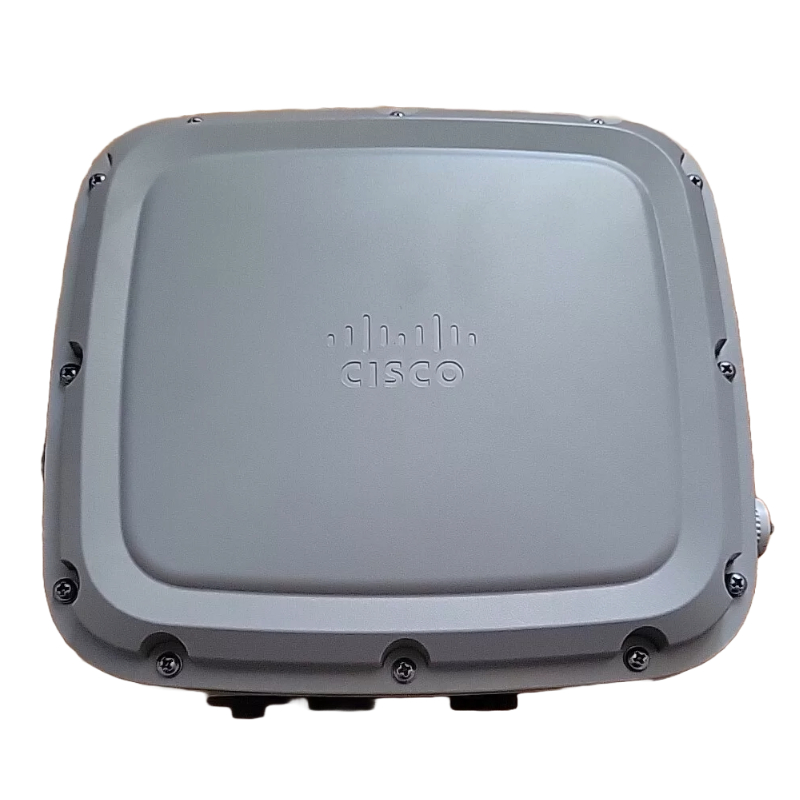

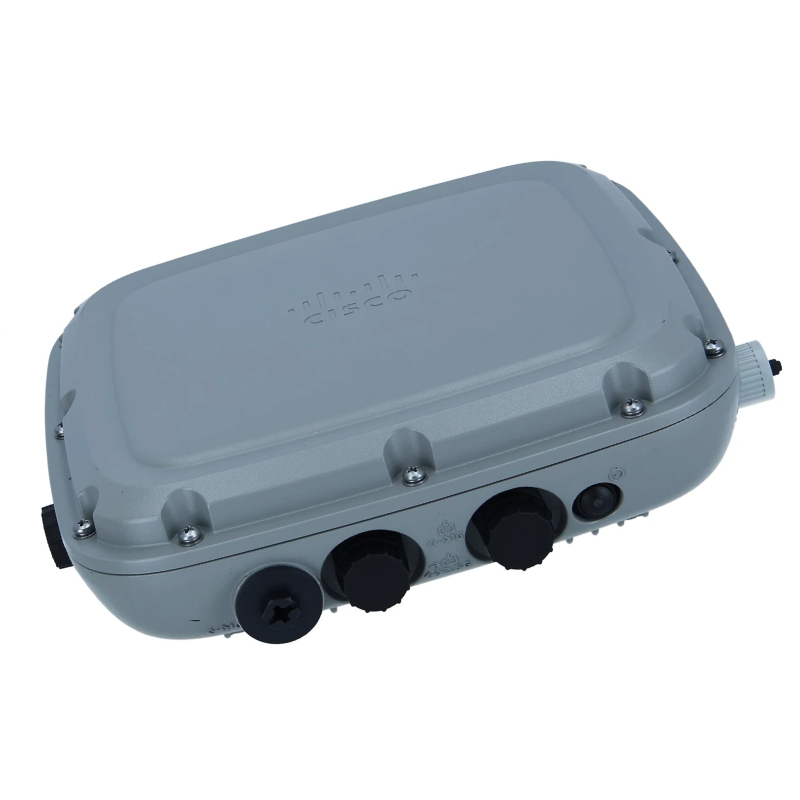

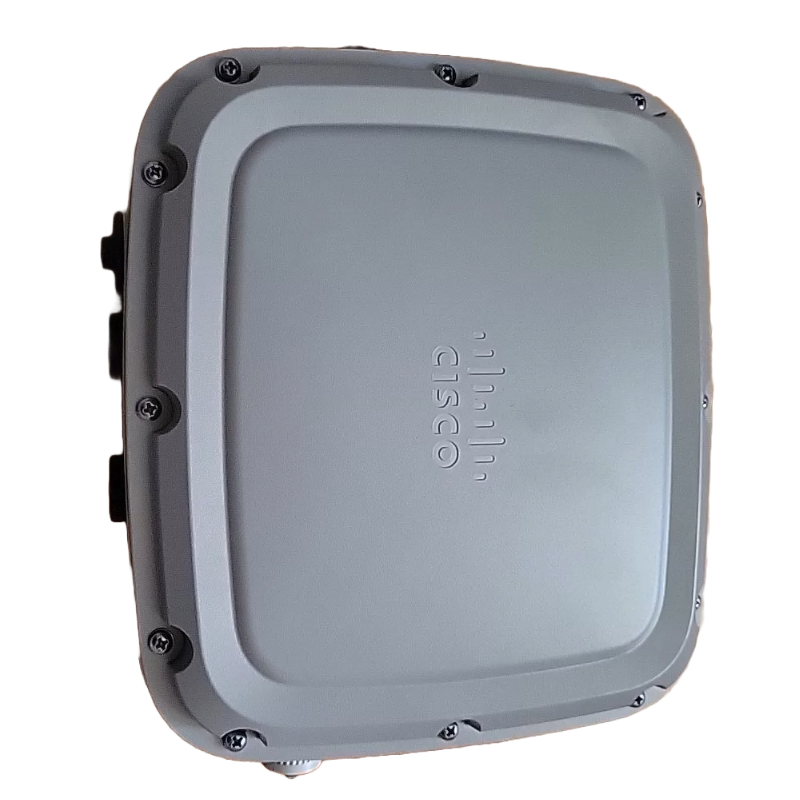

Cisco C9124AXI Series Catalyst Wireless Access Point

The Cisco C9124AXI-B belongs to the C9124AXI Series, engineered for robust outdoor connectivity. This device ensures reliable wireless performance, advanced security, and seamless integration for enterprise-grade networking.

General Information

• Manufacturer: Cisco
• Part Number: C9124AXI-B
• Device Type: Wireless Access Point

Technical Specifications

• External design for outdoor deployment
• Wireless communication technology
• Line coding format: OFDMA

Supported Protocols

• IEEE 802.11b / 802.11a / 802.11g
• IEEE 802.11n (draft 2.0)
• IEEE 802.11ac
• IEEE 802.11ax (Wi-Fi 6)
• Bluetooth 5.0

Frequency Bands

• 2.4 GHz
• 5 GHz

Performance Enhancements

• DFS Support
• Wi-Fi Multimedia (WMM)
• Maximum Ratio Combining (MRC)
• Wireless Intrusion Prevention System (WIPS)
• 802.1x Authentication
• Cyclic Shift Diversity (CSD)
• Beamforming Technology
• Packet Aggregation (A-MPDU, A-MSDU)
• 4x4 MU-MIMO Technology

Security & Reliability

• Secure Boot
• Target Wait Time (TWT)
• Image Signing
• Cisco Trust Anchor Module
• BSS Coloring
• 4K/8K UHD Video Streaming

Encryption & Authentication

• AES
• TLS
• PEAP
• TTLS
• TKIP
• WPA / WPA2 / WPA3
• EAP-SIM / EAP-FAST / EAP-TLS / EAP-TTLS / EAP-GTC

Authentication Methods

• MS-CHAP v.2
• Extensible Authentication Protocol (EAP)
• EAP-FAST
• EAP-TLS
• EAP-TTLS

Compliance Standards

• IEEE 802.3 / 802.3af / 802.3at / 802.3ae / 802.3bz / 802.3bt
• IEEE 802.11b / 802.11a / 802.11g / 802.11n (draft 2.0)
• IEEE 802.11ac / 802.11ax (Wi-Fi 6)
• IEEE 802.11d / 802.11h / 802.11i / 802.11k / 802.11r / 802.11u / 802.11v
• IEEE 802.1x
• IEEE 802.15.1 / 802.15.4
• Wi-Fi Certified 6

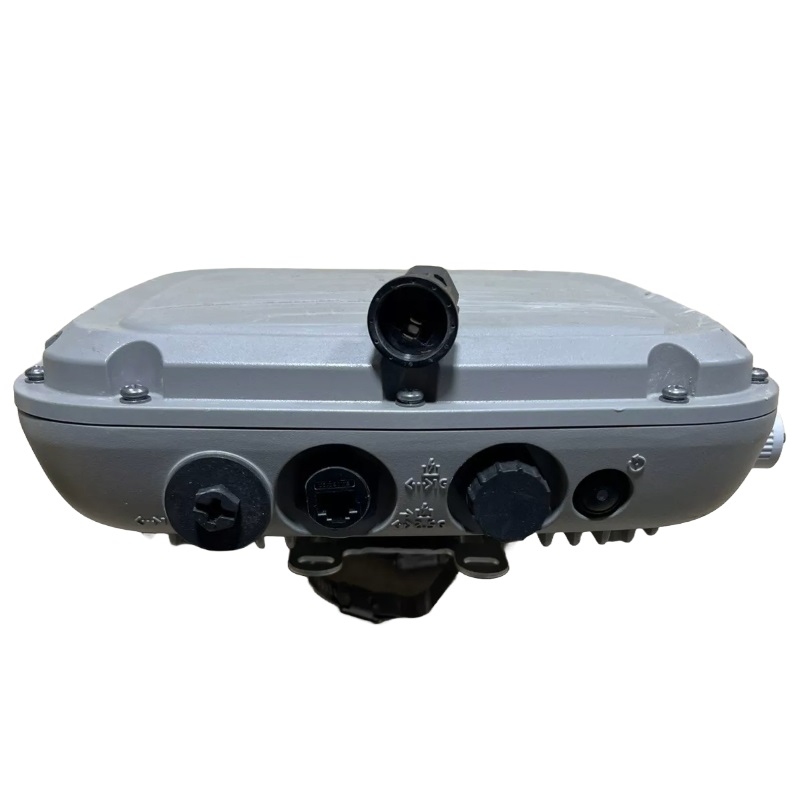

Interfaces

• 1 x 1/2.5GBase-T RJ-45
• 1 x 1000Base-X SFP
• 1 x 1000Base-T RJ-45
• 1 x Management RJ-45

Power Options

• Power over Ethernet (PoE) supported: UPOE
• Compatible with Cisco 200, 9200L series

Cisco C9124AXI-B C9124AXI Wireless Access Point Overview

The Cisco C9124AXI-B C9124AXI Series Catalyst Outdoor Access Point represents a high-performance, enterprise-grade wireless networking solution engineered for demanding outdoor environments where reliable, high-density Wi-Fi connectivity is essential. Built as part of the Cisco Catalyst wireless portfolio by this outdoor access point is designed to extend secure, high-speed wireless coverage beyond traditional indoor limitations, enabling organizations to maintain seamless connectivity across campuses, industrial zones, smart cities, transportation hubs, and large public venues. As a Wi-Fi 6 (802.11ax) outdoor access point, it is optimized for improved spectral efficiency, lower latency, and significantly increased device capacity compared to previous Wi-Fi generations.

The Cisco C9124AXI-B is widely recognized for its ability to support mission-critical wireless environments where environmental resilience, consistent throughput, and advanced network intelligence are required. It integrates advanced RF technologies and Catalyst enterprise features to deliver a robust outdoor wireless infrastructure capable of supporting modern digital transformation initiatives, IoT deployments, and high-density mobile user environments.

Outdoor Wi-Fi 6 Architecture and Engineering Design

The architecture of the Cisco C9124AXI-B C9124AXI Series Catalyst Outdoor Access Point is built around Wi-Fi 6 enhancements that significantly improve performance in congested and multi-device environments. The access point utilizes orthogonal frequency-division multiple access technology to divide channels into smaller resource units, allowing simultaneous communication with multiple clients. This architectural approach is especially beneficial in outdoor deployments where large crowds or dense device clusters are common, such as stadiums, campuses, and public plazas.

The device also incorporates multi-user multiple-input multiple-output technology, enabling simultaneous data transmission to multiple client devices, which reduces congestion and improves overall network efficiency. The integration of advanced scheduling and spatial reuse mechanisms allows the Cisco C9124AXI-B to optimize airtime usage, ensuring that bandwidth is allocated intelligently across connected devices even in high-interference environments.

Advanced RF Optimization for Outdoor Environments

Outdoor wireless environments present unique challenges such as signal reflection, interference from natural and man-made obstacles, and varying weather conditions. The Cisco C9124AXI-B is engineered with adaptive radio frequency optimization capabilities that dynamically adjust signal parameters based on environmental conditions. This ensures consistent performance even in scenarios involving fluctuating weather, physical obstructions, or high RF noise.

The access point uses intelligent band steering and client load balancing to ensure devices are distributed efficiently across available frequency bands. This improves overall network stability and ensures that no single channel becomes a bottleneck, which is critical in large-scale outdoor deployments where hundreds or thousands of users may connect simultaneously.

Ruggedized Hardware Design and Environmental Durability

The Cisco C9124AXI-B C9124AXI Series Catalyst Outdoor Access Point is specifically engineered for rugged outdoor conditions. Its housing is designed to withstand extreme temperatures, humidity, rain, wind, and dust exposure. This level of durability makes it suitable for long-term deployment in environments such as industrial sites, transportation corridors, maritime facilities, and open-air public infrastructure.

The enclosure design emphasizes thermal efficiency, ensuring that internal components remain within optimal operating temperature ranges even under direct sunlight or in high ambient heat conditions. The sealed construction protects internal circuitry from moisture ingress and particulate contamination, which is essential for maintaining long-term operational reliability.

Weather Resistance and Industrial Compliance

The outdoor access point adheres to strict industrial standards for environmental resilience, making it capable of functioning in harsh weather conditions without performance degradation. It is engineered to resist rain exposure, wind-driven dust, and humidity variations that typically affect outdoor networking equipment. This makes it a dependable choice for organizations requiring continuous uptime in unpredictable environments.

The materials used in the construction of the Cisco C9124AXI-B are selected for UV resistance and long-term structural integrity, ensuring that prolonged exposure to sunlight does not degrade physical performance or housing stability. This is particularly important for deployments in tropical and high-sunlight regions where equipment longevity is a critical consideration.

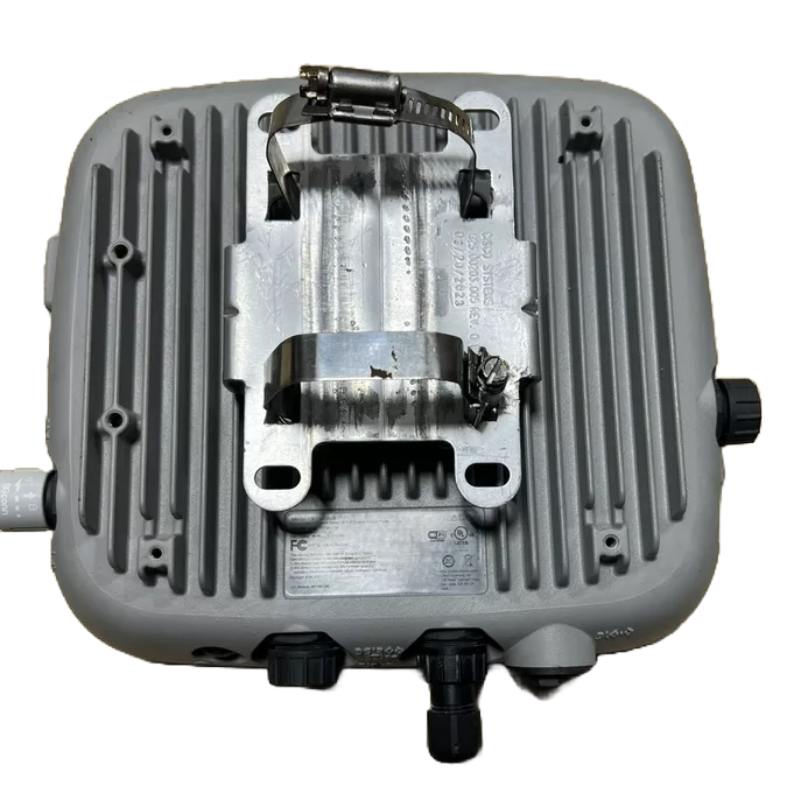

Mounting Flexibility and Deployment Options

The Cisco C9124AXI-B supports multiple mounting configurations, allowing deployment on poles, walls, and other outdoor structures. This flexibility enables network engineers to optimize coverage patterns based on environmental topology and user density. The mounting system is designed to ensure stability in high-wind environments while maintaining precise antenna orientation for maximum coverage efficiency.

Installation planning for the Cisco C9124AXI-B typically involves strategic placement to eliminate coverage gaps and maximize line-of-sight propagation. The mounting design ensures that the access point can be securely positioned in elevated outdoor locations such as lamp posts, building exteriors, and stadium infrastructure without compromising signal integrity.

Wireless Performance and Wi-Fi 6 Capabilities

At the core of the Cisco C9124AXI-B C9124AXI Series Catalyst Outdoor Access Point is its high-performance Wi-Fi 6 radio system, designed to deliver multi-gigabit throughput and improved spectral efficiency. This enables the access point to support modern applications such as high-definition video streaming, real-time analytics, augmented reality systems, and IoT sensor networks in outdoor environments.

The Wi-Fi 6 standard incorporated into the Cisco C9124AXI-B significantly improves network capacity by allowing more devices to connect simultaneously without experiencing performance degradation. This is achieved through advanced modulation techniques and enhanced scheduling algorithms that prioritize traffic based on application requirements and network conditions.

OFDMA and MU-MIMO Optimization

The integration of orthogonal frequency-division multiple access technology allows the Cisco C9124AXI-B to divide channels into smaller sub-channels, enabling simultaneous data transmission to multiple devices. This reduces latency and improves efficiency in environments with a large number of connected users.

Multi-user multiple-input multiple-output technology further enhances performance by enabling concurrent data streams to multiple devices. This is particularly beneficial in outdoor environments where users may be moving or using bandwidth-intensive applications simultaneously. The combination of these technologies ensures that the access point can handle high-density scenarios without congestion or packet loss.

Antenna System and Signal Propagation

The antenna design in the Cisco C9124AXI-B is optimized for outdoor propagation, ensuring wide coverage and consistent signal strength across large areas. The system is engineered to minimize interference while maximizing range, making it suitable for expansive outdoor deployments such as university campuses, business parks, and public venues.

The antenna system also supports adaptive tuning capabilities, allowing the access point to adjust signal behavior based on environmental feedback. This ensures optimal performance even in challenging RF conditions where obstacles or interference sources may vary over time.

Integration with Cisco Catalyst Network Ecosystem

The Cisco C9124AXI-B C9124AXI Series Catalyst Outdoor Access Point integrates seamlessly into the Cisco Catalyst ecosystem, enabling centralized management, policy enforcement, and network automation. Through integration with cloud-based and on-premises management platforms, network administrators can monitor performance, configure policies, and troubleshoot issues in real time.

As part of Cisco’s enterprise networking portfolio, the device benefits from deep integration with advanced analytics and automation tools that help optimize network performance and reduce operational complexity. This allows organizations to deploy scalable outdoor wireless infrastructures with consistent policy enforcement across both indoor and outdoor environments.

Network Intelligence and Automation Capabilities

The Cisco C9124AXI-B leverages intelligent analytics to provide insights into network performance, client behavior, and RF conditions. This data-driven approach enables proactive optimization, allowing administrators to identify potential issues before they impact users.

Automation features within the Cisco Catalyst ecosystem allow for dynamic configuration adjustments based on network conditions. This reduces the need for manual intervention and ensures that the wireless network remains optimized even as environmental and user conditions change.

Security Architecture and Enterprise Protection

Security is a foundational element of the Cisco C9124AXI-B C9124AXI Series Catalyst Outdoor Access Point. It incorporates enterprise-grade encryption protocols, secure authentication mechanisms, and advanced threat detection capabilities to protect wireless communications from unauthorized access and cyber threats.

The access point supports modern encryption standards that ensure data confidentiality and integrity across wireless transmissions. In addition, identity-based access controls allow organizations to enforce granular security policies based on user roles, device types, and application requirements.

Threat Defense and Secure Connectivity

The Cisco C9124AXI-B includes integrated threat defense capabilities that monitor network traffic for suspicious activity and potential intrusion attempts. This proactive security approach helps maintain network integrity in environments where multiple untrusted devices may attempt to connect.

Secure onboarding processes ensure that only authorized devices can join the network, reducing the risk of rogue access points or unauthorized client connections. These security mechanisms are essential for public-facing outdoor deployments where exposure to potential threats is higher.

Enterprise Use Cases for Outdoor Wireless Deployment

The Cisco C9124AXI-B C9124AXI Series Catalyst Outdoor Access Point is designed for a wide range of enterprise and industrial applications. In smart city environments, it enables connectivity for IoT sensors, surveillance systems, and public Wi-Fi services. In transportation hubs, it supports passenger connectivity, operational systems, and real-time logistics coordination.

Educational institutions benefit from its ability to extend campus-wide connectivity into outdoor spaces such as sports fields, courtyards, and open-air learning environments. Industrial facilities use the access point to support asset tracking, mobile workforce connectivity, and machine-to-machine communication in outdoor operational zones.

High-Density Public Venue Deployments

In stadiums, concert venues, and large public gatherings, the Cisco C9124AXI-B delivers reliable high-capacity wireless performance that supports thousands of concurrent users. Its ability to manage dense client environments ensures consistent connectivity for streaming, communication, and interactive applications.

The access point’s scalability allows it to be deployed in large numbers across expansive venues, creating a unified wireless network that maintains consistent performance across all coverage zones.

Installation Planning and Network Optimization Strategy

Proper installation planning is essential for maximizing the performance of the Cisco C9124AXI-B C9124AXI Series Catalyst Outdoor Access Point. Engineers must consider factors such as elevation, line-of-sight coverage, interference sources, and user density when designing deployment layouts.

Power delivery considerations are also critical, as the device typically relies on Power over Ethernet for both data connectivity and electrical power. This simplifies installation in outdoor environments where traditional power sources may be limited or difficult to access.

Power and Connectivity Architecture

The use of Power over Ethernet technology enables flexible deployment by eliminating the need for separate electrical wiring. This is particularly advantageous in outdoor environments where infrastructure expansion must be minimized or where installations are required in remote or elevated locations.

Backhaul connectivity planning ensures that the Cisco C9124AXI-B maintains high-speed connections to the core network. Depending on deployment requirements, fiber or high-capacity wired connections may be used to ensure that aggregated wireless traffic is efficiently transported across the network backbone.

Performance Analytics and Continuous Optimization

Through continuous performance analytics, the Cisco C9124AXI-B provides actionable insights into network usage patterns and RF efficiency. These insights help administrators optimize access point placement, adjust configurations, and improve overall network performance over time.

The combination of real-time monitoring and historical data analysis allows for long-term optimization strategies that enhance network reliability and user experience in outdoor environments.
