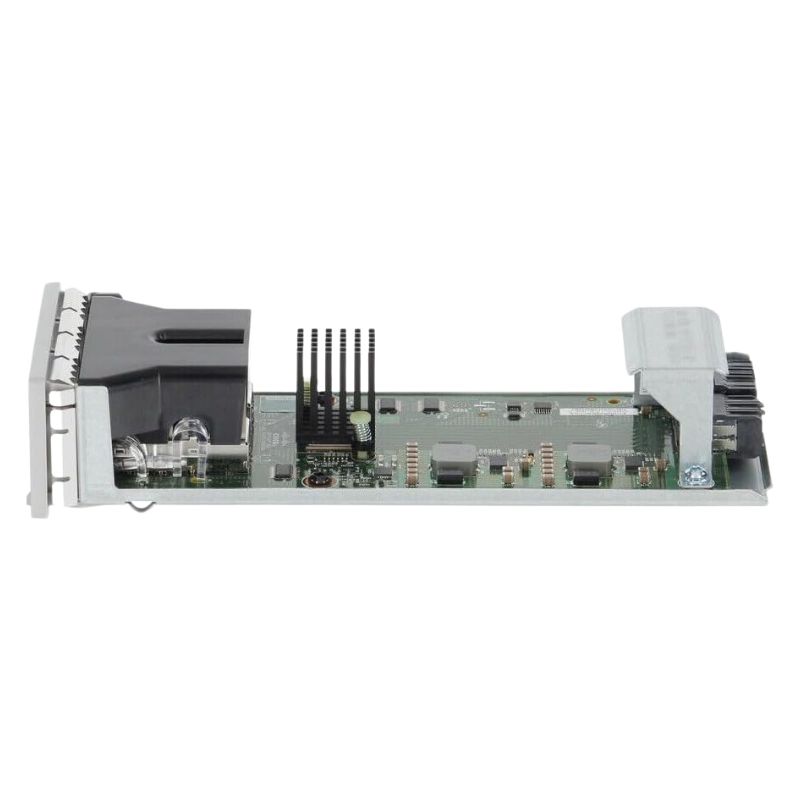

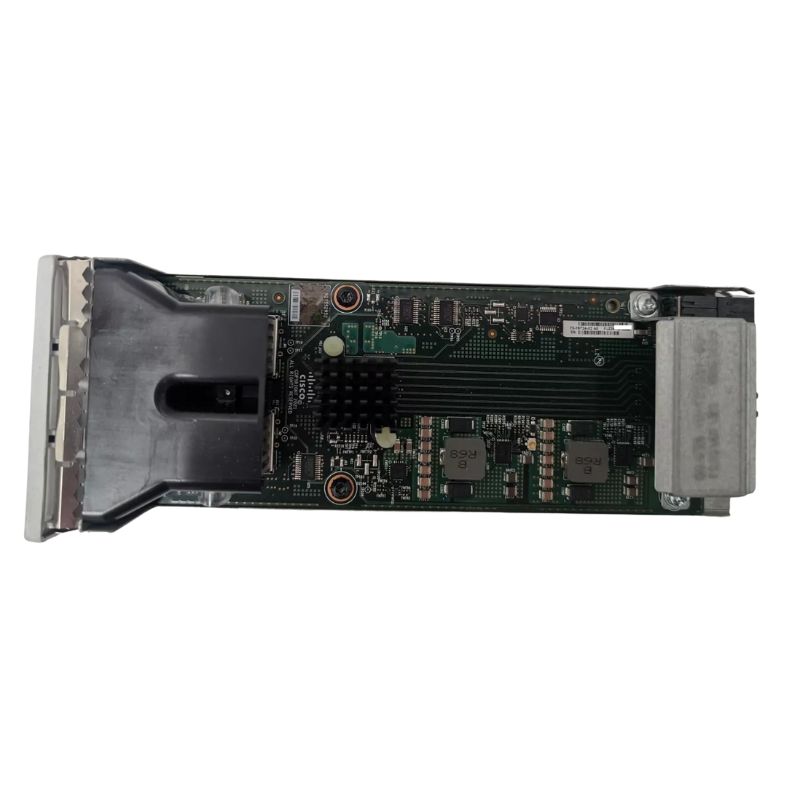

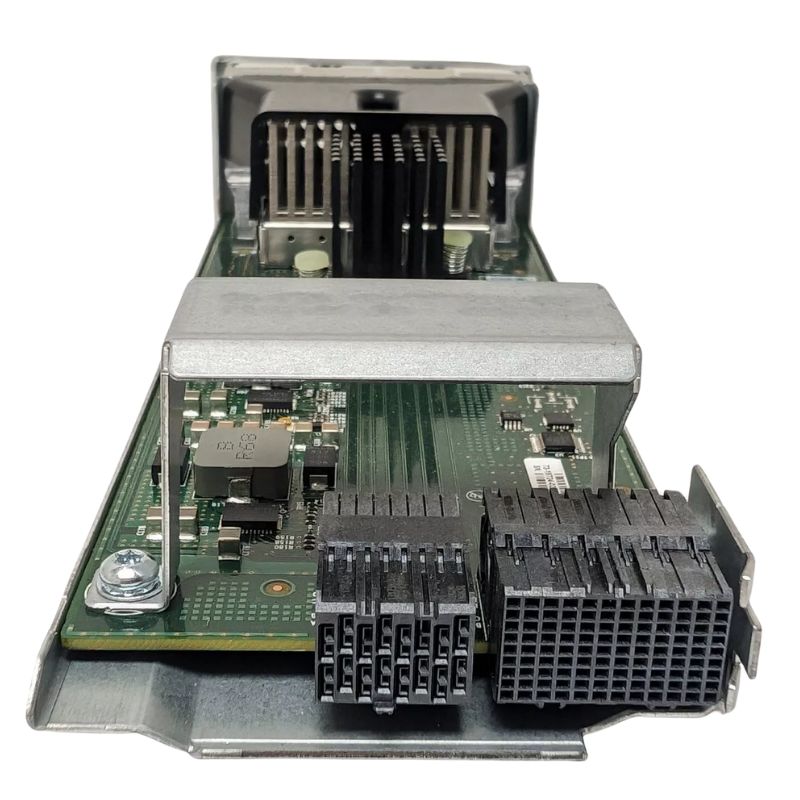

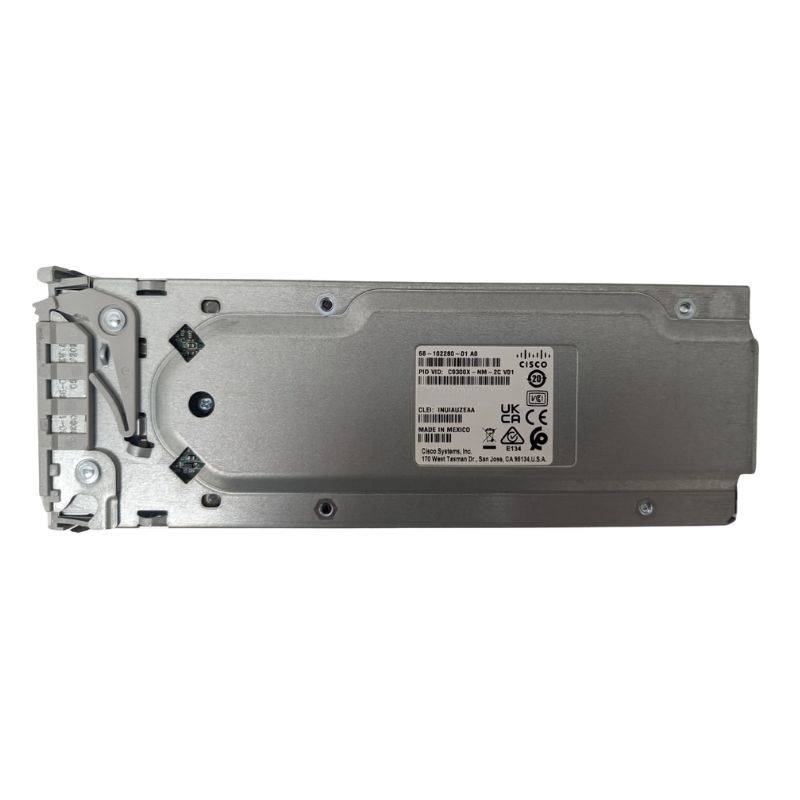

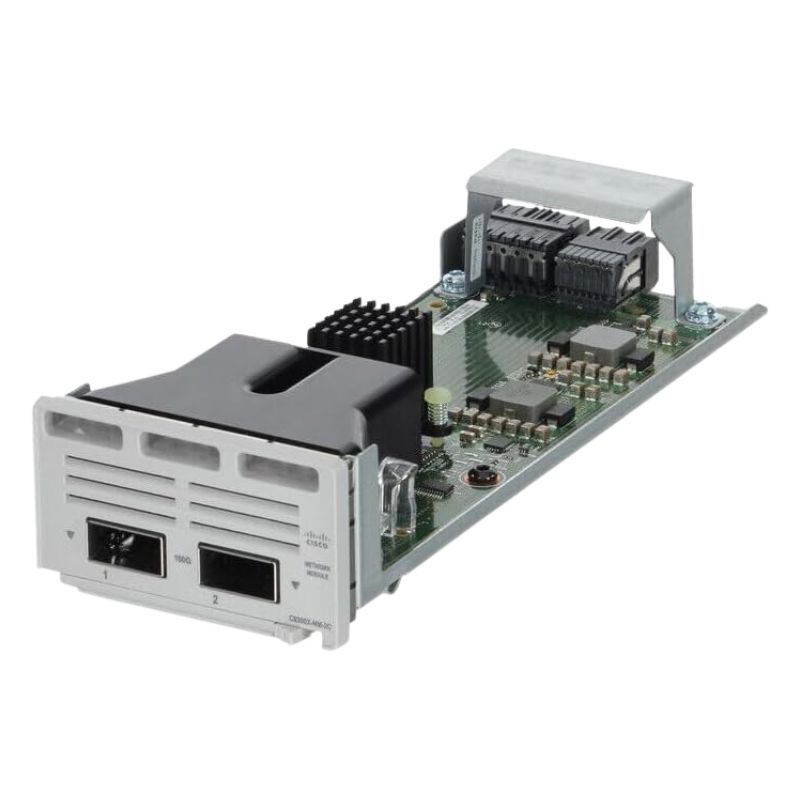

CISCO C9300X-NM-2C Catalyst 9300 Series Expansion Module

CISCO C9300X-NM-2C= Catalyst 9300 Series Network Module

The CISCO C9300X-NM-2C= Catalyst 9300 Series Network Module is a high-performance expansion module designed to enhance the capabilities of the Catalyst 9300 Series switches. This module supports both 40GB Ethernet and 100GB Ethernet, utilizing QSFP technology to provide two high-speed ports. It is engineered to offer scalability, security, and unmatched flexibility, making it an ideal choice for enterprise networks seeking to accommodate growing traffic demands and future-proof their infrastructure.

Key Features of the CISCO C9300X-NM-2C= Expansion Module

Advanced QSFP Technology for Superior Speed and Flexibility

The CISCO C9300X-NM-2C= network module supports both 40GB and 100GB Ethernet through QSFP (Quad Small Form-Factor Pluggable) interfaces. This advanced technology allows the module to handle high-speed data transfers with low latency, ensuring that critical business applications and services perform without disruption. The dual-port design provides flexibility for network administrators to either aggregate bandwidth or establish redundant connections for enhanced reliability.

Seamless Integration with the Catalyst 9300 Series Switches

Designed specifically for the Catalyst 9300 series switches, the C9300X-NM-2C= network module is a plug-and-play solution that integrates seamlessly into the existing network infrastructure. This module allows network administrators to easily expand their network’s capacity without the need for additional hardware or significant configuration. The Catalyst 9300 series, known for its enterprise-class performance, security, and scalability, benefits from the additional capabilities offered by this expansion module.

Future-Proofing with 100GB Ethernet Support

With increasing demands for bandwidth in modern networks, the CISCO C9300X-NM-2C= module supports 100GB Ethernet to accommodate future growth. This ensures that organizations can scale their networks as needed without having to overhaul their existing infrastructure. The module also supports 40GB Ethernet, making it versatile and adaptable to current and future network requirements. Whether deploying in data centers or enterprise environments, the 100GB Ethernet capability positions this module as a future-proof solution.

Performance and Scalability

Enhanced Data Throughput with Multi-Gigabit Speeds

The CISCO C9300X-NM-2C= expansion module is designed to handle the increasing data traffic experienced by modern networks. With support for 40GB and 100GB Ethernet, it allows organizations to take advantage of multi-gigabit speeds to transfer large amounts of data quickly and efficiently. Whether supporting mission-critical applications, high-resolution video conferencing, or massive data backups, the module ensures uninterrupted, high-performance network connectivity.

Modular Design for Flexible Network Architecture

The modular design of the Catalyst 9300 series, combined with the flexibility of the CISCO C9300X-NM-2C= module, allows organizations to build a network architecture that suits their unique needs. As business demands change, network administrators can easily upgrade or modify the network by adding or replacing modules. This flexibility reduces the total cost of ownership, as there is no need to replace the entire switch or infrastructure when adding more capacity or adopting newer technologies.

Scalability for Growing Network Demands

As enterprise networks grow and evolve, scalability is critical for maintaining high-performance network operations. The CISCO C9300X-NM-2C= module offers significant scalability, with the ability to handle high-speed Ethernet connections. This scalability ensures that businesses can keep up with increasing network demands, such as higher traffic loads, more connected devices, and greater reliance on cloud services. Network administrators can confidently plan for future expansion, knowing that their infrastructure can easily accommodate the growth.

Security and Network Management

Advanced Security Features to Protect Network Infrastructure

Security is a top concern for modern networks, and the CISCO C9300X-NM-2C= module, along with the Catalyst 9300 series, is equipped with a variety of advanced security features. These features include encryption, segmentation, and network analytics, which help to protect sensitive data and mitigate potential threats. The module works in conjunction with Cisco’s security tools to provide comprehensive protection against unauthorized access, cyberattacks, and other security breaches.

Integration with Cisco’s DNA Center for Simplified Management

The Catalyst 9300 series, along with the CISCO C9300X-NM-2C= module, can be managed through Cisco’s DNA Center, a centralized network management platform. This integration allows for streamlined operations, automation, and analytics to monitor and optimize network performance. Cisco DNA Center provides real-time insights into network health and security, enabling network administrators to quickly identify and resolve issues before they affect business operations.

Zero Trust Security Architecture

One of the standout features of the Catalyst 9300 series switches, when paired with the C9300X-NM-2C= module, is the integration of Cisco’s Zero Trust security architecture. This approach to network security ensures that all users, devices, and applications are authenticated before being granted access to the network. By incorporating micro-segmentation and continuous monitoring, Zero Trust reduces the risk of internal and external threats, providing a secure network environment for businesses of all sizes.

Applications and Use Cases

Enterprise Networks and Data Centers

The CISCO C9300X-NM-2C= module is ideally suited for large enterprise networks and data centers that require high-speed connectivity and robust performance. Its support for both 40GB and 100GB Ethernet ensures that these environments can handle the substantial data traffic that occurs daily. From facilitating large-scale data transfers to supporting virtualized applications and services, the module provides the necessary bandwidth and reliability for critical business operations.

Cloud and Hybrid Cloud Environments

As more organizations adopt cloud and hybrid cloud environments, the demand for high-speed network connectivity has increased. The CISCO C9300X-NM-2C= module helps to support cloud-based services by providing the necessary speed and bandwidth for data-intensive applications. Whether connecting to public clouds, private clouds, or hybrid configurations, this module ensures that data flows seamlessly between cloud environments and on-premises infrastructure.

High-Performance Computing and AI Workloads

High-performance computing (HPC) environments and artificial intelligence (AI) workloads require massive amounts of data to be transferred and processed in real time. The 100GB Ethernet support offered by the CISCO C9300X-NM-2C= module makes it an excellent solution for these applications. By providing the bandwidth necessary to handle large datasets, this module enables organizations to run complex simulations, machine learning algorithms, and other HPC tasks without network bottlenecks.

Support for IoT Devices and Smart Networks

As the number of connected IoT (Internet of Things) devices continues to grow, networks must be capable of handling the increased traffic. The CISCO C9300X-NM-2C= module supports this demand by offering high-speed connectivity that can scale with the proliferation of IoT devices. Whether supporting smart buildings, industrial automation, or connected healthcare systems, this module ensures that IoT devices can communicate efficiently and reliably over the network.

Technical Specifications

QSFP Interface Details

The QSFP (Quad Small Form-Factor Pluggable) interface on the CISCO C9300X-NM-2C= module is designed to provide high-speed, low-latency connections. Supporting both 40GB and 100GB Ethernet, the QSFP interface ensures that network performance is optimized for demanding applications. QSFP modules are hot-swappable, meaning that network administrators can replace or upgrade them without powering down the switch, minimizing network downtime.

Port Configuration and Compatibility

This expansion module features two QSFP ports that can be used for either 40GB or 100GB Ethernet connections. It is fully compatible with the Catalyst 9300 series switches, ensuring seamless integration and performance. The flexibility of the port configuration allows network administrators to tailor the module’s use to their specific network requirements, whether it be for high-speed uplinks, network aggregation, or redundancy.

Power and Environmental Considerations

The CISCO C9300X-NM-2C= module is designed with energy efficiency in mind, consuming minimal power while delivering high performance. It also operates within a wide range of environmental conditions, making it suitable for deployment in various settings, including data centers, enterprise offices, and industrial environments. Its robust design ensures reliability even in challenging operating environments.

Advantages of Deploying the CISCO C9300X-NM-2C= Network Module

Cost-Effective Network Expansion

The CISCO C9300X-NM-2C= module offers a cost-effective way to expand network capabilities without the need for a complete overhaul of the existing infrastructure. By adding high-speed ports to the Catalyst 9300 series switches, organizations can increase their network capacity while avoiding the costs associated with purchasing additional switches or equipment. This modular approach provides both flexibility and cost savings, particularly for growing enterprises.

Reduced Network Complexity

With the C9300X-NM-2C= module, network administrators can reduce the complexity of their network architecture by consolidating multiple connections into fewer, high-capacity links. This simplifies the network design, making it easier to manage and troubleshoot while improving overall efficiency. Additionally, the use of QSFP technology streamlines connectivity, reducing the number of cables and ports required for high-speed networking.

Improved Network Reliability and Redundancy

The dual-port configuration of the CISCO C9300X-NM-2C= module allows for redundancy, ensuring that if one connection fails, the other can take over without disrupting network operations. This redundancy is critical for maintaining uptime and ensuring business continuity, particularly in mission-critical environments. By providing reliable, high-speed connections, the module helps to minimize network downtime and improve overall service availability.

Deployment Considerations

Compatibility with Existing Network Infrastructure

When deploying the CISCO C9300X-NM-2C= module, it is essential to ensure compatibility with the existing network infrastructure. While the module is designed specifically for the Catalyst 9300 series, network administrators should verify that their switches are up-to-date and compatible with the module’s features. Additionally, consideration should be given to the cabling and QSFP transceivers used to ensure optimal performance.

Planning for Network Growth

Organizations should carefully plan for future network growth when deploying the CISCO C9300X-NM-2C= module. By taking into account future bandwidth needs, such as the adoption of cloud services, IoT devices, or high-performance computing applications, network administrators can ensure that the module provides the necessary scalability. This planning will help avoid the need for frequent upgrades or changes to the network infrastructure, saving time and resources in the long run.

Optimizing for High-Performance Applications

To get the most out of the CISCO C9300X-NM-2C= module, it is important to optimize the network for high-performance applications. This may involve adjusting configurations, implementing QoS (Quality of Service) policies, or deploying network monitoring tools to ensure that critical applications receive the bandwidth and priority they require. By fine-tuning the network to work in conjunction with the module, organizations can maximize performance and achieve their business objectives.
