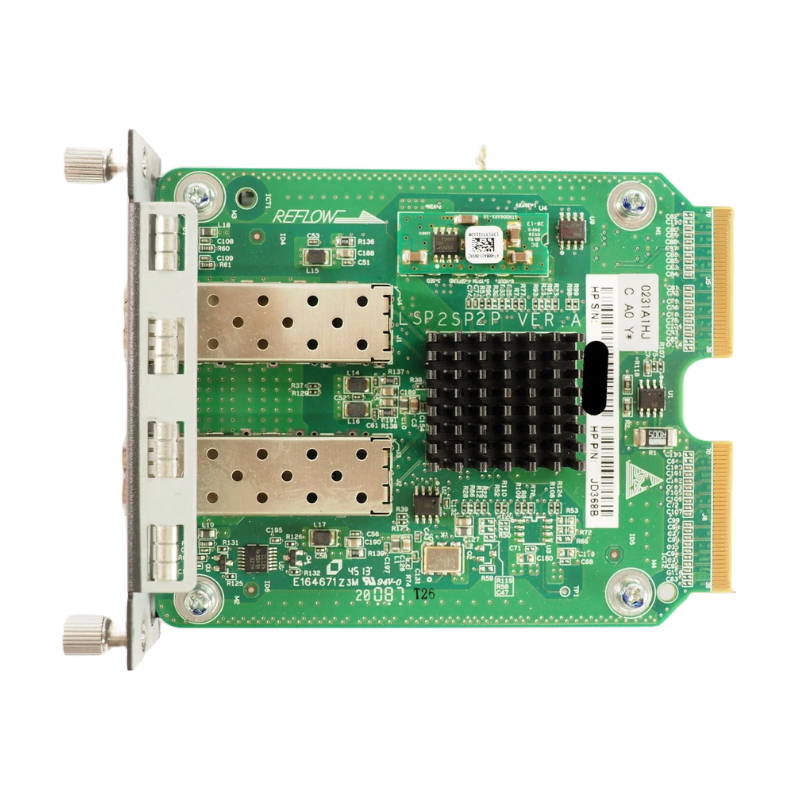

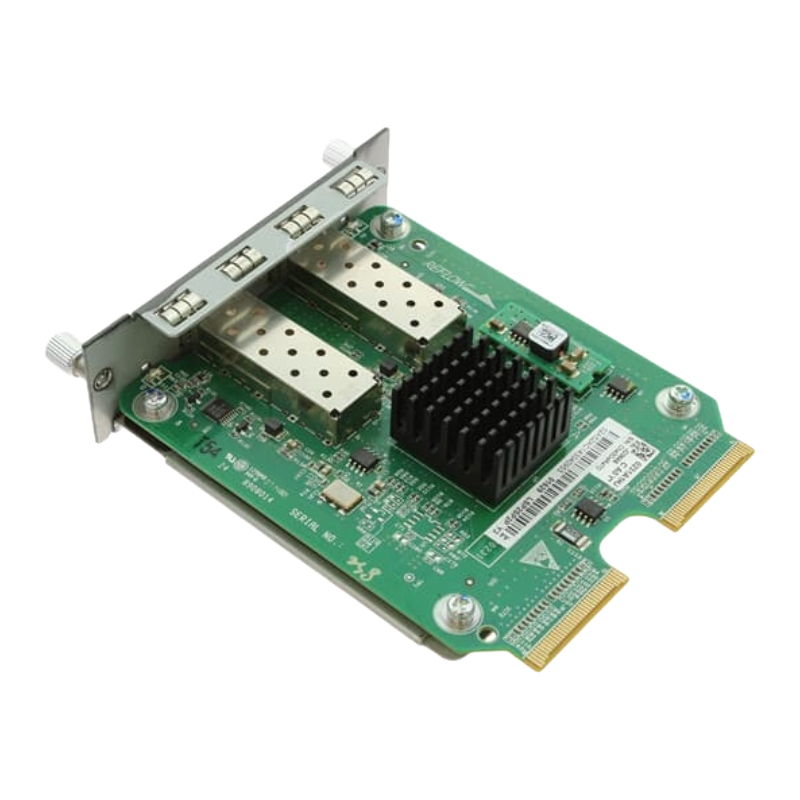

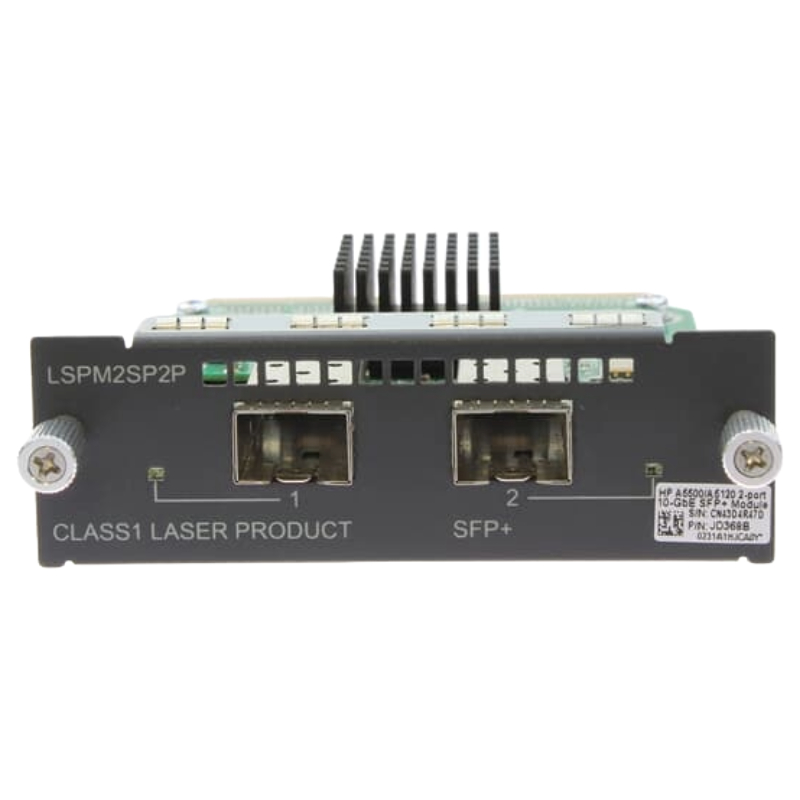

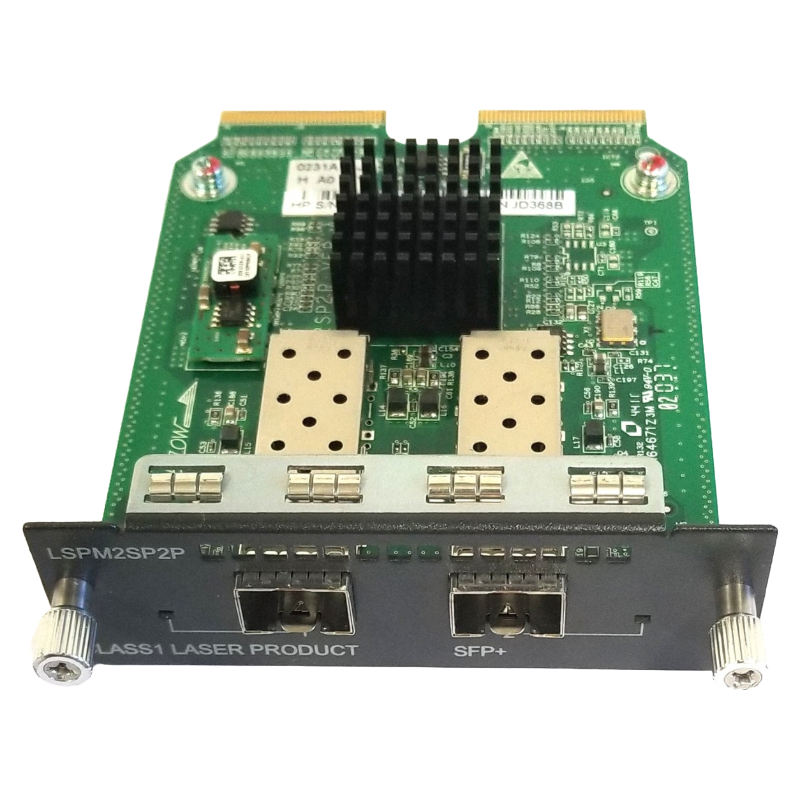

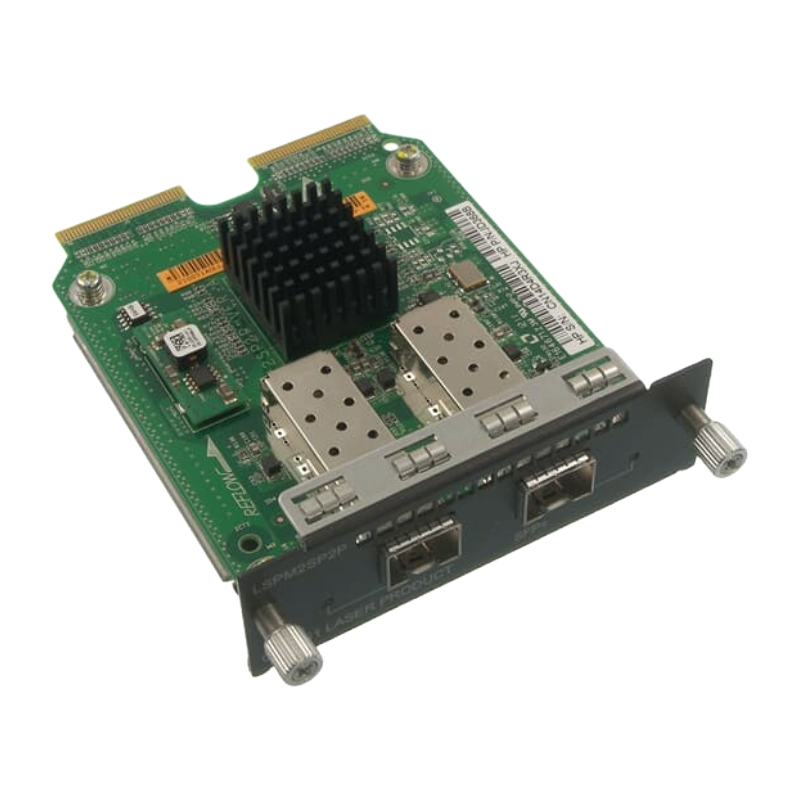

JD368B HPE 2 Ports SFP+ 10Gbps Gigabit Ethernet Expansion Module A5500 E4800 Switches

HPE JD368B 2-Port SFP+ 10GBE Expansion Module

The HPE JD368B is a high-performance network expansion module designed to extend the connectivity capabilities of compatible HPE enterprise switches. Featuring two dedicated SFP+ interfaces, this module enables high-speed 10 Gigabit Ethernet uplinks, allowing organizations to increase bandwidth, improve network scalability, and support growing business demands. Built for professional networking environments, the JD368B offers reliable performance for aggregation, server connectivity, virtualization, storage networking, and backbone infrastructure.

General Information

• Manufacturer: HPE
• Part Number: JD368B
• Product Type: Expansion Module

Product Specifications

• Expansion Ports: 2 x SFP+
• Network Technology: 10 Gigabit Ethernet
• Interface Type: SFP+
• Application: Enterprise Networking

Benefits of 10GbE Connectivity

• Higher bandwidth for growing workloads
• Reduced network congestion
• Improved response times for business applications
• Efficient server-to-switch communication
• Faster file transfers across enterprise networks
• Enhanced virtualization support
• Better performance for cloud-connected environments
• Scalable network infrastructure for future growth

Advantages of SFP+ Ports

• Flexible optical connectivity options
• Support for multiple fiber standards
• High-speed backbone deployment
• Long-distance communication capability
• Reduced electromagnetic interference
• Improved signal integrity
• Expandable network architecture
• Efficient fiber infrastructure utilization

Common Deployment Environments

• Enterprise campus networks
• Corporate headquarters
• Regional offices
• Government organizations
• Healthcare facilities
• Educational institutions
• Manufacturing environments
• Financial organizations
• Retail infrastructure
• Data center access networks

Expansion Advantages

• Protects previous hardware investments
• Simple network scalability
• Cost-effective infrastructure upgrades
• Additional fiber connectivity
• Higher aggregate bandwidth
• Supports future business growth
• Minimizes equipment replacement costs

Enterprise Reliability Features

• Professional-grade manufacturing quality
• Stable long-term operation
• Designed for demanding workloads
• Reliable hardware architecture
• Consistent network performance
• Enterprise-focused engineering

Compatible Switch

• HPE A5500 Series Switches
• HPE E4800 Series Switches

Compatibility Details

• HPE A5500 Series Ethernet Switches
• HPE E4800 Series Ethernet Switches

Overview of the HPE JD368B Expansion Module

The HPE JD368B 2 Ports SFP+ 10Gbps Gigabit Ethernet Expansion Module is a specialized networking component designed to enhance the performance and scalability of HPE A5500 and E4800 Switches. This expansion module provides two high-speed SFP+ ports, enabling 10Gbps connectivity that supports demanding enterprise environments. By integrating this module, organizations can achieve improved bandwidth, reduced latency, and seamless scalability for their data center and campus networks.

Compatibility with HPE A5500 and E4800 Switches

The JD368B module is engineered to work seamlessly with HPE A5500 and E4800 series switches. These switches are widely deployed in enterprise networks due to their reliability, advanced management features, and scalability. The addition of the JD368B expansion module allows administrators to extend the switch’s capabilities, ensuring that the infrastructure can handle modern workloads such as virtualization, cloud applications, and large-scale data transfers.

Integration with A5500 Series

The A5500 series is known for its robust architecture and versatile deployment options. When paired with the JD368B expansion module, the A5500 switch gains enhanced uplink capacity, making it suitable for aggregation layers and core network deployments. The module ensures that traffic flows efficiently between access and distribution layers, supporting high-performance applications without bottlenecks.

Integration with E4800 Series

The E4800 series is designed for enterprise-grade performance and reliability. By incorporating the JD368B module, the E4800 switch benefits from additional 10Gbps connectivity options, which are crucial for environments requiring high throughput and low latency. This integration supports advanced networking features such as link aggregation, redundancy, and load balancing, ensuring optimal performance in mission-critical scenarios.

Port Configuration

The module provides two SFP+ slots, each capable of delivering 10Gbps throughput. These ports can be configured for uplinks, stacking, or inter-switch connections, depending on the network design. The flexibility of SFP+ technology allows administrators to choose the appropriate transceivers for single-mode fiber, multi-mode fiber, or direct attach copper cables.

Capabilities

With 10Gbps per port, the JD368B module ensures that data-intensive applications such as virtualization, cloud computing, and multimedia streaming operate smoothly. The module supports advanced features like jumbo frames, flow control, and quality of service (QoS), which optimize traffic management and enhance overall network efficiency.

Reliability and Durability

Built to withstand continuous operation, the JD368B module offers high reliability. Its robust design ensures consistent performance even under heavy workloads, making it a dependable choice for enterprise environments.

Data Center Connectivity

In data centers, the JD368B module provides high-speed uplinks between core and aggregation switches. This ensures that servers, storage systems, and virtualization platforms communicate efficiently, reducing latency and improving application performance.

Campus Network Aggregation

For campus networks, the JD368B module supports aggregation of multiple access switches, delivering high-bandwidth connectivity to distribution layers. This setup is ideal for universities, corporate campuses, and large organizations where thousands of users require reliable and fast network access.

Advantages of Deploying the JD368B Module

Deploying the JD368B expansion module offers several advantages for enterprises. It enhances network performance, provides scalability, and ensures compatibility with existing HPE infrastructure. These benefits make it a strategic investment for organizations aiming to future-proof their networks.

Enhanced Bandwidth

The 10Gbps ports significantly increase available bandwidth, allowing networks to handle large volumes of traffic without congestion. This is particularly important for applications such as video conferencing, large file transfers, and real-time collaboration tools.

Scalability

The JD368B module enables organizations to scale their networks as demands grow. By adding high-speed uplinks, administrators can expand capacity without replacing existing switches, ensuring cost-effective scalability.

Transceiver Selection

The choice of transceivers depends on deployment scenarios. Single-mode fiber transceivers are suitable for long-distance connections, while multi-mode fiber transceivers are ideal for shorter distances. Direct attach copper cables provide cost-effective solutions for rack-level connectivity.

Cabling Requirements

Proper cabling is essential for achieving optimal performance. Fiber optic cables should be selected based on distance and bandwidth requirements, while copper cables should meet industry standards for 10Gbps connectivity.

Network Design

Integrating the JD368B module requires careful network design. Administrators should plan uplinks, redundancy, and load balancing to ensure efficient traffic flow and high availability.

Return on Investment

The module delivers a strong return on investment by improving network performance, reducing downtime, and supporting future growth. Its reliability ensures that organizations maximize the value of their networking investments.

Expanded Network Capabilities

By being compatible with A5500 and E4800 devices, the HP JD368B Expansion Module expands the network capabilities of these devices. Users can leverage the module's advanced features and functionalities, such as increased connectivity and high-speed data transfer, to enhance their overall network performance. This compatibility feature allows organizations to optimize their existing network infrastructure without the need for extensive upgrades or replacements.
