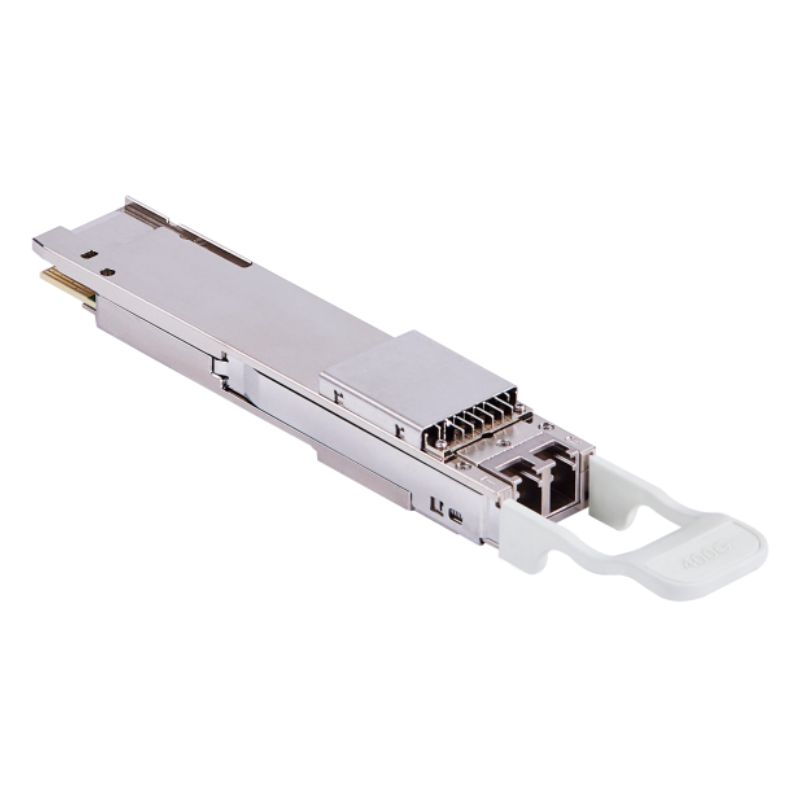

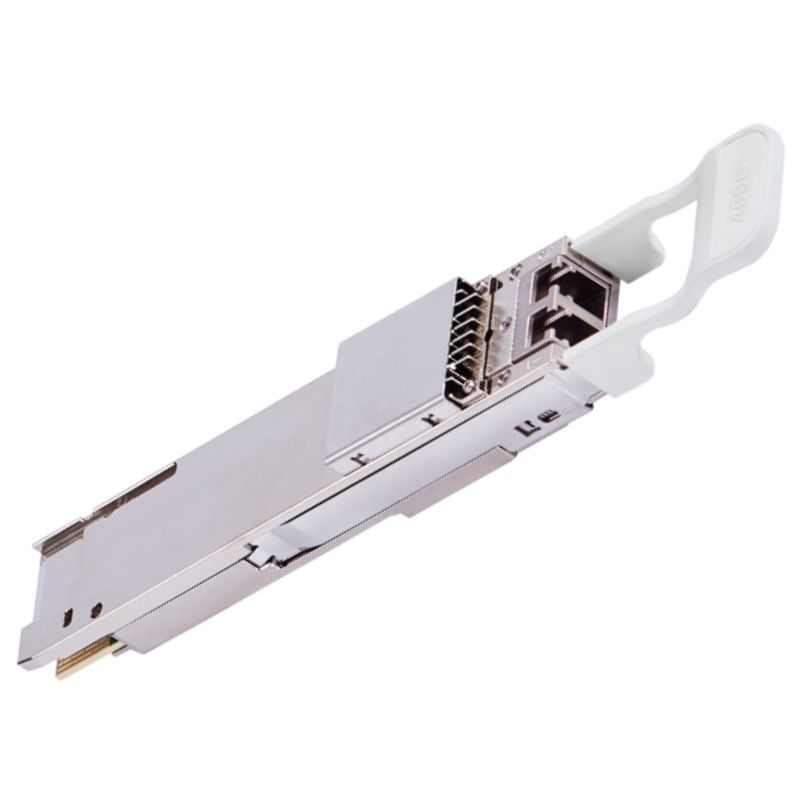

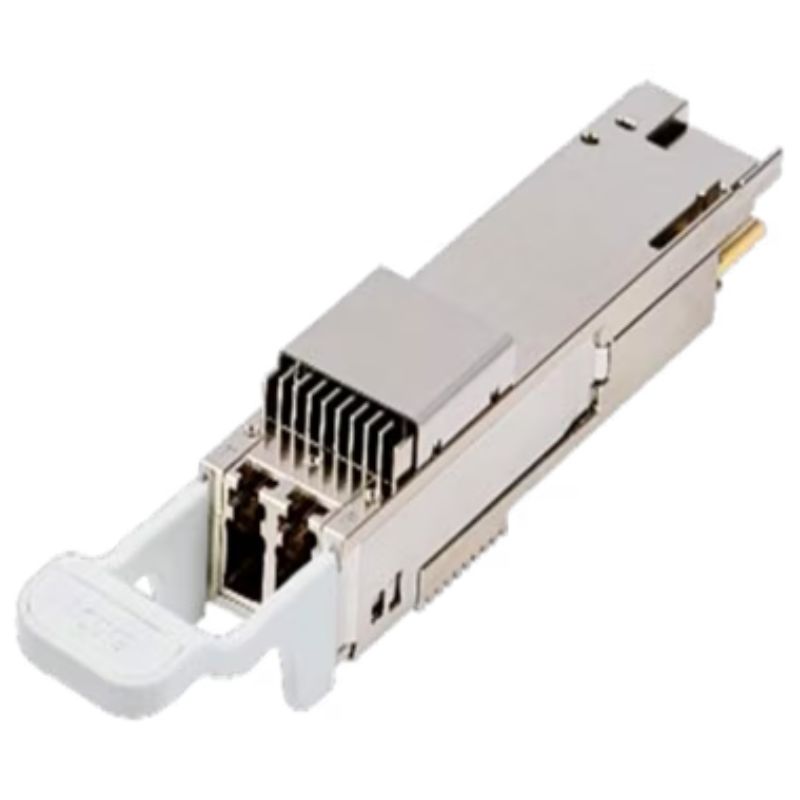

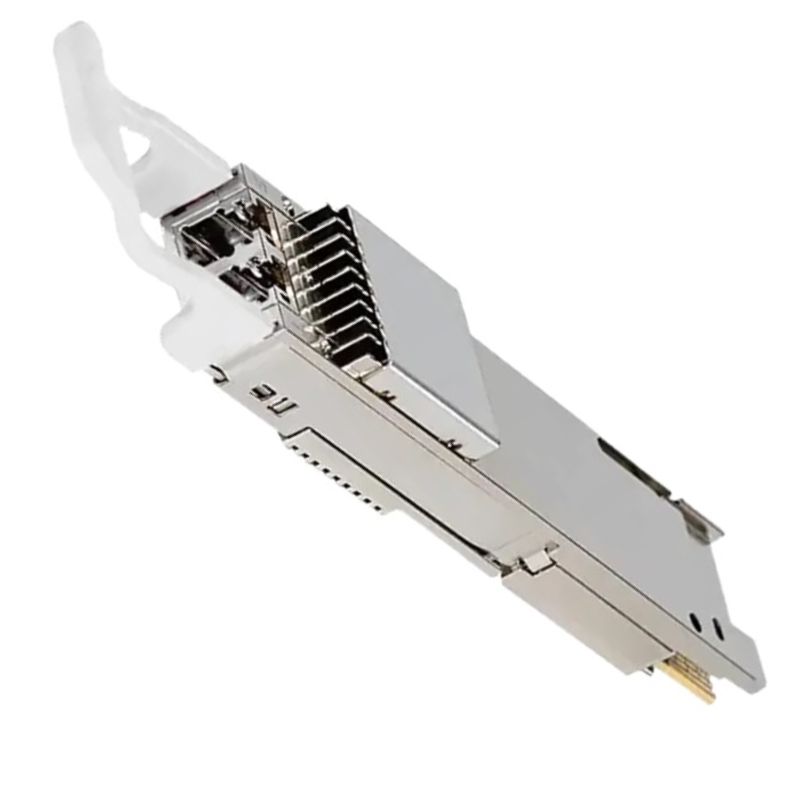

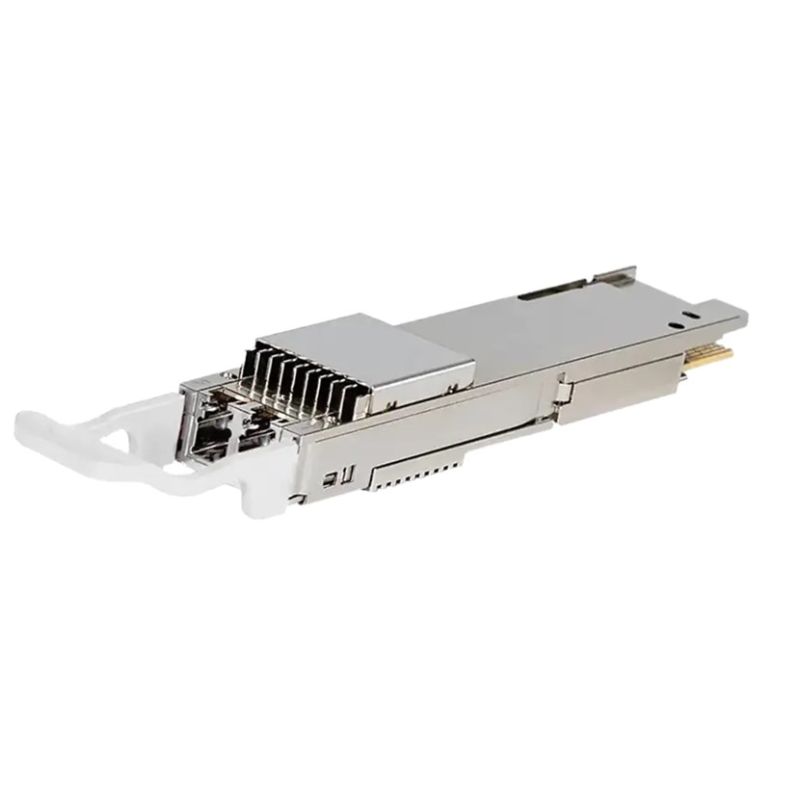

DP04QSDD-HE0 Cisco 400GBASE-ZR+ Transceiver

Details of Cisco 400GBASE-ZR+ Transceiver

The Cisco 400GBASE-ZR+ Transceiver (Part Number: DP04QSDD-HE0) is a high-performance optical module engineered for long-haul data transmission, offering advanced modulation formats, flexible trunk speeds, and robust interoperability across DWDM infrastructures.

Main Information

• Manufacturer: Cisco
• Model Number: DP04QSDD-HE0
• Device Type: Optical Transceiver

Technical Specifications

• Maximum Data Rate: Full 400 Gbps throughput
• Flexible Trunk Speeds: Configurable at 100G, 200G, 300G, and 400G
• Modulation Formats: DP-QPSK (100G/200G), DP-8QAM (300G), DP-16QAM (400G)
• Symbol Rate: Up to 60.14 GBaud (~60,138,546,798 symbols/sec)

Optical & Frequency Specifications

• Form Factor: Hot-swappable QSFP-DD
• Optical Transmit Power: Adjustable +1 dBm down to -9 dBm/-10 dBm
• Wavelength Range: Full C-Band tunable (1528.77nm–1567.13nm / 191.3 THz–196.1 THz)
• Connector Type: Duplex LC/UPC for single-mode fiber (SMF)

Distance & Network Interoperability

• Unamplified Links: 80km–120km
• Amplified DWDM Networks: 500km–2,500km

Standards & Compliance

• Interoperability: Open ZR+ MSA 2.0, OIF-400ZR-02.0, OIF-CMIS
• Forward Error Correction: Built-in Open FEC (oFEC)
• Digital Diagnostics: Integrated telemetry for power, temperature, and laser monitoring

Electrical & Environmental Metrics

• Power Consumption: ≤ 22.5W

Operating Conditions

• Temperature Range: 0°C to 70°C

Cisco DP04QSDD-HE0 400GBASE-ZR+ Transceiver Overview

The Cisco DP04QSDD-HE0 400GBASE-ZR+ QSFP-DD High TX Power Transceiver is engineered for advanced optical communication infrastructures that require ultra-high bandwidth, low latency, extended transmission reach, and reliable data center interconnect performance. Designed for modern hyperscale environments, carrier-grade telecommunications systems, cloud networking platforms, and enterprise backbone architectures, this high-performance optical transceiver delivers exceptional efficiency for 400 Gigabit Ethernet deployments across metropolitan, regional, and long-haul optical networks.

As network traffic volumes continue to increase due to artificial intelligence workloads, cloud-native applications, video streaming, edge computing, and high-density virtualization, organizations require optical modules capable of supporting scalable transport infrastructures. The Cisco DP04QSDD-HE0 transceiver fulfills this demand through advanced coherent optical technology integrated within a compact QSFP-DD form factor. Its high TX power capabilities allow superior signal integrity over long transmission distances while maintaining operational consistency in complex network topologies.

Advanced 400G Optical Connectivity Architecture

Modern networking infrastructures depend on reliable high-speed optical communication technologies capable of supporting massive data throughput with minimal signal degradation. The Cisco DP04QSDD-HE0 400GBASE-ZR+ QSFP-DD transceiver is specifically developed to support coherent optical transmission technologies that enable data rates up to 400Gbps across dense wavelength division multiplexing environments.

The module utilizes sophisticated digital signal processing techniques that optimize transmission quality across extended optical links. This architecture enables organizations to consolidate network resources while reducing operational complexity associated with legacy multi-module optical solutions. By integrating coherent optics into a compact QSFP-DD transceiver format, Cisco enables data center operators and telecommunications providers to maximize port density while minimizing infrastructure footprint.

Enhanced Signal Integrity for Long-Haul Deployments

Signal integrity is one of the most critical aspects of modern optical networking systems. The Cisco DP04QSDD-HE0 transceiver incorporates advanced coherent modulation technologies designed to maintain optical performance across long distances. This allows service providers and enterprise operators to support inter-data-center connectivity without excessive signal degradation.

High TX power functionality improves optical budget performance and enables transmission across complex networking environments where attenuation and dispersion could otherwise reduce link reliability. The transceiver’s enhanced optical capabilities support scalable network expansion strategies while maintaining consistent throughput and low error rates.

Optimized Coherent Optical Technology

Coherent optical networking has become a fundamental requirement for next-generation transport infrastructures. The Cisco DP04QSDD-HE0 integrates coherent optical processing mechanisms that improve spectral efficiency and bandwidth utilization. This advanced design allows operators to maximize fiber infrastructure investments while supporting rapidly growing traffic demands.

The coherent optical implementation also enhances resilience against optical impairments, enabling improved network stability in metropolitan and regional optical transport applications. Organizations deploying cloud networking architectures benefit from enhanced reliability, improved scalability, and reduced operational overhead.

QSFP-DD Form Factor Advantages in High-Density Networking

The QSFP-DD form factor has emerged as a leading solution for high-density networking environments due to its compact dimensions and exceptional bandwidth capacity. The Cisco DP04QSDD-HE0 leverages the benefits of QSFP-DD technology to deliver powerful 400G connectivity while conserving valuable rack space within data center infrastructures.

High-density deployments require networking hardware that can support increasing bandwidth demands without dramatically increasing power consumption or physical footprint. The compact design of the Cisco DP04QSDD-HE0 allows operators to deploy more high-speed connections per rack unit, improving infrastructure scalability and operational efficiency.

Scalability for Hyperscale Data Centers

Hyperscale data centers require networking equipment capable of supporting large-scale east-west traffic patterns and distributed computing workloads. The Cisco DP04QSDD-HE0 provides a scalable optical networking solution that aligns with evolving hyperscale architecture requirements.

Its compact QSFP-DD interface enables increased switch density while maintaining thermal efficiency and operational reliability. This allows cloud providers and enterprise data center operators to optimize network expansion strategies without excessive infrastructure redesign.

Efficient Port Density Optimization

Network scalability depends heavily on port density optimization. The Cisco DP04QSDD-HE0 enables organizations to maximize available switch ports while supporting ultra-high-speed connectivity requirements. This efficiency contributes to lower total cost of ownership by reducing the need for additional switching hardware and associated power consumption.

By consolidating bandwidth within a compact optical module, the transceiver supports simplified cable management and improved airflow characteristics within high-density networking environments.

Reduced Infrastructure Complexity

Infrastructure complexity can significantly impact operational efficiency and maintenance requirements. The Cisco DP04QSDD-HE0 minimizes complexity through integrated coherent optical functionality that reduces dependency on external transport components. This streamlined architecture improves deployment efficiency while simplifying long-term network management processes.

Organizations benefit from reduced hardware sprawl, simplified troubleshooting procedures, and improved operational consistency across distributed networking environments.

400GBASE-ZR+ Technology

400GBASE-ZR+ technology represents a major advancement in optical networking capabilities, enabling high-capacity data transmission across extended distances using standardized Ethernet interfaces. The Cisco DP04QSDD-HE0 utilizes this advanced optical technology to support carrier-grade connectivity requirements for modern digital infrastructures.

Service providers and enterprise organizations increasingly rely on 400GBASE-ZR+ solutions to support high-capacity transport services, cloud interconnectivity, and scalable metropolitan networking architectures. The Cisco transceiver delivers the performance characteristics necessary to maintain operational efficiency in demanding networking environments.

Extended Reach Optical Communication

Long-distance optical communication requires highly reliable transceiver technology capable of preserving signal quality across metropolitan and regional transmission paths. The Cisco DP04QSDD-HE0 incorporates high TX power functionality and advanced coherent modulation techniques that improve transmission reach capabilities.

Extended reach support enables organizations to connect geographically dispersed facilities while maintaining consistent bandwidth performance. This capability is especially important for disaster recovery infrastructures, multi-site cloud architectures, and distributed enterprise environments.

Improved Fiber Infrastructure Utilization

Efficient utilization of existing fiber infrastructure is essential for controlling operational costs and maximizing return on investment. The Cisco DP04QSDD-HE0 enhances fiber efficiency through advanced coherent transmission technologies that increase spectral utilization and bandwidth density.

Organizations can support greater traffic volumes over existing optical networks without requiring extensive fiber expansion projects. This capability contributes to improved scalability and reduced infrastructure deployment expenses.

Reliable High-Speed Data Transport

Reliable data transport is essential for mission-critical applications and latency-sensitive workloads. The Cisco DP04QSDD-HE0 provides stable high-speed transmission characteristics that support consistent application performance across distributed environments.

The module’s advanced optical architecture minimizes transmission errors and improves network stability under demanding operational conditions. This reliability is critical for cloud computing, enterprise virtualization, content delivery networks, and telecommunications services.

Carrier-Grade Networking Performance and Reliability

Carrier-grade optical networking environments require highly reliable transceiver solutions capable of operating continuously under intensive workloads. The Cisco DP04QSDD-HE0 is engineered to deliver exceptional durability, operational stability, and performance consistency across large-scale telecommunications infrastructures.

Its robust design supports continuous operation in demanding network environments where uptime, latency, and throughput are critical operational metrics. Telecommunications providers benefit from reliable optical transport capabilities that enable uninterrupted service delivery.

Operational Stability in High-Traffic Environments

High-traffic networking environments demand optical modules capable of maintaining stable performance under sustained workloads. The Cisco DP04QSDD-HE0 integrates advanced thermal management and power optimization technologies that improve operational consistency.

The transceiver maintains stable signal quality during peak traffic conditions, ensuring uninterrupted connectivity for mission-critical applications and large-scale cloud services.

Enhanced Thermal Efficiency

Thermal management plays a critical role in maintaining optical networking reliability. The Cisco DP04QSDD-HE0 incorporates efficient thermal dissipation mechanisms that reduce heat accumulation within high-density networking equipment.

Improved thermal performance contributes to extended hardware lifespan, lower cooling requirements, and increased operational reliability within modern data center environments.

Power Consumption Optimization

Energy efficiency is increasingly important in large-scale networking infrastructures. The Cisco DP04QSDD-HE0 is designed to optimize power utilization while delivering high-performance optical transmission capabilities.

Reduced power consumption contributes to lower operational expenses and supports sustainability initiatives within enterprise and hyperscale networking environments.

Application Scenarios for Cisco DP04QSDD-HE0 Transceivers

The Cisco DP04QSDD-HE0 400GBASE-ZR+ QSFP-DD High TX Power Transceiver supports a wide range of advanced networking applications across enterprise, telecommunications, cloud computing, and hyperscale environments.

Cloud Data Center Interconnect Deployments

Cloud service providers require scalable optical transport solutions capable of supporting massive inter-data-center traffic volumes. The Cisco DP04QSDD-HE0 enables efficient cloud connectivity through high-capacity 400G optical transmission technology.

Its long-distance communication capabilities support geographically distributed cloud infrastructures while maintaining low latency and high throughput characteristics essential for modern cloud services.

Telecommunications Backbone Networks

Telecommunications operators depend on reliable optical networking solutions to support voice, video, and data transmission across large-scale transport infrastructures. The Cisco DP04QSDD-HE0 delivers the performance and scalability necessary for modern telecommunications backbone networks.

The module’s coherent optical technology supports high-capacity transport architectures that improve service scalability while optimizing infrastructure utilization.

Artificial Intelligence and Machine Learning Infrastructure

Artificial intelligence workloads generate substantial east-west traffic within distributed computing environments. The Cisco DP04QSDD-HE0 provides high-bandwidth connectivity that supports accelerated data exchange between compute clusters, storage systems, and AI processing nodes.

Its ultra-high-speed optical capabilities enable organizations to support demanding machine learning applications with improved efficiency and reduced network bottlenecks.

Content Delivery Network Expansion

Content delivery networks require scalable transport infrastructures capable of supporting large-scale multimedia distribution and streaming services. The Cisco DP04QSDD-HE0 enables efficient data transmission between edge nodes, caching servers, and centralized data centers.

The module’s extended reach and high-capacity capabilities improve content distribution efficiency while supporting consistent user experiences across geographically distributed regions.

Compatibility and Integration Flexibility

The Cisco DP04QSDD-HE0 is designed to integrate seamlessly with compatible Cisco networking platforms and modern optical transport infrastructures. Its interoperability capabilities simplify deployment processes while supporting scalable infrastructure expansion strategies.

Integration with Cisco Networking Ecosystems

Cisco networking environments benefit from optimized compatibility between optical modules and switching platforms. The Cisco DP04QSDD-HE0 supports seamless integration with compatible Cisco data center switches and routing platforms.

This integration improves deployment efficiency, operational reliability, and network visibility across enterprise and service provider environments.

Flexible Deployment Architectures

Modern networking infrastructures require deployment flexibility to accommodate evolving business requirements and traffic patterns. The Cisco DP04QSDD-HE0 supports diverse deployment models ranging from metropolitan transport networks to hyperscale cloud infrastructures.

Its versatile optical capabilities allow organizations to implement scalable networking strategies while maintaining infrastructure consistency and operational efficiency.

Simplified Network Expansion

Network expansion initiatives require scalable optical technologies capable of supporting increasing bandwidth demands without introducing excessive operational complexity. The Cisco DP04QSDD-HE0 enables efficient infrastructure scaling through standardized 400G optical connectivity.

Organizations can expand network capacity while minimizing disruption to existing operations and maintaining consistent service quality across distributed environments.

High TX Power Benefits for Extended Optical Performance

High TX power functionality significantly improves optical transmission performance across long-distance communication links. The Cisco DP04QSDD-HE0 incorporates enhanced transmission power characteristics that improve optical budget efficiency and link stability.

Improved Optical Link Budget

Optical link budget optimization is essential for maintaining transmission reliability across extended fiber routes. The Cisco DP04QSDD-HE0 delivers enhanced optical output power that improves signal propagation and reduces susceptibility to attenuation.

This capability enables more reliable long-distance communication while reducing dependency on additional signal amplification equipment.

Enhanced Transmission Reliability

Reliable optical communication requires stable signal transmission under varying environmental and operational conditions. The Cisco DP04QSDD-HE0 provides improved transmission consistency that supports uninterrupted connectivity across complex optical infrastructures.

Enhanced TX power characteristics contribute to lower error rates, improved network resilience, and superior application performance in demanding enterprise and carrier environments.
