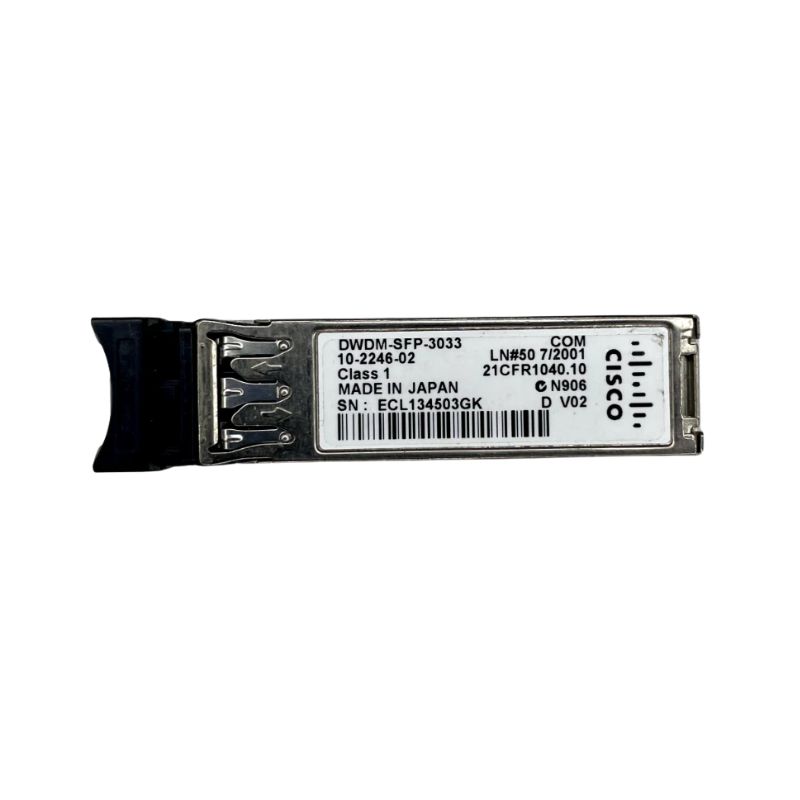

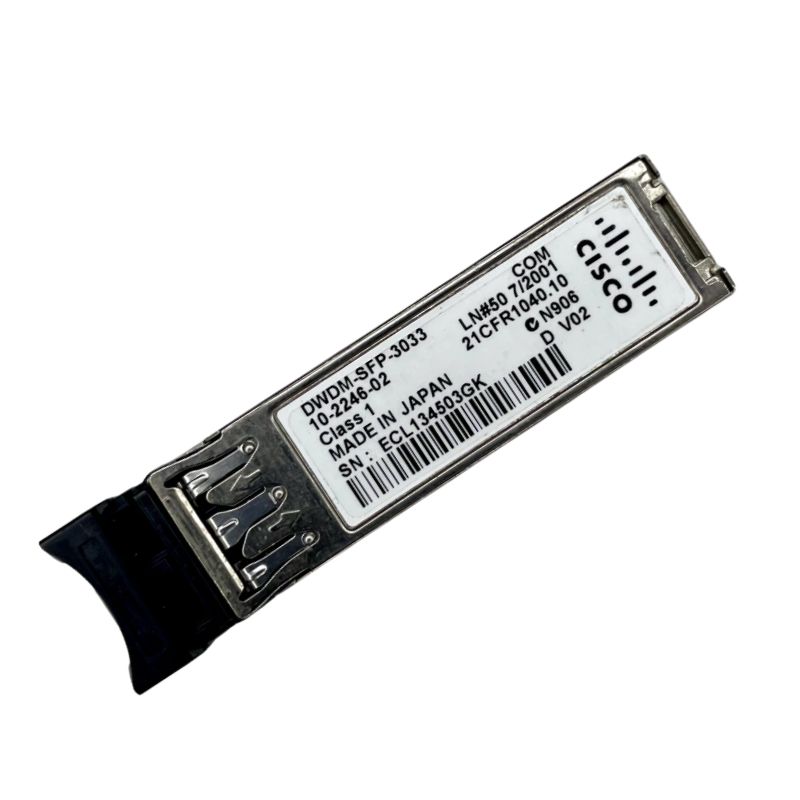

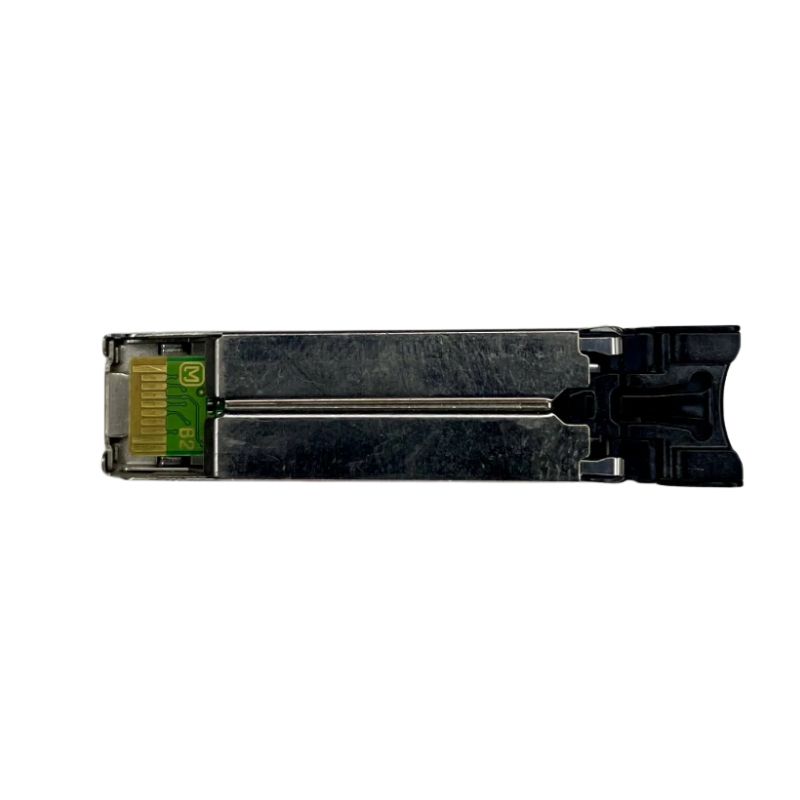

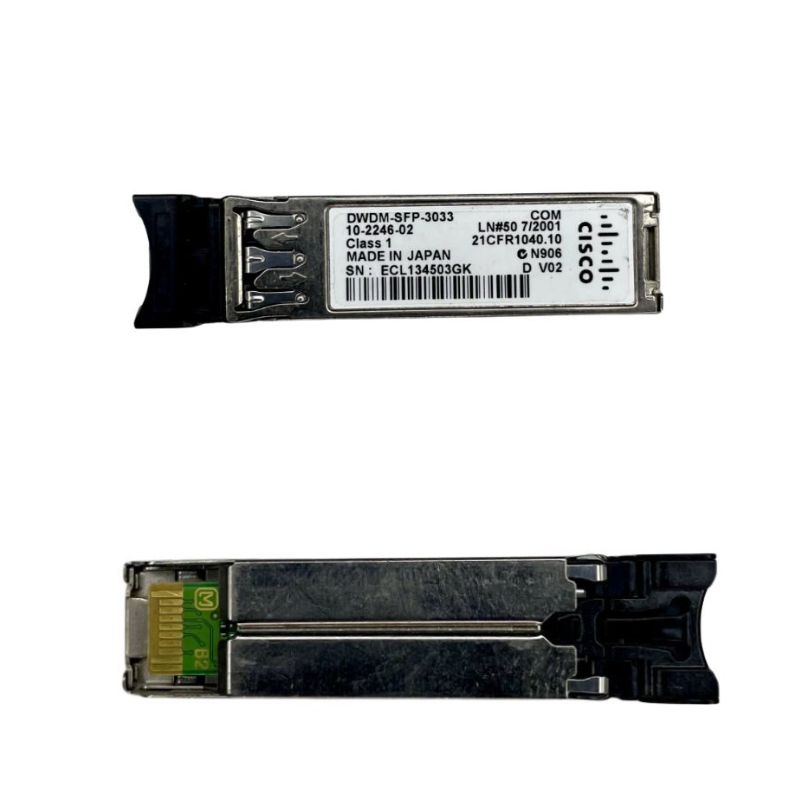

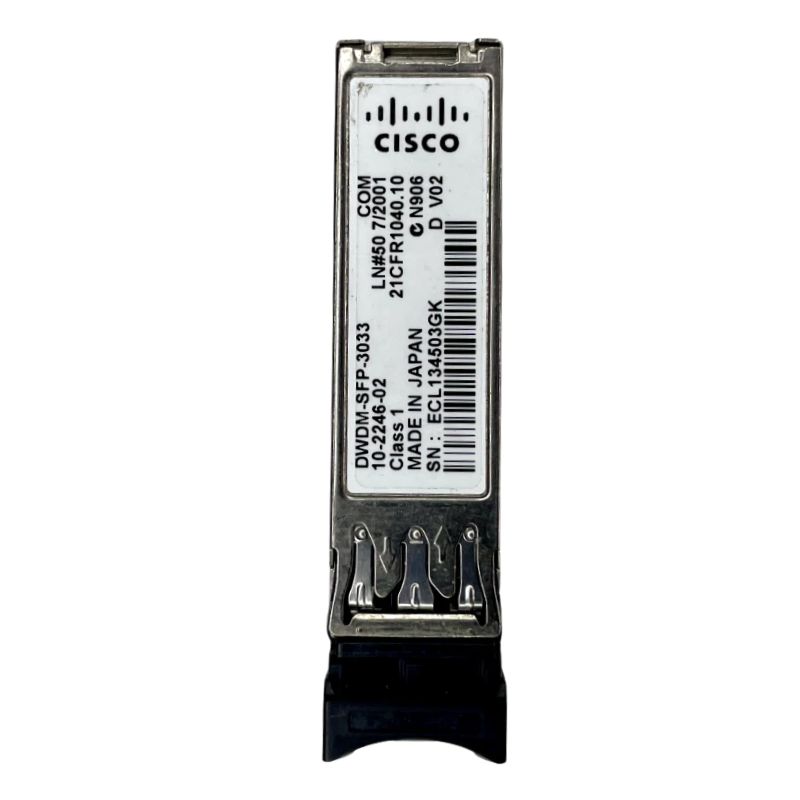

DWDM-SFP-3033 Cisco 1Gbps Single-mode Transceiver Module

Comprehensive Product Summary

The Cisco DWDM-SFP-3033 is a high-performance, 1Gbps SFP transceiver module designed for long-distance data transmission over single-mode fiber. Operating at a wavelength of 1530.33nm, this module supports data rates up to 1Gbps and is capable of transmitting data over distances of up to 80 kilometers.

Main Specifications

• Brand: Cisco
• Part Number: DWDM-SFP-3033
• Product Type: Transceiver Module

Technical Specifications

• Port Details: 1 x LC/PC 1000Base-DWDM Network Interface
• Supported Media Type: Optical Fiber
• Fiber Mode: Single-mode
• Ethernet Technology: Gigabit Ethernet
• Network Technology: 1000Base-DWDM

Advanced Features

Network Compatibility

• Designed for seamless integration with DWDM networks
• Supports high-speed data transmission over single-mode fiber

Operational Efficiency

• Hot-swappable design for minimal downtime
• Compact form factor for space-efficient installations

Durability and Reliability

• Built to withstand demanding network environments
• Ensures consistent performance in high-bandwidth applications

Overview of Cisco DWDM-SFP-3033 Transceiver Module

The DWDM-SFP-3033 1Gbps 1000Base-DWDM Single-mode Fiber 80km 1530.33nm Duplex LC Connector SFP Transceiver Module is a high-performance optical networking component designed for dense wavelength division multiplexing environments where long-distance fiber transmission, spectral efficiency, and enterprise-grade reliability are essential. This module belongs to the Small Form-factor Pluggable (SFP) class of optical transceivers and is engineered to support 1Gbps Gigabit Ethernet connectivity over single-mode fiber infrastructure with extended reach up to 80 kilometers. It is optimized for carrier-grade backbone networks, metropolitan area networks (MANs), and enterprise interconnect solutions requiring stable, low-latency optical communication across geographically dispersed sites.

The DWDM-SFP-3033 operates at a precisely tuned wavelength of 1530.33nm, making it part of a tightly controlled DWDM channel grid. This precision allows multiple optical channels to coexist within the same fiber pair without interference, enabling significant scalability of fiber infrastructure. The module is designed with a duplex LC connector interface, ensuring reliable bidirectional communication while maintaining minimal insertion loss and high optical return loss performance. It is widely deployed in environments where fiber capacity optimization and long-haul transmission efficiency are critical.

Dense Wavelength Division Multiplexing (DWDM) Technology

DWDM technology is the backbone of modern optical transport networks, enabling multiple independent data channels to be transmitted simultaneously over a single optical fiber strand by assigning each channel a distinct wavelength. The DWDM-SFP-3033 module operates within this framework, delivering a tightly controlled optical signal at 1530.33nm that aligns with standardized DWDM channel spacing grids. This precise wavelength allocation ensures seamless integration into existing optical multiplexers and demultiplexers used in high-capacity transport systems.

Wavelength Precision and Channel Isolation

The 1530.33nm wavelength specification is critical for ensuring channel isolation within DWDM systems. Each optical channel in a DWDM network must remain spectrally distinct to prevent crosstalk and signal degradation. The DWDM-SFP-3033 achieves this through advanced laser stabilization techniques that maintain wavelength accuracy under varying environmental and operational conditions. This precision ensures that the optical signal remains stable even across extended transmission distances up to 80km.

1530.33nm DWDM Channel Characteristics

The 1530.33nm channel lies within the C-band spectrum, which is widely used in long-haul optical communication due to its low attenuation characteristics in silica-based single-mode fiber. This wavelength region offers optimal performance when paired with erbium-doped fiber amplifiers (EDFAs), enabling signal regeneration without full electrical conversion. The DWDM-SFP-3033 leverages this property to maintain signal integrity across metropolitan and regional network spans.

Optical Multiplexing Efficiency

In DWDM systems, efficiency is achieved by maximizing the number of channels transmitted through a single fiber pair. The DWDM-SFP-3033 contributes to this efficiency by occupying a defined spectral slot, allowing network operators to scale bandwidth without deploying additional fiber infrastructure. This reduces capital expenditure while increasing overall network throughput capacity.

Physical Architecture and SFP Form Factor Design

The module is designed in a compact Small Form-factor Pluggable (SFP) enclosure, which enables hot-swappable installation in compatible network switches, routers, and optical transport equipment. This compact design allows for high port density while maintaining thermal efficiency and operational stability in enterprise and carrier-grade environments.

Mechanical and Electrical Interface Design

The SFP architecture of the DWDM-SFP-3033 ensures standardized electrical signaling and physical compatibility across a wide range of networking hardware platforms. The module integrates seamlessly into SFP slots, enabling plug-and-play deployment without requiring system downtime. The electrical interface is designed to support Gigabit Ethernet signaling with minimal jitter and latency, ensuring consistent data throughput.

Duplex LC Connector Integration

The duplex LC connector system used in the DWDM-SFP-3033 provides separate transmit and receive fiber paths, enabling full-duplex communication over single-mode fiber infrastructure. The LC interface is widely recognized for its precision alignment, low insertion loss, and compact form factor, making it ideal for high-density optical networking environments. The connector design ensures secure fiber termination and minimizes signal reflection, which is essential for maintaining optical performance over long distances.

Performance Specifications

The DWDM-SFP-3033 supports a data transmission rate of 1Gbps, aligning with Gigabit Ethernet standards widely used in enterprise and carrier networks. This throughput is optimized for stable long-distance communication, ensuring that data integrity is maintained across extended fiber spans.

1Gbps Gigabit Ethernet Operation

At 1Gbps, the module delivers consistent bandwidth suitable for backbone connectivity, data center interconnects, and distributed enterprise networks. The transceiver maintains low bit error rates (BER) through advanced optical modulation techniques and precise laser control. This ensures that packet loss is minimized even in high-load network conditions.

80km Long-Distance Transmission Capability

One of the defining features of the DWDM-SFP-3033 is its ability to support transmission distances up to 80 kilometers over single-mode fiber. This extended reach is achieved through high-power optical emission and optimized receiver sensitivity. The module is designed to maintain signal clarity over long fiber spans, making it suitable for metropolitan area networks, regional telecom links, and inter-campus connectivity.

Optical Power Budget and Link Stability

The optical power budget of the module ensures that sufficient signal strength is maintained throughout the transmission path. This includes compensation for fiber attenuation, connector losses, and potential splicing points. The balance between transmit power and receiver sensitivity is carefully engineered to maintain link stability under varying network conditions.

Network Compatibility and System Integration

The DWDM-SFP-3033 is designed for seamless integration into optical networking systems that support DWDM channel grids and SFP-based interfaces. It is commonly deployed in systems that require scalable bandwidth expansion without infrastructure redesign.

Integration within Cisco Networking Ecosystems

Within environments switching and routing platforms, the module is recognized for its compatibility with optical transport configurations that utilize DWDM multiplexing technology. It supports standardized optical signaling protocols that ensure interoperability across enterprise and service provider architectures.

Interoperability with DWDM Multiplexers

The module integrates with DWDM multiplexers and demultiplexers that aggregate multiple wavelengths onto a single fiber pair. This allows network architects to build scalable optical infrastructures that support multiple 1Gbps channels within a shared physical medium. The DWDM-SFP-3033 ensures precise wavelength alignment, which is essential for maintaining channel integrity in multiplexed environments.

Carrier-Class Network Deployment

In carrier-grade deployments, the module is utilized for backbone transport, metro aggregation, and long-haul optical links. Its reliability and wavelength precision make it suitable for mission-critical communication systems where downtime or signal degradation is not acceptable.

Optical Signal Integrity and Transmission Optimization

Signal integrity is a fundamental aspect of optical transceiver performance. The DWDM-SFP-3033 incorporates advanced laser stabilization and receiver sensitivity control to maintain clean signal transmission over long distances. This ensures that the optical waveform remains consistent and resistant to distortion.

Noise Reduction and Signal Clarity

The module minimizes optical noise through controlled emission spectra and narrowband filtering techniques. This reduces interference from adjacent DWDM channels and enhances overall system performance. The receiver component is engineered to detect weak optical signals without introducing significant noise amplification.

Chromatic Dispersion Management

Over long distances such as 80km, chromatic dispersion becomes a significant factor affecting signal quality. The DWDM-SFP-3033 is designed to operate within optical systems that compensate for dispersion effects, ensuring that data signals remain coherent and synchronized upon arrival at the receiving end.

Fiber Infrastructure Compatibility

The module is specifically designed for single-mode fiber (SMF) infrastructure, which is optimized for long-distance communication due to its low attenuation and narrow core diameter. SMF allows the DWDM-SFP-3033 to maintain signal strength and clarity over extended transmission distances.

Single-Mode Fiber Optimization

Single-mode fiber provides a direct transmission path for laser light, reducing modal dispersion and ensuring high signal fidelity. The DWDM-SFP-3033 is calibrated to operate efficiently within this fiber type, ensuring consistent performance across diverse installation environments.

Connector Precision and Loss Minimization

The duplex LC connector interface ensures precise alignment between fiber cores, minimizing insertion loss and maximizing optical coupling efficiency. This is critical for maintaining the integrity of long-haul DWDM transmissions where every decibel of signal strength is valuable.

Power Consumption and Environmental Stability

The DWDM-SFP-3033 is engineered for energy-efficient operation, minimizing power consumption while maintaining high optical output performance. This makes it suitable for large-scale deployments where power efficiency directly impacts operational costs.

Thermal Performance in High-Density Environments

In dense switch configurations, multiple SFP modules operate simultaneously, generating heat within confined spaces. The DWDM-SFP-3033 is designed with thermal resilience in mind, ensuring stable operation even under elevated ambient temperatures.

Operational Temperature Range

The module is built to function reliably across a wide temperature range, making it suitable for both controlled data center environments and more variable telecom installations. Thermal stability ensures that wavelength accuracy and signal output remain consistent under changing conditions.

Amplification and Regeneration Support

In long-haul deployments, optical amplifiers such as EDFAs are used to extend transmission range without converting signals to electrical form. The DWDM-SFP-3033 is compatible with such amplification systems, ensuring that signal integrity is preserved across extended network spans.

Scalability and Future Network Expansion

The DWDM-SFP-3033 supports scalable network architectures by enabling additional wavelength channels to be introduced without modifying existing fiber infrastructure. This scalability is essential for organizations experiencing increasing bandwidth demands.

Incremental Capacity Expansion

Network operators can incrementally expand capacity by adding additional DWDM channels, each operating at distinct wavelengths. The DWDM-SFP-3033 contributes to this scalability by providing a standardized optical interface that integrates seamlessly into expanding DWDM grids.

Long-Term Infrastructure Efficiency

By leveraging DWDM technology and SFP modularity, organizations can extend the lifespan of existing fiber infrastructure while continuously increasing network capacity. This reduces the need for costly physical upgrades and supports sustainable network evolution.
