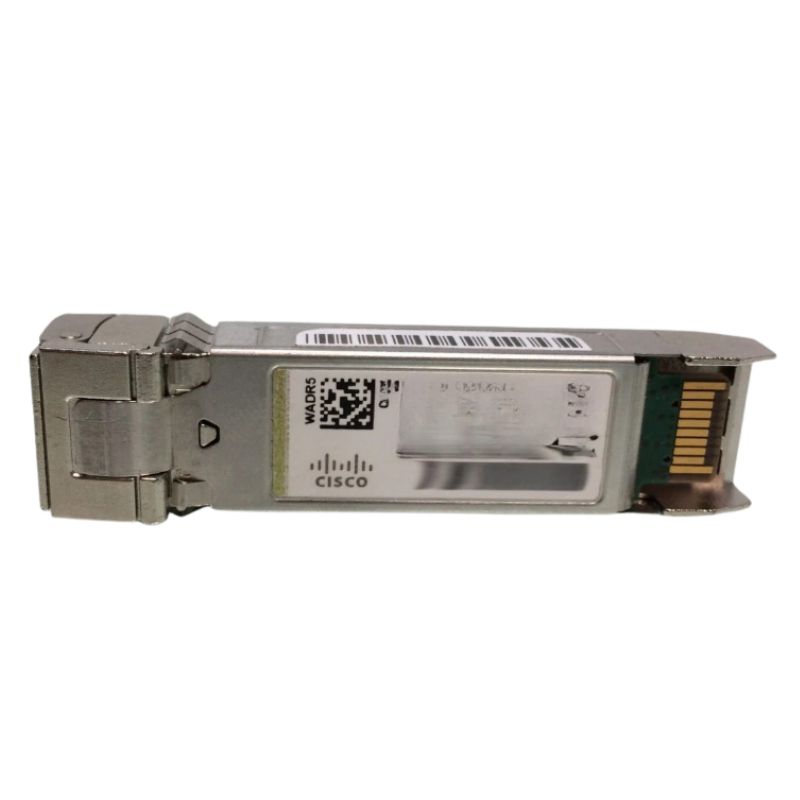

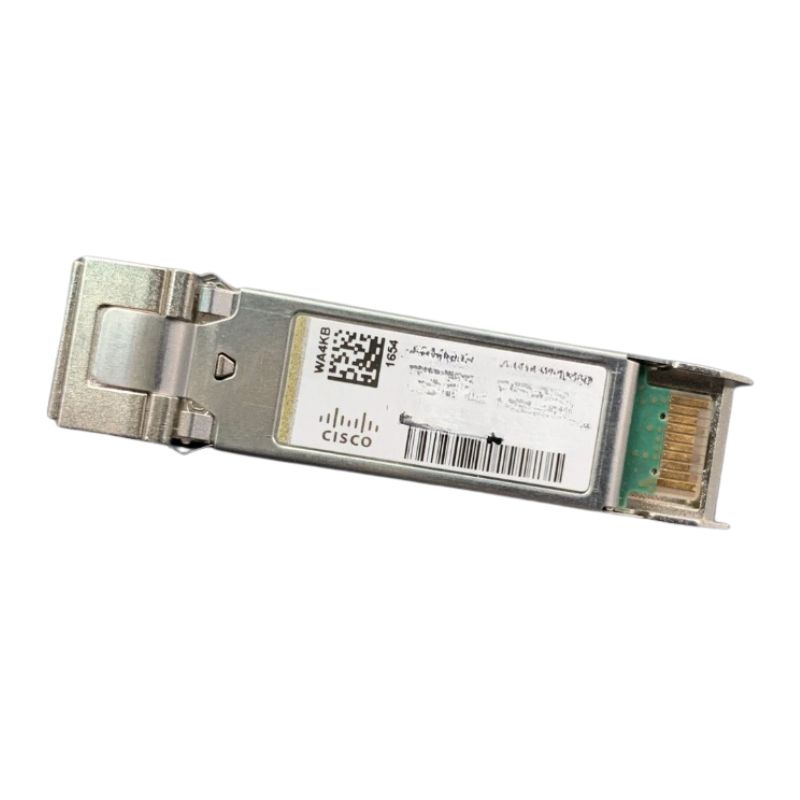

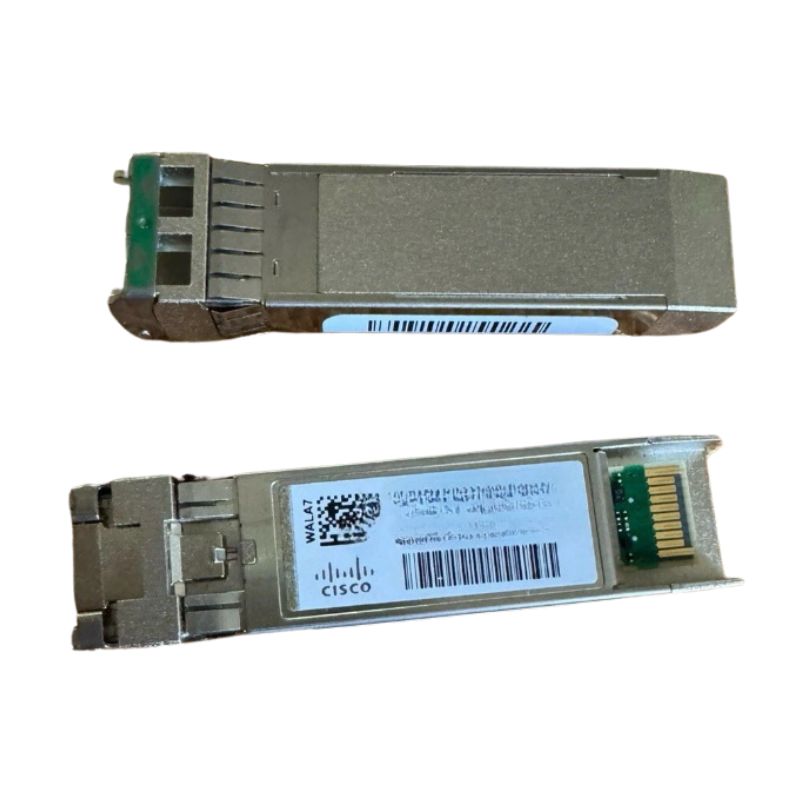

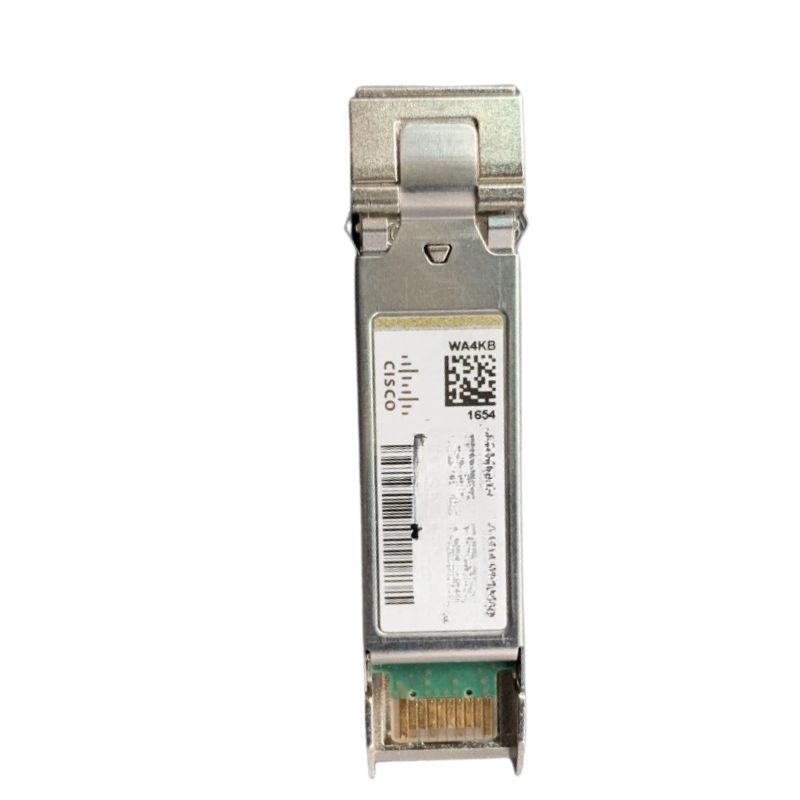

DWDM-SFP10G-C Cisco SFP+ Transceiver Module 10G SMF with DWDM and LC Connector

Comprehensive Product Overview

The Cisco SFP+ Transceiver Module 10G SMF with DWDM features a highly efficient LC connector. This connector plays a crucial role in ensuring reliable and high-performance connectivity for users.

General Specifications

• Brand: Cisco
• Model Number: DWDM-SFP10G-C
• Product Type: Optical Transceiver Module

Technical Specifications

• Interface Type: SFP+ slot compatible
• Transmission Speed: 10 Gigabits per second
• Fiber Mode: Single-mode optical fiber (SMF)
• Reach Capability: Supports up to 80 kilometers

Connectivity Features

• Connector Format: Duplex LC interface
• Usage: Ideal for long-haul data communication
• Compatibility: Designed for enterprise networking equipment

Key Advantages

• Reliable high-speed data transmission over extended distances
• Compact hot-pluggable design for easy installation
• Optimized for dense wavelength division multiplexing (DWDM) applications
• Ensures stable connectivity with minimal signal loss

Enhanced Connectivity

• Ideal for long-distance transmission
• Utilizes small form-factor pluggable (SFP+) design
• Facilitates seamless integration into existing networks

Wavelength and Distance

• Wavelength: 1550 nm
• Maximum Distance: Up to 80 km

Applications

Network Infrastructure

• Suitable for data center interconnects
• Supports high-capacity backbone networks
• Enhances performance in enterprise applications

Telecommunication Services

• Enables efficient long-haul optical networks
• Compatible with various telecom standards

Compatibility

Supported Devices

• Works with Cisco routers and switches
• Integrates with other optical transceiver modules
• Ensures interoperability across different systems

Cisco DWDM-SFP10G-C Single Mode Fiber Transceiver Module

The Cisco DWDM-SFP10G-C 10G Single Mode Fiber SFP+ Transceiver Module with DWDM and LC Connector represents a highly specialized optical networking component engineered for dense wavelength division multiplexing (DWDM) environments. It is designed for high-capacity data transmission over long-distance fiber infrastructure, supporting 10 Gigabit Ethernet (10GbE) applications with precise wavelength allocation. This module is widely implemented in carrier-grade networks, enterprise backbone systems, metropolitan area networks (MAN), and data center interconnect (DCI) architectures where spectral efficiency, signal integrity, and scalability are critical requirements.

Advanced DWDM Technology Integration

Dense Wavelength Division Multiplexing Architecture and Functionality

DWDM technology enables multiple optical carrier signals to be multiplexed onto a single optical fiber by using different wavelengths (or channels) of laser light. The Cisco DWDM-SFP10G-C module operates within this architecture by assigning a precise ITU-T grid wavelength, ensuring compatibility with DWDM multiplexers and demultiplexers. This enables network operators to maximize fiber utilization without laying additional physical fiber strands, significantly reducing infrastructure costs while increasing bandwidth density.

ITU-T Grid Alignment and Channel Precision

Each Cisco DWDM SFP+ transceiver is tuned to a specific ITU-T G.694.1 grid channel, allowing predictable wavelength spacing and minimizing cross-channel interference. This precision ensures stable optical performance even in dense multi-channel deployments, where dozens of wavelengths may be transmitted simultaneously through a single optical fiber pair.

Optical Stability and Frequency Locking Mechanisms

The module incorporates highly stable laser technology that maintains wavelength accuracy across varying environmental conditions. Thermal stabilization mechanisms and internal feedback controls ensure frequency locking accuracy, reducing drift and maintaining signal reliability in high-demand network infrastructures.

10G Ethernet Support and High-Bandwidth Transmission Capabilities

Designed for 10 Gigabit Ethernet networking, the Cisco DWDM-SFP10G-C module supports full-duplex data transmission at 10 Gbps, making it suitable for backbone links and aggregation layers in enterprise and service provider networks. Its high-speed capability ensures low latency and consistent throughput, which is essential for applications such as cloud computing, virtualization, and real-time data processing systems.

Low Latency Optical Transport Characteristics

The module minimizes latency through direct optical conversion and efficient signal modulation techniques. This ensures that data packets are transmitted with minimal delay across long distances, supporting latency-sensitive applications such as financial trading systems, telecommunications routing, and distributed computing environments.

Signal Modulation Efficiency and Noise Reduction

Advanced modulation techniques and integrated optical filters reduce signal noise and improve transmission clarity. This results in a higher signal-to-noise ratio (SNR), allowing stable data transfer even in high-density DWDM channels where optical interference is more likely to occur.

Single Mode Fiber Compatibility

Optimized for Long-Haul Optical Infrastructure

The Cisco DWDM-SFP10G-C module is engineered for Single Mode Fiber (SMF) environments, enabling transmission over extended distances often exceeding tens of kilometers depending on system design and optical amplification. Single mode fiber provides a narrow core that supports long-distance signal propagation with minimal attenuation and dispersion.

Attenuation Control and Signal Integrity Preservation

Signal attenuation is a critical factor in long-distance fiber networks. This transceiver module is designed to maintain signal integrity by working efficiently with optical amplifiers such as Erbium-Doped Fiber Amplifiers (EDFA), ensuring consistent signal strength across long fiber spans.

Chromatic Dispersion Management

Chromatic dispersion occurs when different wavelengths of light travel at varying speeds within the fiber. The module is optimized to function within dispersion-managed networks, ensuring that signal distortion remains within acceptable limits for 10GbE performance standards.

Compatibility with Metro and Regional Fiber Networks

This DWDM SFP+ module is commonly deployed in metropolitan area networks where multiple data centers, service nodes, and enterprise branches are interconnected. Its ability to operate within DWDM channel grids makes it ideal for scalable expansion of metro optical rings and regional backbone infrastructure.

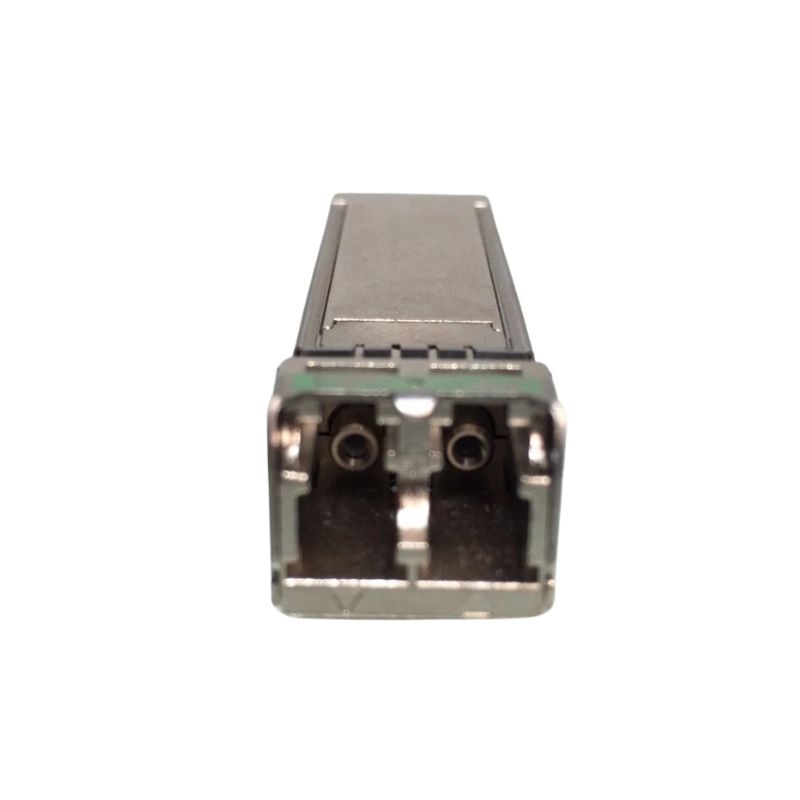

LC Connector Interface

High-Precision LC Duplex Connector Standard

The Cisco DWDM-SFP10G-C utilizes LC duplex connectors, which are widely adopted in high-density fiber optic environments due to their compact size and reliable optical alignment. The LC interface ensures efficient coupling of light between transceivers and fiber cables with minimal insertion loss.

Insertion Loss Optimization and Return Loss Performance

Low insertion loss is essential for maintaining optical power budgets in long-distance transmissions. The LC connector design used in this module is optimized to reduce reflective losses and maintain high return loss performance, ensuring stable communication links.

Mechanical Stability and Connector Durability

The LC connector system provides secure physical locking, preventing accidental disconnections and minimizing micro-bending losses. This mechanical reliability is essential in dense rack-mounted network environments where vibration and cable congestion are common.

Enterprise and Carrier-Class Deployment Scenarios

Data Center Interconnect (DCI) Applications

The Cisco DWDM-SFP10G-C module is frequently used in data center interconnect environments where high-speed data replication, cloud synchronization, and workload distribution occur between geographically separated facilities. Its DWDM capability allows multiple 10G channels to coexist over a single fiber pair, significantly increasing infrastructure efficiency.

Cloud Infrastructure Scaling and Bandwidth Optimization

Cloud service providers rely on DWDM SFP+ modules to scale bandwidth without expanding physical fiber infrastructure. This module enables dynamic scaling of optical channels, supporting growing data demands from virtualization platforms and distributed computing systems.

Telecommunication Backbone Integration

Telecom operators deploy DWDM SFP+ modules in backbone and aggregation networks to support voice, video, and data traffic convergence. The Cisco DWDM-SFP10G-C plays a critical role in ensuring high-capacity transport between switching centers and core routing nodes.

Network Resiliency and Redundant Path Architecture

In carrier environments, redundancy is essential. This transceiver supports resilient network designs such as ring topologies and mesh architectures, enabling automatic failover and maintaining uninterrupted service delivery in case of fiber cuts or equipment failures.

Optical Protection Switching Compatibility

The module integrates seamlessly into optical protection switching systems, allowing rapid rerouting of traffic across backup channels without noticeable service interruption, ensuring carrier-grade reliability.

Thermal Design, Power Efficiency, and Operational Stability

Low Power Consumption Architecture

The Cisco DWDM-SFP10G-C module is designed with energy efficiency in mind, consuming minimal power while maintaining high optical output performance. This contributes to reduced operational costs in large-scale deployments where hundreds or thousands of modules may be active simultaneously.

Heat Dissipation and Environmental Adaptability

Efficient thermal management ensures stable performance across varying environmental conditions. The module is engineered to operate within standard networking temperature ranges, maintaining consistent optical output even in high-density chassis installations.

Extended Lifecycle Reliability

Built for continuous operation, the module is tested for long-term durability under sustained network loads. This ensures reduced failure rates and predictable lifecycle management for enterprise and carrier networks.

Network Scalability and DWDM Channel Expansion Capabilities

Multi-Channel DWDM Network Expansion

One of the key advantages of the Cisco DWDM-SFP10G-C module is its ability to participate in multi-channel DWDM systems, where multiple wavelengths are combined over a single fiber pair. This allows networks to scale bandwidth capacity without additional fiber installation.

Integration with Optical Multiplexers and Demultiplexers

The module works in conjunction with DWDM multiplexing equipment, enabling signal aggregation and separation across multiple channels. This architecture supports efficient bandwidth utilization and simplifies long-distance optical transport management.

Future-Proof Optical Infrastructure Design

By supporting standardized DWDM channel spacing, the module ensures compatibility with future network expansions, allowing organizations to upgrade bandwidth capacity without replacing existing fiber infrastructure.
