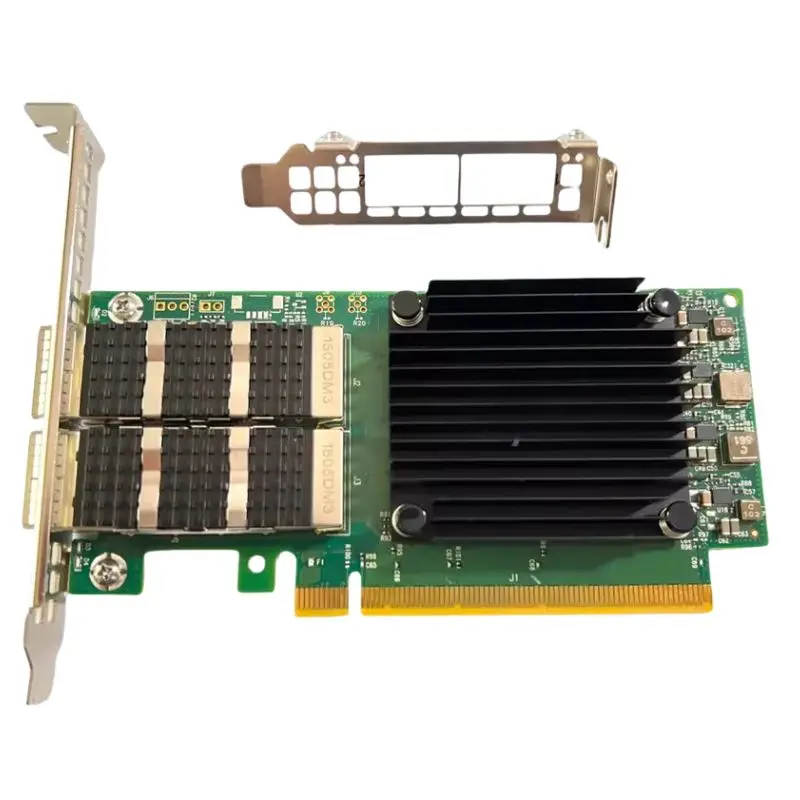

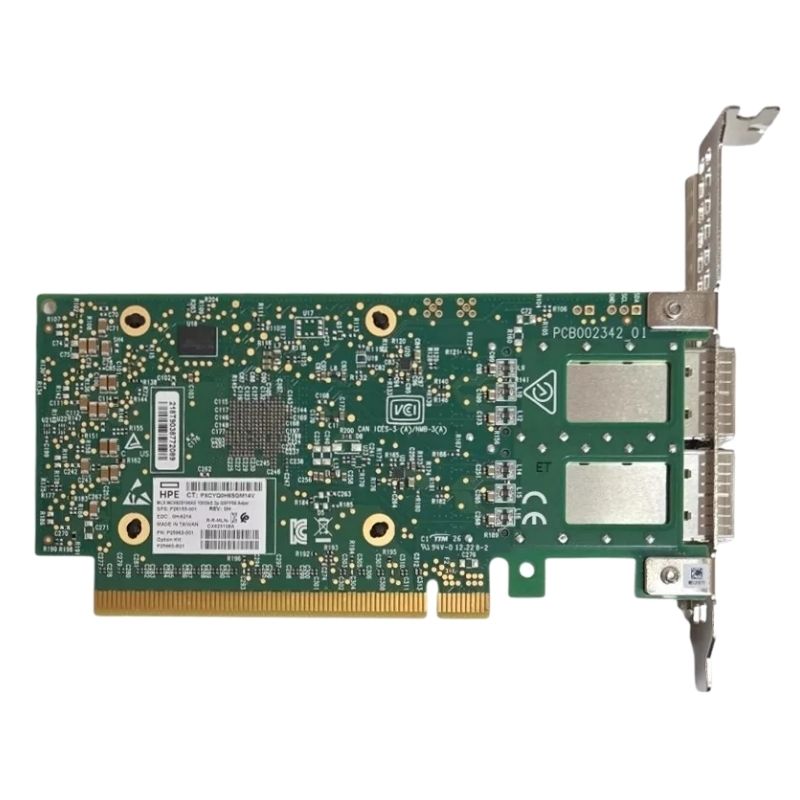

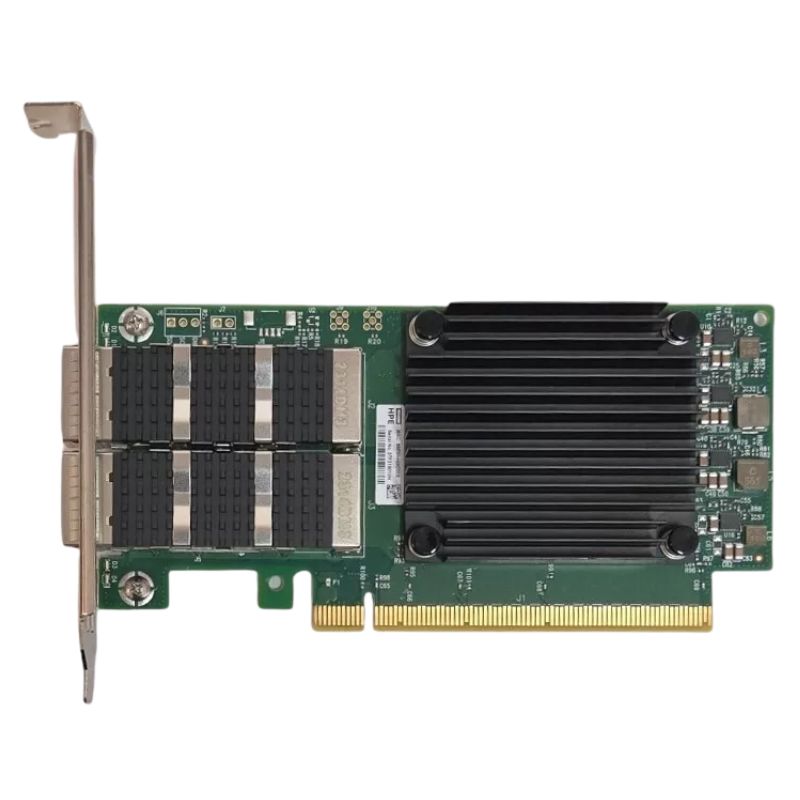

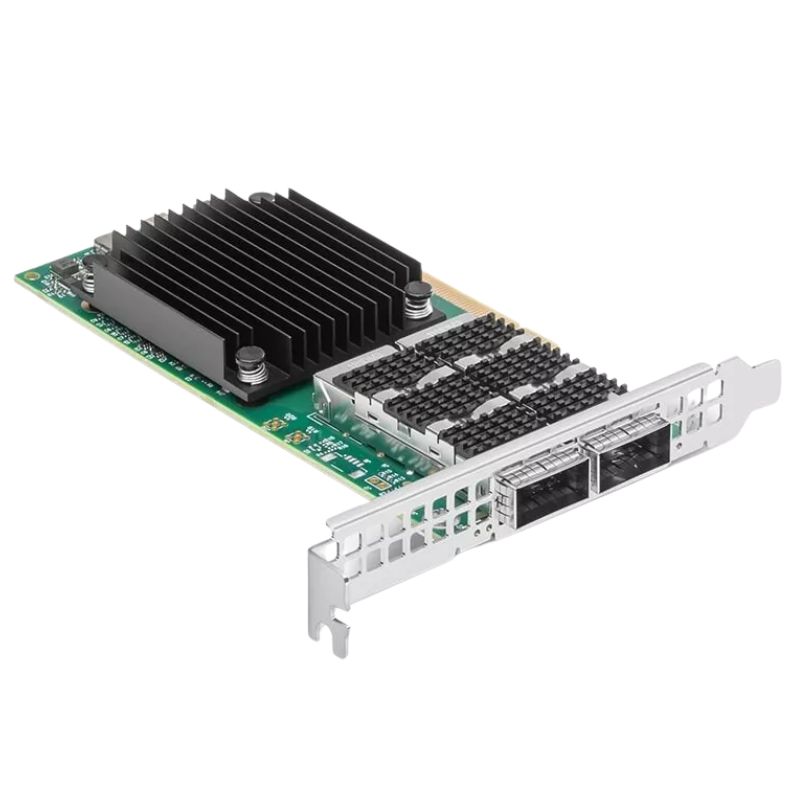

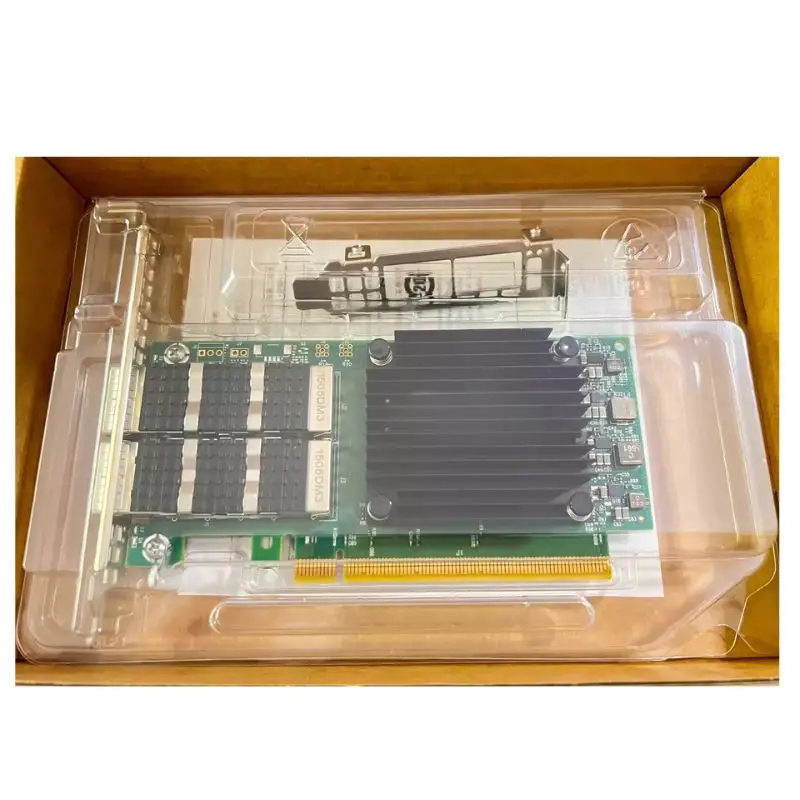

UCSC-P-M6DD100GF Cisco Mellanox ConnectX-6 DX 100G QSFP56 PCI-E Network Adapters

Cisco UCSC-P-M6DD100GF 100Gbps PCI-E Adapter Overview

The Cisco UCSC-P-M6DD100GF Mellanox ConnectX-6 DX 100Gbps QSFP56 PCI Express Network Adapter represents a high-performance data center networking solution engineered for next-generation cloud infrastructures, enterprise virtualization platforms, artificial intelligence workloads, and hyperscale environments. Built on advanced NIC architecture and integrated with NVIDIA Mellanox ConnectX-6 DX technology, this category of network adapters delivers ultra-low latency, high throughput, and enhanced offload capabilities designed to support demanding modern workloads in enterprise and service provider data centers.

As part of advanced networking hardware ecosystems, this adapter is widely deployed in Cisco UCS environments, high-density server clusters, and distributed storage architectures where 100Gbps connectivity and efficient CPU offloading are critical. The combination of PCIe Gen4/Gen3 compatibility and QSFP56 optical/electrical interfaces ensures that it can integrate into a broad range of server platforms while maintaining scalability and future-ready performance characteristics.

High-Speed 100Gbps Data Center Networking Architecture

The 100Gbps throughput capability of the Cisco UCSC-P-M6DD100GF network adapter is designed to meet the exponential growth of east-west and north-south traffic in modern data centers. With applications such as cloud computing, container orchestration, machine learning pipelines, and large-scale distributed storage systems, network congestion and latency reduction become essential.

Advanced Packet Processing Engine

The ConnectX-6 DX architecture integrates a high-performance packet processing engine capable of handling millions of packets per second while maintaining deterministic latency. This enables efficient processing of encrypted traffic, storage protocols, and virtualization overlays without overloading host CPU resources. The offload engine reduces dependency on software-based packet handling, allowing compute resources to be dedicated to application workloads.

Optimized PCI Express Bandwidth Utilization

Operating over a PCI Express interface, typically Gen4 x16 or compatible configurations depending on server architecture, this adapter maximizes upstream and downstream bandwidth utilization. PCIe optimization ensures that the full 100Gbps throughput is sustained even under heavy bidirectional workloads, such as distributed storage replication or high-frequency trading data exchange systems.

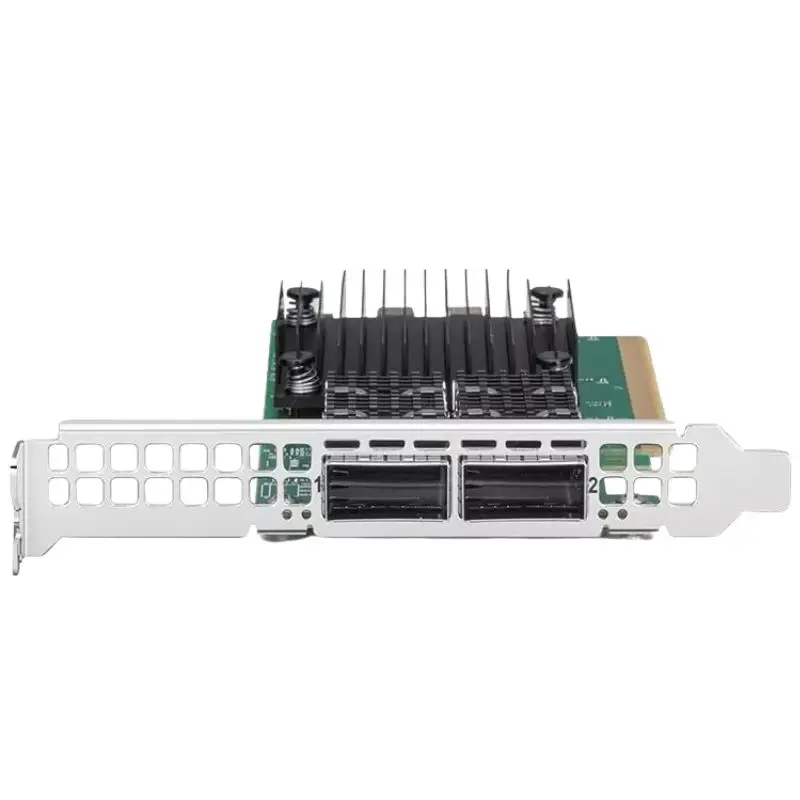

QSFP56 Interface and Optical Connectivity

The QSFP56 interface is a critical component of this network adapter category, supporting 100Gbps Ethernet connectivity through high-density optical or copper cabling solutions. QSFP56 transceivers are designed to improve signal integrity, reduce power consumption, and increase port density compared to previous generation QSFP28 modules.

Support for Optical and DAC Cabling

This adapter supports both optical fiber transceivers and direct attach copper (DAC) cables, enabling flexible deployment in different data center topologies. Optical configurations are commonly used for long-distance inter-rack connectivity, while DAC cables are preferred for short-range, high-efficiency intra-rack connections.

Signal Integrity and High-Density Networking

The QSFP56 standard ensures improved signal modulation techniques, enabling higher data rates with reduced error rates. This is essential in dense server environments where electromagnetic interference and physical space constraints can impact network reliability.

ConnectX-6 DX Offload and SmartNIC Capabilities

One of the defining features of the Mellanox ConnectX-6 DX architecture is its SmartNIC functionality. This enables hardware-based offloading of networking, security, and storage tasks from the CPU to the network adapter itself.

Hardware-Based TLS and IPsec Acceleration

Security encryption workloads such as TLS and IPsec are computationally expensive when handled by CPU cores. The ConnectX-6 DX integrates hardware acceleration engines that significantly reduce encryption overhead, improving both throughput and latency while maintaining strong security compliance in enterprise environments.

Storage Acceleration and NVMe-oF Support

This adapter category supports NVMe over Fabrics (NVMe-oF), enabling high-speed remote storage access over Ethernet networks. By bypassing traditional storage bottlenecks, organizations can build distributed storage clusters that behave like local storage with minimal latency overhead.

RDMA over Converged Ethernet (RoCEv2)

Remote Direct Memory Access (RDMA) over Converged Ethernet version 2 (RoCEv2) is a core capability of this adapter series. It allows direct memory-to-memory data transfer between servers without involving CPU intervention, drastically reducing latency and improving throughput for high-performance computing and big data analytics workloads.

Enterprise and Cloud Data Center Applications

The Cisco UCSC-P-M6DD100GF network adapter is widely deployed in enterprise data centers, cloud service provider environments, and hybrid cloud infrastructures. Its ability to scale efficiently across thousands of nodes makes it ideal for modern distributed computing environments.

Virtualization and Hypervisor Integration

In virtualized environments such as VMware ESXi, Microsoft Hyper-V, and KVM-based systems, this adapter provides SR-IOV (Single Root I/O Virtualization) capabilities. SR-IOV enables multiple virtual machines to share a single physical NIC while maintaining near-native performance levels.

Containerized Workloads and Kubernetes Networking

With the rise of container orchestration platforms such as Kubernetes, networking performance has become a critical factor. This adapter supports high-throughput container networking interfaces (CNI), ensuring consistent performance across microservices architectures and distributed container workloads.

Cloud Service Provider Optimization

Cloud providers benefit from the scalability and efficiency of this adapter by deploying it in multi-tenant environments where bandwidth isolation, security offloading, and predictable performance are required across shared infrastructure.

Cisco UCS Integration and Enterprise Ecosystem Compatibility

Within Cisco Unified Computing System (UCS) environments, the UCSC-P-M6DD100GF adapter is optimized for seamless integration with blade servers, rack servers, and converged infrastructure platforms. This ensures consistent driver support, firmware management, and orchestration through Cisco UCS Manager and related management tools.

Unified Management and Automation

Integration with Cisco UCS management systems allows administrators to centrally manage firmware versions, monitor adapter performance, and automate configuration across large server clusters. This reduces operational overhead and improves infrastructure consistency.

Compatibility with Enterprise Switch Fabrics

The adapter is designed to interoperate with high-performance Ethernet switching fabrics, including Cisco Nexus and other data center switching solutions. This ensures end-to-end 100Gbps connectivity with optimized routing and reduced packet loss.

Performance Optimization and Low-Latency Design

Performance optimization is a central design principle of the ConnectX-6 DX architecture. By reducing software overhead and offloading critical networking functions, the adapter delivers consistently low latency performance even under peak traffic conditions.

Data Path Acceleration

The data path acceleration engine ensures that packet processing is handled in hardware wherever possible. This reduces jitter and improves deterministic performance for latency-sensitive applications such as financial trading platforms and real-time analytics systems.

CPU Offload Efficiency

By shifting networking workloads away from CPU cores, this adapter improves overall server efficiency. CPU resources can then be allocated to application processing, database operations, or machine learning inference tasks.

Security, Isolation, and Multi-Tenant Architecture

In multi-tenant environments, security and isolation are essential. The Cisco UCSC-P-M6DD100GF adapter incorporates advanced hardware security features to ensure secure data transmission and tenant isolation.

Hardware Root of Trust

The adapter supports secure boot and hardware root of trust mechanisms, ensuring that only authenticated firmware and configurations are executed during initialization. This helps prevent unauthorized modifications and firmware tampering.

Encrypted Traffic Acceleration

Encryption acceleration capabilities ensure that secure communication channels can operate at full 100Gbps speeds without performance degradation, making it suitable for regulated industries such as finance, healthcare, and government services.
