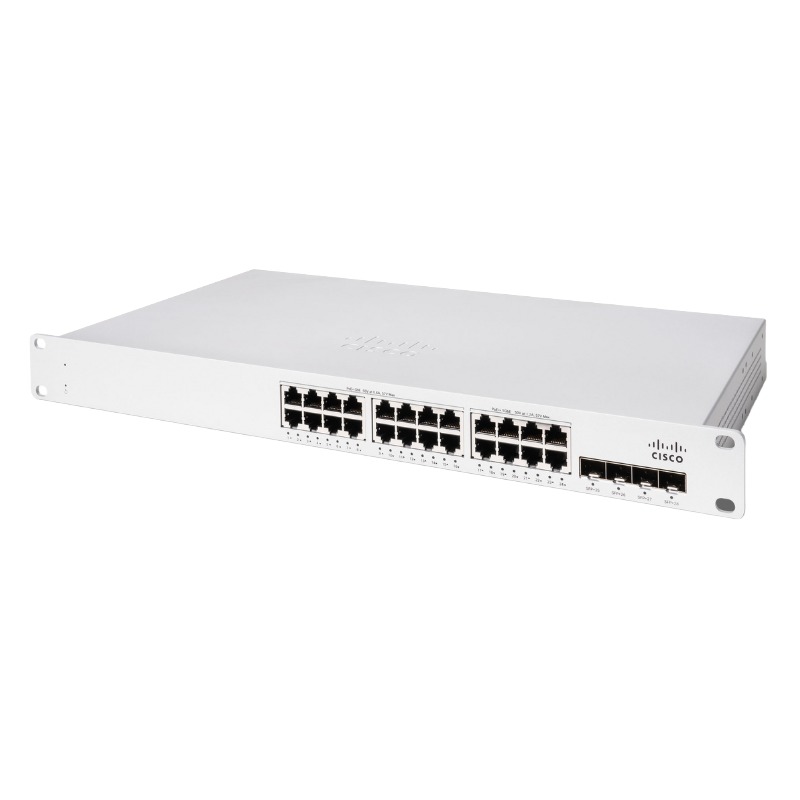

MS150-24MP-4X Cisco Meraki 24 Ports Cld-Mngd 370W PoE Switch.

Cisco MS150-24MP-4X Managed Ethernet Switch Overview

High-Performance Enterprise Networking Solution

Advanced Switching Architecture for Modern Infrastructure

The Cisco MS150-24MP-4X is a powerful managed Ethernet switch designed for enterprise-grade networking environments requiring high-speed connectivity, scalable performance, and intelligent traffic control. Built within the MS150 series, this device delivers a robust combination of Layer 2 and Layer 3 capabilities, making it suitable for both access and aggregation deployments.

Core Product Highlights

Essential Device Attributes

Model Identification and Build

• Manufacturer: Cisco Systems
• Product Series: MS150
• Model / SKU: MS150-24MP-4X
• Device Category: Managed Ethernet Switch
• Rack Design: 1U rack-mountable form factor

Switching Capacity & Performance

Speed and Throughput Capabilities

• Supports Gigabit Ethernet connectivity across all primary ports
• High-speed uplink capability up to 10 Gbps
• Data transfer performance optimized for enterprise workloads
• Total port architecture: 29 networking interfaces

Networking Capabilities & Protocol Support

Layer Operations & Routing Intelligence

Multi-Layer Switching Features

• Layer 2 switching for standard network segmentation
• Layer 3 routing support with static routing functionality
• Improved traffic segmentation and routing efficiency

Network Protocols & Security

Management and Authentication Standards

• SNMP support for remote monitoring and administration
• Syslog integration for event logging and diagnostics
• VLAN configuration support for network segmentation
• 802.1X authentication for secure network access control

Power over Ethernet (PoE) Capabilities

Efficient Power Distribution System

PoE Budget and Usage

• Total PoE power budget: 370 Watts
• Supports PoE-enabled devices such as IP phones, cameras, and wireless access points
• Optimized power allocation for multi-device environments

Power Efficiency Details

Electrical Performance

• Maximum power consumption: 454 Watts
• Integrated power supply unit for stable operation

Interface and Port Configuration

Physical and Uplink Connectivity

Port Layout Structure

• 24 RJ45 Ethernet access ports
• 4 dedicated SFP+ uplink ports
• 1 dedicated management interface
• Support for both copper and fiber connectivity

Expansion and Flexibility

SFP+ Module Support

• Total expansion slots: 4 SFP+ interfaces
• Designed for high-speed uplink scalability
• Fiber optic compatibility for long-distance transmission

Technical Specifications Summary

Hardware and Connectivity Details

System-Level Configuration

• Connectivity type: Wired Ethernet infrastructure
• Data link protocol: Gigabit Ethernet standard
• Number of ports: 29 total interfaces
• Uplink speed support: up to 10 Gbps

Expansion and Interface Types

Multi-Interface Architecture

• RJ45 copper ports for standard LAN connections
• SFP+ ports for fiber uplinks
• Dedicated management port for administrative access

Deployment Advantages

Enterprise Network Optimization

Scalability and Reliability Benefits

• Ideal for enterprise campus and branch networking
• Supports high-density device connectivity
• Enhanced performance for data-intensive environments
• Flexible integration with existing network infrastructure

Use Case Applications

Suitable Deployment Scenarios

• Corporate office network switching
• IP surveillance and security systems
• Wireless access point backhaul connectivity
• Data center edge switching solutions

Cisco MS150-24MP-4X Meraki Ethernet Switch

The Cisco MS150-24MP-4X Meraki Ethernet Switch represents a next-generation cloud-managed switching solution engineered for modern enterprise networks that demand high performance, scalability, and simplified network operations. Designed as part of the Cisco Meraki MS series, this switch combines 24 high-performance access ports with advanced uplink flexibility, Power over Ethernet (PoE) capability, and Layer 3 support to deliver a robust infrastructure foundation for organizations of all sizes. With its 1U rack-mountable design and hybrid connectivity options including twisted pair and optical fiber compatibility, it is optimized for data centers, campus environments, branch offices, and high-density edge deployments.

Built with a focus on cloud-managed efficiency, the MS150-24MP-4X enables IT teams to configure, monitor, and troubleshoot network infrastructure remotely through the intuitive Meraki Dashboard. This significantly reduces operational overhead while enhancing visibility and control across distributed environments. Its 370W PoE budget allows seamless integration of powered devices such as IP phones, wireless access points, surveillance cameras, and IoT endpoints, making it an essential component in unified communication and smart infrastructure deployments.

Advanced Switching Architecture and Layer 3 Capabilities

The Cisco MS150-24MP-4X is engineered with a powerful switching architecture that supports both Layer 2 and Layer 3 functionality. This allows enterprises to deploy more intelligent and segmented networks with improved traffic control, routing efficiency, and security enforcement. Layer 3 support enables inter-VLAN routing directly at the switch level, reducing dependency on external routers and optimizing network performance for latency-sensitive applications.

Intelligent Traffic Handling and Routing Efficiency

The integration of Layer 3 routing capabilities ensures that internal traffic between VLANs is processed efficiently within the switch itself. This reduces bottlenecks in upstream devices and improves data flow across enterprise environments. In high-density deployments, such as corporate campuses or multi-floor office buildings, this functionality significantly enhances communication speed between departments and services.

Optimized Network Segmentation

Network segmentation is a critical requirement for modern IT infrastructure, and this switch supports advanced VLAN configurations that enable administrators to isolate traffic for security, performance, or compliance reasons. Each VLAN can be configured independently, allowing organizations to separate guest networks, internal systems, IoT devices, and mission-critical applications with precision.

Dynamic Routing and Scalability

With support for dynamic routing protocols, the MS150-24MP-4X adapts to evolving network environments where topology changes are frequent. This ensures consistent connectivity and minimal downtime, even in large-scale deployments where network paths may need to be recalculated automatically.

High-Density 24-Port Gigabit Ethernet Access Layer

At its core, the switch features 24 Gigabit Ethernet ports designed to support high-speed access layer connectivity for a wide variety of endpoint devices. These ports provide reliable, low-latency connections essential for modern business applications, including VoIP communication systems, cloud computing workloads, and enterprise collaboration tools.

Flexible Port Configurations for Mixed Environments

The switch architecture supports a combination of Gigabit Ethernet and multi-gigabit capabilities, allowing it to adapt to both legacy infrastructure and newer high-speed networking requirements. This flexibility ensures smooth integration into existing environments while providing a clear upgrade path for future expansion.

Support for High-Bandwidth Endpoints

As organizations adopt bandwidth-intensive applications such as video conferencing, virtualization, and real-time analytics, the need for stable high-speed access becomes increasingly critical. The MS150-24MP-4X ensures consistent throughput across all ports, minimizing congestion and packet loss even under heavy load conditions.

Edge Device Connectivity Optimization

Edge computing environments benefit significantly from the switch’s ability to support distributed devices at scale. Whether deployed in smart buildings, retail environments, or industrial IoT networks, the switch ensures that all edge devices maintain stable and efficient communication with centralized systems.

10G SFP+ Uplink Connectivity for High-Speed Backbone Integration

The Cisco MS150-24MP-4X Meraki switch includes 4 high-speed 10 Gigabit SFP+ uplink ports designed to provide robust backbone connectivity. These uplinks ensure that aggregation points within the network are capable of handling high traffic loads without bottlenecks, making them ideal for enterprise core or distribution layer deployments.

Fiber Optic and Twisted Pair Flexibility

With support for both optical fiber and twisted pair connectivity, the uplink design allows for flexible integration into diverse network topologies. Fiber uplinks are particularly useful for long-distance connections between buildings or data centers, while copper-based connections provide cost-effective short-range options.

Scalable Network Backbone Design

The inclusion of multiple 10G uplinks enables organizations to build scalable network architectures that can grow alongside business demands. As data traffic increases, additional uplinks can be utilized to distribute load and maintain consistent performance across the network.

High Availability and Redundancy

Redundant uplink configurations provide failover capabilities that ensure continuous network availability. In the event of a link failure, traffic is automatically rerouted through alternate paths, minimizing downtime and maintaining operational continuity.

370W PoE Budget for Powering Network Devices

One of the most significant features of the MS150-24MP-4X switch is its 370W Power over Ethernet (PoE) budget. This allows the switch to deliver both data and electrical power through a single Ethernet cable, simplifying infrastructure design and reducing the need for additional power supplies.

Support for PoE and PoE+ Devices

The switch supports both standard PoE and PoE+ devices, making it compatible with a wide range of modern networking equipment. This includes wireless access points, IP surveillance cameras, VoIP phones, and smart building sensors, all of which can be powered directly through the switch.

Efficient Power Distribution

Intelligent power allocation ensures that connected devices receive optimal power levels based on their requirements. This prevents power wastage and ensures stable operation across all connected endpoints, even in high-density deployments.

Smart Energy Management

Advanced energy management features allow administrators to monitor and control power usage across all PoE ports. This contributes to energy efficiency initiatives and helps reduce operational costs in large-scale deployments.

Cloud-Managed Networking with Cisco Meraki Dashboard

The MS150-24MP-4X is fully integrated into the Cisco Meraki cloud management ecosystem, providing centralized control over network configuration, monitoring, and troubleshooting. This cloud-based approach eliminates the need for complex on-premises management tools and significantly reduces IT overhead.

Remote Configuration and Monitoring

Administrators can access the Meraki Dashboard from anywhere, enabling real-time network monitoring and configuration adjustments. This is especially valuable for organizations with multiple locations or distributed branch networks.

Automated Firmware and Security Updates

The cloud management system ensures that all connected switches receive automatic updates, including firmware enhancements and security patches. This reduces vulnerability exposure and ensures consistent performance across the entire network infrastructure.

Analytics and Network Visibility

Detailed analytics provide insights into traffic patterns, device performance, and network health. These insights help IT teams proactively identify issues and optimize network performance before problems escalate.

Enterprise-Grade Security and Access Control

Security is a fundamental aspect of the Cisco MS150-24MP-4X design, with multiple layers of protection built into the switching architecture. These features ensure that enterprise networks remain secure against unauthorized access and potential cyber threats.

Access Control Lists and Authentication

The switch supports advanced access control lists (ACLs) that allow administrators to define precise traffic rules based on IP addresses, protocols, and port numbers. Combined with authentication mechanisms, this ensures only authorized devices can access network resources.

Segmentation for Enhanced Protection

Network segmentation helps isolate sensitive data and systems from general traffic, reducing the risk of lateral movement in the event of a security breach. This is essential for compliance with industry regulations and internal security policies.

Secure Cloud Connectivity

All communication between the switch and the Meraki cloud platform is encrypted, ensuring that configuration data and monitoring information remain secure during transmission.
