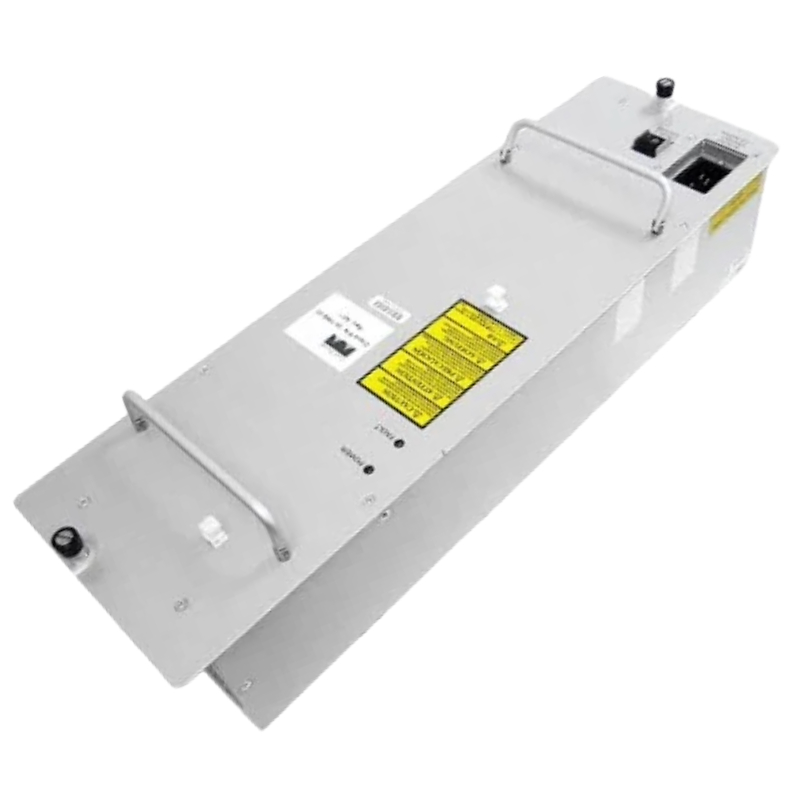

Cisco UBR10-PWR-AC 2400 W AC PEM Power Supply.

Cisco UBR10-PWR-AC 2400 W AC PEM Power Supply Overview

The Cisco UBR10-PWR-AC 2400 W AC PEM Power Supply is a critical component designed for the Cisco uBR10012 Universal Broadband Router. This high-capacity AC power entry module (PEM) offers reliable and efficient power delivery, ensuring the smooth operation of the uBR10012 router in demanding broadband network environments. With a robust design and advanced protection features, the UBR10-PWR-AC is an ideal choice for high-availability networks that require continuous uptime and peak performance.

Compatibility with Cisco uBR10012 Router

The Cisco UBR10-PWR-AC is specifically engineered for the Cisco uBR10012 Universal Broadband Router. This router is widely used in broadband service provider networks for delivering high-speed data services, including voice, video, and data over cable. The power supply unit ensures that the router operates efficiently, even under heavy network loads.

Key Features of the Cisco UBR10-PWR-AC 2400 W AC PEM

• High Power Capacity: Delivers up to 2400 W of power, ensuring sufficient energy for the uBR10012 router and its components.
• Redundant Power Support: Supports power redundancy configurations for increased network reliability and uptime.
• Hot-Swappable Design: Allows for easy replacement without shutting down the router, minimizing service disruptions.
• Advanced Protection Features: Offers over-voltage, over-current, and over-temperature protection to safeguard the router and connected devices.
• Efficient Cooling: Integrated cooling mechanisms maintain optimal operating temperatures for enhanced longevity and performance.

Understanding the Importance of Power Supply Units in Broadband Networks

In modern broadband networks, the power supply unit (PSU) is a vital component that ensures the continuous operation of networking equipment. Downtime caused by power failures can result in significant losses, including disrupted services and customer dissatisfaction. The Cisco UBR10-PWR-AC 2400 W AC PEM is specifically designed to address these challenges by providing reliable and redundant power for the uBR10012 router.

Redundancy and High Availability

One of the primary benefits of the Cisco UBR10-PWR-AC is its support for redundant power configurations. When installed with multiple power supplies, the uBR10012 router can maintain operations even if one power supply fails. This redundancy ensures high availability, which is critical for service providers that need to deliver uninterrupted services to their customers.

Hot-Swappable Functionality

The hot-swappable design of the UBR10-PWR-AC allows network administrators to replace the power supply without shutting down the router. This feature minimizes downtime and simplifies maintenance, making it easier to manage the network's power infrastructure.

Technical Specifications of the Cisco UBR10-PWR-AC 2400 W AC PEM

Power Output and Efficiency

The UBR10-PWR-AC delivers a maximum output of 2400 W, providing ample power for the uBR10012 router and its associated modules. Its high-efficiency design reduces power consumption and heat generation, contributing to lower operational costs and improved energy efficiency.

Physical and Environmental Specifications

• Input Voltage Range: 100 to 240 VAC
• Frequency: 50/60 Hz
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 10% to 90% non-condensing

Dimensions and Weight

The compact design of the Cisco UBR10-PWR-AC ensures easy installation within the uBR10012 chassis. Its lightweight construction simplifies handling during installation and maintenance tasks.

Maintenance of the Cisco UBR10-PWR-AC

Pre-Installation Checklist

Before installing the Cisco UBR10-PWR-AC power supply, it is essential to verify that all necessary components are available and that the uBR10012 router is prepared for installation. Ensure that the power supply slot is free of dust and debris and that all connections are properly secured.

Step-by-Step Installation Guide

1. Power off the uBR10012 router and disconnect it from the power source.
2. Slide the UBR10-PWR-AC unit into the designated power supply slot on the router.
3. Secure the power supply using the locking mechanism to prevent movement during operation.
4. Reconnect the power cables and turn on the router.
5. Verify that the power supply is functioning correctly by checking the status LEDs.

Regular Maintenance and Troubleshooting

To ensure optimal performance, it is recommended to conduct regular maintenance on the Cisco UBR10-PWR-AC power supply. This includes checking for dust buildup, inspecting connectors for wear or damage, and monitoring the status indicators for any signs of issues. In the event of a power supply failure, follow the manufacturer's troubleshooting guidelines to diagnose and resolve the problem quickly.

Applications of the Cisco UBR10-PWR-AC in Broadband Networks

The Cisco UBR10-PWR-AC power supply plays a critical role in supporting broadband service providers' infrastructure. By delivering reliable power to the uBR10012 router, it helps enable services such as high-speed internet, digital voice, and video streaming. This power supply is particularly beneficial for cable operators and ISPs that require scalable and dependable networking solutions.

High-Speed Internet Access

With the increasing demand for high-speed internet services, the Cisco uBR10012 router, powered by the UBR10-PWR-AC, provides the performance and reliability needed to meet customer expectations. The power supply ensures that the router can handle large amounts of data traffic without interruption.

VoIP and Digital Voice Services

For service providers offering VoIP and digital voice services, uninterrupted power is essential to maintain call quality and reliability. The UBR10-PWR-AC power supply ensures that the uBR10012 router can deliver these services without disruption.

Video Streaming and Content Delivery

As demand for video streaming continues to grow, broadband networks must be equipped to handle high-bandwidth video content. The Cisco UBR10-PWR-AC supports the uBR10012 router in delivering seamless video streaming services, even during peak usage periods.

Reliability and Performance

Cisco is known for producing high-quality networking equipment, and the UBR10-PWR-AC is no exception. This power supply is built to deliver consistent performance and reliability, ensuring that your network remains operational at all times.

Scalability and Flexibility

The Cisco UBR10-PWR-AC is designed to support the growing demands of modern broadband networks. Its scalable architecture allows service providers to expand their networks as needed without worrying about power limitations.

Comprehensive Support and Warranty

Cisco offers comprehensive support and warranty services for the UBR10-PWR-AC power supply, giving customers peace of mind and access to expert assistance when needed.
