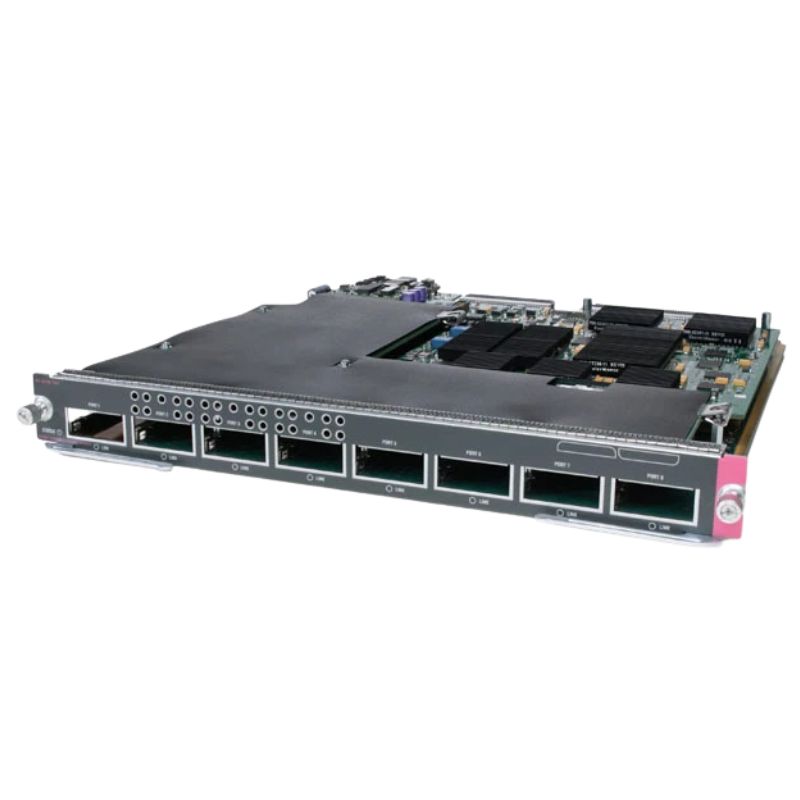

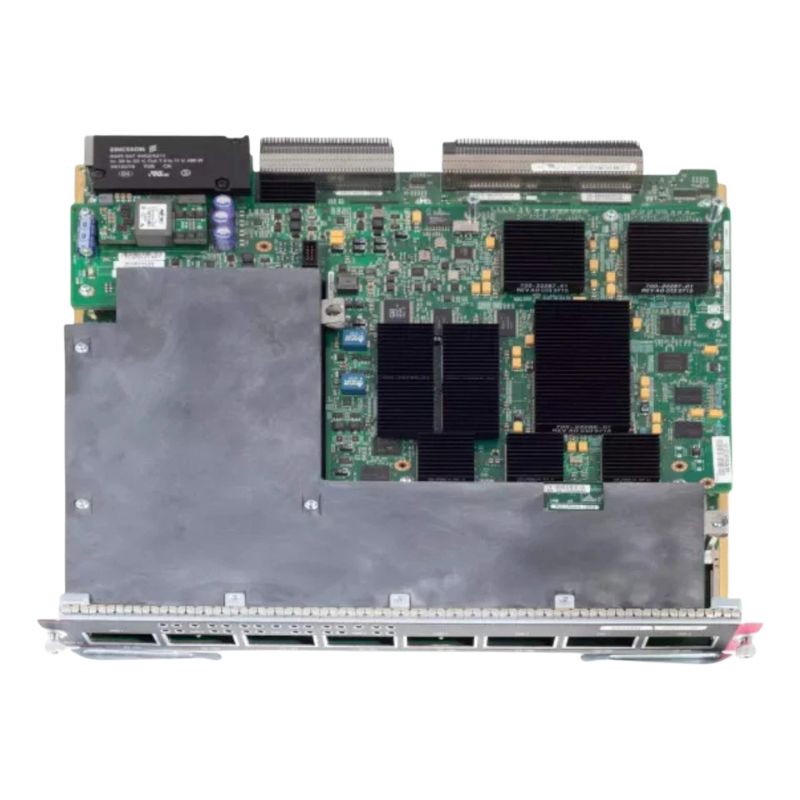

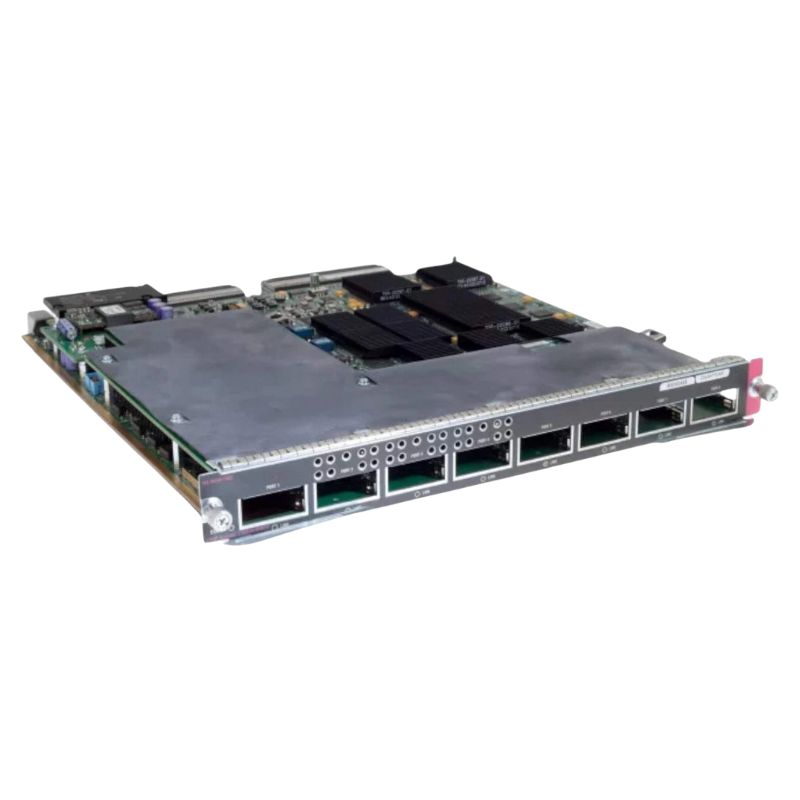

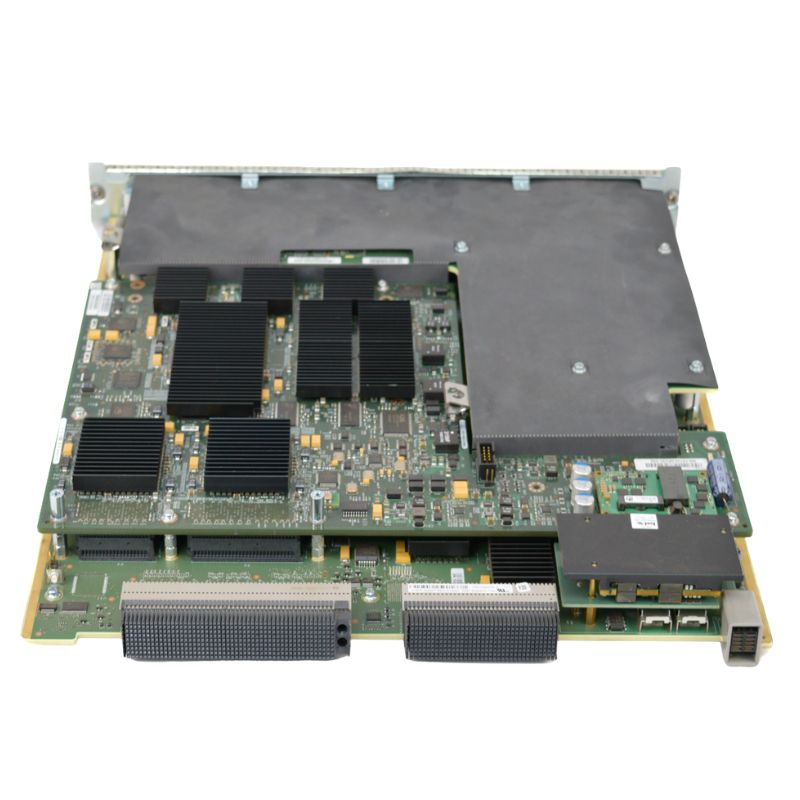

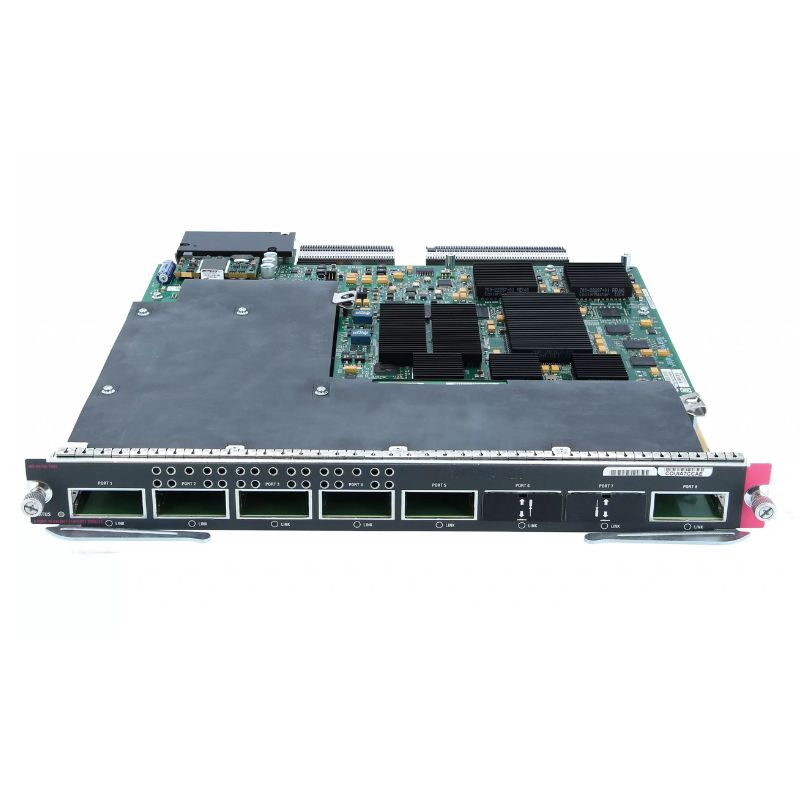

WS-X6708-10G-3C= Cisco C6K 10 Gigabit 8 Ports Ethernet module with DFC3C

Cisco WS-X6708-10G-3C= 10 Gigabit Expansion Module

The Cisco WS-X6708-10G-3C= is a high-performance 10 Gigabit Ethernet expansion module engineered to increase network bandwidth, scalability, and reliability within Cisco Catalyst 6500 Series switches and Cisco 7600 Series routers. Equipped with eight X2-based 10 Gigabit Ethernet interfaces and an integrated Distributed Forwarding Card 3C (DFC3C), this module delivers wire-speed packet forwarding while reducing traffic bottlenecks across enterprise and service provider environments. Designed for mission-critical applications, it enables organizations to support high-volume data transfers, virtualization, cloud computing, storage networking, and backbone connectivity with exceptional efficiency.

Organizations seeking dependable Layer 2 and Layer 3 switching performance benefit from the module's advanced forwarding architecture, enterprise-class management capabilities, and broad compatibility with Cisco networking platforms. Its optimized hardware design allows administrators to deploy scalable network infrastructures while maintaining low latency and consistent throughput.

General Information

• Manufacturer: Cisco
• Part Number: WS-X6708-10G-3C=
• Product Category: Ethernet Expansion Module
• Product Family: Catalyst 6500 Series Modules

High-Speed Data Transmission

• 10 Gigabit Ethernet connectivity
• 10 Gbps transfer speed per interface
• Optimized for high-bandwidth applications
• Supports network backbone expansion
• Low-latency switching architecture

Benefits of DFC3C Technology

• Accelerated packet forwarding
• Reduced supervisor engine workload
• Improved switching efficiency
• Higher network scalability
• Enhanced performance during peak traffic
• Optimized Layer 3 routing capabilities

Networking Technology

• Network Technology: Wired
• Cabling Type: Ethernet 10GBase-X
• Networking Protocol: 10 Gigabit Ethernet
• Maximum Transfer Rate: 10 Gbps
• Media Interface: X2

Expansion Features

• Total Expansion Ports: 8
• Available Expansion Ports: 8
• Compatible Expansion Slot: 1
• Interface Type: X2 10 Gigabit Ethernet

Management Features

• RMON support
• SMON monitoring
• Port activity monitoring
• Traffic analysis
• Performance reporting
• Remote diagnostics

Indicator Functions

• Port operational status
• General module health
• Activity monitoring
• Connection verification
• System diagnostic
  Processor and Memory Resource

Memory Specifications

• Installed RAM: 1 GB
• Optimized forwarding tables
• Fast packet processing
• Reliable routing operations

Operating Conditions

• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Operating Humidity: 10% to 90% non-condensing
• Designed for continuous operation
• Enterprise-grade hardware reliability

Certifications

• FCC Class A
• CISPR 22 Class A
• BSMI CNS 13438 Class A
• Additional international regulatory certifications

Supported Standards

• EN 61000-3-2
• VCCI Class A ITE
• IEC 60950-1
• EN 60825
• Additional safety and EMC standards

Compatible Cisco Platforms

• Cisco Catalyst 6503-E
• Cisco Catalyst 6504-E
• Cisco Catalyst 6506
• Cisco Catalyst 6509
• Cisco Catalyst 6513 Series
• Cisco 7606 Router
• Cisco 7609 Router
• Cisco 7613 Router

Overview of Cisco WS-X6708-10G-3C= 8 Ports Module

The Cisco WS-X6708-10G-3C= C6K 10 Gigabit 8 Ports Ethernet module with DFC3C is engineered as a high-capacity switching blade designed for Catalyst 6500 series chassis environments. This advanced switching module delivers exceptional scalability, reliability, and throughput for enterprise data centers, campus aggregation layers, and mission-critical network infrastructures. Built to support eight 10 Gigabit Ethernet ports, it provides a robust backbone for modern high-speed networking requirements where latency sensitivity, bandwidth intensity, and traffic convergence are critical operational demands.

As organizations continue transitioning toward virtualization, cloud computing, and unified communications, the need for resilient high-speed interconnectivity becomes increasingly important. This module addresses those requirements by offering hardware-accelerated forwarding capabilities, deep packet inspection support, and distributed forwarding architecture through its integrated DFC3C (Distributed Forwarding Card 3C). The result is improved performance consistency and reduced reliance on centralized switching decisions.

Integration within Cisco Catalyst 6500 Series Ecosystem

The Cisco WS-X6708-10G-3C= is specifically designed for seamless integration into Cisco Catalyst 6500 chassis systems, making it a core component of enterprise campus cores and aggregation layers. The module leverages the modular architecture of the Catalyst 6500 platform, allowing network administrators to scale bandwidth and port density without redesigning the entire switching infrastructure.

Within this ecosystem, the module enhances backbone connectivity by providing high-throughput uplinks capable of handling aggregated traffic from access layer switches, wireless controllers, virtualization clusters, and storage networks. Its compatibility with Supervisor Engines in the Catalyst 6500 family ensures synchronized performance optimization and centralized management capabilities.

Chassis-Level Scalability and Expansion Capabilities

The modular design allows organizations to expand network capacity incrementally, aligning infrastructure growth with business demand. Each installed module contributes additional 10 Gigabit Ethernet interfaces, making it ideal for environments requiring scalable uplink aggregation or server farm connectivity.

DFC3C Distributed Forwarding Architecture

One of the most critical components of the WS-X6708-10G-3C= module is the integrated DFC3C (Distributed Forwarding Card 3C), which significantly enhances packet processing efficiency. Instead of relying solely on centralized switching through the supervisor engine, the DFC3C enables local forwarding decisions at the line-card level.

This distributed architecture reduces latency, improves throughput, and minimizes bottlenecks in high-traffic environments. By offloading forwarding intelligence directly to the module, the system ensures consistent wire-speed performance even under heavy workloads such as large-scale data replication, virtual machine migration, and real-time application traffic.

Enhanced Packet Processing Efficiency

The DFC3C enables hardware-based Layer 2 and Layer 3 forwarding, ensuring that routing decisions are executed at line speed. This reduces CPU load on the supervisor engine and allows the system to handle significantly more concurrent flows without performance degradation.

Optimized Traffic Distribution and Load Handling

With distributed forwarding enabled, traffic loads are balanced across multiple hardware engines, improving overall system resilience. This architecture is particularly beneficial in enterprise environments where unpredictable traffic spikes and large east-west data flows are common.

High-Speed 10 Gigabit Ethernet Connectivity

Eight-Port High-Bandwidth Interface Design

The Cisco WS-X6708-10G-3C= module provides eight dedicated 10 Gigabit Ethernet ports, designed to support high-speed uplinks and server connectivity. Each port is optimized for low-latency transmission, enabling seamless communication across distributed network architectures.

These ports are typically used in aggregation scenarios where multiple access switches or server clusters require high-throughput uplinks to the core network. The design ensures that bandwidth-intensive applications such as virtualization platforms, database clusters, and high-performance computing systems operate without network constraints.

Data Center and Campus Core Applications

In data center environments, the module functions as a critical interconnect between server farms and backbone switches. In campus deployments, it serves as a high-capacity aggregation layer supporting thousands of endpoint devices, wireless access points, and edge switches.

Latency Optimization and Traffic Prioritization

Low latency is a defining characteristic of this module, achieved through hardware-based forwarding and optimized internal switching fabrics. This ensures rapid packet delivery even in congested environments, making it suitable for real-time applications such as VoIP, video conferencing, and financial trading systems.

Advanced Switching Features and Performance Capabilities

Layer 2 and Layer 3 Intelligent Switching

The module supports comprehensive Layer 2 switching and Layer 3 routing capabilities, enabling flexible deployment in hybrid network architectures. This allows organizations to implement VLAN segmentation, inter-VLAN routing, and advanced traffic engineering within a unified hardware platform.

VLAN Segmentation and Network Isolation

Through VLAN-based segmentation, the module enables logical separation of traffic streams, improving security and reducing broadcast domain size. This is particularly useful in multi-tenant environments and large enterprise campuses.

Quality of Service (QoS) Optimization

The Cisco WS-X6708-10G-3C= supports advanced QoS mechanisms that prioritize critical application traffic. By classifying and scheduling packets based on predefined policies, the system ensures that mission-critical services receive guaranteed bandwidth and reduced latency.

Application-Aware Traffic Management

QoS policies can be configured to prioritize voice, video, and data traffic differently, ensuring that time-sensitive applications maintain performance even during peak utilization periods.

Reliability, Redundancy, and High Availability Design

Carrier-Class Hardware Stability

Designed for enterprise and service provider environments, the module delivers high reliability through redundant architecture and fault-tolerant components. This ensures continuous operation even in the event of partial hardware failure.

Non-Stop Forwarding and Stateful Failover

The integration with Catalyst 6500 Supervisor Engines allows for non-stop forwarding capabilities, meaning network traffic continues to flow during control plane changes or failover events. This is essential for mission-critical environments requiring continuous uptime.

Thermal and Power Efficiency Optimization

The module is engineered with efficient thermal management systems to maintain optimal operating temperatures under heavy load conditions. Intelligent power distribution ensures that energy consumption is balanced across all active components.

Enterprise Deployment Scenarios and Use Cases

Data Center Core and Aggregation Layers

The WS-X6708-10G-3C= is widely deployed in data center core environments where high-density 10GbE connectivity is required. It provides the backbone for server-to-switch and switch-to-switch communication across large-scale infrastructures.

Virtualization and Cloud Infrastructure Support

Virtualized environments benefit significantly from the module’s high throughput and low latency characteristics. It supports virtual machine mobility, storage replication, and distributed computing workloads without network congestion.

Support for High-Density Server Clusters

In server cluster deployments, the module ensures consistent connectivity between compute nodes and storage systems, enabling efficient workload distribution and high availability computing environments.

Enterprise Campus Backbone Integration

In enterprise campus environments, the module acts as a high-capacity aggregation point for multiple access layer switches, supporting thousands of endpoints including wired devices, wireless controllers, and IoT infrastructure.

Security and Network Control Features

Advanced Access Control and Policy Enforcement

The module supports enterprise-grade security features including access control lists (ACLs), traffic filtering, and policy-based routing. These mechanisms ensure that unauthorized traffic is blocked while legitimate traffic flows efficiently.

Secure Segmentation for Multi-Tenant Environments

Network segmentation capabilities allow organizations to isolate sensitive workloads, ensuring compliance with security policies and regulatory requirements.

Integration with Cisco Security Architecture

The module integrates seamlessly with broader Cisco security frameworks, enabling centralized monitoring, threat detection, and policy enforcement across the network infrastructure.

Performance Optimization and Traffic Engineering

High Throughput Data Handling

The module is engineered to handle sustained high-throughput workloads, making it suitable for environments with heavy data transfer requirements such as backup systems, virtualization clusters, and streaming applications.

Efficient Bandwidth Utilization Strategies

Traffic engineering capabilities ensure optimal use of available bandwidth by dynamically managing congestion and distributing loads across available interfaces.

Low-Latency Switching Fabric Integration

Integration with Catalyst 6500 switching fabric ensures minimal delay between ingress and egress traffic, supporting real-time applications and latency-sensitive workloads.
