CISCO2821-CCME/K9 Cisco Voice Bundle w/PVDM2-32 FL-CCME-50 SP

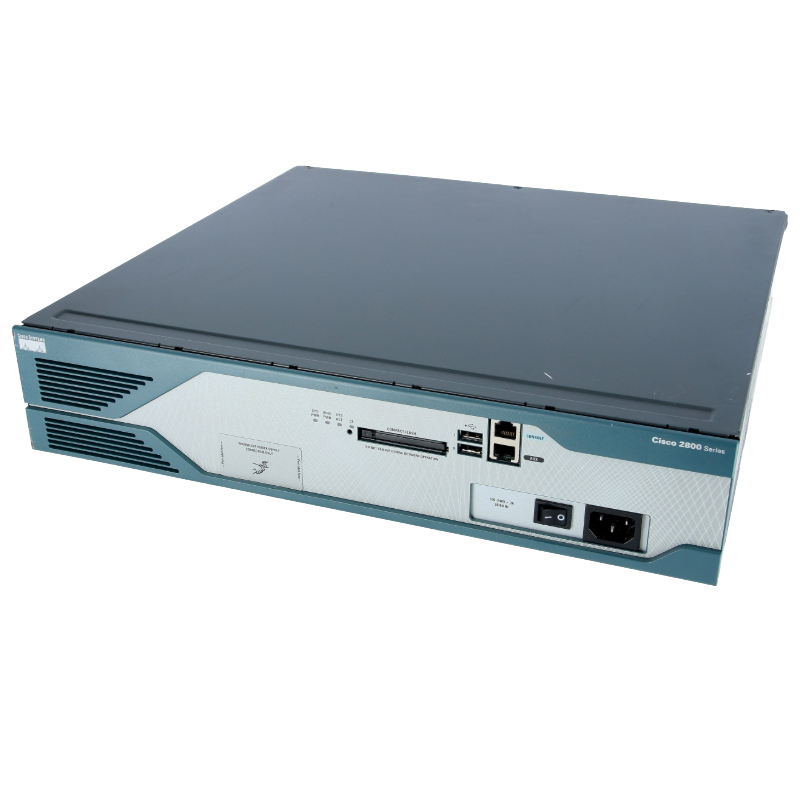

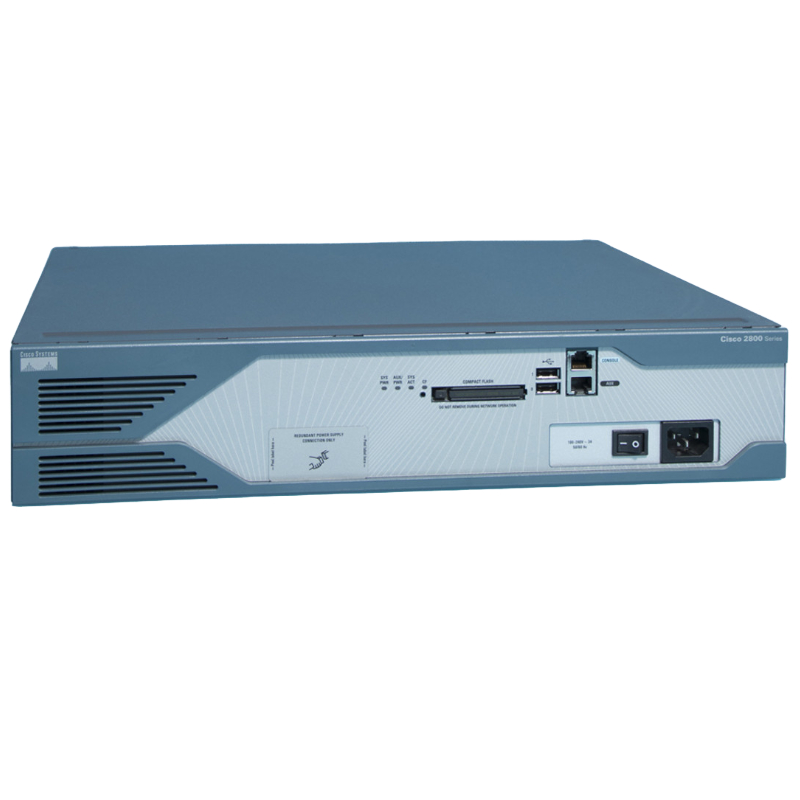

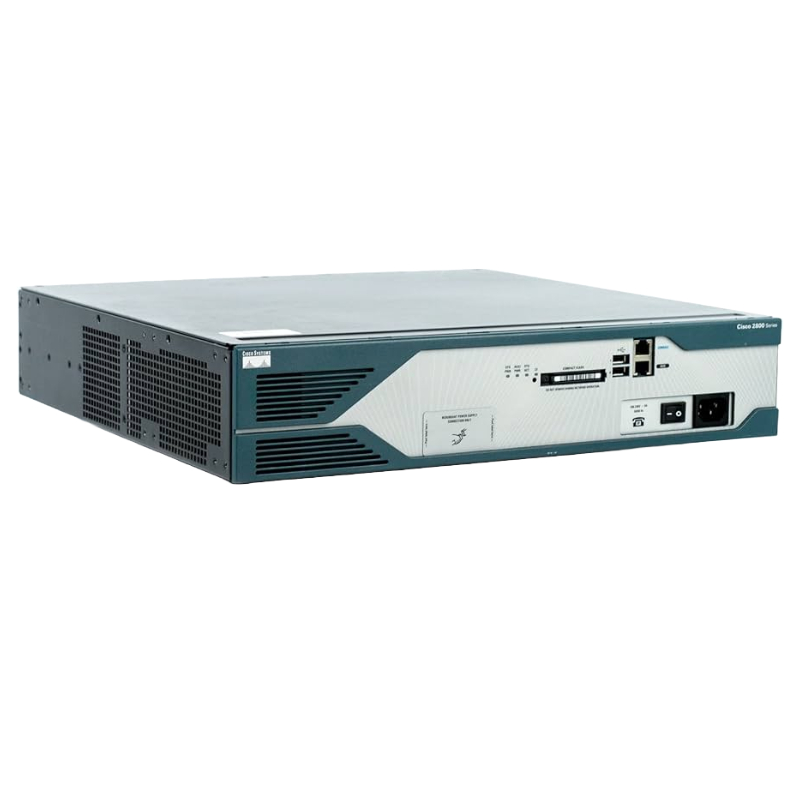

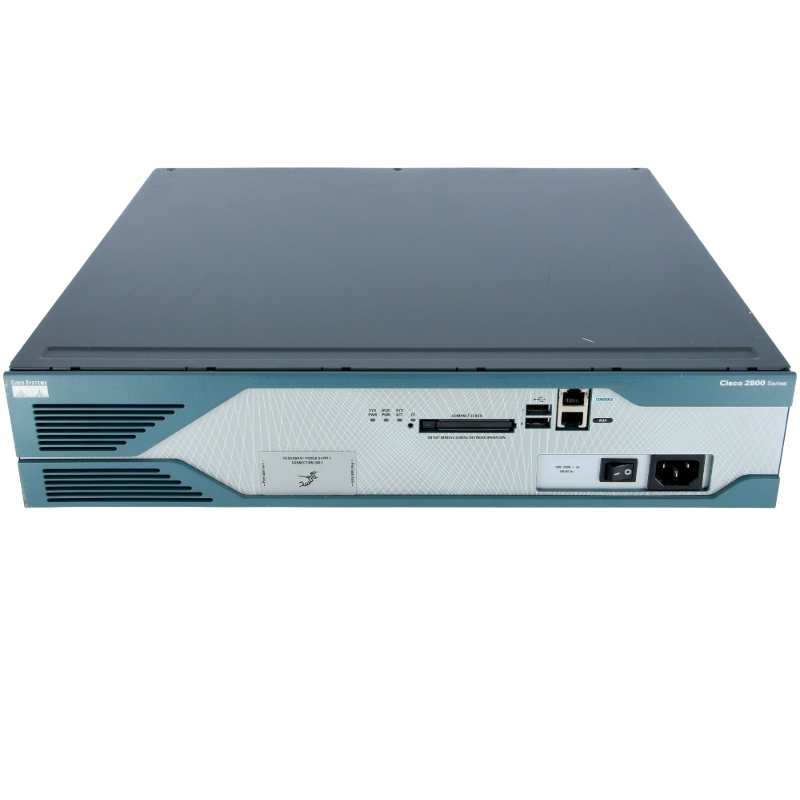

Overview of Cisco CISCO2821-CCME/K9 Router

The Cisco 2821 CCME/K9 Integrated Services Router is a versatile and high-performance networking solution designed for enterprise-level voice, data, and security applications. Built with advanced routing capabilities and scalable architecture, this device ensures seamless communication and optimized network performance for growing business environments.

General Information

• Part Number: CISCO2821-CCME/K9
• Brand: Cisco
• Series: 2800
• Product Type: Router with Voice Bundle

Technical Specifications

• Total Ports: 2
• USB Ports: Yes
• Management Port: Yes
• Network Ports (RJ-45): 2

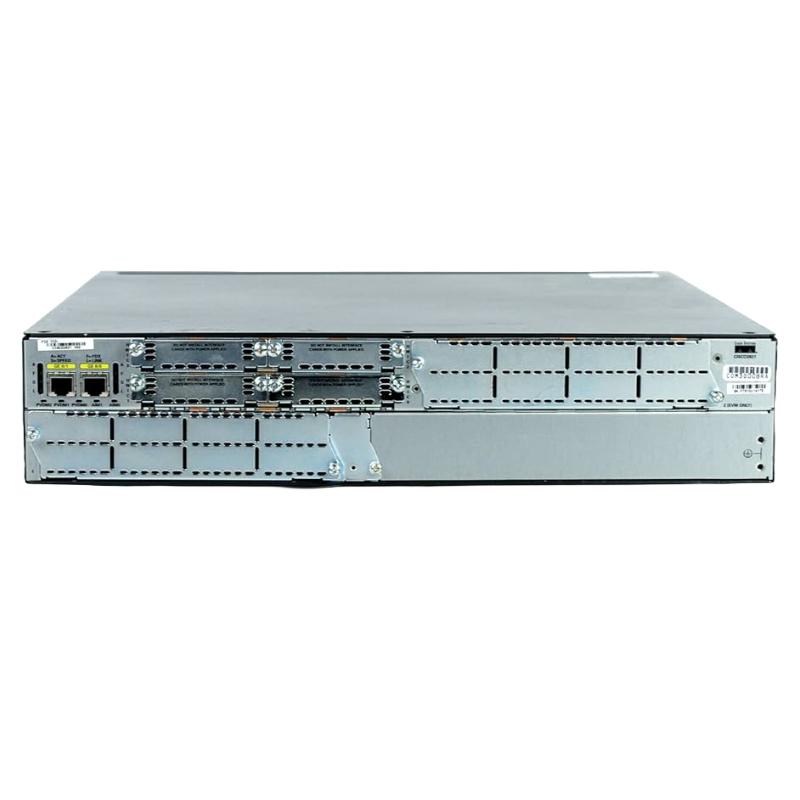

• Total Expansion Slots: 11
• Expansion Slot Types:
• NME (Network Module Expansion)
• EVM (Enhanced Voice Module)
• AIM (Advanced Integration Module)
• PVDM (Packet Voice Digital Modem)

Networking Features

• Network Technology: 10/100/1000Base-T
• Ethernet Type: Gigabit Ethernet

Memory Specifications

• Standard Memory: 256 MB
• Maximum Memory Supported: 1 GB
• Memory Type: DRAM
• Flash Memory: 64 MB

Power Requirements

• Input Voltage: 110 V AC / 220 V AC

The Cisco CISCO2821-CCME/K9 Voice Bundle Router and

The CISCO2821-CCME/K9 Cisco 2821 Router Voice Bundle IOS SP Service Router PVDM2-32 represents a powerful integration of data networking and voice communication technologies within a single enterprise-grade platform. Designed to support converged networks, this integrated services router enables organizations to efficiently deploy IP telephony, unified communications, and secure data transfer across branch offices and mid-sized business environments. The inclusion of Cisco Call Manager Express (CCME) functionality transforms the router into a complete voice gateway solution, capable of handling voice processing, call routing, and signaling with exceptional reliability.

Integrated Voice and Data Networking Architecture

The Cisco 2821 Voice Bundle is built upon an integrated architecture that combines routing, switching, voice processing, and security functionalities into a unified platform. This eliminates the need for separate voice gateways and reduces infrastructure complexity. The router supports both traditional PSTN connectivity and modern VoIP implementations, ensuring compatibility with diverse communication environments.

Role of Cisco Call Manager Express (CCME)

Cisco Call Manager Express plays a central role in the voice bundle by enabling call processing directly on the router. This eliminates the dependency on centralized call control systems, making it particularly suitable for branch office deployments. CCME supports features such as call forwarding, call transfer, conferencing, voicemail integration, and auto-attendant services.

Advanced Call Processing Features

The Cisco 2821 Voice Bundle supports sophisticated call processing capabilities that enhance user experience and communication efficiency. Features such as caller ID, hunt groups, call park, call pickup, and music on hold are seamlessly integrated into the system. These functionalities enable organizations to deliver professional communication services while maintaining ease of management.

Performance and Processing Power

The Cisco 2821 router is designed to deliver high-performance routing and voice processing capabilities. Its robust hardware architecture ensures consistent performance even under heavy network loads. The integration of the PVDM2-32 module provides enhanced digital signal processing resources, enabling the router to handle multiple voice channels simultaneously without compromising call quality.

PVDM2-32 Digital Signal Processor Capabilities

The PVDM2-32 module is a key component of the Cisco 2821 Voice Bundle, providing the necessary resources for voice encoding, decoding, and transcoding. It supports a wide range of voice codecs, including G.711, G.729, and G.723, allowing organizations to optimize bandwidth usage while maintaining audio quality.

Scalability and Modular Expansion Options

The Cisco 2821 platform is designed with scalability in mind, allowing businesses to expand their network capabilities as their needs grow. The router supports multiple expansion slots, including network module slots, high-speed WAN interface card slots, and advanced integration module slots. This modular architecture enables organizations to add new functionalities without replacing existing hardware.

Flexible Interface Support

The Cisco 2821 router supports a wide range of interface types, including Fast Ethernet, serial connections, and voice interface cards. This flexibility allows it to connect to various network environments, from traditional WAN links to modern IP-based infrastructures. The ability to support multiple interface types makes the router suitable for diverse deployment scenarios, including branch offices, remote sites, and enterprise edge networks.

Integration with Legacy and Modern Systems

One of the key advantages of the Cisco 2821 Voice Bundle is its ability to bridge legacy telephony systems with modern IP-based communication platforms. The router supports analog and digital voice interfaces, enabling seamless integration with existing PBX systems and PSTN networks. This capability allows organizations to transition to VoIP gradually, minimizing disruption and maximizing return on investment.

Future-Proof Networking Capabilities

The router’s support for advanced IOS features ensures compatibility with emerging technologies and standards. This future-proof design enables businesses to adopt new communication solutions without requiring significant infrastructure changes.

Security Features for Voice and Data Protection

Security is a critical aspect of the Cisco 2821 Voice Bundle, as it handles both voice and data traffic. The router includes a comprehensive set of security features designed to protect against unauthorized access, data breaches, and network attacks. These features ensure the confidentiality, integrity, and availability of communication services.

Management and Configuration Capabilities

The Cisco 2821 router offers comprehensive management and configuration options, allowing administrators to monitor and control network operations effectively. The Cisco IOS software provides a powerful command-line interface as well as support for graphical management tools.

Reliability and High Availability Features

The Cisco 2821 router is designed to deliver reliable performance and high availability, ensuring continuous operation even in demanding environments. Its robust hardware and software architecture minimize downtime and enhance network resilience.
