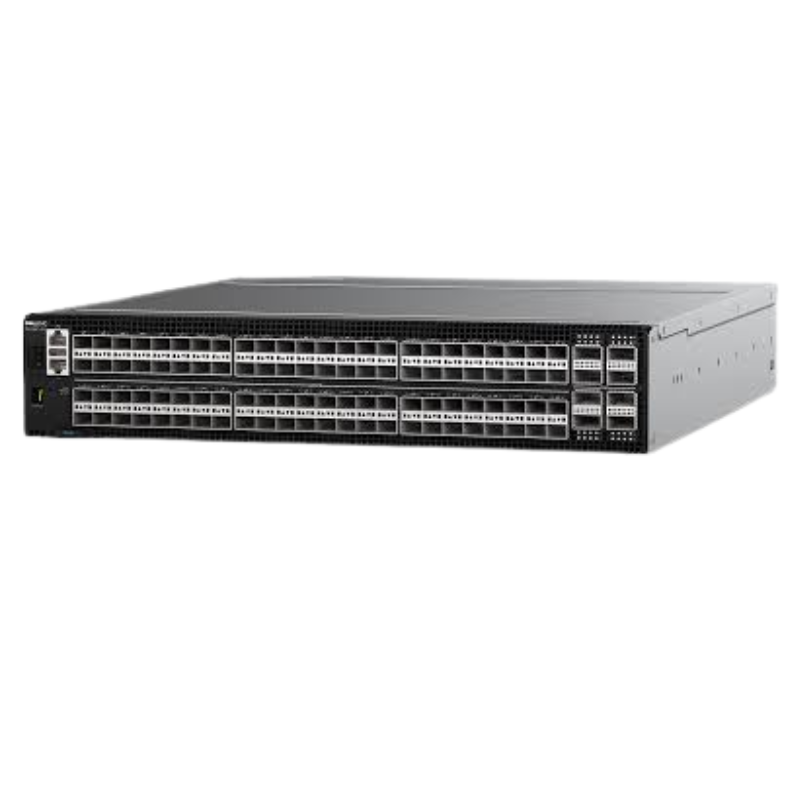

Dell 210-APHH S5296F-on 96P SFP28 8P QSFP28 OS10 Switch

Dell 210-APHH Networking S5296F-ON Switch Overview

The Dell 210-APHH Networking S5296F-ON switch is an advanced, high-performance data center switch designed to deliver exceptional speed, scalability, and efficiency for modern enterprise networks. Featuring 96 SFP28 ports and 8 QSFP28 ports, this switch supports high-density 25GbE and 100GbE connectivity, making it ideal for cloud computing, hyper-converged infrastructures, and large-scale data centers requiring agile, software-defined networking (SDN) capabilities. Its integration with Dell OS10 Enterprise Edition ensures robust network automation, programmability, and open networking support for seamless interoperability with diverse IT environments.

High-Density 25GbE and 100GbE Connectivity

Optimized Port Configuration for Scalable Networks

The S5296F-ON switch boasts a unique port configuration with 96 SFP28 ports that support 10GbE and 25GbE connections, providing flexibility for various deployment scenarios. Additionally, its 8 QSFP28 uplink ports can handle 40GbE and 100GbE traffic, enabling high-bandwidth aggregation and spine-leaf architectures. This port density empowers network administrators to efficiently manage large-scale server farms and storage clusters while future-proofing their infrastructure for increasing data traffic demands.

Seamless Integration with High-Performance Servers

Designed to complement Dell’s high-performance PowerEdge servers and storage solutions, the S5296F-ON switch ensures optimal connectivity and minimal latency in enterprise-grade environments. Its support for 25GbE server connections facilitates faster data transfers and improved application performance, essential for virtualization, big data analytics, and AI-driven workloads.

Advanced Software-Defined Networking with Dell OS10

Network Automation and Programmability

One of the defining features of the Dell 210-APHH S5296F-ON switch is its integration with Dell EMC Networking OS10 Enterprise Edition. This modular, Linux-based network operating system offers extensive programmability through REST APIs, Ansible automation, and DevOps toolchains, enabling IT teams to automate network provisioning, configuration management, and monitoring tasks efficiently. With OS10, organizations can achieve greater agility, reduce operational complexities, and accelerate service delivery.

Open Networking and Interoperability

OS10's open networking approach allows the S5296F-ON to interoperate seamlessly with multi-vendor network environments. This ensures investment protection and avoids vendor lock-in, giving enterprises the flexibility to build best-of-breed networks. Support for OpenFlow, VXLAN, BGP EVPN, and other industry-standard protocols facilitates the deployment of software-defined data centers and enhances network virtualization capabilities.

Performance, Throughput, and Scalability

High Packet Forwarding Rate and Low Latency

With a switching capacity of up to 6.4 Tbps and a packet forwarding rate of 2.3 billion packets per second (Bpps), the S5296F-ON delivers ultra-fast performance suitable for mission-critical applications. Its advanced architecture ensures consistent low-latency packet processing, essential for latency-sensitive workloads such as financial trading platforms, HPC environments, and real-time data analytics.

Scalable Fabric for Spine-Leaf Architectures

The S5296F-ON is purpose-built for modern spine-leaf network topologies, offering scalable and efficient East-West traffic handling. Its high port density and 100GbE uplinks allow data centers to scale out their infrastructure horizontally, accommodating growing workloads while maintaining simplified network management and optimal performance.

Reliability, Redundancy, and High Availability

Hot-Swappable Components and Redundant Power Supplies

To ensure continuous network availability, the Dell S5296F-ON switch is equipped with hot-swappable power supplies and fan modules, enabling maintenance and upgrades without service disruption. Its redundant power supply design safeguards against power failures, providing high availability crucial for enterprise-grade operations.

Comprehensive Hardware Monitoring and Diagnostics

Integrated hardware monitoring features, including temperature sensors, fan speed controllers, and system health diagnostics, help prevent hardware failures and optimize switch performance. Real-time alerts and telemetry data allow network administrators to proactively manage and maintain the switch’s operational integrity.

Security and Compliance Features

Robust Network Security Protocols

The S5296F-ON switch supports a wide range of security features such as Access Control Lists (ACLs), IEEE 802.1X port-based authentication, DHCP snooping, Dynamic ARP Inspection (DAI), and IP Source Guard. These capabilities protect the network from unauthorized access, spoofing attacks, and rogue devices, ensuring data confidentiality and integrity across the network infrastructure.

Secure Management Interfaces

With support for Secure Shell (SSH), SNMPv3, and HTTPS, the Dell S5296F-ON ensures encrypted communication channels for secure device management. Role-Based Access Control (RBAC) further enhances security by restricting access to network resources based on user roles and privileges.

Energy Efficiency and Eco-Friendly Design

Optimized Power Consumption

In line with Dell’s commitment to sustainability, the S5296F-ON switch features energy-efficient components and intelligent power management features that reduce overall power consumption without compromising performance. Its efficient cooling mechanisms and adaptive fan speed controls contribute to lower operating costs and a reduced carbon footprint.

Compliance with Environmental Standards

The S5296F-ON adheres to industry environmental standards such as RoHS, WEEE, and ENERGY STAR, ensuring that it meets stringent environmental compliance requirements. This makes it an eco-friendly choice for organizations aiming to implement green IT initiatives while maintaining high network performance.

Management, Monitoring, and Analytics

Intuitive Web-Based Management Interface

For simplified network administration, the S5296F-ON offers an intuitive, web-based management interface that provides comprehensive visibility into network performance, port utilization, and traffic patterns. Its user-friendly dashboard allows IT teams to configure, monitor, and troubleshoot the switch with ease.

Advanced Telemetry and Flow Analytics

Built-in support for streaming telemetry and real-time flow analytics empowers organizations to gain deep insights into network behavior. This facilitates proactive network optimization, capacity planning, and rapid issue resolution, enhancing overall network reliability and user experience.

Deployment Scenarios and Use Cases

Ideal for Cloud Data Centers and Enterprise Networks

The Dell 210-APHH S5296F-ON is perfectly suited for cloud data centers, large enterprise networks, and service provider environments that require high-performance switching solutions with extensive automation capabilities. Its scalable architecture and open networking support make it a versatile choice for various deployment scenarios, from core and aggregation layers to Top-of-Rack (ToR) implementations.

Supporting Emerging Technologies and Workloads

With its high-speed connectivity and advanced SDN features, the S5296F-ON is capable of supporting emerging technologies such as AI/ML workloads, IoT ecosystems, and edge computing environments. Its ability to handle massive amounts of data traffic and ensure low-latency performance makes it a critical component in modern digital transformation initiatives.

Competitive Advantages of the Dell S5296F-ON

Superior Price-to-Performance Ratio

Compared to other switches in its class, the Dell S5296F-ON offers a compelling price-to-performance ratio, delivering enterprise-grade features at a competitive cost. Its high port density, advanced OS10 capabilities, and future-ready architecture provide long-term value and a lower total cost of ownership (TCO).

Global Support and Service Offerings

Backed by Dell’s comprehensive global support services, including ProSupport and ProDeploy, the S5296F-ON ensures seamless deployment, proactive support, and rapid issue resolution. Dell’s extensive partner ecosystem and professional services further enhance the customer experience, enabling organizations to maximize their network investments.

Future-Ready Network Infrastructure

Scalability for Next-Generation Data Demands

The Dell S5296F-ON is engineered to scale with the evolving needs of modern IT environments. Its support for 25GbE and 100GbE ensures compatibility with next-generation servers and storage devices, preparing organizations for the increasing demands of digital business operations, high-volume data analytics, and hybrid cloud deployments.

Investment Protection through Open Networking

By embracing an open networking approach, the S5296F-ON protects IT investments and provides the flexibility to adapt to changing technology landscapes. Its ability to integrate with multi-vendor ecosystems and support software upgrades ensures that organizations can extend the lifecycle of their network infrastructure while adopting new innovations seamlessly.
