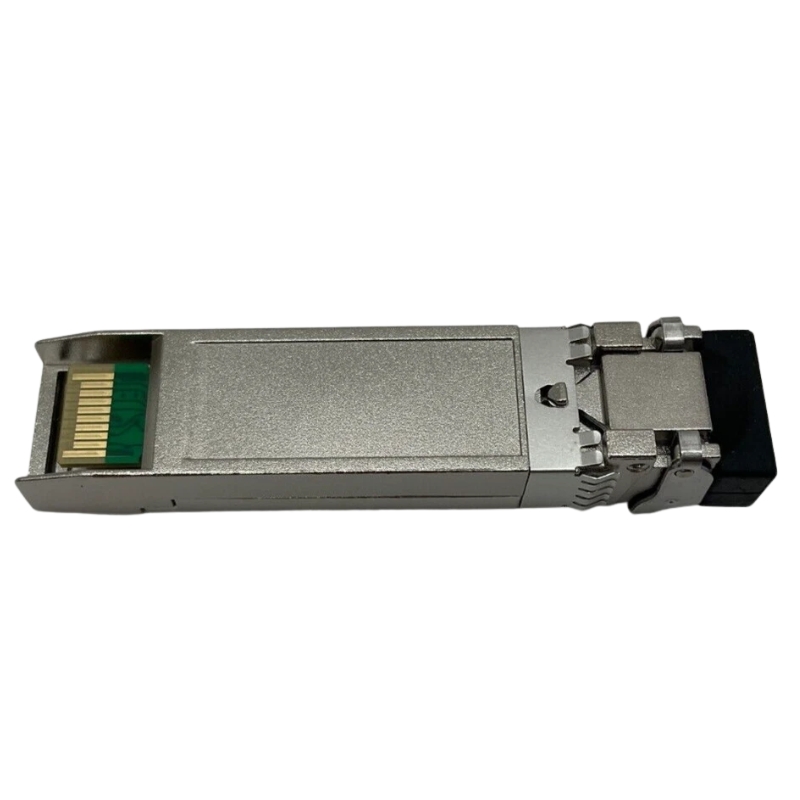

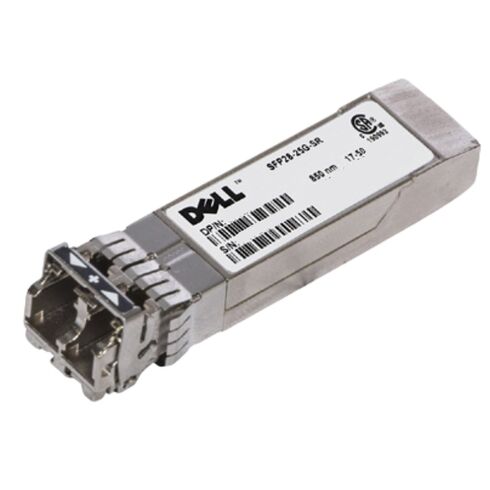

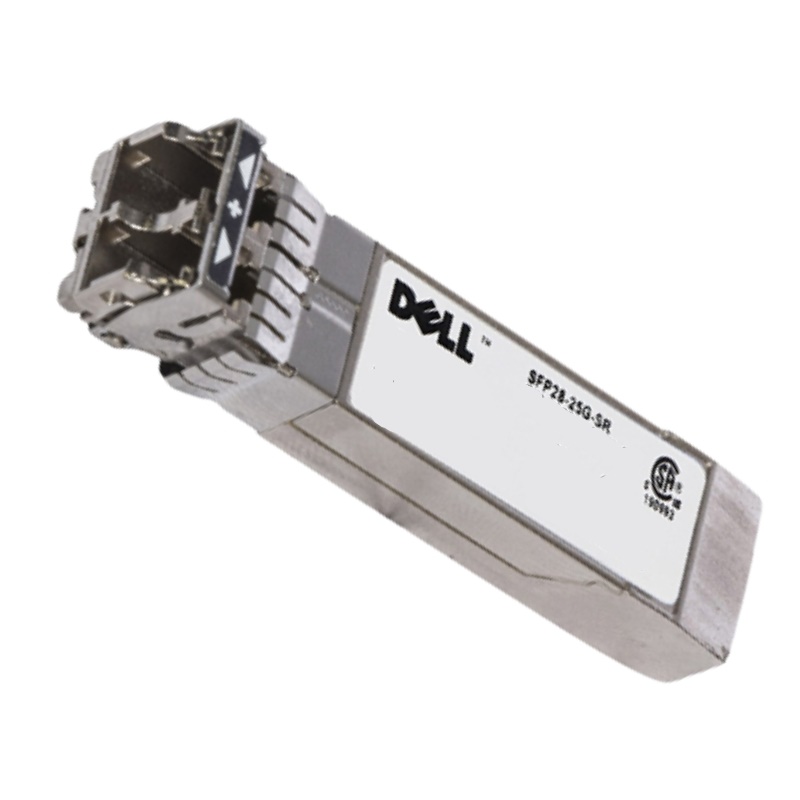

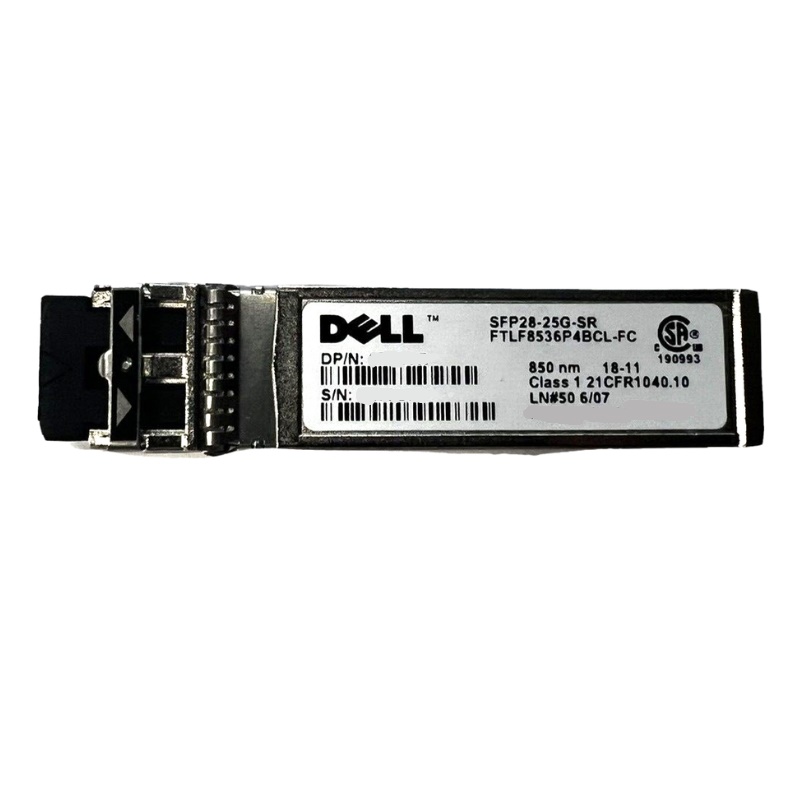

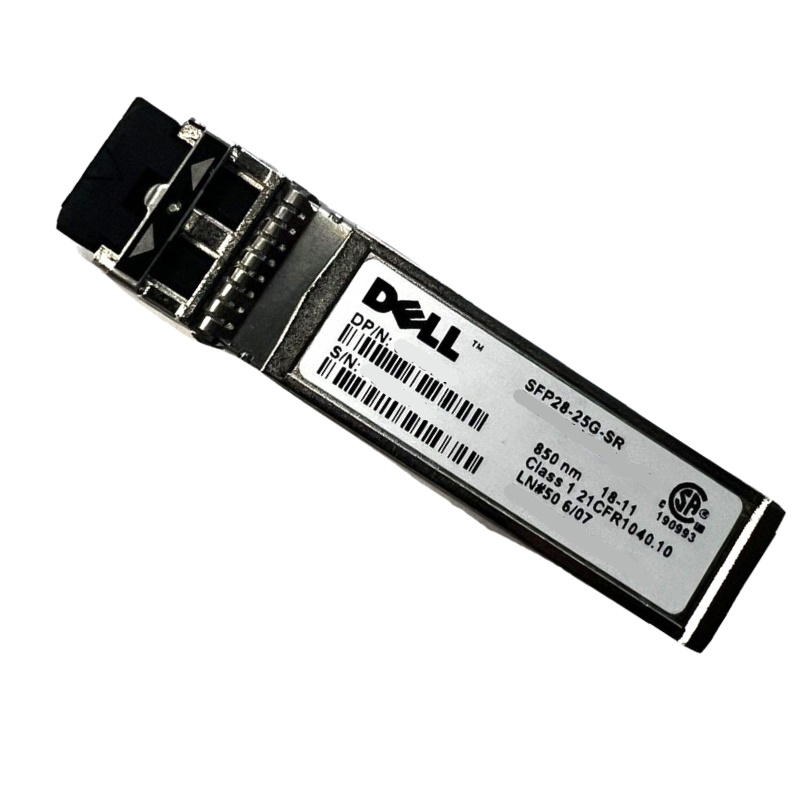

91C9R Dell 25GE SFP+ Transceiver Short Wavelength.

Dell 25GE SFP+ Transceiver Short Wavelength

The Dell 91C9R SFP28 transceiver is a high-speed networking module designed for enterprise-grade connectivity. Supporting 25 Gigabit Ethernet over multimode fiber, this short-wavelength optical transceiver ensures reliable data transfer, efficient performance, and seamless integration with Dell PowerEdge servers and PowerSwitch networking equipment.

General Information

Manufacturer Details

• Manufacturer: Dell
• Model Number: 91C9R
• Product Type: SFP28 Transceiver Module

Technical Specifications

• Form Factor: SFP28
• Data Rate: 25.78 Gbps
• Wavelength: 850 nm (short wavelength)
• Maximum Distance: Up to 100m over OM4 MMF, 70m over OM3 MMF, and up to 300m depending on fiber quality
• Connector Type: Duplex LC
• Fiber Type: Multimode Fiber (MMF)

Performance Highlights

Speed & Efficiency

• Delivers up to 25.78Gbps throughput
• Optimized for short-range multimode fiber deployments
• Supports enterprise networking and storage environments

Compatibility Information

Designed For

Dell PowerEdge R-Series (Rack Servers)

Supported Models

• R230, R240, R330, R340
• R430, R440, R530, R540
• R630, R640, R730, R730XD
• R740, R740XD, R840, R930, R940

Dell PowerEdge T-Series (Tower Servers)

Supported Models

• T130, T140, T330, T340
• T430, T440, T630, T640

Dell PowerSwitch Networking Equipment

Supported Models

• S5212F-ON
• S5224F-ON
• S5232F-ON
• S5248F-ON
• S5296F-ON

Dell Modular Systems

Supported Models

• PowerEdge M640
• PowerEdge FC630
• PowerEdge FC640
• PowerEdge MX750c

Dell 91C9R 25GE Short Wavelength SFP+ Transceiver Overview

The Dell 91C9R 25GE 850nm Short Wavelength SFP+ Transceiver represents a critical component in high-performance networking environments where speed, reliability, and compact design are essential. This optical transceiver category is engineered to support advanced data transmission requirements across enterprise data centers, cloud computing infrastructures, storage area networks, and high-density switching environments. As network demand continues to increase due to virtualization, artificial intelligence workloads, and real-time analytics, the need for efficient 25 Gigabit Ethernet optical modules has become increasingly significant.

Designed to operate using short wavelength 850nm VCSEL technology, this transceiver category supports multi-gigabit transmission over multimode fiber optic cabling. The SFP+ form factor ensures compatibility with a wide range of Dell networking switches and supported third-party infrastructure, making it a versatile solution for scalable network expansion. The Dell 91C9R module is commonly deployed in environments requiring low latency, high bandwidth, and energy-efficient optical communication between network nodes.

Core Architecture of 25GE SFP+ Optical Modules

850nm VCSEL Laser Technology

At the heart of the Dell 91C9R transceiver category lies Vertical Cavity Surface Emitting Laser (VCSEL) technology operating at an 850nm wavelength. This short-wavelength laser system is optimized for multimode fiber transmission, allowing for efficient data transfer over short to medium distances typically found within enterprise data centers. The 850nm spectrum is widely adopted due to its balance between cost efficiency, energy consumption, and transmission reliability.

The VCSEL architecture provides stable optical output with minimal dispersion, ensuring consistent signal integrity even in high-density cabling environments. This contributes to reduced packet loss, improved signal-to-noise ratio, and enhanced overall network performance in mission-critical applications.

SFP+ Form Factor Design Efficiency

The SFP+ (Small Form-Factor Pluggable Plus) design used in the Dell 91C9R category ensures compact integration into networking hardware without sacrificing performance. Its hot-swappable nature allows network administrators to install or replace modules without shutting down systems, significantly reducing maintenance downtime.

This form factor is optimized for high port density switches, enabling organizations to scale their network infrastructure efficiently. By accommodating multiple transceivers in a single chassis, data centers can maximize bandwidth capacity while maintaining a streamlined physical footprint.

Characteristics of Dell 91C9R Transceiver

25 Gigabit Ethernet Data Transmission Capability

The Dell 91C9R category is engineered to support 25GbE data rates, making it ideal for modern network backbones and aggregation layers. This bandwidth capacity is particularly suitable for environments that require fast data transfer between servers, storage systems, and virtualization clusters.

With the exponential growth of cloud services and distributed computing, 25GbE has emerged as a strategic upgrade path from traditional 10GbE infrastructure. It provides a significant increase in throughput without requiring a complete overhaul of existing network architecture, especially when paired with compatible switch systems and fiber infrastructure.

Low Latency Signal Transmission

Latency reduction is a key performance factor in optical networking. The Dell 91C9R 25GE transceiver category is optimized to minimize transmission delay, ensuring near real-time data exchange between endpoints. This is particularly important for high-frequency trading systems, AI model training clusters, and enterprise storage replication processes.

The combination of short wavelength optics and high-quality signal processing ensures that data packets are transmitted with minimal jitter, improving overall network responsiveness and reliability.

Fiber Compatibility and Network Integration

Multimode Fiber Optimization

The 850nm wavelength used in this transceiver category is specifically designed for multimode fiber (MMF) infrastructure. Multimode fiber is widely deployed in enterprise environments due to its cost-effectiveness and suitability for short-range high-speed communication.

The Dell 91C9R module ensures optimal compatibility with OM3 and OM4 fiber types, enabling stable performance across various installation scenarios. This compatibility ensures seamless integration into existing fiber architectures without requiring extensive infrastructure modifications.

Enterprise Network Scalability

Scalability is a defining feature of modern networking solutions, and the Dell 91C9R category supports seamless expansion of network capacity. By enabling incremental upgrades from lower-speed transceivers, organizations can gradually transition to higher bandwidth systems while maintaining operational continuity.

This modular scalability makes the transceiver suitable for growing enterprises, hyperscale data centers, and cloud service providers who require adaptable networking solutions capable of evolving with workload demands.

Energy Efficiency and Thermal Performance

Low Power Consumption Design

Energy efficiency is a critical consideration in data center operations. The Dell 91C9R 25GE SFP+ transceiver category is designed with low power consumption architecture, ensuring minimal energy usage while maintaining high-speed performance. This contributes to reduced operational costs and improved sustainability in large-scale deployments.

The integration of efficient optical components and optimized circuitry allows the module to deliver consistent performance without excessive heat generation, making it suitable for high-density installations.

Thermal Management and Heat Dissipation

Effective thermal management is essential for maintaining long-term reliability in optical transceivers. The Dell 91C9R category incorporates advanced heat dissipation mechanisms that ensure stable performance even under continuous high-load conditions.

By maintaining optimal operating temperatures, the transceiver reduces the risk of performance degradation and extends the operational lifespan of the module, contributing to improved total cost of ownership for enterprise deployments.

Data Center Applications and Use Cases

Cloud Computing Infrastructure

In cloud computing environments, high-speed interconnectivity between servers is essential for workload distribution and virtualization efficiency. The Dell 91C9R 25GE transceiver category supports these requirements by enabling fast and reliable data exchange across cloud nodes.

Its ability to handle large volumes of traffic with low latency makes it ideal for private cloud, hybrid cloud, and public cloud infrastructure deployments where performance consistency is critical.

Storage Area Networks and Data Replication

Storage area networks (SANs) rely heavily on high-bandwidth, low-latency connections to ensure data integrity and replication speed. The Dell 91C9R category enhances SAN performance by enabling rapid synchronization between storage arrays and backup systems.

This ensures that critical business data remains protected and accessible, even in disaster recovery scenarios or distributed storage environments.

High-Performance Computing Clusters

High-performance computing (HPC) environments demand extreme data throughput and minimal communication delays between compute nodes. The 25GE capability of the Dell 91C9R transceiver category supports these requirements by providing fast inter-node connectivity.

This is especially beneficial for scientific simulations, machine learning training, financial modeling, and complex computational workloads that require synchronized processing across multiple systems.

Network Optimization and Deployment Flexibility

Seamless Switch Integration

The Dell 91C9R 25GE SFP+ transceiver category is designed for seamless integration with compatible Dell networking switches and enterprise-grade switching platforms. This ensures plug-and-play functionality, simplifying deployment and reducing configuration complexity.

Its interoperability across supported hardware ecosystems allows organizations to standardize their optical networking infrastructure, improving manageability and reducing compatibility issues.

Signal Integrity and Transmission Quality

Advanced Error Reduction Techniques

Signal integrity is a fundamental requirement in optical networking. The Dell 91C9R transceiver category incorporates advanced signal processing techniques that help minimize bit error rates during transmission. This ensures that data integrity is maintained even in complex networking environments.

By reducing transmission errors, the module enhances overall network reliability and supports critical applications that require precise and accurate data delivery.

Stable Optical Output Performance

Stable optical output is essential for maintaining consistent network performance. The 850nm VCSEL system used in this category provides steady signal emission, ensuring uniform transmission quality across supported distances.

This stability contributes to predictable network behavior, making it easier for administrators to manage performance and troubleshoot connectivity issues when necessary.
