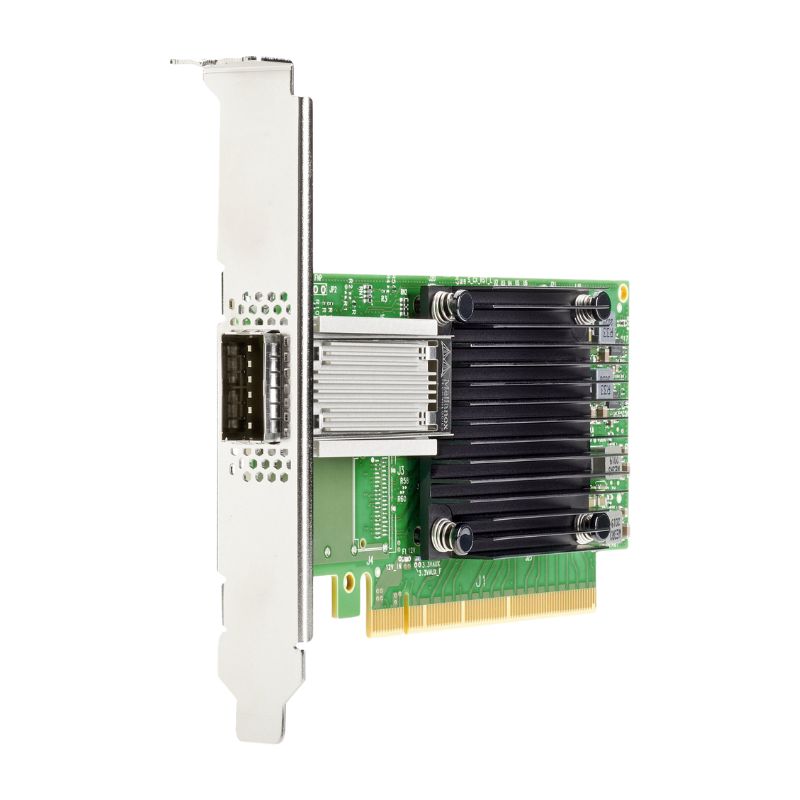

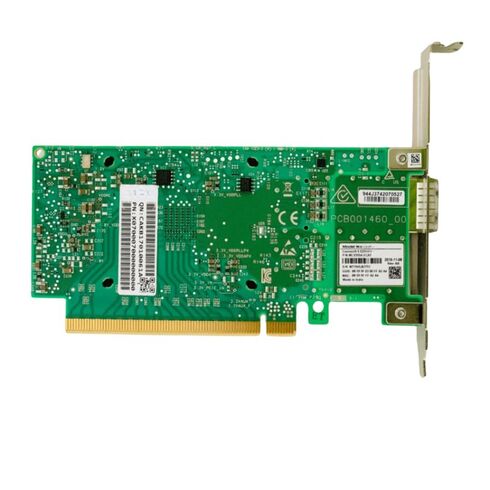

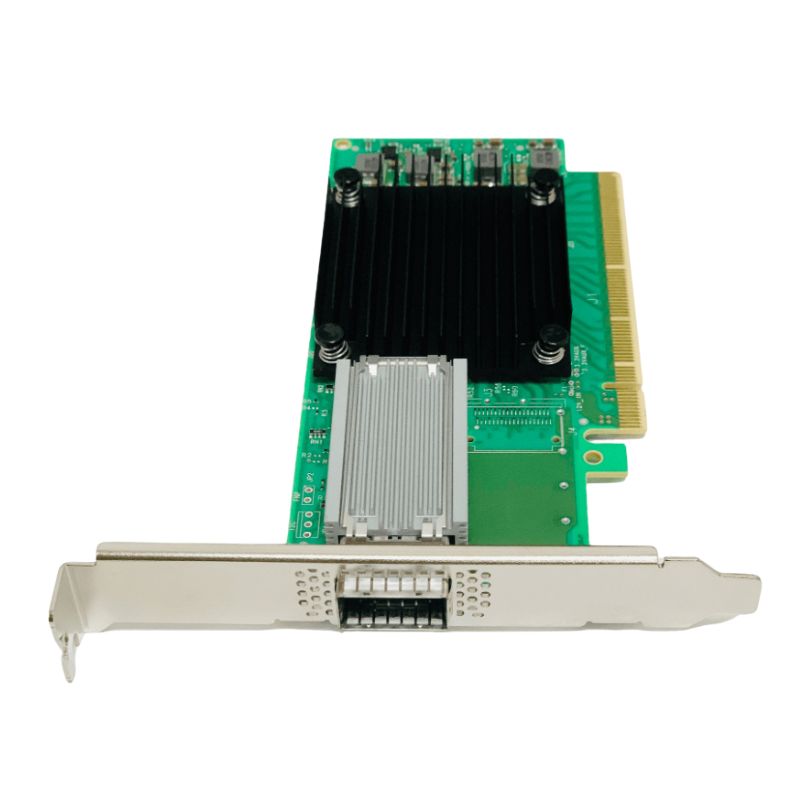

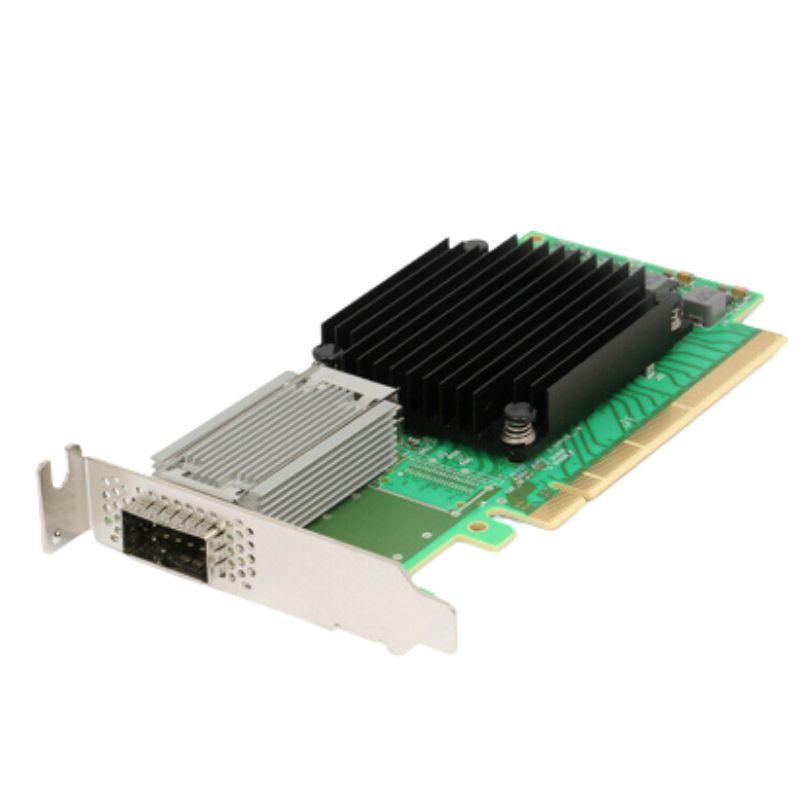

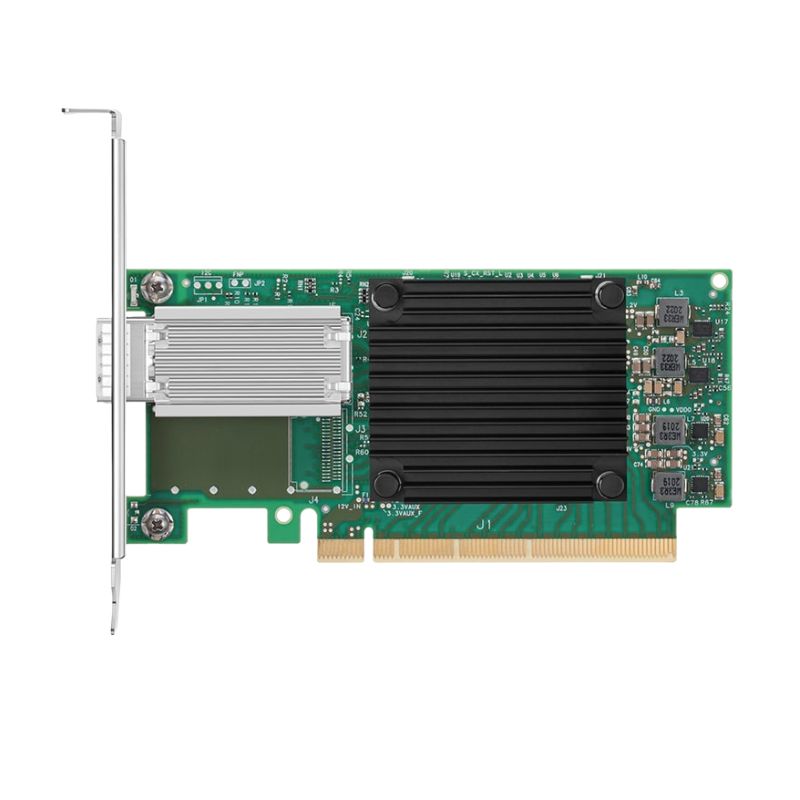

540-BCDL Dell Mellanox CX555A ConnectX-5 QSFP PCI-E 100GB 1-Port Network Adapter

Dell 540-BCDL PCI-E 100Gb 1 Port Network Adapter Overview

High-Performance 100 Gigabit Networking Solution

The Dell 540-BCDL Mellanox ConnectX-5 CX555A is a premium-class PCIe network interface card designed for ultra-fast data centers and enterprise-grade computing environments. Built for reliability and maximum throughput, this 100Gb Ethernet adapter delivers exceptional bandwidth performance for modern cloud, virtualization, and HPC workloads.

Key Product Identification Details

• Manufacturer: Dell
• Part Number: 540-BCDL
• Device Type: High-speed Network Adapter
• Category: 100 Gigabit Ethernet Interface Card

Advanced Technical Specifications

Hardware Architecture & Interface

• Form Factor: Plug-in PCI Express Card
• Interface Standard: PCIe 3.0 x16 high-bandwidth slot compatibility
• Backward Support: PCIe 1.1, PCIe 2.0, PCIe 3.0 compliant systems

Network Connectivity & Port Configuration

• Ports: Single QSFP28 port (100Gb Ethernet / 100Gb InfiniBand)
• Supported Link Speeds: 25GbE, 40GbE, 50GbE, 100GbE, and 100Gb InfiniBand modes
• Data Transfer Capability: Up to 100 Gbps ultra-low latency throughput

Supported Protocols & Communication Standards

• TCP/IP, UDP/IP, iSCSI protocol acceleration
• Gigabit Ethernet, 10GbE, 25GbE, 40GbE, 50GbE, and 100GbE support
• InfiniBand networking for high-performance computing clusters

Industry Standards & Compliance Features

IEEE Networking Standards Compliance

• IEEE 802.1Q VLAN tagging and network segmentation
• IEEE 802.3ad Link Aggregation Control Protocol (LACP)
• IEEE 802.3ae, 802.3ba, 802.3bj, 802.3bm, 802.3by advanced Ethernet standards
• IEEE 802.1p QoS traffic prioritization
• IEEE 802.1ax link aggregation enhancements

Data Center Optimization Protocols

• IEEE 802.1Qbb Priority Flow Control (PFC)
• IEEE 802.1Qaz Enhanced Transmission Selection (ETS)
• IEEE 802.1Qau congestion notification mechanisms
• IEEE 1588v2 precision time synchronization support
• IBTA 1.3 InfiniBand Trade Association compliance

Dell 540-BCDL 100Gb 1-Port Network Adapter

The Dell 540-BCDL Mellanox ConnectX-5 CX555A QSFP PCI-E 100Gb 1-Port Network Adapter represents a high-performance networking solution designed for modern data centers, cloud computing environments, enterprise virtualization platforms, and high-speed storage infrastructures. Built on the advanced Mellanox ConnectX-5 architecture, this adapter delivers ultra-low latency, high throughput, and exceptional scalability, making it ideal for workloads that demand maximum network efficiency and reliability. As organizations continue to evolve toward hyper-converged infrastructure and data-intensive applications, the need for a 100Gb Ethernet adapter such as the Dell 540-BCDL becomes increasingly critical for ensuring seamless connectivity and optimized data flow.

High-Speed 100GbE Networking Performance

Unmatched Bandwidth for Modern Workloads

At the core of the Dell 540-BCDL Mellanox ConnectX-5 CX555A is its 100 Gigabit Ethernet capability, which provides extremely high bandwidth for data-intensive environments. This level of throughput supports applications such as big data analytics, high-frequency trading, AI/ML model training, virtualization clusters, and large-scale cloud services. With increasing data traffic in enterprise systems, 100GbE connectivity ensures that bottlenecks are minimized and workloads operate at peak efficiency.

Low Latency Architecture

One of the defining features of the ConnectX-5 platform is its ultra-low latency performance. By minimizing packet processing delays and optimizing data handling paths, the Dell 540-BCDL adapter ensures near-instant communication between servers and storage systems. This is particularly important for latency-sensitive applications such as financial trading platforms, real-time analytics, and distributed database systems.

Hardware Acceleration Benefits

The adapter leverages advanced hardware offloading capabilities that reduce CPU overhead and improve system efficiency. Tasks such as TCP/UDP processing, encryption, and virtualization offloading are handled directly by the NIC, freeing up CPU resources for application-level processing. This results in improved system performance and better scalability in multi-tenant environments.

Mellanox ConnectX-5 Architecture Advantages

Next-Generation Network Interface Design

The Mellanox ConnectX-5 CX555A architecture is engineered for high-density environments where performance and reliability are essential. It integrates advanced packet processing engines, intelligent flow steering, and adaptive routing capabilities that enhance network efficiency. The Dell 540-BCDL model benefits from this architecture, ensuring stable performance even under heavy workloads.

Advanced RDMA over Converged Ethernet (RoCE)

Remote Direct Memory Access (RDMA) over Converged Ethernet is a critical feature supported by the ConnectX-5 series. RDMA allows direct memory access between servers without involving the CPU, significantly reducing latency and improving throughput. This makes the Dell 540-BCDL ideal for high-performance computing (HPC), distributed storage systems, and AI training clusters.

RoCE v2 Optimization

With support for RoCE v2, the adapter enables scalable and routable RDMA communication across large data center networks. This enhances interoperability and allows organizations to deploy RDMA across layer-3 routed networks without sacrificing performance.

QSFP Interface and Connectivity Options

Flexible QSFP Port Design

The Dell 540-BCDL Mellanox ConnectX-5 CX555A features a QSFP (Quad Small Form-factor Pluggable) interface, which supports high-speed optical and copper transceivers. This flexibility enables administrators to choose appropriate connectivity options based on distance, cost, and infrastructure requirements.

Supported Transceiver Types

The QSFP interface supports a wide range of transceivers including QSFP28 modules for 100GbE optical connections, active optical cables (AOC), and direct attach copper (DAC) cables. This versatility ensures compatibility with existing network infrastructure while allowing future upgrades.

Data Center Integration Flexibility

In large-scale deployments, QSFP-based adapters provide seamless integration with top-of-rack switches, spine-leaf architectures, and distributed storage clusters. This ensures that the Dell 540-BCDL can be easily deployed across multiple network layers without requiring major infrastructure redesign.

PCI Express Interface and System Compatibility

PCIe Gen3/Gen4 Support

The adapter utilizes a PCI Express interface that ensures high-speed communication between the network card and the host system. With support for PCIe Gen3 and compatibility with advanced server platforms, the Dell 540-BCDL can fully utilize 100Gbps bandwidth without creating internal bottlenecks.

Optimized Lane Utilization

The PCIe interface ensures efficient lane utilization, allowing maximum throughput with minimal overhead. This is essential for workloads requiring consistent data transfer rates, such as distributed computing clusters and virtualization environments.

Server Compatibility and Deployment

Designed for Dell enterprise servers, the adapter integrates seamlessly with Dell PowerEdge systems and other compatible server platforms. It is widely used in enterprise-grade deployments where reliability, scalability, and performance are critical.

Enterprise Data Center Applications

Cloud Computing Infrastructure

The Dell 540-BCDL Mellanox ConnectX-5 CX555A is extensively used in cloud data centers where high-speed networking is essential for virtual machine migration, container orchestration, and microservices communication. Its 100GbE capability ensures that cloud platforms can scale efficiently without network congestion.

High-Performance Computing (HPC)

In HPC environments, compute nodes must communicate rapidly and efficiently to process large datasets. The adapter’s RDMA capabilities and low latency design make it ideal for scientific simulations, weather modeling, genomic analysis, and AI research workloads.

Parallel Processing Optimization

The network adapter enhances parallel computing performance by reducing inter-node communication delays, enabling faster computation cycles and improved cluster efficiency.

Storage Area Networks (SAN)

Modern storage systems rely heavily on high-speed networking to ensure fast data access and replication. The Dell 540-BCDL supports NVMe over Fabrics (NVMe-oF), enabling ultra-fast storage communication across distributed environments.

Virtualization and Software-Defined Networking

Virtual Machine Acceleration

The adapter is optimized for virtualization platforms such as VMware, Hyper-V, and KVM. It supports Single Root I/O Virtualization (SR-IOV), which allows multiple virtual machines to share a single physical NIC while maintaining dedicated performance.

SR-IOV Benefits

SR-IOV reduces virtualization overhead and improves network performance by allowing direct hardware access to virtual machines. This ensures consistent bandwidth allocation and reduced latency for mission-critical workloads.

Software-Defined Networking (SDN) Integration

The Dell 540-BCDL integrates seamlessly with SDN frameworks, enabling programmable network configurations and dynamic traffic management. This is essential for modern agile infrastructure environments.

Security and Data Protection Features

Hardware-Based Encryption

Security is a critical concern in enterprise networking, and the ConnectX-5 platform includes hardware-based encryption acceleration. This ensures secure data transmission without compromising performance.

Secure Multi-Tenant Environments

In cloud and hosting environments, multi-tenancy requires strict isolation between workloads. The adapter supports secure partitioning and traffic isolation mechanisms to ensure data integrity and privacy.

Advanced Packet Filtering

The NIC includes intelligent packet filtering capabilities that help protect against malicious traffic, unauthorized access, and network-level attacks. This enhances overall data center security posture.

Energy Efficiency and Thermal Design

Optimized Power Consumption

Despite its high-performance capabilities, the Dell 540-BCDL is engineered for energy efficiency. It dynamically adjusts power usage based on workload demand, reducing operational costs in large-scale deployments.

Thermal Management System

The adapter incorporates advanced thermal management features to maintain optimal operating temperatures even under heavy load conditions. This ensures long-term reliability and reduces hardware failure risk.

Scalability and Future-Proofing

Designed for Next-Generation Networks

As data center requirements continue to grow, scalability becomes essential. The Dell 540-BCDL Mellanox ConnectX-5 CX555A is built with future-proof architecture that supports evolving network standards and increasing bandwidth demands.

Upgradable Infrastructure Compatibility

Organizations can integrate this adapter into existing infrastructures while maintaining upgrade paths for future networking technologies. This reduces total cost of ownership and improves long-term investment value.

Deployment Scenarios and Use Cases

Enterprise IT Environments

In enterprise IT systems, the adapter supports critical applications such as ERP systems, CRM platforms, and internal communication networks. Its stability ensures uninterrupted business operations.

AI and Machine Learning Clusters

AI workloads require massive data exchange between compute nodes. The Dell 540-BCDL ensures that GPU clusters and distributed training systems operate efficiently without network bottlenecks.

Deep Learning Optimization

By reducing communication overhead between nodes, the adapter accelerates deep learning model training and improves iteration cycles in AI development environments.

Content Delivery Networks (CDN)

CDNs benefit from high-speed network adapters for fast content distribution. The 100GbE capability ensures rapid delivery of video, images, and web content to global users.
