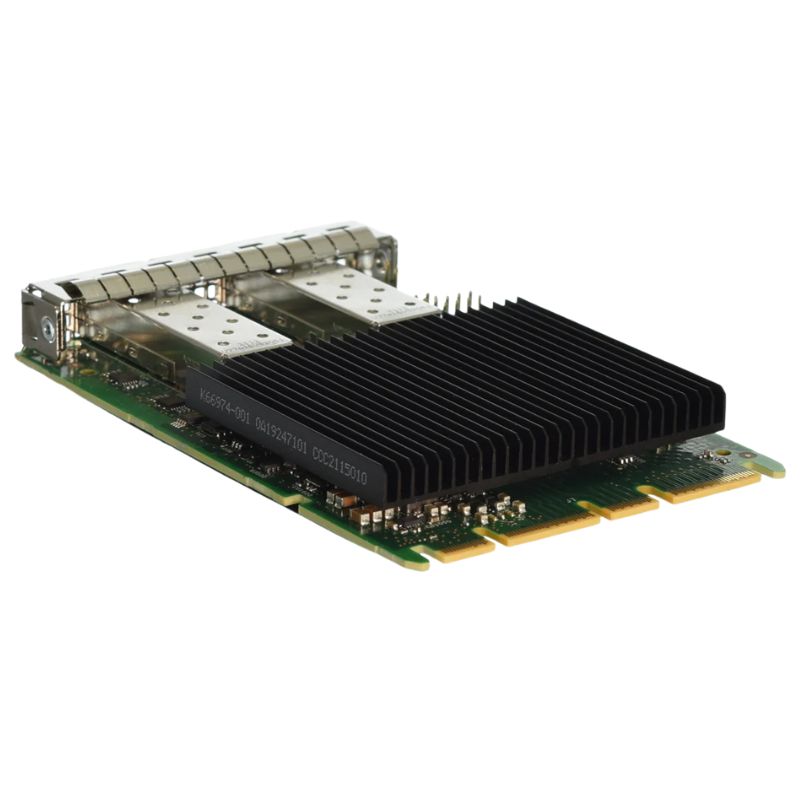

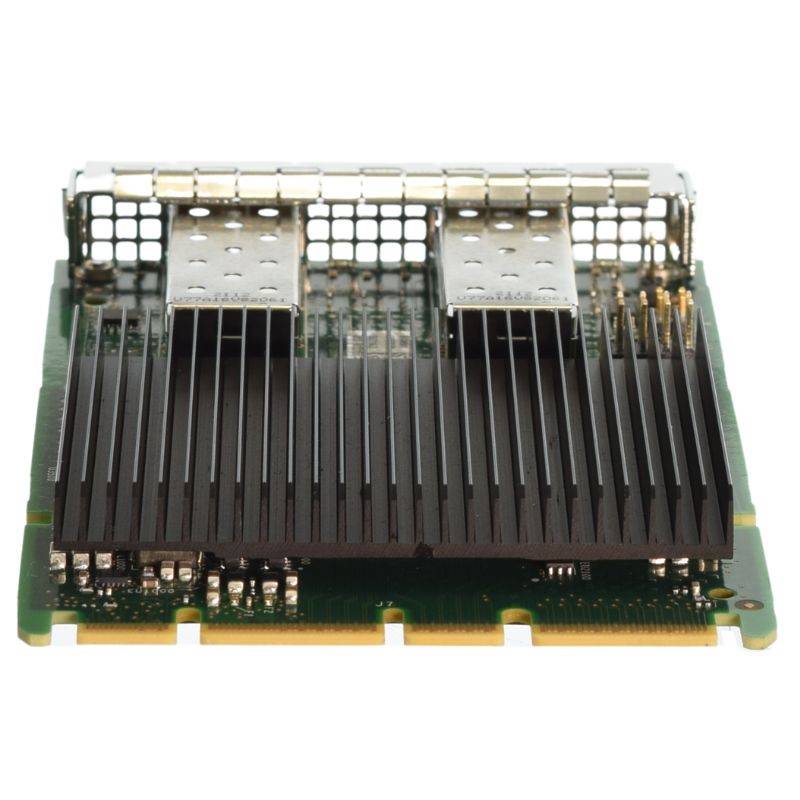

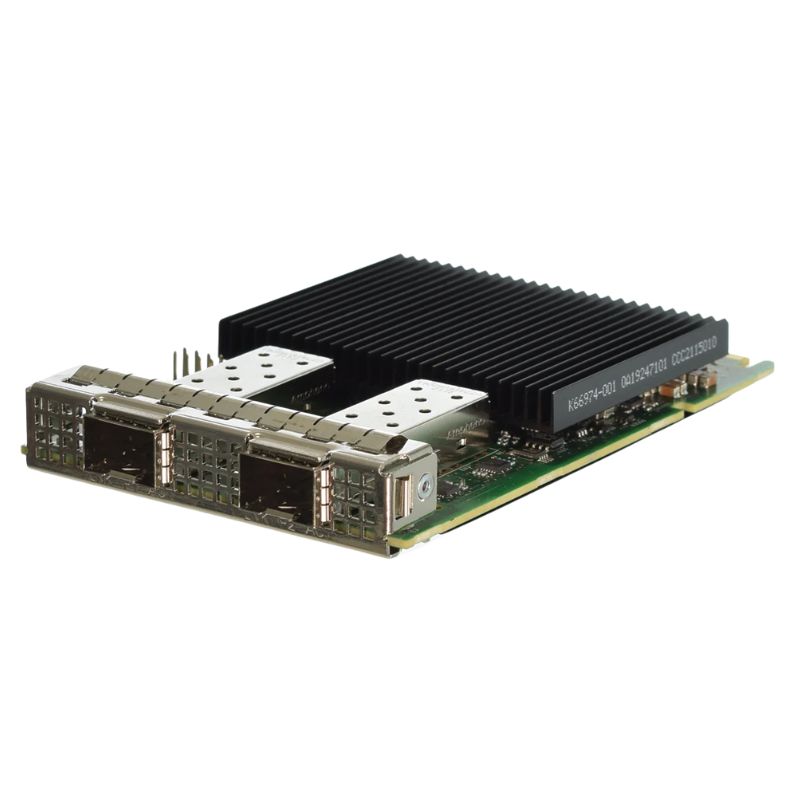

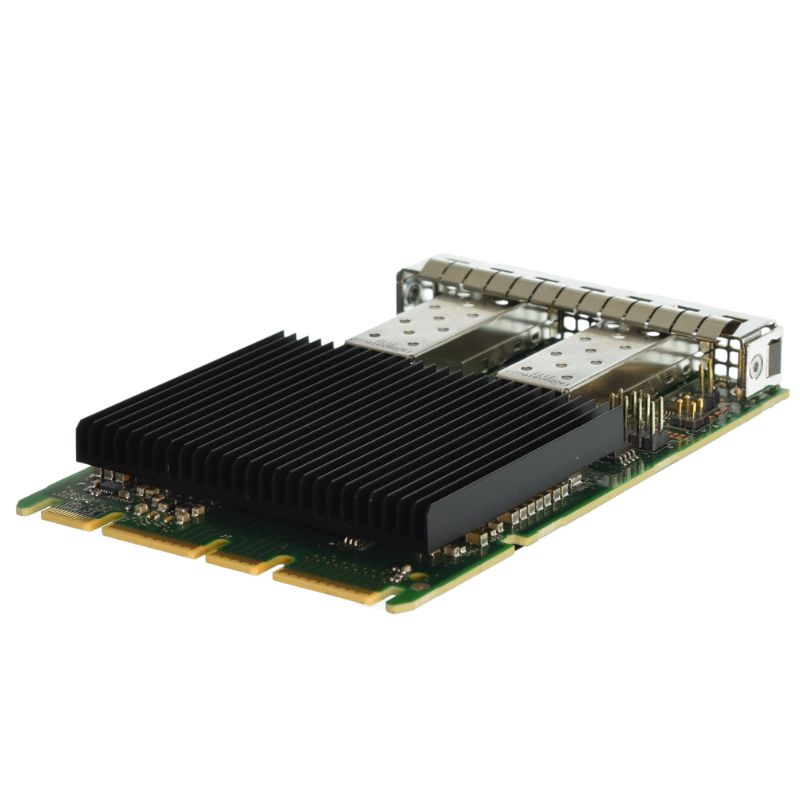

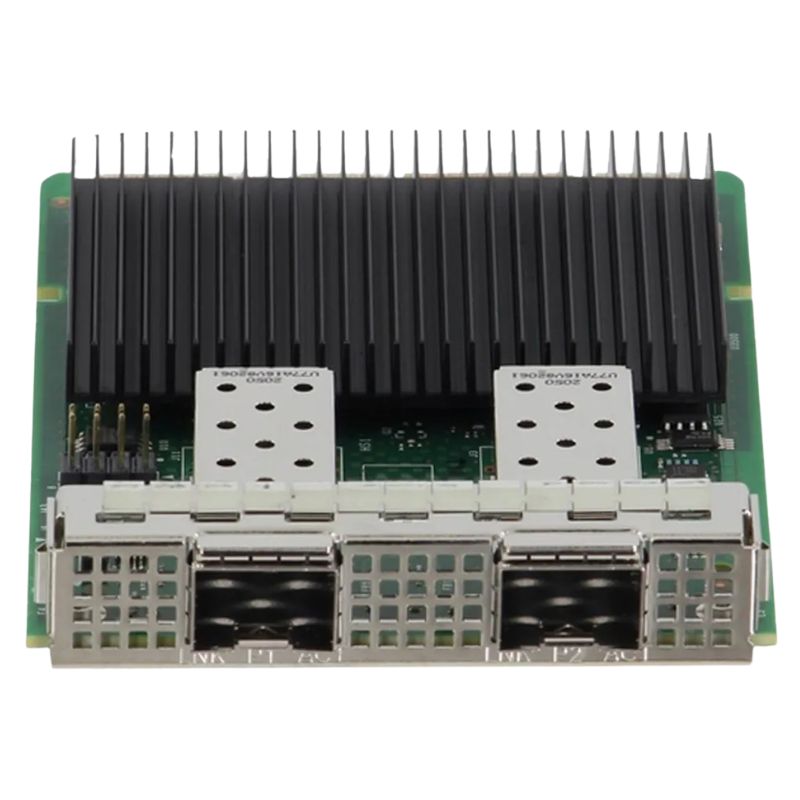

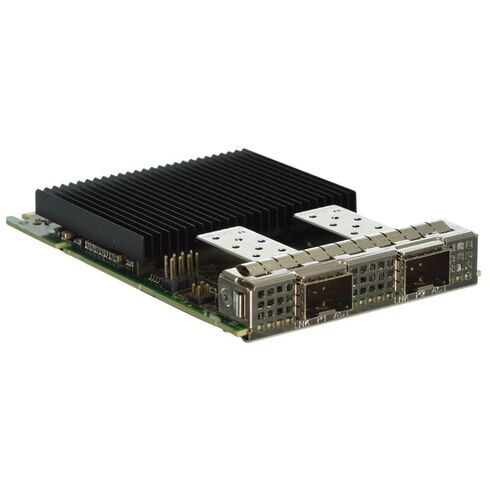

540-BCXW Dell Intel E810 Dual-Ports PCI-E 25GBE SFP28 OCP NIC 3.0

Highlights of Dell Dual-Ports 25GBE Adapter

The Dell 540-BCXW Intel E810 Dual-Port 25GbE SFP28 OCP NIC 3.0 is a next-generation enterprise networking adapter engineered for ultra-fast connectivity. With Open Compute Project (OCP) 3.0 support and advanced virtualization features, this card ensures reliable throughput, scalability, and efficiency for modern data centers and cloud infrastructures.

Manufacturer Details

• Brand: Dell
• Part Number: 540-BCXW
• Device Type: Network Adapter

Technical Specifications

• Form Factor: Plug-in Card (Low Profile)
• Interface (Bus) Type: OCP Mezzanine 3.0
• PCI Specification Revision: PCIe 3.0, PCIe 4.0

Port Configuration

• Ports: Dual-port (2 x SFP28)
• Port Type: 25 Gigabit SFP28
• Data Link Protocols: Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet
• Connectivity Technology: Wired

Network Protocols

• iSCSI
• iWARP
• NFS

Advanced Features

• RDMA Support (Remote Direct Memory Access)
• Virtual Machine Device Queues (VMDq)
• Single Root I/O Virtualization (SR-IOV)
• Data Direct I/O Technology (DDIO)
• RDMA over Converged Ethernet (RoCE v2)
• Flexible Port Partitioning (FPP)
• Intelligent Offloads for optimized performance
• On-chip QoS and traffic management

Compatibility

Dell PowerEdge Systems

• Validated for Dell PowerEdge server platforms
• Optimized for enterprise-grade workloads
• Ideal for virtualization, cloud, and HPC environments

Dell 540-BCXW Intel E810 Dual-Port 25GBE Adapter Overview

The Dell 540-BCXW Intel E810 Dual-Port 25GbE SFP28 OCP NIC 3.0 is a high-performance network interface controller designed for modern enterprise data centers, cloud computing environments, virtualization clusters, and high-throughput networking infrastructures. Built on Intel’s advanced Ethernet 800 Series architecture, this network adapter delivers exceptional scalability, ultra-low latency, and high bandwidth efficiency for demanding workloads. It is engineered specifically for OCP NIC 3.0 form factor systems, ensuring optimized airflow, power efficiency, and seamless integration into next-generation Dell server platforms.

This category represents a specialized segment of high-speed networking hardware that focuses on 25 Gigabit Ethernet connectivity through SFP28 optical transceiver interfaces. The dual-port design enables redundancy, load balancing, and enhanced throughput performance, making it ideal for mission-critical workloads where network reliability and speed are essential. The Dell 540-BCXW model is widely deployed in virtualization environments, AI workloads, software-defined networking (SDN), and storage-intensive applications where data transfer efficiency directly impacts performance outcomes.

Enterprise-Class Networking Architecture and Design

The architecture of the Intel E810-based Dell 540-BCXW NIC is engineered for enterprise-grade scalability. It leverages PCI Express interface connectivity to ensure high-speed data transmission between the server CPU and network infrastructure. This design reduces bottlenecks and enhances overall system responsiveness, particularly in multi-tenant cloud environments where simultaneous data streams must be processed efficiently.

Intel E810 Controller Integration

The Intel E810 controller is a cornerstone of this network adapter, delivering advanced packet processing capabilities and hardware offloading features. It supports intelligent workload distribution, reducing CPU overhead while increasing network efficiency. This allows enterprise systems to allocate more processing power to application workloads rather than network management tasks.

OCP NIC 3.0 Form Factor Optimization

The OCP NIC 3.0 design ensures that the adapter is optimized for modern server architectures. It provides improved thermal management, simplified maintenance, and better scalability compared to traditional PCIe network cards. This form factor is increasingly adopted in hyperscale data centers due to its efficiency and modularity, enabling faster upgrades and reduced downtime during hardware replacement cycles.

High-Speed 25GbE SFP28 Connectivity Features

The Dell 540-BCXW supports dual-port 25 Gigabit Ethernet through SFP28 interfaces, offering a significant leap in network performance compared to traditional 10GbE solutions. This category of network adapters is designed to handle data-intensive workloads such as large-scale virtualization, distributed storage systems, and real-time analytics processing.

Dual-Port Redundancy and Load Distribution

Dual-port architecture ensures uninterrupted network availability by enabling redundancy in case one link fails. It also allows for intelligent load distribution across both ports, improving throughput and balancing traffic across network pathways. This capability is essential in environments where uptime and reliability are critical performance metrics.

Low-Latency Data Transmission

The 25GbE SFP28 interface is engineered to minimize latency in data transmission, ensuring faster response times for applications requiring real-time data processing. Financial trading platforms, AI inference systems, and large-scale database clusters benefit significantly from reduced latency, as it improves decision-making speed and operational efficiency.

Scalable Bandwidth Expansion

This network adapter supports scalable bandwidth expansion, allowing organizations to upgrade their networking infrastructure without overhauling existing server systems. The 25GbE standard provides a balance between cost-efficiency and high performance, making it an ideal transition technology between 10GbE and 100GbE deployments.

Data Center and Cloud Infrastructure Applications

The Dell 540-BCXW Intel E810 NIC is widely used in modern data centers and cloud computing environments where high-speed connectivity and efficient traffic management are essential. Its architecture supports virtualization, containerized workloads, and distributed computing models that require stable and predictable network performance.

Virtualization and Hyperconverged Infrastructure

In virtualization environments, network performance plays a critical role in ensuring smooth virtual machine operation and workload distribution. The Dell 540-BCXW supports advanced virtualization features that optimize packet handling and reduce latency across virtual networks. This ensures that virtual machines operate efficiently even under heavy network loads.

Software-Defined Networking Compatibility

Software-defined networking environments benefit from the programmable capabilities of the Intel E810 controller. The adapter supports flexible traffic routing and dynamic network configuration, enabling administrators to optimize network paths based on workload requirements and real-time analytics.

Cloud Service Provider Optimization

Cloud providers rely heavily on high-density networking solutions to deliver scalable services to end users. The dual-port 25GbE capability allows cloud infrastructure to handle large volumes of simultaneous connections while maintaining consistent performance across distributed systems.

Key Optimization and Hardware Acceleration

The Dell 540-BCXW NIC incorporates advanced hardware acceleration features that significantly reduce CPU workload and improve system efficiency. These features are critical for environments where high-speed data processing and low latency are required simultaneously.

Packet Processing Acceleration

Hardware-based packet processing ensures that network traffic is handled efficiently without overwhelming system resources. This improves throughput and reduces jitter, which is particularly important in real-time communication systems and data-intensive applications.

Checksum and Segmentation Offloading

The adapter supports offloading of checksum calculations and data segmentation tasks from the CPU to the NIC hardware. This reduces processing overhead and enhances overall system performance, especially in environments with high network utilization.

Intelligent Traffic Management

Intelligent traffic management features enable dynamic prioritization of network packets based on workload requirements. This ensures that critical applications receive the necessary bandwidth and network priority, maintaining service quality in multi-application environments.

Reliability, Redundancy, and Fault Tolerance

Enterprise networking environments demand high levels of reliability and fault tolerance. The Dell 540-BCXW is engineered to meet these requirements through redundant design and robust hardware architecture.

Failover Capabilities

The dual-port configuration ensures seamless failover in case one network interface experiences disruption. This maintains continuous network connectivity and prevents downtime in mission-critical systems.

Network Path Redundancy

Network path redundancy allows traffic to be rerouted automatically through an alternate port, ensuring uninterrupted data flow. This is particularly important in financial systems, healthcare infrastructure, and cloud service environments where downtime is not acceptable.

Error Detection and Correction

Advanced error detection mechanisms ensure data integrity during transmission. The NIC is capable of identifying and correcting transmission errors, reducing the risk of corrupted data packets affecting application performance.

Compatibility with Dell Server Ecosystem

The Dell 540-BCXW Intel E810 NIC is specifically designed for compatibility with Dell enterprise server platforms that support OCP NIC 3.0 architecture. This ensures seamless integration, simplified deployment, and optimized performance across Dell PowerEdge server systems.

PowerEdge Server Integration

This network adapter integrates efficiently with Dell PowerEdge servers, enabling organizations to build scalable and high-performance computing environments. The tight integration between hardware components ensures optimized resource allocation and system stability.

Firmware and Driver Optimization

Firmware-level optimization ensures that the NIC operates efficiently within Dell server environments. Regular driver updates provide performance enhancements, security improvements, and compatibility updates for evolving enterprise workloads.

Advanced Networking Use Cases and Industry Applications

The Dell 540-BCXW Intel E810 Dual-Port 25GbE SFP28 NIC is widely adopted across multiple industries due to its flexibility and high-performance capabilities. Its architecture supports a diverse range of enterprise workloads and specialized computing environments.

Artificial Intelligence and Machine Learning Workloads

AI and machine learning systems require high-speed data ingestion and processing capabilities. The 25GbE bandwidth enables rapid transfer of large datasets between storage systems and compute nodes, improving training efficiency and model deployment speed.

Big Data Analytics Platforms

Big data environments rely on distributed processing frameworks that require consistent network performance. The Dell 540-BCXW ensures smooth data flow across nodes, reducing processing delays and improving analytics throughput.

High-Performance Computing Clusters

HPC environments benefit from low-latency networking and high bandwidth availability. The adapter supports tightly coupled compute clusters where rapid inter-node communication is essential for computational accuracy and efficiency.

Energy Efficiency and Thermal Management

Modern data centers prioritize energy efficiency and thermal optimization to reduce operational costs and environmental impact. The Dell 540-BCXW NIC is designed with power-efficient architecture that minimizes energy consumption while maintaining high performance.

Low Power Consumption Design

The Intel E810 controller incorporates power-saving features that dynamically adjust energy usage based on workload demands. This ensures efficient power utilization without compromising performance.

Thermal Control and Heat Dissipation

Optimized thermal design allows the NIC to operate efficiently under heavy workloads. The OCP NIC 3.0 form factor enhances airflow within server chassis, reducing the risk of overheating and improving long-term reliability.

Adaptive Performance Scaling

Adaptive performance scaling enables the NIC to adjust its operational parameters based on network demand. This contributes to improved energy efficiency and reduced operational costs in large-scale deployments.

Security Features and Data Protection Capabilities

Security is a critical consideration in enterprise networking environments. The Dell 540-BCXW incorporates advanced security features that protect data integrity and prevent unauthorized access.

Hardware-Based Security Acceleration

Hardware-level encryption support ensures secure data transmission across network channels. This reduces reliance on CPU-based encryption, improving performance while maintaining strong security protocols.

Secure Boot and Firmware Integrity

Secure boot mechanisms ensure that only trusted firmware is loaded during system initialization. This protects against malicious firmware attacks and ensures system integrity.

Network Traffic Isolation

Traffic isolation features enable segmentation of network data streams, ensuring that sensitive workloads remain protected from unauthorized access within shared infrastructure environments.
