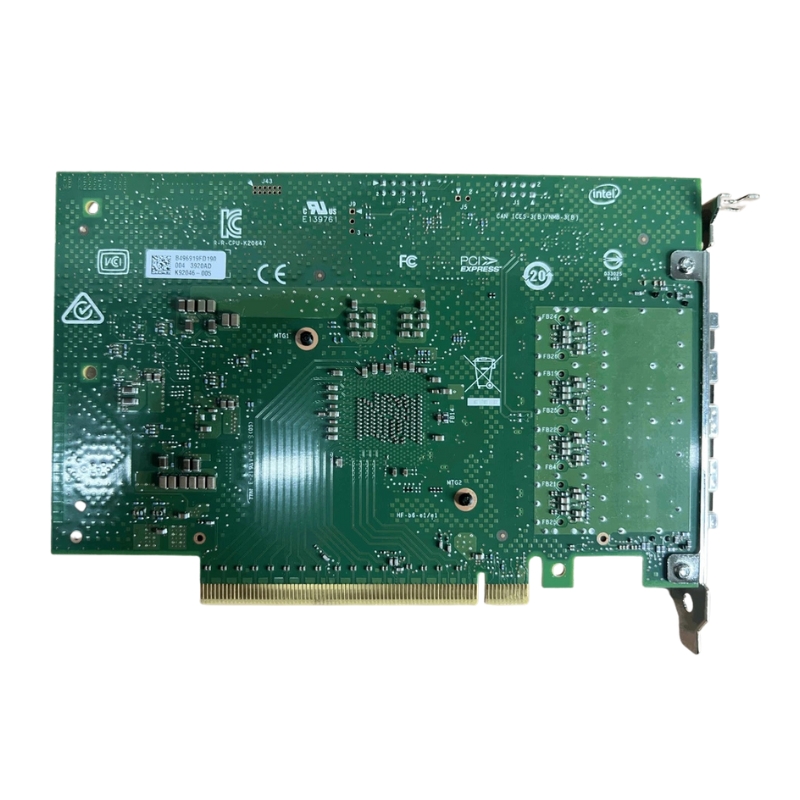

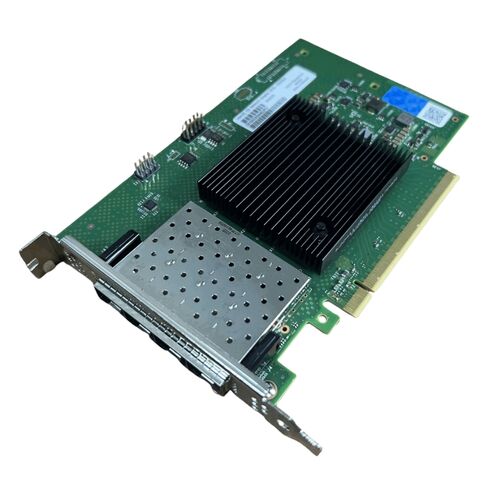

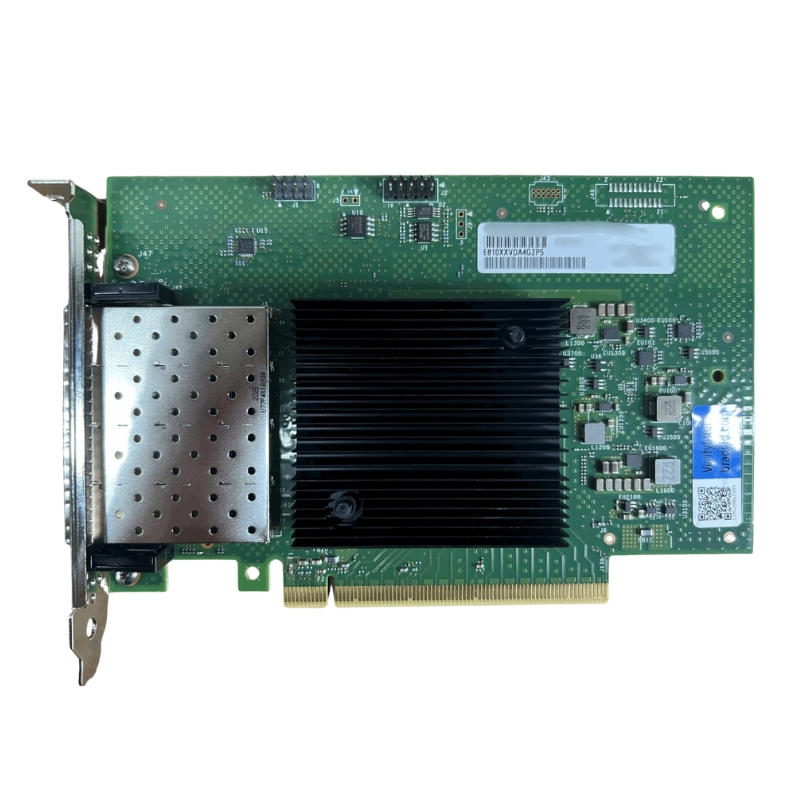

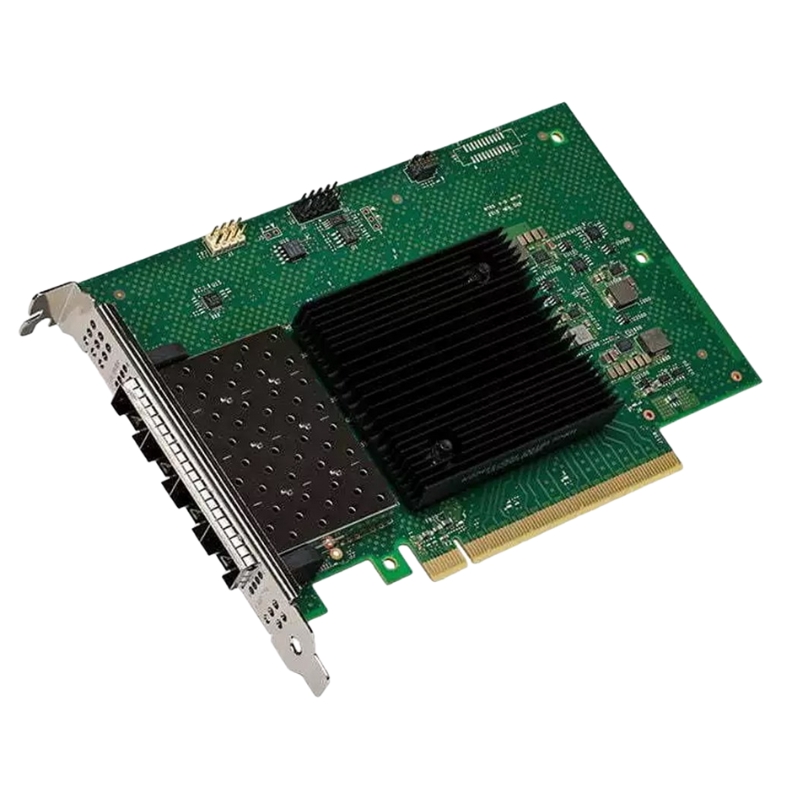

540-BDDQ Dell Intel E810 10/25GbE SFP28 PCI-E 4-Port Network Adapters

Highlights of Dell 10/25GbE SFP28 Adapters

The Dell 540-BDDQ Intel E810 Quad-Port 10/25GbE SFP28 PCIe Adapter is a high-performance enterprise-grade networking solution engineered for ultra-fast connectivity. With PCI Express 4.0 support and four SFP28 ports, this adapter ensures reliable throughput, scalability, and efficiency for modern data centers, virtualization, and cloud infrastructures.

Main Specification

• Manufacturer: Dell
• Model Number: 540-BDDQ
• Product Type: Network Adapter

Technical Highlights

• Form Factor: Plug-in Card (Full-Height)
• Interface (Bus) Type: PCI Express 4.0 x16
• PCI Specification Revision: PCIe 3.0, PCIe 4.0

Port Configuration

• Ports: Quad-port (4 x SFP28)
• Port Type: SFP28 (Small Form-Factor Pluggable 28)
• Data Transfer Rate: Up to 25Gbps per port
• Supported Speeds: 1GbE / 10GbE / 25GbE Ethernet
• Connectivity Technology: Wired

Network Protocols

• iSCSI
• iWARP
• NFS

Advanced Features

• RDMA Support (Remote Direct Memory Access)
• Virtual Machine Device Queues (VMDq)
• Single Root I/O Virtualization (SR-IOV)
• Data Direct I/O Technology (DDIO)
• RDMA over Converged Ethernet (RoCE v2)
• Flexible Port Partitioning (FPP)
• Intelligent Offloads for optimized performance
• On-chip QoS and traffic management

Interfaces

• 2 x 1GbE / 10GbE / 25GbE Ethernet - SFP28

Dell 540-BDDQ Intel E810 10/25 PCI-E SFP28 Adapter Overview

The Dell 540-BDDQ Intel E810 10/25 Gigabit Ethernet SFP28 PCI-E 4 Ports Network Adapter represents a high-performance networking solution engineered for modern data-intensive infrastructures. Designed to deliver ultra-low latency and high bandwidth throughput, this adapter supports next-generation workloads across cloud computing, virtualization environments, enterprise data centers, and high-performance storage architectures. It integrates Intel’s advanced Ethernet controller technology with Dell’s enterprise-grade system compatibility, ensuring seamless deployment in mission-critical server environments where stability, scalability, and speed are essential.

Core Design Philosophy of the Adapter

At the foundation of this network adapter lies a design philosophy centered on efficiency, scalability, and reliability. It is built to handle increasing network demands driven by virtualization density, distributed computing, and storage-intensive applications. The adapter’s architecture is optimized to reduce CPU overhead while maximizing packet processing efficiency, allowing enterprise servers to allocate more resources to application workloads rather than network processing tasks.

Intel E810 Controller Architecture and Engineering Strength

Advanced Ethernet Controller Capabilities

The Intel E810 controller embedded within the Dell 540-BDDQ network adapter is engineered to support high-density traffic environments with enhanced packet processing capabilities. It introduces improved hardware acceleration, optimized queue management, and intelligent load balancing across multiple network flows. This enables consistent performance even under heavy concurrent workloads, making it suitable for large-scale virtualization clusters and cloud-native infrastructures.

Hardware Offloading and Performance Optimization

The controller significantly reduces CPU utilization through advanced offloading techniques that manage checksum calculations, segmentation tasks, and network traffic distribution. By offloading these operations to dedicated hardware, the system achieves higher throughput and lower latency, which is particularly beneficial in environments where microsecond-level performance differences impact application responsiveness.

Multi-Queue Processing Efficiency

The architecture supports multiple transmit and receive queues that distribute workloads evenly across CPU cores. This improves parallel processing efficiency and reduces bottlenecks in high-traffic scenarios, ensuring consistent packet delivery rates across virtual machines and containerized workloads.

PCI Express 4.0 Interface Performance Advantage

High-Bandwidth Data Path Integration

The PCI-E 4.0 interface integrated into the Dell 540-BDDQ adapter provides a significant leap in data transfer bandwidth compared to previous generations. With doubled throughput capabilities, this interface ensures that the network adapter can fully utilize 10GbE and 25GbE link speeds without being constrained by host bus limitations. This makes it ideal for modern servers requiring sustained high-speed data flow between storage, compute, and networking layers.

Reduced Latency Through PCIe Optimization

The architecture minimizes latency by optimizing the communication path between the network controller and system memory. This reduction in latency is crucial for latency-sensitive applications such as real-time analytics, financial trading systems, and distributed AI workloads where every microsecond of delay impacts system performance.

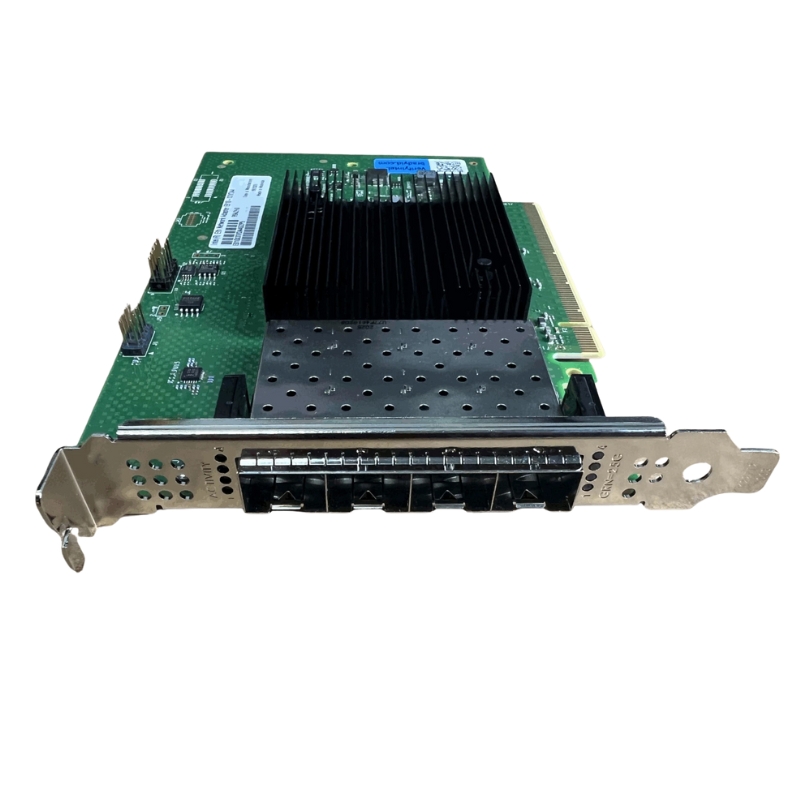

SFP28 Port Architecture and Optical Connectivity Design

Flexible Fiber Optic Deployment Options

The inclusion of SFP28 ports provides flexibility in deploying optical fiber or direct attach copper connections, allowing organizations to tailor their network infrastructure based on distance, bandwidth, and cost requirements. These ports support both short-range and long-range optical transceivers, enabling scalable network architecture across different layers of data center design.

Scalability Across Network Topologies

SFP28 interfaces are widely used in spine-leaf and leaf-spine network topologies, where high-speed, low-latency communication between switches and servers is essential. The Dell 540-BDDQ adapter seamlessly integrates into such architectures, ensuring compatibility with modern Ethernet switching fabrics.

Hot-Swappable Transceiver Compatibility

The adapter supports hot-swappable transceivers, enabling maintenance and upgrades without system downtime. This feature enhances operational continuity in enterprise environments where uptime is a critical performance metric.

10GbE and 25GbE Dual-Speed Network Adaptability

Dynamic Bandwidth Allocation

One of the most powerful features of this network adapter is its ability to support both 10 Gigabit and 25 Gigabit Ethernet speeds. This dual-speed functionality allows data centers to transition gradually from legacy infrastructure to higher-speed networks without requiring immediate full-scale hardware replacement.

Optimized Network Transition Strategy

Organizations can deploy this adapter in mixed-speed environments where certain workloads require 10GbE connectivity while others benefit from 25GbE throughput. This flexibility ensures cost-effective scalability and reduces the need for complete infrastructure overhauls during network upgrades.

Virtualization and Multi-Tenant Environment Optimization

Enhanced Virtual Machine Networking Performance

The Dell 540-BDDQ adapter is optimized for virtualized environments, supporting high-density virtual machine deployments with efficient traffic segmentation and isolation. Each virtual machine benefits from dedicated bandwidth allocation and reduced packet contention, resulting in improved application performance and responsiveness.

SR-IOV and Virtual Function Acceleration

Single Root I/O Virtualization enables the adapter to present multiple virtual interfaces directly to guest operating systems. This reduces hypervisor overhead and allows virtual machines to access physical network resources more directly, improving throughput and reducing latency in multi-tenant environments.

Network Resource Isolation and Security

Virtual function segmentation ensures that workloads remain isolated at the network level, enhancing security and preventing interference between tenants in shared infrastructure environments.

Cloud Computing and Data Center Integration

Support for Hyperscale Infrastructure

This network adapter is designed to meet the demands of hyperscale cloud environments where scalability, redundancy, and performance consistency are critical. It supports distributed computing frameworks and large-scale application deployment models commonly used in cloud service providers and enterprise hybrid cloud systems.

Load Distribution in Cloud Architectures

The adapter enables intelligent traffic distribution across multiple nodes in cloud environments, ensuring balanced utilization of compute and storage resources. This contributes to improved system efficiency and reduced congestion during peak usage periods.

Storage Networking and NVMe Over Fabrics Support

High-Speed Storage Communication Pathways

The Dell 540-BDDQ adapter plays a crucial role in enabling high-speed storage networking through NVMe over Fabrics architectures. It allows direct communication between storage arrays and compute nodes using low-latency Ethernet transport mechanisms, significantly improving data access speeds compared to traditional storage protocols.

Acceleration of Distributed Storage Systems

By supporting advanced network storage protocols, the adapter reduces bottlenecks in distributed storage systems and enhances the performance of databases, analytics engines, and virtualized storage pools.

RDMA over Converged Ethernet Implementation

Low-Latency Data Transfer Mechanisms

Remote Direct Memory Access support enables direct memory-to-memory data transfer between servers without involving CPU intervention. This significantly reduces latency and increases throughput in high-performance computing environments.

Enhanced HPC and AI Workload Efficiency

RDMA capabilities make this adapter suitable for artificial intelligence training clusters, machine learning pipelines, and scientific computing workloads where high-speed inter-node communication is essential for performance scaling.

Security and Network Integrity Features

Hardware-Based Security Acceleration

The adapter integrates security acceleration features that help offload encryption and decryption processes from the CPU. This ensures secure data transmission while maintaining high network throughput, which is essential in compliance-driven industries such as finance and healthcare.

Secure Boot and Firmware Protection

Embedded firmware protection mechanisms ensure that only authenticated firmware is executed on the device, reducing the risk of malicious attacks at the hardware level and improving overall system integrity.

Dell Server Compatibility and Enterprise Integration

Seamless Integration with Dell PowerEdge Systems

The Dell 540-BDDQ adapter is specifically optimized for integration with Dell PowerEdge server architectures, ensuring compatibility with BIOS configurations, firmware management tools, and enterprise monitoring systems. This results in simplified deployment and maintenance across large-scale server environments.

Unified Management and Monitoring

System administrators can manage network performance, firmware updates, and configuration settings through centralized Dell management tools, enabling streamlined operations and reduced administrative overhead.
