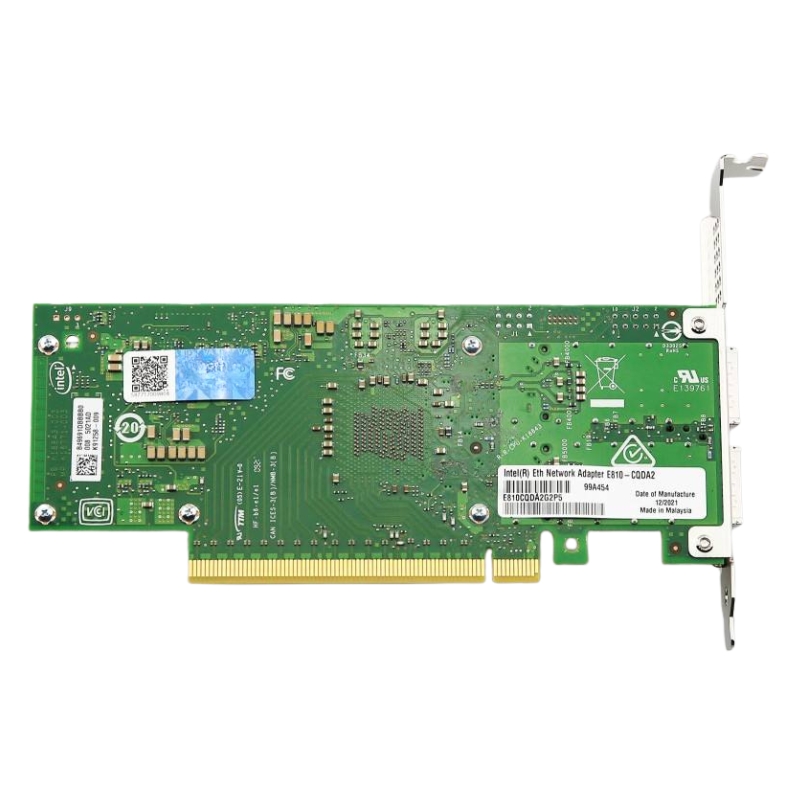

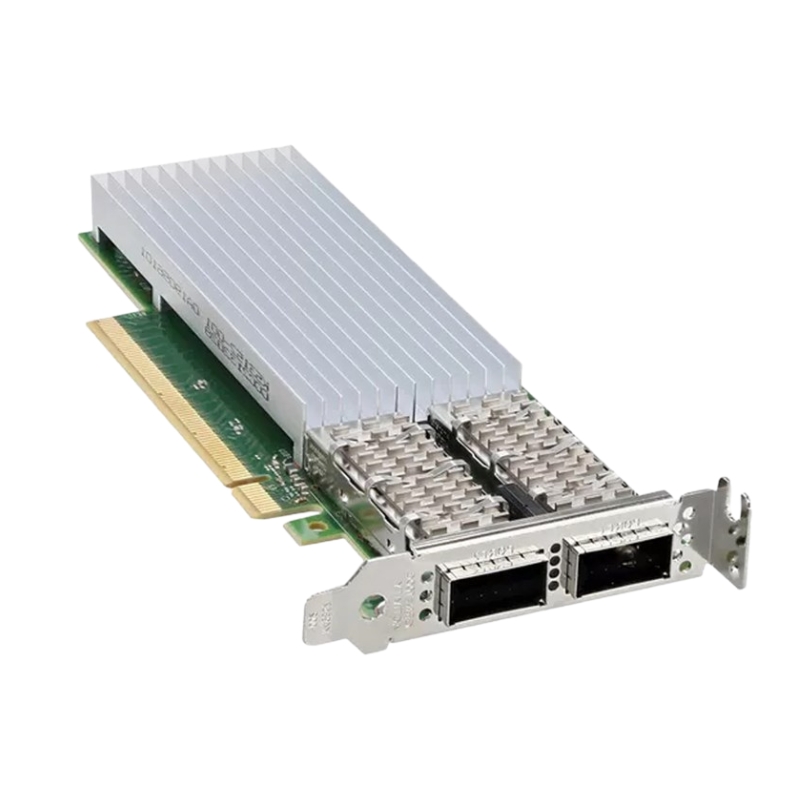

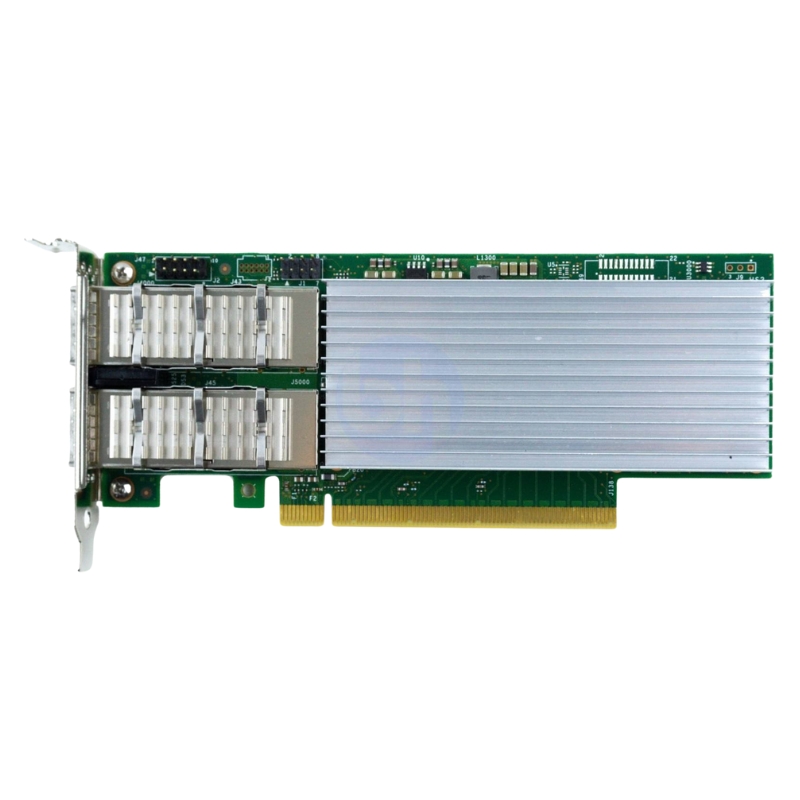

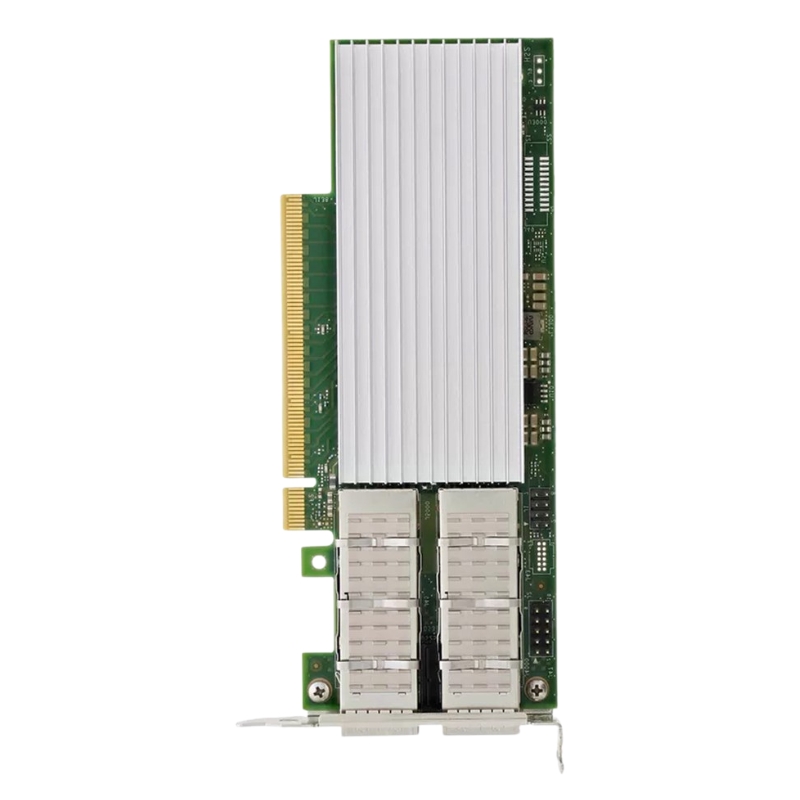

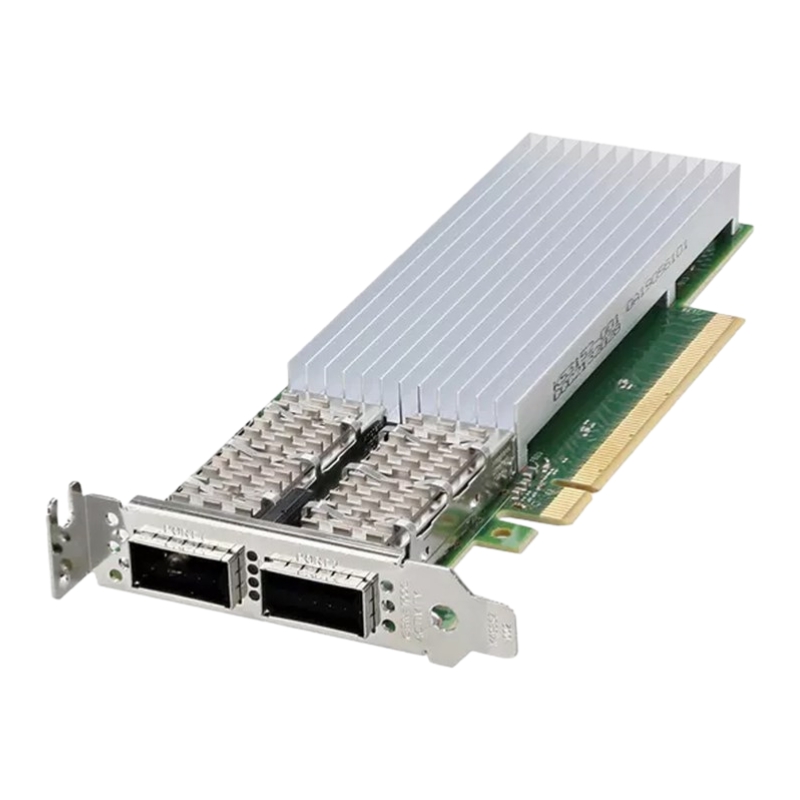

540-BDDV Dell Intel E810-CQDA2 100Gb Dual-Port PCI Express Adapter

Details of Dell 100GB PCIE Adapter

The Dell 540-BDDV Intel E810-CQDA2 Dual-Port 100GbE QSFP28 PCIe Adapter is a high-performance enterprise-grade networking solution engineered for ultra-fast connectivity. With PCI Express 4.0 support and QSFP28 ports, this adapter ensures reliable throughput, scalability, and efficiency for modern data centers, virtualization, and cloud infrastructures.

Main Information

• Brand: Dell
• Part Number: 540-BDDV
• Device Type: Network Adapter

Technical Specifications

• Form Factor: Plug-in Card
• Interface (Bus) Type: PCI Express 4.0 x16
• PCI Specification Revision: PCIe 3.0, PCIe 4.0

Port Configuration

• Ports: Dual-port (2 x QSFP28)
• Port Type: QSFP28 (Quad Small Form-Factor Pluggable 28)
• Data Transfer Rate: Up to 100Gbps per port (200Gbps aggregate)
• Connectivity Technology: Wired

Network Protocols

• Gigabit Ethernet
• 10 Gigabit Ethernet
• 25 Gigabit LAN
• 50 Gigabit LAN
• 100 Gigabit Ethernet

Supported Transport Protocols

• iSCSI
• iWARP
• NFS

Remote Management Protocols

• SNMP (Simple Network Management Protocol)
• RMON (Remote Monitoring)

Advanced Features

• RDMA Support (Remote Direct Memory Access)
• Extended Message-Signaled Interrupts (MSI-X)
• Differentiated Services Code Point (DSCP) Support
• RDMA over Converged Ethernet (RoCE v2)
• Virtual Machine Device Queues (VMDq)
• Single Root I/O Virtualization (SR-IOV)
• Data Direct I/O Technology (DDIO)
• Flexible Port Partitioning (FPP)
• Intelligent Offloads for optimized performance
• On-chip QoS and traffic management

Compliance Standards

• IEEE 802.1p

Physical Dimensions

• Dimensions (WxDxH): 6.6 in x 2.7 in

Environmental Parameters

• Minimum Operating Temperature: 32 °F
• Maximum Operating Temperature: 131 °F
• Humidity Range Operating: 90% (non-condensing)

Dell 540-BDDV Intel E810-CQDA2 100GBE Adapter Overview

The Dell 540-BDDV Intel E810-CQDA2 100Gb Dual-Port PCI Express Ethernet Network Adapter is designed for organizations that require exceptional network throughput, ultra-low latency, and enterprise-class reliability. As modern data centers continue to process increasing amounts of information, the demand for high-bandwidth network connectivity has become critical. This dual-port 100Gb Ethernet adapter provides a powerful solution for cloud computing infrastructures, virtualization platforms, software-defined networking environments, artificial intelligence workloads, high-performance computing clusters, and mission-critical enterprise applications.

Built on Intel’s advanced Ethernet controller architecture, this network adapter delivers exceptional packet processing efficiency and robust traffic management capabilities. The adapter is engineered to support next-generation networking standards while ensuring compatibility with existing enterprise infrastructures. Its PCI Express interface provides the bandwidth necessary to maximize data transfer rates and eliminate network bottlenecks in demanding environments.

Enterprise-Class Network Connectivity

Organizations deploying large-scale applications require dependable network hardware capable of sustaining continuous operations. The Dell 540-BDDV adapter enables businesses to establish highly efficient network connections across servers, storage systems, and distributed computing resources. By supporting dual-port 100Gb Ethernet connectivity, the adapter allows administrators to implement redundancy, failover configurations, and increased aggregate bandwidth.

The architecture of this adapter helps organizations meet performance requirements associated with modern workloads. Whether supporting virtual machines, containerized applications, large databases, analytics platforms, or cloud-native services, the adapter delivers consistent performance across a wide range of networking scenarios.

Intel E810 Controller Architecture

Advanced Ethernet Technology

The Intel E810 controller integrated within the Dell 540-BDDV network adapter represents a sophisticated networking platform designed to address the challenges of modern enterprise infrastructures. The controller incorporates intelligent packet handling mechanisms that improve network efficiency while minimizing CPU utilization.

By offloading network-intensive operations from the host processor, the adapter helps optimize overall server performance. This capability becomes especially valuable in data centers where multiple workloads compete for computing resources. The result is improved application responsiveness and enhanced system scalability.

Intelligent Traffic Processing

Modern network environments generate significant amounts of traffic that must be processed efficiently. The Intel E810 controller includes advanced traffic management capabilities that help prioritize critical workloads while maintaining consistent throughput across all connected systems. These technologies contribute to improved network responsiveness and predictable application performance.

Scalable Network Infrastructure Support

As businesses expand their operations, network requirements often increase dramatically. The Dell 540-BDDV adapter is designed to support scalable infrastructure growth by providing the bandwidth necessary for future expansion. Organizations can confidently deploy this adapter as part of long-term networking strategies aimed at supporting evolving business requirements.

Dual-Port 100Gb Ethernet Performance Benefits

Enhanced Bandwidth Availability

Dual-port connectivity provides significant advantages over single-port network configurations. Each 100Gb Ethernet port can operate independently, allowing administrators to separate workloads, create redundant paths, or aggregate bandwidth according to operational requirements. This flexibility helps optimize network utilization while improving overall infrastructure resilience.

High-bandwidth connectivity is particularly important for applications involving large-scale data transfers, backup operations, distributed storage systems, and real-time analytics platforms. The adapter's substantial throughput capacity enables organizations to accelerate data movement while minimizing delays associated with network congestion.

Reduced Network Bottlenecks

Network bottlenecks can negatively impact application performance and user experience. By delivering 100Gb Ethernet connectivity through each port, the Dell 540-BDDV helps eliminate throughput limitations commonly encountered in traditional networking environments. Faster communication between servers and storage resources contributes to improved operational efficiency.

Optimized Data Transfer Operations

Data-intensive workloads require consistent and predictable network performance. The adapter's high-speed architecture supports rapid transfer of large files, virtual machine migrations, database replication activities, and cloud service communications. These capabilities help organizations achieve greater productivity and improved resource utilization.

PCI Express Integration and System Compatibility

High-Speed PCIe Connectivity

The PCI Express interface serves as the communication bridge between the network adapter and host server. High-bandwidth PCIe connectivity ensures that network traffic can be transferred efficiently without creating internal bottlenecks. This architecture enables the adapter to fully utilize available Ethernet bandwidth while maintaining low latency.

Modern enterprise servers rely on PCIe technology to support advanced expansion devices. The Dell 540-BDDV leverages this architecture to deliver superior networking performance suitable for demanding workloads and large-scale deployments.

Server Platform Compatibility

Compatibility is a critical consideration when deploying enterprise networking hardware. The Dell 540-BDDV is engineered to integrate seamlessly with compatible Dell PowerEdge servers and supported enterprise platforms. This compatibility simplifies deployment procedures and helps reduce implementation complexity.

Efficient Resource Utilization

The adapter's optimized PCIe communication capabilities allow systems to achieve higher levels of efficiency. By minimizing communication overhead and maximizing throughput, organizations can extract greater value from existing server investments while improving overall infrastructure performance.

Data Center Networking Applications

Cloud Computing Infrastructure

Cloud computing environments require reliable, high-bandwidth connectivity to support dynamic workloads and distributed services. The Dell 540-BDDV enables cloud operators to maintain fast communication between compute resources, storage arrays, and networking equipment. This capability supports efficient workload distribution and responsive service delivery.

Private Cloud Deployments

Organizations building private cloud infrastructures benefit from the adapter's high-speed connectivity and advanced management features. The ability to support multiple tenants, virtualized workloads, and resource-intensive applications makes the adapter a valuable component within modern cloud environments.

Hybrid Cloud Connectivity

Hybrid cloud strategies often involve extensive data exchange between on-premises systems and external cloud platforms. The adapter's high throughput helps facilitate seamless communication between these environments while maintaining performance and reliability standards.

Virtualization Platforms

Virtualized infrastructures generate substantial network traffic as virtual machines communicate with storage systems, management platforms, and external networks. The Dell 540-BDDV provides the bandwidth necessary to support large numbers of virtual machines while maintaining consistent performance.

Virtual machine migration activities, disaster recovery operations, and resource balancing procedures benefit significantly from the adapter's high-speed connectivity. These capabilities contribute to greater operational flexibility and improved infrastructure management.

Artificial Intelligence and High-Performance Computing Workloads

AI Cluster Networking

Artificial intelligence training environments require extremely fast communication between servers, accelerators, and storage resources. The Dell 540-BDDV helps support these demanding workloads by delivering low-latency, high-bandwidth connectivity that facilitates rapid data exchange.

Machine learning applications frequently process massive datasets that must be distributed across multiple systems. High-speed networking infrastructure is essential for maintaining efficient workflow execution and reducing training times.

Accelerated Data Movement

Large AI datasets require continuous movement between storage and compute resources. The adapter enables organizations to transfer substantial volumes of information efficiently, helping maximize the utilization of expensive computing infrastructure.

Distributed Computing Efficiency

Distributed computing environments rely on fast inter-node communication. The dual-port 100Gb architecture supports rapid data exchange between cluster nodes, contributing to improved workload performance and enhanced computational efficiency.

Scientific Research Applications

Research institutions, engineering organizations, and scientific laboratories often require networking solutions capable of handling massive computational workloads. The Dell 540-BDDV supports these environments by delivering enterprise-grade performance suitable for simulation, modeling, and analytical applications.

Advanced Network Reliability Features

Redundancy and Failover Support

Business-critical applications require continuous network availability. The dual-port design enables organizations to implement redundancy strategies that reduce the risk of service interruptions. If one network path becomes unavailable, traffic can be redirected through alternate connections to maintain operational continuity.

Business Continuity Enhancement

Network downtime can result in lost productivity and revenue. By supporting resilient networking architectures, the Dell 540-BDDV helps organizations improve business continuity and reduce exposure to service disruptions.

Infrastructure Resilience

Enterprise data centers demand networking solutions capable of operating reliably under demanding conditions. The adapter's robust design supports long-term deployment within mission-critical environments where stability and consistency are essential.

Security and Network Management Capabilities

Enhanced Traffic Visibility

Effective network management requires visibility into traffic patterns and operational behavior. The Dell 540-BDDV supports advanced monitoring capabilities that help administrators identify performance trends, troubleshoot issues, and optimize resource utilization.

Operational Monitoring

Comprehensive monitoring features allow IT teams to track network performance metrics, identify potential bottlenecks, and implement proactive optimization strategies. These capabilities contribute to improved infrastructure management and greater operational efficiency.

Enterprise Security Integration

Modern organizations require networking hardware that aligns with broader security initiatives. The adapter supports enterprise networking environments where security policies, segmentation strategies, and compliance requirements play critical roles in infrastructure design.

Advantages for Modern Enterprise Networks

Future-Ready Infrastructure Investment

The Dell 540-BDDV Intel E810-CQDA2 100Gb Dual-Port PCI Express Ethernet Network Adapter provides organizations with a networking solution capable of addressing both current and future performance requirements. As data volumes continue to grow and applications become increasingly bandwidth-intensive, investing in high-speed networking infrastructure helps ensure long-term operational readiness.

Support for Emerging Technologies

Emerging technologies such as edge computing, artificial intelligence, machine learning, software-defined networking, and next-generation cloud services place increasing demands on network infrastructure. The adapter's advanced capabilities position organizations to support these technologies effectively while maintaining operational flexibility.
