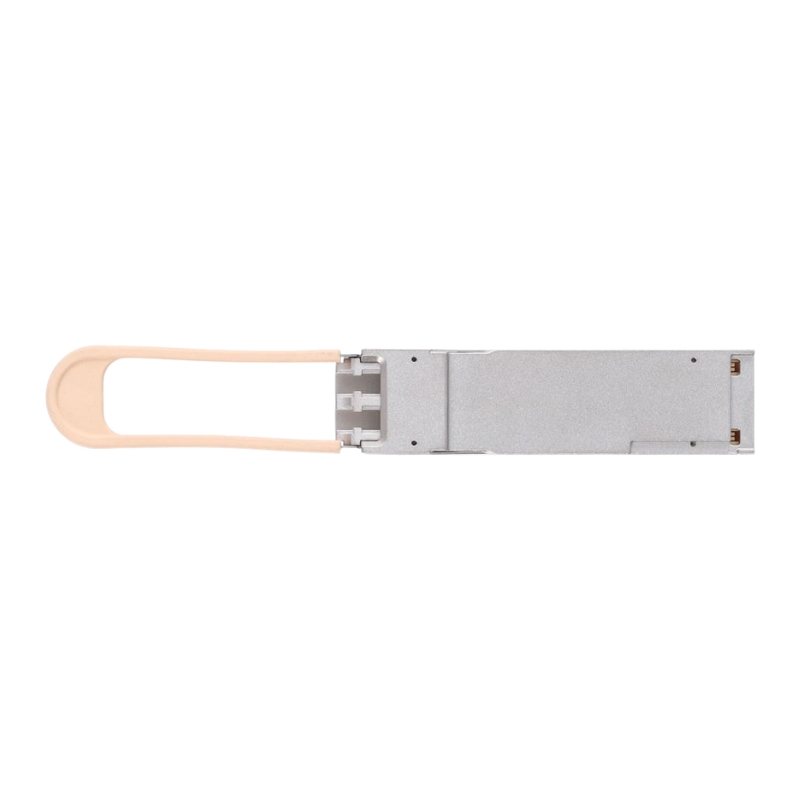

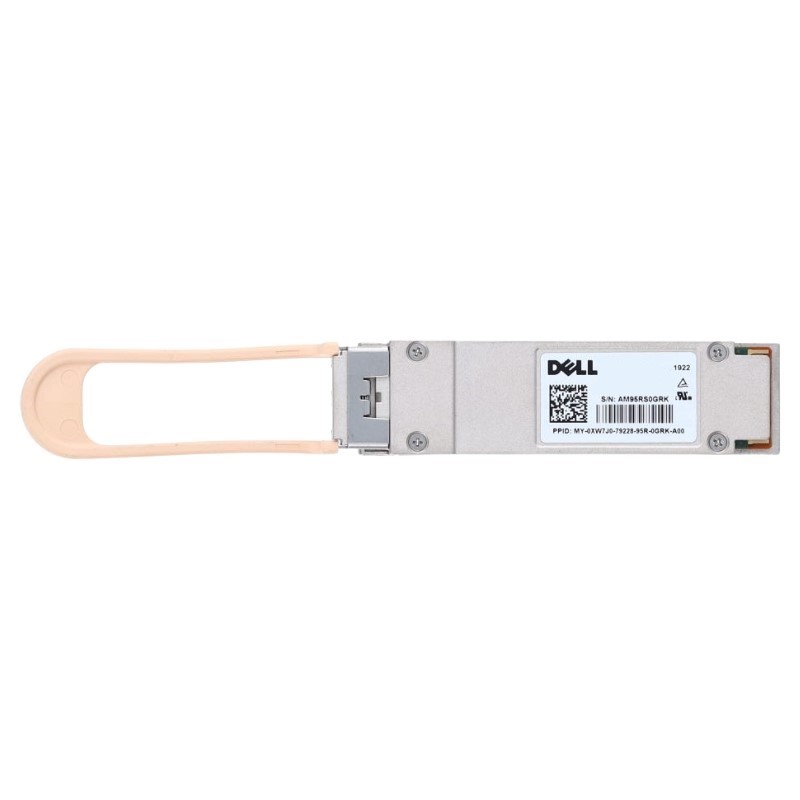

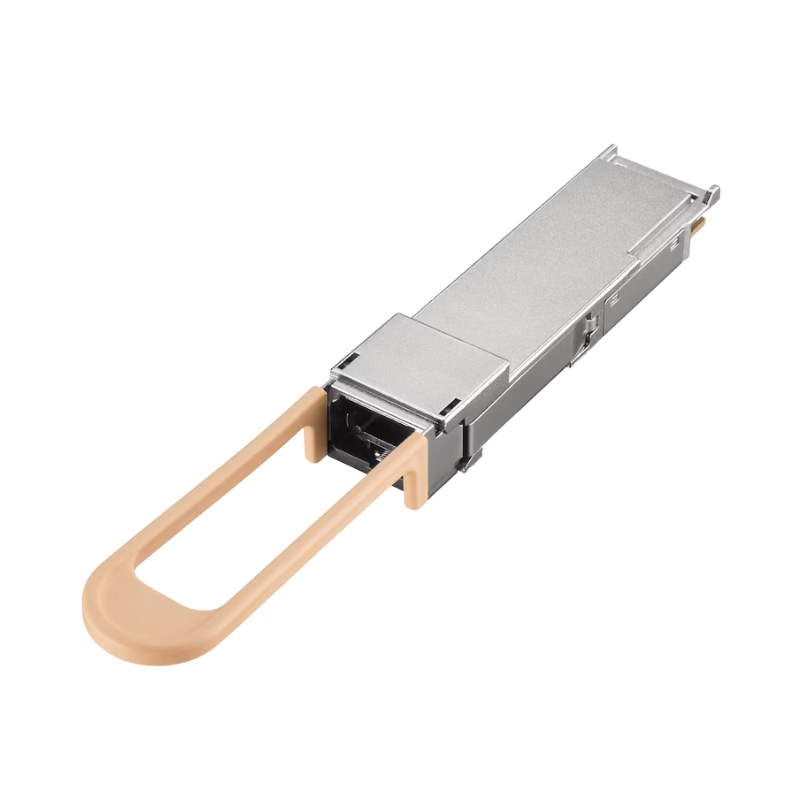

VJW01 Dell QSFP+ 40GbE Transceiver Module

Dell VJW01 QSFP+ 40GbE Transceiver Module Specifications

The Dell VJW01 QSFP+ Transceiver Module is engineered to provide reliable, high-speed 40 Gigabit Ethernet connectivity for enterprise networking environments. Designed with a compact plug-in form factor, this optical transceiver delivers dependable performance for data centers, campus networks, and high-bandwidth applications requiring fast and stable fiber connections.

Product Overview

• Manufacturer: Dell
• Model Number: VJW01
• Product Category: QSFP+ Transceiver Module
• Network Standard: 40 Gigabit Ethernet
• Device Type: Optical Plug-in Transceiver

Key Features of the Dell VJW01 Transceiver

• Supports ultra-fast 40 Gbps network transmission.
• QSFP+ interface enables quick installation and replacement.
• Optimized for 40GBASE-SR short-range fiber communication.
• 850 nm optical wavelength ensures efficient data transmission.
• Ideal for enterprise switches, routers, and networking equipment.
• Provides stable, low-latency connectivity for mission-critical applications.

Technical Specifications

Hardware Details

• Device Type: QSFP+ Optical Transceiver
• Form Factor: Plug-in Module
• Connectivity Technology: Wired
• Cabling Standard: 40GBASE-SR

Network Performance

• Maximum Data Transfer Speed: 40 Gbps
• Networking Protocol: 40 Gigabit Ethernet
• Optical Wavelength: 850 nm
• Maximum Transmission Distance: Up to 492 feet (150 meters)

Typical Applications

Enterprise and Data Center Networks

• Data center interconnects
• High-performance computing environments
• Enterprise LAN infrastructure
• Server-to-switch connectivity
• Storage area networks (SAN)
• Cloud infrastructure deployments

Dell VJW01 40 Gigabit Ethernet Transceiver Module Overview

The Dell VJW01 QSFP+ 40 Gigabit Ethernet Transceiver Module represents a high-performance optical networking component designed for modern data center, enterprise, and cloud-scale networking environments. Built to support ultra-fast data transmission rates of up to 40Gbps, this QSFP+ module is engineered to enable seamless connectivity between switches, routers, servers, and optical networking infrastructure. As part of Dell’s broader ecosystem of networking transceivers, the VJW01 module is widely utilized in high-density environments where bandwidth efficiency, low latency, and reliable optical performance are essential for mission-critical operations.

This category of transceiver modules is particularly significant in environments that demand scalable infrastructure with minimal signal degradation over short to medium distances. The Dell VJW01 QSFP+ module is commonly associated with 40G Ethernet standards and is optimized for compatibility within Dell Networking switches and supported third-party QSFP+ compliant hardware platforms.

QSFP+ 40G Ethernet Technology Foundation

Understanding QSFP+ Architecture

Quad Small Form-factor Pluggable Plus (QSFP+) is an advanced optical module interface designed to support high-density networking applications. Unlike traditional SFP or SFP+ modules that support single-channel or dual-channel transmission, QSFP+ integrates four independent lanes, each capable of 10Gbps data transfer, combining to achieve an aggregate bandwidth of 40Gbps. This architecture enables efficient utilization of switch ports while reducing physical footprint and energy consumption.

Lane Aggregation and Signal Processing

The VJW01 QSFP+ module uses parallel transmission technology, where data is split across four lanes and reassembled at the receiving end. This ensures consistent throughput while maintaining signal integrity over fiber connections. Advanced signal processing techniques, including encoding and error correction, help maintain stable transmission even in high-traffic networking environments.

40 Gigabit Ethernet Standards

The module aligns with IEEE 802.3ba standards for 40 Gigabit Ethernet, ensuring interoperability with compliant networking equipment. Depending on the specific optical variant, the module may support multimode fiber (MMF) for short-range applications or single-mode fiber (SMF) for long-distance transmission. The design flexibility allows enterprises to deploy scalable network architectures tailored to their infrastructure needs.

Dell VJW01 Module Technical Characteristics

Form Factor and Physical Design

The QSFP+ form factor used in the Dell VJW01 module is compact yet highly efficient, enabling high port density in modern network switches. Its hot-swappable design allows network administrators to install or replace modules without powering down systems, significantly reducing downtime and maintenance complexity.

Hot-Swappable Functionality

Hot-swappability ensures continuous network operation even during hardware upgrades or replacements. This is especially critical in enterprise environments where uptime is a key performance metric. The module’s robust connector interface ensures secure insertion and removal without signal loss or hardware damage.

Optical Interface and Connector Type

Depending on configuration, QSFP+ modules like the Dell VJW01 typically use MPO/MTP multi-fiber connectors for parallel optical transmission. These connectors are designed for high-density fiber environments and ensure precise alignment of fiber channels for optimal signal performance.

Connector Alignment Precision

The MPO/MTP interface ensures sub-micron precision alignment of optical fibers, minimizing insertion loss and maximizing signal efficiency. This precision is essential for maintaining high-speed 40Gbps transmission over fiber optic links.

Performance and Data Transmission Capabilities

Bandwidth Efficiency

The Dell VJW01 QSFP+ module delivers an aggregate bandwidth of 40Gbps, making it suitable for bandwidth-intensive applications such as virtualization, cloud computing, data analytics, and high-performance computing clusters. The module ensures low-latency communication, which is critical for real-time data processing environments.

Latency Optimization

Low latency is achieved through optimized optical signaling and efficient hardware design. By minimizing signal conversion delays and using parallel transmission lanes, the module ensures near-instantaneous data transfer across connected devices.

Distance Support and Optical Variants

Depending on fiber type, the VJW01 module can support varying transmission distances. Multimode fiber variants are typically used for short-range connections within data centers, while single-mode fiber variants extend connectivity across campus or metropolitan networks.

Short-Range MMF Applications

In multimode configurations, the module is ideal for intra-data-center connections, typically ranging from 100 meters to 150 meters depending on fiber grade. These deployments are common in rack-to-rack or row-to-row connectivity.

Long-Range SMF Applications

Single-mode fiber configurations allow significantly extended reach, often exceeding several kilometers. This makes the module suitable for inter-building connections and wide-area enterprise networking infrastructures.

Deployment Scenarios in Modern Networks

Data Center Networking

In hyperscale and enterprise data centers, the Dell VJW01 module is widely used to connect top-of-rack (ToR) switches to aggregation or spine layers. This architecture supports high-speed east-west traffic essential for virtualization and distributed computing systems.

Spine-Leaf Architecture Integration

The module plays a crucial role in spine-leaf network topologies, where low-latency and high-bandwidth interconnections are required between multiple network layers. Its 40G capacity ensures scalability and redundancy in large-scale environments.

Cloud Infrastructure Environments

Cloud service providers rely on QSFP+ modules like the VJW01 to handle massive data traffic between compute nodes, storage arrays, and network gateways. The high throughput ensures seamless user experiences and stable cloud services.

Enterprise Campus Networks

Beyond data centers, enterprise campus environments utilize the module for high-speed backbone connectivity between buildings, departments, and network distribution hubs.
